Suitable for Emergency, Peak and Prime
Power System Applications
TTHHEE PPOOWWEERR AAUUTTHHOORRIITTYY
Low Voltage Automatic T ransfer
Switch Systems
THE POWER AUTHORITY
ASCO’s experience and commitment to excellence in
designing and building Emergency Power Control
Systems for any application has made us the premier
manufacturing and service organization in the world.
For over 100 years we have built upon a tradition of
providing our customers a full range of high performance and quality products. ASCO’s experience
spans the history of the power control industry and
since 1888 we have set the standard for the entire
industry. Our reputation as the leader in emergency
power control equipment speaks to the quality of our
products and the dedication of our people.
ASCO operates two modern facilities dedicated to
manufacturing low and medium voltage power control
systems. Located in Parsippany, New Jersey and
Stockton, California, these manufacturing plants
produce state-of-the-art power control systems for
emergency or standby power generation, peak load
shaving, prime power, parallel with utility, cogeneration, emergency load management and power
distribution. These products are designed and
manufactured to meet and exceed the demands of a
growing global market.
Our ongoing dedication to research & development
and extensive testing have confirmed ASCO products
as the industry standard. Since our beginnings this
same dedication has established ASCO as the
pioneering innovator in the emergency power control
industry. This commitment continues to set ASCO
apart as the company that stands at the threshold of
new technologies and has resulted in a long list of
industry firsts throughout the years.
ASCO has always been committed to providing a
full range of products with only one thing in
mind... transferring power from an available source to
a critical load. Telecommunications systems, data
networks, industrial processes and critical installations
demand proven emergenc y and standby po wer transfer
solutions. As the worlds leader in emergency and
standby power ,ASCO products and systems safeguard
your business... because we keep your power on.
Page 2
Fig. 1 Parsippany, New Jersey, USA
Fig. 2 Stockton, California, USA
Automatic Transfer Systems
Product Overview
Content Page
Service Entrance Rated Transfer System ............................................. 4
ATS Switchboard .................................................................................. 5
Two Source Automatic Transfer System .............................................. 6
Three Source ATS System .................................................................... 7
Three Source Priority System .............................................................. 8
Soft Load Transfer System ................................................................... 9
Custom Applications ....................................................................... 10-11
Page 3
For more information on ASCO Automatic Transfer Systems contact your
nearest ASCO source at 800-937-ASCO or visit our website at www.asco.com.
Service Entrance Rated Transfer System
ASCO service entrance rated transfer systems are designed
for automatic switching of loads between the utility source
and an alternate source of power. The transfer system also
contains a disconnect device on the normal source, plus a
disconnect link on the utility neutral, and a disconnect link
between neutral and ground. If the utility source is Y
connected, the voltage is greater than 250 volts phase to
neutral and the system continuous current is greater than
1000 amperes, the utility disconnect device will be equipped
with ground fault trip.
Figure 3 shows a typical service entrance rated transfer
system with a 1200 ampere automatic transfer switch and a
1200 ampere utility circuit breaker.
Product Features
• The utility disconnect device will be equipped with
ground fault trip if the voltage between neutral and
ground is greater than 250 volts, and the continuous
current is greater than 1000 amperes.
• Disconnect link for the utility neutral bus.
• Disconnect link between the neutral bus and the
ground bus.
• Meets all NEC requirements for service entrance
rating, and is labeled to UL 891 standards.
• Available up through 4000 amperes using ASCO
940, 962, 434, 436 and ASCO's new 7000 series
automatic transfer switches.
Page 4
Neutral
Disconnect
Link
Ground
Disconnect
Link
GFCT
Utility
Utility
CB
ATS
Emergency
Load
N
Ø
N
Ø
Fig. 4 One line diagram of the service entrance
rated transfer system shown in figure 3.
GFCT Ground Fault
Current
Transformer
ATS - Automatic
Transfer Switch
Acc. 28
Fig. 3 Service entrance rated transfer system.
ATS Switchboards
An automatic transfer switchboard is a switchboard containing two or more automatic transfer
switches in a common line-up. The switchboard
shown in figure 5 contains two ASCO 962, 2000
ampere, automatic transfer bypass-isolation
switches with circuit breakers on the normal and
load side of each switch. An ammeter and voltmeter are also located on the load side of each
switch.
Product Features
• Connects multiple automatic transfer switches
together in a common switchboard.
• Optional normal and/or emergency circuit
breakers for overcurrent protection.
• Optional distribution circuit breakers of the size and
type to meet customer load requirements.
• Optional instrument meters for normal,
emergency, or load for local monitoring.
• Designs can be provided with a UL 891 Label
containing up through a 10,000 ampere main bus.
• Utilizes ASCO 940, 962, 434, 436 and ASCO's new
7000 series automatic transfer switches.
Page 5
Source #1
ATS/BP #1
ATS/BP #2
Source #2
Load
Load
Circuit
Breaker
Circuit
Breaker
Circuit
Breaker
Circuit
Breaker
43
A
43
V
43
A
43
V

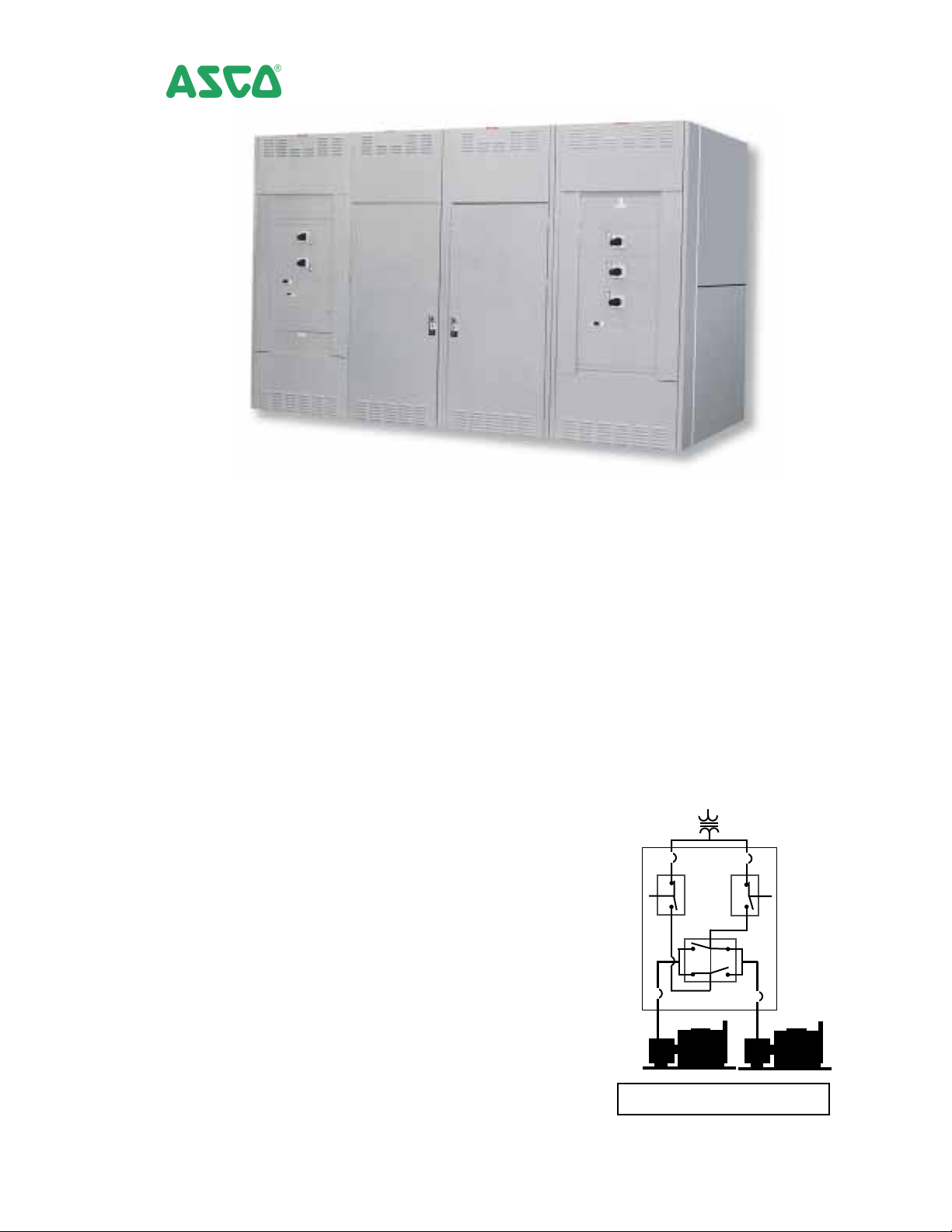

Fig. 5 Automatic transfer switchboard.
Fig. 6 One line diagram of the automatic transfer switchboard shown in figure 5.
V - Voltmeter
A - Ammeter
43 - Selector Switch
ATS/BP - Automatic Transfer and
Bypass-Isolation Switch
Two Source Automatic Transfer System
ASCO two-source systems are designed for automatic switching of
loads between the utility source and an alternate source of power.
Upon the loss of the utility power source, the system provides an
automatic start signal to the alternate source of power. Once the
alternate source has reached proper voltage and frequency, the
system transfers the critical load from the utility source to the
alternate power source. When normal po wer is restored the controls
will retransfer the load to the utility and signal shutdown of the
alternate power source after allowing a cooldown period.
ASCO two-source systems include an automatic transfer switch,
plus any or all of the following options; automatic engine starting
controls, overcurrent protection for both emergency and normal
sources, instrument meters, status annunciation, and audible alarm.
The systems are designed to NEMA switchboard construction and
are labeled to UL 891 standards.
These systems can be designed for top cable entrance, bottom cable
entrance or bus duct connections.
The system shown in figure 7 contains a 1200 ampere closed
transition automatic transfer switch with a 1200 ampere utility
circuit breaker, multi-purpose meter, reverse power relay, and an
alarm horn.
Product Features
• Normal, emergency, and/or load circuit breakers.
• Protective relaying (as required).
• Optional instrument meters for normal, emergency,
or load for local monitoring.
• Designs are based on NEMA and UL 891 standards.
• Optional engine start control logic and/or load
control logic.
• Designs available up to 4000 amperes utilizing
ASCO 940, 962, 434, 436 and ASCO's new 7000
series automatic transfer switches.
Page 6
Fig. 8 One line diagram of the two source
automatic transfer system shown in
figure 7.
Engine
MM
ATS
LOAD
Normal Source
32
MM = Multi-Purpose Meter
32 = Reverse Power Relay
ATS = Automatic Transfer Switch
Fig. 7 Two source system with main circuit breaker,
protective relaying and and automatic transfer
switch rated 1200 amperes.
Three Source
Automatic Transfer System
ASCO three-source systems are similar to ASCO twosource systems except that a second alternate power
source is added to back up the first if that power source
fails. Upon the loss of the utility power source, the
system provides all necessary controls to start both
alternate power sources. The critical loads are
automatically transferred to the first alternate power
source that achieves acceptable voltage and frequency.
The second alternate power source is then automatically shutdown after a time delay and cooldown period. If
the first alternate power source fails, the second
alternative power source will be automatically
re-started and the load will be transferred from the first
alternative po wer source to the second alternativ e power
source. When the normal power is restored, the
controls automatically retransfer the load to the utility
power source.
Figure 9 shows a three source automatic transfer system
with two 940 automatic transfer switches and three
distribution circuit breakers for feeding critical loads.
Product Features
• Control logic for selecting between the alternative
power sources.
• Normal, emergency, and/or load circuit breakers.
• Protective relaying (as required).
• Optional instrument meters for normal, emergency, or
load for local monitoring.
• Designs are based on NEMA and UL 891 standards.
• Optional engine start control logic and/or load control
logic.
• Designs available up to 4000 amperes utilizing ASCO
940, 962, 434, 436 and ASCO's new 7000 series
automatic transfer switches.
Page 7
ATS = Automatic Transfer Switch
Fig. 10 One line diagram of the three
source automatic transfer
system shown in figure 9.
Engine 1
Engine 2
ATS1
ATS2
NORMAL
SOURCE
Load
Circuit
Breakers

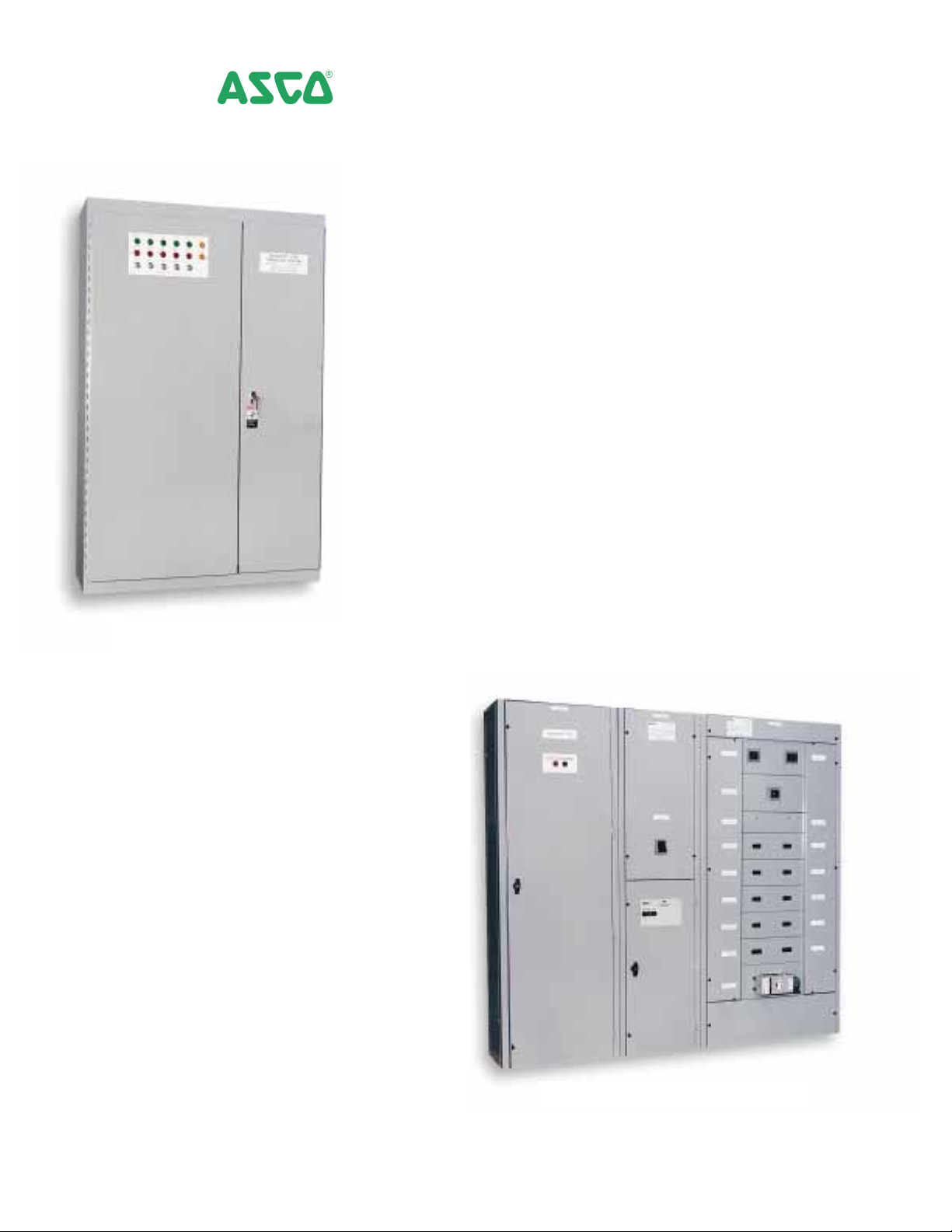

Fig. 9 Three source automatic transfer system.
Three Source Priority System
ASCO three-source priority systems are similar to the ASCO three-source systems except they protect two critical
loads rather than one critical load. Upon the loss of the utility power source, the system provides all necessary
controls to start both alternative power sources. The most critical load is transferred to the first alternate power
source that achieves acceptable voltage and frequency. The second most critical load is then transferred to the
second alternate power source when it achieves acceptable voltage and frequency. If the alternate power source
feeding the most critical load should fail, the most critical load would be transferred to the second alternate power
source and the second most critical load would be shed. When the utility power source is restored, the system
controls automatically retransfer the loads to the utility and both alternate power sources are run for a cooldown
period and then shutdown.
Figure 11 shows a three source priority system containing a priority selector transfer switch (ATS-2) and seven
distribution circuit breakers. ATS-1 and ATS-2 are wall mounted automatic transfer switches and are not shown in
this line-up.
Product Features
• Priority selector transfer switch.
• Control logic for selecting between alternate power sources
• Normal, emergency, and/or load circuit breakers.
• Protective relaying (as required).
• Optional instrument meters for normal, emergency, or load for local
monitoring.
• Designs are based on NEMA and UL 891 standards.
• Optional engine start control logic and/or load control logic.
• Designs available up through 4000 amperes utilizing ASCO 940, 962,
434, 436 and ASCO's new 7000 series automatic transfer switches.
Page 8
Fig. 12One line diagram of the three
source priority system shown in
figure 11.
Engine 1 Engine 2
NORMAL
SOURCE
No.1
Critical
Load
No. 2
Critical
Load
ATS - 1
ATS - 3
ATS - 2
ATS = Automatic Transfer Switch
Fig. 11Three source priority system.
Product Features
• Open or closed transition transfer between normal and emergency.
• Emergency or peak shave mode of operation.
• Engine start control logic and load control logic.
• Available configurations include either an ASCO 434, 436 or ASCO’s new
7000 Series closed transition transfer switches through 4000 amperes. The
transfer system configuration can also accommodate power circuit breakers.
• Normal and emergency circuit breakers can be provided when using a
transfer switch for overcurrent protection.
• Full manual paralleling operation (standard).
• Protective relaying (as required).
• Optional instrument meters for normal, emergency, or load for
local monitoring.
• Designs are based on NEMA and UL 891 standards.
Page 9
Soft Load Transfer System
ASCO soft load closed transition transfer switches provide a make-beforebreak transfer of a building load from a utility power source to an alternate
power source. This system automatically brings the engine generator into
synchronism with the utility source, then gradually shifts the load from the
utility to the engine generator with virtually no voltage or frequency
fluctuations.
Figure 13 shows a typical soft load transfer system containing an ASCO closed
transition transfer switch.
Fig. 14One line diagram of the soft load transfer
system shown in figure 13.
CTTS
KW
V
A
F
KW
32R
86
25C
90*
65*
43
V
47N
27
59
81
O/U
43
43
ASCO
Control Panel
Load
Alternate
Power
Source
Utility
Power
Source
Watt
XDCR
To 52G
Shunt Trip
SY
Ground 400A
Neutral 2000A
Phase 2000A
STB
STB
STB
V - Voltmeter
A - Ammeter
F - Frequency Meter
KW - Wattmeter
Watt XDCR - Watt Transducer
STB - Shorting Terminal Block
25C - Synch Check Relay
27/59 - Under/Over Voltage Relay
32R - Reverse Power Relay
47N - Phase Sequence Under
Voltage Relay
65 - Governor (*)
81O/U - Over/Under
Frequency Relay
90 - Voltage Regulator (*)
CTTS - Closed Transition
Transfer Switch
SY - Synchroscope
43 - Phase Selector Switch
86 - Lockout Relay
Note: * Furnished by
alternate power
source supplier
Fig. 13 Soft load transfer system.
Page 10
Custom Applications
Selective load systems allow one load at a time to be operated
when normal power fails. The system uses the minimum amount
of auxiliary power for operation so the alternate power source can
be sized for only one load at a time. The selective load system can
be designed to handle any number of loads in any combination of
sizes to suit the customers needs.
The only interfacing between the ASCO selecti ve load system and
the load controls are power cables.
The system can be used with any electrical load application where
only one load out of a number of loads are to be operated from the
alternate power source at one time. A typical application is with
multiple banks of elevators when you want to enable only one
elevator at a time to operate under emergency conditions.
The system can be supplied with a separate control panel, which
allows loads to be selected from a remote location.
Figure 15 shows a typical selective load system with transfer
switches for five loads. The control panel has a selector switch
and position indication of each load.
Selective Load System
Transfer Switch with Distribution System
Transfer switches can be provided with normal and
emergency circuit breakers for overcurrent
protection, plus any combination of distribution
circuit breakers, bolted pressure switches, or
fusible disconnect switches.
Figure 16 shows a switchboard containing a circuit
breaker on the normal source of the automatic
transfer switch plus a distribution panelboard of
molded case circuit breakers to protect critical
downstream loads. The cubicle on the left end of
the system provides monitoring and control of the
distribution system.
Fig. 16Transfer switch with distribution.
Fig. 15Selective load system.
Custom Applications
Page 11
Figure 17 shows a 4000 ampere transfer switch
with bus risers for bottom entry bus duct on both
the normal source and load connections. The
emergency side of the transfer switch has lugs for
cable connections from the top of the enclosure.
This demonstrates our capability to meet custom
service entry requirements.
Transfer Switch with Bottom Bus Risers
Figure 18 shows a transfer switch with a
fuse disconnect switch on the normal side.
The switch is in a non-walk-in NEMA 3R
outdoor enclosure. The outdoor enclosure
is designed for front and rear entry only
with three point catches on the doors as
well as provisions for padlocking.
Outdoor enclosures are available for all
ASCO transfer switch products.
Transfer Switch in an Outdoor Enclosure
Fig. 17Transfer switch with bottom bus riser.
Fig. 18Transfer switch in an outdoor enclosure.
Publication 3049
ASIA • AUSTRALIA • BRAZIL • CANADA • GERMANY • JAPAN • MEXICO • SOUTH AFRICA • UNITED ARAB EMIRATES • UNITED KINGDOM • UNITED STATES
Florham Park, New Jersey 07932 USA
© Automatic Switch Co. 1998
Printed in the U.S.A.
800-937-ASCO
www.asco.com
Loading...
