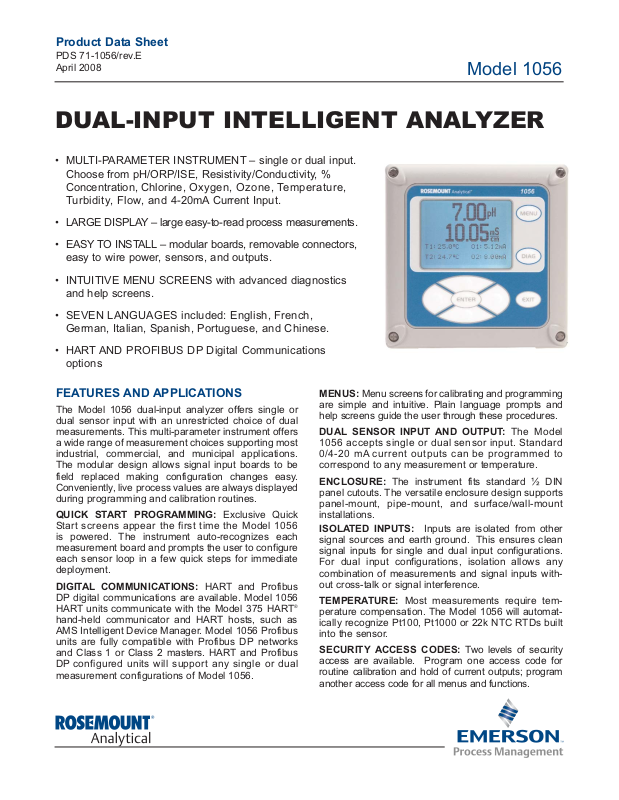

Model 1056
• MULTI-PARAMETER INSTRUMENT – single or dual input.
Choose from pH/ORP/ISE, Resistivity/Conductivity, %
Concentration, Chlorine, Oxygen, Ozone, Temperature,
Turbidity, Flow, and 4-20mA Current Input.
• LARGE DISPLAY – large easy-to-read process measurements.
• EASY TO INSTALL – modular boards, removable connectors,
easy to wire power, sensors, and outputs.
• INTUITIVE MENU SCREENS with advanced diagnostics
and help screens.
• SEVEN LANGUAGES included: English, French,
German, Italian, Spanish, Portuguese, and Chinese.
• HART AND PROFIBUS DP Digital Communications
options
FEATURES AND APPLICATIONS
The Model 1056 dual-input analyzer offers single or
dual sensor input with an unrestricted choice of dual
measurements. This multi-parameter instrument offers
a wide range of measurement choices supporting most
industrial, commercial, and municipal applications.
The modular design allows signal input boards to be
field replaced making configuration changes easy.
Conveniently, live process values are always displayed
during programming and calibration routines.
QUICK START PROGRAMMING: Exclusive Quick
Start screens appear the first time the Model 1056
is powered. The instrument auto-recognizes each
measurement board and prompts the user to configure
each sensor loop in a few quick steps for immediate
deployment.
DIGITAL COMMUNICATIONS: HART and Profibus
DP digital communications are available. Model 1056
HART units communicate with the Model 375 HART
®
hand-held communicator and HART hosts, such as
AMS Intelligent Device Manager. Model 1056 Profibus
units are fully compatible with Profibus DP networks
and Class 1 or Class 2 masters. HART and Profibus
DP configured units will support any single or dual
measurement configurations of Model 1056.
MENUS: Menu screens for calibrating and programming
are simple and intuitive. Plain language prompts and
help screens guide the user through these procedures.
DUAL SENSOR INPUT AND OUTPUT: The Model
1056 accepts single or dual sensor input. Standard
0/4-20 mA current outputs can be programmed to
correspond to any measurement or temperature.
ENCLOSURE: The instrument fits standard ½ DIN
panel cutouts. The versatile enclosure design supports
panel-mount, pipe-mount, and surface/wall-mount
installations.
ISOLATED INPUTS: Inputs are isolated from other
signal sources and earth ground. This ensures clean
signal inputs for single and dual input configurations.
For dual input configurations, isolation allows any
combination of measurements and signal inputs without cross-talk or signal interference.
TEMPERATURE: Most measurements require temperature compensation. The Model 1056 will automatically recognize Pt100, Pt1000 or 22k NTC RTDs built
into the sensor.
SECURITY ACCESS CODES: Two levels of security
access are available. Program one access code for
routine calibration and hold of current outputs; program
another access code for all menus and functions.
DUAL-INPUT INTELLIGENT ANALYZER
Product Data Sheet
PDS 71-1056/rev.E
April 2008
DIAGNOSTICS: The analyzer continuously monitors
itself and the sensor(s) for problematic conditions.
The display flashes Fault and/or Warning when these
conditions occur.
DISPLAY: The high-contrast LCD provides live
measurement readouts in large digits and shows up to
four additional process variables or diagnostic
parameters. The display is back-lit and the format can
be customized to meet user requirements.
LOCAL LANGUAGES :
Rosemount Analytical extends its worldwide reach by
offering seven local languages – English, French,
German, Italian, Spanish, Portuguese, and Chinese.
Every unit includes user programming menus; calibration
routines; faults and warnings; and user help screens
in all seven languages. The displayed language can
be easily set and changed using the menus.
CURRENT OUTPUTS: Two 4-20 mA or 0-20 mA current
outputs are electrically isolated. Outputs are fully scalable
and can be programmed to linear or logarithmic
modes. Output dampening can be enabled with time
constants from 0 to 999 seconds. Output 1 includes
digital signal 4-20 mA superimposed HART (option -HT
only)
SPECIAL MEASUREMENTS: The Model 1056 offers
measuring capabilities for many applications.
Single or Dual Turbidity: Ideal in municipal appli-
cations for measurement of low-NTU filtered drinking
water. Must be used with Clarity II sensor, sensor cable
and debubbler.
4-Electrode Conductivity:
The Model 1056 is compatible with Rosemount
Analytical 4-electrode Model 410VP in the PUR-SENSE
family of conductivity sensors. This sensor supports
a wide array of applications and is capable of measuring
a large range of conductivity with one geometric
configuration. Wired to the Model 1056, this sensor
can measure 2μS/cm to 300mS/cm with an accuracy of
4% of reading throughout the entire range.
4-20mA Current Input: Accepts any analog current
input from an external device for temperature compensation of measurements and atmospheric pressure
input for partial pressure correction of oxygen.
Selective Ions: The analyzer is able to measure
ammonia and fluoride using commercially available
ion-selective electrodes. All analyzers with installed pH
boards can be programmed to measure selective ions.
pH Independent Free Chlorine: With Rosemount
Analytical’s Model 498Cl-01 sensor, the analyzer is
able to measure free chlorine with automatic correction
for process pH without the need for a pH sensor.
Inferential pH: The analyzer is able to derive and
display inferred pH (pHCalc) using two contacting conductivity signal boards and the appropriate contacting
conductivity sensors. This method will calculate the
pH of condensate and boiler water from conductivity
and cation conductivity measurements.
Differential Conductivity: Dual input conductivity
configurations can measure differential conductivity.
The analyzer can be programmed to display dual
conductivity as ratio, % rejection, or % passage.
S1: 1.234µS/cm 25.0ºC
S2: 12.34pH 25.0ºC
Diagnostics
Faults
Warnings
Sensor 1
Sensor 2
Out 1: 12.05 mA
Out 2: 12.05 mA
1056-01-20-32-HT
Instr SW VER: 2.12
AC Freq. Used: 60Hz
Information about
each condition
is quickly accessible
by pressing DIAG on
the keypad. User
help screens are
displayed for most
fault and warning
conditions to assist in
troubleshooting.
Model T1056
Clarity II
Turbidimeter
System
2
3
SPECIFICATIONS - General
Enclosure: Polycarbonate. NEMA 4X/CSA 4 (IP65).
Dimensions: Overall 155 x 155 x 131mm (6.10 x 6.10 x
5.15 in.). Cutout: 1/2 DIN 139mm x 139mm (5.45 x 5.45 in.)
Conduit Openings: Accepts 1/2” or PG13.5 conduit
fittings
Display: Monochromatic graphic liquid crystal display.
128 x 96 pixel display resolution. Backlit. Active
display area: 58 x 78mm (2.3 x 3.0 in.).
Ambient Temperature and Humidity: 0 to 55°C
(32 to 131°F). Turbidity only: 0 to 50°C (32 to
12 2°F), RH 5 to 95% (non-condensing)
Storage Temperature Effect: -20 to 60ºC (-4 to 140°F)
Power: Code -01: 115/230 VAC ±15%, 50/60 Hz. 10W.
Code -02: 20 to 30 VDC. 15 W.
Code -03: 85 to 265 VAC, 47.5 to 65.0 Hz, switching.
15 W.
Note: Code -02 and -03 power supplies include
four programmable relays
Equipment protected by double insulation
Alarms relays*: Four alarm relays for process measurement(s) or temperature. Any relay can be configured as a fault alarm instead of a process alarm. Each
relay can be configured independently and each can
be programmed with interval timer settings.
*Relays only available with -02 power supply (20 - 30 VDC) or -03
switching power supply (85 - 265 VAC)
Relays: Form C, SPDT, epoxy sealed
Inputs: One or two isolated sensor inputs
Outputs: Two 4-20 mA or 0-20 mA isolated current out-
puts. Fully scalable. Max Load: 550 Ohm.
Current Output Accuracy: ±0.05 mA @25 ºC
Terminal Connections Rating: Power connector
(3-leads): 24-12 AWG wire size. Signal board terminal blocks: 26-16 AWG wire size. Current output
connectors (2-leads): 24-16 AWG wire size. Alarm
relay terminal blocks: 24-12 AWG wire size
(-02 24 VDC power supply and -03 85-265VAC
power supply)
Weight/Shipping Weight: (rounded up to nearest lb or
nearest 0.5 kg): 1.5 kg (3 lb)/2.0 kg (4 lb)
RFI/EMI: EN-61326
LVD: EN-61010-1
Hazardous Location Approvals - Options: -01, 20,
21, 22, 24, 25, 26, 30, 31, 32, 34, 35, 36, 38 and AN.
Class I, Division 2, Groups A, B, C, & D
Class Il, Division 1, Groups E, F, & G
Class Ill T4 Tamb= 50
°C
Evaluated to the ANSI/UL Standards. The ‘C’ and ‘US’ indicators adjacent to the CSA Mark signify that the product has
been evaluated to the applicable CSA and ANSI/UL
Standards, for use in Canada and the U.S. respectively
Resistive Inductive
28 Vdc 5.0 A 3.0 A
115 Vac 5.0 A 3.0 A
230 Vac 5.0 A 1.5 A
Class I, Division 2, Groups A, B, C, & D
Class Il & lll, Division 2, Groups E, F, & G
T4 Tamb= 50
°C Enclosure Type 4X
Cell 0.01μS/cm 0.1μS/cm 1.0μS/cm 10μS/cm 100μS/cm 1000μS/cm 10mS/cm 100mS/cm 1000mS/cm
Constant
0.01
0.1
1.0
4-electrode
0.01μS/cm to 200μS/cm
0.1μS/cm to 2000μS/cm
1 μS/cm to 20mS/cm
2 μS/cm to 300mS/cm
200μS/cm to 6000μS/cm
2000μS/cm to 60mS/cm
20mS/cm to 600mS/cm
±0.6% of reading in recommended range
+2 to -10% of reading outside high recommended range
±5% of reading outside low recommended range
±4% of reading in recommended range
Measures conductivity in the range 0 to 600,000 μS/cm
(600mS/cm). Measurement choices are conductivity,
resistivity, total dissolved solids, salinity, and % concentration. The % concentration selection includes the
choice of five common solutions (0-12% NaOH, 0-15%
HCl, 0-20% NaCl, and 0-25% or 96-99.7% H2SO4).
The conductivity concentration algorithms for these
solutions are fully temperature compensated. Three
temperature compensation options are available:
manual slope (X%/°C), high purity water (dilute sodium
chloride), and cation conductivity (dilute hydrochloric
acid). Temperature compensation can be disabled,
allowing the analyzer to display raw conductivity. For
more information concerning the use and operation of
the contacting conductivity sensors, refer to the product
data sheets.
Note: When two contacting conductivity sensors are
used, Model 1056 can derive an inferred pH value
called pHCalc. pHCalc is calculated pH, not directly
measured pH. (Model 1056-01-20-30-AN required)
Note: Selected 4-electrode, high-range contacting
conductivity sensors are compatible with Model 1056.
Input filter: time constant 1 - 999 sec, default 2 sec.
Response time: 3 seconds to 100% of final reading
Salinity: uses Practical Salinity Scale
Total Dissolved Solids: Calculated by multiplying
conductivity at 25ºC by 0.65
RECOMMENDED SENSORS FOR CONDUCTIVITY:
All Rosemount Analytical ENDURANCE Model 400
series conductivity sensors (Pt 1000 RTD) and
Model 410 sensor.
CONTACTING CONDUCTIVITY (Codes -20 and -30)
Temperature range 0-150ºC
Temperature Accuracy,
Pt-1000, 0-50 ºC
± 0.1ºC
Temperature Accuracy,
Pt-1000, Temp. > 50 ºC
± 0.5ºC
PERFORMANCE SPECIFICATIONS
Recommended Range – Contacting Conductivity
Temperature Specifications:
ENDURANCE series of
conductivity sensors
Cell Constant Linearity
4
family
4-electrode sensors
Model 1μS/cm 10μS/cm 100μS/cm 1000μS/cm 10mS/cm 100mS/cm 1000mS/cm 2000mS/cm
5μS/cm to 500mS/cm
15μS/cm to 1500mS/cm
500mS/cm to 2000mS/cm
500μS/cm to 2000mS/cm
100μS/cm to 2000mS/cm
1500mS/cm to 2000mS/cm
226
242
222
(1in & 2in)
225 & 228
Measures conductivity in the range of 1 (one) μS/cm to
2,000,000 μS/cm (2 S/cm). Measurement choices are
conductivity, resistivity, total dissolved solids, salinity,
and % concentration. The % concentration selection
includes the choice of five common solutions (0-12%
NaOH, 0-15% HCl, 0-20% NaCl, and 0-25% or
96-99.7% H
2SO4
). The conductivity concentration
algorithms for these solutions are fully temperature
compensated. For other solutions, a simple-to-use
menu allows the customer to enter his own data. The
analyzer accepts as many as five data points and fits
either a linear (two points) or a quadratic function (three
or more points) to the data. Two temperature compensation options are available: manual slope (X%/°C) and
neutral salt (dilute sodium chloride). Temperature
compensation can be disabled, allowing the analyzer to
display raw conductivity. Reference temperature and
linear temperature slope may also be adjusted for
optimum results. For more information concerning the
use and operation of the toroidal conductivity sensors,
refer to the product data sheets.
Repeatability: ±0.25% ±5 μS/cm after zero cal
Input filter: time constant 1 - 999 sec, default 2 sec.
Response time: 3 seconds to 100% of final reading
Salinity: uses Practical Salinity Scale
Total Dissolved Solids: Calculated by multiplying
conductivity at 25ºC by 0.65
Temperature Specifications:
RECOMMENDED SENSORS:
All Rosemount Analytical submersion/immersion and
flow-through toroidal sensors.
TOROIDAL CONDUCTIVITY (Codes -21 and -31)
Temperature range -25 to 210ºC (-13 to 410ºF)
Temperature Accuracy,
Pt-100, -25 to 50 ºC
± 0.5ºC
Temperature Accuracy,
Pt-100,. 50 to 210ºC
± 1ºC
PERFORMANCE SPECIFICATIONS
Recommended Range - Toroidal Conductivity
Model 226: ±1% of reading ±5μS/cm in recommended range
Models 225 & 228: ±1% of reading ±10μS/cm in recommended range
Models 222,242: ±4% of reading in recommended range
Models 225, 226 & 228: ±5% of reading outside high recommended range
Model 226: ±5μS/cm outside low recommended range
Models 225 & 228: ±15μS/cm outside low recommended range
High performance toroidal conductivity
sensors Models 226 and 225
LOOP PERFORMANCE (Following Calibration)
5
6
pH/ORP/ISE (Codes -22 and -32)
For use with any standard pH or ORP sensor.
Measurement choices are pH, ORP, Redox, ammonia,
fluoride or custom ISE. The automatic buffer recognition
feature uses stored buffer values and their temperature
curves for the most common buffer standards available
worldwide. The analyzer will recognize the value of the
buffer being measured and perform a self stabilization
check on the sensor before completing the calibration.
Manual or automatic temperature compensation is
menu selectable. Change in pH due to process temperature can be compensated using a programmable temperature coefficient. For more information concerning
the use and operation of the pH or ORP sensors, refer
to the product data sheets.
Model 1056 can also derive an inferred pH value called
pHCalc (calculated pH). pHCalc can be derived and
displayed when two contacting conductivity sensors are
used. (Model 1056-01-20-30-AN)
PERFORMANCE SPECIFICATIONS ANALYZER (pH INPUT)
Measurement Range [pH]: 0 to 14 pH
Accuracy: ±0.01 pH
Diagnostics: Glass impedance, reference impedance
Temperature coefficient: ±0.002pH/ ºC
Solution temperature correction: Pure water, dilute
base and custom.
Buffer recognition: NIST, DIN 19266, JIS 8802, and BSI.
Input filter: Time constant 1 - 999 sec, default 4 sec.
Response time: 5 seconds to 100%
Temperature Specifications:
PERFORMANCE SPECIFICATIONS ANALYZER (ORP INPUT)
Measurement Range [ORP]: -1500 to +1500 mV
Accuracy: ± 1 mV
Temperature coefficient: ±0.12mV / ºC
Input filter: Time constant 1 - 999 sec, default 4 sec.
Response time: 5 seconds to 100% of final reading
RECOMMENDED SENSORS FOR pH:
All standard pH sensors.
RECOMMENDED SENSORS FOR ORP:
All standard ORP sensors.
Temperature range 0-150ºC
Temperature Accuracy, Pt-100, 0-50 ºC ± 0.5ºC
Temperature Accuracy, Temp. > 50 ºC ± 1ºC
General purpose and high performance pH sensors
Models 396PVP, 399VP and 3300HT
4-20mA Current Input (Codes -23 and -33)
For use with any transmitter or external device that
transmits 4-20mA or 0-20mA current outputs. Typical
uses are for temperature compensation of live measurements (except ORP, turbidity and flow) and for
continuous atmospheric pressure input for determination of partial pressure, needed for compensation of live
gaseous oxygen measurements. External input of
atmospheric pressure for oxygen measurement allows
continuous partial pressure compensation while the
Model 1056 enclosure is completely sealed.
Externally sourced current input is also useful for
calibration of new or existing sensors that require
temperature measurement or atmospheric pressure
inputs.
In addition to live continuous compensation of live
measurements, the current input board can also be
used simply to display the measured temperature. or
the calculated partial pressure from the external device.
This feature leverages the large display variables on
the Model 1056 as a convenience for technicians.
Temperature can be displayed in degrees C or degrees
F. Partial pressure can be displayed in inches Hg, mm
Hg, atm (atmospheres), kPa (kiloPascals), bar or mbar.
The current input board can be used with devices that
do not actively power their 4-20mA output signals. The
Model 1056 actively powers to the + and – lines of the
current input board to enable current input from a
4-20mA output device.
PERFORMANCE SPECIFICATIONS
Measurement Range *[mA]: 0-20 or 4-20
Accuracy: ±0.03mA
Input filter: Time constant 0-999 sec., default 5 sec.
*Current input not to exceed 22mA
7
FLOW (Code -23 and -33)
For use with most pulse signal flow sensors, the Model
1056 user-selectable units of measurement include flow
rates in GPM (Gallons per minute), GPH (Gallons per
hour), cu ft/min (cubic feet per min), cu ft/hour (cubic
feet per hour), LPM (liters per minute), LPH (liters per
hour), or m3/hr (cubic meters per hour), and velocity in
ft/sec or m/sec. When configured to measure flow, the
unit also acts as a totalizer in the chosen unit (gallons,
liters, or cubic meters).
Dual flow instruments can be configured as a % recovery,
flow difference, flow ratio, or total (combined) flow.
PERFORMANCE SPECIFICATIONS
Frequency Range: 3 to 1000 Hz
Flow Rate: 0 - 99,999 GPM, LPM, m3/hr, GPH, LPH,
cu ft/min, cu ft/hr.
Totalized Flow: 0 – 9,999,999,999,999 Gallons or m3,
0 – 999, 999,999,999 cu ft.
Accuracy: 0.5%
Input filter: Time constant 0-999 sec., default 5 sec.
RECOMMENDED SENSORS*
+GF+ Signet 515 Rotor-X Flow sensor
* Input voltage not to exceed ±36V
Free and Total Chlorine
The Model 1056 is compatible with the Model 499ACL-01
free chlorine sensor and the Model 499ACL-02 total
chlorine sensor. The Model 499ACL-02 sensor must be
used with the Model TCL total chlorine sample
conditioning system. The Model 1056 fully compensates
free and total chlorine readings for changes in membrane
permeability caused by temperature changes. For free
chlorine measurements, both automatic and manual pH
correction are available. For automatic pH correction
select code -32 and an appropriate pH sensor. For more
information concerning the use and operation of the
amperometric chlorine sensors and the TCL measurement
system, refer to the product data sheets.
PERFORMANCE SPECIFICATIONS
Resolution: 0.001 ppm or 0.01 ppm – selectable
Input Range: 0nA – 100μA
Automatic pH correction (requires Code -32): 6.0 to
10.0 pH
Temperature compensation: Automatic (via RTD) or
manual (0-50°C).
Input filter: Time constant 1 - 999 sec, default 5 sec.
Response time: 6 seconds to 100% of final reading
RECOMMENDED SENSORS*
Chlorine: Model 499ACL-01 Free Chlorine or Model
499ACL-02 Total Residual Chlorine
pH: The following pH sensors are recommended for
automatic pH correction of free chlorine readings:
Models: 399-09-62, 399-14, and 399VP-09
Monochloramine
The Model 1056 is compatible with the Model 499A CL-03
Monochloramine sensor. The Model 1056 fully
compensates readings for changes in membrane
permeability caused by temperature changes. Because
monochloramine measurement is not affected by pH of
the process, no pH sensor or correction is required. For
more information concerning the use and operation of the
amperometric chlorine sensors, refer to the product data
sheets.
PERFORMANCE SPECIFICATIONS
Resolution: 0.001 ppm or 0.01 ppm – selectable
Input Range: 0nA – 100μA
Temperature compensation: Automatic (via RTD) or
manual (0-50°C).
Input filter: Time constant 1 - 999 sec, default 5 sec.
Response time: 6 seconds to 100% of final reading
RECOMMENDED SENSORS
Rosemount Analytical Model 499ACL-03 Monochloramine
sensor
pH-Independent Free Chlorine
The Model 1056 is compatible with the Model 498CL-01
pH-independent free chlorine sensor. The Model 498CL-01
sensor is intended for the continuous determination of
free chlorine (hypochlorous acid plus hypochlorite ion)
in water. The primary application is measuring chlorine
in drinking water. The sensor requires no acid pre-treatment, nor is an auxiliary pH sensor required for pH
correction. The Model 1056 fully compensates free
chlorine readings for changes in membrane
permeability caused by temperature. For more information
concerning the use and operation of the amperometric
chlorine sensors, refer to the product data sheets.
PERFORMANCE SPECIFICATIONS
Resolution: 0.001 ppm or 0.01 ppm – selectable
Input Range: 0nA – 100μA
Automatic pH correction: 6.5 to 10.0 pH
Temperature compensation: Automatic (via RTD) or
manual (0-50°C).
Input filter: Time constant 1 - 999 sec, default 5 sec.
Response time: 6 seconds to 100% of final reading
RECOMMENDED SENSORS
Rosemount Analytical Model 498CL-01 pH independent
free chlorine sensor
CHLORINE (Code -24 and -34)
Chlorine sensors with Variopol connection
and cable connection
Model 498CL-01
8
DISSOLVED OXYGEN
(Codes -25 and -35)
The Model 1056 is compatible with the Model 499ADO,
499ATrDO, Hx438, and Gx438 dissolved oxygen sensors
and the Model 4000 percent oxygen gas sensor. The
Model 1056 displays dissolved oxygen in ppm, mg/L,
ppb, μg/L, % saturation, % O2in gas, ppm O2in gas.
The analyzer fully compensates oxygen readings for
changes in membrane permeability caused by temperature changes. An atmospheric pressure sensor is
included on all dissolved oxygen signal boards to allow
automatic atmospheric pressure determination at the
time of calibration. If removing the sensor from the
process liquid is impractical, the analyzer can be calibrated against a standard instrument. Calibration can be
corrected for process salinity. For more information on
the use of amperometric oxygen sensors, refer to the
product data sheets.
PERFORMANCE SPECIFICATIONS
Resolution: 0.01 ppm; 0.1 ppb for 499A TrDO sensor
(when O2<1.00 ppm); 0.1%
Input Range: 0nA – 100μA
Temperature Compensation: Automatic (via RTD) or
manual (0-50°C).
Input filter: Time constant 1 - 999 sec, default 5 sec.
Response time: 6 seconds to 100% of final reading
RECOMMENDED SENSOR
Rosemount Analytical amperometric membrane and
steam-sterilizable sensors listed above
DISSOLVED OZONE
(Code -26 and -36)
The Model 1056 is compatible with the Model 499AOZ
sensor. The Model 1056 fully compensates ozone
readings for changes in membrane permeability
caused by temperature changes. For more information
concerning the use and operation of the amperometric
ozone sensors, refer to the product data sheets.
PERFORMANCE SPECIFICATIONS
Resolution: 0.001 ppm or 0.01 ppm – selectable
Input Range: 0nA – 100μA
Temperature Compensation: Automatic (via RTD) or
manual (0-35°C)
Input filter: Time constant 1 - 999 sec, default 5 sec.
Response time: 6 seconds to 100% of final reading
RECOMMENDED SENSOR
Rosemount Analytical Model 499A OZ ozone sensor
Dissolved Oxygen sensor with Variopol connection
Model 499ADO
Dissolved Ozone sensors with Polysulfone body
Variopol connection and cable connection
Model 499AOZ
9
Turbidity (Codes -27 and -37)
The Model 1056 instrument is available in single and
dual turbidity configurations for the Clarity II turbidimeter.
It is intended for the determination of turbidity in filtered
drinking water. The other components of the Clarity II
turbidimeter – sensor(s), debubbler/measuring
chamber(s), and cable for each sensor must be
ordered separately or as a complete system with the
Model 1056.
The Model 1056 turbidity instrument accepts inputs
from both USEPA 180.1 and ISO 7027-compliant sensors
When ordering the Model 1056 turbidity instrument, the
-02 (24VDC power supply) or the -03 (switching
85-265VAC power supply) are required. Both of these
power supplies include four fully programmable relays
with timers.
Note: Model 1056 Turbidity must be used with Clarity
II sensor, sensor cable and debubbler.
PERFORMANCE SPECIFICATIONS
Units: Turbidity (NTU, FTU, or FNU); total suspended
solids (mg/L, ppm, or no units)
Display resolution-turbidity: 4 digits; decimal point
moves from x.xxx to xxx.x
Display resolution-TSS: 4 digits; decimal point moves
from x.xxx to xxxx
Calibration methods: User-prepared standard, commercially prepared standard, or grab sample. For total
suspended solids user must provide a linear calibration
equation.
Inputs: Choice of single or dual input, EPA 180.1 or
ISO 7027 sensors.
Field wiring terminals: Removable terminal blocks for
sensor connection.
Accuracy after calibration at 20.0 NTU:
0-1 NTU ±2% of reading or 0.015 NTU, whichever is
greater.
0-20 NTU: ±2% of reading.
Model T1056 Clarity ll Turbidimeter
10
11
QUICK START GUIDE
12
Bottom View
Front View
Side View
PANEL MOUNT DIMENSIONS
The front panel is hinged at the bottom. The panel swings down for easy access to the wiring locations.
MILLIMETER
INCH
13
PIPE/ WALL MOUNT DIMENSIONS
(Mounting bracket PN:23820-00)
The front panel is hinged at the bottom. The panel swings down for easy access to the wiring locations.
Bottom View
Front View
Side View
Side View
Wall / Surface Mount
Pipe Mount
MILLIMETER
INCH
ORDERING INFORMATION
The Model 1056 dual-input analyzer offers single or dual sensor input with an unrestricted choice of dual measurements thus reducing the cost per loop and saving panel space. This multi-parameter instrument offers a wide
range of measurement choices supporting most industrial, commercial, and municipal applications. Standard
features include two isolated inputs, 7 local languages, two 4-20mA current outputs, removable connectors for
line power and current outputs, 4 solid plugs for closure of openings, and panel mount hardware. HART and
Profibus DP are available as a digital communications ordering option and will support all single and dual
measurement configurations.
Model 1056 Dual-Input Intelligent Analyzer
CODE Power
01 115/230 VAC, 50/60 Hz no relays
02 24 VDC with four alarm relays
03 85-265 VAC switching, 50/60 Hz with four alarm relays
CODE MEASUREMENT 1
20 Contacting Conductivity
21 Toroidal Conductivity
22 pH/ORP
23
Flow/Current Input (requires -02 or -03 power supply)
24 Chlorine
25 Dissolved Oxygen
26
Ozone
27
Turbidity ( requires -02 or -03 power supply)
CODE MEASUREMENT 2
30 Contacting Conductivity
31 Toroidal Conductivity
32 pH/ORP
33
Flow/Current Input (requires -02 or -03 power supply)
34 Chlorine
35 Dissolved Oxygen
36
Ozone
37
Turbidity ( requires -02 or -03 power supply)
38 None
CODE COMMUNICATIONS
AN Two 4-20mA analog outputs
DP Profibus DP digital communications
HT HART digital communications
Example 1056 -03 -27 -38 -AN
ACCESSORIES
PART # DESCRIPTION
23554-00
Cable Gland Kit - Qty 5 per pack
23820-00
2" Pipe Mounting Bracket includes U-bolts, mounting bracket, nuts, washers, and
screws (complete). Also accommodates wall / surface mounting.
23820-01
2" Pipe Mounting Bracket, Stainless Steel
9240048-00 S.S. Tag (specify marking)
14
Scope of Work
The instrument shall be a line-powered analyzer for measuring pH,
ORP, Conductivity, Chlorine, Dissolved and Gaseous Oxygen,
Dissolved Ozone, Temperature, Turbidity, Flow, or 4-20mA current
input. The device shall include two isolated inputs, seven local languages, two 4-20mA current outputs, removable connectors for power
and current outputs, four solid plugs for closure of openings, and
panel mount hardware. Accessories and services shall be available
from the manufacturer of the device to support this instrument and its
installation.
The analyzer shall be manufactured by Rosemount Analytical Inc.,
2400 Barranca Parkway, Irvine, CA 92606-5018 USA (800) 854-8257
www. http://www.raihome.com, or as approved equal.
General
The analyzer shall be microprocessor-based and accept all
Rosemount Analytical sensors.
Power and Alarms:
20-30VDC and auto-switching 85-265VAC power supplies shall be
available. These power supplies shall each include four high load 5
amp. alarm relays which can be configured independently and which
include interval timer functionality. Failsafe operation shall be
supported to allow programmable default states for all relays.
Measurement Inputs
The analyzer shall be offered in single and dual input configurations,
and shall allow unrestricted dual measurement combinations.
Measurement inputs 1 or 2 can be pH, ORP, ISE, Resistivity,
Conductivity, Resistivity, % Concentration, Chlorine, Oxygen, Ozone,
Temperature, Turbidity, Flow, or 4-20mA Current Input.
Reconfiguration shall be possible by exchanging modular signal
boards for any indicated measurement listed above. Separate signal
input measurement boards shall be available to allow field reconfiguration of any Model 1056 unit.
Digital Communications
The instrument shall offer HART and Profibus DP as digital communications ordering options. HART and Profibus DP will support all
single and dual measurement configurations and will operate with
available AC or DC power supplies.
Special measurements
The analyzer shall measure ammonia and fluoride using commercially
available ion-selective electrodes. When the proper chlorine sensor
is used, the analyzer shall be capable of measuring free chlorine with
automatic correction for pH. The analyzer shall be able to derive and
display pH using two contacting conductivity boards and the appropriate contacting conductivity sensors. With a dual input conductivity configuration, the analyzer shall be capable of measuring differential conductivity and displaying the measurement value as ratio, %
rejection, or % passage. Dual flow configurations shall allow % recovery, flow difference, % flow ratio, flow ratio, or totalized difference.
Enclosure and Installation
The analyzer enclosure shall be constructed of polycarbonate and
designed to meet NEMA 4X/CSA 4 (IP65) requirements. The instrument fits standard ½ DIN panel cutouts. One enclosure design shall
support panel-mount, pipe-mount, and surface/wall-mount installations.
Wiring
The instrument shall ship with removable connectors for power and
current outputs. Individual wiring lead designations for each input
board shall be labeled to facilitate easy wiring. Further, each signal
board shall slide out fully or partially to aid in ease of wring.
Start-up
Quick Start screens shall appear the first time the instrument is
powered up, The instrument shall automatically recognize each
measurement board upon power-up.
Outputs
The analyzer shall include two 4-20 mA or 0-20 mA isolated outputs,
continuously adjusted, with output dampening and linear or logarithmic
output. The outputs shall be independently programmed to
correspond to the selected measurement(s) or temperature.
Display and Languages
The analyzer shall have a 58 x 78mm display with 128 X 96 pixel
resolution and backlight. The LCD shall display large process variables (14mm [1/2”] character height) for both sensor inputs and allow
the user to program the main display with user-selectable diagnostic
parameters. Seven local languages shall be field selectable
including English, French, German, Italian, Spanish, Portuguese or
Chinese. The main display format shall be customizable to meet
measurement or diagnostic display requirements.
Automatic Buffer Recognition
For pH measurement, the analyzer shall include an automatic buffer
recognition feature, using stored buffer values and their temperature
curves for the most common buffer standards available worldwide.
The analyzer shall automatically recognize the value of the buffer
being measured and perform a self stabilization check on the sensor
before completing the calibration.
Temperature
Manual or automatic temperature compensation shall be menu selectable. Changes in the measurement due to process temperatures
shall be compensated using a programmable temperature coefficient
except for turbidity, flow and 4-20mA current input. For pH, temperature compensations shall be standard. Temperature compensation is
also available for high purity, dilute base, and custom applications.
The analyzer shall automatically recognize either a Pt100 RTD or a
Pt1000 RTD, normally built into the sensor. The display of temperature shall be in °C or °F.
Security and Hold
The analyzer shall have two levels of password access to prevent
accidental or unwanted changes to the program settings, displays,
and calibration. One access code is for calibration and hold of current
outputs; the other access code is for all menus and functions. During
hold, the outputs and alarms shall remain at the last value.
Diagnostics
The instrument shall have a dedicated DIAGNOSTIC button and the
analyzer shall continuously monitor itself and the sensor for faults,
and display fault and/or warning messages. Faults and warnings
shall be quickly accessible via the dedicated Diagnostic button and
help screens shall be displayed to assist in troubleshooting.
Calibration
Depending on the selected measurement, the analyzer shall have
several calibration methods.
a) pH: Automatic buffer, Standardization, and Slope calibration
methods
b) Amperometric: Air cal, Zero cal, In process cal, and
Sensitivity/slope entry
c) Conductivity: Zero cal, In process cal, Meter cal, and entry of cell
constant.
d) Turbidity: Slope cal (2-point), Standard cal (1-point), and Grab cal.
The analyzer shall be a Rosemount Analytical Model 1056 dual-input
analyzer, Model number 1056-XX-XX-XX-XX
Engineering Specifications - Model 1056 Dual Input Intelligent
Analyzer
April 2008
Measurement Range Performance
pH 0-14pH ±0.01pH
ORP -1500 to 1500mV ±1 mV
Contact conductivity
0.01μS/cm–600mS/cm
±0.6%
Toroidal conductivity
1μS -2000mS/cm
±1%
Free Chlorine 0-20 ppm ±1%
Total Chlorine 0-20 ppm ±1%
Monochloramine 0-20 ppm ±1%
Dissolved oxygen 0-20 ppm ±1%
Dissolved ozone 0-10 ppm ±1%
Turbidity 0-20NTU ±2%
Flow 0 - 99999 GPM ±1% ±0.5%
4-20mA input 0-20mA
±0.03mA
Engineering Specifications - Model 1056 Dual Input Intelligent Analyzer April 2008
15
Credit Cards for U.S. Purchases Only.
The right people,
the right answers,
right now.
ON-LINE ORDERING NOW AVAILABLE ON OUR WEB SITE
http://www.raihome.com
Specifications subject to change without notice.
Emerson Process Management
Liquid Division
2400 Barranca Parkway
Irvine, CA 92606 USA
Tel: (949) 757-8500
Fax: (949) 474-7250
http://www.raihome.com
© Rosemount Analytical Inc. 2008
Loading...
