Elvid WCM-758DVR User manual

SKYVISION

WCM-758DVR

WIRELESS 7" DVR MONITOR

USER MANUAL

INTRODUCTION

Thank you for choosing Elvid.

The Elvid WCM-758DVR SkyVision is a monitor designed to wirelessly receive video and audio from your 5.8 GHz composite video transmitter. Equipped with an integrated DVR, this monitor can record incoming content to a microSD card. The DVR incorporates practical functions such as loop recording for

maintaining a specic le length, and motion detection to initiate

recording when a moving object is detected.

The 7″ LED panel’s native resolution is 1024 × 600, with an aspect ratio of 16:9 (native) that you can set to 4:3. The onscreen

menu makes it easy to ne-tune your image, offering adjustments for brightness, contrast, hue, and saturation. Broadcast-specic

features include safety frame markers and multiple display formats. The SkyVision can also be used for wired monitoring via its HDMI and composite video inputs, as well as composite video loop-through via its video output.

The SkyVision incorporates advanced tools like Check Field to

calibrate the monitor, a Focus setting to ne-tune your focus, and

Camera mode to scale the incoming video signal when shooting on a DSLR. There’s also an integrated speaker and a 3.5 mm stereo headphone output for live audio monitoring.

FCC Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

PRECAUTIONS

• Please read and follow these instructions and keep this manual in a safe place.

• Exposure to high sound levels can cause permanent hearing loss. Avoid listening at high volumes for extended periods of time.

• Keep this product away from water

and any ammable gases or liquids.

• Make sure this product is powered off when plugging it into a power source.

• Use only the correct, recommended voltage.

• Do not attempt to disassemble or repair this product.

• Do not place or store the SkyVision facedown, since this can damage the screen.

• Handle this product with care. Avoid any unnecessary impacts to this product.

• Do not block the vents in this product.

• Disconnect this product from its power source before storage and during electrical storms.

• Do not use chemical solutions to clean this product. Clean it with only a soft, dry cloth.

• Keep this product away from children.

• Make sure that this product is intact and that there are no missing parts.

• To avoid damage to this product, be careful not to overtighten or improperly thread any of the threaded

ttings.

• All photos are for illustrative purposes only.

TABLE OF

CONTENTS

Product Contents ................................................................... 6

Overview ...............................................................................7-8

Powering On and Off ........................................................9-10

Using the WCM-758DVR ......................................................11

Wired Input And Loop-Through ................................... 12-13

Monitoring Sound ..................................................................14

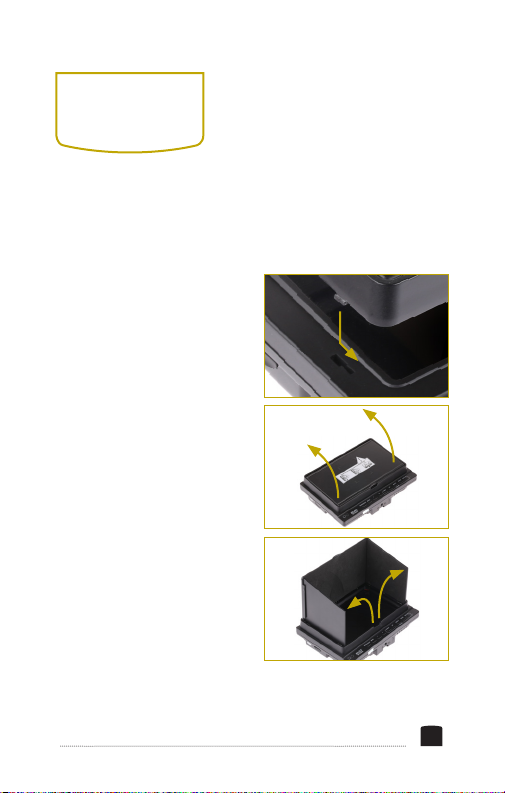

The Sunshade .........................................................................15

The Menu ................................................................................16

Color Menu ............................................................................. 17

OSD Menu ...............................................................................18

Function Menu .......................................................................19

Sound Menu...........................................................................20

Using the DVR .......................................................................21

Video Menu ......................................................................22-23

Setup Menu ........................................................................... 24

Playback Menu ..................................................................... 25

Recording and Playback ...............................................26-27

Specications ..................................................................28-29

Troubleshooting ..............................................................30-32

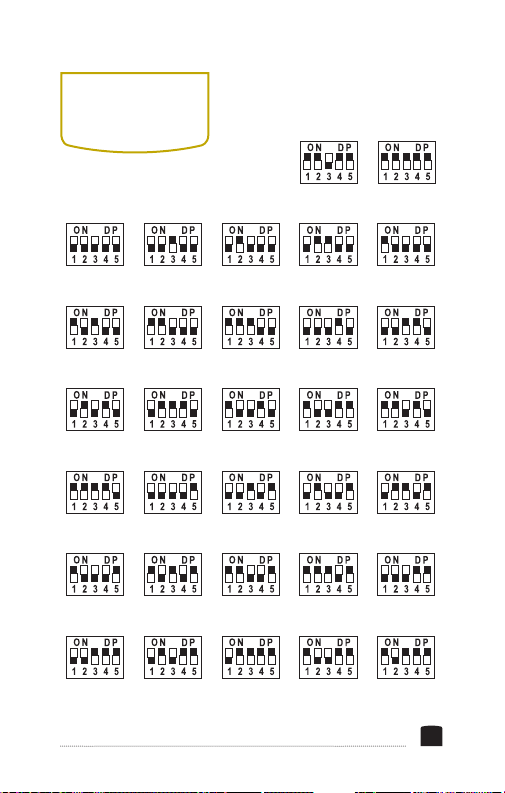

Dip-switch chart ................................................................... 33

FCC Statement ...................................................................... 34

Warranty ................................................................................35

PRODUCT

CONTENTS

· 7" Wireless DVR Monitor

· Antenna

· Sunshade

· Mini HDMI to

NOTE: Additional battery plates and/or battery adapters compatible with other popular brands can be purchased by visiting www.elvidcinema.com

HDMI cable

· 12 V DC adapter

· Dip Switch Quick Reference Card

· User manual

OVERVIEW

SKYVISION

Headphone jack

Screen

Source/Exit button

Menu button

Minus

SOURCE/EXIT

+MENU

REC/OK

DVR

Rec/OK button

Status LED

Mode button

DVR Menu Button

Down

Plus

SKYVISION

SOURCE/EXIT

DVR

REC/OK

+MENU

Speaker

Dip-Switch Chart

MicroSD Card Slot

Battery mounting plate

1/4″-20 Threaded socket

Power switch

Composite video output

HDMI input

Power Switch

Composite video input

Audio input

Dip switches

Antenna terminal

POWERING

ON & OFF

There are two ways to power the SkyVision: AC or a Sony L-series battery.

AC POWER

To run the SkyVision via AC power, use the included 12 V DC adapter to connect the SkyVision’s DC power input to your AC power source.

To turn on the SkyVision, press the power switch to the On position. The SkyVision will turn on and enter standby mode, and the power indicator LED will glow red. Press the Power button to enter ready mode. The power indicator LED will turn green and then glow red.

CAMERA BATTERY

The SkyVision’s built-in battery plate accommodates Sony L-series batteries. This allows you to power the monitor with readily-available batteries that you may already own. For more information on compatible battery types, refer to

Specications on page 28 .

To install a compatible battery, slide the battery forward until it locks into place.

USING THE

WCM758-DVR

MOUNTING THE SKYVISION

Use the SkyVision’s 1/4″-20 threaded socket to attach the monitor to your mounting system. Make sure your bracket can support the monitor.

SETTING THE SIGNAL

Before setting the signal, screw the antenna into the antenna terminal.

Use the DIP switches on the SkyVision to set the proper channel. Make sure the SkyVision and your 5.8 GHz composite video transmitter are set to the same channel. Refer to the DIP Switch Chart on page 33 for further reference. For your convenience, there is an included DIP Switch Chart quick reference card.

Press the Mode button to cycle through the input modes until RF appears on the monitor. If your 5.8 GHz composite video transmitter is using the same frequency as the monitor, the image will appear onscreen, and the power indicator LED will glow green.
