INTRODUCTION
Thank you for choosing Elvid.
The Elvid SRM-7X2-LT StudioVision is a rack-mounted dual-monitor system with advanced
features to help you optimize your images. The StudioVision is equipped with 3G-SDI, HDMI,
component video, and composite video inputs—all with loop-through—for exible connectivity.
The dual 7″ LED panels’ native resolution is 1280 × 800, and you can set the aspect ratio to full
screen (16:10), 16:9, 4:3, 1.85:1, and 2.35:1.
The StudioVision incorporates broadcast-specic features like underscan, safety-frame markers,
H/V delay, and a tally connector. It’s also equipped with a false color display to provide visual

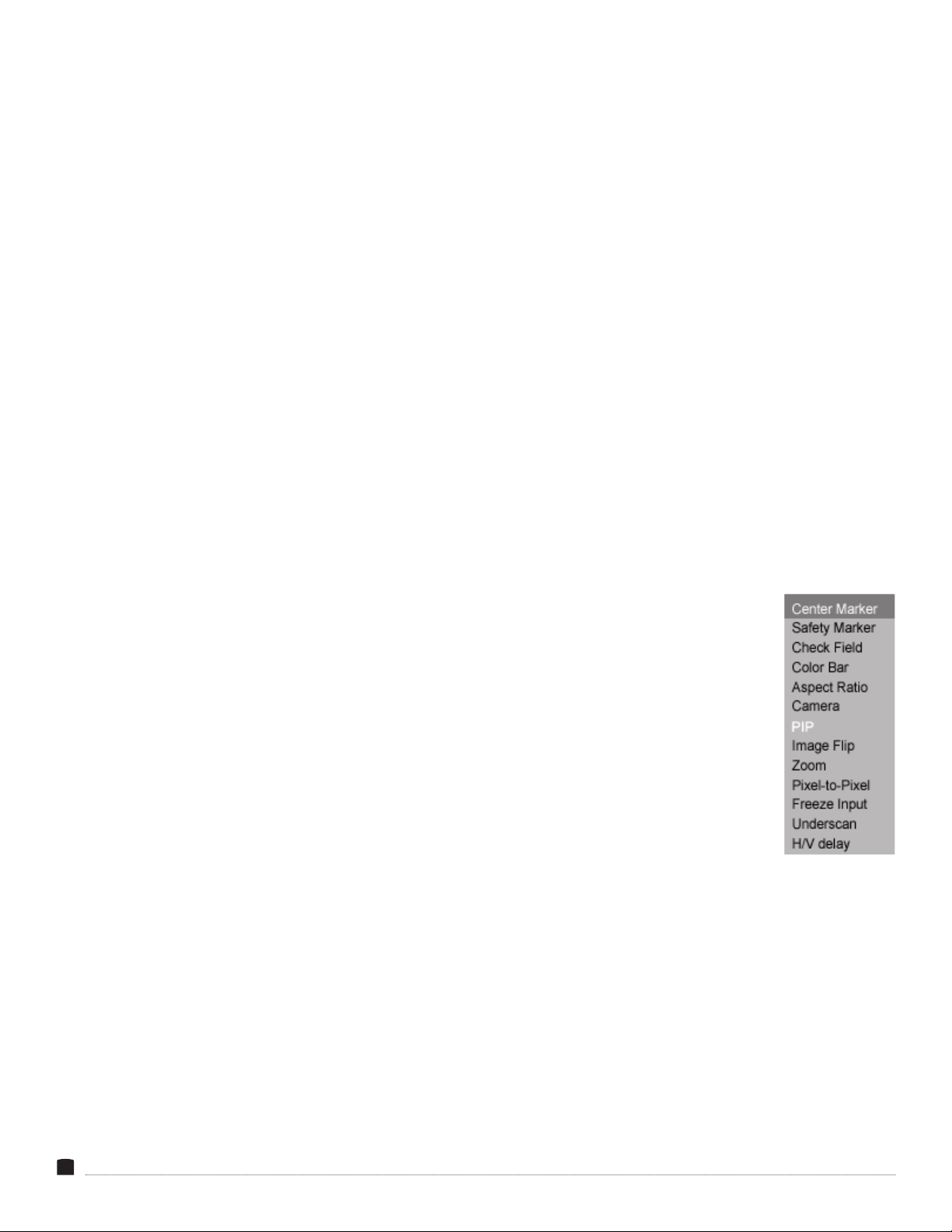

guidance for achieving precise exposure levels. The StudioVision is easy to customize. Choose
from a palette of 12 functions from which you can set the function button to provide a shortcut
for enabling modes and onscreen tools. An Ethernet connection, intended for advanced users,
provides optional software control.
PRECAUTIONS
• Please read and follow these instructions and keep this manual in a safe place.
• Keep this product away from water and any ammable gases or liquids.
• Use only the correct, recommended voltage.
• Do not attempt to disassemble or repair this product.
• Do not place or store the StudioVision facedown, since this can damage the screens.
• Handle this product with care. Avoid any unnecessary impacts to this product.
• Do not block the vents in this product.
• Disconnect this product from its power source before storage and during electrical storms.
• Do not use chemical solutions to clean this product. Clean it with only a soft, dry cloth.
• Keep this product away from children.
• Make sure that this product is intact and that there are no missing parts.
• To avoid damage to this product, be careful not to overtighten or improperly thread any of the
threaded ttings.
• All photos are for illustrative purposes only.
2
OVERVIEW
STUDIOVISION SRM-7X2-LT
Mounting holes
STUDIOVISION
INPUT

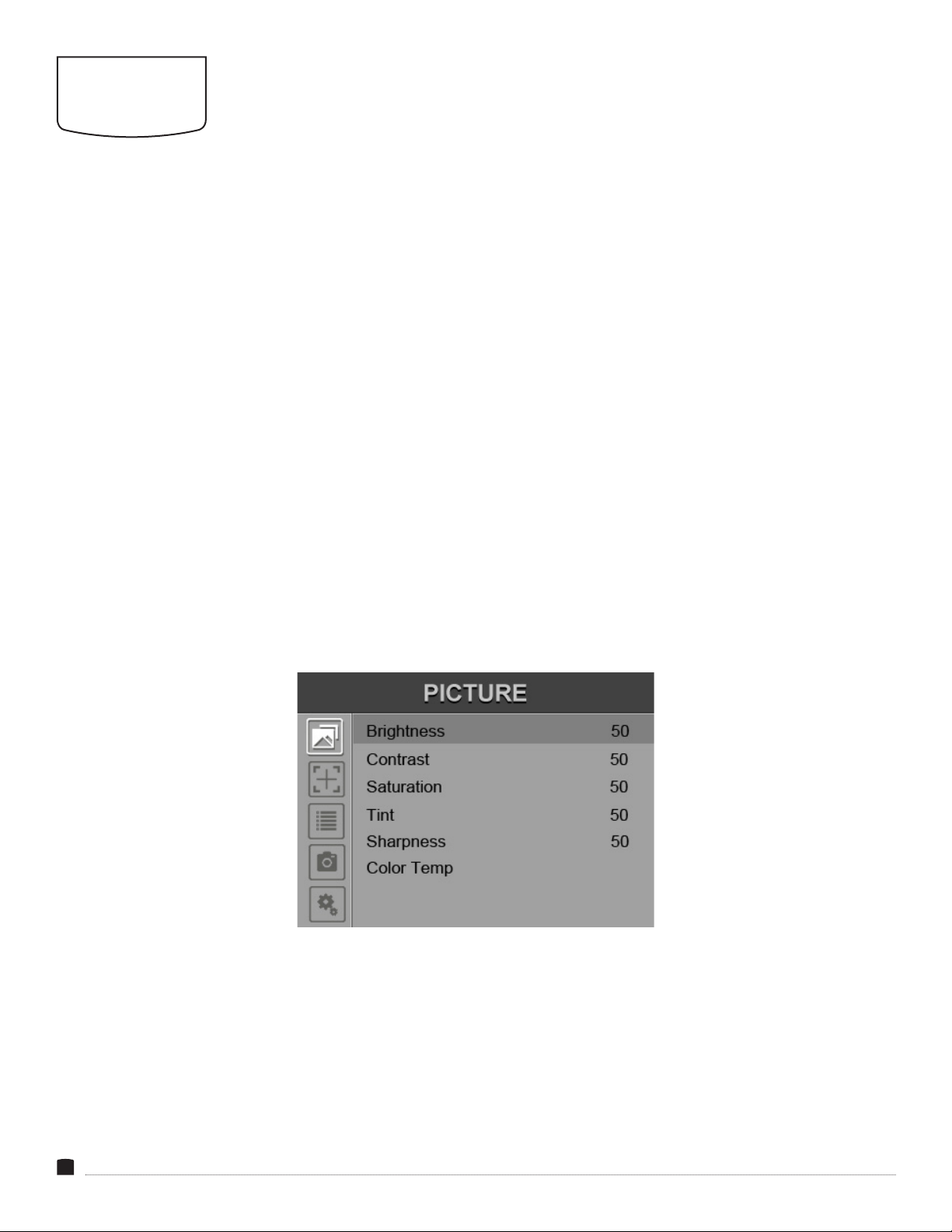

MENU
ENTER
FN FN
Enter button (M1)
Right navigation button (M1)
Left navigation button (M1)
Menu button for(M1)
Input button for(M1)
SRM-7X2-LT
INPUT
ME
NU
ENTER
1
2
Monitor 1 (M1)
Monitor 2 (M2)
Function button (M2)Function button (M1)
Enter button (M2)
Right navigation button (M2)
Left navigation button (M2)
Menu button (M2)
Input button (M2)
ALSO INCLUDED
• 12 V DC adapter
• Tally adapter (bare-end)
• User manual
3
MENU
INPUT
ENTER
FN FN
ENTER
INPUT
ME
NU
STUDIOVISION
1
SRM-7X2-LT
STUDIOVISION SRM-7X2-LT
MONITOR
2
1MONITOR 2
IN
TALLY
1 TALLY1 Green
Y1 Red
2 TALL
4 TALLY1 GND
2 GND
6 TALLY
7 TALLY2 Green
TALLY2 Red
8
TALLY
POWER+12V
IN IN
Y Pb Pr
OUT
IN
HDMI
VIDEO
OUTINOUT O
LAN IN
SDI S
OUT
IN IN
HDMI
DI
OUT
VIDEO
O
UT
UT
O
IN
Y Pb
Pr
UT
YPbPr component video in/out (M1)
Composite video in/out (M1)
HDMI in/out (M1)
SDI in/out (M1)
SDI in/out (M2)

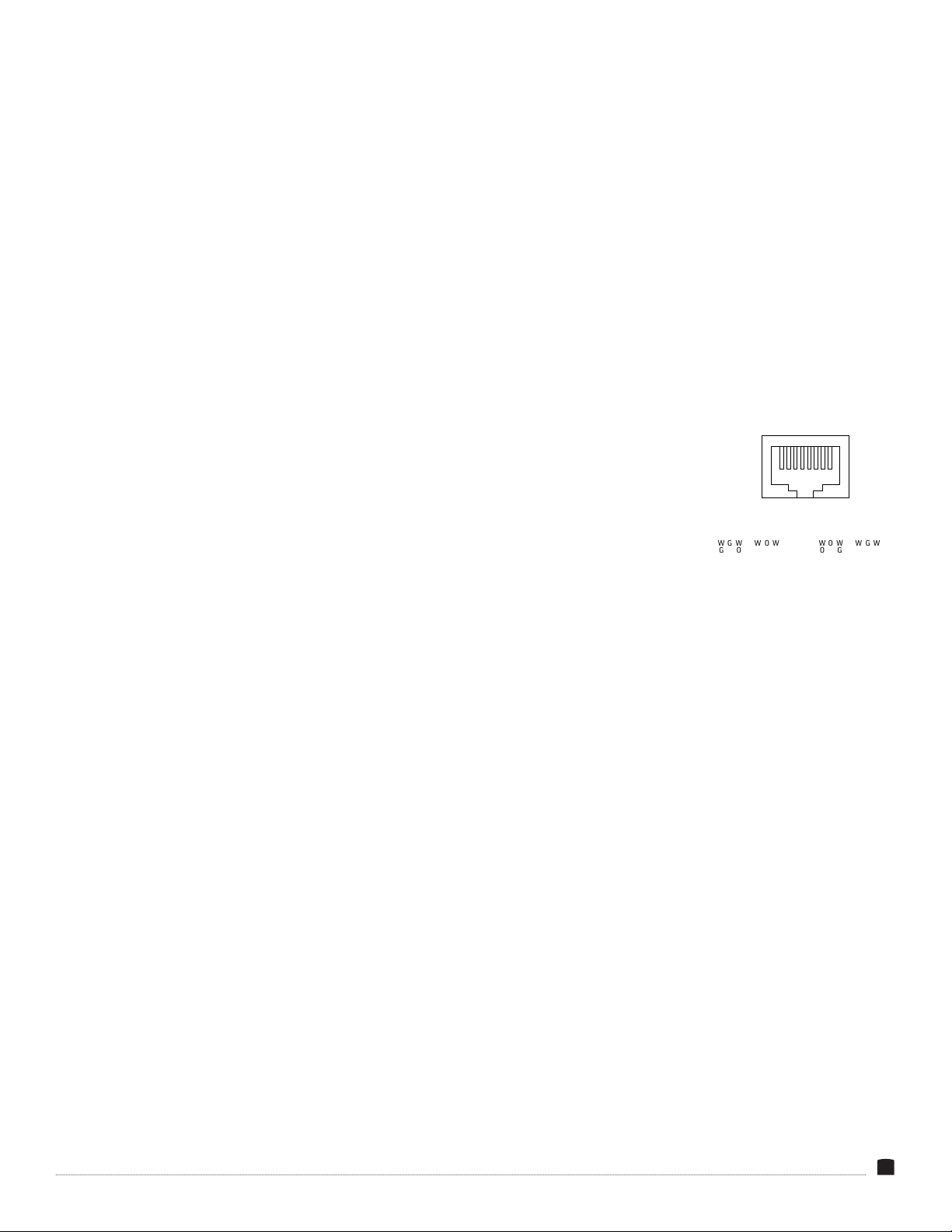

Ethernet port
HDMI in/out (M2)
Composite video in/out (M2)
YPbPr component video in/out (M2)
DC power input

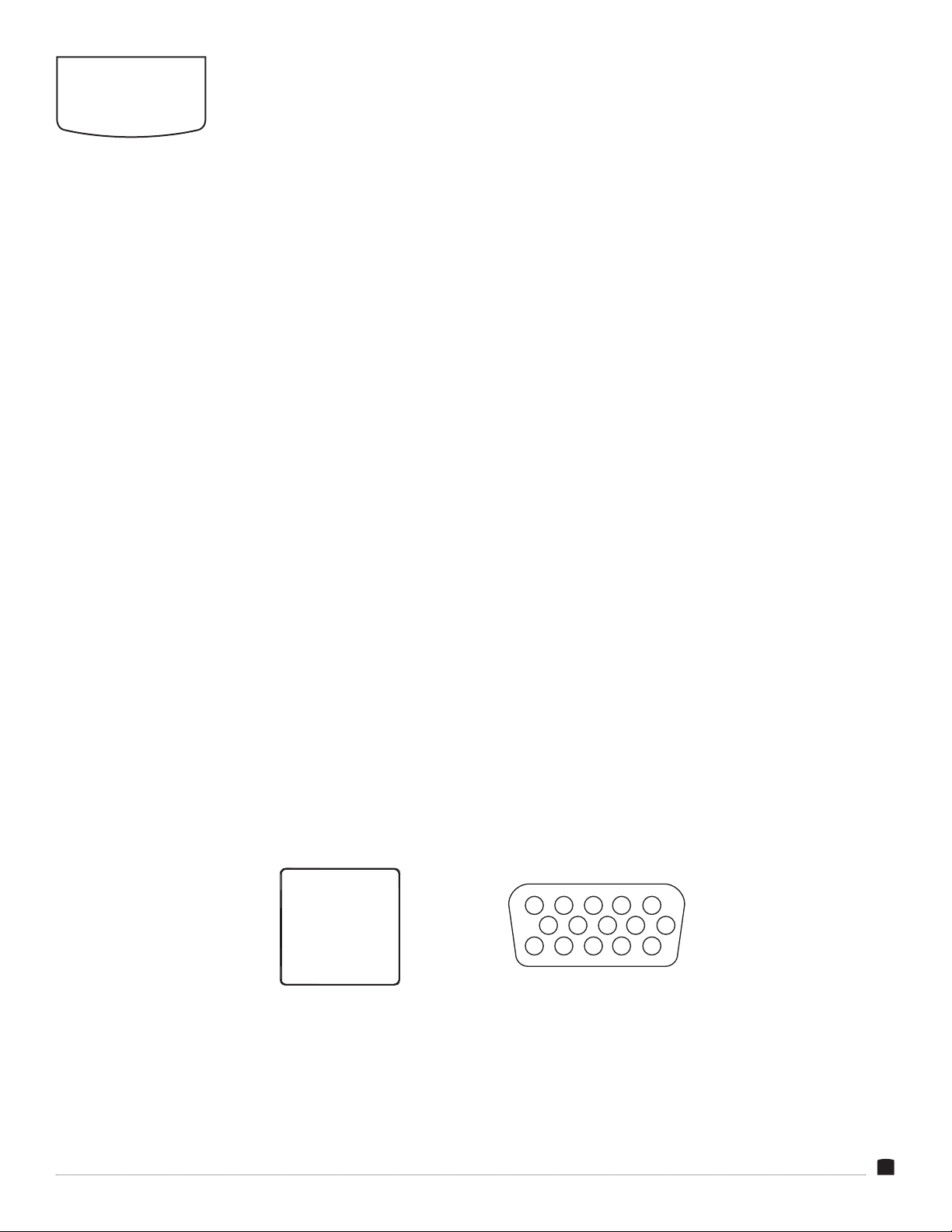

DB15 tally connector
