ELTEX WEP-12ac User Manual
IP address:192.168.1.10
Username:admin
Password:password
Wireless access point
WEP-12ac
User manual
Firmware version1.16.0
WEP-12ac user manual
2
Contents
1 Introduction ............................................................................................................................................ 4
1.1 Annotation...........................................................................................................................................4
1.2 Symbols............................................................................................................................................... 4
2 Device description ................................................................................................................................. 5
2.1 Purpose ...............................................................................................................................................5
2.2 Device specification............................................................................................................................5
2.3 The device technical parameters....................................................................................................... 7
2.4 Design..................................................................................................................................................8

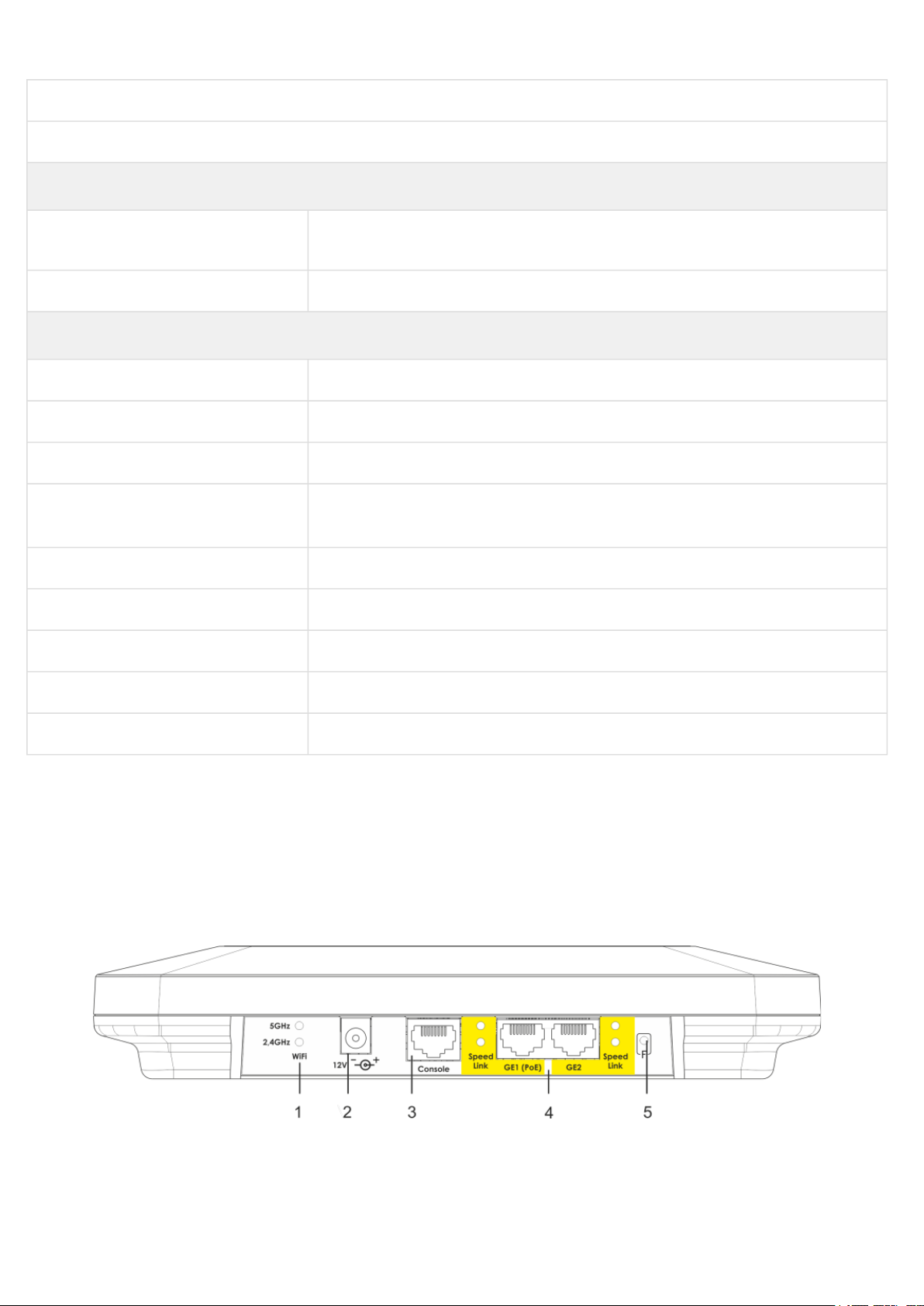

2.4.1 Device main panel........................................................................................................................... 8
2.5 Light indication....................................................................................................................................9
2.6 Reset to the default settings ..............................................................................................................9
2.7 Delivery package...............................................................................................................................10
3 Installation order.................................................................................................................................. 11
3.1 Safety rules........................................................................................................................................11
3.2 Installation recommendations .........................................................................................................11

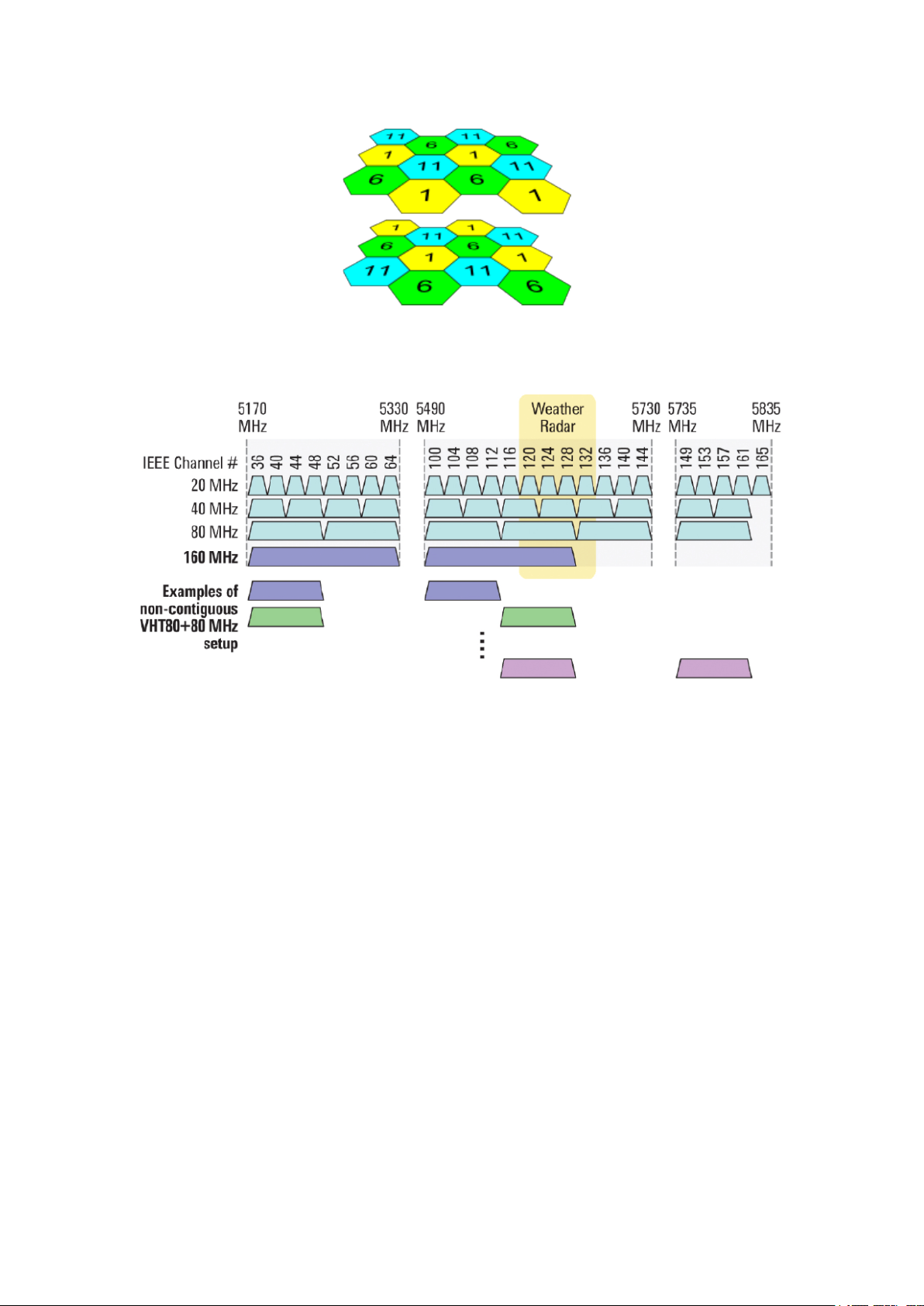

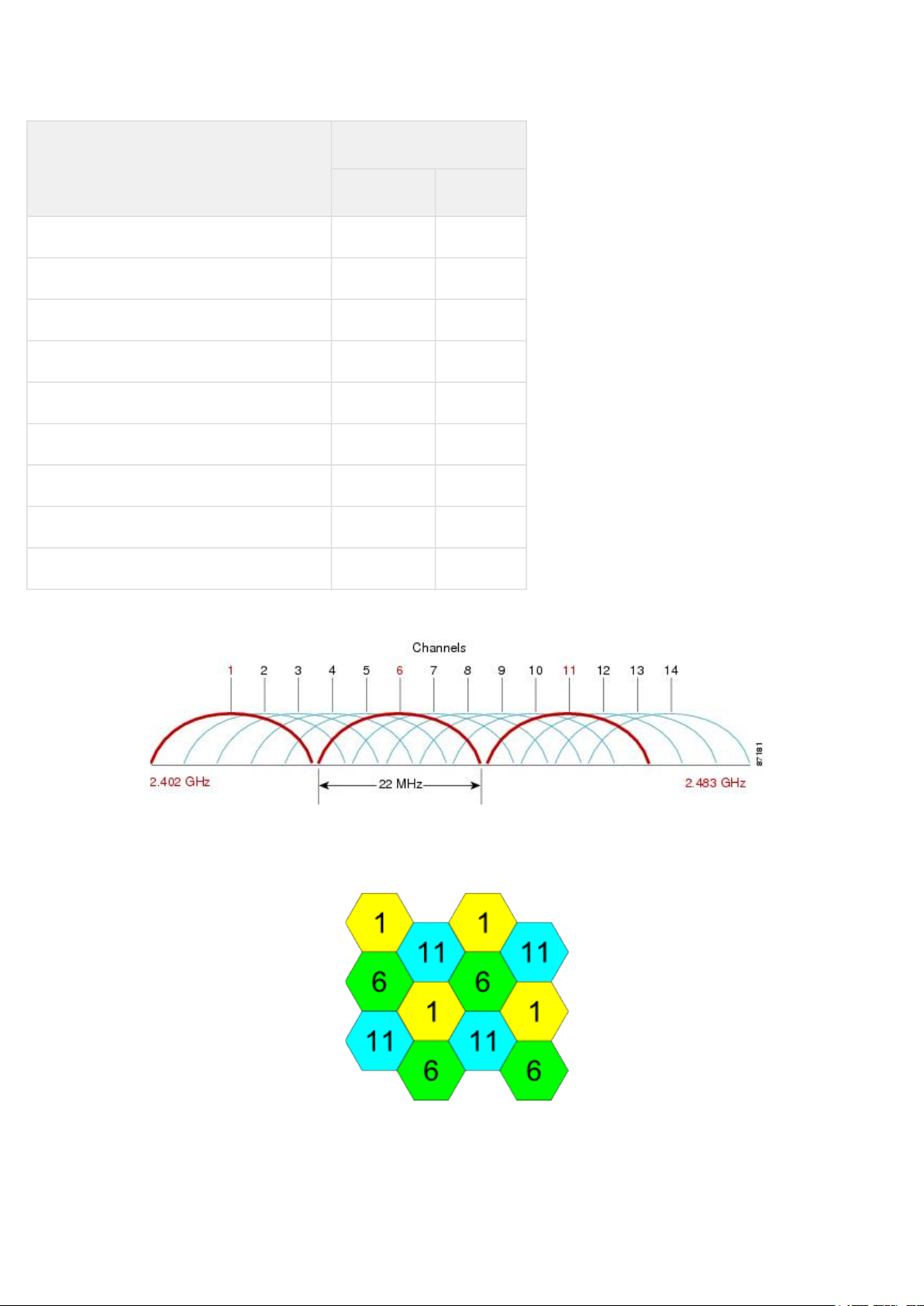

3.3 Calculating the number of required access points.........................................................................11
3.4 Installing WEP-12ac..........................................................................................................................14

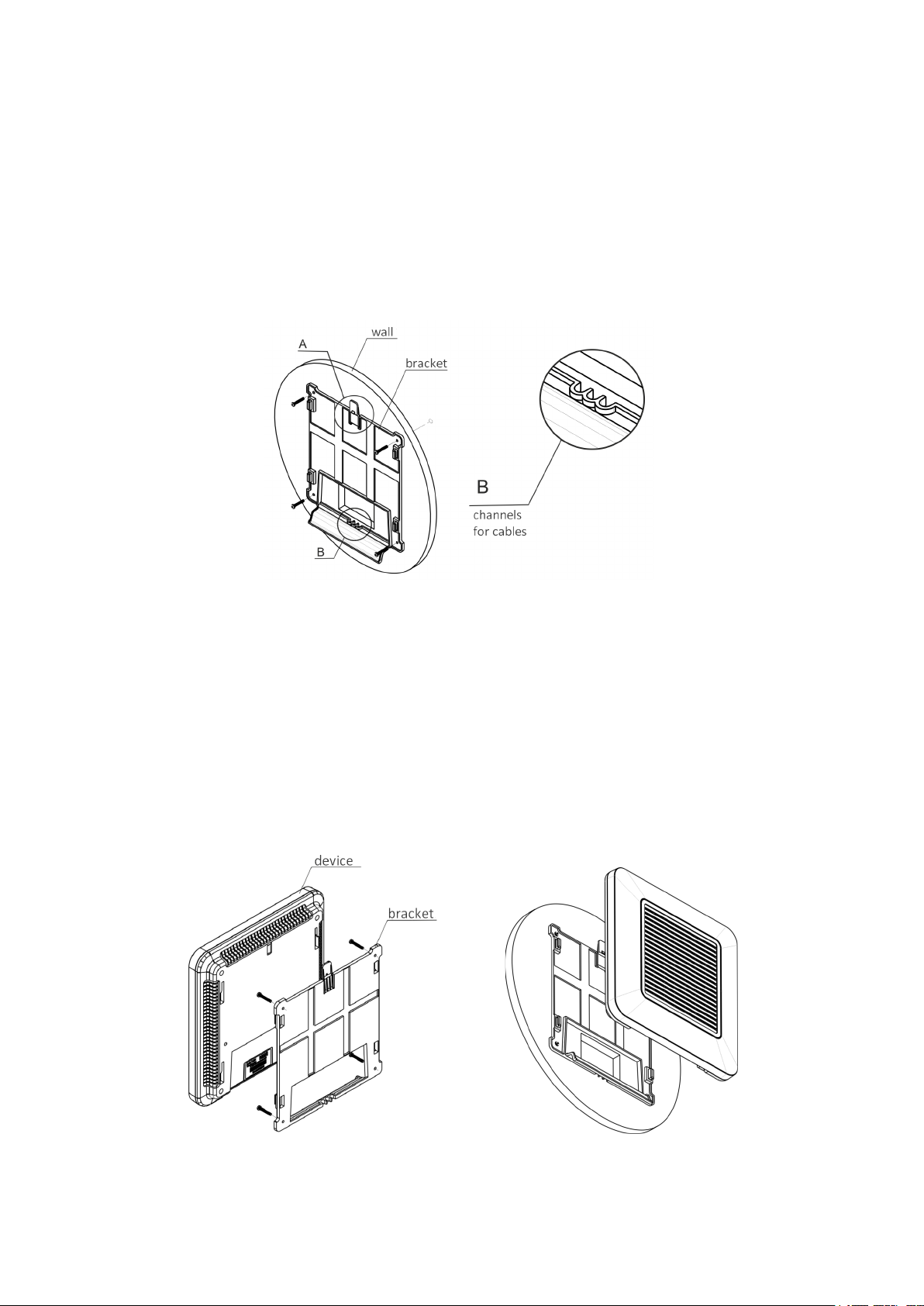

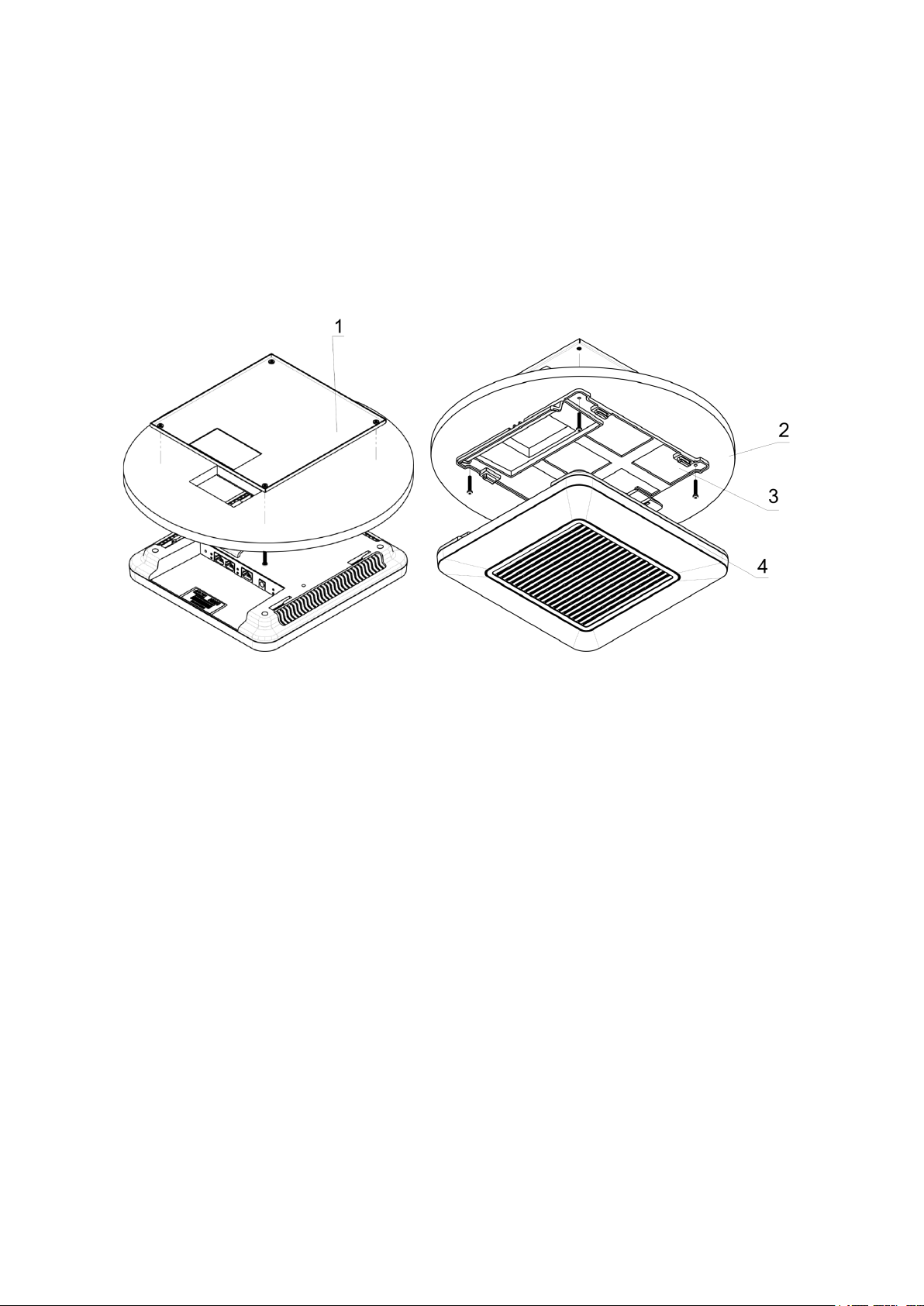

3.4.1 Order for wall-mounting brackets ................................................................................................ 14
3.4.2 Installing to false ceiling............................................................................................................... 15
3.4.3 Removing the device from the bracket........................................................................................ 15

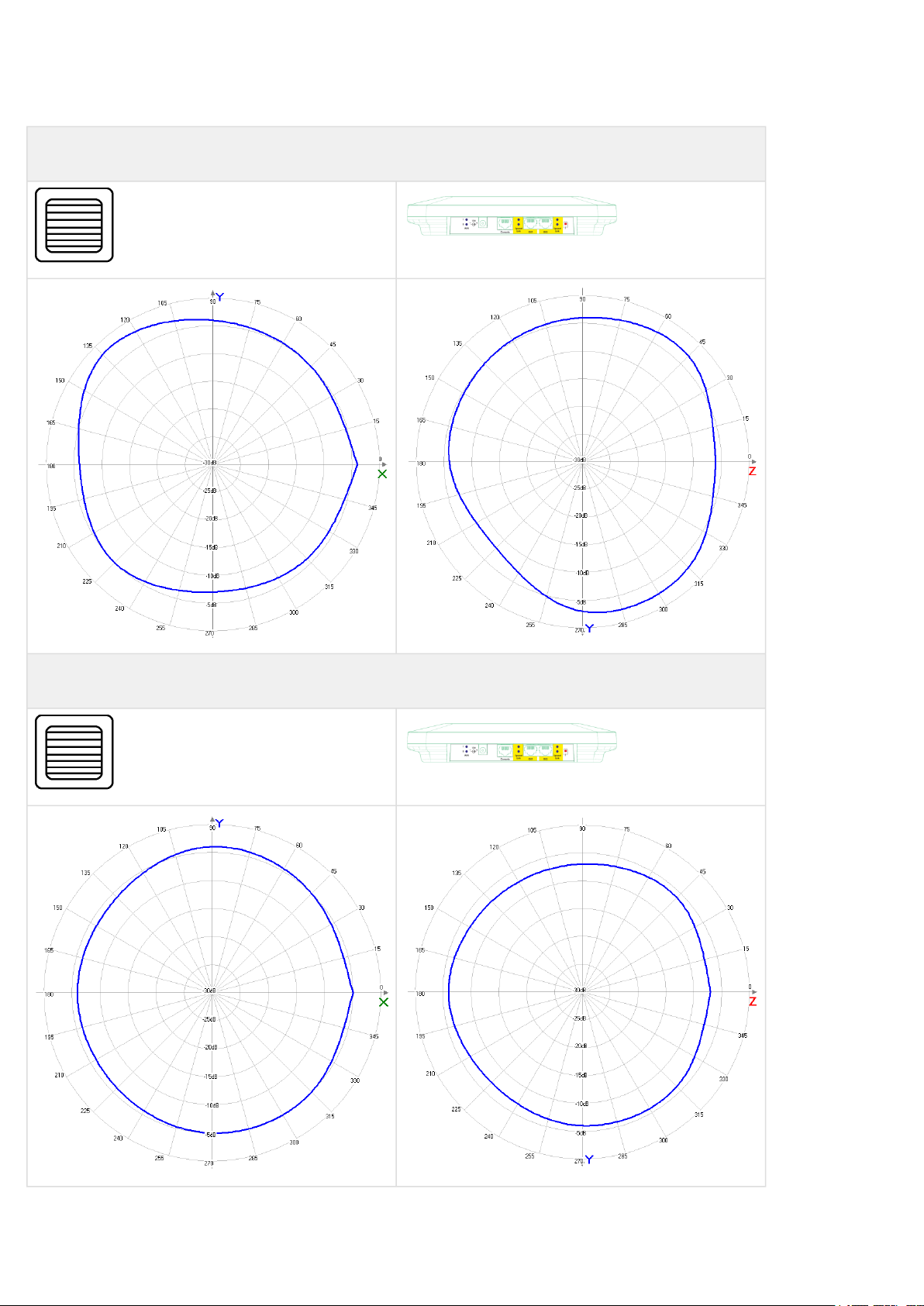

4 Application A. WEP-12ac antennas patterns ..................................................................................... 16

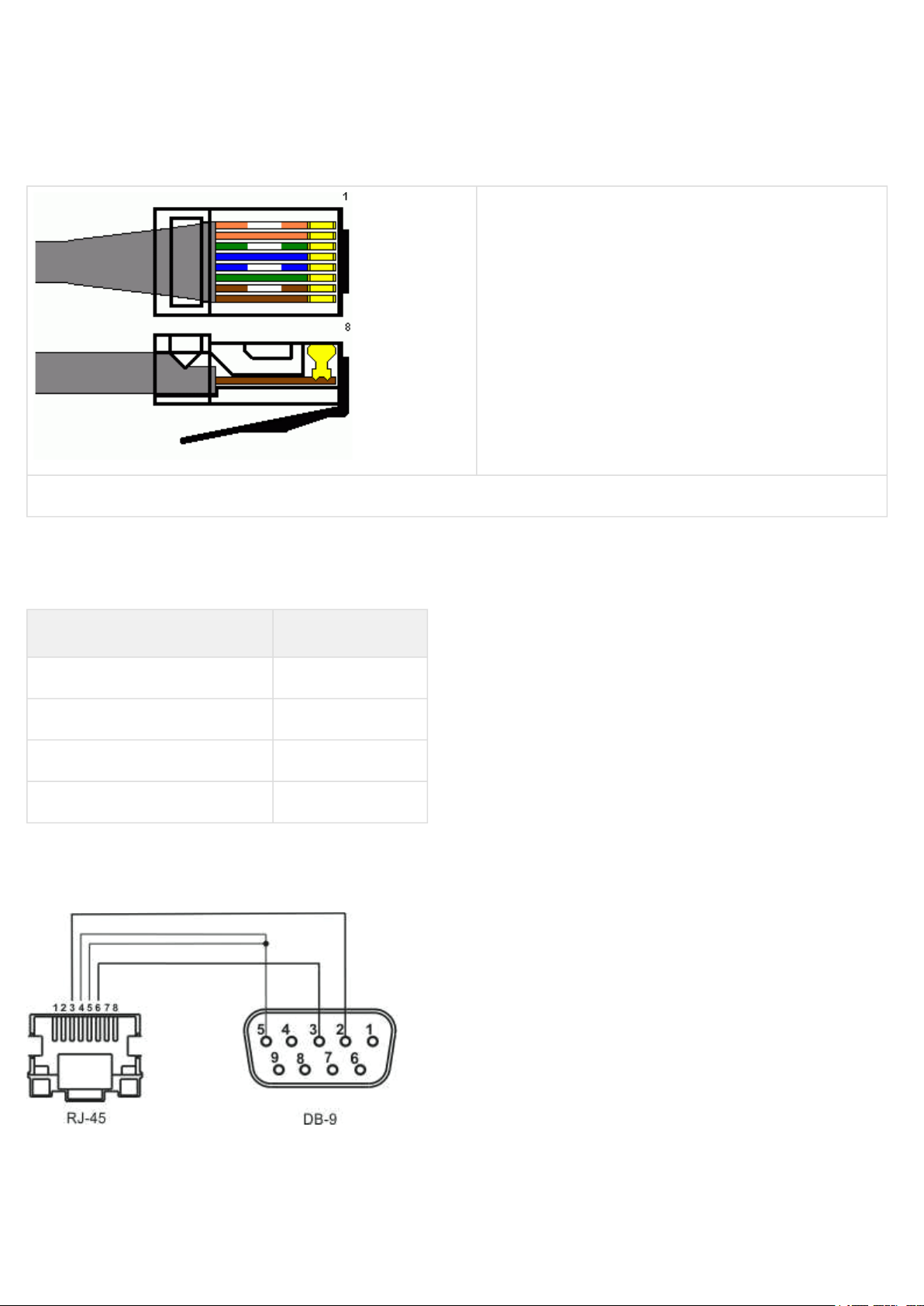

5 Application B. Pin array of the device connectors............................................................................. 17
6 The list of changes .............................................................................................................................. 18
WEP-12ac user manual
3
WEP-12ac user manual
4
1 Introduction
1.1 Annotation
Modern tendencies of telecommunication development necessitate operators to search for the most optimal
technologies, allowing you to satisfy drastically growing needs of subscribers, maintaining at the same time
consistency of business processes, development flexibility and reduction of costs of various services provision.
Wireless technologies are spinning up more and more and have paced a huge way for short time from unstable
low-speed communication networks of low radius to broadband networks equitable to speed of wired networks
with high criteria to the quality of provided services. WEP-12ac device is a Wi-Fi access point of Enterprise class.
The device is dedicated to be installed inside buildings as an access point and to create a seamless wireless
network using several identical access points on a large area.
This manual specifies intended purpose, main technical parameters, design, installation procedure, safe operation
rules and installation recommendations forWEP-12ac.
1.2 Symbols
Notes and warnings
Notes contain important information, tips or recommendations on device operation and setup.
Warnings are used to inform the user about harmful situations for the device and the user alike, which
could cause malfunction or data loss.
WEP-12ac user manual
5
2 Device description
2.1 Purpose
WEP-12ac wireless access point (hereinafter the device) is designed for provision of users' access to high-speed
safe network. The device is dedicated to create L2 wireless networks interfacing with a wired network. WEP-12ac
is connected to a wired network via 10/100/1000M Ethernet interface and arrange high-speed access to the
Internet for devices supporting Wi-Fi technology at 2.4 and 5 GHz. The device has two radio interfaces to organize
two physical wireless networks.
WEP-12ac supports up-to-date requirements to service quality and allows transmittingmore important traffic in
higher priorities queues. Prioritization is based on main QoS technologies: CoS (special tags in VLAN packet field)
and ToS (tags in IP packet field). Besides the standard methods of prioritization, the device allows you to assign
demands for traffic transmission almost in every packet field from MAC to TCP/UDP port. The ACL rules and
shaping allow you to control access, quality of service and restrictions for all subscribers as well as for each
subscriber individually.
WEP-12ac is designed to be installed in offices, state buildings, conference halls, laboratories, hotels, etc. The
creation of virtual access points with different types of encryption allows clients to delimit access rights among
users and groups of users.
2.2 Device specification
Interfaces:
• 2 Ethernet ports of 10/100/1000Base-T, 1 port out them supports PoE+ technology
• Console RJ-45;
Functions:
WLAN capabilities:
• support for IEEE 802.11a/b/g/n/ac standards;
• data aggregation, including A-MPDU (Tx /Rx) and А-MSDU (Rx);
• WMM-based priorities and packet planning;
• dynamic frequency selection (DFS);
• support for hidden SSID;
• 32 virtual access points;
• third-party access point detection;
• support for Work Group Bridge.
• WDS;
• Mesh support;
• APSD;
Network functions:
• autonegotiation of speed, duplex mode and switching between MDI and MDI-X modes;
• support for VLAN;
• authentication support 802.1X;
• support for 802.11r;
• DHCP client;
• support for IPv6;
• LLDP;
• ACL;
• SNMP;
• GRE.
WEP-12ac user manual
6
Cluster operation mode:
• organizing a cluster with capacity of up to 64 access points;
• auto synchronization of access point configurations in a cluster;
• auto update of access points firmware in a cluster;
• Single Management IP – united address to control access points in a cluster;
• autodistribution of frequency channels among access points;
• autodistribution of output power level among access points.
QoS functions
• priority and profile-based packet scheduling;
• bandwidth limiting for each SSID;
• changing WMM parameters for each radio interface.
Safety
• e-mail notifying on system events;
• centralized authorization via RADIUS server (WPA Enterprise);
• WPA/WPA2;
• Captive Portal;
• IPsec.
The figure below shows WEP-12ac application scheme.
WEP-12ac application scheme
