Edition: 2.12.2009 · BA 380-EN
Original Operating Instructions
V-DTN
V-DTN 6 | 10 | 15 | 25 | 40
V-Serie
V-Series
Drehschieber
Rotary Vane
Table of contents
Table of contents
1 Foreword . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.1 Principles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.2 Target group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.3 Supplier documentation and accompanying documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.4 Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.5 Directives, standards, laws . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.6 Symbols and meaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.7 Technical terms and meaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.8 Copyright . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2 Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.1 Warning instruction markings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.2 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.3 Designated use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.4 Unacceptable operating modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.5 Personal qualifi cations and training . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.6 Safety-conscious work . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.7 Safety notes for the operator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.8 Safety instructions for installing, commissioning and maintenance . . . . . . . . . . . . . . . . . . . . . . 9
2.9 Guarantee conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3 Transport, storage and disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.1 Transportation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.1.1 Unpack and check the delivery condition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.1.2 Lifting and transporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.2 Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.2.1 Ambient conditions for storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.3 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4 Set up and operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4.1 Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4.1.1 Data plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4.2 Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4.3. Areas of application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
5 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
5.1 Preparing for installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
5.2 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
5.3 Connecting pipes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
5.4 Control and relief valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
5.5 Connecting the motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
6 Commissioning and decommissioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
6.1 Commissioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
6.1.1 Checking the rotation direction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
6.2 Decommissioning/ storing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
6.3 Re-commissioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
| www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH
2
Table of contents
7 Maintenance and repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
7.1 Ensuring operational safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
7.2 Maintenance work . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
7.2.1 Air fi ltering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
7.2.2 Replacing blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
7.3 Reparatur/ Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
7.4 Spare parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
8 Malfunctions: Causes and elimination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
9 Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH |
3
Foreword
1 Foreword
1.1 Principles
These operating instructions:
• are a part of the following dry running rotary
vane compressors models V-DTN 6, V-DTN 10,
V-DTN 15, V-DTN 25 and V-DTN 40.
• describe how to use them safely and properly in
all life phases.
• must be available where the equipment is used.
1.2 Target group
The target group for these instructions is technically
trained specialists.
1.3 Supplier documentation and accompanying documents
Document Contents No.
Operating Instructions BA 380-EN
Supplier documentation
Declaration of Conformit C 0082-EN
Declaration of harmlessness 7.7025.003.17
Spare parts’ list Spare parts’ document E 380
Data sheet Technical data and graphs D 380
Info sheet Storage guidelines for machines I 150
Manufacturer’s declaration
EU Directive 2002/95/EG (RoHS)
—
1.4 Abbreviations
Fig. Figure
V-DTN Compressor
3
/h Capacity, volume fl ow
m
bar Overpressure
1.5 Directives, standards, laws
See Conformity Declaration
| www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH
4
1.6 Symbols and meaning
Symbol Explanation
Condition, pre-requisite
#### Instructions, action
a), b),... Instructions in several steps
Results
Foreword
[-> 14]
Cross reference with page number
Information, note
Safety symbol
Warns of potential risk of injury
Obey all the safety instructions with this symbol in order to avoid injury
and death.
1.7 Technical terms and meaning
Term Explanation
Machine Compressor and motor combination ready to be connected
Motor Compressor drive motor
Compressor Machine to produce excess pressure
Rotary vane Machine‘s design or active principle
Volume fl ow
The volume fl ow specifi es how much air or gas volume per time unit is
fed in by a compressor or fl ows through a pipe.
Final compression pressure Maximum excess pressure that a compressor can produce given as ex-
cess pressure in bars.
Noise emission
The noise emitted at a specifi c loading given as a fi gure, sound pressure
level dB(A) as per EN ISO 3744.
1.8 Copyright
Passing on or copying this document, using and
providing information on its contents are prohibited
unless expressly permitted.
www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH |
5
Safety
2 Safety
The manufacturer is not responsible for damage if
you do not follow all of this documentation.
2.1 Warning instruction markings
Warning Danger level Consequences if not obeyed
DANGER
WARNING
CAUTION
NOTICE
2.2 General
immediately imminent danger Death, severe bodily injury
possible imminent danger Death, severe bodily injury
possible hazardous situation Slight bodily injury
possible hazardous situation Material damage
These operating instructions contain basic instructions for installation, commissioning, maintenance
and inspection work which must be obeyed to ensure the safe operation of the machine and prevent
physical and material damage.
The safety instructions in all sections must be taken
into consideration.
The operating instructions must be read by the
responsible technical personnel/ operator before
installing and commissioning and must be fully understood. The contents of the operating instructions
must always be available on site for the technical
personnel / operator. Instructions fi xed directly onto
the machine must be obeyed and must always remain legible. This applies for example to:
• Symbols for connections
• Data and motor data plate
• Instruction and warning plates
The operator is responsible for observing local regulations.
| www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH
6
Safety
2.3 Designated use
The machine must only be operated in such areas
as are described in the operating instructions:
• only operate the machine in a technically perfect
condition
• do not operate the machine when it is only partially assembled
• the machine must only be operated at an ambient temperature and suction temperature of
between 5 and 40°C. Please contact us for
temperatures outside this range.
• the machine may convey, compress or extract
the following media:
• convey air with a relative humidity of 30 -
90%
• all non-explosive, non-infl ammable, non-ag-
gressive and non-poisonous dry gases and
gas air mixtures
2.4 Unacceptable operating modes
• extracting, conveying and compressing explosive, infl ammable, aggressive or poisonous media, e.g. dust as per ATEX zone 20-22, solvents
as well as gaseous oxygen and other oxidants,
extremely damp air, water vapour, traces of oil,
oil vapour and grease
• using the machine in non-commercial plants if
the necessary precautions and protective measures have not been taken in the plant
• installing in environments that are at risk of explosions
• using the machine in areas with ionising radiation
• back pressures on the outlet side of more than
+0,1bars
• modifi cations to the machine and accessories
www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH |
7
Safety
2.5 Personal qualifi cations and training
• Ensure that people entrusted with working on
the machine have read and understood these
operating instructions before starting work,
particularly the safety instructions for installation,
commissioning, maintenance and inspection
work.
• Manage the responsibilities, competence and
monitoring of staff
• all work must only be carried out be technical
specialists:
• Installation, commissioning, maintenance
and inspection work
• Working with electricity
• personnel being trained to work on the ma-
chine must be supervised by technical specialists only
2.6 Safety-conscious work
The following safety regulations apply in addition
to the safety instructions and intended use listed in
these instructions:
• Accident prevention regulations, safety and operating regulations
• the standards and laws in force
2.7 Safety notes for the operator
• hot parts of the machine must not be accessible
during operation or must be fi tted with a guard
• People must not be endangered by the free
extraction or discharge of pumped media
• Risks arising from electrical energy must be
eliminated.
| www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH
8
Safety
2.8 Safety instructions for installing, commissioning and maintenance
• The operator will ensure that any installation,
commissioning and maintenance work is carried out by authorised, qualifi ed specialists who
have gained suffi cient information by an in-depth
study of the operating instructions.
• Only work on the machine when it is idle and
cannot be switched on again
• Ensure that you follow the procedure for decommissioning the machine described in the operating instructions.
• Fit or start up safety and protective devices
again immediately after fi nishing work.
• Conversion work or modifi cations to the machine are only permissible with the manufacturer’s consent.
• Only use original parts or parts approved by the
manufacturer. The use of other parts may invalidate liability for any consequences arising.
• Keep unauthorised people away from the machine
2.9 Guarantee conditions
The manufacturer’s guarantee or warranty will no
longer apply in the following cases:
• Improper use
• Not complying with these instructions
• Operation by insuffi ciently qualifi ed staff
• Using spare parts that have not been approved
by Gardner Denver Schopfheim GmbH
• Unauthorised modifi cations to the machine or
the accessories supplied by Gardner Denver
Schopfheim GmbH
www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH |
9
Transport, storage and disposal
3 Transport, storage and disposal
3.1 Transportation
3.1.1 Unpack and check the delivery condition
a) Unpack the machine on receipt and check for
transport damage.
b) Notify the manufacturer of transport damage im-
mediately
c) Dispose of the packaging in accordance with the
local regulations in force.
3.1.2 Lifting and transporting
a) Select the lifting device suitable for the total
b) Ensure that the machine cannot tip and fall.
c) Do not stop under a suspended load.
d) Put the goods to be conveyed on a horizontal
Lifting device/ Transporting with a crane
1
a) Tighten the eyebolts (Fig. 1/1) fi rmly.
b) The machine must be suspended on the eyebolt
WARNING
Death or limbs crushed as a result of the items
being transported falling or tipping over.
When transporting with the lifting device remem-
ber:
weight to be transported.
base.
WARNING
Bodily injury resulting from improper operation
a) Loads crosswise to the ring level are not per-
mitted.
b) Avoid impact stress.
using the lifting device for lifting and transporting.
Fig. 1 Lifting and transporting
1 Eyebolt
| www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH
10
3.2 Storage
Transport, storage and disposal
NOTICE
Material damage caused by improper storage.
Ensure that the storage area meets the following
conditions:
a) dust free
b) vibration free
3.2.1 Ambient conditions for storage
Ambient conditions Value
Relative humidity 0% to 80%
Lagertemperatur -10°C to +60°C
The machine must be stored in a dry environment
with normal air humidity. It should not be stored for
more than 6 months.
see Info “Machine storage guidelines”, Page 4
3.3 Disposal
WARNING
Danger from infl ammable, corrosive or poisonous substances.
Machines that come into contact with hazardous substances must be decontaminated before
disposal.
When disposing ensure the following:
a) Collect oils and grease separately and dispose
of in accordance with the local regulations in
force.
b) Do not mix solvents, limescale removers and
paint residues
c) Remove components and dispose of them in
accordance with the local regulations in force.
d) Dispose of the machine in accordance with the
national and local regulations in force.
e) Parts subject to wear and tear (marked as such
in the spare parts list) are special waste and
must be disposed of in accordance with the
national and local waste laws.
www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH |
11
Set up and operation
4 Set up and operation
4.1 Setup
G
1
O
B
D
A
E
E
F
F
G
N
Fig. 2 V-DTN compressor
A Suction
B Pressure connection
D Pressure regulating valve
E Cooling air inlet
Cooling air outlet
F
| www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH
12
G Outlet grid
G
N Data plate
O Rotation direction plate
Inlet grating
1
4.1.1 Data plate
Set up and operation
1
3
4 52
2 Year of construction
1 Type/ Size (mechanical version)
3 Motor design
4 Serial number
5 Item no.
6 Excess pressure
Typ DTR 100 (01)
Bauj./Nr. 09
2843973
1027620113
+ 0,5 bar
100 / 120 m³/h
3~ Mot.
7 Pumping capacity 50 Hz /60 Hz
EN 60034
S1 5,50/ 6,50 kW
1460 / 1745 min
-1
8 Speed 50 Hz/60 Hz
9 Motor output 50 Hz /60 Hz
6
78910
10 Operating mode
Fig. 3 Data plate (example)
4.2 Description
The V-DTN range has a connecting thread on the pressure side and a silencer on the suction side. The aspirated air is cleaned by an inbuilt fi ne micro fi lter. The carbon dust caused by the scoring of the blades can
also be separated by an integral fi lter. The compressor is in a plastic sound cover. Inside the sound cover is
also a fan that cools the V-DTN. The compressed air in sizes 15, 25 and 40 is cooled by a cooling segment
with a greater motor output.
The pressure regulating valve (Fig. 2/D) is used to set the pressure to the required values with an upper limit.
4.3. Areas of application
These dry running rotary vane compressors, V-DTN 6 to V-DTN 40, are suitable for creating excess pressure
between 0 and the maximum limit (in bars) given on the data plate (Fig. 2/N). Constant operation is permissible.
The compressors have a nominal fl ow rate of 6, 10, 15, 25 and 40 m
3
/h at 50 Hz. The load limits (bars) on the
pressure side are given on the data plate (N). Data sheet D 380 shows the dependency of the fl ow rate on
the excess pressures.
These dry running machines are suitable for conveying air with a relative humidity of 30 - 90%.
If the unit is switched on more frequently (at regular intervals of about 10 times an hour) or at
higher ambient temperatures and intake temperatures, the excess temperature limit of the motor
winding and the bearings may be exceeded.
Please contact the manufacturer should the unit be used under such conditions.
If it is installed in the open air the unit must be protected from environmental infl uences, (e.g. by a
protective roof).
www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH |
13
Installation
5 Installation
5.1 Preparing for installation
Check the following points:
• Machine freely accessible from all sides
• Do not close ventilation grids and holes
• Suffi cient room for installing and removing pipes
and for maintenance work, particularly for installing and dismantling the machine
• No external vibration effects
• Do not suck any hot exhaust air from other machines into the cooling system.
To remove the outlet grid (Fig. 2/G), the inlet grating (Fig. 2/G
) and the housing lid (b) at least
1
30 cm of space must be available for maintenance work. You must also ensure that the cooling air
inlets (Fig. 2/E) and cooling air outlets (Fig. 2/F) must be at least 10 cm away from the nearest wall
(outgoing cooling air must not be sucked in again).
5.2 Installation
NOTICE
The machine may only be operated when it is
set up horizontally.
Material damage resulting from the machine
tipping over and falling.
When installed at more than 1000 m above sea
level a reduction in power is noticeable. In this
case we would ask you to contact us.
Ensure that the foundation complies with the follow-
ing conditions:
• Level and straight
• The bearing surface must be able to bear the
weight of the machine
It must be possible to install the machine on a fi rm foundation without anchoring. When installing
on a substructure we recommend fi xing with fl exible buffers.
| www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH
14
Installation
5.3 Connecting pipes
a) Pressure connection at (Fig. 2/B).
NOTICE
Material damage resulting from the forces and
torques of the pipes on the unit being too high.
screw pipes in by hand.
The compressor volume fl ow is reduced if the
pressure pipe is too narrow and/or too long.
b) Check to ensure the pressure line is connected
correctly.
NOTICE
Length of the connection pipes
With connection pipes that have the same pipe
cross section as the machine connection and are
more than 3m long, a non-return valve especially
for the purpose must be installed in order to avoid
reverse operation when the machine has stopped
5.4 Control and relief valve
The required pressure ranges can be set with the
pressure regulating valve (Fig. 2/D) as shown on the
symbol plate affi xed to the rotary knob.
NOTICE
Do not operate without the standard control
and relief valve.
If the permissible fi nal compression pressure is
exceeded (see data plate) the machine may be
damaged.
www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH |
15
Installation
5.5 Connecting the motor
DANGER
Danger of death if the electrical installation has
not been done professionally.
The electrical installation must only be done by a
qualifi ed electrician observing EN 60204. The operating company has to provide the main switch.
a) The electrical motor data can be found on the
data plate (Fig. 2/N) or the motor data plate. The
motors comply with DIN EN 60034 and are in
protection class IP 55 and insulation class F. The
appropriate connection diagram is located in the
motor‘s terminal box (not for the plug connection version). The motor data must be compared
with the data of the existing mains network (current type, voltage, network frequency, permitted
current value).
b) Connect the motor via the plug connection or
the motor protection switch (for safety reasons,
a motor protection switch is required and the
connecting cable must be installed via a cable
fi tting to provide strain relief). We recommend
using motor protection switches with delayed
switch off, depending on possible excess current. Temporary excess current may occur when
the machine is started cold.
NOTICE
Power supply
The conditions at the installation location must match
the information on the motor data plate. Without
derating the following is permissible:
• ± 5% voltage deviation
• ± 2% Frequency deviation
| www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH
16
6 Commissioning and decommissioning
6.1 Commissioning
Commissioning and decommissioning
WARNING
Improper use
May lead to severe or fatal injuries. Therefore be
sure to obey the safety instructions.
CAUTION
Noise emission
The highest noise pressure levels measured as
per EN ISO 3744 are given in Section 9.
When spending a long time in the vicinity of the
running machine use ear protectors to avoid permanent damage to your hearing.
NOTICE
Wait until the machine stops
The machine must only be switched on again
after it stops.
www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH |
17
Commissioning and decommissioning
6.1.1 Checking the rotation direction
The drive shaft direction of rotation is shown by
the rotation direction arrow (Fig. 2/O).
a) Start the motor briefl y (max. two seconds) to
check the direction of rotation. When looking at
the motor fan, it must rotate clockwise.
The pressure pipe must not be connected
when starting up like this.
NOTICE
Incorrect direction of rotation
Running the machine in reverse for a long time may
cause damage to the blades which may lead to the
blades breaking. Use a phase sequence indicator
to check the direction of rotation (anti-clockwise
rotating fi eld).
6.2 Decommissioning/ storing
Stop the machine
a) Switch the machine off.
b) If available close the cut off device in the suction
and pressure pipe.
c) Disconnect the machine from the electricity
source.
d) Depressurise the machine: Open the pipes
slowly.
The pressure reduces slowly.
e) Remove the pipes and hoses.
f) Seal the connections for suction and discharge
nozzles with adhesive foil.
see also Section 3.2.1, Page 11
6.3 Re-commissioning
a) Check the condition of the machine (cleanliness,
cabling etc.).
For installation see Section 5 Page 14
For commissioning see Section 6.1 Page 17
| www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH
18
7 Maintenance and repair
Maintenance and repair
DANGER
Danger of death from touching live parts.
Before maintenance work disconnect the machine
by pressing the main switch or unplugging it and
ensure that it cannot be turned on again.
WARNING
Hot surfaces and equipment
During maintenance work there is the danger of
getting burnt on hot components and by the machine lubricating oil.
Wait for the machine to cool down.
7.1 Ensuring operational safety
Regular maintenance work must be carried out in order to ensure operational safety.
Maintenance intervals also depend on the operational demands on the machine.
With any work observe the safety instructions described in Section 2.8 “Safety notes for installation, com-
missioning and maintenance”.
The whole unit should always be kept in a clean condition.
7.2 Maintenance work
Interval Maintenance to be carried out Section
monthly Check the pipes and screws for leaks and to ensure they are
—
seated properly and if necessary seal again or tighten up.
monthly Check the terminal box and cable inlet holes for leaks and if
—
necessary re-seal.
monthly Clean the regulating valve and ventilation slots on the machi-
—
ne and the motor cooling ribs.
If there is a great deal of dust in the spaces on the cooling
ribs and cooling pipes after removing the inlet grating (Fig. 2/
G) clean by blowing through.
—
The machine‘s bearings are permanently lubricated and do
—
not require re-lubricating.
monthly / every 6 months Clean or replace fi lter cartridges 7.2.1
7.000 h - 1.000 h Check blades
Replace blades 7.2.2
www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH |
19
Maintenance and repair
7.2.1 Air fi ltering

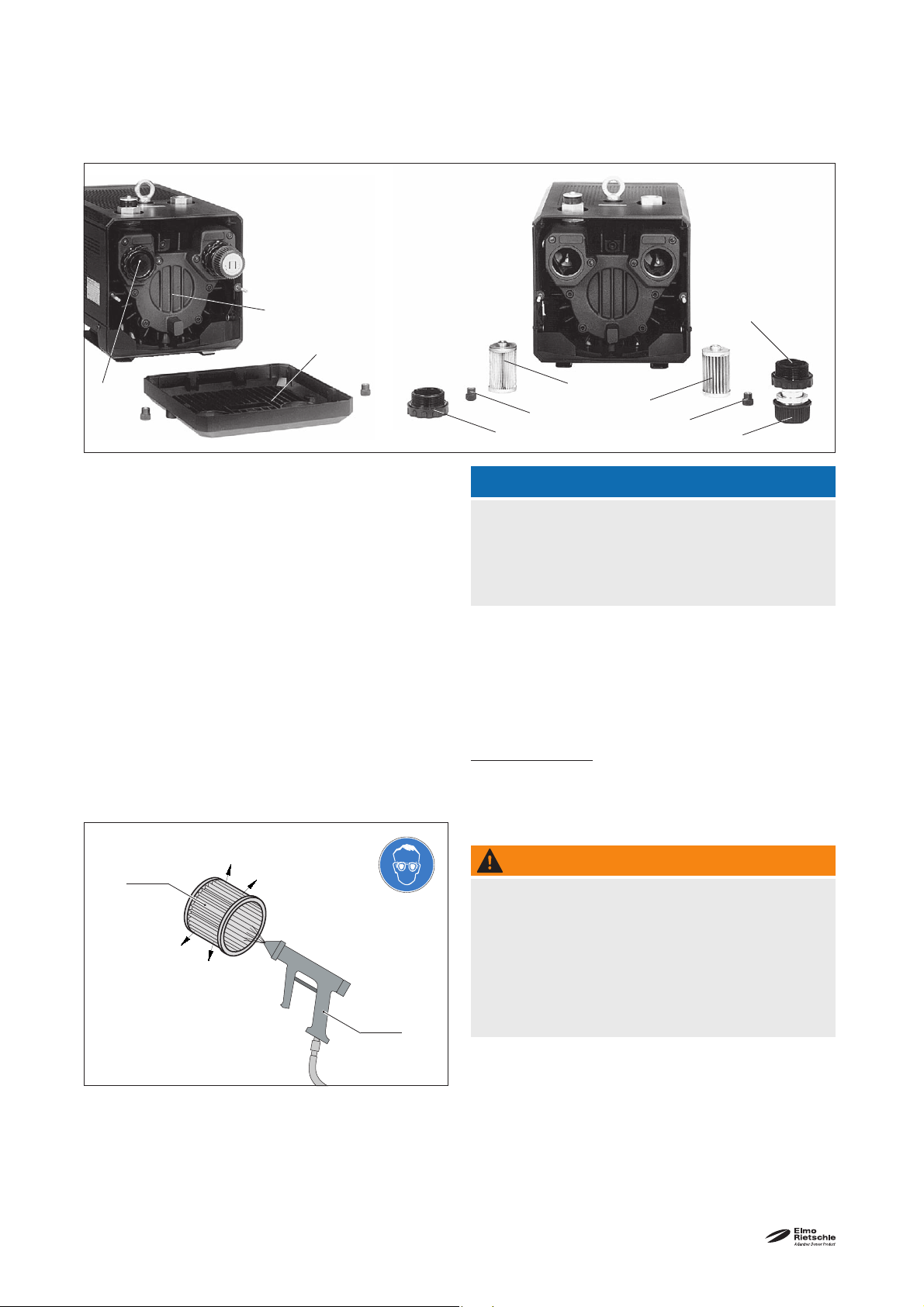

b
s
Fig. 4 Air fi ltering
D Pressure regulating valve
G Outlet grid
b Housing lid
e, f Filter cartridge
m Knurled knob
s Screw cap
s
G
e
m
s
f
m
D
NOTICE
Insuffi cient maintenance on the air fi lter
The power of the machine lessens and damage may
occur to the machine.
The fi lter cartridges for incoming air (Fig. 4/e) and
blowing air (Fig. 4/f ➝ accessory) must be cleaned
by blowing through from the inside out once a
month or more often depending on the level of contamination. In spite of cleaning the filters their separation efficiency will continue to deteriorate. Therefore the fi lters should be replaced every six months.
Changing fi lters:
Unscrew the outlet grid (Fig. 4/G). Undo the screw
cap (Fig. 4/s) and the knurled knob (Fig. 4/m). Remove and clean or replace fi lter cartridges (e) and (f).
Reassemble in reverse order.
1
Danger of injury when dealing with compressed air.
When blowing through with compressed air, solid
particles may be carried along or powder dust swirling around may cause injury to the eyes. Therefore,
when cleaning with compressed air always wear
goggles and a dust mask.
2
Fig. 5 Purging fi lter cartridge
1 Filter cartridge
2
Compressed air
| www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH
20
WARNING
7.2.2 Replacing blades
Maintenance and repair
Fig. 6 Changing blades
O
Direction of rotation
1
Minimum height
X
Slanting side of the blade
Y
Z
Drilled holes in the housing
b Housing lid
Blade
d
Z
Y
X
O
b
1
d
Checking blades: V-DTN 6 - 25 have 6 carbon
blades and V-DTN 40 has 7 carbon blades that wear
out gradually during operation.
V-DTN 6, V-DTN 10 and V-DTN 15: First check after
7,000 operating hours, then every 1,000 operating
hours.
V-DTN 25: First check after 5,000 operating hours,
then every 1,000 operating hours.V-DTN 40: First
check after 3,000 operating hours, then every 1,000
operating hours.
Unscrew the outlet grid (Fig. 4/G). Unscrew the
housing lid (Fig. 6/b) from the housing. Remove the
blades (Fig. 6/d) to be checked. All blades must
have a minimum height (Fig. 6/X) of:
Type X (minimum height)
V-DTN 6, 10 20 mm
V-DTN 15, 25 24 mm
V-DTN 40 35 mm
The blades must only be changed as a set.
Changing blades: If you detect during the blade
check that the minimum height has been reached
or it has fallen below the minimum height, the blade
set must be changed.Blow out the housing and the
rotor slot. Insert the blades into the rotor slot. When
doing this you must ensure that the blades with
the sloping side (Fig. 6/Y) point outwards and the
direction of rotation of these sloping sides (Fig. 6/O
matches that of the drilled holes for the housing
(Fig. 6/Z). Screw on the housing lid (Fig. 6/b) and
outlet grid (Fig. 5/G). Before starting up check that
the blades run freely by moving the fan round, for it
unscrew the inlet grating (Fig. 2/G1).
www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH |
21
)
1
Maintenance and repair
7.3 Reparatur/ Service
a) For on site repair work the motor must be
disconnected from the mains by a qualifi ed
electrician so that it cannot be started up again
accidentally. For repairs use the manufacturer,
its branch offi ces or authorised dealers. Please
contact the manufacturer for the address of the
service centre responsible for you (see Manufacturer‘s address).
NOTICE
For each machine that is sent to an Elmo Rietschle Service centre for inspection, maintenance
or repair, a fully completed, signed declaration of
harmlessness must be enclosed.
The declaration of harmlessness is part of the
supplier‘s documentation.
Abb. 7 Clearance certifi cate 7.7025.003.17
b) After a repair or re-commissioning, the actions
listed under „Installation“ and „Commissioning“
must be carried out as for initial commissioning.
| www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH
22
7.4 Spare parts
Fig. 8 Spare parts list (example)
Maintenance and repair
Order spare parts in accordance with the:
• Spare parts list:
E 380 ➝ V-DTN 6 - V-DTN 40
• Download the PDF fi le:
http://www.gd-elmorietschle.com
➝ Downloads
➝ Product Documents
➝ V-Series ➝ Spare Parts
• Parts subject to wear and gaskets are indi-
cated separately on the list.
• Web site:
http://www.service-er.de
• Select the type, size and design.
NOTICE
Only use original spare parts or parts approved by
the manufacturer. The use of other parts may lead to
malfunctions and invalidate liability or the guarantee
for any consequences arising.
Fig. 9 Web site
http://www.service-er.de
www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH |
23
Malfunctions: Causes and elimination
8 Malfunctions: Causes and elimination
Fault Cause Troubleshooting Important
Machine is switched
off by the motor protection switch
Blowing capacity is
insuffi cient
Mains voltage/ Frequency
does not correspond with the
motor data
Connection to motor terminal
board is not correct
Motor protection switch is not
set correctly
Motor protection switch is
triggered too quickly
The blow out fi lter cartridge is
dirty.
The regulating valve is dirty so
that the permissible pressure
is exceeded.
Intake fi lter and/or blow out
fi lter are dirty
Check by qualifi ed electrician Section 5.5
Use a motor protection switch
with an overload-dependent
delayed switch off that takes
into consideration the short
term excess current at start
up (version with short circuit
and overload trigger as per
VDE 0660 Part 2 orIEC 947-4)
Clean or replace the fi lter
cartridge
Clean or replace the regulating valve
Clean or replace the intake
fi lter
Section 7.2.1
Section 7.4
Section 7.2
Section 7.4
Section
7.2.1Section
7.4
The pressure line is too long
or too narrow
Machine or system leaking Check the pipework and
Blades are damaged Replace blades Section 7.2.2
Check the hose or the pipe Section 5.3
Section 7.2
screw connections for leaks
and to ensure that they are
fi rmly seated.
Section 7.4
| www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH
24
Malfunctions: Causes and elimination
Fault Cause Troubleshooting Important
Final pressure (max.
Machine or system leaking Check the pipework and
excess pressure) has
not been reached
Blades are worn or damaged Replace blades Section 7.2.2
Driving power selection too
low
Machine gets too hot Ambient or intake temperature
is too high
Cooling air supply is ob-
structed
The blow out fi lter cartridge is
dirty.
The regulating valve is dirty so
that the permissible pressure
is exceeded.
The machine makes
an abnormal noise
The compressor housing is
worn (chatter marks)
Section 7.2
screw connections for leaks
and to ensure that they are
fi rmly seated.
Section 7.4
Use next largest motor output Data sheet
D 380
Ensure it is being used prop-
Section 2.3
erly
Check environmental condi-
Section 5.1
tions
Clean ventilation slots Section 7.2
Clean or replace the fi lter
cartridge
Clean or replace the regulating valve
Repair by manufacturer or
authorised workshop
Section 7.2.1
Section 7.4
Section 7.2
Section 7.4
Elmo Rietschle
Service
The regulating valve is vibrat-
Replace the valve Section 7.4
ing
Blades are damaged Replace blades Section 7.2.2
Section 7.4
Please contact Elmo Rietschle Service for other malfunctions or those that cannot be eliminated.
www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH |
25
Technical Data
9 Technical Data
V-DTN 6 10 15 25 40
Sound pressure level (max.)
EN ISO 3744
Tolerance± 3 dB(A)
dB(A)
50 Hz 62 63 66 67 71
60 Hz 63 65 67 70 74
3 ~ 16,1 20,8 28,2 33,9 48,4
Weight (max.) kg
1 ~ 17,2 21,2 28,7 34,4 49,0
Length mm 402 422 476 507 593
Width mm 214 214 242 242 274
Height mm 208 208 246 246 272
Pressure connection G
/
8
G 3/
8
G 1/
2
G 1/
2
G 3/
3
You will fi nd more technical data on the data sheet
D 380
• Download the PDF fi le:
D 380 ➝ V-DTN 6 - V-DTN 40
• Download the PDF fi le:
http://www.gd-elmorietschle.com
➝ Downloads
➝ Product Documents
➝ V-Series ➝ Data Sheets
4
Fig. 10 Data sheet (example)
NOTICE
Subject to technical changes.
| www.gd-elmorietschle.com © Gardner Denver Schopfheim GmbH, Gardner Denver Deutschland GmbH
26
Elmo Rietschle is a brand of
Gardner Denver‘s Industrial Products
Division and part of Blower Operations.
www.gd-elmorietschle.com
er.de@gardnerdenver.com
Gardner Denver
Schopfheim GmbH
Roggenbachstraße 58
79650 Schopfheim · Deutschland
Tel. +49 7622 392-0
Fax +49 7622 392-300
Hereby the manufacturer
confirms:
EC - declaration of conformity 2006/42/EC
Gardner Denver Schopfheim GmbH
Postfach 1260
D-79642 Schopfheim
that the machine:
of the:
Dry running compressor
Series: V-DTN
Type: V-DTN 6, V-DTN 10, V-DTN 15,
V-DTN 25, V-DTN 40
V-DTN 16, V-DTN 26, V-DTN 41
is conform to the regulations of the guideline indicated above.
The following harmonized and national standards and specifications are applied:
EN 1012-1:2010
EN 1012-2:1996+A1:2009 Compressors and vacuum pumps — Safety requirements — Part 2:
Compressors and vacuum pumps — Safety requirements — Part 1:
Compressors
Vacuum pumps
These declarations of conformity are invalid when the machine has been modified without prior approval by us and the approval has been documented in writing.
Name and address of the EC person in
charge for documentation
Gardner Denver Schopfheim GmbH
Postfach 1260
D-79642 Schopfheim
Gardner Denver Schopfheim GmbH
Schopfheim, 1.8.2011
Dr. Friedrich Justen, Director Engineering
C_0082_EN
Safety declaration form
s
.
s
/
A
.
3
S
for vacuum pumps and component
7.7025.003.17
Page 1 of 1
Gardner Denver Schopfheim GmbH
Roggenbachstr. 58, 79650 Schopfheim Phone: +49/(0)7622/392-0 Fax: +49/(0)7622/392-300
Repairs and/or maintenance of vacuum pumps and components will only be carried out if a declaration has been
filled in correctly and completely
.
If not, the repair work cannot be started and delays will result.
This declaration must only be filled in and signed by authorised qualified staff
2. Reason for the submission1. Type of vacuum pumps/ components
Type description:
Machine number
Order number:
Delivery date:
3. Condition of vacuum pumps/ component
4. Contamination of the vacuum pumps
Was this being operated? YES NO components when in use
Which lubrication was used? Toxic YES NO
Corrosive YES NO
Was the pump/ component emptied? Microbiological*) YES NO
(Product/Consumables) YES NO Explosive*) YES NO
Has the pump/ component been cleaned and decontaminaRadioactive*) YES NO
other YES NO
YES
Cleaning agent:
Cleaning method:
*) Microbiological, explosive or radioactively contaminated vacuum pumps/ components will only be accepted
with proof that they have been cleaned properly.
Type of toxic substance or process-related, dangerous reaction products with which the vacuum pumps/
components came into contact:
Trade name, manufacturer's Chemical Hazard
product name name class substances are released accidents
1
2
3
4
Personal protection measures:
ction to be taken if toxic First aid in the event of
Hazardous decomposition products when subjected to thermal load
YES NO
Which?
5. Legally binding declaration
We swear that the information in this declaration is accurate and complete and that I, the undersigned, am in a
position to judge this. We are aware that we are liable to the contractor for damage caused by incomplete and
inaccurate information. We undertake to release the contractor from any damage claims from third parties arising
from incomplete or incorrect information. We are aware that, regardless of this declaration, we are directly liable
to third parties including in particular the contractor's staff entrusted with handling or repairing the product
Company:
Street: Post code/ Town:
Phone: Fax:
Name (in capitals) Position:
Date:
Legally binding signature:
TOS no. / Index: 7.7025.003.17 / 0
Office responsible: G
Company stamp:
File management: ..\7702500317.xl
Gardner Denver Schopfheim GmbH Postfach 1260 D-79642 Schopfheim
Loading...
