Operating Instructions G-BH1e



2BH13..-..N 2BH14..-..N 2BH15..-..N 2BH16..-..N 2BH18..-..N

G-Serie

G-Series

Seitenkanal

Side Channel

Contents

Design of side channel blowers in conjunction with frequency inverters ........................................... 3

Quick start guide ................................................................................................................................ 4

1 Safety instructions ...............................................................................................................................5

1.1 Definitions .................................................................................................................................5

1.1.1 Safety alert symbols and signal words.........................................................................5

1.1.2 Signal words.................................................................................................................5

1.1.3 Abbreviations used.......................................................................................................5

1.2 General safety and application notes........................................................................................5

1.3 Residual risks............................................................................................................................7

1.4 Application as directed..............................................................................................................9

1.5 Foreseeable Misuse................................................................................................................10

2 Technical data ...................................................................................................................................11

2.1 Mechanical data ......................................................................................................................11

2.1.1 Weights ......................................................................................................................11

2.1.2 Noise level..................................................................................................................11

2.1.3 Temperature increase ................................................................................................11

2.2 Electrical data..........................................................................................................................12

2.3 General data/operating conditions..........................................................................................13

3 Transport and handling .....................................................................................................................14

3.1 Transport devices....................................................................................................................14

3.2 Transport types .......................................................................................................................14

4 Installation .........................................................................................................................................15

4.1 Installation ...............................................................................................................................16

4.1.1 Important notes ..........................................................................................................16

4.1.2 Free spaces................................................................................................................17

4.1.3 Mounting.....................................................................................................................18

4.1.4 Final works .................................................................................................................19

4.2 Mounting of the muffler ...........................................................................................................19

4.3 Connecting the pump-motor unit to the system ......................................................................19

4.3.1 Important notes ..........................................................................................................19

4.3.2 Connecting the inlet line.............................................................................................20

4.3.3 Connecting the pressure line .....................................................................................20

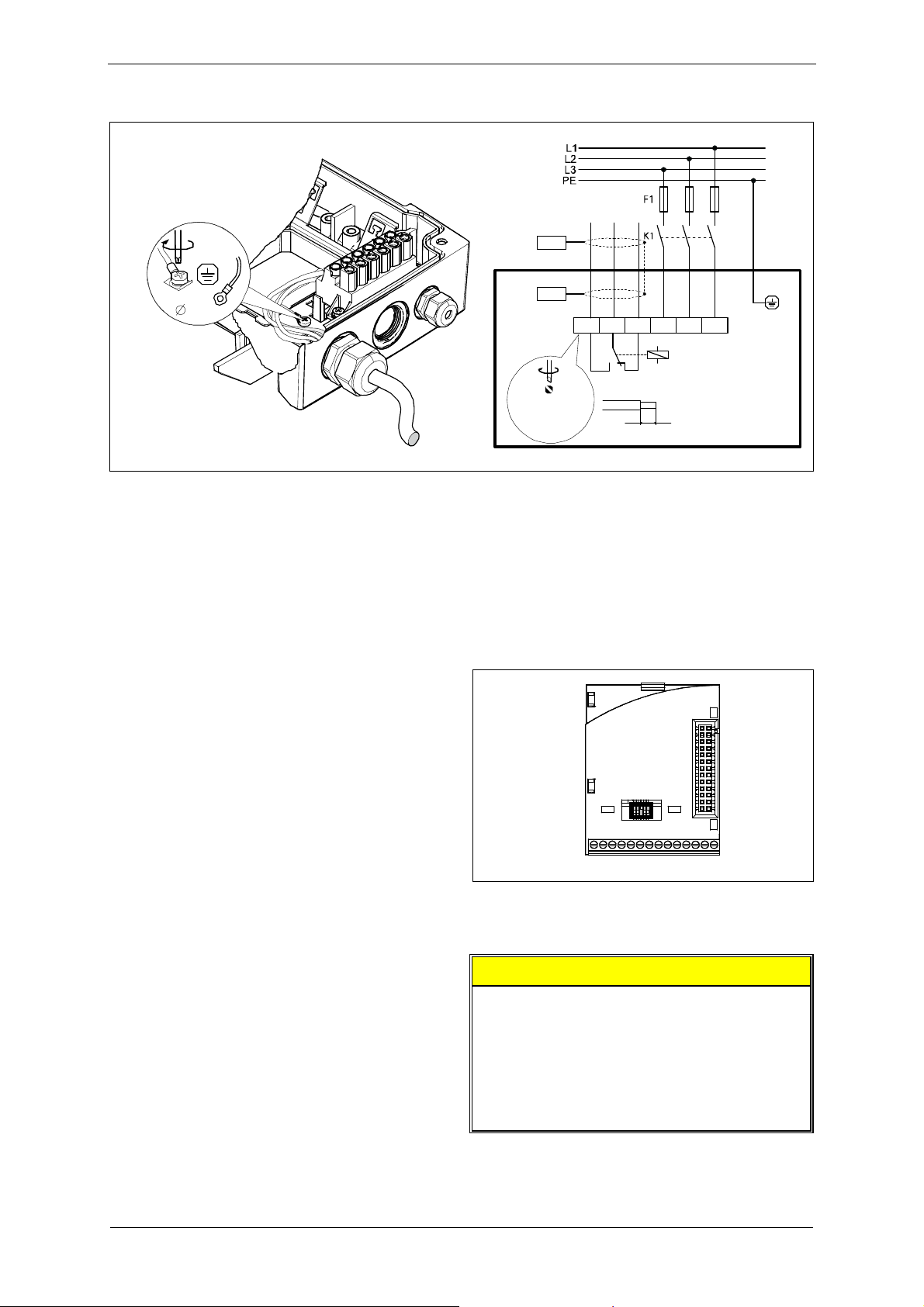

4.4 Electrical installation................................................................................................................21

4.4.1 Important notes ..........................................................................................................21

4.4.2 Preparing works .........................................................................................................22

4.4.3 Connecting frequency inverters 2FC4152-1NE00 and 2FC4222-1NE00..................22

4.4.4 Connecting frequency inverters 2FC4302-1NE00 ... 2FC4752-1NE00.....................25

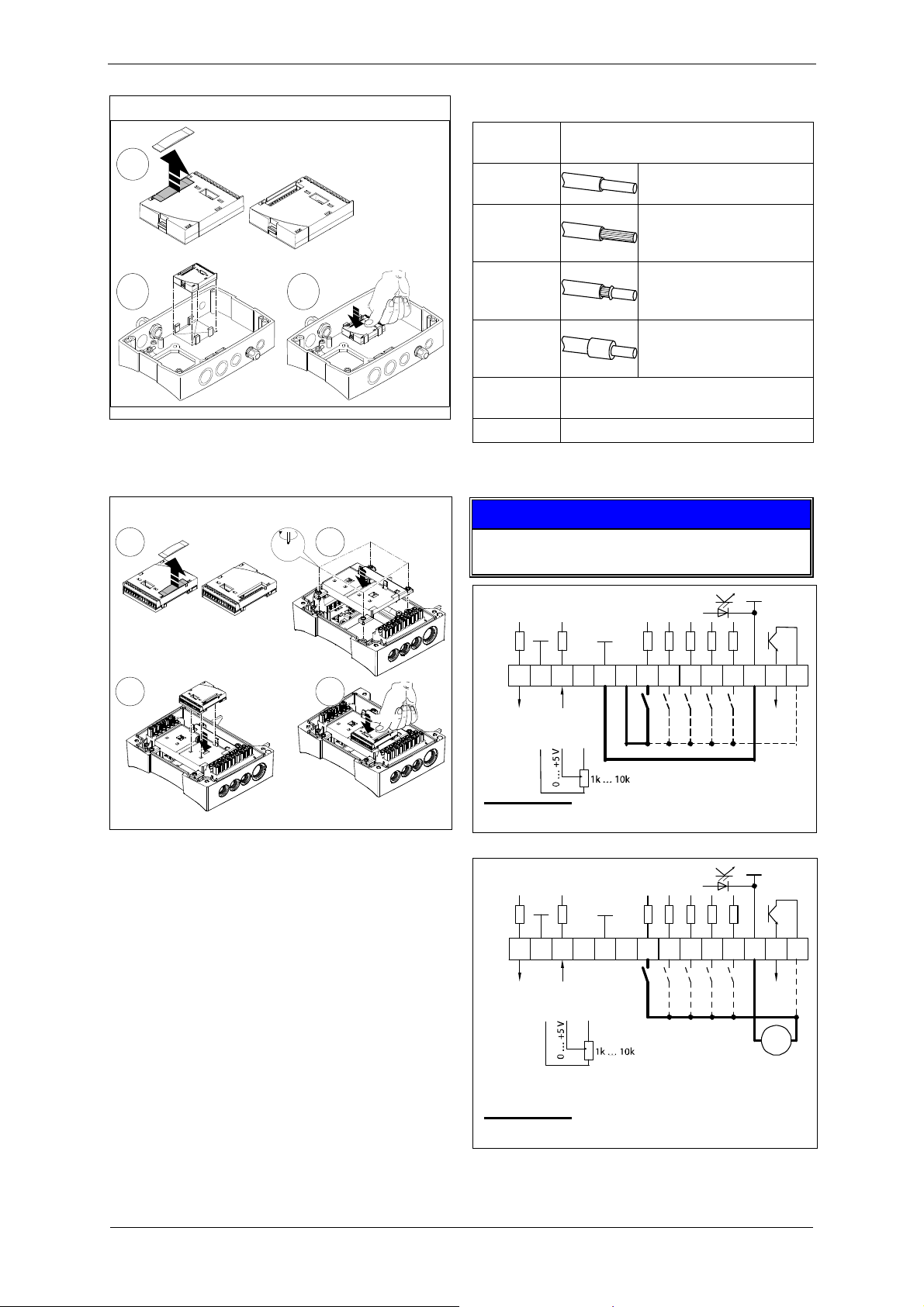

4.4.5 Wiring of control connections .....................................................................................28

4.4.6 Final works .................................................................................................................31

5 Commissioning..................................................................................................................................33

5.1 Preparation..............................................................................................................................33

5.2 Parameter setting....................................................................................................................34

5.2.1 The hand-held keypad 2FX4506-0NE00....................................................................34

5.2.2 Code table ..................................................................................................................36

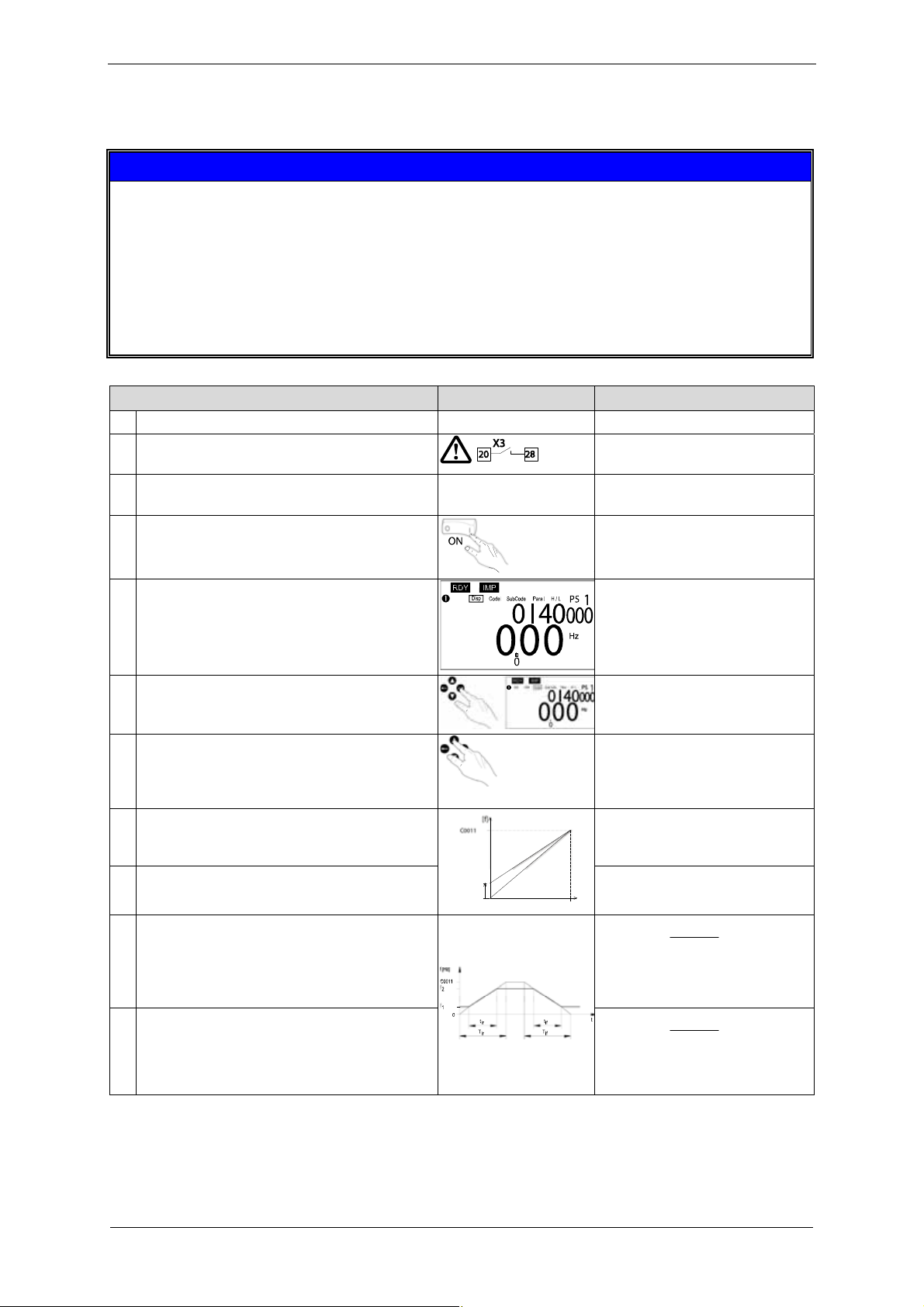

5.3 Start-up of the pump-motor unit ..............................................................................................38

5.4 Shut-down of the pump-motor unit..........................................................................................39

6 Operation...........................................................................................................................................40

7 Shut-down and longer standstills ......................................................................................................41

7.1 Preparation..............................................................................................................................41

7.2 Storage conditions ..................................................................................................................41

Transmittal, reproduction, dissemination and/or editing of this document as well as utilization of its contents and communication thereof to others without express authorization are prohibited. Offenders will be held liable for payment of damages. All rights created by patent grant or registration of a utility model or design patent are reserved.

Design of side channel blowers in conjunction with frequency inverters

Servicing............................................................................................................................................42

8.1 Repair/ troubleshooting...........................................................................................................42

8.1.1 Malfunctions at side channel blower ..........................................................................42

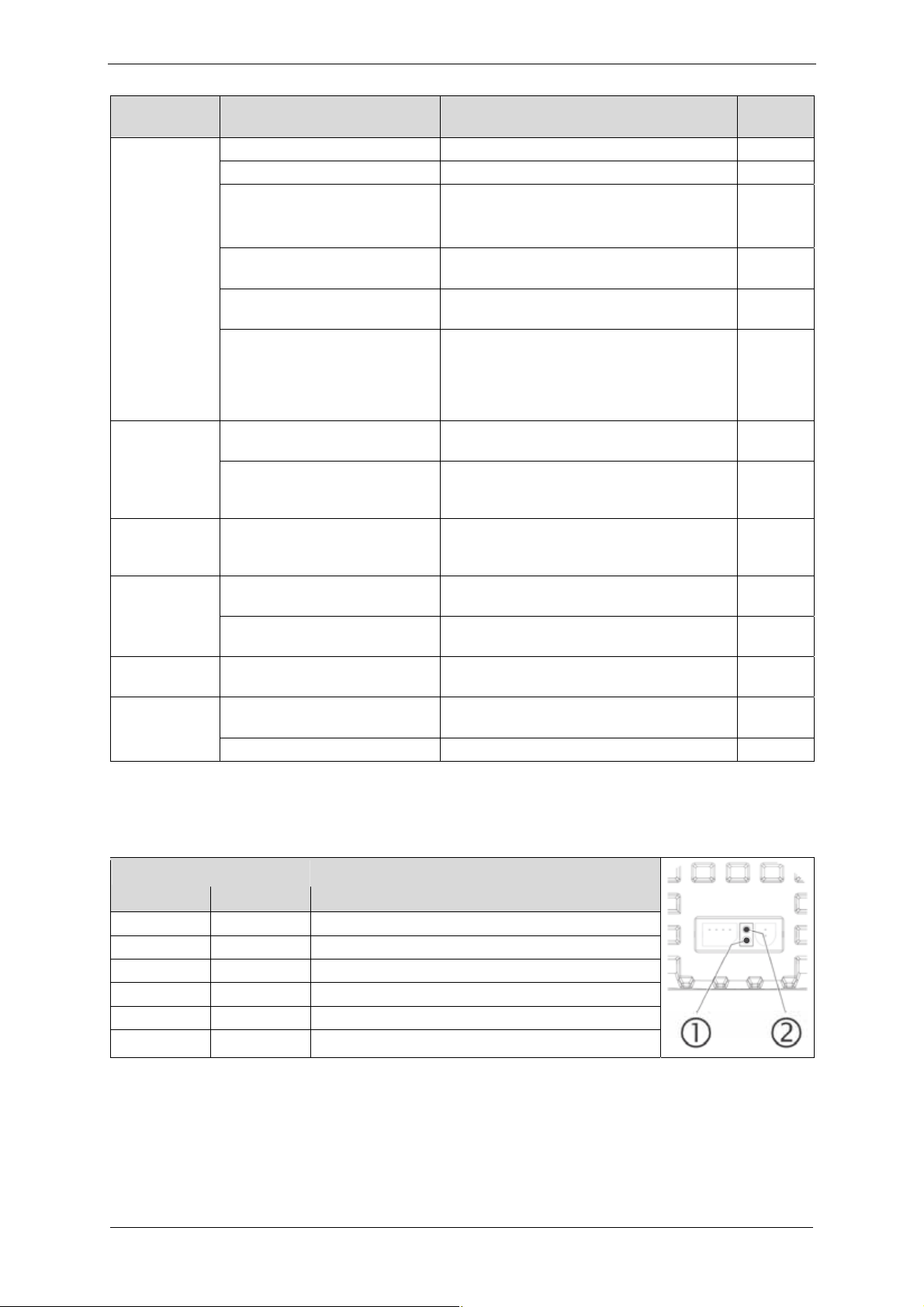

8.1.2 Frequency inverter status indications.........................................................................43

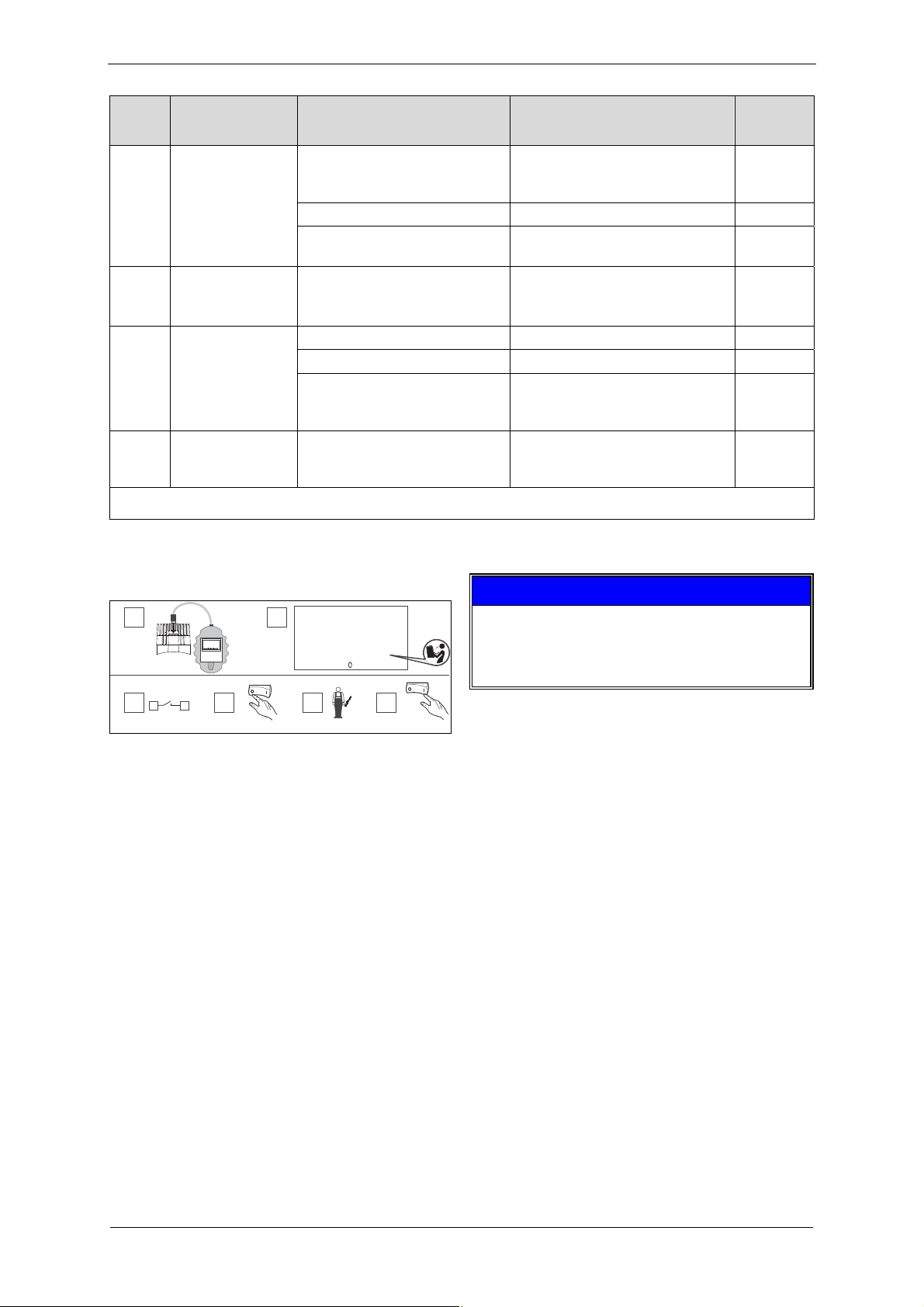

8.1.3 Fault indication at the keypad ....................................................................................44

8.1.4 Fault indication reset (TRIP-RESET) .........................................................................46

8.2 Service/ after-sales service .....................................................................................................46

8.3 Decontamination and declaration of clearance.......................................................................47

9 Disposal.............................................................................................................................................48

Declaration of conformity.................................................................................................................. 49

Form for statement on safety ........................................................................................................... 50

Design of side channel blowers in conjunction with frequency inverters

Position Description

1 Frequency inverter 2 Inlet connection with muffler and arrow indicating delivery direction 3 Discharge connection with muffler and arrow indicating delivery direction 4 Base 5 Arrow indicating direction of rotation 6 Blower cover 7 blower housing 8 Drive motor 9 Fan guard above the motor fan with rating plate, warning notices and arrow

indicating direction of rotation 10 Status display with 2 light-emitting diodes (red, green) 11 Communication interface for connecting the hand-held keypad

Fig. 1: Design of side channel blowers in conjunction with frequency inverters

2bhxn402

 43  34

Quick start guide

Side channel blowers are pre-configured for four operating modes. It only takes a few steps and they are ready for operation:

ACHTUNG

 The drive motor is protected against

overheating by a thermal detector.

– If the drive motor gets too hot, the

frequency inverter will switch off the pump-motor unit.

– Please contact the manufacturer if the

hydraulic process does not allow immediate switch-off.

 A minimum wiring is required for

commissioning! ( 21)

1 Read the safety instructions.

 The safety instructions start on page 5.

2 Install the pump-motor unit and attach it.

 Listing of the mounting steps starts on

3 Wire the pump-motor unit.

4 Put the pump-motor unit into operation.

5 Adapt important process parameters.

page 15.

 Please observe that a minimum wiring is

required!

 Otherwise commissioning of the pump-

motor unit is not possible.

 Important notes concerning the wiring

start on page 21.

 Description of the commissioning steps

starts on page 33.

 Adapt acceleration and deceleration time to

the hydraulic process via C0012 and C0013.

 Description of parameter changing

starts on page 34.

6 Adjust the speed.

A) Speed adjustment using a potentiometer

 The speed is adjusted via the analog input.  The speed can be adjusted between

aminimum and a maximum value.Description of potentiometer wiring starts on page 29.

B) Operation with several adjustable fixed speeds

 The speed of the pump−motor unit can be

adjusted in steps of 1000/min via the digital inputs E3 and E4.

 Description of the wiring of E3 and E4

starts on page29.

C) Operation with one fixed speed

 Connect hand−held keypad.  Set required fixed speed under C0140.  Disconnect hand−held keypad.  The pump−motor unit will be operated with

this speed when switched on.

 Description of hand−held keypad

connection and parameter changing starts on page34.

D) Speed adjustment using the keypad

 Connect hand−held keypad.  Select C0140.  Set the required speed during the  process using the keys  _..  The pump−motor unit will be operated with

the last set speed when switched on.

 Description of hand−held keypad

connection and parameter changing starts on page34.

610.44521.40.000 4 / 52 © Gardner Denver Deutschland GmbH

Safety instructions

1 Safety instructions

1.1 Definitions

To point out dangers and important information, the following signal words and symbols are used in these Operating Instructions:

1.1.1 Safety alert symbols and signal words

The safety alert symbol  is located in the safety instructions in the highlighted heading field on the left next to the signal word (DANGER, WARNING, CAUTION).

Safety instructions with a safety alert symbol indicate a danger of injuries.

Be sure to follow these safety instructions to protect against injuries or death!

Safety instructions without a safety alert symbol indicate a danger of damage. – Be sure to follow these safety instructions to avoid material damage!

1.1.2 Signal words

DANGER WARNING CAUTION NOTICE NOTE

Danger of injuries.

Indicates an imminently hazardous situation, that will result in death or serious injury if the corresponding measures are not taken.

Danger of injuries.

Indicates a potentially hazardous situation, that could result in death or serious injury if the corresponding measures are not taken.

The signal words are located in the safety precautions in the highlighted heading field.

They follow a certain hierarchy and indicate (in conjunction with the safety alert symbol, see Chapter 1) the seriousness of

the danger and the type of warning.

See the following explanations:



DANGER



WARNING



CAUTION

Danger of injuries.

Indicates a potentially hazardous situation, that may result in minor or moderate injury if the corresponding measures are not taken.

CAUTION

Danger of damage.

Indicates a potentially hazardous situation that may result in property damage if the corresponding measures are not taken.

NOTICE

Indicates a possible disadvantage, i.e. undesirable conditions or consequences can occur if the corresponding measures are not taken.

NOTE

Indicates a possible advantage if the corresponding measures are taken; tip.

1.1.3 Abbreviations used

Product designation

For gas side channel blower in conjunction with frequency inverters the term pump−motor unit is used in these Instructions.

Cross−reference

Cross−references to other parts of these Instructions are marked with a book symbol: ( 9)

1.2 General safety and application notes

 WARNING

Improper use of the pump−motor unit can result in serious or even fatal injuries!

These Operating Instructions

 must have been read completely and

understood before beginning any work with or at the pump−motor unit,

 must be strictly observed,  must be available at the operating location of

the pump−motor unit.

Safety instructions

 WARNING

Improper use of the pump−motor unit can result in serious or even fatal injuries!

Only operate the pump−motor unit

 for the purposes indicated under "Application

as directed"!

 with the media indicated under "Application

as directed"!

 with the values indicated under "Technical

data"!

 WARNING

Improper use of the pump−motor unit can result in serious or even fatal injuries!

All work on and with the pump−motor unit (transport, installation, operation, shut−down, maintenance, disposal) may only be carried out by trained, reliable expert personnel!

 WARNING

When working on the pump−motor unit, there is a danger of injury, e.g. in the form of cuts/cutting off, crushing and burns!

During all work on and with the pump−motor unit (transport, installation, operation, shut−down, maintenance, disposal) wear personal safety equipment (safety helmet, safety gloves, safety shoes)!

 WARNING

Hair and clothing can be pulled into the pump−motor unit or caught and wound up by moving parts! Do not wear long, loose hair or wide, loose clothing! Use a hairnet!

 DANGER!

Electrical danger!

Work on electrical installations may be carried out by trained and authorized electricians only!

 DANGER!

Electrical danger!

Before beginning work on the pump−motor unit or system, the following measures must be carried out :

 Deenergize.  Secure against being switched on again.  Determine whether deenergized.  Ground and short−circuit.  Cover or block off adjacent energized parts.

 DANGER!

Electrical danger!

Do not open the frequency inverter until absence of electricity has been ensured!

 WARNING

Danger due to vacuum and gauge pressure: sudden escape of media (skin and eye injuries), sudden drawing−in of hair and clothing!

Danger due to escaping media: burns!

Use mounting elements, connections, lines, fittings and containers with sufficient freedom from leaks and strength for the pressures which occur.

Check the mounting elements, connections, lines, fittings and containers for strength, leaks and firm seating at regular intervals!

 WARNING

Danger from rotating parts (motor fan, impeller, shaft): cutting/cutting off of extremities, grasping/winding up of hair and clothing! Danger due to vacuum and gauge pressure: sudden escape of media (skin and eye injuries), sudden drawing−in of hair and clothing! Danger due to escaping media: burns!

Commissioning and operation only under the following conditions:

 The pump−motor unit must be completely

assembled. When doing so, pay particular attention to the following components:

– the blower cover, – the mufflers on inlet and discharge

connections,

– the fan guard.

 The pipes and hoses must be connected to

inlet and discharge connections.

 Inlet and discharge connections and the

connected pipes/hoses may not be closed, clogged or soiled.

 Check the mounting elements, connections

of the pipe/hose connections, lines, fittings and containers for strength, leaks and firm seating at regular intervals.

610.44521.40.000 6 / 52 © Gardner Denver Deutschland GmbH

Safety instructions

 WARNING

Danger from rotating parts (motor fan, impeller, shaft): cutting/cutting off of extremities, grasping/winding up of hair and clothing!

Danger due to vacuum and gauge pressure: sudden escape of media (skin and eye injuries), sudden drawing−in of hair and clothing! Danger due to escaping media: burns!

Before beginning work on the pump−motor unit, take the following measures :

 Shut down pump−motor unit and secure

against being switched on again.

 Attach a sign on the system controller and

on the control elements for the pump−motor unit: "DANGER! Maintenance work on the vacuum pump/compressor! Do not switch on!"

 Wait for pump−motor unit to come to a

complete stop.

– Observe run−on time!

 Allow pump−motor unit to cool!  Shut−off lines.

– Release pressure.

 Make sure that no vacuum or gauge

pressure is present in the lines/tanks to be opened.

 Make sure that no media can escape.

 WARNING

Danger from rotating impeller: cutting/cutting off of extremities!

The rotating impeller is accessible with the inlet and discharge connections open!

Do not reach into the pump−motor unit through open connections!

Do not insert objects into the pump−motor unit through the openings!

 WARNING

Danger of burns from hot surface of the pump−motor unit and from hot media!

High temperatures of up to approx. 160 °C [320 °F] can occur on the surface of the pump−motor unit:

 Cover the pump−motor unit with a suitable

touch protection (e.g. perforated plate cover or wire cover).

 Do not touch during operation!  Allow to cool after shut−down!

1.3 Residual risks

 WARNING

Danger zone:

Hot surface of up to approx.160 °C [320 °F].

Hazard:

Possible burns.

Protective measures:

Cover the pump−motor unit with a suitable touch protection (e.g. perforated plate cover or wire cover).

 WARNING

Danger zone:

Fan guard

Hazard:

Long, loose hair can be drawn into motor fan through the fan guard grate, even with

fan guard mounted!

Protective measures:

Wear hair net!

 WARNING

Danger from rotating impeller: cutting/cutting off of extremities!

The rotating impeller is accessible with the inlet and discharge connections open!

With free entry and exit of gases, i.e. with direct intake out of or direct feeding into the atmosphere without piping, the following therefore applies:

 Provide the inlet and discharge connections

of the pump−motor unit either with additional mufflers or with additional piping of a sufficient length to prevent access to the impeller!

Safety instructions

 WARNING

Danger zone:

Missing or defective muffler on inlet or discharge connection.

Hazard:

Possible serious hearing damage due to emitted noise.

Protective measures:

Have missing or defective mufflers replaced. Conduct a noise measurement in the system

after installing the pump−motor unit. The following measures must be taken by the

operator:

 from 85 dB(A):

– Hearing protection must be available.

 from 90 dB(A):

– Mark noise area with a warning sign. – Wear hearing protection.

 WARNING

Danger zone:

Environment of pump−motor unit.

Hazard:

Possible serious hearing damage due to emitted noise.

Protective measures:

Conduct a noise measurement in the system during operation after installing the

pump−motor unit. The following measures must be taken by the

operator:

 from 85 dB(A):

– Hearing protection must be available.

 from 90 dB(A):

– Mark noise area with a warning sign. – Wear hearing protection. – With free entry and exit of gases, i.e. with

direct intake out of or direct feeding into the atmosphere without piping, attach an additional muffler.

CAUTION

Material damage at the frequency inverter caused by switching on the device too

frequently with too short intervals. In the case of cyclic mains switching for a

longer time period, allow at least 3 minutes between two switch−on actions.

CAUTION

Material damage at the side channel blower caused by too high speeds.

 Do not set the output frequency at the

frequency inverter higher than the maximum frequency specified in the documentation.

 Use special overspeed monitors if

necessary.

610.44521.40.000 8 / 52 © Gardner Denver Deutschland GmbH



Safety instructions

1.4 Application as directed

Validity of the Operating Instructions

These Operating Instructions are valid for G-BH1e series side channel blowers in conjunction with frequency inverters equipped with the following frequency inverters:

 

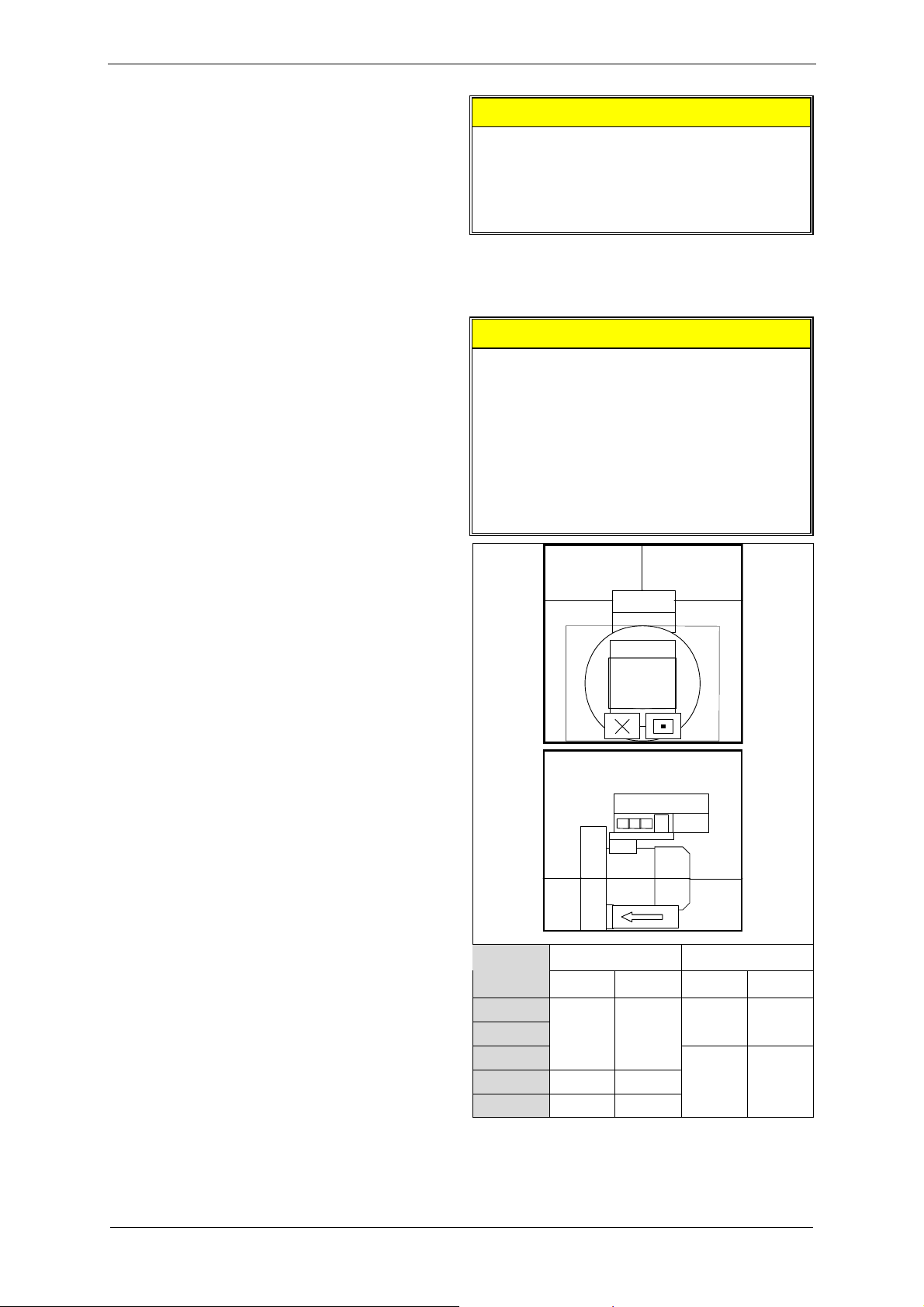

Type

Supply voltage

2FC 4 xxx - 1NE00 1x 35

4 = 400 V/500 V

Power (e.g.152 = 15 ´ 10 (e.g.. 752 = 75 ´ 10

W = 1,5 kW)

W = 7,5 kW)

1NE00 = integrated inverter

Hardware version

Software version

Fig. 2: Typschild

These Operating Instructions

 contain instructions bearing on transport and

handling, installation, commissioning, operation, shut−down, storage, servicing and disposal,

 must be completely read and understood by

all operating and servicing personnel before beginning to work,

 must be strictly observed,  must be available at the site of operation in a

complete and perfectly legible condition.

– With differing gases/gas−air mixtures,

inquire with the manufacturer.

 are intended for industrial applications.  are designed for continuous operation:

– With increased switch−on frequency (at

equal intervals of approx. 5 times per hour) or increased gas entry temperature and ambient temperature, the limit overtemperature of the winding and the bearings can be exceeded.

– Consultation with the manufacturer is

required for operating conditions of this kind.

Operating and servicing personnel

 are equipped with a three−phase drive motor

 These persons must be trained and

authorized for the work to be carried out.

 Work on electrical installations may be carried

out by trained and authorized electricians only.

G-BH1e series side channel blowers in conjunction with frequency inverters

 are pump−motor units for generating vacuum

or gauge pressure.

 are used to extract, pump and compress the

following gases:

– Air, – Non−flammable, non−aggressive,

non−toxic and non−explosive gases or

with mounted frequency inverter.

 are available in the following models:

– single−impeller (single−stage) – two−impeller (two−stage) for increased

pressure difference

– two−impeller (double−flow) for increased

delivery volume

During operation the limit values listed under "Technical data" must always be complied with. ( 11)

gas−air mixtures.

nash_elm o Industries Gmb H Indust riestras se 26 D-97616 Ba d Neustadt

Prod.-ID

Prod.-No. Ser.-No.

Input

Output

Type

Version

ne2bhxn014

Safety instructions

1.5 Foreseeable Misuse

It is prohibited

 to use the pump−motor units in applications

other than industrial applications unless the necessary protection is provided on the system, e.g. touch guards suitable for children’s fingers,

 to use the pump−motor units in rooms in

which explosive gases can occur,

 to extract, deliver and compress explosive,

flammable, corrosive or toxic media,

 to operate the pump−motor units with values

other than those specified in the chapter "Technical data".

Any unauthorized modifications of the pump−motor units are prohibited for safety reasons.

The operator is only permitted to perform the maintenance and service work described in these Operating Instructions.

Any maintenance and service work which goes beyond this many only be performed by companies authorized by the manufacturer (inquire with the manufacturer).

610.44521.40.000 10 / 52 © Gardner Denver Deutschland GmbH

Technical data

2 Technical data

2.1 Mechanical data

2.1.1 Weights

Weight Type

approx. [kg] approx. [lbs]

Single−impeller design 2BH1400-7.N1. 20 44 2BH1400-7.N2. 21 47 2BH1500-7.N3. 35 77 2BH1600-7.N3. 52 115 2BH180.-7.N0. 122 268 2BH180.-7.N1. 136 299 Two−impeller design 2BH1310-7.N2. 19 42 2BH1410-7.N4. 37 82 2BH1510-7.N5. 53 117 2BH1610-7.N3. 63 139 2BH1610-7.N4. 80 176

2.1.2 Noise level

Measurement conditions

Measuring-surface sound-pressure level as per EN ISO 3744, measured at a distance of 1 m [3.28 ft] at an operating point of approximately 2/3 of the permissible total pressure difference with the lines connected without a vacuum or pressure relief valve, tolerance 3 dB (A).

Type

Single−impeller design 2BH1400-7.N1. 63 64 74 2BH1400-7.N2. 63 64 74 2BH1500-7.N3. 64 70 75 2BH1600-7.N3. 69 72 80 2BH180.-7.N0. 70 74 81 2BH180.-7.N1. 70 74 81

1−m measuring−surface

sound−pressure level L for

operation with output

frequency approx. [dB (A)]

50 Hz 60 Hz 86 Hz

Two−impeller design 2BH1310-7.N2. 55 61 66 2BH1410-7.N4. 66 69 77 2BH1510-7.N5. 72 74 83 2BH1610-7.N3. 73 76 84 2BH1610-7.N4. 73 76 84

2.1.3 Temperature increase

The information listed in the following tables corresponds to the heating of the side channel housing and the air exiting compared to the ambient temperature during operation with a permissible total pressure difference and an air pressure of 1013 mbar [14.7 psi]. At lower air pressures these values increase.

Type

Single−impeller design 2BH1400-7.N1. 54 129 50 122 2BH1400-7.N2. 65 149 75 167 2BH1500-7.N3. 95 203 82 180 2BH1600-7.N3. 107 225 85 185 2BH180.-7.N0. 40 104 40 104 2BH180.-7.N1. 67 153 85 185 Two−impeller design 2BH1310-7.N2. 53 127 74 165 2BH1410-7.N4. 83 181 82 180 2BH1510-7.N5. 90 194 94 201 2BH1610-7.N3. 80 176 75 167 2BH1610-7.N4. 105 221 88 190

Temperature increase for

operation with output

frequency

50 Hz

approx.

∆T [K] ∆υ[F]

60 Hz

approx.

∆T

∆υ

[K]

[F] ∆T[K] ∆υ[F]

120≤ 248

86 Hz

approx.

≤

Technical data

Tightening torques for screw connections

The following values apply if no other data are given. With non−electrical connections, property classes of 8.8 and 8 or higher as per DIN ISO 898 (DIN EN 20898 / DIN ISO 898) are assumed.

Tightening torques for

non−electrical connections

Thread [Nm] [lb-in]

M4 2,7 … 3,3 23,9 … 29,2 M5 3,6 … 4,4 31,9 … 38,9 M6 7,2 … 8,8 63,7 … 77,9

M8 21,6 … 26,4 191 … 234 M10 37,8 … 46,2 335 … 409 M12 63,0 … 77,0 558 … 681

Tightening torques for cable

and conduit glands Metal

Thread [Nm] [lb-in]

M12x1,5 4,0 … 6,0 35,4 … 53,1 M16x1,5 5,0 … 7,5 44,3 … 66,4 M20x1,5 6,0 … 9,0 53,1 … 79,7 M32x1,5 M40x1,5

Thread [Nm] [lb-in]

M12x1,5 2,0 … 3,5 17,7 … 31,0 M16x1,5 3,0 … 4,0 26,6 … 35,4 M20x1,5 4,0 … 5,0 35,4 … 44,3 M32x1,5 M40x1,5

8,0 … 12,0 70,8 … 106

Tightening torques for cable

and conduit glands Plastic

5,0 … 7,0 44,3 … 62,0

2.2 Electrical data

See rating plate.

Technical data

2.3 General data/operating conditions

Conformity

CE Low−Voltage Directive

Vibration resistance

Acceleration resistant up to 2g (Germanischer Lloyd, general conditions)

Vibration velocity

max. v

4 mm/s [0,013 ft/s] Depending on the application case and the

eff

system type it may be necessary to use vibration dampers.

Site altitude

min. 0 m üNN [0 ft amsl] max. 1000 m üNN [3280 ft amsl] For installations above 1000 m amslA [3280 ft

amsl] consultation of the manufacturer is required.

Climatic conditions

Class 3K3 to EN 50178 (without condensation, relative humidity 30 ... 95 %)

Ambient temperatures

Transport min. -25°C [-13°F] max. +70°C [+158°F] Storage min. -25°C [-13°F] max. +60°C [+140°F] Operation min. -20°C [-4°F] max. +40°C [+104°F] rated value +25°C [+77°F]

Between +25 °C [+77 °F] and +40 °C [+104 °F] reduce the total pressure difference indicated on the rating plate by 0.7 %/°C [0.4 %/°F]. Operation at higher temperatures may damage the winding and shorten the grease change interval.

Temperature of pumped gases

max. +40°C [+104°F] rated value +15°C [+59°F]

Pump−motor units for higher media temperatures Pump on request.

Pressures

Inlet pressure min. See rating plate Discharge pressure

max. See rating plate during compressor operation

Permissible total

pressure difference

max. See rating plate The total pressure difference specified on the

rating plate only applies under the following conditions:

 Ambient temperature: 25 °C [77 °F]  Temperature of the pumped gas at the inlet

connection: 15 °C [59 °F]

 Pressure:

– for vacuum−pump operation: 1013 mbar

[14.7 psia] at the discharge connection

– for compressor operation:

1013 mbar [14.7 psia] at the inlet connection

zulässiger Druck im

Aggregat

max. 2 bar abs. [29 psia] At this pressure the operation of the

pump−motor unit may be considerably impaired. Provide a corresponding protective device (e.g. pressure relief valve) if necessary.

Transport and handling

3 Transport and handling

 WARNING

Tipping or falling can lead to crushing, broken bones etc.!

Sharp edges can cause cuts!

 Wear personal safety equipment (safety

gloves, safety shoes and safety helmet) during transport!

 WARNING

Danger from lifting heavy loads!

Manual handling of the pump−motor unit is only permitted within the following limits:

 max. 30 kg [max. 66 lbs] for men  max. 10 kg [max. 22 lbs] for women  max. 5 kg [max. 11 lbs] for pregnant women

For weights above the given values use suitable lifting appliances and handling equipment!

Weight of the pump−motor units: ( 11)

 WARNING

Danger from tipping or falling loads!

 Place the lifting belts under the side channel

housing and under the motor.

 Attach the lifting belts in such a way that the

suspending pump−motor unit is balanced and cannot slip out of the lifting belts.

3.2 Transport types

Pump−motor unit damage caused by improper manual handling!

 Do not carry the pump−motor unit by holding

it at the frequency inverter!

 Avoid heavy impact loads during transport.

Pump−motor unit damage caused by improper transport with lifting appliances!

 Do not attach the lifting appliances to the

 WARNING

CAUTION

frequency inverter!

Danger from tipping or falling loads!

 Prior to transport and handling make sure

that all components are securely assembled and secure or remove all components the fasteners of which have been loosened!

 When transporting with lifting equipment,

observe the following basic rules:

– The lifting capacity of lifting equipment

and lifting gear must be at least equal to the unit’s weight. For the weight of the pump−motor units see:: ( 11)

– The pump−motor unit must be secured

so that it cannot tip or fall.

– Do not stand or walk under suspended

loads!

3.1 Transport devices

All pump−motor units with a weight of more than 30 kg are equipped with an eye bolt at the side channel housing.

The crane hook can be hooked directly into the eye bolt.

Alternatively the pump−motor units can be transported with lifting belts.

 The eye bolt at the side channel housing

must

– be screwed tightly. – be exactly in axial direction of the

pump−motor unit. Lay shims under the eye bolt if necessary.

 Loads laterally to the ring level are not

permissible.

 Avoid heavy impact loads during transport.

Type of transport Type

manually with lifting

appl.

Single−impeller design 2BH1400-7.N1. X 2BH1400-7.N2. X 2BH1500-7.N3. X 2BH1600-7.N3. X 2BH180.-7.N0. X 2BH180.-7.N1. Two−impeller design 2BH1310-7.N2. X 2BH1410-7.N4. X 2BH1510-7.N5. X 2BH1610-7.N3. X 2BH1610-7.N4.

Installation

4 Installation

 WARNING

Improper use of the pump−motor unit can result in serious or even fatal injuries!

Have you read the chapter "Safety instructions"? ( 5)

Otherwise you may not carry out any work with or on the pump−motor unit!

 DANGER!

Danger from missing view into area of pump−motor unit!

When operating the control elements without a view into the area of the pump−motor unit, there is a danger that the pump−motor unit will be switched on while other persons are still performing work on it. Severest injuries are possible!

Provide control elements at a location with a view of the pump−motor unit.

 DANGER!

Electrical danger!

The pump−motor unit must be installed so that the electrical equipment cannot be damaged by external influences!

In particular, the incoming cables must be routed securely, e.g. in cable ducts, in the floor etc.

 WARNING

Danger of balance damage caused by vibration!

Vibrating environments can cause balance damage!

Install the pump−motor unit on a solid foundation or on a solid mounting surface.

Check screw glands/unions for mounting the pump−motor unit on the mounting surface regularly for strength and firm seating.

 WARNING

Danger of crushing due to pump−motor unit tipping over!

Wear personal safety equipment (safety gloves and safety shoes). Handle the pump−motor unit with the appropriate care.

Install the pump−motor unit on a solid foundation or on a solid mounting surface!

Check screw glands/unions for mounting the pump−motor unit on the mounting surface regularly for strength.

 WARNING

Danger of fire from flammable substances!

The pump−motor unit must never come into contact with flammable substances.

For exact information on the temperature increase see: ( 11).

 WARNING

Danger of burns from hot surface of the pump−motor unit and from hot media!

High temperatures of up to approx. 160 °C [320 °F] can occur on the surface of the pump−motor unit.

The pump−motor unit must be installed so that accidental touch of its surface is not possible. Cover the pump−motor unit with a suitable touch protection (e.g. perforated plate cover or wire cover).

 WARNING

Danger of injuries from flying parts!

Select installation so that parts that are thrown out through the grate if the motor fan breaks cannot hit persons!

 CAUTION

Danger of tripping and falling!

Make sure the pump−motor unit does not present a danger of tripping.

Lay cables and pipes so that they cannot be reached during operation (recessed in floor, in ducts on the wall etc.).

Installation

CAUTION

Danger of overheating due to hot surface of pump−motor unit!

High temperatures can occur on the surface of the pump−motor unit.

Temperature−sensitive parts, such as cables or electronic components, may not come into contact with the surface of the pump−motor unit.

CAUTION

Danger of pump−motor unit damage caused by penetration of foreign bodies!

On delivery all connection openings are closed in order to prevent the penetration of foreign bodies. Remove the seals right before the respective mounting step.

Installation sequence

The pump−motor unit is ready to connect on delivery.

CAUTION

The pump−motor unit may be damaged if it is installed and commissioned after longer storage periods without special preparation!

If the pump−motor unit was stored for a longer period prior to installation, it has to be prepared for installation: ( 41)

Carry out the following steps to install the pump−motor unit:

1 Set up the pump−motor unit and attach it. 2 Mount the muffler (supplied loose) if

necessary.

3 Mount the threaded flange or hose flange to

the muffler if necessary.

4 Connect inlet and discharge connections to

the system.

5 Establish electrical connection.

4.1 Installation

CAUTION

Pump−motor unit damage caused by incorrect mounting or use under impermissible ambient conditions!

Install and connect the pump−motor unit only according to the instructions given in this chapter.

If the pump−motor unit is to be used under differing operating conditions, the manufacturer must be consulted.

NOTE

Dimensioned drawings with detailed dimensions, including fastening dimensions, are provided by the manufacturer.

4.1.1 Important notes

Ambient conditions

The pump−motor unit is suitable for installation

 in a dusty or damp environment,  in buildings,  in the open.

– For proper installation in the open, protect

the pump−motor unit from exposure to intensive sunlight, e.g. by attaching a protective roof.

– Further special protective devices against

the effects of weathering are not required.

The motors of the units are to enclosure IP55. The insulation is tropic−proof.

Installation conditions

 Attach the pump−motor unit only to even

surfaces.

 Do not exceed the maximum permissible

vibration velocity veff = 4mm/s [0.013 ft/s].

 Installation altitude max. 1000 m amsl [3280 ft

amsl].

– When installing at an altitude of more than

1000 m [3280 ft] above sea level, first inquire with the manufacturer.

+ 36 hidden pages
