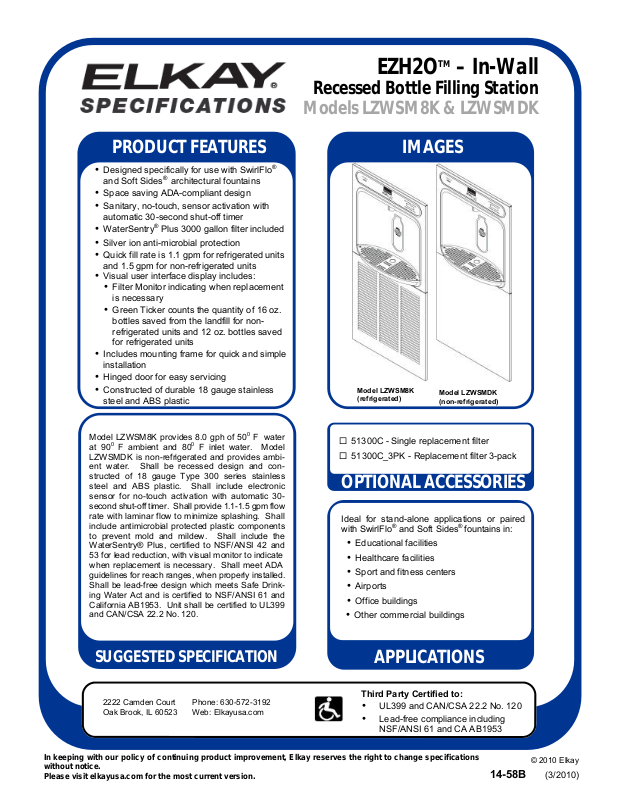

Page 1
EZH2OTM – In-Wall
Recessed Bottle Filling Station
Models LZWSM8K & LZWSMDK
PRODUCT FEATURES
• Designed specifically for use with SwirlFlo
and Soft Sides® architectural fountains
• Space saving ADA-compliant design
• Sanitary, no-touch, sensor activation with
automatic 30-second shut-off timer
• WaterSentry
®
Plus 3000 gallon filter included
• Silver ion anti-microbial protection
• Quick fill rate is 1.1 gpm for refrigerated units
and 1.5 gpm for non-refrigerated units
• Visual user interface display includes:
• Filter Monitor indicating when replacement
is necessary
• Green Ticker counts the quantity of 16 oz.
bottles saved from the landfill for nonrefrigerated units and 12 oz. bottles saved
for refrigerated units
• Includes mounting frame for quick and simple
installation
• Hinged door for easy servicing
• Constructed of durable 18 gauge stainless
steel and ABS plastic
Model LZWSM8K provides 8.0 gph of 500 F water
at 900 F ambient and 800 F inlet water. Model
LZWSMDK is non-refrigerated and provides ambient water. Shall be recessed design and constructed of 18 gauge Type 300 series stainless
steel and ABS plastic. Shall include electronic
sensor for no-touch activation with automatic 30second shut-off timer. Shall provide 1.1-1.5 gpm flow
rate with laminar flow to minimize splashing. Shall
include antimicrobial protected plastic components
to prevent mold and mildew. Shall include the
WaterSentry® Plus, certified to NSF/ANSI 42 and
53 for lead reduction, with visual monitor to indicate
when replacement is necessary. Shall meet ADA
guidelines for reach ranges, when properly installed.
Shall be lead-free design which meets Safe Drinking Water Act and is certified to NSF/ANSI 61 and
California AB1953. Unit shall be certified to UL399
and CAN/CSA 22.2 No. 120.
®
IMAGES
Model LZWSM8K
(refrigerated)
¨ 51300C - Single replacement filter
¨ 51300C_3PK - Replacement filter 3-pack
Model LZWSMDK
(non-refrigerated)
OPTIONAL ACCESSORIES
Ideal for stand-alone applications or paired
with SwirlFlo® and Soft Sides
• Educational facilities
• Healthcare facilities
• Sport and fitness centers
• Airports
• Office buildings
• Other commercial buildings
®
fountains in:
SUGGESTED SPECIFICATION
SUGGESTED SPECIFICATION
2222 Camden Court
Oak Brook, IL 60523
In keeping with our policy of continuing product improvement, Elkay reserves the right to change specifications
without notice.
Please visit elkayusa.com for the most current version.
Phone: 630-572-3192
Web: Elkayusa.com
APPLICATIONS
Third Party Certified to:
• UL399 and CAN/CSA 22.2 No. 120
• Lead-free compliance including
NSF/ANSI 61 and CA AB1953
© 2010 Elkay
14-58B (3/2010)
Page 2
Models LZWSM8K & LZWSMDK
ELECTRICAL
EZH2O Station equipped with electric cord
and three-prong molded rubber plug for
use with 15-amp minimum receptacle. In
the cooling unit, a junction box for a (3)
wire, 10-amp branch circuit is provided.
Rated at 115 volt, 60 Hz, single phase.
*
*7" MINIMUM DEPTH FOR
NON-REFRIGERATED MODELS
Job Name: _______________________________________________ Qty: __________
Contact Info (Name, Phone, Email): __________________________________________
_______________________________________________________________________
Approval for Manufacture— Signature and Date:
_______________________________________________________________________
Comments:
Rated for Indoor Use Only
2222 Camden Court
Oak Brook, IL 60523
Phone: 630-572-3192
Web: Elkayusa.com
®
ELKAY
ROUGH-IN DIMENSIONS
Specifications and measurements are subject to change
without notification.
Please visit elkayusa.com for most current version.
Page 3
EZH2OTM – In-Wall
Recessed Bottle Filling Station
Models LZWSM8PK & LZWSMDPK
(For use with non-refrigerated SwirlFlo® fountains)
PRODUCT FEATURES
• Designed specifically for use with non-refrigerated
SwirlFlo® fountains
• Space saving ADA-compliant design
• Sanitary, no-touch, sensor activation with automatic
30-second shut-off timer
• WaterSentry
• Silver ion anti-microbial protection
• Quick fill rate is 1.1 gpm for refrigerated units and
1.5 gpm for non-refrigerated units
• Visual user interface display includes:
• Filter Monitor indicating when replacement is
necessary
• Green Ticker counts the quantity of 16 oz. bot-
tles saved from the landfill for non-refrigerated
units and 12 oz. bottles saved for refrigerated
units
• Includes mounting frame for quick and simple in-
stallation
• Hinged door for easy servicing
• Constructed of durable 18 gauge stainless steel
and ABS plastic
Model LZWSM8PK provides 8.0 gph of 500 F
water at 900 F ambient and 800 F inlet water.
Model LZWSMDPK is non-refrigerated and provides ambient water. Shall be recessed design
and constructed of 18 gauge Type 300 series
stainless steel and ABS plastic. Shall include
electronic sensor for no-touch activation with
automatic 30-second shut-off timer. Shall provide
1.1-1.5 gpm flow rate with laminar flow to minimize
splashing. Shall include antimicrobial protected
plastic components to prevent mold and mildew.
Shall include the WaterSentry® Plus, certified to
NSF/ANSI 42 and 53 for lead reduction, with visual
monitor to indicate when replacement is necessary.
Shall meet ADA guidelines for reach ranges,
when properly installed. Shall be lead-free
design which meets Safe Drinking Water Act and is
certified to NSF/ANSI 61 and California AB1953.
Unit shall be certified to UL399 and CAN/CSA
22.2 No. 120.
®
Plus 3000 gallon filter included
IMAGES
.
Model LZWSM8PK
(refrigerated)
¨ 51300C - Single replacement filter
¨ 51300C_3PK - Replacement filter 3-pack
Model LZWSMDPK
(non-refrigerated)
OPTIONAL ACCESSORIES
Designed for pairing with non-refrigerated
SwirlFlo® fountains (EDFPB models) in:
• Educational facilities
• Healthcare facilities
• Sport and fitness centers
• Airports
• Office buildings
• Other commercial buildings
SUGGESTED SPECIFICATION
SUGGESTED SPECIFICATION
2222 Camden Court
Oak Brook, IL 60523
In keeping with our policy of continuing product improvement, Elkay reserves the right to change specifications
without notice.
Please visit elkayusa.com for the most current version.
Phone: 630-572-3192
Web: Elkayusa.com
APPLICATIONS
Third Party Certified to:
• UL399 and CAN/CSA 22.2 No. 120
• Lead-free compliance including
NSF/ANSI 61 and CA AB1953
© 2010 Elkay
14-59B (3/2010)
Page 4
Models LZWSM8PK & LZWSMDPK
ELECTRICAL
EZH2O Station equipped with electric cord
and three-prong molded rubber plug for
use with 15-amp minimum receptacle. In
the cooling unit, a junction box for a (3)
wire, 10-amp branch circuit is provided.
Rated at 115 volt, 60 Hz, single phase.
*7" MINIMUM DEPTH FOR
NON-REFRIGERATED MODELS
*
Job Name: _______________________________________________ Qty: __________
Contact Info (Name, Phone, Email): __________________________________________
_______________________________________________________________________
Approval for Manufacture— Signature and Date:
_______________________________________________________________________
Comments:
*NOTE
These models are
designed for use with
EDFPB fountains.
Rated for Indoor Use Only
®
2222 Camden Court
Oak Brook, IL 60523
Phone: 630-572-3192
Web: Elkayusa.com
ELKAY
ROUGH-IN DIMENSIONS
Specifications and measurements are subject to change
without notification.
Please visit elkayusa.com for most current version.
