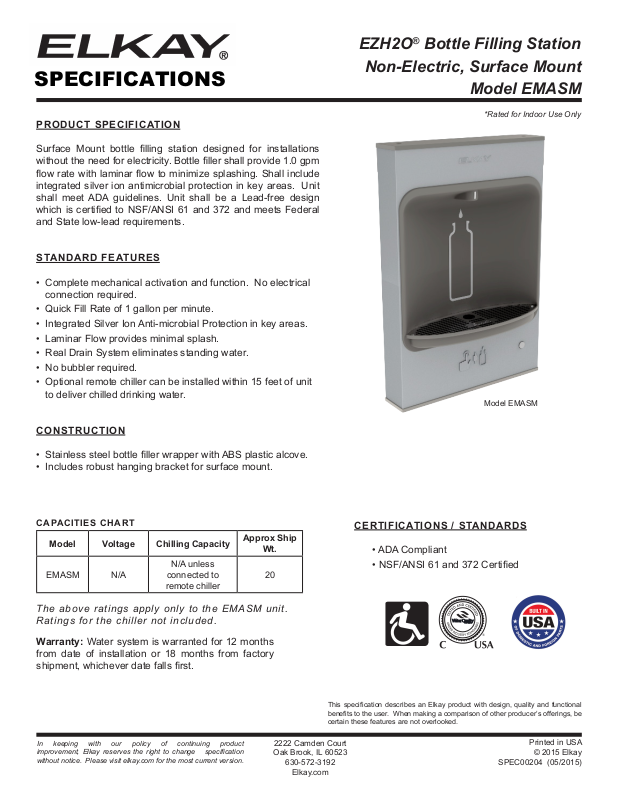

PRODUCT SPECIFICATION
SPECIFICATIONS
Surface Mount bottle lling station designed for installations
without the need for electricity. Bottle ller shall provide 1.0 gpm
ow rate with laminar ow to minimize splashing. Shall include
integrated silver ion antimicrobial protection in key areas. Unit
shall meet ADA guidelines. Unit shall be a Lead-free design
which is certied to NSF/ANSI 61 and 372 and meets Federal
and State low-lead requirements.
STANDARD FEATURES
• Complete mechanical activation and function. No electrical
connection required.
• Quick Fill Rate of 1 gallon per minute.
• Integrated Silver Ion Anti-microbial Protection in key areas.
• Laminar Flow provides minimal splash.
• Real Drain System eliminates standing water.
• No bubbler required.
• Optional remote chiller can be installed within 15 feet of unit
to deliver chilled drinking water.
EZH2O® Bottle Filling Station
Non-Electric, Surface Mount
Model EMASM
*Rated for Indoor Use Only
Model EMASM
CONSTRUCTION
• Stainless steel bottle ller wrapper with ABS plastic alcove.
• Includes robust hanging bracket for surface mount.
CAPACITIES CHART
Model Voltage Chilling Capacity
N/A unless
EMASM N/A
connected to
remote chiller
Approx Ship
Wt.
20
The above ratings apply only to the EMASM unit.
Ratings for the chiller not included.
Warranty: Water system is warranted for 12 months
from date of installation or 18 months from factory
shipment, whichever date falls rst.
CERTIFICATIONS / STANDARDS
• ADA Compliant
• NSF/ANSI 61 and 372 Certied
This specication describes an Elkay product with design, quality and functional
benets to the user. When making a comparison of other producer’s offerings, be
certain these features are not overlooked.
In keeping with our policy of continuing product
improvement, Elkay reserves the right to change specication
without notice. Please visit elkay.com for the most current version.
2222 Camden Court
Oak Brook, IL 60523
630-572-3192
Elkay.com
Printed in USA
© 2015 Elkay
SPEC00204 (05/2015)
EZH2O® Bottle Filling Station
Filtered Surface Mount
Model EMASM
IMPORTANT!
INSTALLATION NOTES:
• Ensure wall is structurally sound to bear the loads imparted
by the Surface Mount Bottle Filler.
ADA Stand Alone Mounting
7/16 X 3/4
11mm X 19mm
OBROUND
MOUNTING
HOLE (6)
"C"
22
559mm
3/8"
9.5mm
WATER
INLET
"A"
3
76mm
7
178mm
7
178mm
‰
1-1/4"
31.7mm
DRAIN
"B"
3/8
O
(6)
8mm
MOUNTING BOLT
FILTER USED ONLY
IN LMASMB UNITS
6
152mm
MINIMUM
CLEARANCE
64 3/8
1635mm

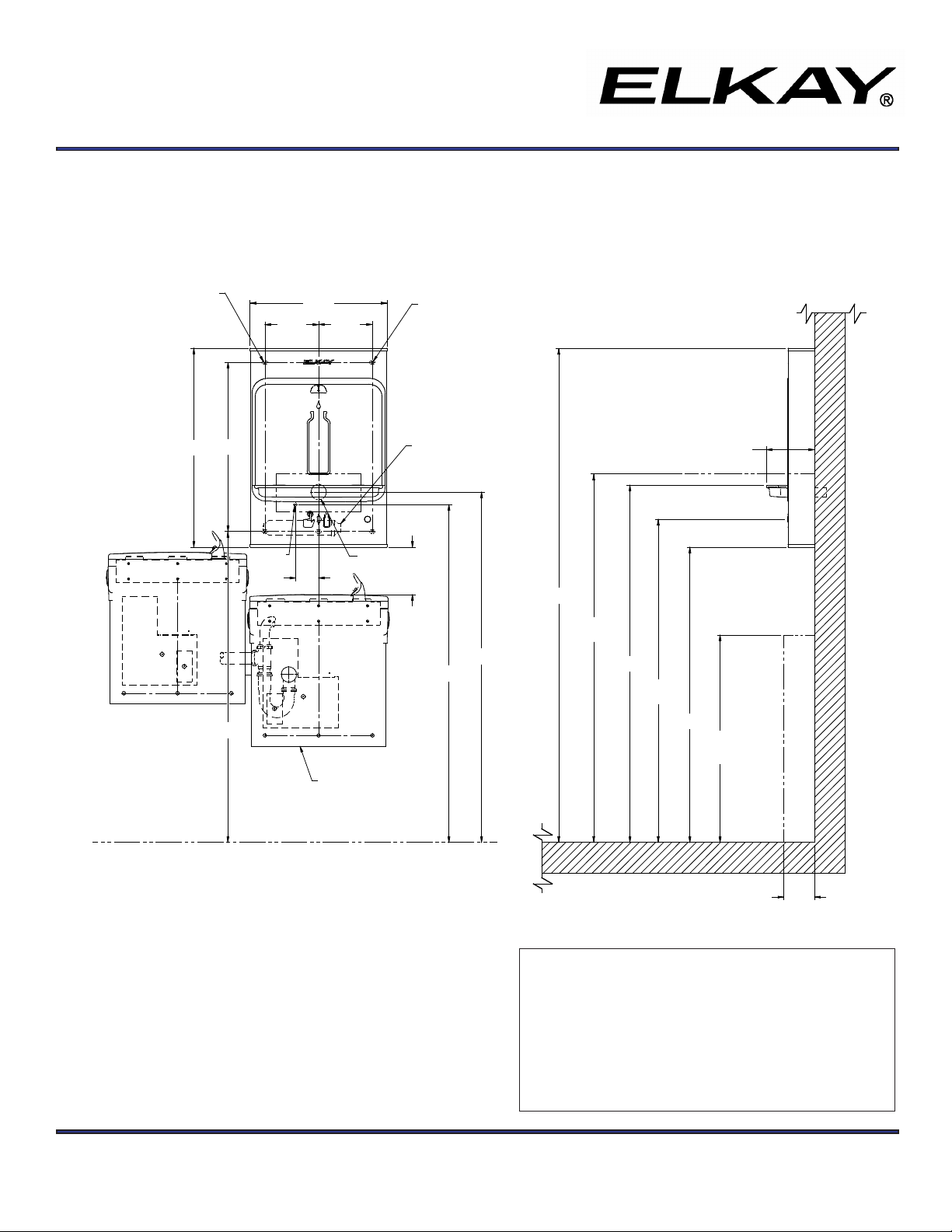

ROUGH-IN DIMENSIONS
*Rated for Indoor Use Only
6 1/4
159mm
45 5/8
44
1159mm
40 1/2
1029mm
FINISHED FLOOR
1118mm
LEGEND:
A = RECOMMENDED WATER SUPPLY LOCATION;
1/2” IPS MAXIMUM PIPE SIZE.
SERVICE STOP VALVE NOT FURNISHED.
B = RECOMMENDED WASTE LOCATION.
WASTE SHOWN IN WALL BUT MAY BE BEHIND WALL.
OUTLET 1-1/4” O.D. (TRAP NOT FURNISHED)
C = 7/16” X 3/4” OBROUND MOUNTING HOLES FOR FASTENING
BACKPLATE TO WALL.
48
1219mm
ADA HEIGHT
46 1/2
1182mm
42 1/8
1069mm
‰ OF BUTTON
38 1/2
977mm
27
686mm
ADA HEIGHT
FINISHED FLOOR
4
102mm
ADA DEPTH
Job Name: ______________________________________
Date: ________________________ Qty. ______________
Contact Info (Name, Phone, Email): __________________
_______________________________________________
_______________________________________________
Approval: _______________________________________
In keeping with our policy of continuing product improvement,
Elkay reserves the right to change specication without notice.
Please visit elkay.com for the most current version.
2222 Camden Court
Oak Brook, IL 60523
630-572-3192
Elkay.com
Printed in U.S.A.
© 2015 Elkay
SPEC00204 (05/2015)
