Elkay EMABF8WSLK User Manual

EMABF8WS*1D EMABFDWS*D LMABF8WS*1D LMABFDWS*D

INSTALLATION, CARE & USE MANUAL

Manual de Instalación, Cuidado y Utilización

Manuel d’installation/entretien/utilisation

EMABF & LMABF

EMABF & LMABF Serie Botella Bombas y Enfriadores

EMABF & LMABF Stations de Remplissage de Bouteille Série et Refroidisseurs

Series Bottle Filling Stations & Coolers

Page 1

1000001717 (Rev. B - 11/14)

EMABF8WS*1D EMABFDWS*D LMABF8WS*1D LMABFDWS*D

Pictured is unit only without bottle ller.

26

27

26

See Fig. 4 for Push Bar Mechanism

Vea la Fig. 4 para el Mechanisme de la Barra de Empuje

Voir Fig. 4 pour ie Mechanisme de Barre-poussoir

5

18

3

21

22

27

19

2

12

4

8, 13

27

27

9

10

27

27

15

11

20

33

24

7

USES HFC-134A REFRIGERANT
USA REFRIGERANTE HFC-134A
UTILISE DU FLUIDE FRIGORIGÈNE HFC-134A

NOTE: Non-refrigerated units do not include all electrical and refrigeration components shown above. Other components and rough-in are the same as shown.
NOTA: Las unidades no frigoricadas no incluyen todos los componentes eléctricos y de la refrigeración demostrados arriba. Otros componentes y a’spero-en

son iguales según lo demostrado.

NOTE: Les unités non frigoriées n’incluent pas tous les composants électriques et de réfrigération montrés ci-dessus. D’autres composants et rugueux-dans sont
identiques que montrés.

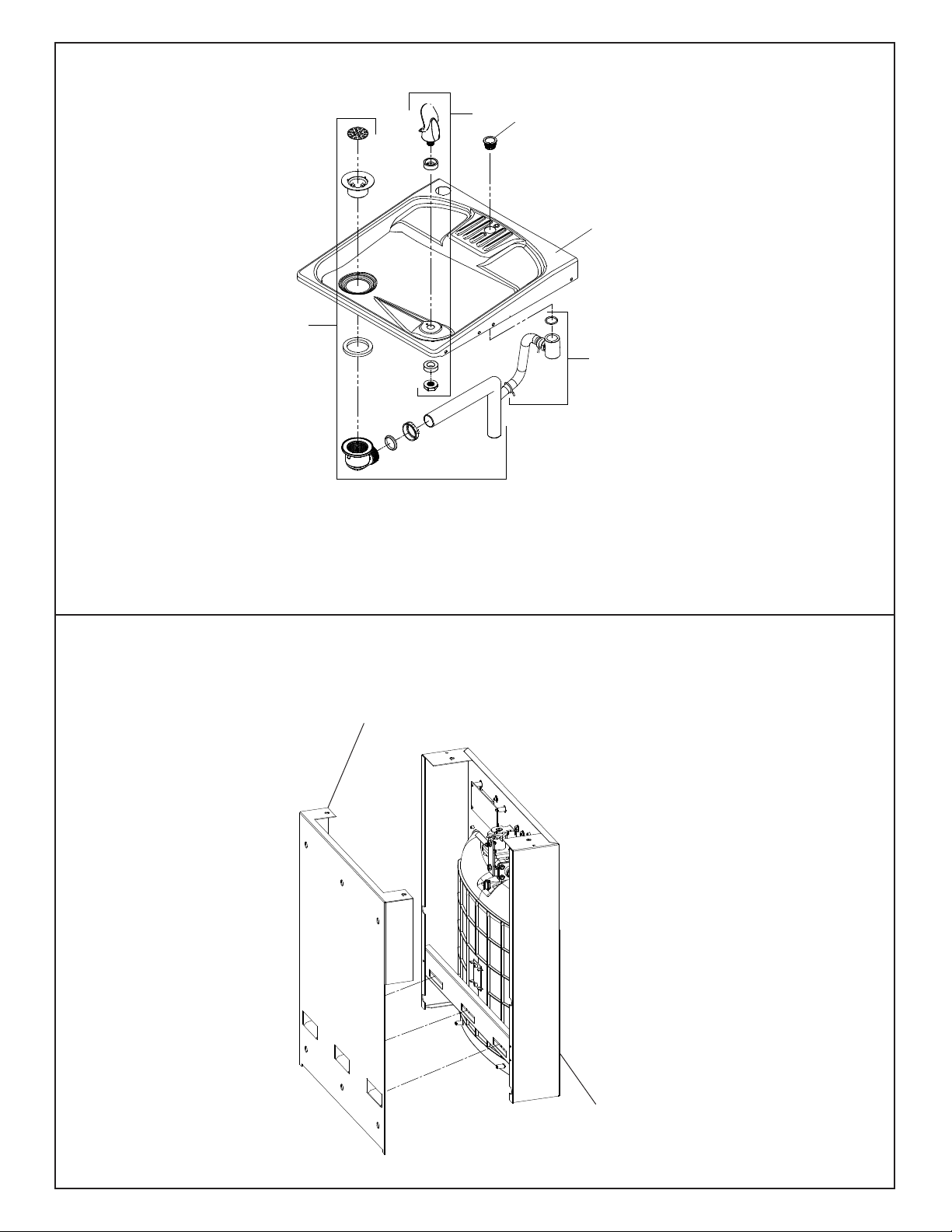

Fig. 1

6

23

14, 18, 22, 24

32

35

1000001717 (Rev. B - 11/14) Page 2

EMABF8WS*1D EMABFDWS*D LMABF8WS*1D LMABFDWS*D

*ADA REQUIREMENT

*REQUISITO DE A.D.A.

*EXIGENCE ADA

18 7/8"

479mm

6 3/4"

1 1/2"

38mm

18 1/2"

90mm

3 9/16"

471mm

HANGER BRACKET

C

6 1/4"

8"

159mm

203mm

2 5/8"

67mm

*

RIM

HEIGHT

808mm

31 13/16"

172mm

313mm

12 5/16"

27"

ADA

686mm

REQUIREMENT

33"

HEIGHT

ORIFICE

838mm

15"

381mm

5 3/4"

146mm

7"

178mm

17 7/8"

454mm

7"

178mm

5 3/4"

146mm

O

(6)

7/16"

11mm

MOUNTING HOLES

ACTIVATION

SENSOR

82mm

3 3/16"

1 3/8"

35mm

E

4 9/16"

116mm

L

C

E

1 3/8"

35mm

5/16" (8mm) DIA. (5 HOLES)

7 1/4"

11/16"

18mm

D

B

65mm

2 9/16"

185mm

F

2 1/2"

64mm

63mm

2 7/16"

A

18 3/8"

21 3/8"

543mm

25"

635mm

31"

787mm

FINISHED FLOOR

CAJA RECESIVA DE ALAMBRES (3) DE SUMINISTRO ELÉCTRICO

BOÎTE ENCASTRÉE D’ALIMENTATION ÉLECTRIQUE (3) FILS

ASEGURE UNA VENTILACIÓN ADECUADA MANTENIENDO UN ESPACIO E 6" (152 mm) (MÍN.) DE HOLGURA ENTRE LA

REJILLA DE VENTILACIÓN DEL MUEBLE Y LA PARED

ASSUREZ-VOUS UNE BONNE VENTILATION EN GARDANT 6" (152 mm) (MIN.) ENTRE LES ÉVENTS DE L’ENCEINTE ET

LE MUR.

AGUJEROS DE LAS TUERCAS DE 7/16 PARA SUJETAR LA UNIDAD A LA PARED

WALL.

D = ELECTRICAL SUPPLY (3) WIRE RECESSED BOX

13 7/8"

352mm

3 1/2"

89mm

4 1/2"

114mm

10"

254mm

5"

127mm

E = INSURE PROPER VENTILATION BY MAINTAINING 6" (152 mm) (MIN.) CLEARANCE FROM CABINET LOUVERS TO

TROUS D’ÉCROUS 7/16 POUR FIXER L’APPAREIL AU MUR

F = 7/16 BOLT HOLES FOR FASTENING UNIT TO WALL

REDUCE HEIGHT BY 3" FOR INSTALLATION OF CHILDRENS ADA COOLER

467mm

*

52 1/16"

1323mm

991mm

39 1/16"

Fig. 2

Page 3

CEPT 3/8 O.D. UNPLATED COPPER TUBE.

EBLADO) PARA ACEPTAR 3/8" O.D. TUBO DE COBRE NO PLATEADO.

FOURNI) POUR ACCEPTER 3/8" PO. (9,5mm) TUBE COULEUR CUIVRE NON PLAQUÉ.

UBICACIÓN RECOMENDADA PARA EL DRENAJE DE SALIDA DE AGUA, DE 1¼” DE DIÁMETRO.

EMPLACEMENT RECOMMANDÉ POUR LE DRAIN DE D.E. 1-1/4" DE SORTIE D’EAU.

PURGADOR DE 1¼ NO PROPORCIONADO**

SIPHON 1-1/4 NON FOURNI**

LEGEND/LEYENDA/LÉGENDE

A = RECOMMENDED WATER SUPPLY LOCATION. SHUT OFF VALVE (NOT FURNISHED) TO AC-

POSICIÓN DE ABASTECIMIENTO DE AGUA RECOMENDADA. VÁLVULA CERRADA (NO AMU-

ENDROIT D’APPROVISIONNEMENT EN EAU RECOMMANDÉ. LA VALVE ARRÊTÉE (NON

B = RECOMMENDED LOCATION FOR WASTE OUTLET 1-1/4” O.D. DRAIN

C = 1-1/4 TRAP NOT FURNISHED**

1000001717 (Rev. B - 11/14)

EMABF8WS*1D EMABFDWS*D LMABF8WS*1D LMABFDWS*D

ALL SERVICE TO BE PERFORMED BY AN

IMPORTANT

AUTHORIZED SERVICE PERSON

HANGER BRACKETS & TRAP

1) Remove hanger bracket fastened to back of
cooler by removing one (1) screw.

2) Mount the hanger bracket and trap as shown in

Figure 2.

NOTE: Hanger Bracket MUST be supported se-

curely. Add xture support carrier if wall will not
provide adequate support.

IMPORTANT:

 6 1/4 in. (159mm) dimension from wall to center-

line of trap must be maintained for proper t.

 Anchor hanger securely to wall using all ve (5)

5/16" dia. mounting holes.

3) Install straight valve for 3/8" O.D. tube.

4) Hang the cooler on the hanger bracket. Be
certain the hanger bracket is engaged properly
in the slots on the cooler back as shown in Fig.

3.

5) Loosen the two (2) screws holding the lower front
panel at the bottom of cooler base and two (2)

screws at the top. Remove the front panel and
set aside.

6) Connect water inlet line--See Note 4 of General

Instructions.

7) Remove the slip nut and gasket from the trap and
install them on the cooler waste line making sure
that the end of the waste line ts into the trap.
Assemble the slip nut and gasket to the trap and
tighten securely.

8) Stream height is factory set at 45-50 PSI. If
supply pressure varies greatly from this, adjust
screw, accessible by removing front push panel
(Item 31 , Fig. 4). CW adjustment will raise
stream and CCW adjustment will lower stream.

For best adjustment, stream should hit basin

approximately 6-1/2” (165mm) from bubbler.

9) Replace the front panel and secure by retighten­ing four (4) screws.

10) If a taste, odor or sediment problem is prevalent,
try installing our water lter module.

INSTALLATION

INSTALLATION OF COOLER

Also See General Instructions

START UP

TODO EL SERVICIO DEBERÁ SER EFECTUADO POR UNA

IMPORTANTE

PERSONA DE SERVICIO AUTORIZADA

INSTALACIÓN DE FIJADOR DE

1) Quite el jador de suspensión sujetados a la parte posterior

2) Monte el jador de suspensión y quite el purgador como se

NOTA: El jador de suspensión DEBE de ser sostenido con se-

IMPORTANTE:

• Se debe mantener una dimensión de 6 1/4 pulgadas (159mm)

• Ancle el suspensor de forma segura a la pared usando todos

3) Instale la válvula directa para el tubo de 3/8" de diámetro

4) Suspenda el enfriador en el jador de suspensión. Asegúrese

5) Aoje los dos (2) tornillos que sostienen la parte inferior del

6) Conectar el tubo de entrada de agua. Ver la Nota 4 en las

7) Quite la tuerca de retención y el obturador del purgador y

SUSPENSIÓN Y DEL PURGADOR

del enfriador quitando un (1) tornillo.

muestra en la Fig. 2.

guridad. Coloque portadores de soporte de instalaciones jas

si la pared no proveerá un soporte adecuado.

desde la pared hasta la línea central del purgador para que

calce de forma adecuada.

los cinco (5) agujeros de montaje de 5/16" de diámetro.

externo.

INSTALACIÓN DEL ENFRIADOR DE AGUA

que el jador de suspensión calce correctamente en las

ranuras de la parte posterior del enfriador como se indica en

la gura 3.

panel en la parte inferior de la base del enfriador y los dos (2)
tornillos en la parte superior. Quite el panel frontal y póngalo

a un lado.

Instrucciones Generales.

instálelos en el tubo de desagüe asegurándose que la parte
nal del tubo de desagüe calce en el purgador. Ensamble la
tuerca de la ranura y el obturador y apriete en forma segura.

PUESTA EN MARCHA

Vea Manual de los Instrucciones Generales

8) La altura del chorro se determina en la fábrica a 45-50 PSI.
Si la presión del suministro varía demasiado de este valor,
ajuste el tornillo, sacando el panel frontal de empuje (Artículo
31, Figura 4). El ajuste en el sentido de las manecillas del reloj
elevará el chorro y contra el sentido de las manecillas del reloj

lo bajará. Para un mejor juste, el chorro deberá pegar en el

estanque a una distancia de aproximadamente 6½” (165mm)

del borboteador.

9) Vuelva a colocar el panel frontal y asegúrelo apretando nue­vamente los cuatro (4) tornillos.

10) Si se suscitara un problema de sabor, olor o sedimentación,
trate de instalar nuestro módulo de ltro de agua.

TOUT ENTRETIEN DOIT ÊTRE EFFECTUÉ PAR UN

IMPORTANT

REPRÉSENTANT AUTORISÉ

INSTALLATION DU SIPHON ET DU

1) Retirez le support de suspension à l’arrière du refroidis-

2) Installez le support et le siphon tel qu’indiqué à la g. 2.

NOTE : Le support de suspension DOIT être bien retenu en

IMPORTANT :

• Pour avoir une bonne position, on doit garder une

• Ancrez solidement le support au mur à l’aide des ve

3) Installez la soupape droite dans le tuyau de D.E. 3/8".

4) Installez le refroidisseur sur les supports en vous as-

5) Dégagez les deux (2) vis retenant le panneau inférieur

6) Connectez l’alimentation en eau. - Voir note 4 des

7) Retirez l’écrou coulissant et le joint du siphon et

SUPPORT DE SUSPENSION

seur en enlevant une (1) vis.

place. Ajoutez des ferrures de xation si le mur n’offre

pas le soutien voulu.

dimension de 6 1/4 po. (159mm) du mur à l’axe central

du siphon.

(5) trous de xation d’un diam. 5/16 po.

INSTALLATION DU REFROIDISSEUR

surant que ceux-ci sont bien installés dans les fentes à
l’arrière du refroidisseur tel qu’indiqué à la gure 3.

avant au bas de la base du refroidisseur ainsi que
deux (2) vis sur le dessus. Retirez le panneau avant et
mettez-le de côté.

instructions générales.

installez-les sur la conduite résiduaire du refroidisseur
en vous assurant que le bout de la conduite entre bien
dans le siphon. Installez l’écrou coulissant et le joint au
siphon et resserrez bien.

MISE EN MARCHE

Voir Manuel de les Directives Generales

8) Le niveau d’écoulement est réglé en usine à 45-50 PSI.
Si la pression varie beaucoup de ce point, ajustez la
vis que l’on peut atteindre en retirant le panneau avant
(article 31, g. 4). Si vous ajustez dans le sens des
aiguilles d’une montre, le jet augmentera et dans le sens

contraire, le jet diminuera. Le meilleur ajustement est

lorsque le jet frappe le bassin à environ 6-1/2" (165mm)

du barboteur.

9) Replacez le panneau avant et xez le en place en
resserrant les quatre (4) vis.

10) S’il existe un problème de goût, d’odeur ou de sédiment,
essayez d’installer notre module ltre d’eau.

1000001717 (Rev. B - 11/14) Page 4

Fig. 3

HANGER BRACKET
FIJADOR DE SUSPENSIÓN

SUPPORT DE SUSPENSION

COOLER BACK

SUPPORT DE SUSPENSION
ARRIÈRE DU REFROIDISSEUR

EMABF8WS*1D EMABFDWS*D LMABF8WS*1D LMABFDWS*D

PUSH BAR MECHANISM

34

17

34

MECANISMO DE BARRA DE EMPUJE

MÉCANISME DU BOUTON-POUSSOIR

30

25

31

34

17

34

25

Water Valve Mechanism - ADJUSTMENT PROCEDURE:

- Turn adjustment screw “Counter-Clockwise” until water ow

from bubbler starts.

- Turn adjustment screw “Clockwise” until water ow stops, THEN turn
an additional 1/2 turn.

NOTE: Adjustments stated above are viewed from underneath unit

(bottom side of dispenser panel).
NOTE: If continuous ow occurs at the end of the compressor cycle, turn
cold control counterclockwise 1/4 turn.

Mecanismo de la Válvula de Agua-PROCEDIMIENTO DE AJUSTE:

- Gire el tornillo de ajuste “en sentido contrario de las manecillas del

reloj” hasta que comience el ujo de agua del borboteador.

- Gire el tornillo de ajuste “en el sentido de las manecillas del reloj” hasta
que el ujo de agua se detenga, DESPUÉS gire una media vuelta

adicional.

NOTA: Los ajustes especicados anteriormente son correctos viendo
desde la parte de abajo de la unidad (parte inferior del panel del
distribuidor).
NOTA: Si hay un ujo continuo al nal del ciclo del compresor, girar el

tornillo del control en contra del sentido de las agujas

del reloj 1/4 de vuelta.

C

25

2

16 B

17

19

A

34

1

25

29

17

10

34

25

LEGEND/LEYENDA/LÉGENDE

A) Note: Water ow direction

Nota: Dirección del ujo de agua
Note: Direction de l’eau
B) Adjust this screw to eliminate mechanism

“Free Play” or continuous ow from bubbler

conditions. (See ADJUSTMENT PROCEDURE)

Adjuste este tornillo para eliminar el mecanismo

de “juego libre” o el ujo continuo del borboteador
(vea PROCEDIMIENTO DE AJUSTE)
Ajustez cette vis pour éliminer tout “jeu” du
mécanisme ou tout débit continu du barboteur
(voir PROCÉDURE DE RÉGLAGE)

C) Stream height adjustment (see note #8)

Ajuste de la altura del chorro (vea la nota #8)
Ajustement de la hauteur du jet (voir la note #8)

Fig. 4

Mécanisme de soupape d’eau - PROCÉDURE DE RÉGLAGE :

- Tournez la vis de réglage dans le sens contraire aux aiguilles d’une montre
jusqu’à ce que le débit d’eau du barboteur commence.

- Tournez la vis de réglage dans le sens des aiguilles d’une montre jusqu’à ce
que le débit d’eau du barboteur s’arrête, PUIS tournez encore de 1/2 tour.

NOTE: Les ajustements sont décrits tels qu’on les voit d’en dessous de
l’appareil (côté inférieur du panneau distributeur).

NOTE: S’il y a débit continu à la n du cycle du compresseur, tournez la
commande d’eau froide vers le côté gauche de 1/4 de tour.

Page 5

1000001717 (Rev. B - 11/14)

EMABF8WS*1D EMABFDWS*D LMABF8WS*1D LMABFDWS*D

7/16” BOLT HOLES FOR
FASTENING UNIT TO WALL

UNIT CENTER LINE

TOP COVER

MOUNTING

SCREWS

38

Fig. 5

Fig. 6

BRACKET, WASHERS,

Fig. 7

Fig. 8

& SCREWS

Bottle Filler Installation Instructions

1) Remove two (2) mounting screws with 5/32” Allen wrench holding top cover to Bottle Filler (See Fig. 6). Remove top cover. Note do not discard mounting
screws, they will be needed to reinstall top cover.

2) Remove wall mounting plate from Bottle Filler. Place wall plate against wall on top of basin. Center the wall plate side to side with the basin. Mark
the six (6) mounting holes with a pencil (See Fig. 2).

3) Remove wall mounting plate from wall. NOTE: Mounting plate MUST be supported securely. Add xture support carrier if wall will not provide adequate

support.

4) Install wall mounting plate to wall using six (6) 7/16” obround mounting holes (mounting bolts not included) (See Fig. 5). Use appropriate fasteners for
your wall type.

5) Feed power cord & 3/8” water line through hole in tower/basin gasket (See Fig 7).

6) Install gasket on bottom of bottle ller tower with gasket support bracket, (2) washers, & (2) screws (See Fig 8).

7) Fish the purple wire (single units) or the purple and yellow wires (two-level units) up through basin hole & hole in gasket.

8) For Single Model installations: Attach the purple wire from cooler to the purple wire on the back of the unit, (Note yellow wire is not used).

8a) For Two-Level model installations: Attach the purple and yellow wires from coolers to the purple and yellow wires on the back of the unit, purple to

purple, yellow to yellow.

9) Lay Bottle Filler on water cooler basin and cut insulation from tube even with bottom of gasket, remove this insulation from the 3/8” tube, but do not discard.
Fish the power cord and waterline through the hole on top of water cooler. NOTE: To prevent scratching the basin place a towel or soft
cloth over the entire basin when working above it.

10) With the power cord, wire(s), and waterline through hole on top of water cooler place Bottle Filler on the three (3) angled tabs protruding from the wall
mounting plate, installed on wall. Make sure round boss in gasket ts in hole of basin. (See Fig. 10).

11) Once Bottle Filler is installed on wall plate tabs, water line, wire(s) and power cord are installed properly, push top of Bottle Filler toward
wall and line up top cover two (2) holes.

12) Reinstall Top Cover on Bottle Filler (See Fig. 6) with two mounting screws from step 1 above. Caution, do not over tighten screws.

13) Install remaining tube insulation to the water line from bottle ller, connect Bottle Filler waterline inside of the water cooler by connecting the 3/8” water line to the tee.

14) Install lter cartridge, remove lter from carton, remove protective cap, attach lter to lter head by rmly inserting into head and rotating lter
clockwise. NOTE: If existing plumbing rough in locations (Drain, Water In, and Electric Supply) do not allow the lter to be mounted inside the cooler cabinet
the lter can be installed horizontally below the unit. A retrot kit is available to mount the lter beneath the cooler.

15) Turn water supply on and inspect for leaks. Fix all leaks before continuing.

16) Once unit has been inspected for leaks and any leaks found corrected, plug Bottle Filler and unit into wall. Be sure to reinstall fuse to the circuit or
switch the circuit breaker back to the “ON” position.

17) Once power is applied to Bottle Filler, the GREEN LED light should illuminate showing good lter status along with the LCD Bottle Counter.

18) Verify proper dispensing by placing cup, hand, or any opaque object in front of sensor area and verify water dispenses. Note: the rst initial dispenses
might have air in line which may cause a sputter. This will be eliminated once all air is purged from the line.

19) Once unit tests out, install Lower Panel back on water cooler(s). Units are now ready for use.

1000001717 (Rev. B - 11/14) Page 6

EMABF8WS*1D EMABFDWS*D LMABF8WS*1D LMABFDWS*D

BF11 PROGRAM

SETTING THE CONTROL BOARD

1) To verify the software program of the control board the unit will

VERIFY CONTROL BOARD SOFTWARE

need to be shut down and restarted. The chiller (if present) does

not need to be shut down and restarted.

2) The units lower panel must be open to access the power cord and

wall outlet.

3) Shut down the unit by unplugging the power cord from the wall

outlet.

4) Restart the unit by plugging the power cord back into the wall
outlet.

5) Upon start up, the bottle count display will show the software

designation of BF11.

6) Reference the BF11 instructions for setting the control board.

ACCESSING THE PROGRAMMING BUTTON

1) To access the program button remove the top cover of the bottle-

ller. Remove the two (2) screws holding top cover to bottle­ ller with a 5/32” allen wrench. Remove top cover. Do not discard
mounting screws, they will be needed to reinstall the top cove after

programming operations are completed. The programming button

is located at the top right side of the unit on the control board.

RESET THE FILTER MONITOR

1) Instructions apply to ltered units only.

2) Depress the program button for approximately 2 seconds until
the display changes then release. The display will change and

scroll through two messages:

“RST FLTR” – Reset Filter Monitor
“SETTINGS” – System Settings Sub Menu
If the program button is not pushed again the display will scroll
through the two messages above for three cycles and then default
back to bottle count and be back in run mode.

3) When the display changes to “RST FLTR”, depress the button
again. The display will change to show “FLTR =”. Depress the
button again and the display will show “FLTR =0”

4) The Green LED should be illuminated indicating that the visual
lter monitor has been reset.

SETTING RANGE OF THE IR SENSOR

1) Depress the program button for approximately 2 seconds until
the display changes then release. The display will change and

scroll through two messages:

“RST FLTR” – Reset Filter Status LED
“SETTINGS” – System Settings Sub Menu
If the program button is not pushed again the display will scroll
through the two messages above for three cycles and then default
back to bottle count and be back in run mode.

2) When the display changes to “SETTINGS”, depress the button
again. The display will change to show
“RNG SET” - Range set for IR sensor.
“UNIT TYP” - Type of unit (REFRIG or NON-RFRG)
“FLT SIZE” - Select lter capacity
“RST BCNT” - Reset bottle count

3) When display shows “RNG SET” push program button once the
display will show current value (can be 1 – 10) e.g. “RNG = 3”.

4) Once display shows current value push the program button to
scroll through value of 1 – 10. Select the desired range setting.

5) Once range is selected allow approximately 4 seconds to pass and
then the display will go back to bottle counter and be in run mode.

6) Test bottle ller by placing bottle or hand in front of sensor to
make sure water is dispensed.

SETTING UNIT TYPE

1) Depress the program button for approximately 2 seconds until the
display changes then release. The display will change and scroll

through two messages:
“RST FLTR” – Reset Filter Status LED

“SETTINGS” – System Settings Sub Menu
If the program button is not pushed again the display will scroll
through the two messages above for three cycles and then default
back to bottle count and be back in run mode.

Continued from below:

2) When the display changes to “SETTINGS”, depress the button again.
The display will change to show
“RNG SET” - Range set for IR sensor.
“UNIT TYP” - Type of unit (REFRIG or NON-RFRG)
“FLT SIZE” - Select lter capacity
“RST BCNT” - Reset bottle count

3) When display shows “UNIT TYPE” push program button once the
display will show current value. Can be REFRIG or NON-RFRG

4) Push button once to change value. Once value is selected the display

will show the new value. (Can be REFRIG or NON-RFRG)
“REFRIG“ - stands for refrigerated product. In this setting the ow rate is
estimated at 1.0 gallon per minute.
“NON-RFRG“ - stands for nonrefrigerated product. In this setting the

ow rate is estimated at 1.5 gallons per minute. Both “REFRIG“ and
“NON-RFRG“ simulate 1 bottle equal to 20 oz.

5) Allow approximately 4 seconds to pass and the display will return to

bottle counter and be in run mode.

RESETTING BOTTLE COUNT

1) Depress the program button for approximately 2 seconds until the
display changes then release. The display will change and scroll

through two messages:
“RST FLTR” – Reset Filter Status LED
“SETTINGS” – System Settings Sub Menu

If the program button is not pushed again the display will scroll through
the two messages above for three cycles and then default back to bottle
count and be back in run mode.

2) When the display changes to “SETTINGS”, depress the button again.
The display will change to show:
“RNG SET”- Range set for IR sensor.
“UNIT TYP” - Type of unit (REFRIG or NON-RFRG)
“FLT SIZE” - Select lter capacity
“RST BCNT” - Reset bottle count
If the button is not pushed again the display will scroll through the four
messages above for three cycles and return to run mode.

3) When display shows “RST BCNT” push program button once the
display will show current value e.g. “0033183”.

4) Once display shows current value push the program button once more
to reset back to 0. The display will show BTLCT = 0 for approximately 2

seconds and then return to run mode showing 00000000 bottles.

5) Testing the bottle counter:
REFRIG units: Place bottle or hand in front of sensor for 9.4 seconds to
see bottle counter count 00000001,

(This is based on lling a 20 oz. bottle).

NON-RFRG units: Place bottle or hand in front of sensor for 6.25
seconds to see bottle counter count 00000001,

(This is based on lling a 20 oz bottle).

SETTING FILTER CAPACITY

1) Depress the program button for approximately 2 seconds until the
display changes then release. The display will change and scroll through

two messages:
“RST FLTR” – Reset Filter Status LED
“SETTINGS” – System Settings Sub Menu

If the program button is not pushed again the display will scroll through
the two messages above for three cycles and then default back to bottle
count and be back in run mode.

2) When the display changes to “SETTINGS”, depress the button again.
The display will change to show:
“RNG SET“- Range set for IR sensor.
“UNIT TYP“ - Type of unit (REFRIG or NON-RFRG)
“FLT SIZE” - Select lter capacity
“RST BCNT“ - Reset bottle count
If the button is not pushed again the display will scroll through the four
messages above for three cycles and return to run mode.

3) When display shows “FLT SIZE” push program button once. The display

will show current value. Can be 3000GAL or 6000GAL.

4) Push program button again to display the desired “FLT SIZE”.

5) Allow approximately 4 seconds to pass and the display will return to

bottle counter and be in run mode.

Page 7

1000001717 (Rev. B - 11/14)

EMABF8WS*1D EMABFDWS*D LMABF8WS*1D LMABFDWS*D

13

28

4

26

28

Fig. 9

WALL MOUNTING PLATE

Fig. 10

1000001717 (Rev. B - 11/14) Page 8

BOTTLE FILLING UNIT

EMABF8WS*1D EMABFDWS*D LMABF8WS*1D LMABFDWS*D

Superseal Fitting Assembly

Supersello Accesorio de Montaje

Superseal Montage Assemblage

Note: Screw the locknut hand tight to seal.

Nota: Apriete la mano de la contratuerca para sellar.

Remarque : Visser la main de l'écrou de blocage pour assurer

l'étanchéité.

OPERATION OF QUICK CONNECT FITTINGS

SIMPLY PUSH IN

TUBE TO ATTACH

TUBE IS SECURED

IN POSITION

B CA

PUSH IN COLLET

TO RELEASE TUBE

PUSHING TUBE IN BEFORE

PULLING IT OUT HELPS TO

RELEASE TUBE

Fig. 11

Fig. 12

3

2

2

2

FILTER PARTS LIST

(See Fig. 13)

ITEM

1

NO.

1
2

3

PART

NO.

51300C
98926C

0000000746

DESCRIPTION

Filter Assy-3000 Gal.
Kit-Filter Head Fitting includes
John Guest Fitting & 5/16"

Elbow Fitting

Assy-Filter & Bracket includes
Fltr Head/Mtg Bkt/
John Guest Ftgs/Screws

LISTA DE PIEZAS DEL FIL-

TRO (Vea la Fig. 13)

DESCRIPCIÓN

Ensamblado del Filtro-3000 Galón
Montaje Cabeza Kit Filtro-Incluye
John Guest Montaje y 5/16” Codo

Conjunto del Filtro y Soporte,
Incluye Filtro Soporte/John Guest
Guarniciones/Tornillos de Montaje
de Cabeza

LISTE DES PIÈCES DU

FILTRE (Voir Fig. 13)

DESCRIPTION

Ens. ltre-3000 Gallon
Raccord Tête de Filtre Kit-Inclut­John Guest Montage et 5/16”

Raccord en Coude

Assemblêe-Filtre et Support Inclut
Filtre/Montage Support/John
Guest/Vis à Têtê

Fig. 13

COMPRESSOR

RELAY

OVERLOAD

3

2

1

C

S

M

COLD CONTROL

(WATER)

Fig. 14

115V Wiring Diagram

5

6

2

3

1

FAN

WHT

BLK

GND

Page 9

Diagrama de cableado de 115 voltios

schéma de câblage de 115 volts

1000001717 (Rev. B - 11/14)

ITEM

NO.

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21

22
23

24
25
26
27
28
29

30

31

32

33

34
35

-

See Filter Table

PART NO

22897C
23003C
28551C

0000001338

36208C

*36322C

0000000238

40322C

0000001144

55931C

55996C

56092C
56274C
66703C

1000001602

70935C
98537C

0000000745

98732C
98773C
98775C

98776C
98777C

98778C
98789C

1000001889

98899C

1000001812

28125C
28124C
28129C
28128C
28707C
28706C
28146C
28525C
28150C

28528C
0000000872
0000000804
0000000834

EMABF8WS*1D EMABFDWS*D LMABF8WS*1D LMABFDWS*D

PARTS LIST/ LISTA DE PIEZAS/ LISTE DES PIÈCES

DESCRIPTION

Panel - Bottom Dispenser

Bracket - Regulator Mounting

Hanger Bracket

Basin - Stainless Steel

Power Cord

Compressor Serv. Pak EMIS70HHR

Kit - Electricals /OL/Relay/Cvr

Kit - Orice w/Oring
Tee - 1/4 x 1/4 x 3/8

Cover - Dispenser Bottom

Strainer (See "General Instructions")

Tubing - Poly (Cut To Length)

Kit - Bubbler Assy w/Nut

Drier

Kit-75583C Elbow 5/16” - 1/4”

Screw - Shoulder x 1/2" Lg.

Kit - Pushbar/Pivot Blocks/Bumpers

Kit - Evaporator Assembly

Kit - Regulator - Green Spring

Kit - Cold Control/Screws

Kit - Fan Motor Assy/Blade/Motor/

Shroud/Screws/Nut

Kit - Condenser/Drier

Kit - Compr Mtg Hdwe/Grommets/

Clips/Studs

Kit - Heat Exchanger/Drier

Kit - Pushbar Bracket/Screws

Kit - Drain/Plate/Plug/Elbow/Nut

Kit - Hardware

Kit - Bottle Filler Drain

Panel - Right Side (L)

Panel - Right Side (SS)

Panel - Left Side (L)

Panel - Left Side (SS)

Panel - Front Push (L)

Panel - Front Push (SS)

Panel - Right Rear (L)

Panel - Right Rear (SS)

Panel - Left Rear (L)

Panel - Left Rear (SS)

Kit-Pushbar/Nuts

Panel - Front Lower/Nmplt (L)

Panel - Front Lower/Nmplt (SS)

Water Filter Kit (When Provided)

DESCRIPCIÓN

Panel - Dispensador Inferior

Fijador - Montaje Regulador

Fijador de Suspensión

Estanque - Acero Inoxidable

Cable Eléctrico

Paquete de Serv. del Compresor EMIS70HHR

Kit - Eléctrico/Sobrecarga/Relé/Cubierta

El Juego - Oricio con Oring

Tee -1/4 x 1/4 x 3/8

Cubierta - Dispensador Inferior

Filtro Bifurcado (Vea "Instrucciones Generales")

Tubería de Polietileno (Corte a la longitud)

La Asamblea del Juego-Bebedero con Tuerca

Secador

Kit - 75583C Codo 5/16 “- 1/4”

Tornillo - Hombro x 1/2"Lg.

Kit - Manillar/Pivote Bloques/Topes

Kit - Ensamblado del Evaporizador

Kit - Regulador - Verde Primavera

Kit - Control del Enfriamiento/Tornillo

Kit - Ventilador Motor Montaje/Hoja/

Motor/Cubierta/Tornillos/Tuerca

Kit - Condensador/Secador

Kit - Compresor Hardware/Arandelas/Clips/Per-

nos de Montaje

Kit - Intercambiador de Calor/Secador

Kit - Hay/Soportes/Tornillos

Kit - De Desagüe/Placa/Enchufe/Codo/Tuerca

Kit - Juego de Accesorios

Kit - de Drenaje de Llenada de la Botella

Panel - Lado Derecho (L)

Panel - Lado Derecho (SS)

Panel - Lado Izquierdo (L)

Panel - Lado Izquierdo (SS)

Panel - Presión Frontal (L)

Panel - Presión Frontal (SS)

Panel - Retrovisor Derecho (L)

Panel - Retrovisor Derecho (SS)

Panel - Retrovisor Izquierdo (L)

Panel - Retrovisor Izquierdo (SS)

Kit Manillar/Tuercas

Panel - Frontal Inferior/Placa de Identicación(L)

Panel - Frontal Inferior/Placa de

Identicación(SS)

Kit de Filtro de Agua (Cuando Provisto)

DESCRIPTION

Panneau - Distributeur Inférieur

Support - Montage du Régleur

Support de Suspension

Bassin - Acier Inoxydable

Cordon d’Alimentation

Trousse D’entr. Surpresseur EMIS70HHR

Kit-électriques/Surcharge/Relais/Couverture

Le Trousse - Orice avec Oring

Tee -1/4 x 1/4 x 3/8

Couvercle - Distributeur Inférieur

Grille (Voir "Directives Générales")

Tubes - Polyéthylène (Couper à la Longueur)

L'assemblée de Trousse - Bubbler avec l'écrou

Déshydrateur

Coude Kit - 75583C 5/16” - 1/4”

Vis - épaulement x 1/2" lg.

Kit - Guidon/Pivot Blocs/Pare-chocs

Kit - Ens. D’évaporateur

Kit - Régulateur - Vert Printemps
Kit - Contrôle de Refroidissement/Vis
Kit - Ventilateur Moteur Assemblée/

Lame/Moteur/

Kit - Condensateur/ Déshydrateur

Kit - Compresseur Matériel/Oeillets/

Clips/Tiges Filetées de Fixation

Kit - Échangeur Thermique/Déshydrateur

Kit - Barres/Fixations/Vis

Kit - Plaque/Plug/Coude/écrou de Vidange

Kit - De Visserie

Kit de Remplissage de Bouteille de Vidange

Panneau - Côté Droit (L)

Panneau - Côté Droit (SS)

Panneau - Côté Gauche (L)

Panneau - Côté Gauche (SS)

Panneau - Avant (L)

Panneau - Avant (SS)

Panneau - Arrière Droit (L)

Panneau - Arrière Droit (SS)

Panneau - Arrière Gauche (L)

Panneau - Arrière Gauche (SS)

Kit-Guidon/Noix

Panneau-Front Bas/Plaque Signalétique (L)

Panneau-Front Bas/Plaque Signalétique (SS)

Kit de Filtrage d’Eau (Si Fourni)

*REPLACE WITH SAME COMPRESSOR USED
IN ORIGINAL ASSEMBLY.
NOTE: All correspondence pertaining to any

of the above water coolers or orders for repair

parts MUST include Model No. and Serial No.

of cooler, name and part number of replace­ment part.

*REEMPLACE CON EL MISMO COMPRESOR USADO
EN EL ENSAMBLADO INICIAL.
NOTA: Toda la correspondencia relacionada con el en-

friador de agua anterior o con una orden de reparación
piezas DEBERÁ incluir el número de modelo y número
de serie del enfriador, el nombre y número de pieza de
la pieza de repuesto.

*REMPLACEZ AVEC LE MÊME SURPRESSEUR
QUE CELUI UTILISÉ ORIGINALEMENT.
NOTE : Toute correspondance au sujet des refroidis-

seurs d’eau courante ou toute commande de pièce
de rechange DOIT inclure le numéro de modèle et le
numéro de série du refroidisseur ainsi que le nom et
le numéro de pièce à remplacer.

BOTTLE FILLER REPLACEMENT PART KITS

ITEM NO. PART NO. DESCRIPTION DESCRIPCIÓN DESCRIPTION

NS
NS
NS
NS

36
NS
NS
NS
NS
NS

PRINTED IN U.S.A.

IMPRESO EN LOS E.E.U.U.
IMPRIMÉ AUX É.-U.

1000001717 (Rev. B - 11/14) Page 10

98543C
98544C
98545C
98546C
98547C
98549C
98551C
98669C
98552C

1000001813

Kit - Electrical Package

Kit - IR Sensor
Kit - Solenoid Valve Replacement
Kit - Aerator Replacement

Kit - Top Cover Replacement
Kit - Hardware & Waterway Parts
Kit - Filter Mounting Cover (L)
Kit - Filter Mounting Cover (SS)

Kit - Retro Filter Mounting

Kit - Tower/Basin Gasket

REPAIR SERVICE INFORMATION TOLL FREE NUMBER 1.800.260.6640

INFORMATIONS POUR LE SERVICE PAR NUMERO SANS FRAIS 1.800.260.6640

FOR PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR CALL 1.800.323.0620

POUR OBTENIR DES PIÈCES, CONTACTEZ VOTRE DISTRIBUTEUR LOCAL OU COMPOSEZ LE 1.800.323.0620

PARA PIEZAS, CONTACTE A SU DISTRIBUIDOR LOCAL O LLAME AL 1.800.323.0620

NÚMERO GRATIS DE SERVICIO 1.800.260.6640

Paquete Kit - Eléctrico

Sensor Kit - IR

Reemplazo de la Válvula de Solenoide Kit
Reemplazo Kit - Aireador
Kit - Tapa Cubierta Reemplazo
Piezas del Kit - De Hardware y Por Vía Navegable
Cubierta del Filtro de Kit - De Montaje (L)
Cubierta del Filtro de Kit - De Montaje (SS)

Montaje de Filtro Kit - Retro

Kit - Torre/Cuenca Junta

Forfait Kit - Electriqueso

Kit - Rcepteur IR

Remplacement de la Valve Solénoïde - Kit
Remplacement du Kit - Aérateur
Remplacement du Kit - Top Couvercle
Pièces Kit - Matériel et Voie Navigable
Couvercle de Filtre - Kit Montage (L)
Couvercle de Filtre - Kit Montage (SS)

Montage de Retro - Kit Filtre

Kit - Tour/Collecteur

ELKAY MANUFACTURING COMPANY • 2222 CAMDEN COURT • OAK BROOK, IL 60523 • 630.574.8484
