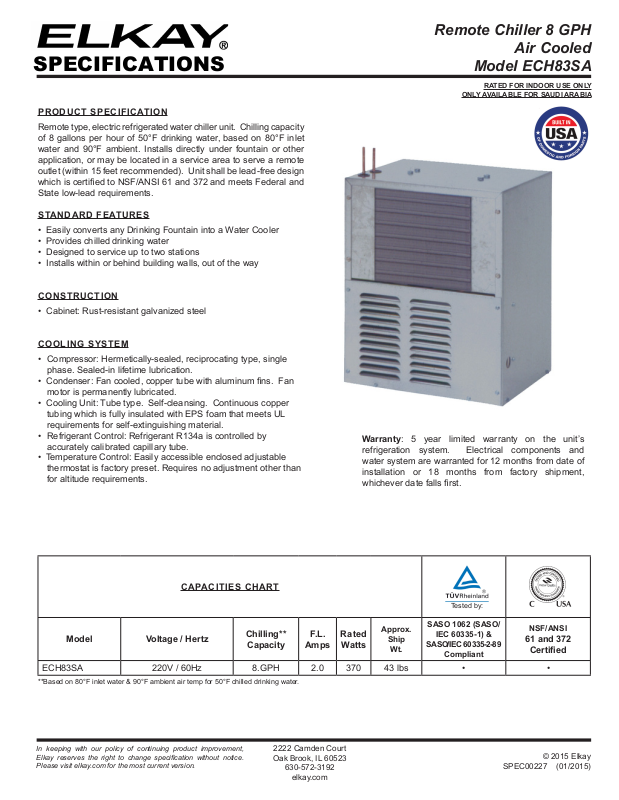

Elkay ECH83SA User Manual
Remote Chiller 8 GPH
Air Cooled
SPECIFICATIONS
PRODUCT SPECIFICATION
Remote type, electric refrigerated water chiller unit. Chilling capacity
of 8 gallons per hour of 50°F drinking water, based on 80°F inlet
water and 90°F ambient. Installs directly under fountain or other
application, or may be located in a service area to serve a remote
outlet (within 15 feet recommended). Unit shall be lead-free design
which is certied to NSF/ANSI 61 and 372 and meets Federal and
State low-lead requirements.
STANDARD FEATURES
• Easily converts any Drinking Fountain into a Water Cooler
• Provides chilled drinking water
• Designed to service up to two stations
• Installs within or behind building walls, out of the way
CONSTRUCTION
• Cabinet: Rust-resistant galvanized steel
COOLING SYSTEM
• Compressor: Hermetically-sealed, reciprocating type, single
phase. Sealed-in lifetime lubrication.
• Condenser: Fan cooled, copper tube with aluminum ns. Fan
motor is permanently lubricated.
• Cooling Unit: Tube type. Self-cleansing. Continuous copper
tubing which is fully insulated with EPS foam that meets UL
requirements for self-extinguishing material.
• Refrigerant Control: Refrigerant R134a is controlled by
accurately calibrated capillary tube.
• Temperature Control: Easily accessible enclosed adjustable
thermostat is factory preset. Requires no adjustment other than
for altitude requirements.
Model ECH83SA
RATED FOR INDOOR USE ONLY
ONLY AVAILABLE FOR SAUDI ARABIA
Warranty: 5 year limited warranty on the unit’s
refrigeration system. Electrical components and
water system are warranted for 12 months from date of
installation or 18 months from factory shipment,
whichever date falls rst.
CAPACITIES CHART
Tested by:
Model Voltage / Hertz
ECH83SA 220V / 60Hz 8.GPH 2.0 370 43 lbs • •
**Based on 80°F inlet water & 90°F ambient air temp for 50°F chilled drinking water.
In keeping with our policy of continuing product improvement,
Elkay reserves the right to change specication without notice.
Please visit elkay.com for the most current version.
Chilling**
Capacity
2222 Camden Court
Oak Brook, IL 60523
F.L.
Amps
630-572-3192
elkay.com
Rated
Watts
Approx.
Ship
Wt.
SASO 1062 (SASO/
IEC 60335-1) &
SASO/IEC 60335-2-89
Compliant
NSF/ANSI
61 and 372
Certied
SPEC00227 (01/2015)
© 2015 Elkay
Remote Chiller 8 GPH
Air Cooled
Model ECH83SA
1/4” O.D. TUBE
WATER INLET
TO COOLER
3/8” O.D. TUBE CONNECT
COLD WATER SUPPLY
NOTE: WATERFLOW
DIRECTION
BUILDING WATER
INLET
SERVICE STOP
(NOT FURNISHED)
10 1/4"
261mm
ROUGH-IN DIMENSIONS
RATED FOR INDOOR USE ONLY
ONLY AVAILABLE FOR SAUDI ARABIA
1"
25mm
2"
50mm
1 3/8"
35mm
1/4" O.D.TUBE OUTLET
1/4" O.D. TUBE INLET
13 1/4"
338mm
TOP VIEW
1 3/4" REF
(95mm)
17 3/8"
441 mm
ADJ. THERMOSTAT
FRONT VIEW
NOTE: When mounting unit in an open area, to ensure proper ventilation,
maintain a 4" (102mm) clearance from cabinet louvers on each side of
cooler. When mounting unit in a cavity or behind a wall, maintain
minimum space of 4" (102mm) on each side, 4" (102mm) on the top and
a depth of 12" (305mm).
ELECTRICAL
3 1/8"
79.375 mm
1 1/8"
(29mm)
SIDE VIEW
Job Name: ____________________________________
Model: _______________________ Qty. ____________
Contact: ______________________________________
Approval Signature: _____________________________
Notes:
2222 Camden Court
Oak Brook, IL 60523
630-572-3192
elkay.com
Printed in U.S.A.
© 2015 Elkay
