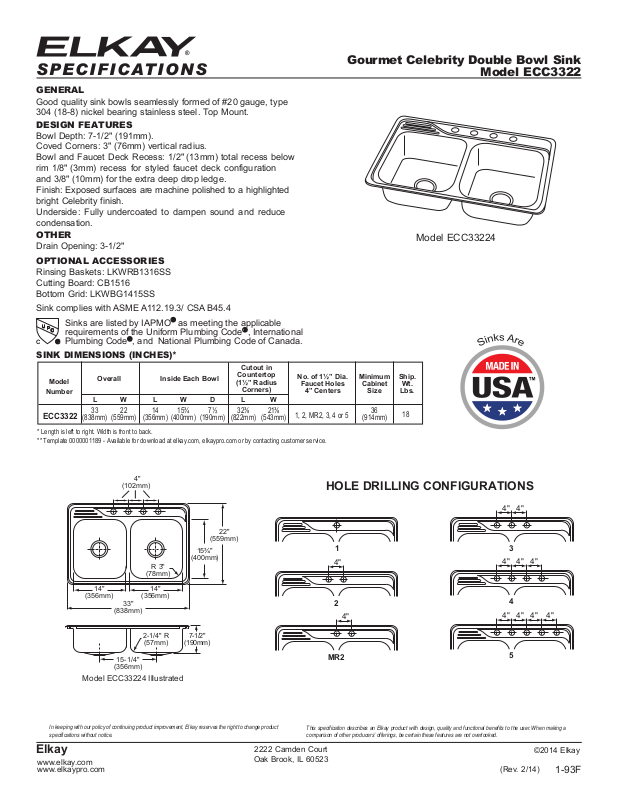

Elkay ECC3322 User Manual

®

SPECIFICATIONS

GENERAL

Good quality sink bowls seamlessly formed of #20 gauge, type
304 (18-8) nickel bearing stainless steel. Top Mount.

DESIGN FEATURES

Bowl Depth: 7-1/2" (191mm).
Coved Corners: 3" (76mm) vertical radius.
Bowl and Faucet Deck Recess: 1/2" (13mm) total recess below
rim 1/8" (3mm) recess for styled faucet deck configuration
and 3/8" (10mm) for the extra deep drop ledge.
Finish: Exposed surfaces are machine polished to a highlighted
bright Celebrity finish.
Underside: Fully undercoated to dampen sound and reduce
condensation.

OTHER

Drain Opening: 3-1/2"

OPTIONAL ACCESSORIES

Rinsing Baskets: LKWRB1316SS
Cutting Board: CB1516
Bottom Grid: LKWBG1415SS

Sink complies with ASME A112.19.3/ CSA B45.4

Sinks are listed by IAPMO as meeting the applicable
requirements of the Uniform Plumbing Code , International
Plumbing Code , and National Plumbing Code of Canada.

C

SINK DIMENSIONS (INCHES)*

Cutout in

Model

Number

ECC3322

* Length is left to right. Width is front to back.
** Template 0000001189 - Available for download at elkay.com, elkaypro.com or by contacting customer service.

Overall Inside Each Bowl

L W L W L WD

33

(838mm)22(559mm)14(356mm)

15¾

(400mm)7½(190mm)

Countertop

(1½” Radius

Corners)

32⅜

(822mm)

(543mm)

21⅜

No. of 1½” Dia.

Faucet Holes

4” Centers

1, 2, MR2, 3, 4 or 5

Gourmet Celebrity Double Bowl Sink

Model ECC3322

Model ECC33224

Minimum

Cabinet

Size

(914mm)

Ship.

Wt.

Lbs.

36

18

4"

(102mm)

22"

(559mm)

15¾"

R 3"

(78mm)

14"

(356mm)

(838mm)

15-1/4"

(356mm)

Model ECC33224 Illustrated

In keeping with our policy of continuing product improvement, Elkay reserves the right to change product
specifications without notice.

33"

14"

(356mm)

2-1/4" R
(57mm)

(400mm)

7-1/2"

(190mm)

Elkay

www.elkay.com
www.elkaypro.com

This specification describes an Elkay product with design, quality and functional benefits to the user. When making a
comparison of other producers’ offerings, be certain these features are not overlooked.

2222 Camden Court

Oak Brook, IL 60523

HOLE DRILLING CONFIGURATIONS

4" 4"

1

4"

2

4"

MR2

3

4" 4" 4"

4

4" 4" 4" 4"

5

(Rev. 2/14)
