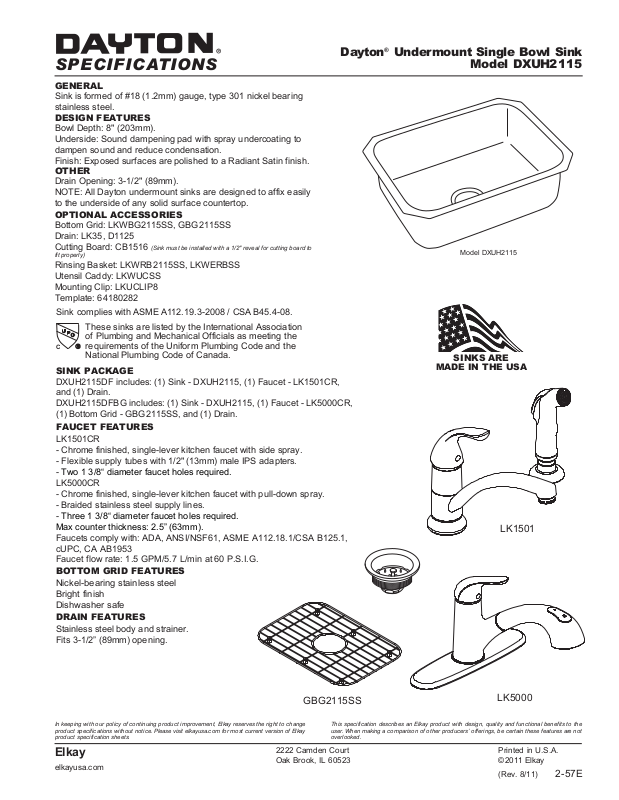

Elkay DXUH2115DF, DXUH2115 Specs

Dayton®Undermount Single Bowl Sink

SP EC IFIC ATIONS

GENERAL

Sink is formed of #18 (1.2mm) gauge, type 301 nickel bearing stainless steel.

DESIGN FEATURES

Bowl Depth: 8" (203mm). Underside: Sound dampening pad with spray undercoating to dampen sound and reduce condensation. Finish: Exposed surfaces are polished to a Radiant Satin finish.

THER

Drain Opening: 3-1/2" (89mm). NOTE: All Dayton undermount sinks are designed to affix easily to the underside of any solid surface countertop.

PTIONAL ACCESSORIES

Bottom Grid: LKWBG2115SS, GBG2115SS Drain: LK35, D1125 Cutting Board: CB1516

fit properly)

Rinsing Basket: LKWRB2115SS, LKWERBSS Utensil Caddy: LKWUCSS Mounting Clip: LKUCLIP8 Template: 64180282

Sink complies with ASME A112.19.3-2008 / CSA B45.4-08.

These sinks are listed by the International Association of Plumbing and Mechanical Officials as meeting the requirements of the Uniform Plumbing Code and the

National Plumbing Code of Canada.

SINK PACKAGE

DXUH2115DF includes: (1) Sink - DXUH2115, (1) Faucet - LK1501CR, and (1) Drain. DXUH2115DFBG includes: (1) Sink - DXUH2115, (1) Faucet - LK5000CR, (1) Bottom Grid - GBG2115SS, and (1) Drain.

FAUCET FEATURES

LK1501CR

- Chrome finished, single-lever kitchen faucet with side spray.

- Flexible supply tubes with 1/2" (13mm) male IPS adapters.

- Two 1 3/8“ diameter faucet holes required. LK5000CR

- Chrome finished, single-lever kitchen faucet with pull-down spray.

- Braided stainless steel supply lines.

- Three 1 3/8“ diameter faucet holes required.

Max counter thickness: 2.5” (63mm).

Faucets comply with: ADA, ANSI/NSF61, ASME A112.18.1/CSA B125.1, cUPC, CA AB1953 Faucet flow rate: 1.5 GPM/5.7 L/min at 60 P.S.I.G.

BOTTOM GRID FEATURES

Nickel-bearing stainless steel Bright finish Dishwasher safe

DRAIN FEATURES

Stainless steel body and strainer. Fits 3-1/2” (89mm) opening.

(Sink must be installed with a 1/2" reveal for cutting board to

Model DXUH2115

SINKS ARE

MADE IN THE USA

LK1501

In keeping with our polic y of continuing product improvement, Elkay reserves the right to change product specifications wit hout notic e. Please visit elkayusa.com for most current version of Elkay product specification sheets.

Elkay

elkayusa.com

2222 Camden Court Oak Brook, IL 60523

GBG2115SS

This specification describes an Elkay produc t w ith d esign, quality and functional b enefits to the user. When making a comparison of other producers overlooked.

LK5000

’ offerings, b e certain these features are not

(Rev. 8/11) 2-57E

Model DXUH2115 Illustrated

SP EC IFIC ATIONS

SINK DIMENSIONS (INCHES)*

Model

Number

DXUH2115

Length is left to right. Width is front to back.

Overall

L W L W D

17-3/4

(451mm)

(584mm)

Inside Bowl

(533mm)

15-3/4

(400mm)8(203mm)27(686mm)

Minimum

Cabinet

Size

Dayton®Undermount Single Bowl Sink

Model DXUH2115

15-3/4"

(400mm)

3" R

(76mm)

21"

(533mm)

23"

(584mm)

17-3/4"

(451mm)

COUNTERTOP

MOUNTING BRACKET (OPTIONAL ACCESSORY)

FASTENER (NOT FURNISHED)

Electronic Dual Template Mounting Option

(Download DXF File from www.elkayusa.com)

1/2" (13mm) Reveal

1-1/8"

(29mm)

1/2" (13mm)

SILICONE CAULK (NOT FURNISHED)

SINK

2-1/4" R (57mm)

MOUNTING BRACKET (OPTIONAL ACCESSORY)

FASTENER (NOT FURNISHED)

1/8" (3mm) Overhang

1-3/8"

(35mm) (6mm)

1/4"

(203mm)
