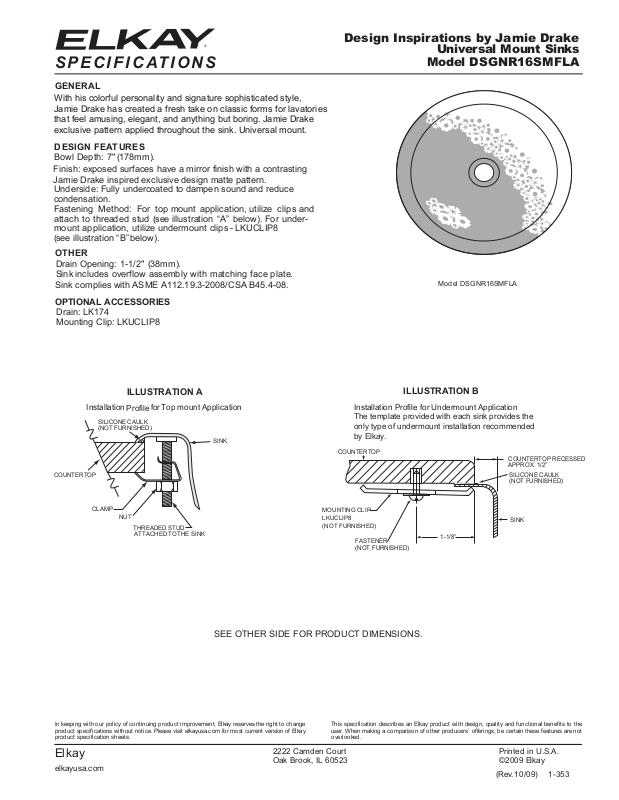

Elkay DSGNR16SMFLA User Manual
®
exclusive pattern applied throughout the sink. Universal mount.
S P E C I F I C AT I O N S
GENERAL
With his colorful personality and signature sophisticated style,
Jamie Drake has created a fresh take on classic forms for lavatories
that feel amusing, elegant, and anything but boring. Jamie Drake
DESIGN FEATURES
Bowl Depth: 7" (178mm).
Finish: exposed surfaces have a mirror finish with a contrasting
Jamie Drake inspired exclusive design matte pattern.
Underside: Fully undercoated to dampen sound and reduce
condensation.
Fastening Method: For top mount application, utilize clips and
attach to
mount application, utilize undermount clips
(see illustration “B”
OTHER
Drain Opening: 1-1/2" (38mm).
Sink includes overflow assembly with matching face plate.
Sink complies with ASME A112.19.3-2008/CSA B45.4-08.
OPTIONAL ACCESSORIES
Drain: LK174
Mounting Clip: LKUCLIP8
threaded stud (see illustration “ A” below). For under-
- LKUCLIP8
below).
Design Inspirations by Jamie Drake
Universal Mount Sinks
Model DSGNR16SMFLA
Model DSGNR16SMFLA
Installation for Top mount Application
COUNTERTOP
ILLUSTRATION A
Profile
SILICONE CAULK
(NOT FURNISHED)
CLAMP
NUT
THREADED STUD
ATTACHED TO THE SINK
ILLUSTRATION B
Installation Profile for Undermount Application
The template provided with each sink provides the
only type of undermount installation recommended
SINK
MOUNTING CLIP
LKUCLIP8
(NOT FURNISHED)
by Elkay.
COUNTERTOP
FASTENER
(NOT FURNISHED)
SEE OTHER SIDE FOR PRODUCT DIMENSIONS.
1-1/8”
COUNTERTOP RECESSED
APPROX. 1/2”
SILICONE CAULK
(NOT FURNISHED)
SINK
In keeping with our policy of continuing product improvement, Elkay reserves the right to change
product specifications without notice. Please visit elkayusa.com for most current version of Elkay
product specification sheets.
Elkay
elkayusa.com
This specification describes an Elkay product with design, quality and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not
overlooked.
2222 Camden Court
Oak Brook, IL 60523
Printed in U.S.A.
©2009 Elkay
(Rev.10/09) 1-353
Design Inspirations by Jamie Drake
Model DSGNR16SMFLA
See Template for
Universal Mount Sinks
Model DSGNR16SMFLA
SINK DI M ENSIONS*
Model Number
DSGNR16SMFLA
*Length is left to right. Width is front to back.
O.D. I.D D
16- 1/4
(413mm)
14
(356mm)7 (178mm)
application. For Top
mount application
use sink upside down
as template and cut
5/16" (8mm) inside
Cutout In
Countertop
undermount
sink outline.
®
S P E C I F I C AT I O N S
Minimum
Cabinet
Size
21
(533mm)
1-1/2"
(38mm)
16-1/4" DIA.
(413mm)
14" DIA.
(356mm)
7"
(178mm)
Elkay
1-353 (Rev
2222 Camden Court
Oak Brook, IL 60523
1
0
/09)
.
elkayusa.com
Printed in U.S.A.
©2009 Elkay
