4405BF_FTN_A LK4405BF_FTN_A
Owners Manual
Model 4405BF
Wall Mounted Tubular Bottle Filling Fountain
INSTALLER
4405BF Fountains are among the easiest to install Fountains on the market today.
To assure you install these models easily and correctly, PLEASE READ THESE
SIMPLE INSTRUCTIONS BEFORE STARTING THE INSTALLATION. CHECK YOUR
INSTALLATION FOR COMPLIANCE WITH PLUMBING, ELECTRICAL, AND OTHER
APPLICABLE CODES. After installation, leave these instructions with the Fountain for
future reference.
PAGE 1
1000003940 (Rev. C - 03/20)
4405BF_FTN_A LK4405BF_FTN_A
INSTALLATION INSTRUCTIONS
IMPORTANT
ALL SERVICE TO BE PERFORMED BY AN AUTHORIZED SERVICE PERSON
IMPORTANT! INSTALLER PLEASE NOTE.
THE GROUNDING OF ELECTRICAL EQUIPMENT SUCH AS TELEPHONE, COMPUTERS, ETC. TO WATER LINES
IS A COMMON PROCEDURE. THIS GROUNDING MAY BE IN THE BUILDING OR MAY OCCUR AWAY FROM THE
BUILDING. THIS GROUNDING CAN CAUSE ELECTRICAL FEEDBACK INTO A FOUNTAIN, CREATING AN
ELECTROLYSIS WHICH CAUSES A METALLIC TASTE OR AN INCREASE IN THE METAL CONTENT OF THE
WATER. THIS CONDITION IS AVOIDABLE BY USING THE PROPER MATERIALS AS INDICATED. ANY DRAIN
FITTINGS PROVIDED BY THE INSTALLER SHOULD BE MADE OF PLASTIC TO ELECTRICALLY ISOLATE THE
FOUNTAIN FROM THE BUILDING PLUMBING SYSTEM.
1. This fountain is to be mounted on a smooth, at, nished surface with adequate support structure. NOTE: Mounting structure
must be capable of supporting 300 lb. load on fountain.
2. Refer to rough-in for plumbing.
3. Install shut-o valve on water supply. (Valve not furnished)
4. Locate and install fountain using 3/8" minimum fasteners. (Fasteners not furnished).
5. Prior to installing the bottle ller to the fountain, insert the drain tube (item #5) into the arm tunnel and adjust drain to lean to
the left side of the arm when facing the button. Place the aesthetic collar (item # 16) onto the mounting position of the
fountain ensuring the vertical edge of the collar is upright and the curved edge sits below the mounting surface. Mount
bottle ller to arm with collar centered between the two pieces. Install bottle ller to arm being sure drain tube is above
mounting plate of ller. Install mounting hardware to secure ller to fountain.
6. Connect water supply and fountain drain. Water connection and drain must comply with local codes.
7. Turn on water supply and check all connections for leaks.
CAUTION: This fountain is rated for inlet water pressure of 20-105 PSI. A pressure reducing regulator should be used if the
inlet water supply exceeds 105 PSI. Any damage caused by reason of connecting this product to supply line pressures
lower than 20 PSI or higher than 105 PSI is not covered by warranty.
8. Water supply 3/8" O.D. unplated copper tube. Waste 1-1/4" IPS. Contractor to supply waste trap and service stop valve in
accordance with local code.
9. Connecting lines to be made of unplated copper and should be thoroughly ushed to remove all foreign matter before being
connected to fountain. This fountain is manufactured in such a manner that it does not in any way cause taste, odor, color,
or sediment problems.
10. Connect fountain to supply line with a shut-o valve and install a 3/8" unplated copper water line between the valve and
the cooler. Remove any burrs from outside of water line. Push the tubes straight into the ttings until they reach a positive
stop, approximatel 3/4" (See Fig. 2). DO NOT SOLDER TUBES INSERTED INTO THE STRAINER AS DAMAGE TO THE
O-RINGS MAY RESULT.
TROUBLE SHOOTING AND MAINTENANCE
ACTUATION OF QUICK CONNECT WATER FITTINGS:
Fountain is provided with lead-free connectors which utilize an o-ring water seal. To remove tubing from the tting, relieve
water pressure, push in on the gray collar while pulling on the tubing. (see Fig.2) To insert tubing, push tube straight into
tting until it reaches a positive stop, approximately 3/4".
1/4” O.D. TUBE
WATER INLET
TO COOLER
3/8” O.D. TUBE CONNECT
COLD WATER SUPPLY
NOTE: WATERFLOW
DIRECTION
BUILDING WATER
INLET
SERVICE STOP
(NOT FURNISHED)
FIG 1 FIG 2
1000003940 (Rev. C - 03/20)
PAGE 2
OPERATION OF QUICK CONNECT FITTINGS
OPERATION OF QUICK CONNECT FITTINGS
SIMPLY PUSH IN
SIMPLY PUSH IN
TUBE TO ATTACH
TUBE TO ATTACH
A B C
TUBE IS SECURED
TUBE IS SECURED
IN POSITION
IN POSITION
B CA
PUSH IN COLLET
PUSH IN COLLET
TO RELEASE TUBE
TO RELEASE TUBE
PUSHING TUBE IN BEFORE
PUSHING TUBE IN BEFORE
PULLING IT OUT HELPS TO
PULLING IT OUT HELPS TO
RELEASE TUBE
RELEASE TUBE
3"
10"
O
76mm
254mm

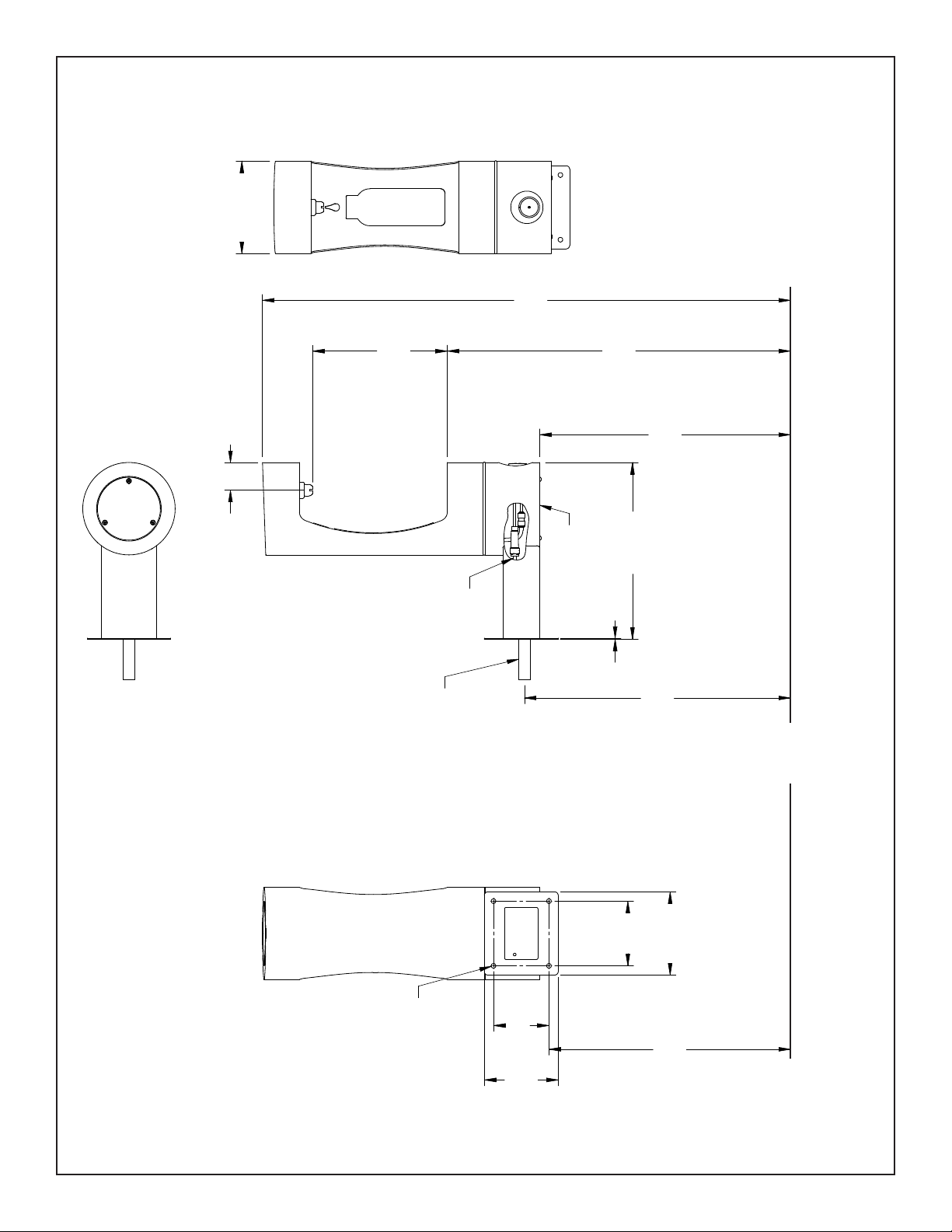

4405BF_FTN_A LK4405BF_FTN_A
57 3/16"
1453mm
14 9/16"
371mm
37 3/16"
945mm
27 1/8"
689mm
B
19 1/8"
486mm
A
1/8"
3mm
28 3/4"
731mm
1-1/4" DRAIN
32mm
7"
178mm
9"
229mm
FINISHED FLOOR
FINISHED FLOOR
1/2"
(4 PL)
O
13mm
PAGE 3
6"
8"
152mm
203mm
26 1/8"
664mm
LEGEND
A = 3/8" O.D. UNPLATED COPPER TUBE CONNECT - SHUT OFF VALVE BY OTHERS
1000003940 (Rev. C - 03/20)
B = REMOVABLE BOTTOM COVER
ITEM
4420BF_FTN_A LK4420BF_FTN_A
13
19
14
17
2
15
23
26
21
27
38
62
21
11
22
27
13
28
20
20
28
3748
21
10
13
1659
52 OR
33
25
43
43
16
34
33 45
63
29
22
24
24
11
11
37
3748
48
52 OR
22
20
29
28
63
61
45
8SEE NOTE 13
61
62
61
59
4
1
21
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
PART NO.
1000003814*
45931C
1000003813*
55996C
66816C
98686C
97247C
98678C
98679C
98680C
98681C
1000003692
1000003693
98682C
1000003694
1000003695
98683C
98685C
75724C
1000005456
4405BF_FTN_A LK4405BF_FTN_A
ITEMIZED PARTS LIST
DESCRIPTION
Cover - Round Plate
Outdoor Bottle Filler Drain Plug
Bottom Cover
In - Line Strainer
Tube - Drain
Kit - Bottle Filler Waterway/Gasket/Nipple/Tubes/Fttngs
Kit - VR Torx Screws/Bit
Kit - 1.0 GPM Regulator/Holder/Nut (BF Only)
Kit - Nozzle/Aerator/Gasket/Pin
Kit - Aerator/Key
Kit - Blank Bottle Filler Trim
Kit - LK4405 Bottle Filler Trim
Kit - 4405 Bottle Filler Trim
Kit - Push Button w/Blank Nameplate
Kit - Push Button w/LK4405 Nameplate
Kit - Push Button w/4405 Nameplate
Kit - Drain Adapter/Gasket/Nut/Washer
Kit - Hardware/Bolts/Nuts/Washers/Torx Screws
Screw - 1/4"x20 x 3/4" LG. Pinned Torx
Aesthetic Collar
5
BASIN
Vandal-Resistant Bubbler
FIG. 3
14, 15
*select color option to complete part number
*FINISH COLOR OPTIONS – Choose color option to
complete your model number, add as sux example:
4405BFEVG
Matte nish: Evergreen = EVG
Gloss nish:
Beige = BGE Gray = GRY Terracotta = TER
Black = BLK Orange = ORN White = WHT
Blue = BLU Purple = PUR Yellow = YLW
Brown = BRN Red = RED
661
6
14
9
11
6
10
2
16
13
4
FIG. 4
STREAM HEIGHT ADJUSTMENT:
Stream height is factory set at 35 psi. If supply pressure varies greatly
from this, insert a small straight bladed screwdriver through the access
hole in the center of the push button and turn the adjustment screw.
Clockwise adjustment will raise the stream and counterclockwise adjustment will lower the stream. For best adjustment, the stream should
be approximately 1 1/2" above the top of the bubbler.
PRINTED IN U.S.A.
Halsey Taylor – halseytaylor.com
Elkay – elkay.com
1000003940 (Rev. C - 03/20)
FOR PARTS CONTACT YOUR LOCAL DISTRIBUTOR OR CALL TECHNICAL SERVICES AT 1.800.834.4816
1333 BUTTERFIELD ROAD, DOWNERS GROVE, ILLINOIS 60515
PAGE 4
5
12
6
8
14
12
3
7, 14
