ELK-M1XEP
Ethernet Interface
INSTALLATION
MANUAL
828-397-4200 Voice
828-397-4415 Fax http://www.elkproducts.com
L524 3/10 email: info@elkproducts.com
PO Box 100 • Hwy. 70W • Hildebran, NC 28637 • USA
Table of Contents |
|
Features and Specifications.......................................................................................................... |
3 |
Basics of Networking...................................................................................................................... |
4 |
Installation and Hookup................................................................................................................. |
5 |
Configuration and Setup................................................................................................................ |
6 |
Basic Network Setup......................................................................................................................... |
6 |
Send Changes to M1XEP and Save................................................................................................. |
8 |
Setup of User Names & Passwords................................................................................................. |
8 |

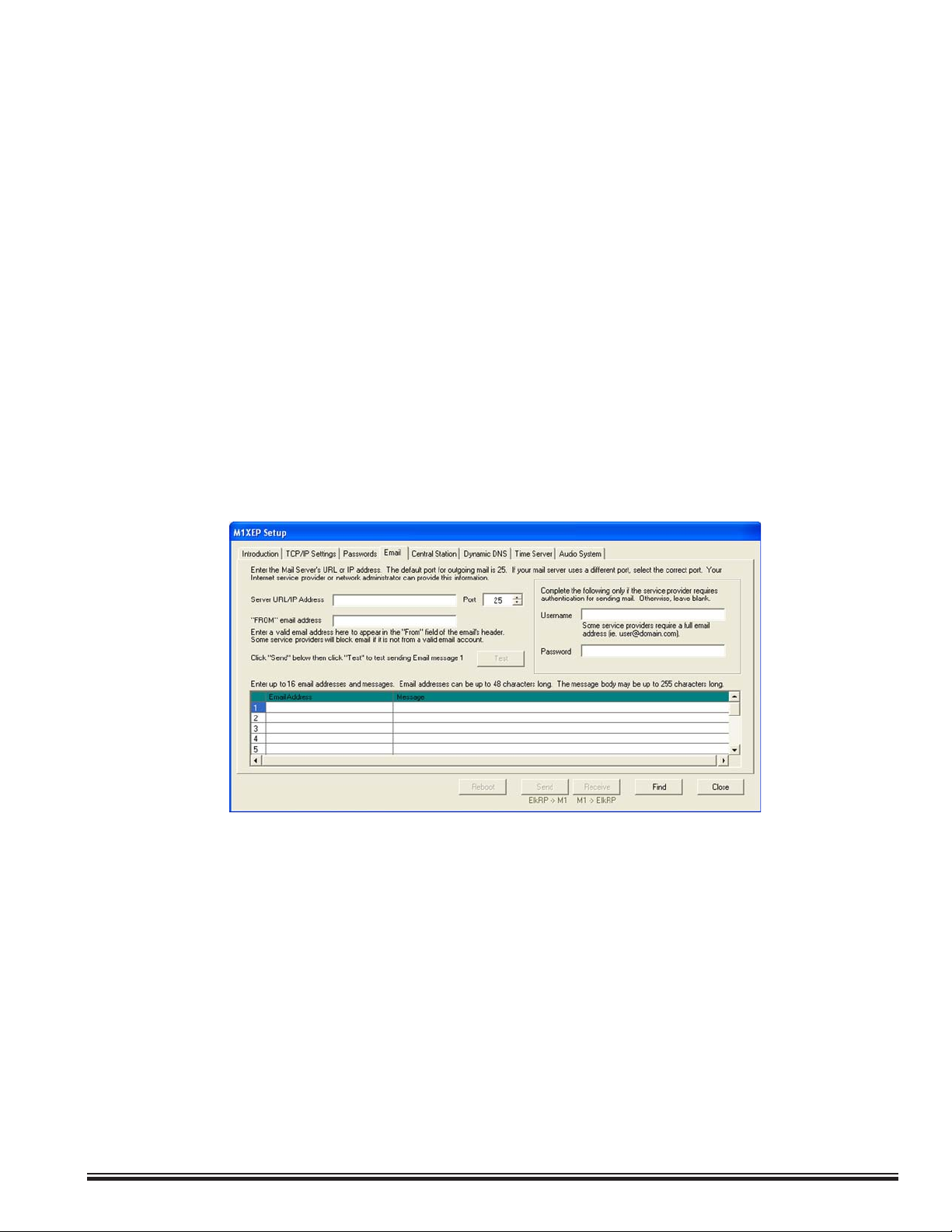

Email Notification Setup................................................................................................................... |
9 |

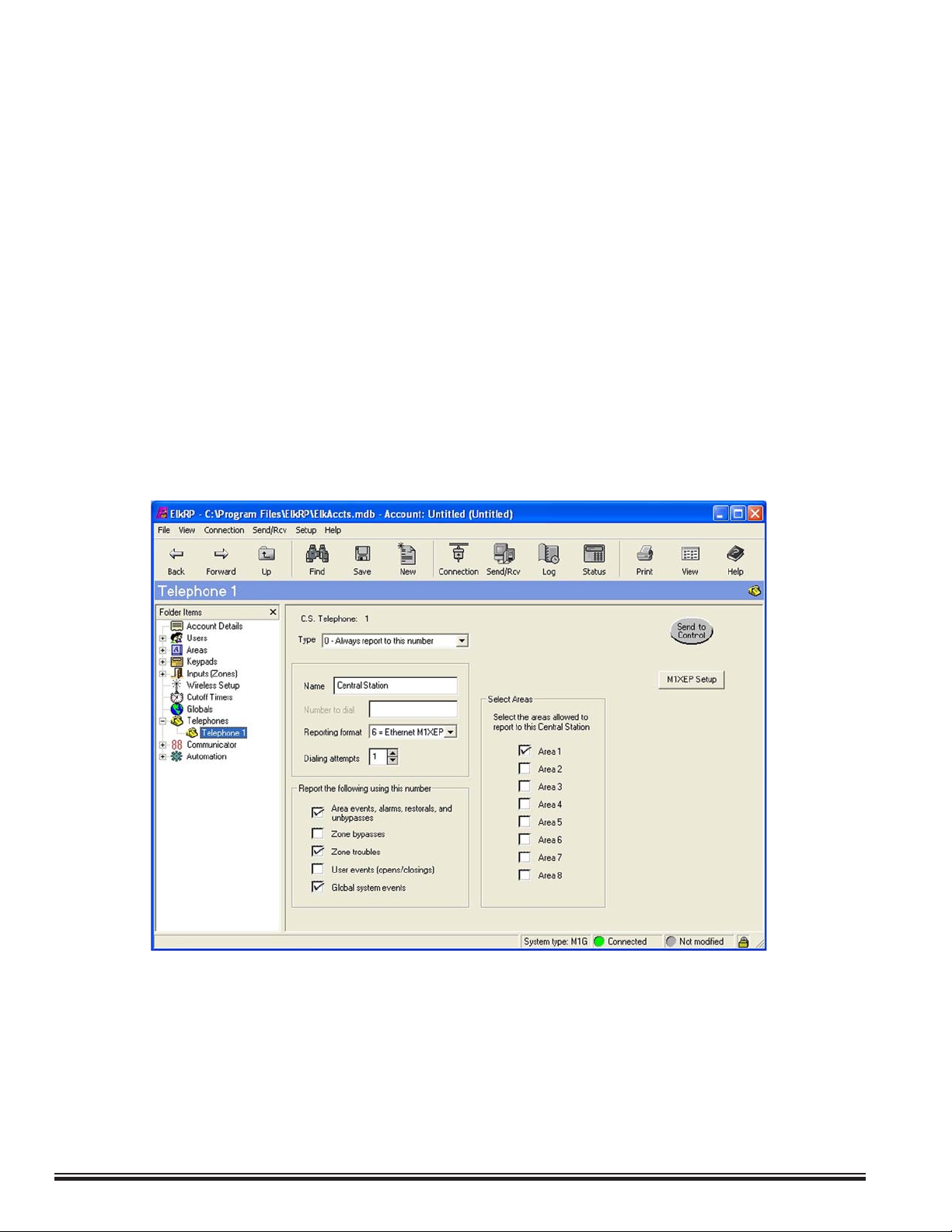

Central Station Setup ..................................................................................................................... |
10 |
Dynamic DNS Setup........................................................................................................................ |
12 |
Time Server Setup................................................................................................................ |
13 |
Audio Setup..................................................................................................................................... |
14 |
Notes on Router Setup................................................................................................................... |
14 |
Other Ports Used By the M1XEP.................................................................................................... |
14 |
Connecting ElkRP to the Control over a Network...................................................................... |
15 |
Updating the M1XEP Firmware.................................................................................................... |
16 |

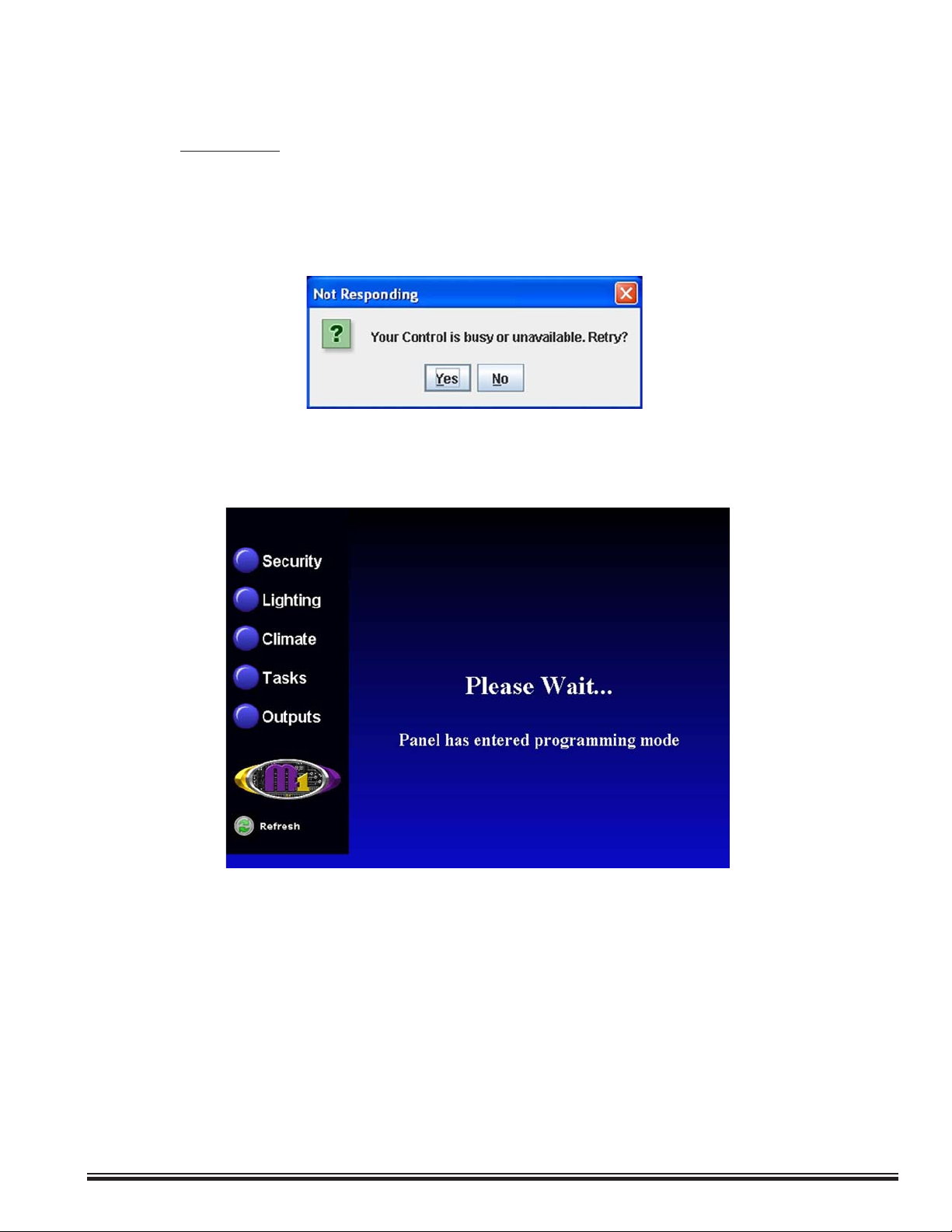

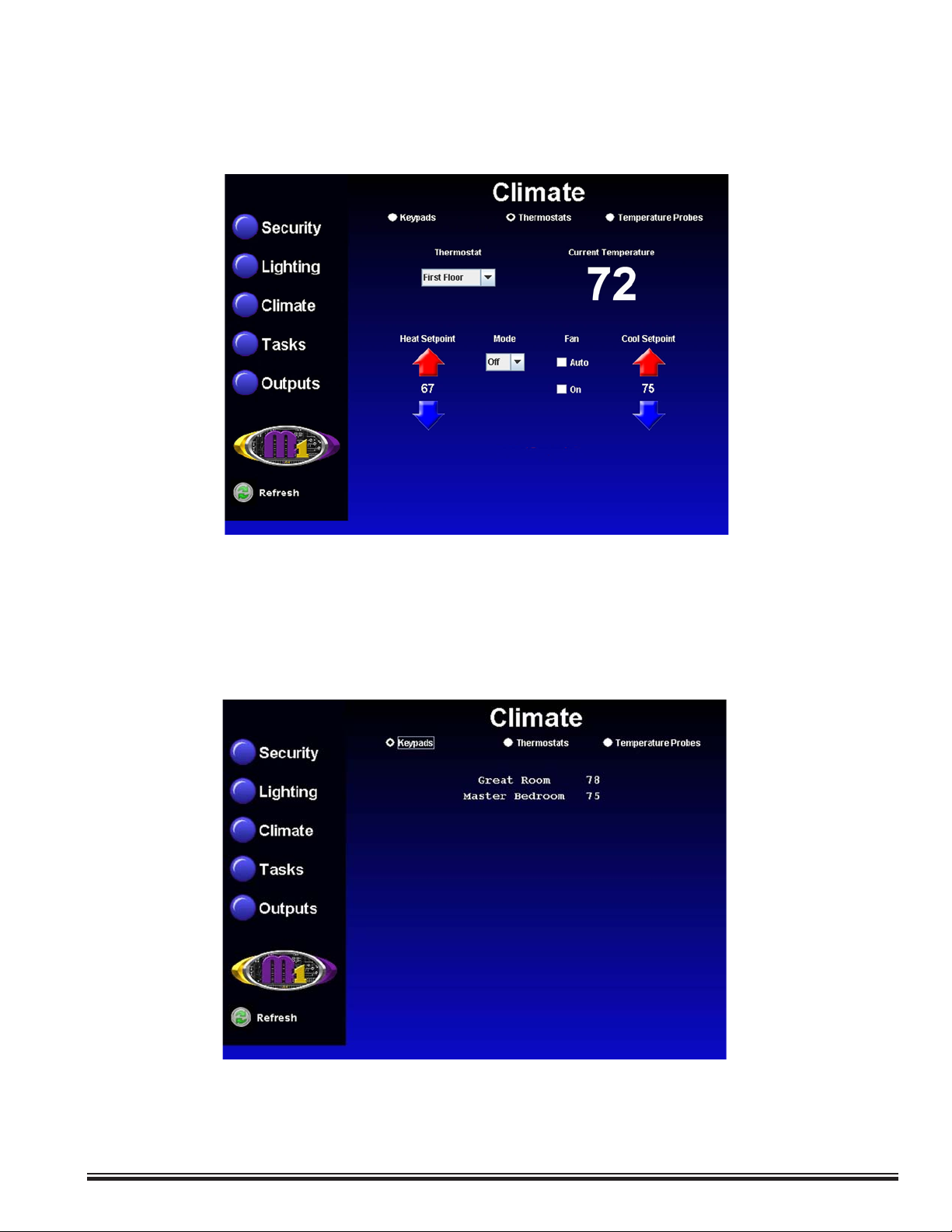

Using the Virtual Keypad Application......................................................................................... |
17 |
Glossary of Terms......................................................................................................................... |
23 |
Troubleshooting Guide................................................................................................................. |
24 |
IMPORTANT NOTICE:
TheM1XEPhasbeenshippedwiththenon-secureportenabled. It is strongly recommended that you configure the M1XEP to use the secure port for communications outside of the local network. If you will connect to the local network using the non-secure port, it is stronglyrecommended thatthe M1XEPbe behind a network router. Do not port forward the non-secure port to outside the local network. If the non-secure port will not be used it should be disabled in the M1XEP setup (refer to section 1.7 of the configuration and setup).
Page 2 |
ELK-M1XEP Installation Manual |
Features and Specifications
APPLICATION:
The ELK-M1XEP is an Ethernet Device Server with a RS-232 Serial Port Interface. It may be used to connect a Control in the M1 Family to an Ethernet network using TCP-IP protocol. It features a secure embedded web server with a user interface built on a Java applet, email event notification, and FIPS compliant encryption algorithms for security sensitive environments. It is powered by an ELK-P1216 12 Volts DC, 1.5 Amp plug-in power supply/adapter (included). A software setup utility is built into ElkRP (version 1.5.0 or later) for configuring the connection setup, network password, etc. The M1XEP is factory defaulted to obtain a dynamic IP address from a DHCP server (i.e. Ethernet switch, cable modem, etc.), however it may also be setup with a static IP address.
FEATURES:
•Web server with embedded Java applet "M1 Virtual Keypad"
•Secure connection with password protection and HTTPS encryption
•Flash Memory for Firmware Updating
•Event notification via E-Mail (SMTP)
•Supports automatic Dynamic DNS Updates with providers using the DynDNS protocol.
•Supports Network Time Protocol for synchronizing the M1/EZ8’s clock with an Internet time server.
•Internet Monitoring and Reporting Capability
•TCP/IP stack supporting the following protocols:
TCP,UDP,DHCP,SSL 3.0/TLS 1.0, HTTP, SMTP
•Federal Information Processing Standards (FIPS) 128 bit encryption
•Integrated 802.3 compliant 10/100 Mbit network interface
•RS232, DB9M 9-pin serial port connection
•Connects to the M1 RS-232 Serial port (Port 0). The baud rate for this port must be set to 115,200 (factory default)
•RJ45 8-pin Network Jack
•2.1mm barrel type power connector (center positive)
•LED Indicators for Power, Link, and Data
SPECIFICATIONS:
•Operating Voltage: 12 Volts D.C. from Elk-P1216 Plug-in Power Supply **
•Current Draw: approx. 300 mA
•Housing Dimensions: 4.25" x 6.375" x 2.125"
•Circuit Board Dimensions: 2.25" x 3.95"
**Any required network equipment, i.e. Ethernet switch, router, cable modem, etc. including the plug-in power supply for the M1XEP, MUST be backed up with an adequately sized UPS (Uninterruptible Power Supply) in order for the equipment to continue operating during brief power outages.
RJ-45 Connector |
Description |
Normal State |
|
LED Indicators |
|||
|
|
||
|
|
|
|
Orange |
Processor Power Indicator |
On-Solid |
|
|
|
|
|
Green |
Network Traffic Indicator |
On-Blinking |
|
|
|
|
During a reboot, the green light will be off and the orange light will be on for 30-45 seconds. When the reboot is complete, both lights will be off for a second, and then the orange light will come on solid and the green light will begin to blink. Wait several seconds before re-establishing
a connection with the control.
ELK-M1XEP Installation Manual |
Page 3 |
Basics of Networking
The installer must have a basic understanding of Ethernet setup to install and configure the M1XEP. If you do not have this basic knowledge, please seek the assistance of a network professional.
The
Internet
Cable
ISP DSL
Satellite
WAN
Wide Area Network
Location
Connection to outside the local network may require assistance from others, including the Internet service provider and the network administrator.
Refer to the Notes on
Router Setup located on page 14.
Technical support from Elk Products, Inc. is limited to the setup and connection of the M1XEP inside the local network.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Cable Modem |
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
High Speed |
|
|
|
|||||||||||||||
|
|
|
|
|||||||||||||||||
|
|
|
Modem |
|
|
|
DSL Modem |
|||||||||||||
|
|
|
|
|
|
|||||||||||||||
|
|
|
|
|
|
Satellite Modem |
||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
If using a DSL modem, the modem may need to |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
be bridged to allow the IP address to be passed |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
to the router. Contact the manufacturer of the |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
modem for assistance. |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
Router with Built-In |
|
|
|
|
|
|
|
|
||||||||||||
Dynamic DNS Support |
|
|
|
|
|
|
|
|
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
LAN |
|
PC |
M1XEP |
||
Local Area Network |
|||
|
|
|
Page 4 |
ELK-M1XEP Installation Manual |
Installation and Hookup
The following connections are required for the M1XEP Ethernet Interface.
a.The DB9M 9-pin male connector should be connected to the DB9F 9-pin female serial port (port 0) on the Control using a standard 9-pin male to female serial cable (included). The M1Gold has the main serial port (port 0) on board, while the M1EZ8 requires the M1EZ8MSI Main Serial Interface to provide the port 0 connection. The M1XEP should be mounted within 10 feet of the Control. The baud rate of the Control's serial port must be set to 115,200, which is the factory default.
b.The 2.1mm barrel type connector is used to connect an ELK-P1216 Plug-in Power Adapter (included). The M1XEP operates from 12 Volts DC and draws approximately 300 mA. The center pin of the barrel connector is positive.
Any required network equipment, i.e. Ethernet switch, router, cable modem, etc. including the plug-in power supply for the M1XEP, MUST be backed up with an adequately sized UPS (Uninterruptible Power Supply) in order for the equipment to continue operating during brief power outages.
c.The RJ45 8-pin network jack is used to connect the M1XEP to a LAN/WAN Ethernet network switch or router. This requires a standard network 8-pin RJ45 terminated patch cable (not included).
d.The 5-pin connector along the side of the M1XEP is provided for future use. An ELK-WO35A cable is required (not supplied) to connect to it. DO NOT CONNECT anything to this connector at this time.
a.
b.
c.
d.
1.Remove power from the Control before making any connections.
2.Connect the serial port cable from the Control to the M1XEP. Connect a network patch cable from the M1XEP to the LAN (local area network) switch or router. Power up the Control.
3.Connect the power cable from the P1216 plug-in power supply. Plug the P1216 into a 110V power outlet. The M1XEP should power up and attempt to link up with the Ethernet network.
4.Enroll the M1XEP into the Control. Using the keypad, access the Installation Programming menu (Menu 9). Choose Bus Module Enrollment (Menu 1) and press the right arrow key to start the enrollment. When the enrollment is complete press the ELK or * (Asterisk) key to exit.
The M1XEP does not connect to the RS-485 data bus on the control, therefore it will not appear in the list of devices enrolled on the keypad. However, the enrollment process is necessary to ensure proper supervision of the device. If the M1XEP is removed, it must be "un-enrolled" by completing the Bus Module Enrollment process to prevent an "Ethernet Trouble" from occurring. ElkRP versions 1.6.2 and later will display the current firmware, hardware, and bootware versions of the M1XEP on the " Show KPs and Expanders" screen. This screen is accessed from the Send/ Rcv menu when connected to the control.
4.Proceed to the Configuration and Setup.
ELK-M1XEP Installation Manual |
Page 5 |
Configuration and Setup
The M1XEP is supported by the M1 Family of controls with firmware version 4.3.0 or later. The M1XEP software configuration utility is built into ElkRP software version 1.5.0 or later. If you have an older version of firmware or ElkRP software, current updates can be downloaded from the M1 Dealer Website (www.elkproducts.com). Please note that some features will require newer versions of M1 Control firmware, M1XEP firmware, and ElkRP software. Please refererence the corresponding section of this manual for infomation on what versions are required for each feature. For the initial setup, ElkRP and the M1XEP must be on the same local network. ElkRP can not "find" an M1XEP outside of the local area network (refer to step 1.2). The M1XEP is shipped with DHCP enabled. If a DHCP server exists on your network the M1XEP will obtain a “dynamic” IP address, gateway address, and subnet mask allowing it to work on the local network. If not, the factory programmed (default) IP address is 192.168.0.251. If desired, the M1XEP can be configured with your choice of a “static” (non-changing) IP address. This can be done during the following setup.
Before beginning the M1XEP setup, please ensure that the Control is programmed to transmit ASCII strings at 115,200 baud for each of its available conditions to allow the Control and the Virtual Keypad to have and display the information. Using the Keypad Installer Programming, or the ElkRP software, access the Globals Menu (Menu-07) and program yes for options 35, 36, 37, 38, 39, and 40. Verify that Option 34 is set to 115,200.
1. Basic Network Setup
1.1.A router serving DHCP should not need any configuration to allow the M1XEP to connect inside the local network. For communications outside the local network you will need to establish several open ports on the router. Please refer to section 6 of the configuration and setup on page 14 and the documentation for the router for more details.
1.2.Start the ElkRP software and open the desired account.
a.On the account details screen, click the 'M1XEP Setup' button located near the lower right side of the screen. With the 'Introduction' tab selected, take a few minutes to read this information.
b.When you are ready to proceed, click the 'Find' button. This will open the “Find M1XEPs” screen.
c.ElkRP will search for all M1XEPs connected to the local network. If the installation and hookup procedure has been completed correctly, the M1XEP should be listed on this screen. Only one
shouldbefound,unlesstherearemultipleunitsinstalled. IfyouareunabletofindtheM1XEP,pleasereferto the troubleshooting section of this manual on page 24.
d.Verify that the MAC address in the second column matches the MAC address of the M1XEP. The MAC address is located on top of the white barcode label on the RJ45 connector of the M1XEP (see figure below).
e.Note the IP address in the third column. This is the address used to connect/communicate with the M1XEP. Remember, if a DHCP server is on the network and the M1XEP is still set for DHCP (factory default), this number will most likely be a "dynamic" address. However, in the absence or failure of a DHCP server, the M1XEP will default to its last static IP address, which is set from the factory to 192.168.0.251. To force the DHCP/IP address settings to known values, please refer to the troubleshooting section of this manual
on page 25.
Page 6 |
ELK-M1XEP Installation Manual |
1.3.Highlight the M1XEP to be configured and click the 'Use Selected' button. This automatically copies the IP address and Port settings to the ElkRP "Account Details" location and returns back to the setup screen. Click 'Close' to exit this screen.
1.4.Before continuing with the setup and configuration, you must connect to the Control over the network.
a.Verify that the URL/IP and Port setting are correct on the "Account Details" screen.
b.Make sure the serial number is correct and the "RP Access Code" is set to the correct value programmed into the control. (default=246801)
c.From the RP Connection Menu, choose the "Network" method.
If everything is setup correctly, ElkRP should now connect to the control through the M1XEP.
1.5.Once connected, click the 'M1XEP Setup' button once again to continue the configuration. Click the 'TCP/IP Settings' tab. At the top, a device name of up to 16 characters may be entered. This name is used only during subsequent “Find” processes to quickly identify an M1XEP when there are more than one on the same network.
1.6.As previously discussed, the M1XEP is factory defaulted to DHCP, which means that it expects to be assigned a “dynamic” IP address. Be aware that a “dynamic” IP address can periodically change for many reasons, including a power down/up cycle. You may optionally assign the M1XEP a permanent “static” address, if permitted by the network. This will also involve setting values for subnet mask, default gateway, and primary and secondary DNS servers. These settings can be obtained from your network administrator or Internet service provider. Valid IP addresses DO NOT end in 0, 1, 254, or 255. The primary and secondary DNS servers must be entered correctly in order for many features of the M1XEP (email, ddns, timer server, etc.) to work correctly. The secondary DNS field is only supported by M1XEPs with firmware version 1.2.0 or later.
If the M1XEP is programmed with a static IP address, and later changed to obtain a dynamic IP address from a DHCP server, it will revert back to the last programmed static IP address if it fails to obtain a dynamic IP address from the DHCP server after 1 minute. If a static IP address has not been programmed and the M1XEP cannot obtain a dynamic IP address from a DHCP server it will default to an IP address of 192.168.0.251.
1.7.Some third party devices use a TCP or non-secure port for standard (unencrypted) communications on the local network. If this port is needed, select “Enable Non-Secure Port" and enter the appropriate port number. Values between 1024 and 49151 are valid. The recommended (default) port is 2101. This port should not be mapped outside the local network for security reasons. If the port is not needed, it should be disabled. To disable the non-secure port, remove the check from the box beside of "Enable Non-Secure Port".
1.8.ElkRP and some third party devices use a SSL or secure port for encrypted communications. Enter the appropriate value for the secure port. Values between 1024 and 49151 are valid. The recommended (default) port is 2601. If you intend to access the Control through the Internet, this port should be mapped (port forwarded) to outside the local network via a router.
ELK-M1XEP Installation Manual |
Page 7 |
2. Send Changes to the M1XEP and Save
Send the changes by clicking the send button located at the bottom of the setup screen. You may receive a message that informs you that the changes will cause the M1XEP to reconfigure itself, and it must be rebooted after the send is complete. Click 'Yes' on this screen. The send process may take up to a minute. Once the process is complete, you will receive a message that the M1XEP will reboot. Click 'OK'. You must reboot the M1XEP before the changes will take effect. The reboot will take up to 2 minutes. A connection with the M1XEP cannot be re-established until the reboot process is complete. Click 'Save Account' under the "File" menu to save the changes to the database.
3. Setup of User Names & Passwords (optional)
Usernames and Passwords are entered on this tabbed screen for use as a means of authentication while logging on to the M1XEPs secure connection port. THESE ARE OPTIONAL! If every Username and Password field left blank, the M1XEP will not prompt for one during the connection process. Up to eight (8) different Usernames and Passwords may be entered, each being up to 16 alphanumeric characters long. Fields for usernames and passwords 2-8 are only supported by M1XEPs with firmware version 1.2.0 or later.
Upon connection and presentation of the M1 Virtual Keypad via a web browser, a separate entry code will be required. This code is not optional. The correct entry for this field can be any valid User Code within the M1/EZ8 control.
ELK strongly recommends the entry of at least one Username and Password on this screen as it helps protect against unauthorized access to the Web Browser and M1/EZ8. Third party software developers wishing to connect to the M1XEP secure port should always use the Username and Password Feature.
Send changes to the M1XEP and save the changes to the database. Refer to section 2 on page 8.
Page 8 |
ELK-M1XEP Installation Manual |
