Elitegroup P53IA User Manual v.4

■ chapter 4 upgrading your computer

CHAPTER▼ FOUR

UPGRADING YOUR COMPUTER

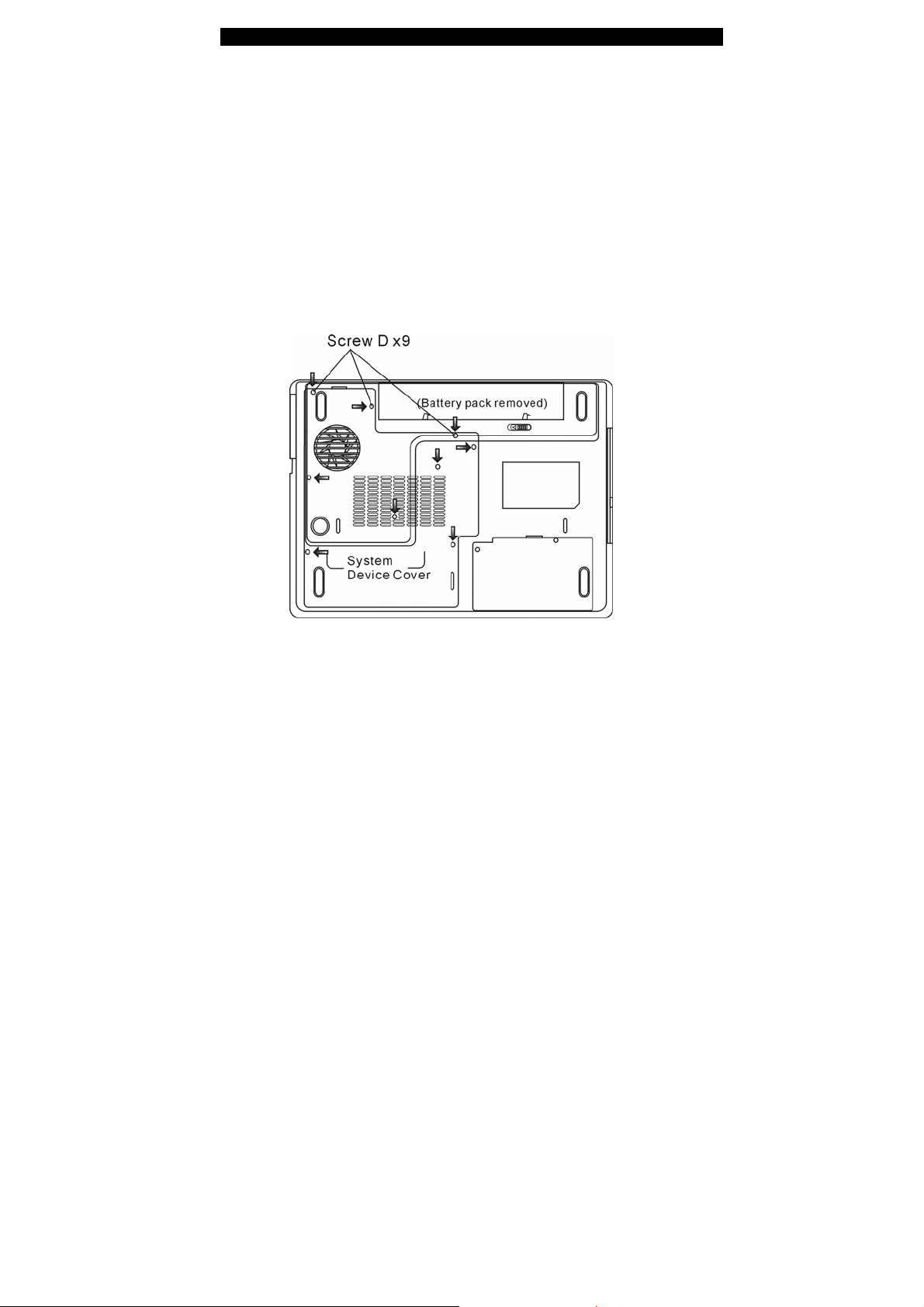

In this chapter, you will learn how to
upgrade the DRAM, hard disk drive, and

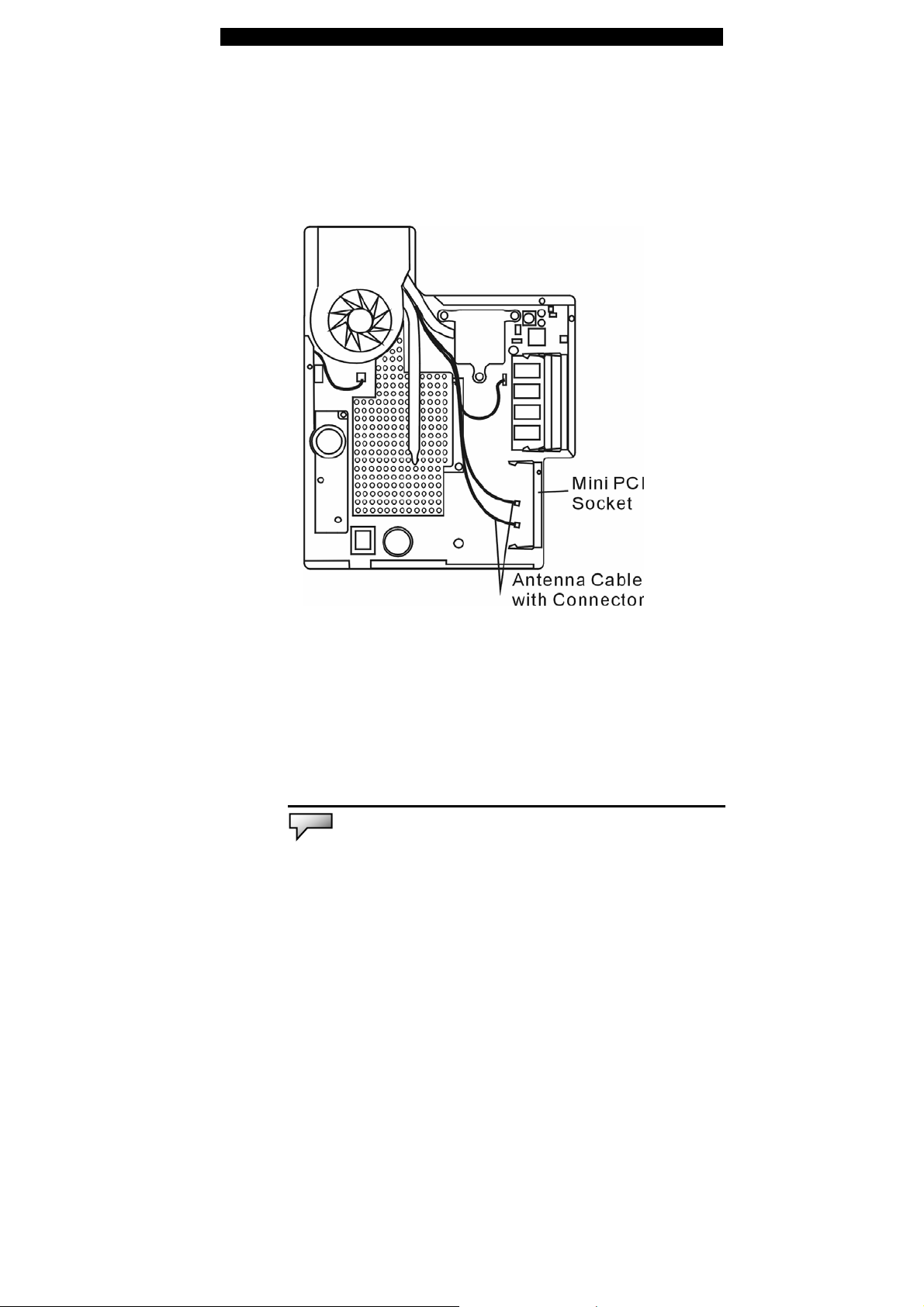

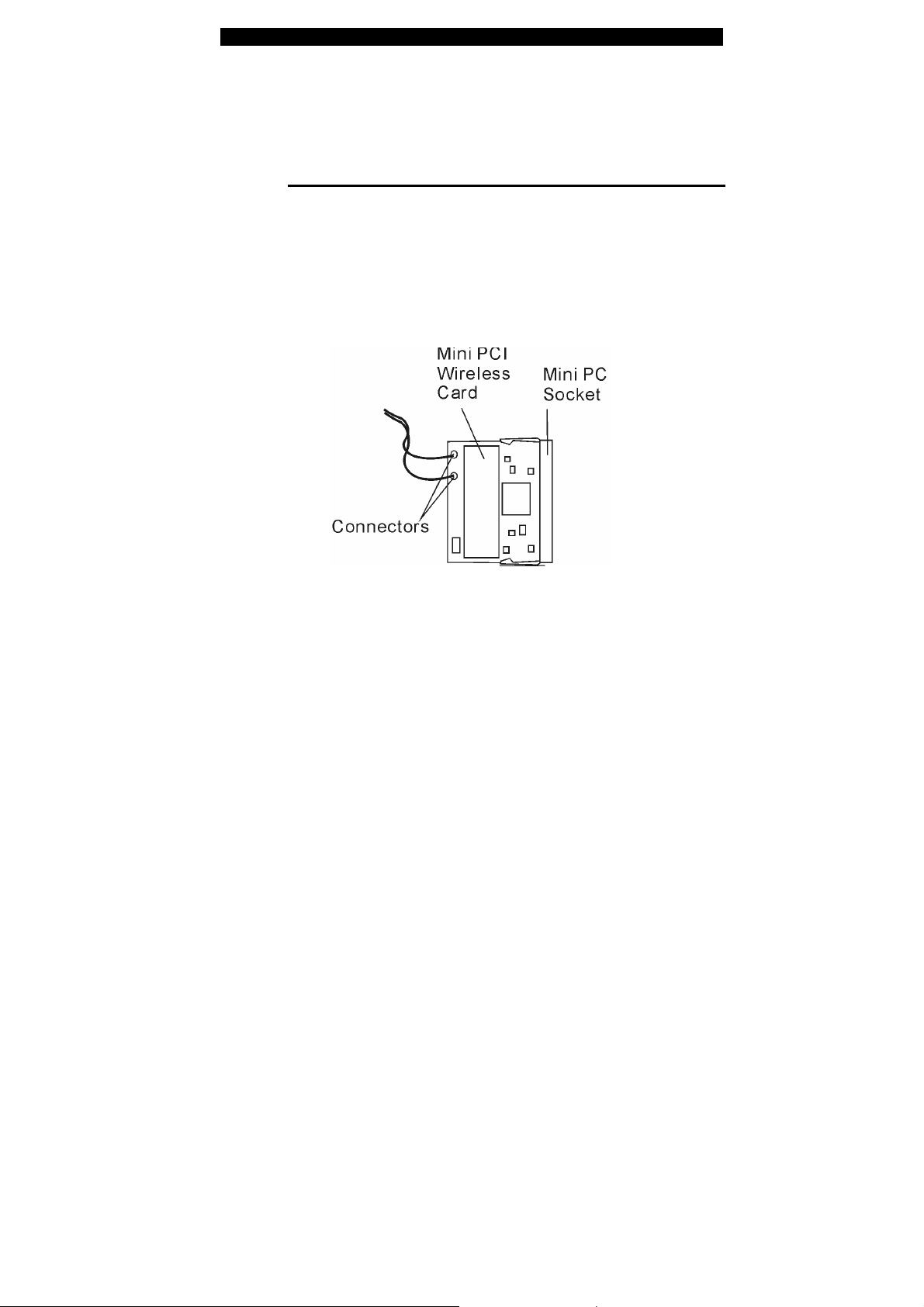

to install the optional wireless LAN mini
PCI.

Warning: We strongly recommend you sending your notebook
back to your dealer or agent for the specification upgrading.
When you upgrade your system, please turn off the power,
disconnect the LAN and Modem cable first for your safety.
After system upgrade, please screw all the screws before turn
on.

4-1

■ chapter 4 upgrading your computer

Upgrading the Hard Disk Drive

Replacing the original drive with one of larger capacity can in crease
the hard drive capacity of your computer. The computer uses a 9.5
mm (height), 2.5-inch Serial ATA type hard disk.

Be sure to make a backup copy of all your data before attempting
this operation.

Warning:

instructions carefully or have a qualified technician install it for you. Damages due to
mishandling of this procedure are NOT covered by the manufacture’s warranty.

Hard drive upgrade is a delicate process. Please observe the following

Warning:

 Do not drop or apply any shock.
 Do not press on the cover.
 Do not touch the connector with your fingertips.
 Mishandling of the hard drive can result in permanent loss of data. Make a

backup copy of the drive s content before you remove it.

Apply care when handling the hard disk.

Note:

Certain models that come with the IBM-brand hard drive emit a clattering

sound when it is being rattled. This is a normal condition.

4-2

■ chapter 4 upgrading your computer

Upgrading the Hard Disk Drive

To replace the hard disk drive, do the following:

1. Turn OFF the computer. Unhook the AC cord and all
cables/devices attached to the notebook. Remove the battery.

2. Place your hand on a large metal object momentarily to
discharge any static electricity.

3. Locate and remove 2 Screw A’s.

4. Remove HDD Cover.

5. Locate and remove 1 Screw B’s.

4-3

■ chapter 4 upgrading your computer

6. Push the HDD module to the right and separate it from
the connector. Lift the module away from the bay.

7. Locate and remove 4 Screw C’s from the HDD module.
Remove the metal case.

8. Re-attach the metal cover to the new hard drive and
tighten 4 Screw C’s. Note the green PC board of the hard disk
drive is facing against the metal case.

9. Re-attach the HDD module to the HDD connector. And
re-attach 1 Screw B’s.

10. Put the HDD cover back and re-attach 2 Screw A’s.

Congratulations! You have now completed the hard d rive
