i
Preface
Copyright
This publication, including all photographs, illustrations and software, is protected
under international copyright laws, with all rights reserved. Neither this manual, nor
any of the material contained herein, may be reproduced without written consent of
the author.
Version 1.0
Disclaimer
The information in this document is subject to change without notice. The manufacturer makes no representations or warranties with respect to the contents hereof and
specifically disclaims any implied warranties of merchantability or fitness for any
particular purpose. The manufacturer reserves the right to revise this publication and
to make changes from time to time in the content hereof without obligation of the
manufacturer to notify any person of such revision or changes.
Trademark Recognition
Windows® VISTA/7 are registered trademarks of Microsoft Corp.
Other product names used in this manual are the properties of their respective
owners and are acknowledged.
Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and the receiver
• Connect the equipment onto an outlet on a circuit different from that to
which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help
Shielded interconnect cables and a shielded AC power cable must be employed with
this equipment to ensure compliance with the pertinent RF emission limits governing this device. Changes or modifications not expressly approved by the system’s
manufacturer could void the user’s authority to operate the equipment.
Preface
ii
Declaration of Conformity
This device complies with part 15 of the FCC rules. Operation is subject to the
following conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received, including interference that may cause undesired operation
Canadian Department of Communications
This class B digital apparatus meets all requirements of the Canadian Interferencecausing Equipment Regulations.
Cet appareil numérique de la classe B respecte toutes les exigences du Réglement sur
le matériel brouilieur du Canada.
Preface
iii
Safety Instructions
Your system is designed and tested to meet the latest standards of safety for information technology equipment. However, to ensure your safety, it is important that you
read the following safety instructions.
Setting up your system
• Read and follow all instructions in the documentation before you operate your system.
• Do not use this product near water or a heated source such as a
radiator.
• Set up the system on a stable surface.
• Openings on the chassis are for ventilation. Do not block or cover these
openings. Make sure you leave plenty of space around the system for
ventilation. Never insert objects of any kind into the ventilation openings.
• Use this product in environments with ambient temperatures between
0°C and 40°C.
• If you use an extension cord, make sure that the total ampere rating of
the devices plugged into the extension cord does not exceed its ampere rating.
Care during use
• Do not walk on the power cord or allow anything to rest on it.
• Do not spill water or any other liquids on your system.
• When the system is turned OFF, a small amount of electrical current still
flows. Always unplug all power, modem, and network cables from the
power outlets before cleaning the system.
• If you encounter the following technical problems with the product,
unplug the power cord and contact a qualified service technician or
your retailer.
• The power cord or plug is damaged.
• Liquid has been spilled into the system.
• The system does not function properly even if you follow the
operating instructions.
• The system was dropped or the cabinet is damaged.
• The system performance changes
The warranty does not apply to products that have been disassembled by
users
Preface
iv
Safety cautions and warnings
Optical Drive Satety Information
Optical drive sold with this system contains a CLASS 1 LASER PRODUCT.
CAUTION:
Invisible laser radiation when open. Do not stare into beam or view
directly with optical instructions.
WARNING:
Makeing adjustments or performing procedures other than those speci-
fied in the user’s manual may result in hazardous laser exposuer. Do
not attempt to disassemble the optical drive. For your safety, have the
optical drive serviced only by an authorized service provider.
Product disposal notice
INPORTANT:
This symbol if the crossed out wheeled bin indicates that the product
(electrical and electronic equipment) should not be placed in municipal waste. Check local regulations for disposal of electronic products.
Nordic Lithium Cautions (for lithium-ion batteries)
CAUTION:
Danger of explosoin if battery is incorrectly replace only with the same
or equivalent type recommended by the manufacturer. Dispose of used
batteries according to the manufacturer’s instructions.
Product disposal notice
1. Do not place this product underneath heavy loads or in an unstable
position.
2. Do not use or expose this product around magnetic fields as magnetic interference may affect the performance of the product.
3. Do not expose this product to high levels of direct sunlight, highhumidity or wet conditions.
4. Do not block the air vents to this product or impede the airflow in
any way.
Preface
TT
ABLE OF CONTENTSABLE OF CONTENTS
T
ABLE OF CONTENTS
TT
ABLE OF CONTENTSABLE OF CONTENTS
Preface i
Chapter 1 1
Introducing the PC 1
Introduction.......................................................................................1
Specification......................................................................................2
Front and Rear I/O............................................................................3
Packing Contents..............................................................................5
v
Chapter 2
Installing the PC 7
System Quick Installing...................................................................7
Chapter 3 9
Using BIOS 9
About the Setup Utility.................................................................. 9
The Standard Configuration................................................9
Entering the Setup Utility.....................................................9
Using BIOS......................................................................................10
Standard CMOS Setup......................................................11
Advanced Setup.................................................................12
Advanced Chipset Setup....................................................14
Integrated Peripherals.......................................................15
Power Management Setup.................................................16
PC Health Status................................................................17
Frequency/Voltage Control................................................18
Load Default Settings.........................................................18
Supervidor Password........................................................18
User Password..................................................................19
Save & Exit Setup...............................................................19
Exit Without Saving............................................................19
7 7
7
7 7
vi
Chapter 4
Using the Software 21
About the Software DVD-ROM/CD-ROM.................................21
Auto-installing under Windows 7...............................................21
Running Setup....................................................................22
Manual Installation........................................................................24
Utility Software Reference............................................................24
Chapter 5
T r ouble Shooting 25
Start up problems during assembly............................................25
Start up problems after prolong use..........................................26
Maintenance and care tips.........................................................26
Basic Troubleshooting Flowchart...................................................27
21 21
21
21 21
2525
25
2525
Chapter 1
Introducing the PC
Introducting
Thank you for choosing 3.8L MS110 of great performance and with stylish and
flexible design.
Support Intel/Pineview, DC 12.5W Processor and a dimension of 270mm (H)*
205mm (D)* 70mm (W), 3.8L SFF provides the features of low power consumption
(working with a 120Watt power adaptor), low noise (<26db) and space saving. The
chipset is Intel® Tigerpoint, supporting up to 4 GB of system memory with DDR3
memory SO-DIMM, 3.5” SATA II HDD, Slim DVD Super-multi Tray type/Trayload Slim type ODD, and Build in Intel® HD Graphics.
1
Introducing the PC
2
Specification
Chipset
CPU Support
Memory
Graphics
Storage
ODD
Front Panel
Rear Panel
Power
OS Support
Dimensions (mm)
• Intel® NM10 Chipset
• Intel Pineview Dual Core 0525 (with)
• Support SO-DIMM DDR3*2, up to 4GB 800MHz Signle
Channel SDRAM
®
• Intel
• Supported 1 x 3.5” SATA II HDD
• Support Slim DVD Super-multi Tray type x1
• 4 x USB2.0
• 1 x Headphone output
• 1 x Microphone input
• 1 x Multi-card reader slot
• 4 x USB
• 1 x D-Sub
• 1 x 10/100 LAN RJ45(Giga Lan Optional)
• 1 x TV Tuner(Optional)
• 1 x Antenna(Optional)
• 6 Channel Audio, 3 Jacks
• 65W power adaptor
• Hardware Compatible with Windows 7
• (W)70mm x (D)205mm x (H)270mm
HD Graphics from CPU
WARNING:
Please realize that there is a certain risk involved with overclocking, Includ-
ing adjusting the setting in the BIOS, or using the third-party overclocking
tools. Overclocking may affect your system stability, or even case damage
to the components and devices of your system. It should be done at your
own risk and expense. We are not responsible for possible damage casesd
by overclocking.
Introducing the PC
Front and Rear I/O
3
1. Power Button
2. 4 IN 1 Card
Reader
3. USB Connectors
4. Mic In Jack
5. Headphone Jack
Press the power button to turn the system on and off.
Supports SD Card/ MMC Card/ MS Card. You can easily read phone or other files on the momery card.
Your digital cameras, DVs, MP3 players or other digital devices are highly compatible.
The USB connectors is for attaching USB devices,
such as mouse, keyboard, printer, scanner and other
USB-compatible device.
Connecting Microphone.
Connecting Headphone.
Introducing the PC
4
6. D-SUB Connector
7. Six channel HD
Audio
8. USB Connectors
9. DC Jack
10. Antenna It is used for an optional antenna
11. LAN
12. TV Tuner
(optional)
Connecting VGA Monitor.
Microphone Jack/ Headphone Jack/ Line In Jack.
Connecting USB Devices (USB2.0 Ports)
It is used for power adapter
Connecting the Network.
TV in jack.
Introducing the PC
Packing Contents
5
Driver DVD
Stand
NOTE:
Please contact us immediately if any of the items is damaged or missing.
Manual
Power
Introducing the PC
6
Memo
Introducing the PC
Chapter 2
Installing the PC

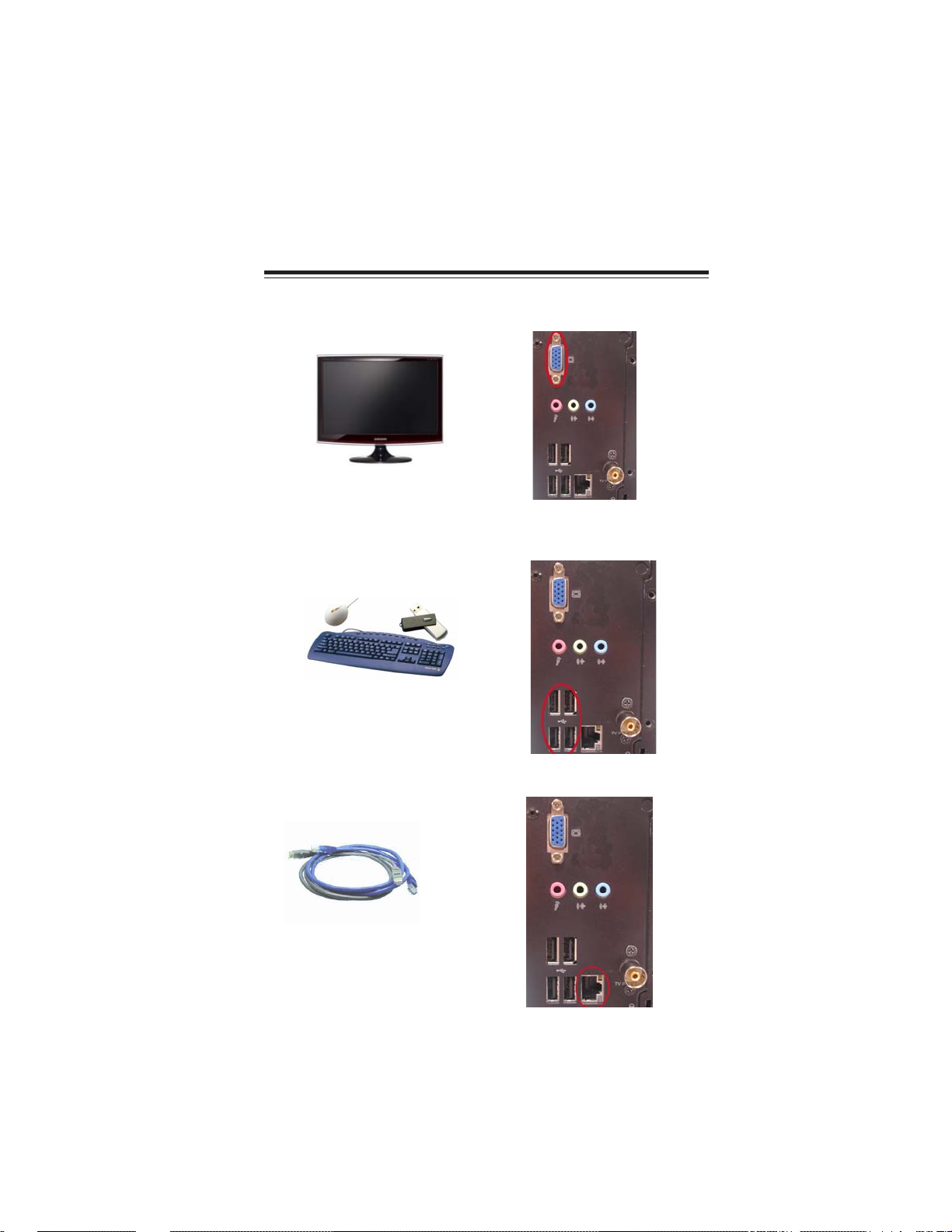

System Quick Installation
1. Connecting VGA Monitor. (D-SUB Connector)
2. The USB connectors is for attaching USB devices, such as mouse, keyboard,
printer, scanner and other USB-compatible device.
7
3. Connecting the Network. (LAN Connector)
Installing the PC
8
4. Connecting the Microphone. (Microphone Jack)
5. Connecting Speakers or Headphones. (Headphone Jack)
6. Connecting External Audio Device. (Line In Jack)
7. Connecting Power. (DC jack)
Installing the PC
Chapter 3
Using BIOS
About the Setup Utility
The computer uses the latest “American Megatrends Inc. ” BIOS with support for
Windows Plug and Play. The CMOS chip on the motherboard contains the ROM
setup instructions for configuring the motherboard BIOS.
The BIOS (Basic Input and Output System) Setup Utility displays the system’s
configuration status and provides you with options to set system parameters. The
parameters are stored in battery-backed-up CMOS RAM that saves this information
when the power is turned off. When the system is turned back on, the system is
configured with the values you stored in CMOS.
The BIOS Setup Utility enables you to configure:
• Hard drives, diskette drives and peripherals
• Video display type and display options
• Password protection from unauthorized use
• Power Management features
The settings made in the Setup Utility affect how the computer performs. Before
using the Setup Utility, ensure that you understand the Setup Utility options.
9
This chapter provides explanations for Setup Utility options.
The Standard Configuration
A standard configuration has already been set in the Setup Utility. However, we
recommend that you read this chapter in case you need to make any changes in the
future.
This Setup Utility should be used:
• when changing the system configuration
• when a configuration error is detected and you are prompted to make
changes to the Setup Utility
• when trying to resolve IRQ conflicts
• when making changes to the Power Management configuration
• when changing the password or making other changes to the Security
Setup
Entering the Setup Utility
When you power on the system, BIOS enters the Power-On Self Test (POST)
routines. POST is a series of built-in diagnostics performed by the BIOS. After the
POST routines are completed, the following message appears:
Press DEL to enter SETUP
Using BIOS
10
Press the delete key to access the BIOS Setup Utility.
CMOS Setup Utility - Copyright (C) 1985-2010, American Megatrends, Inc.
Standard CMOS Setup
f
Advanced Setup
f
Advanced Chipset Setup
f
Integrated Peripherals
f
Power Management Setup
f
PC Health Status
f
: Move F10: Save and Exit
mnlk
F1:General Help
+/-/: Value
F9: Optimized Defaults
Configure Time and Date. Display System Information...
v02.69 (C)Copyright 1985-2010, American Megatrends, Inc.
Frequency/Voltage Control
f
Load Default Setting
Supervisor Password
f
User Password
Save & Exit Setup
Exit Without Saving
Enter : Select
ESC:Exit Wothout Saving
Using BIOS
When you start the Setup Utility, the main menu appears. The main menu of the
Setup Utility displays a list of the options that are available. A highlight indicates
which option is currently selected. Use the cursor arrow keys to move the highlight
to other options. When an option is highlighted, execute the option by pressing
<Enter>.
Some options lead to pop-up dialog boxes that prompt you to verify that you wish to
execute that option. Other options lead to dialog boxes that prompt you for information.
Some options (marked with a triangle
the values for the option. Use the cursor arrow keys to scroll through the items in the
submenu.
In this manual, default values are enclosed in parenthesis. Submenu items are denoted
by a triangle
ff
f.
ff
The default BIOS setting for this motherboard apply for most conditions
with optimum performance. We do not suggest users change the default
values in the BIOS setup and take no responsibility to any damage caused
by changing the BIOS settings.
ff
f) lead to submenus that enable you to change
ff
BIOS Navigation Keys
The BIOS navigation keys are listed below:
KEY FUNCTION
ESC Exits the current menu
mnlk
+/- Modifies the selected field’s values
Enter Select
F9 Loads an optimized setting for better performance
F10 Saves the current configuration and exits setup
F1 Displays a screen that describes all key functions
Scrolls through the items on a menu
Using BIOS
For the purpose of better product maintenance, we reserve the right to
change the BIOS items presented in the manual. The BIOS setup screens
shown in this chapter are for reference only. Please visit our website for
updated manual.
Standard CMOS Setup
This option displays basic information about your system.
CMOS Setup Utility - Copyright (C) 1985-2010, American Megatrends, Inc.
Date(www mm:dd:yy) [ Fri 07/30/2009]
Time(hh:mm:ss) [ 00 :21 :40]
f
SATA1 [ATAPI CDROM]
f
SATA2 [Hard Disk]
Standard CMOS Setup
Use [ENTER], [TAB]
or [SHIFT-T AB] to
select a field.
Use [+] or [-] to
configure system Date.
11
Help Item
: Move F10: Save and Exit
mnlk
F1:General Help
+/-/: Value
F9: Optimized Defaults
Enter : Select
ESC:Exit Wothout Saving
Date & Time
The Date and Time items show the current date and time on the computer. If you are
running a Windows OS, these items are automatically updated whenever you make
changes to the Windows Date and Time Properties utility.
fSATA1~2
This motherboard supports two SATA channels and each channel allows one SATA
device to be installed.
CMOS Setup Utility - Copyright (C) 1985-2010, American Megatrends, Inc.
SAT A Port1
Device : ATAPI CDROM
Vendor : Optiarc DVD RW AD-7643S
LBA Mode : Supported
PIO Mode : 4
Async DMA : MultiWord DMA-2
Ultra DMA :Ultra DMA-5
Type Auto
PIO Mode Auto
DMA Mode Auto
: Move F10: Save and Exit
mnlk
F1:General Help
+/-/: Value
SAT A Port1
Enter : Select
F9: Optimized Defaults
Help Item
Select the type
of the device connected
to the system.
ESC:Exit Wothout Saving
Using BIOS
12
Type (Auto)
Use this item to configure the type of the IDE device that you specify. If the feature
is enabled, it will enhance hard disk performance by reading or writing more data
during each transfer.
PIO Mode (Auto)
Use this item to set the PIO mode to enhance hard disk performance by optimizing
the hard disk timing.
DMA Mode (Auto)
DMA capability allows users to improve the transfer-speed and data-integrity for
compatible IDE devices.
Press <Esc> to return to the Standard CMOS Setup page.
Advanced Setup
This page sets up more advanced information about your system. Handle this page
with caution. Any changes can affect the operation of your computer.
CMOS Setup Utility - Copyright (C) 1985-2010, American Megatrends, Inc.
Advanced Setup
TM Staus TM1
Limit CPUID MaxVal Disabled
Intel XD Bit Enabled
Intel (R) HT T echnology Enabled
Quick Power on Self T est Enabled
Boot Up Numlock Status On
APIC Mode Enabled
1st Boot Device Hard Drive
2nd Boot Device CD/DVD
3rd Boot Device Removable Device
Hard Disk Driver Priority Press Enter
f
CD&DVD Drives Press Enter
f
Boot Other Device Y es
: Move F10: Save and Exit
mnlk
F1:General Help
+/-/: Value
F9: Optimized Defaults
Enter : Select
ESC:Exit Wothout Saving
Help Item
Disabled for Windows
TM Status (TM1)
This item shows TM function status if CPU can support TM function.
Limit COUID MaxVal (Disabled)
Use this item to enable or disable the Max CPU ID value limit. When supports Intel
AtomTM 330 Duo-Core CPUs, enables this to prevent the system from ”rebooting”
when trying to install Windows NT4.0.
Intel XD Bit (Disabled)
This item allows users to enable or disable the Intel XD bit.
Intel (R) HT Technology (Enabled)
This item enables or disables Intel HT technology support.
Quick Power on Self Test (Enabled)
Enable this item to shorten the power on testing (POST) and have your system start
up faster. You might like to enable this item after you are confident that your system
hardware is operating smoothly.
Using BIOS
Boot Up Numlock Status (On)
This item defines if the keyboard Num Lock key is active when your system is
started.
APIC Mode (Enabled)
This item allows you to enable or disable the APIC (Advanced Programmable Interrupt Controller) mode. APIC provides symmetric multi-processing (SMP) for systems, allowing support for up to 60 processors.
1st/2nd/3rd Boot Device (Hard Drive/CD/DVD/Removable Dev./LAN)
Use this item to determine the device order the computer used to look for an
operating system to load at start-up time. The devices showed here will be different
depending on the exact devices installed on your motherboard.
fHard Disk Drive Priority (Press Enter)
Scroll to this item and press <Enter> to view the following screen:
13
CMOS Setup Utility - Copyright (C) 1985-2010, American Megatrends, Inc.
Hard Disk Driver
1st Drive SAT A: MAXTOR STM316
mnlk
F1:General Help
Hard Disk Driver Priority
Help Item
Specifies the boot
sequence from the
available devices.
: Move F10: Save and Exit
+/-/: Value
F9: Optimized Defaults
Enter : Select
ESC:Exit Wothout Saving
Press <Esc> to return to the Advanced BIOS Features page.
fOptical Disk Driver Priority (Press Enter)
Scroll to this item and press <Enter> to view the following screen:
CMOS Setup Utility - Copyright (C) 1985-2010, American Megatrends, Inc.
Optical Disk Driver
1st Drive CD&DVD: SIimtype DV
mnlk
F1:General Help
Optical Disk Driver Priority
Help Item
Specifies the boot
sequence from the
available devices.
: Move F10: Save and Exit
+/-/: Value
F9: Optimized Defaults
Enter : Select
ESC:Exit Wothout Saving
Press <Esc> to return to the Advanced BIOS Features page.
Using BIOS
14
Boot Other Device (Yes)
When enabled, the system searches all other possible locations for an operating
system if it fails to find one in the devices specified under the First, Second and Third
boot devices.
Press <Esc> to return to the main menu setting page.
Advanced Chipset Setup
This page sets up more advanced information about your system. Handle this page
with caution. Any changes can affect the operation of your computer.
CMOS Setup Utility - Copyright (C) 1985-2010, American Megatrends, Inc.
DVMT Mode Select DVMT Mode
DVMT/FIXED Memory 256MB
mnlk
F1:General Help
Advanced Chipset Setup
Help Item
Options
Fixed Mode
DVMT Mode
: Move F10: Save and Exit
+/-/: Value
F9: Optimized Defaults
Enter : Select
ESC:Exit Wothout Saving
DVMT Mode Select (DVMT Mode)
DVMT is Dynamic Video Memory Technology. This item helps you select video
mode.
DVMT/Fixed Memory (256MB)
When set to Fixed Mode, the graphics driver will reserve a fixed portion of the
system memory as graphics memory. When set to DVMT Mode, the graphics chip
will dynamically allocate system memory as graphics memory, according to system
and graphics requirements.
Press <Esc> to return to the main menu setting page.
Using BIOS
Integrated Peripherals
This page sets up some parameters for peripheral devices connected to the system.
CMOS Setup Utility - Copyright (C) 1985-2010, American Megatrends, Inc.
SAT A Configuration IDE
Onboard Audio Function Enabled
Onboard LAN Function Enabled
Onboard LAN Boot ROM Disabled
USB Functions Enabled
Legacy USB Support Enabled
Integrated Peripherals
IDE
AHCI
Help Item
Options
15
: Move F10: Save and Exit
mnlk
F1:General Help
+/-/: Value
F9: Optimized Defaults
Enter : Select
ESC:Exit Wothout Saving
SATA Configuration (IDE)
Use this item to show the Serial ATA Configuration.
Onboard AUDIO Function (Enabled)
Use this item to enable or disable the onboard audio device.
Onboard LAN Function (Enabled)
Use this item to enable or disable the onboard LAN function.
Onboard LAN Boot ROM (Disabled)
Use this item to enable or disable the booting from the onboard LAN or a network
add-in card with a remote boot ROM installed.
USB Functions (Enabled)
Use this item to enable or disable the USB function.
Legacy USB Support (Enabled)
Use this item to enable or disable support for legacy USB devices.
Press <Esc> to return to the main menu setting page.
Using BIOS
16
Power Management Setup
This page sets up some parameters for system power management operation.
CMOS Setup Utility - Copyright (C) 1985-2010, American Megatrends, Inc.
Power Management Setup
ACPI Suspend Type S3
PWRON After PWR-Fail Power Off
EUP Support Enabled
Resume By PCI-E/Lan PME Disabled
Resume By USB (S3) Disabled
Resume On RTC Alarm Disabled
: Move F10: Save and Exit
mnlk
F1:General Help
+/-/: Value
F9: Optimized Defaults
Enter : Select
ESC:Exit Wothout Saving
Help Item
Select the ACPI
state used for System Suspend.
ACPI Suspend Type (S3)
Use this item to define how your system suspends. In the default, S3, the suspend type
is suspend to RAM, i.e., the system shuts down with the exception of a refresh
currentto the system memory.
PWRON After PWR-Fail (Power Off)
This item enables your computer to automatically restart or return to its operating
status.
EUP Support (Enabled)
This item enables your computer to support energy star.
Resume By PCI/PCI-E/Lan PME (Disabled)
These items specify whether the system will be awakened from power saving modes
when activity or input signal of the specified hardware peripheral or component is
detected.
Resume by USB (S3) (Disabled)
This item allows you to enable/disable the USB device wakeup function from S3/S4
mode.
Resume on RTC Alarm (Disabled)
The system can be turned off with a software command. If you enable this item, the
system can automatically resume at a fixed time based on the system RTC (realtime
clock). Use the items below this one to set the date and time of the wake-up alarm.
You must use an ATX power supply in order to use this feature.
Press <Esc> to return to the main menu setting page.
Using BIOS
PC Health Status
On motherboards support hardware monitoring, this item lets you monitor the
parameters for critical voltages, temperatures and fan speeds.
CMOS Setup Utility - Copyright (C) 1985-2010, American Megatrends, Inc.
PC Health Status
17
Smart Fan Function Enabled
Shutdown T emperture Disabled
Warning T emperture Disabled
CPU T emperature (PECI Mode) : 38°C/100°F
System Temperature : 42°C/107°F
CPU Fan Speed : 1022 RPM
CPU Core : 1.164 V
VDIMM : 1.512 V
: Move F10: Save and Exit
mnlk
F1:General Help
+/-/: Value
F9: Optimized Defaults
Enter : Select
Help Item
Options
Disabled
Enabled
ESC:Exit Wothout Saving
Shutdown Temperature (Disabled)
Enable you to set the maximum temperature the system can reach before powering
down
Warning Temperature (Disabled)
Enable you to set the warning temperature the system can reach.
System Component Characteristics
These items display the monitoring of the overall inboard hardware health events,
such as CPU & system temperature, CPU fan speed, CPU Core, VDIMM...etc.
• CPU T emperature
• System Temperature
• CPU Fan Speed
• CPU Core
• VDIMM
Using BIOS
18
Frequency/Voltage Control
This page enables you to set the clock speed and system bus for your system. The
clock speed and system bus are determined by the kind of processor you have installed in your system.
CMOS Setup Utility - Copyright (C) 1985-2010, American Megatrends, Inc.
Manufacturer : Intel
Ratio Actual Value : 9
Spread Spectrum Enabled
mnlk
F1:General Help
Frequency/Voltage Control
Help Item
Options
Disabled
Enabled
: Move F10: Save and Exit
+/-/: Value
F9: Optimized Defaults
Enter : Select
ESC:Exit Wothout Saving
Manufacutrer: Intel
This item shows the information of manufacturer.
RatioActual Value: 9
This item shows the information of ratio actual value.
CPU Spread Spectrum (Disabled)
If you enable spread spectrum, it can significantly reduce the EMI (Electro-Magnetic Interference) generated by the system.
Press <Esc> to return to the main menu setting page.
Load Default Settings
This option opens a dialog box that lets you install stability-oriented defaults for
all appropriate items in the Setup Utility. Select <OK> and then press <Enter> to
install the defaults. Select <Cancel> and then press <Enter> to not install the
defaults.
Supervisor Password
CMOS Setup Utility - Copyright (C) 1985-2010, American Megatrends, Inc.
Supervisor Password : Not Installed
Change Supervisor Password Press Enter
Supervisor Password
Help Item
Install or Change the
password.
: Move F10: Save and Exit
mnlk
F1:General Help
+/-/: Value
F9: Optimized Defaults
Enter : Select
ESC:Exit Wothout Saving
Using BIOS
Supervisor Password (Not Installed)
This item indicates whether a supervisor password has been set. If the password has
been installed, Installed displays. If not, Not Installed displays.
Change Supervisor Password (Press Enter)
You can select this option and press <Enter> to access the sub menu. You can use the
sub menu to change the supervisor password.
Press <Esc> to return to the main menu setting page.
User Password
This page helps you install or change a password.
CMOS Setup Utility - Copyright (C) 1985-2009, American Megatrends, Inc.
User Password : Not Installed
mnlk
User Password (Not Installed)
This item indicates whether a user password has been set. If the password has been
installed, Installed displays. If not, Not Installed displays.
User Password
: Move
Enter : Select
F1: General Help
+/-/: Value
F10: Save ESC: Exit
F9: Optimized Defaults
Help Item
Install or Change the
password.
19
Save & Exit Setup
Highlight this item and press <Enter> to save the changes that you have made in the
Setup Utility and exit the Setup Utility. When the Save and Exit dialog box appears,
select [OK] to save and exit, or select [Cancel] to return to the main menu.
Exit Without Saving
Highlight this item and press <Enter> to discard any changes that you have made in
the Setup Utility and exit the Setup Utility. When the Exit Without Saving dialog
box appears, select [OK] to discard changes and exit, or select [Cancel] to return to
the main menu.
If you have made settings that you do not want to save, use the “Exit
Without Saving” item and select [OK] to discard any changes you have
made.
Using BIOS
20
Memo
Using BIOS
Chapter 4
Using the Software
About the Software DVD-ROM/CD-ROM
The support software DVD-ROM/CD-ROM that is included in the motherboard
package contains all the drivers and utility programs needed to properly run the
bundled products. Below you can find a brief description of each software program,
and the location for your motherboard version. More information on some programs is available in a README file, located in the same directory as the software.
Before installing any software, always inspect the folder for files named README.TXT
or something similar. These files may contain important information that is not
included in this manual.
Never try to install all software from folder that is not specified for use with
1.
your motherboard.
The notice of Intel HD audio installation (optional): The Intel High Defi-
2.
nition audio functionality unexpectedly quits working in Windows Server
2003 Service Pack 1 or Windows XP Professional x64 Edition. Users need
to download and install the update packages from the Microsoft Download
Center “before” installing HD audio driver bundled in the Driver disk.
Please log on to
us;901105#appliesto for more information.
http://support.microsoft.com/default.aspx?scid=kb;en-
Auto-installing under Windows 7
The Auto-install DVD-ROM/CD-ROM makes it easy for you to install the drivers
and software for your motherboard.
If the Auto-install DVD-ROM/CD-ROM does not work on your system,
you can still install drivers through the file manager for your OS (for
example, Windows Explorer). Refer to the Utility Folder Installation Notes
later in this chapter.
The support software DVD-ROM/CD-ROM disk loads automatically under Windows
7. When you insert the DVD-ROM/CD-ROM disk in the DVD-ROM/CD-ROM drive,
the autorun feature will automatically bring up the install screen. The screen has
three buttons on it, Setup, Browse CD and Exit.
21
If the opening screen does not appear; double-click the file “setup.exe”
in the root directory.
Using the Software
22
Drivers Tab
Setup
Browse CD
Exit The Exit button closes the Auto Setup window.
Utilities Tab
Lists the software utilities that are available on the disk.
Information Tab
Displays the path for all software and drivers available on the disk.
Click the Setup button to run the software installation program.
Select from the menu which software you want to install.
The Browse CD button is the standard Windows command that allows you to open Windows Explorer and show the contents of the
support disk.
Before installing the software from Windows Explorer, look for a file
named README.TXT or something similar. This file may contain
important information to help you install the software correctly.
Some software is installed in separate folders for different operating
systems, such as Windows 7. Always go to the correct folder for the
kind of OS you are using.
In install the software, execute a file named SETUP.EXE by doubleclicking the file and then following the instructions on the screen.
Running Setup
Follow these instructions to install device drivers and software for the motherboard:
1. Click Setup. The installation program begins:
The following screens are examples only. The screens and driver lists will be
different according to the motherboard you are installing.
The motherboard identification is located in the upper left-hand corner.
Using the Software
2. Click Next. The following screen appears:
3. Check the box next to the items you want to install. The default options are recom-
mended.
4. Click Next run the Installation Wizard. An item installation screen appears:
23
5. Follow the instructions on the screen to install the items.
Drivers and software are automatically installed in sequence. Follow the
onscreen instructions, confirm commands and allow the computer to
restart a few times to complete the installation.
Using the Software
24
Windows 7 will appear below UAC (User Account Control) message after the
system restart. You must select “Allow” to install the next driver. Continue
this process to complete the drivers installation.
Manual Installation
Insert the disk in the DVD-ROM/CD-ROM drive and locate the PATH.DOC file in
the root directory. This file contains the information needed to locate the drivers for
your motherboard.
Look for the chipset and motherboard model; then browse to the directory and path
to begin installing the drivers. Most drivers have a setup program (SETUP.EXE) that
automatically detects your operating system before installation. Other drivers have
the setup program located in the operating system subfolder.
If the driver you want to install does not have a setup program, browse to the
operating system subfolder and locate the readme text file (README.TXT or
README.DOC) for information on installing the driver or software for your operating system.
Utility Software Reference
All the utility software available from this page is Windows compliant. They are
provided only for the convenience of the customer. The following software is furnished under license and may only be used or copied in accordance with the terms of
the license.
These software(s) are subject to change at anytime without prior notice.
Please refer to the support disk for available software.
Using the Software
Chapter 5
Trouble Shooting
Start up problems during assembly
After assembling the PC for the first time you may experience some start up
problems. Before calling for technical support or returning for warranty, this chapter
may help to address some of the common questions using some basic troubleshooting
tips.
a) System does not power up and the fans are not running.
1.Disassemble the PC to remove the VGA adaptor card, DDR memory, LAN, USB
and other peripherals including keyboard and mouse. Leave only the motherboard,
CPU with CPU cooler and power supply connected. Turn on again to see if the
CPU and power supply fans are running.
2. Make sure to remove any unused screws or other metal objects such as screwdrivers
from the inside PC case. This is to prevent damage from short circuit.
3. Check the CPU FAN connector is connected to the motherboard.
4. For Intel platforms check the pins on the CPU socket for damage or bent. A bent
pin may cause failure to boot and sometimes permanent damage from short circuit.
25
5. Check the 12V power connector is connected to the motherboard.
6. Check that the 12V power & ATX connectors are fully inserted into the
motherboard connectors. Make sure the latches of the cable and connector are
locked into place.
b) Power is on, fans are running but there is no display
1. Make sure the monitor is turned on and the monitor cable is properly connected
to the PC.
2. Check the VGA adapter card (if applicable) is inserted properly.
3. Listen for beep sounds. If you are using internal PC speaker make sure it is
connected.
a. continuous 3 short beeps : memory not detected
b. 1 long beep and 8 short beeps : VGA not detected
Trouble Shooting
26
c) The PC suddenly shuts down while booting up.
1. The CPU may experience overheating so it will shutdown to protect itself.
Ensure the CPU fan is working properly.
2. From the BIOS setting, try to disable the Smartfan function to let the fan run at
default speed. Doing a Load Optimised Default will also disable the Smartfan.
Start up problems after prolong use
After a prolong period of use your PC may experience start up problems again.
This may be caused by breakdown of devices connected to the motherboard such as
HDD, CPU fan, etc. The following tips may help to revive the PC or identify the
cause of failure.
1. Clear the CMOS values using the CLR_CMOS jumper. Refer to CLR_CMOS
jumper in Chapter 2 for Checking Jumper Settings in this user manual. When
completed, follow up with a Load Optimised Default in the BIOS setup.
2. Check the system fan for dust. Long term accumulation of dust will reduce its
effectiveness to cool the processor. Clean the cooler or replace a new one if
necessary.
3. Remove the hard drive, optical drive or DDR memory to determine which of
these component may be at fault.
Maintenance and care tips
Your computer, like any electrical appliance, requires proper care and maintenance.
Here are some basic PC care tips to help prolong the life of the motherboard and
keep it running as best as it can.
1. Keep your computer in a well ventilated area. Leave some space between
the PC and the wall for sufficient airflow.
2. Keep your computer in a cool dry place. Avoid dusty areas, direct sunlight
and areas of high moisture content.
3. Routinely clean the CPU cooler fan to remove dust and hair.
4. In places of hot and humid weather you should turn on your computer once
every other week to circulate the air and prevent damage from humidity.
5. Add more memory to your computer if possible. This not only speeds up the
system but also reduces the loading of your hard drive to prolong its life span.
6. If possible, ensure the power cord has an earth ground pin directly from the
wall outlet. This will reduce voltage fluctuation that may damage sensitive devices.
Trouble Shooting
27
No
AC power cord is plu ed gg
start. eand r
Turn on PSU switch
or connect to wall socket
MCLR C OS and restart
Yes
oblem rBoard p
and PSU switch is turned on?
Problem with PSU or board?
If board problem -> contact RMA
-> contact RMA
ng.
No
er modify BIOS se
System fail to start or unstable
a
Yes
art the PC stRe
is connected
if CPU 12V power
CLR CMOS and check
has display
Check if monitor
Basic Troubleshooting Flowchart
No
on is pressed
Power Bu
but PC fails to start.
Check if Power Supply
Yes
(PSU) is working
Unit
No
No
Yes
Any Beep sound？
- If 3 short beeps:
DIMM memory not properly
inserted or memory failure
- If 1 long beep and 8 short beeps:
VGA not detected
No
Peripheral device issue
Yes
play
dis
Check if monitor h sa
Halt at POST screen？
Yes
R CMOLC S and restart.
If fail, contact RMA
dnee to CLRCMOS.
- HDD problem.
- CMOS setup error,
28
Memo
Trouble Shooting
Loading...
