Elitegroup G10IL2 User Manual

Preface

notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer.

In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.

This document contains proprietary information protected by copyright. All rights are reserved. No part of this manual may be reproduced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer.

Limitation of Liability

While reasonable efforts have been made to ensure the accuracy of this manual, the manufacturer and distributor assume no liability resulting from errors or omissions in this manual, or from the use of the information contained herein.

Notices

Federal Communications Commission Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and if not installed and used in accordance with the instruction manual may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

 Reorient or relocate the receiving antenna  Increase the separation between the equipment and receiver  Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected

Consult the dealer or an experienced radio TV technician for help This device complies with Part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

Notice:

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Shielded interface cables and a nonshielded AC power cord must be used in order to comply with emission limits.

This equipment is to be used with power supply: 40W There is no internal power supply.

Table of Content

BEFORE YOU START ...............................................................................2

LET YOUR COMPUTER ACCLIMATE ITSELF ..............................................8

HEAT, COLD, HUMIDITY, AND GLARE ....................................................9

SUITABLE PLACE TO WORK...................................................................9

INTRODUCTION......................................................................................11

FRONT VIEW .....................................................................................12

LEFT VIEWS ......................................................................................14

RIGHT VIEW ......................................................................................14

GETTING STARTED ...............................................................................17

CONNECTING THE AC ADAPTER .........................................................17

TO INSTALL THE BATTERY PACK:........................................................19

TO REMOVE THE BATTERY PACK: ......................................................20

USING THE NOTEBOOK COMPUTER.......................................................22

LCD CARE........................................................................................22

EXTERNAL CRT DISPLAY...................................................................23

FUNCTION KEYS (QUICK KEYS)..........................................................23

TOUCHPAD PRECAUTIONS.................................................................25

THE BATTERY POWER SYSTEM ..........................................................25

PREPARING THE BATTERY PACK FOR USE (BATTERY CALIBRATION) ....26

AUTOMATIC BATTERY PACK CHARGING FUNCTION..............................27

BATTERY STATUS..............................................................................27

BATTERY LOW WARNING ...................................................................27

SMALL BATTERY FOR THE REAL TIME CLOCK......................................28

HELP WINDOWS ................................................................................29

DESKTOP ..........................................................................................29

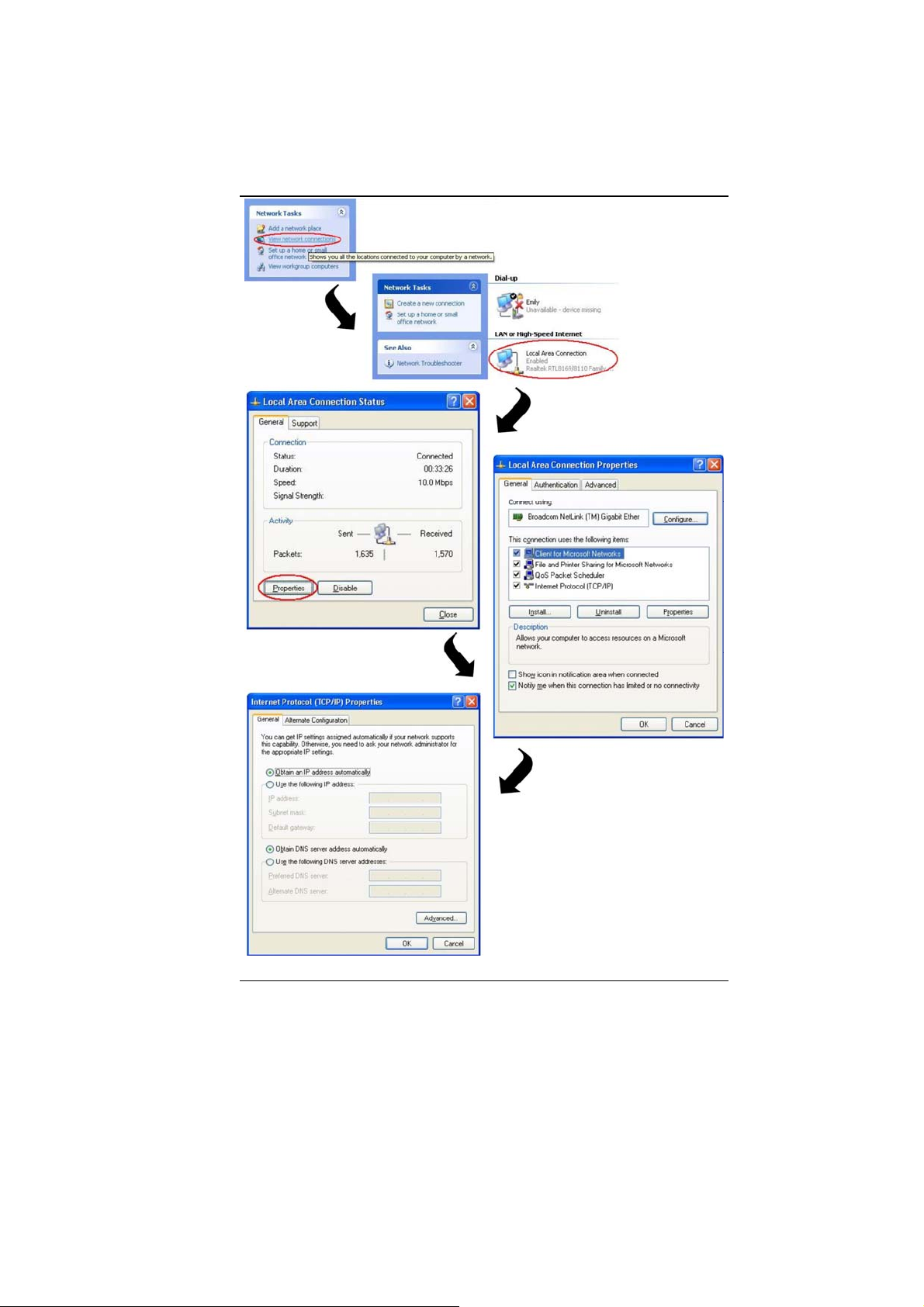

INTERNET CONNECTION ........................................................................35

RUNNING BIOS SETUP .........................................................................40

MAIN SETUP .....................................................................................42

INFO SETUP ......................................................................................43

ADVANCED SETUP.............................................................................43

SECURITY .........................................................................................44

POWER SETUP..................................................................................44

iii

BOOT SETUP.....................................................................................45

EXIT SETUP ......................................................................................45

VGA UTILITIES.....................................................................................50

3G CONNECTION ..................................................................................56

TROUBLESHOOTING ..............................................................................60

NO SPEAKER OUTPUT ........................................................................61

SOUND CANNOT BE RECORDED ..........................................................61

THE HARD DISK DRIVE DOES NOT WORK OR IS NOT RECOGNIZABLE .......62

THE HARD DRIVE IS MAKING ABNORMAL WHINING NOISES .....................62

THE HARD DISK DRIVE HAS REACHED ITS CAPACITY .............................62

THE HARD DISK TAKES LONGER TO READ A FILE...................................63

THE FILES ARE CORRUPTED ...............................................................63

THE DISPLAY PANEL IS BLANK WHEN THE SYSTEM IS TURNED ON ..........63

THE SCREEN IS DIFFICULT TO READ ....................................................63

THE SCREEN FLICKERS ......................................................................63

THE BUILT-IN TOUCH PAD PERFORMS ERRATICALLY .............................64

THE BUILT-IN KEYBOARD ACCEPTS NO INPUT .......................................64

THE CHARACTERS ON THE SCREEN REPEAT WHILE I TYPE ....................64

A MESSAGE “CMOS CHECKSUM FAILURE” DISPLAYS DURING THE

BOOTING PROCESS OR THE TIME

(CLOCK) RESETS WHEN BOOTING .......64

THE POST DOES NOT SHOW AN INCREASED MEMORY CAPACITY WHEN

YOU HAVE ALREADY INSTALLED ADDITIONAL MEMORY

..........................65

THE O/S ISSUES AN INSUFFICIENT MEMORY ERROR MESSAGE DURING

OPERATION

.......................................................................................65

PC CARDS DO NOT FUNCTION ............................................................65

THE PC CARD CANNOT BE RECOGNIZED .............................................65

WINDOWS CRASHES OR FREEZES WHEN YOU REMOVE THE PC CARD ...66

THE COMPUTER BECOMES HOT ..........................................................66

THE PROGRAM APPEARS STOPPED OR RUNS VERY SLOWLY .................66

THE USB DEVICE DOES NOT WORK ....................................................67

SPECIFICATION.....................................................................................69

BBeeffoorree yyoouu SSttaarrtt

CCoonnvveennttiioonnss ooff TThhiiss MMaannuuaall

Use this manual will help you get the most from your notebook computer.

 If you are an experienced user of computers and/or

Microsoft’s Windows operating systems, you might find it useful to read the Quick Start Guide that comes along with your accessories.

 If you are a less experienced user, you should through the

manual carefully before using your system.

Whether or not you are an experienced user, you should consult on the Troubleshooting Chapter if you encounter any problems with your notebook.

SSaaffeettyy PPrreeccaauuttiioonnss

This section is designed to assist you in identifying potentially unsafe conditions while working with this product. Required safety features have been installed in the computer to protect you from injury. However, you should use good judgment to identify potential safety hazards:

1. Please read these safety instructions carefully.

2. Please keep this User's Manual for later reference.

3. Please disconnect this equipment from AC outlet before

cleaning. Don't use liquid or sprayed detergent for cleaning. Use moisture sheet or cloth for cleaning.

4. For pluggable equipment, that the socket-outlet shall be

installed near the equipment and shall be easily accessible.

5. Please keep this equipment from humidity.

6. Lay this equipment on a reliable surface when installed. A

drop or fall could cause injury.

7. Make sure to use the right voltage for the power source when

connecting the equipment to the power outlet.

8. Place the power cord in such a way that people can not step

on it. Do not place anything on top of the power cord.

9. All cautions and warnings on the equipment should be noted.

10. If the equipment is not use for a long time, disconnect the

equipment from the main power outlet to avoid being damaged by transient overvoltage.

11. Never pour any liquid into the opening, this could cause fire or

electrical shock.

12. Never open the equipment. For safety reason, the equipment

should only be opened by a qualified service personnel.

13. If on the following situations arises, get the equipment

checked by a service personnel:

a. The Power cord or plug is damaged. b. Liquid has penetrated into the equipment. c. The equipment has been exposed to moisture. d. The equipment has not worked well or you cannot get it

work according to the user's manual.

e. The equipment has dropped and damaged. f. If the equipment has obvious sign of breakage.

14. Do not leave this equipment in an environment unconditioned,

storage temperature above 60°C (140°f), it may damage the equipment.

15. The unit can be operated at an ambient temperature of max.

35°C.

16. The sound pressure level at the operators position according

to IEC 704-1: 1982 is equal or less than 70 dB(A).

17. Power Cord Requirements

The power cord set used with the AC adaptor must meet the requirements of the country where you use the AC adaptor, whether it is 100-120 or 200-240 Vac. The following information explains the requirements for power cord set selection.

 The cord set must be approved for the country in

which it is used.

 The appliance coupler must have a configuration for

mating with a CEE7/EN60320/IEC 320/NEMA/ JIS C 8303 appliance inlet.

A. For U.S. and Canada:

 The cord set must be UL Listed and CSA Certified.

 The minimum specifications for the flexible cord are

No. 18 AWG, (2) Type SPT-2, and (3) 2-conductor.

B. For Japan:

 All components of the cord set must bear a “PSE”

mark and in accordance with the Japanese Dentori Law.

 The minimum specifications for the flexible cord

are .75m ㎡ conductors, (2) Type VCTR or VCTFK, and (3) 2-conductor.

 The cord set must have minimum rated current

capacity of 7 A.

 The attachment plug must be a two-pole, grounded

type with a Japanese Industrial Standard C8303 (15 A, 125 VAC) configuration.

C. For Other Countries:

 The cord set fittings must bear the certification mark

of the agency responsible for evaluation in a specific country.

 The flexible cord must be of a HAR (harmonized)

type H03VVH2-F.

 The cord set must have a current capacity of a least

2.5 Amperes and voltage rating of 125 or 250 Vac.

CAUTION: MODEL G10IL2(x=0~9) IS DESIGNED TO USE WITH THE FLLOWING AC ADAPTER MODEL ONLY

Manufacture: Li Shin International Enterprise Corp. Model: 0225C2040 (40W) Manufacture: Delta Electronics, Inc. Model: ADP-40MH AD (40W)

18. When using your telephone equipment, basic safety

precautions should always be followed to reduce the risk of fire, electric shock and injury to persons. These precautions includes the following:

¾ Do not use this product near water, for example, near a

bathtub, washbowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool.

¾ Avoid using a telephone (other than a cordless type)

during an electrical storm. There may be a remote risk of electric shock from lightning.

¾ Do not use the telephone to report a gas leak in the

vicinity of the leak.

¾ Use only the power cord and batteries indicated in this

manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for possible special instructions.

19. Do not use the AC adapter near open water or other liquids.

Never spill liquid into the AC adapter.

20. Danger of explosion if battery is incorrectly replaced. Replace

only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions. Never remove the battery pack while the power is on as this may result in data loss when the system loses power.

21. The input receptacle is used as the main disconnecting device.

This part is hot. Be careful.

Diese Flachewird sehr heiss. When you see this symbol, be careful as this spot may be very hot.

WWiicchhttiiggee SSiicchheerrhheeiittsshhiinnwweeiissee

1. Bitte lesen Sie diese Hinweis sorgfältig durch.

2. Heben Sie dirse Anleitung für den späteren Gebrauch auf.

3. Vor jedem Reinigen ist das Gerät vom Stromnetz zu trennen.

Versenden Sie Keine Flüssig- oder Aerosolreiniger. Am besten eignet sich ein angefeuchtetes Tuch zur Reinigung.

4. Die Netzanschluβsteckdose soll nahe dem Gerät angebracht

und leicht zugänglich sein.

5. Das Gerät ist vor Feuchtigkeit zu schützen.

6. Bei der Aufstellung des Gerätes ist auf sicheren Stand zu

achten. Ein Kippen oder Fallen könnte Beschädigungen hervorrufen.

7. Beachten Sie beim Anschluß an das Stromnet die

Anschlußwerte.

8. Verlegen Sie die Netzanschlußleitung so, daß niemand

darüber fallen kann. Es sollte auch nichts auf der Leitun abgestellt werden.

9. Alle Hinweise und Warnungen, die sich am Gerät befinden,

sind zu beachten.

10. Wird das Gerät üeinen längeren Zeitraum nicht benutzt,

sollten Sie es vom Stromnetz trennen. Somit wird im Falle einer Überspannung eine Beschädigung vermieden.

11. Durch die Lüftungsöffnungen dürfen niemals Gegenstände

oder Flüssigkeien in das Gerät gelangen. Dies könne einen Brand bzw. Elektrischen Schlag auslösen.

12. Öffnen Sie niemals das Gerät. Das Gerät darf aus Gründen

der elektrischen Sicherheit nur von authorisiertem Servicepersonal geöffnet werden.

13. Wenn folgende Situationen auftreten ist das Gerät vom

Stromnetz zu trennen und von einer qualifizierten Servicestelle zu Überprüfung.:

a. Netzlabel oder Netzstecker sind beschädigt. b. Flüssigkeit ist in das Gerät eingedrungen. c. Das Gerät war Feuchtigkeit ausgesetzt. d. Wenn das Gerät nicht der Bedienungsanleitung entsprechend

funktioniert oder Sie mit Hilfe dieser Anleitung keine Verbesserung erzielen.

e. Das Gerät ist gefallen und/oder das Gehäuse ist besc hädigt. f. Wenn das Gerät deutliche Anzeichen eines Defektes aufweist.

14. VORSICHT: Explosiongsgetahr bei unsachgemäßen

Austausch der Batterie. Ersatz nur durch denselben oder einem vom Hersteller empfohlenem ähnlichen Typ. Entsorgung gebrauchter Batterien nach Angaben des Herstellers.

15. Dieses Schaltnetzteil kann bis zu einer Außentemperatur von

maximal 35ºC.

16. Die Ausgangswerte dürfen nicht die auf dem Label

angegebenen Werte überschreiten.

17. Anforderungen an das Stromkabel

Das Kabel-Set, das an das Netzteil angeschlossen wird, muss den Anforderungen des Landes, in dem Sie das Netzteil einsetzen, genügen, je nachdem, ob die Netzspannung 100120 oder 200-240V Wechselspannung beträgt.

 Das Kabel-Set muss für das Land, in dem es

eingesetzt wird, zugelassen sein.

 Der Gerätestecker des Kabels muss in eine

CEE7/EN60320/IEC 320/NEMA/ JIS C 8303 Buchse passen.

A. Für die USA und Kanada:

 Das Kabel-Set muss UL-gelistet und CSA zertifiziert

sein.

 Die Minimalanforderungen für das Kabel

entsprechen No. 18 AWG. (2) Type SPT-2, und (3) 2-conductor.

B. Für Japan:

 Alle Teile des Kabel-Sets müssen entsprechend

dem japanischen Dentori Law mit einem „PSE“ markiert sein

 Die Minimalanforderungen für das Kabel sind .75m

㎡ Leiter. (2) Type VCTF oder VCTFK, und (3) 2conductor.

 Der Kabelsatz muss mindestens für eine

Stromstärke von 7A geeignet sein.

 Der Wandstecker muss ein zweipoliger geerdeter

Steckertyp gemäß dem Japanese Industrial Standard C8303 (15A, 125 VAC) sein.

C. Für andere Länder:

 Die Zubehörteile des Kabel-Sets müssen das

Prüfsiegel derjenigen Stelle, die in dem jeweiligen Land für die Sicherheitsprüfung zuständig ist, tragen.

 Das Kabel muss vom HAR (harmonisierten) Typ

H03VVH2-F sein.

 Das Kabel-Set muss eine Stromkapazität von

mindestens 2,5 Ampere haben und Spannungen von 125 oder 250 V Wechselstrom gestatten.

ACHTUNG: Mit dem G10IL2(x=0~9) muss ein AC-Adapter folgenden Modells verwendet werden

Hersteller: Li Shin International Enterprise Corp. Modell: 0225C2040 (40W) Hersteller: Delta Electronics, Inc Modell: ADP-40MH AD (40W)

18. Bei der Benutzung Ihres Telefongerätes sollten Sie immer die

grundlegenden Sicherheitsmaßnahmen beachten, um das Risiko von Feuer, Stromschlägen und Verletzungen zu minimieren. Zu beachten sind u.a. folgende Punkte:

¾ Benutzen Sie das Gerät nicht in der Nähe von Wasser,

wie zum Beispiel Badewanne, Waschbecken, Spülbecken, Waschbottich, in feuchten Kellerräumen oder in der Nähe von Schwimmbecken.

¾ Benutzen Sie kein Telefon (ausgenommen schnurlose

Modelle) während eines Gewitters. Es besteht das geringe Restrisiko eines Blitzschlages.

¾ Benutzen Sie das Telefon nicht um ein Gasleck zu

melden, falls es sich in der Nähe des Lecks befindet.

¾ Verwenden Sie nur die in diesem Benutzerhandbuch

angegebenen Stromkabel und Batterien. Werfen Sie die Batterien nicht ins Feuer, sie könnten explodieren. Informieren Sie sich über die örtlichen Bestimmungen bezüglich der Entsorgung.

19. Benutzen Sie das Netzteil nicht in unmittelbarer Nähe zu

Wasser oder anderen Flüssigkeiten. Gießen Sie nie Flüssigkeiten über das Netzteil.

20. Es besteht Explosionsgefahr, wenn der Akku nicht

ordnungsgemäß ersetzt wird. Ersetzen Sie den Akku nur durch einen Akku gleichen oder äquivalenten Typs, der vom Hersteller empfohlen wird. Entsorgen Sie Akkus entsprechend den Anweisungen des Herstellers. Entfernen Sie den Akku auf keinen Fall bei eingeschaltetem notebook, da hierdurch Daten verloren gehen könnten.

21. Der Netzeingabeanschluss dient als Hauptschalter des Geräts.

TThhiinnggss yyoouu mmuusstt rreemmeemmbbeerr bbeeffoorree wwoorrkkiinngg oonn yyoouurr ccoom

mppuutteerr

LLeett yyoouurr ccoommppuutteerr aacccclliimmaattee iittsseellff

Your notebook can easily stand temperature extremes but it doesn’t like rapid changes in temperature, like going from the cold outdoors to a warm office.

Rapid changes in temperature can cause water droplets to condense inside your case, threatening to damage the electronic parts inside.

After receiving your notebook when it’s hot or cold outside, try not to power up the computer immediately, let the computer adjust to the room temperature gradually at least for three to four hours.

If your system arrives in cold weather, do not apply power to the computer or monitor until they have been allowed to come to room temperature.

HHeeaatt,, CCoolldd,, HHuummiiddiittyy,, aanndd GGllaarree

Find a suitable place for your computer that’s not too hot, too cold, too dark, or too bright. Glare can make it hard to read the screen.

 Try to avoid the computer components from being destroyed

if it is over heated, so try to allow plenty of room for air to circulate around the case.

 Do not block the ventilation opening.  Do not place your computer in direct sunlight.

SSuuiittaabbllee ppllaaccee ttoo wwoorrkk

Your computer will run well wherever you’re comfortable but extremes of temperature and humidity can be challenging to your system’s parts.

There are some things you can tolerate that the computer can’t – things like static electricity, dust, water, steam and oil. In case you decide to pull over for roadside computing, try to choose a clean, comfortable work area for your system.

A lithium-ion battery pack will be available when you are traveling. If you are running your system for the first time on battery power, remove the battery from the package, install it into the system and recharge the battery to fully prepare for service.

PPrreeppaarriinngg yyoouurr CCoommppuutteerr

IInnttrroodduuccttiioonn

1. Install the battery pack

2. Connecting the AC adapter

3. Opening the display panel

4. Turning on your computer

KKnnoowwiinngg yyoouurr CCoommppuutteerr

With the LCD screen open, you will see several features important for operating your notebook computer.

To avoid damage to the display

panel:

1. Try not to slam the display upon closing it.

2. Try not to place any object on top when it is closed or open.

3. Be sure the system is turned off or in suspend mode before you close the display panel.

FFrroonntt VViieeww

1. Camera

2. LCD Display

This LCD panel can only support up to a maximum opening of 115-120 degrees, please do not push it forcibly.

3. Keyboard

The keyboard differs for each territory

4. Touchpad

5. Touchpad Buttons

6. LED Status Indicator

LED Graphic

Symbol

Blue light indicates the WLAN/Bluetooth/HSPA or Edge is active.

Battery status

Charging – Lavender

7. Power / Suspend Button

¾ Press for 1~1.5 seconds to turn on the system. ¾ Press and hold for at least 4 seconds to turn off the

system.

¾ Press the power / suspend button again to return from

the suspend mode.

¾ Persistent blue light indicates the Power is ON

Full – Blue Low - Red

Blue light indicates the hard drive and/or optical drive is being accessed.

Indication

LLeefftt VViieewwss

Kensington Lock

DC In

CRT Port

USB 2.0 Port

4-in-1 Card Reader (SD/MMC/MS/MS Pro Memory

Card)

RRiigghhtt VViieeww

Stereo Headphone/SPDIF-out Jack

Microphone/Audio Line-in Jack

USB 2.0 Port

Ethernet / LAN Port

When using a LAN, please use an EMI

Shielding Cable to minimize an inteference when transmitting.

Modem Port (Optional)

Always disconnect all telephone lines from the wall outlet before servicing or disassembling this equipment. To reduce the risk of fire use only No. 26 AWG or larger telecommunication line cord.

BBoottttoomm VViieeww

1. Built-in Speaker

2. Battery Release Latch

3. Battery Compartment

4. Internal Microphone

5. Battery Lock

GGeettttiinngg SSttaarrtteedd

CCoonnnneeccttiinngg ttoo aa PPoowweerr SSoouurrccee

CCoonnnneeccttiinngg tthhee AACC AAddaapptteerr

A universal AC adapter is provided to supply your computer with power and also charge the computer’s battery pack. The adapter’s AC input voltage can range anywhere from 100 to 240 volts, covering the standard voltages available in almost every country. To connect the computer to an external power source:

Do not use inferior extension cords as this may result in damage to your notebook. The notebook comes with its own AC adapter. Do not use a different adapter to power the computer and other electrical devices.

Whenever possible, keep the AC adapter plugged into the notebook and an electrical outlet to recharge the battery.

Never turn off or reset your notebook while the hard disk is in use status icon is lit; doing so can result in loss or destruction of your data. Always wait at least 5 seconds after turning off your notebook before turning it back on; turning the power on and off in rapid succession can damage the notebook’s electrical circuitry.

TTuurrnniinngg OOnn YYoouurr NNootteebbooookk CCoommppuutteerr

Hold the button down for a second or two and release. The PowerOn Self Test (POST) runs automatically.

After the POST is completed, the computer reads the operating system from the hard disk drive into computer memory (this is commonly referred to as “booting” a computer). If your OS (Operating System such as Windows XP…. etc) is installed, it should start automatically.

To turn the notebook off, save your work and close all open applications, click on Start, then Shu down the computer and click "Yes" or press the power button for 4-6 seconds.

OOppeerraattiinngg oonn BBaatttteerryy PPoowweerr

Your computer comes with a rechargeable battery pack that lets you operate the computer without an external power source. When the battery pack is fully charged, you can operate the computer under the following conditions:

t Down and select Shut

 The battery pack initially has a full charge.  No peripheral devices are installed.

Only use batteries that are approved by an authorized dealer. All batteries are not the same and therefore should not be treated as such. Using the wrong battery could cause serious damage to your computer and yourself through toxic emissions.

Danger of explosion if battery is incorrectly replaced. Replace only with same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions or local laws.

Explisionsgefahr bei unsachgernazen Austausch der Batterie. Ersatz nur durch denselben oder einem vom Hersteller empfohlenem ahnlichen Typ. Entsorgung gebrauchter Batterien navh Angaben des Herstellers.

IInnssttaalllliinngg aanndd RReemmoovviinngg tthhee BBaatttteerryy PPaacckk

TToo IInnssttaallll tthhee BBaatttteerryy PPaacckk::

TToo RReemmoovvee tthhee BBaatttteerryy PPaacckk::

CChhaarrggiinngg tthhee BBaatttteerryy PPaacckk

The installed battery pack charges automatically any time the computer is connected to the AC adapter and an external power source. It is a good idea to occasionally discharge the battery pack fully to preserve its operating performance.

UUssiinngg tthhee NNootteebbooookk

CCoommppuutteerr

AAddjjuussttiinngg tthhee LLCCDD SSccrreeeenn DDiissppllaayy

The LCD screen display can be adjusted by the following key combinations.

+ - Changes Display Mode: LCD-only, CRT-

only, LCD/CRT simultaneously

+ - Increases the brightness level.

+ - Decreases the brightness level.

LLCCDD CCaarree

LCD screens are delicate devices that need careful handling. Please pay attention to the following precautions:

 When you are not using the computer, keep the LCD screen

 If you need to clean your LCD screen, use a soft tissue to

 Do not put your fingers or sharp objects directly on the

 Do not press on, or store any objects on the cover when it is

closed to protect it from dust.

gently wipe the LCD surface.

surface and never spray cleaner directly onto the display.

closed. Doing so may cause the LCD to break.

EExxtteerrnnaall CCRRTT DDiissppllaayy

You can hook up an external monitor through the 15-pin CRT connector. Three configurations are available:

 LCD only  CRT only  LCD and CRT simultaneously

You can switch between these display configurations by pressing the key combination [Fn] + [F4].

TThhee NNootteebbooookk’’ss HHoott KKeeyy CCoonnttrroollss

FFuunnccttiioonn KKeeyyss ((QQuuiicckk KKeeyyss))

+ - Bluetooth on/off.

+ - Enters the Suspend Mode.

+ - HSPA on/off

+ - WLAN on/off

+ - Changes Display Mode: LCD-only, CRT-

only, LCD/CRT simultaneously

+ - Increases the speaker volume.

+ - Decreases the speaker volume.

+ - Increases the brightness level.

+ - Decreases the brightness level.

+ - Enable/Disable the Touchpad

+ - Mute the system volume

+ - Enable/Disable the silent mode

+ - Enable/Disable the camera application

TThhee TToouucchhPPaadd

The touchpad is a rectangular electronic panel located just below your keyboard. You can use the static-sensitive panel of the touchpad and slit it to move the cursor. You can use the buttons below the touchpad as left and right mouse buttons.

TToouucchhPPaadd PPrreeccaauuttiioonnss

The TouchPad is a pressure sensitive device. Please take note of the following precautions.

 Make sure the TouchPad does not come into contact with

dirt, liquids or grease.

 Do not touch the TouchPad if your fingers are dirty.  Do not rest heavy objects on the TouchPad or the TouchPad

buttons.

You can use the TouchPad with Microsoft Windows as well as nonWindows applications.

PPoowweerr SSaavviinngg MMooddeess

This section contains information on the notebook’s power system, including the AC Adapter, the battery system, recharging the battery, and tips for conserving battery power.

The power system is comprised of two parts, the AC Adapter and the battery system. The AC Adapter converts AC power from a wall outlet to the DC power required by the computer.

TThhee BBaatttteerryy PPoowweerr SSyysstteemm

Before using the computer on battery power for the first time, check the battery status icon on the Windows Toolbar to make sure the battery is fully charged.

See Battery Status later in this section for a description and explanation of the Windows Battery icon.

Charging the battery takes about 2.5 hours to charge when the system is in off state. If possible, always charge the battery completely.

If you use the battery so frequently that it exceed more than 20 times by fully discharging/charging in a single month alone, we recommend you to perform the “Battery Calibration” process every 3 months to maintain the battery life. Please refer to the topic on “Battery Calibration” describing how to calibrate your system battery discussed on the latter part of this chapter. If you discover the battery life is getting shorter, please perform the “Battery Calibration” process immediately.

RReemmoovviinngg tthhee BBaatttteerryy PPaacckk

To remove the battery pack from its compartment, please refer to Chapter 3, Inserting and Removing the Battery Pack.

PPrreeppaarriinngg tthhee BBaatttteerryy PPaacckk ffoorr UUssee ((BBaatttteerryy CCaalliibbrraattiioonn))

Before using the battery pack for the first time, the Smart Battery IC within the battery pack should be calibrated in order to get accurate reporting of remaining battery life status.

To calibrate the battery pack follows the instructions below:

1. Insert the battery into the battery compartment and turn on the

notebook. If the battery is completely without power go to the next step. Otherwise, let the battery run down until the battery low-low warning beeps are heard. The system will automatically enter Suspend mode.

2. Turn the notebook off. Connect the AC adapter and let the

battery fully recharge. When the battery charge indicator turns off, the battery is fully charged.

3. Turn On the notebook, let the battery run down until the

battery is in low-low state and you hear a warning beeps. The system will automatically enter the Suspend mode. You can now connect the AC adapter.

4. The battery pack is now calibrated properly.

In general, using the battery until the low-low battery-warning indicator appears and fully recharges the battery each time (full discharge/charge cycle) will ensure the accurate reporting of the battery gauge status.

AAuuttoommaattiicc BBaatttteerryy PPaacckk CChhaarrggiinngg FFuunnccttiioonn

To charge the battery, while the battery pack is in the notebook, plug the AC adapter into the notebook and an electrical outlet.

The charging time is approximately 2.5 hours when the notebook is turned off and approximately 3.5 hours when the notebook is turned on.

When the battery is fully charged, the battery charge indicator becomes off.

If system runs at heavy loading or in a high temperature environment, the battery may not be fully charged. You need to continue to charge it with the AC adapter plugged in until the charging LED turns off.

BBaatttteerryy SSttaattuuss

Windows XP has an applet in the Control Panel that will display an icon in the Windows taskbar indicating when the notebook is running on battery power or is attached to the AC adapter.

This applet also displays a meter that indicates how much charge is remaining in the battery.

BBaatttteerryy LLooww WWaarrnniinngg

When the pack initially reaches the “Battery Low” state approximately 7 ~ 10 minutes of the usable battery life is left.

You will hear an audible beep signal every 15 seconds alerting you to the “Battery Low” status. When the battery power reaches the “Battery Low Low” status the beeping sound will accelerate.

Your battery now has 1 ~ 2 minutes of battery charge remaining. You must save your data or connect AC power immediately; otherwise, you may lose your data.

Sound Meaning

Continuous beeping every 5

Battery Low: Indicates that there is 7 to 10 minutes charge remaining.

seconds Beeping accelerates

When there is only one minute of battery charge remaining, the notebook will suspend to the HDD and power off. You should connect AC power and resume to save your work.

Battery Low Low: Indicates that there is 1 to 2 minutes of battery charge remaining. Save your work and turn off the notebook, or connect the AC adapter.

SSmmaallll BBaatttteerryy ffoorr tthhee RReeaall TTiimmee CClloocckk

There is a small built-in battery pack that supplies power to the system in order to maintain certain system information while the power is off.

If the notebook is left without a power source for long period of time, this battery will be exhausted and system information will be lost.

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions. Never remove the battery pack while the power is on as this may result in data loss when the system loses power.

RReesseettttiinngg tthhee SSyysstteemm

After installing a software application package, you may be prompted to reset the system to load the changed operating environment.

To reset the system, or “reboot,” press the [Ctrl]+[Alt]+[Delete] keys simultaneously. This is known as “warm boot.” This key combination acts as “software” reset switch when you encounter hardware or software problems, which lock up the notebook.

If this key combination does not shut down the notebook, you can reset the notebook by using the notebook’s power button. Should the notebook lock up for some reason, pressing this button powers the notebook off.

AAddjjuussttiinngg tthhee BBrriigghhttnneessss

To adjust the brightness on the LCD screen, press and hold down the [Fn] key in the lower left hand corner of the keyboard and press the [F8] key to reduce the brightness or [F7] to increase the brightness.

UUssiinngg tthhee WWiinnddoowwss

HHeellpp WWiinnddoowwss

For Windows XP help, click Start ÎHelp and Support icon will open the dialog box.

DDeesskkttoopp

Desktop may vary differently on the software installed in your notebook with different or additional shortcuts.

Used for storing deleted files in case you want to recover and save it in your system. The files will only be deleted from the Recycle Bin permanently only if you empty it by right clicking your mouse and select the “Empty Recycle Bin”.

Allows easy access to all Windows programs.

The Start menu allows you to adapt and show the programs used most frequently. If you wish to keep an item, right click the item and click Pin to Start menu.

Log Off will enable the current user to log off and allows a new user to log on.

Turn Off Computer allows you to shut down, restart, and Stand by modes for power saving purposes.

When you open a program, its icon is displayed at the taskbar for you to conveniently move between programs by clicking the relevant button.

To add or remove toolbars from the taskbar: right click an empty spot on the taskbar, select Toolbars Î choose the toolbar you want to a d d.

The icons that appear here are for quick access to some programs and computer functions that you frequently used. To prevent Windows XP from hiding icons:

From an empty spot on the Taskbar, right click your mouse and select the Properties, remove the checked mark on the Auto-hide the taskbar.

CCoonnttrrooll PPaanneell

It is in this area that you can change how Windows looks and works. Click Start Î Control Panel dialog box. There are two interfaces – Classic View.

IInntteerrnneett CCoonnnneeccttiioonn

There are numerous ways to connect to the Internet. This may vary from the user’s working environment as well as system specifications.

 Using a modem and a telephone line (optional)  Using a wired LAN  Using a wireless LAN  Bluetooth Connection

UUssiinngg aa mmooddeemm ffoorr CCoonnnneeccttiioonn ttoo IInntteerrnneett ((ooppttiioonnaall)

 Use a telephone line to connect to the modem port of your

 Please apply to an Internet Service Provider (ISP) for

)

computer. Do not use a digital telephone line.

Internet service in order for you to connect the modem to the Internet and use e-mail.

For more detail on the Network key, please refer to your local ISP provider and follow the procedures describe in the “ISP Installation Guide” to proceed with the installation.

UUssiinngg aa wwiirreedd LLAANN ffoorr CCoonnnneeccttiioonn ttoo IInntteerrnneett

For you connect to the Internet, a wired LAN environment normally uses the company’s LAN or a broadband modem.

UUssiinngg WWiirreelleessss LLAANN NNeettwwoorrkk ffoorr CCoonnnneeccttiioonn ttoo IInntteerrn

neett

BBlluueettooootthh CCoonnnneeccttiioonn

Bluetooth is a developing, world wide, open, short-range radio specification focused on communication between the Internet and Net devices, plus it defines communication protocols between devices and computers.

It connect wirelessly to your world: In home, at work, in motion and at play.

Access the internet or your e-mail account from anywhere, anytime.

Press on the Bluetooth icon to connect other devices that have

this application.

This will be the display that will appear on your screen. If the system detects any other devices, it will be shown as

illustrated in the Bluetooth setting window:

RRuunnnniinngg BBIIOOSS SSeettuupp

The Setup Utility is a hardware configuration program built into your computer’s BIOS (Basic Input/Output System). It runs and maintains a variety of hardware functions. It is menu-driven software, which allows you to easily configure and change the settings.

The BIOS contains manufacture’s default settings for the computer’s standard operations. However, there are occasions when you may be required to modify the default settings in the BIOS.

The BIOS allows you to set up passwords to limit access to users. This is an important feature because a great deal of vital information is carried within the computer nowadays. Unauthorized access can be prevented. Later in this chapter, you will learn how to use this security feature.

EEnntteerriinngg tthhee BBIIOOSS SSeettuupp SSccrreeeenn

First turn on the power. When the BIOS performs the POST (Power-On Self Test), press DEL key quickly to activate the BIOS Setup Utility.

You may need to press DEL key fairly quickly. Once the system begins to load Windows, you may have to retry by cycle-power on again

LLeeaavviinngg tthhee BBIIOOSS SSeettuupp SSccrreeeenn

When you have finished modifying the BIOS settings, exit the BIOS. It takes a few seconds to record changes in the CMOS.

BBIIOOSS AAccttiioonn KKeeyyss

Function

Key

ESC Exit

F1 General Help Shows the Help Screen

F10 Save and Exit

<Tab> Select a field Selects the next field.

↑ ↓

- Lower value Selects the next value within a field. + Higher value Selects the next value within a field.

Command Description

Select an item Selects the next upper item. Select an item Selects the next lower item.

MMooddiiffyyiinngg tthhee BBIIOOSS SSeettttiinnggss

Leaves a sub-menu to return to the previous menu OR exits the BIOS setup while saving changes.

Saves changes and reboots the computer.

The BIOS setup main menu is subdivided into sub-menus. Each menu item is described in this section.

MMaaiinn SSeettuupp

Under this menu, you may change time/date and view basic processor and system memory information.

IInnffoo SSeettuupp

AAddvvaanncceedd SSeettuupp

SSeeccuurriittyy

PPoowweerr SSeettuupp

BBoooott SSeettuupp

EExxiitt SSeettuupp

SSyysstteemm RReeccoovveerryy

kindly make a rescue disk by “System Recovery AP” to back up your disk.” This application can be activated by: From

“Start”, click on the

This process enables you to restore your system whether your system is damaged or for some other reason that you can not operate your computer.

First turn on the power. When the BIOS performs the POST (Power-On Self Test)

When you start to use this notebook,

“System Recovery

 Press F9 key quickly to activate the System Recovery

Program.

 Or click the “Quit” if you want to discontinue with the

application.

 Click the “Recover your computer” if you want to proceed.

 You will be asked whether you would like to proceed with the

recovery procedures.

 Click “OK” if you want to proceed or “Cancel” if you want to

discontinue with the recovery procedures.

This illustration will be shown twice after you made the first decision in case you change your mind to discontinue with the recovery procedures.

 The system will start with the recovery procedures.

 This illustration indicates the system has finished with the

recovery procedures.

VVGGAA UUttiilliittiieess

You can click the touchpad or mouse right button and select the “Properties” item.

Select the “Display Settings” option to enter its window display. Click on the “Advanced Settings” tab to enter “Digital Flat Panel (1024x600) on Mobile Intel® 945 Express Chipset” window display.

33GG CCoonnnneeccttiioonn

3G is the third generation of mobile phone standards and technology. 3G enable users a wide range of more advanced service while achieving greater network capacity through improved spectral efficiency.

Press the hot key combination of Fn + F2 or click the 3G

application icon

to start executing the application.

To disconnect, click on the “Disconnect” icon will exit the 3G application.

Another way for 3G connection is by clicking on the “Menu” button.

Select the “Setting” and click on the “Internet Connections” to enter the connection window display.

Click on the “Add new Connection” in case you want to connect to other telecom company.

TTrroouubblleesshhoooottiinngg

Your computer has been fully tested and complies with the system specifications before shipping. However, incorrect operations and/or mishandling may cause problems.

This chapter provides a reference for identifying and correcting common hardware and software problems that you may encounter.

When you encounter a problem, you should first try to go through the recommendations in this chapter. Instead of returning the computer and waiting for repair, you may easily solve the problems by considering the following scenarios and possible solutions. If the error continues, contact your reseller for service information.

Before taking further actions, consider the following suggestions:

 Check to see if the problem persists when all the external

devices are removed.

 Check to see that the green light indicator on the AC adapter

is lit.

 Check to see the power cord is properly plugged to the wall

outlet and to the computer.

 Check to see the power indicator of the computer is on.  Check to see if your keyboard is operational by pressing and

holding any key.

 Check for any incorrect or loose cable connections. Make

sure the latches on the connectors latch securely on to the receptor end.

 Be sure you have not performed an incorrect setting on the

hardware devices in the BIOS Setup utility. A faulty setting may cause the system to misbehave. If you are not sure of the changes you made, try to restore all the settings to factory defaults.

 Be sure all the device drivers are installed properly. For

example, without the audio driver properly installed, the speakers and microphone will not work.

 If external devices such as USB camera, scanner, printer do

not function correctly when connected to the system, it is usually the device’s own problem. Consult the device’s manufacturer first.

 Some software programs, which have not gone through

rigorous coding and testing, may cause problems during your routine use. Consult the software vendor for problem solving.

 Legacy peripheral are not plug-and-play capable. You need

to restart the system with these devices powered up and connected first.

 Be sure to go to BIOS SETUP and load DEFAULT SETTING

after BIOS re-flash.

 Be sure the Quick Key Lockout Switch on the bottom of the

computer is not engaged; otherwise the quick keys will not work.

AAuuddiioo PPrroobblleemmss

NNoo ssppeeaakkeerr oouuttppuutt

 Software volume control is turned down in Microsoft Sound

System or is muted. Double-click the speaker icon on the lower right corner of the taskbar to see if the speaker has been muted or turned down all the way.

 Most audio problems are software-related. If your computer

worked before, chances are software may have been set incorrectly.

 Go to [Start > Settings > Control Panel] and double-click the

Sounds and Audio Devices icon. In the Audio page, make sure that the audio codec mentioned in the spec is the default playback device.

SSoouunndd ccaannnnoott bbee rreeccoorrddeedd

 You will need to plug-in an external microphone to the

microphone connector to record sound.

 Double-click the speaker icon on the lower right corner of the

taskbar to see if the microphone has been muted.

¾ Click Options and select Properties. ¾ Select Recording and click the OK button. ¾ After Click OK button, the recording volume control

panel will appear.

 Go to [Start > Settings > Control Panel] and double-click the

Multimedia icon (or Sounds and Audio Devices icon). In the Volume or Audio page, make sure that the audio codec mentioned in the spec is the default recording device.

HHaarrdd DDiisskk PPrroobblleemmss

TThhee hhaarrdd ddiisskk ddrriivvee ddooeess nnoott wwoorrkk oorr iiss nnoott rreeccooggnni

izzaabbllee

 If you had just performed a hard disk upgrade, make sure

the hard drive connector is not loose and the hard disk drive is also correctly seated. Remove it and reinsert it firmly, and restart your PC.

 The new HDD may need to be partitioned and reformatted.

O/S and drivers will need to be re-installed as well.

 Check the hard disk indicator LED. When you access a file,

the LED lamp should light up momentarily.

 The new HDD may be defective or is not compatible.  If your computer has been subjected to static electricity or

physical shock, you may have damaged the disk drive.

TThhee hhaarrdd ddrriivvee iiss mmaakkiinngg aabbnnoorrmmaall wwhhiinniinngg nnooiisseess

 You should back up your files as soon as possible.  Make sure the source of noise is indeed from the hard drive

and not the fan or other devices.

TThhee hhaarrdd ddiisskk ddrriivvee hhaass rreeaacchheedd iittss ccaappaacciittyy

 Run Disk Cleanup utility in Windows. [Start > All Programs >

Accessories > System Tools > Disk Cleanup] The system will prompt you for what to do.

 Archive files or programs that you had no longer used by

moving them to an alternative storage medium (floppy disk, optical record-able disk, etc.) or uninstall programs that no longer use.

 Many browsers store files in the hard drive as a cache to

speed up the performance. Check the program’s Online Help for instructions on decreasing the cache size or on removing temporary Internet files.

 Empty the Recycle Bin to create more disk space. When you

delete files, Windows saves them to the Recycle Bin.

TThhee hhaarrdd ddiisskk ttaakkeess lloonnggeerr ttoo rreeaadd aa ffiillee

 If you have been using the drive for a period, the files may

be fragmented. Go to [Start > Programs > Accessories > System Tools > Disk Defragmenter] to perform a disk defragmentation. This operation may take a while.

 Interrupt requests or problems with other hardware devices

may have occupied the CPU and therefore slows down the system performance.

TThhee ffiilleess aarree ccoorrrruupptteedd

 Run the Error-checking utility in Windows to check the HDD.

Double-click My Computer. Right-click C: and select Properties. Click Check Now in Error-checking in Tools.

DDiissppllaayy PPrroobblleemmss

TThhee ddiissppllaayy ppaanneell iiss bbllaannkk wwhheenn tthhee ssyysstteemm iiss ttuurrnneedd oonn

 Make sure the computer is not in the Standby or Hibernate

suspend modes. The display is turned off to conserve energy in these modes.

TThhee ssccrreeeenn iiss ddiiffffiiccuulltt ttoo rreeaadd

 The display resolution should at least be set to at least

1024x600 for optimal viewing.

¾ Go to [Start > Settings > Control Panel] and double-click

the Display icon.

¾ Under the Settings page, set screen resolution to at

least 1024x600.

TThhee ssccrreeeenn fflliicckkeerrss

 It is normal if the display flickers a few times during shutting

down or powering up.

KKeeyybbooaarrdd aanndd MMoouussee PPrroobblleemmss

TThhee bbuuiilltt--iinn ttoouucchh ppaadd ppeerrffoorrmmss eerrrraattiiccaallllyy

 Make sure there is no excess perspiration or humidity on

your hand when using the touch pad. Keep the surface of the touch pad clean and dry.

 Do not rest your palm or wrist on the surface of the touchpad

while typing or using the touch pad.

TThhee bbuuiilltt--iinn kkeeyybbooaarrdd aacccceeppttss nnoo iinnppuutt

 Please try to make sure the system doesn’t hang up and is

still working.

TThhee cchhaarraacctteerrss oonn tthhee ssccrreeeenn rreeppeeaatt wwhhiillee II ttyyppee

 You may be holding the keys down too long while you’re

typing.

 Keep the keyboard clean. Dust and dirt under the keys could

cause them to stick.

 Configure the keyboard to wait longer before the auto repeat

feature starts. To adjust this feature, Go to [Start > Settings > Control Panel], and double-click the Keyboard icon. A dialogue box shows up with the adjustable settings for the keyboard.

CCMMOOSS BBaatttteerryy PPrroobblleemm

AA mmeessssaaggee ““CCMMOOSS CChheecckkssuumm FFaaiilluurree”” ddiissppllaayyss dduurriinngg tthhee bboooottiinngg pprroocceessss oorr tthhee ttiimmee ((cclloocckk)) rreesseettss wwhheenn bboooottiinngg

 Try to reboot the system.  If the message “CMOS Checksum Failure” appears during

the booting procedure even after rebooting, it may indicate failure of the CMOS battery. If so, you need to replace the battery. This battery normally lasts two to five years. The battery is of type CR2032 (3V). Send the battery to the dealer for replacement.

MMeemmoorryy PPrroobblleemmss

TThhee PPOOSSTT ddooeess nnoott sshhooww aann iinnccrreeaasseedd mmeemmoorryy ccaappaacciittyy wwhheenn yyoouu hhaavvee aallrreeaaddyy iinnssttaalllleedd aaddddiittiioonnaall mmeemmoorryy

 Certain brands of memory module may not be compatible

with your system. You should ask your vendor for a list of compatible DIMM.

 The memory module may be defective.

TThhee OO//SS iissssuueess aann iinnssuuffffiicciieenntt mmeemmoorryy eerrrroorr mmeessssaagge dduurriinngg ooppeerraattiioonn

 This is often a software or Windows-related problem. A

program is draining the memory resources.

 Close the application programs you’re not using and restart

the system.

PPCC CCaarrdd PPrroobblleemmss

Slot option.

PPCC CCaarrddss ddoo nnoott ffuunnccttiioonn

Some system may not have the PC Card

 Make sure you have properly installed the driver for the card.  Consult the card’s manual or contact the vendor for trouble-

shooting.

TThhee PPCC ccaarrdd ccaannnnoott bbee rreeccooggnniizzeedd

 Make sure the card is fully inserted; the outer end of the card

should be even with the edge of the computer.

 Remove and insert the PC card again.  Make sure there is no IRQ conflict with the card. See

Windows on-line help for solving IRQ conflicts.

 Reboot the computer and see if the problem persists.  The card may be defective. Try the card on another system,

if possible.

WWiinnddoowwss ccrraasshheess oorr ffrreeeezzeess wwhheenn yyoouu rreemmoovvee tthhee PPCC ccaarrdd

 Make sure you have <Stop> the PC card before removing it.

Double-click the Safely Remove Hardware icon at the lower right corner of the task bar and select the card you wish to stop. When you click <Close>, in few seconds Windows will prompt you to remove the card.

PPeerrffoorrmmaannccee PPrroobblleemmss

TThhee ccoommppuutteerr bbeeccoommeess hhoott

 In a 35

back case are expected to reach 50 degrees.

C environment, the certain areas of the computer’s

 Make sure the air vents are not blocked.  If the fan does not seem to be working at high temperature

(50 degrees Celsius and up), contact the service center.

 Certain programs that are processor-intensive may increase

the computer temperature to a degree where the computer automatically slows down its CPU clock to protect itself from thermal damage.

TThhee pprrooggrraamm aappppeeaarrss ssttooppppeedd oorr rruunnss vveerryy sslloowwllyy

 Press CTRL+ALT+DEL to see if an application is still

responding.

 Restart the computer.  This may be normal for Windows when it is processing other

CPU-intensive programs in the background or when the system is accessing slow-speed devices such the floppy disk drive.

 You may be running too many applications. Try to close

some applications or increase system memory for higher performance.

 The processor may have been overheated due to the

system’s inability to regulate its internal heat. Make sure the computer’s ventilation grills are not blocked.

UUSSBB22..00 PPrroobblleemmss

TThhee UUSSBB ddeevviiccee ddooeess nnoott wwoorrkk

 Check the settings in the Windows Control Panel.  Make sure you have installed the necessary device drivers.  Contact the device vendor for additional support.

SSppeecciiffiiccaattiioonn

 Supports Windows XP OS with SATA HDD  Supports Windows Vista Home Basic OS (option)  Supports Linux Linpus Lite 9.4 with uSSD

 Support ATOM CPU single core, 45nm, TDP <2.5W,

533MHz FSB, ~1.6GHz

 DDRII 533/667 support or 667MHz downgrade to 533MHz  RAM socket * 1  Support DDRII 800

 Intel Cantiga 945GSE+ICH7M



 USB2.0 interface

Intel 945GSE

(

)

(

)

Realtek ALC662

Support SD/MMC/MS/MS Pro Memory Card (supports SHDC)

 Supports 10/100 Mb/Sec.  MII interface

 Mini Card w/ PCI-E interface  IEEE 802.11 B/G support w/ 1 Antenna

 Support 1.3M & 0.3M Camera



80/81 keys KB support

 PS2 Touch Pad with 2 buttons

 10.2" WSVGA, resolution 1024X600  LED panels support

 HDD for 2.5" 9.5mm SATA support  SHSC: Suspensory HDD Shockproof Capability

 6 cells, 3S2P, 4400mAh/ 11.1V  4 cells, 4S1P, 2200mAh/ 14.8V



Automatics Voltage adjustment between 100 and 240VAC 50/60Hz, 40 Watts

 Build-in 2 speakers  Internal Microphone support



Supports PnP, ACPI 3.0

 Support external USB flash memory card boot up.  With AMI BIOS and 1MB flash ROM

(

)

(

)

 “Smart Power II” Power Management

 Dimension: 259mm x 190mm x 26~36mm  Weight: 1.4kg w/6cells+HSPA+HDD+10.2”LCD

 CE, FCC

 CE, R&TTE report/document

 CB report/ETL/CCC
