Elitegroup A535 User Manual

Download

GQ Notebook

Usseerr''ss

uii

dee

PPrreeffaaccee



Manual edition, August 2003

The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer.

In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.

This document contains proprietary information protected by copyright. All rights are reserved. No part of this manual may be reproduced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer.

TTrraaddeemmaarrkkss

CardSoft is a trademark of SystemSoft Corporation. AutoCAD and Autoshade are trademarks of Autodesk, Inc. IBM, OS/2, and VGA are trademarks of International Business Machines Corp. Lotus, 1-2-3, and Symphony are trademarks of Lotus Development Corp. Windows, Word, MS-DOS, and Microsoft are trademarks of Microsoft Corp. VESA is a trademark of Video Electronics Standards Association.

Other product names mentioned herein are used for identification purposes only and may be trademarks and/or registered trademarks of their respective companies.

LLiimmiittaattiioonn ooff LLiiaabbiilliittyy

While reasonable efforts have been made to ensure the accuracy of this manual, the manufacturer and distributor assume no liability resulting from errors or omissions in this manual, or from the use of the information contained herein.

NNoottiicceess

FFeeddeerraall CCoommmmuunniiccaattiioonnss CCoommmmiissssiioonn RRaaddiioo FFrreeqquueennccyy IInntteerrffeerreennccee SSttaatteemmeenntt

limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and if not installed and used in accordance with the instruction manual may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which

• Consult the dealer or an experienced radio TV technician for help.

This equipment has been tested and found to comply with the

the receiver is connected.

NNoottiiccee::

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Shielded interface cables and a non-shielded AC power cord must be used in order to comply with emission limits.

This equipment is to be used with power supply: I/P: 100-240 Vac, 50-60Hz, 1.6A max O/P: 19Vdc, 3.16A

CCaannaaddiiaann DDOOCC NNoottiiccee FFoorr CCllaassss BB CCoommppuuttiinngg DDeevviicceess

This Class B digital apparatus meets all requirements of the Canadian Interference - Causing Equipment Regulations.

Cet appareil numerique de la classe B repecte toutes les exigences du Règlement sur le matèriel brouilleur du Canada.

SSaaffeettyy PPrreeccaauuttiioonnss

This section is designed to assist you in identifying potentially unsafe conditions while working with this product. Required safety features have been installed in the computer to protect you from injury. However, you should use good judgment to identify potential safety hazards:

Please read these safety instructions carefully.

Please keep this User's Manual for later reference.

Please disconnect this equipment from AC outlet before cleaning. Don't use liquid or sprayed detergent for cleaning. Use moisture sheet or cloth for cleaning.

- iii -

For pluggable equipment, that the socket-outlet shall be installed near the equipment and shall be easily accessible.

Please keep this equipment from humidity.

Lay this equipment on a reliable surface when isntall. A drop or fall could cause injury.

Make sure to use the right voltage for the power source when connecting the equipment to the power outlet.

Place the power cord in such a way that people can not setp on it. Do not place anything on top of the power cord.

All cautions and warnings on the equipment should be noted.

If the equipment is not used for a long time, disconnect the equipment from the main power outlet to avoid being damaged by transient overvoltage.

Never pour any liquid into the opening, this could cause fire or electrical shock.

Never open the equipment. For safety reason, the equipment should only be opened by a qualified service personnel.

If on the following situations arises, get the equipment checked by a service personnel:

The Power cord or plug is damaged.

aa..

Liquid has penetrated into the equipment.

bb..

The equipment has been exposed to moisture.

cc..

The equipment has not work well or you cannot get it work according to the

dd..

user's manual.

The equipment has dropped and damaged.

ee..

If the equipment has obvious sign of breakage.

ff..

Do not leave this equipment in an environment unconditioned, storage temperature above

60°C (140°f), it may damage the equipment.

The unit can be operated at an ambient temperature of max. 35°C.

The sound pressure level at the operators position according to IEC 704-1: 1982 is equal or less than 70 dB(A).

Power Cord Requirements The power cord set used with the AC adaptor must meet the requirements of the country where you use the AC adaptor, whether it is 100-120 or 200-240 Vac. The following information explains the requirements for power cord set selection.

• The cord set must be approved for the country in which it is used.

• The appliance coupler must have a configuration for mating with a

CEE22/EN6032/IEC 320 appliance inlet.

A. For U.S. and Canada:

• The cord set must be UL Listed and CSA Certified.

• The minimum specifications for the flexible cord are No. 18 AWG.

B. For Japan:

• All components of the cord set must bear a “ T ” mark and registration

number in accordance with the Japanese Dentori Law.

• The minimum specifications for the flexible cord are .75m ㎡ conductors.

C. For Other Countries:

• The cord set fittings must bear the certification mark of the agency

responsible for evaluation in a specific country.

• The flexible cord must be of a HAR (harmonized) type H05VV-F.

• The cord set must have a current capacity of a least 2.5 Amperes and

voltage rating of 125 or 250 Vac.

When using your telephone equipment, basic safety precautions should always be

- v -

followed to reduce the risk of fire, electric shock and injury to persons. These precautions includes the following:

1. Do not use this product near water, for example, near a bathtub,

washbowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool.

2. Avoid using a telephone (other than a cordless type) during an

electrical storm. There may be a remote risk of electric shock from lightning.

3. Do not use the telephone to report a gas leak in the vicinity of the

leak.

4. Use only the power cord indicated in this manual.

Do not use the AC adapter near open water or other liquids. Never spill liquid into the AC adapter.

Laser Warning: Laser Class I Product Caution - Invisible laser radiation when open avoid exposure to beam.

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions. Never remove the battery pack while the power is on as this may result in data loss when the system loses power.

PPeerrssoonnaall IInnvveennttoorryy

This Mobile PC system is designed for years of productive and pleasurable computing. Use this section to keep notes about details of your purchase. Update this section when you add new options.

Date of Purchase:

Dealer’s Name:

Phone:

Address:

E-Mail Address:

WWW Site:

Serial Number:

CPU Type:

Hard Disk Capacity:

Memory Capacity:

Optional Equipment:

- vii -

Chapter 1

nttrr

IIn

uccttii

- 9 -

TThhiinnggss yyoouu mmuusstt rreemmeemmbbeerr bbeeffoorree wwoorrkkiinngg oonn yyoouurr ccoommppuutteerr

LLeett yyoouurr ccoommppuutteerr aacccclliimmaattee iittsseellff

Your Mobile PC can easily stand temperature extremes but it doesn’t like rapid changes in temperature, like going from the cold outdoors to a warm office. Rapid changes in temperature can cause water droplets to condense inside your case, threatening to damage the electronic parts inside.

After receiving your Mobile PC when it’s hot or cold outside, try not to power up the computer immediately, let the computer adjust to the room temperature gradually at least for three to four hours

If your system arrives in cold weather, do not apply power to the

computer or monitor until they have been allowed to come to room temperature

HHeeaatt,, CCoolldd,, HHuummiiddiittyy,, aanndd GGllaarree

Find a suitable place for your computer that’s not too hot, too cold, too dark, or too bright. Glare can make it hard to read the screen.

• Try to avoid the computer components from being destroyed if it is over heated, so

try to allow plenty of room for air to circulate around the case.

• Do not block the ventilation opening.

• Do not place your computer in direct sunlight.

AA ffeeww ttiippss ttoo hheellpp yyoouu wwoorrkk eeffffeeccttiivveellyy wwiitthhoouutt aa lloott ooff pphhyyssiiccaall ddiissccoommffoorrtt::

• Purchase a chair with armrests and good back support. Don't slouch when sitting;

keep your back straight.

• Try to place the LCD panel or external monitor so that there is little glare from the

sun on the monitor.

• Walk around the room every hour.

• Every half hour look away from the computer screen for a few minutes.

• Place everything that you need to work within easy reach.

WWeellccoommee ttoo tthhee MMoobbiillee PPCC

Congratulations on your purchase of the Mobile PC. Your Mobile PC features the latest advances in portable computing technology. The Mobile PC ’s modular design provides maximum expandability without compromising portability. The high-performance CPU and enhanced IDE hard drive provides you with extra processing power for handling complex graphics and running large programs.

GGeettttiinngg ttoo KKnnooww YYoouurr CCoommppuutteerr

OOppeenniinngg tthhee LLCCDD PPaanneell

At the front of the Mobile PC you can find a retaining latch on the display panel that locks the display in closed position when the Mobile PC is not in use.

Slide the display panel latch to the right until the display panel releases, and then raise

11..

the LCD screen.

- 11 -

At any time you can tilt the display toward or away from you to a comfortable viewing position.

To avoid damage to the display panel:

1. Try not to slam the display upon closing it.

2. Try not to place any object on top when it is closed or open.

3. Be sure the system is turned off or in suspend mode before you close the display panel.

With the LCD screen open, you will see several features important for operating your Mobile PC.

Status indicator Panel

HDD Num Lock Caps Lock

14.1”XGA TFT LCD

Build in Speaker

LED Indicator (top to bottom):

Power On Suspend Battery charge

TouchPad Touch Pad Button

Power resume

button with blue li

E-mail Quick Launch Button

Internet Quick Launch Button

Build in Microphone

Scroll lock Wireless

Each of these features is briefly described below.

LCD Screen

Your Mobile PC computer is equipped with a replaceable color Liquid Crystal Display (LCD) screen that supports up to 14.1” or 15” LCD resolution.

A built-in backlight allows you to comfortably view the screen even when ambient lighting is low.

Power/Resume Button

Pressing this button for 1-2 seconds will turn on the system or pressing this button when the computer is in Suspend mode will resume normal operation. Pressing this button for 4-6 seconds will also turn off the system.

System Status Indicator Panel

The system status indicator panel keeps you informed of the computer’s operating status.

Indicates that the computer is accessing the hard disk drive.

Indicates that the keyboard is in Num Lock mode.

Indicates when the keyboard is in Caps Lock mode. In this mode, the keyboard produces uppercase text when you press a key. When you press the Caps Lock key again, the indicator goes off and the keyboard produces lowercase text.

Indicates when the keyboard is in Scroll Lock mode. Some applications will move information across the screen differently when Scroll Lock is on.

- 13 -

Indicates when the system LAN is functioning.

TouchPad

The TouchPad is hardware-compatible with the IBM PS/2 mouse and software-compatible with the Microsoft mouse.

TouchPad Buttons

The buttons below the TouchPad correspond to the left and right buttons on a standard mouse. The PS/2 compatible mouse will work with the TouchPad simultaneously.

Internet Explorer Button

Use this key to open the Internet Explorer.

Outlook Express Button

Use this key to open Microsoft's Outlook to send/receive your mail.

The Built-in Microphone

The built-in microphone is located to the left of the TouchPad.

FFrroonntt SSiiddee

LCD Cover Release Latch

Slide this latch to the right to open the LCD cover.

TThhee LLeefftt SSiiddee

USB Port Modem Port Headphone Jack

LCD Cover Release Latch

Ventilation Opening LAN Port Microphone Jack

- 15 -

Ventilation Opening

Please don’t block this opening during operation of the system.

The LAN Port

This jack provides a standard RJ-45 connection for integration with an existing network or a high-speed (DSL or cable) connection via a network cable.

When using a LAN, please use an EMI Shielding Cable to minimize an

inteference when transmitting.

The Modem Port

This jack is an internal 56K voice/fax/data modem. You will connect your computer to your phone line through this port.

Always disconnect all telephone lines from the wall outlet before servicing or disassembling this equipment. To reduce the risk of fire use only No. 26 AWG or larger telecommunication line cord.

Microphone Jack

This allows you to receive monophonic input from an external microphone. Use of an external microphone will disable the built-in microphone.

Headphone Jack

You can plug an external speaker, headphone or connect the line out jack to an audio device such as a cassette recorder to record the Mobile PC 's audio output.

- 17 -

LLEEDD IInnddiiccaattoorrss

These three LED indicators are separately program for the following functions: Power On,

Power On

This indicator will lit when the Mobile PC is powered On.

Battery Charge

This indicator will lit orange when the battery is in charging status. The indicator will shut down when the battery is fully charged.

Suspend Mode

This indicator will lit when the Mobile PC enter the suspend mode.

TThhee RRiigghhtt SSiiddee

DVD-ROM DC IN Connector

DVD-ROM

Your Mobile PC comes with a 8X DVD-ROM.

DC IN Connector

Plug the AC adapter into this connector.

- 19 -

TThhee RReeaarr SSiiddee

Kensington Lock Parallel Port USB Ports

Ventilation Opening TV Out Port CRT Port Ventilation Opening

Ventilation Opening

Please don't block this opening during operation of the system.

Kensington Lock

Allows you to connect a special computer lock to secure your system. You can purchase a lock at most computer retailers.

TV Out Port

This 4-pin S-Video port allows you to view the Mobile PC's Video output on a television monitor.

Parallel Port

This port allows you to easily connect a parallel printer or plotter using this 25-pin bidirectional female port.

External CRT Port

This port allows you to easily connect an external VGA/SVGA display monitor into your Mobile PC using the 15-pin female connector.

USB Ports

Your computer includes two Universal Serial Bus (USB) port. USB is the latest development in Plug and Play technology.

It will eventually replace the need for separate connectors for external keyboards, serial ports, and parallel (printer) port.

Ventilation Opening

Please don't block this opening during operation of the system.

- 21 -

TThhee BBoottttoomm PPaanneell

Expansion Compartment

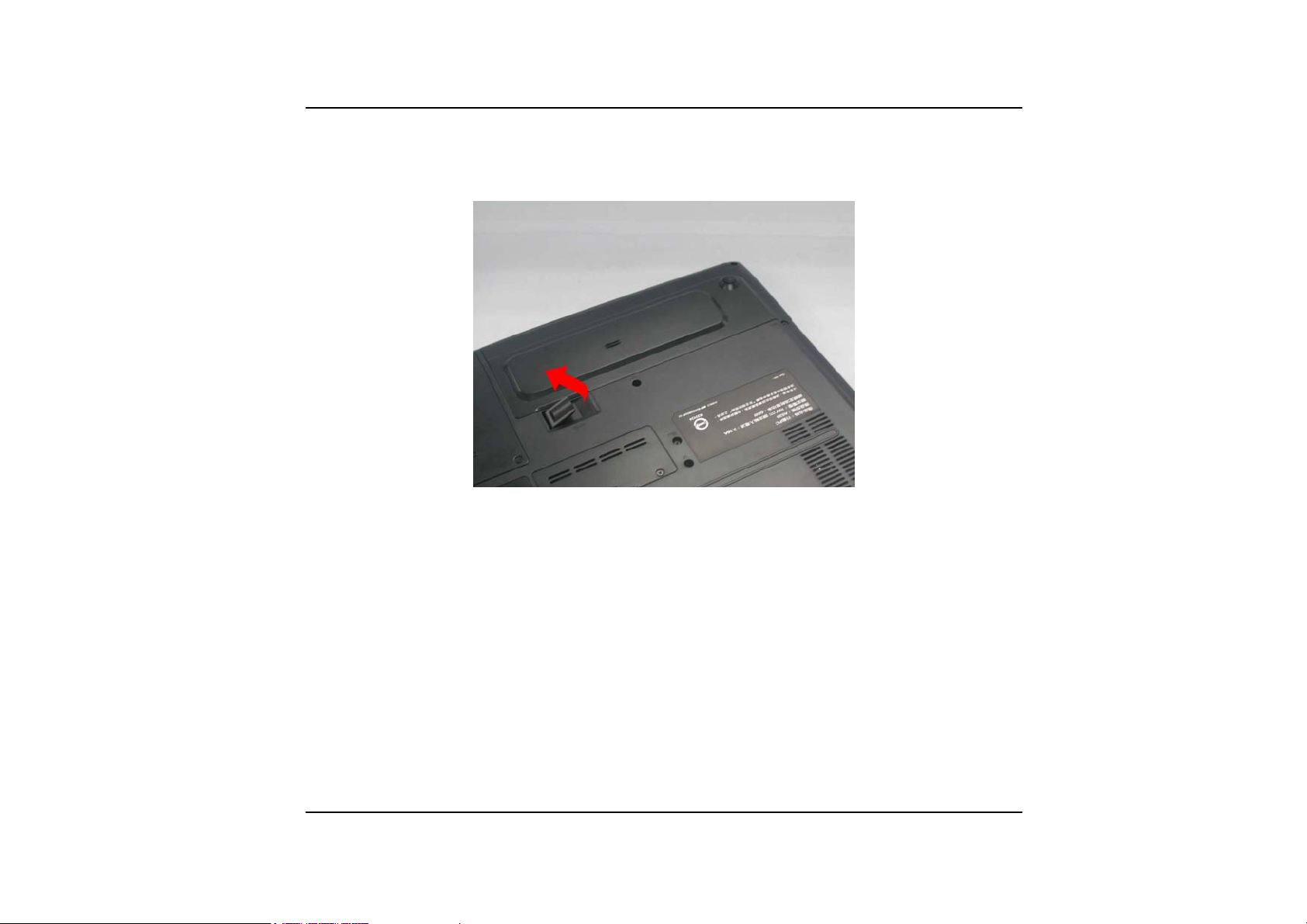

Battery Release Latch

Hard Disk Compartment

Battery Compartment

Expansion Compartment

This compartment will serve as an expansion to upgrade your RAM module.

Battery Release Latch

Lift up this latch to release the battery from its bay.

Hard Disk Drive

Your computer includes a 2.5-inch IDE hard disk drive (9.5mm in height). The Mobile PC BIOS automatically detects IDE drive types.

Battery Compartment

Your Mobile PC comes equipped with a factory-installed battery pack module. After the battery runs down, the module can be removed and replaced with a charged battery.

- 23 -

Chapter 2

Geettttii

ngg

Stt

arrttee

CCoonnnneeccttiinngg ttoo aa PPoowweerr SSoouurrccee

CCoonnnneeccttiinngg tthhee AACC AAddaapptteerr

A universal AC adapter is provided to supply your computer with power and also charge the computer’s battery pack.

The adapter’s AC input voltage can range anywhere from 100 to 240 volts, covering the standard voltages available in almost every country.

The power cord for the AC adapter requires a three-hole grounded AC outlet. To connect the computer to an external power source:

Plug the AC adapter’s connector into the DC-IN connector on the rear of the computer.

11..

Connect the power cord to the AC adapter and then to a wall outlet.

22..

The best kind of AC power source to connect your Mobile PC to is a UPS (Uninterruptible Power Supply). Lacking this, use a power strip with a built-in surge protector. Do not use inferior extension cords as this may result in damage to your Mobile PC . The Mobile PC comes with its own AC adapter. Do not use a different adapter to power the computer and other electrical devices.

- 25 -

Whenever possible, keep the AC adapter plugged into the Mobile PC and an electrical outlet to recharge the battery.

Never turn off or reset your Mobile PC while the hard disk is in use and the HDD status icon is lit; doing so can result in loss or destruction of your data. Always wait at least 5 seconds after turning off your Mobile PC before turning it back on; turning the power on and off in rapid succession can damage the Mobile PC ’s electrical circuitry.

TTuurrnniinngg OOnn YYoouurr MMoobbiillee PPCC

Turn on your Mobile PC by pressing the power button. Hold the button down for a second or two and release. The Power-On Self Test (POST) runs automatically.

After the POST is completed, the computer reads the operating system from the hard disk drive into computer memory (this is commonly referred to as “booting” a computer). If your OS (Operating System such as Windows ME, Windows 2000…. etc) is installed, it should start automatically.

To turn the Mobile PC off, save your work and close all open applications, click on Start, then Shu button for 4-6 seconds.

t Down and select Shut down the computer and click "Yes" or press the power

OOppeerraattiinngg oonn RReemmoovvaabbllee BBaatttteerryy PPoowweerr

The system provides you with a removable battery pack that does not provides the computer with information about its power status.

Your computer comes with a rechargeable removable battery pack that lets you operate the computer without an external power source. When the removable battery pack is fully charged, you can operate the computer for approximately 1.5 hours under the following conditions:

• The removable battery pack initially has a full charge.

• No peripheral devices are installed.

• The disk/CD-ROM drives run no more than 10% of the time.

• The battery pack is 8-cell battery pack.

• Power Now is enabled.

Only use batteries that are approved by an authorized dealer. All batteries are not the same and therefore should not be treated as such. Using the wrong battery could cause serious damage to your computer and yourself through toxic emissions.

- 27 -

IInnsseerrttiinngg aanndd RReemmoovviinngg tthhee RReemmoovvaabbllee BBaatttteerryy PPaacckk

The removable battery pack should already be inserted in your Mobile PC when you unpack it. If not inserted, follow these directions:

Turn over the Mobile PC with the front of the unit facing you and place it on a solid,

11..

flat surface.

Angle the battery into the bay. The front edge of the battery should slide into the

22..

grooves in the system case.

Gently lower the battery into the bay and push it until it clicks securely in the bay.

33..

To remove the removable battery pack:

1. Turn off the Mobile PC , and disconnect the AC adapter.

2. Close the LCD panel and turn it over and place it on a solid, flat surface.

3. Lift the release latch to release the battery from the bay. At this time the battery will now be angled slightly out of the bay.

4. Hold the removable battery at the finger grip and lift it out of the compartment.

- 29 -

CChhaarrggiinngg tthhee RReemmoovvaabbllee BBaatttteerryy PPaacckk

The installed removable battery pack charges automatically any time the computer is connected to the AC adapter and an external power source.

It is a good idea to occasionally discharge the battery pack fully to preserve its operating performance.

Chapter 3

Ussiinngg tthhee

Moobbiillee

- 31 -

AAddjjuussttiinngg tthhee LLCCDD SSccrreeeenn DDiissppllaayy

The LCD screen display can be adjusted by the following key combinations.

KEYS FUNCTIONS

[Fn] + [F7] Decreases the brightness level.

[Fn] + [F8] Increases the brightness level.

[Fn] + [F12] This key combination toggles the display between the LCD, CRT,

simultaneous LCD/CRT.

LLCCDD CCaarree

LCD screens are delicate devices that need careful handling. Please pay attention to the following precautions:

• When you are not using the computer, keep the LCD screen closed to protect it from

dust.

• If you need to clean your LCD screen, use a soft tissue to gently wipe the LCD

surface.

• Do not put your fingers or sharp objects directly on the surface and never spray

cleaner directly onto the display.

• Do not press on, or store any objects on the cover when it is closed. Doing so may

cause the LCD to break.

EExxtteerrnnaall CCRRTT DDiissppllaayy

You can hook up an external monitor through the 15-pin CRT connector. 5 configurations are available:

• LCD only

• CRT only

• LCD+CRT

• TV+ CRT

• TV only

You can switch between these display configurations by pressing the key combination [Fn] + [F12].

To shift the display screen from your computer to the TV screen, you will have to utilize the VGA utility function by executing the VGA Display function. Please refer to Chapter Six on the topic of “VGA Utilities” section.

For information on connecting an external display, please refer to Chapter Four.

AA TToouurr ooff tthhee MMoobbiillee PPCC ’’ss KKeeyybbooaarrdd

The Mobile PC ’s keyboard uses a standard QWERTY layout with the addition of special function keys and an embedded numeric keypad for number intensive data entry. Your keyboard supports Windows by incorporating the two Windows specific keys. With the two Windows keys you will be able to access and take advantage of many of the timesaving features of Windows software.

The function keys (F1-F12) on the top row of the keyboard, serve different purposes and carry out different tasks depending on the application you are running.

The cursor (arrow) keys (which are all located in the lower right corner of your keyboard) and the [PgUp], [PgDn], [Home] and [End] keys (which are located along the right edge of the keyboard) allow you to move the active cursor of the computer to various locations on the screen or within the document.

The embedded numeric keypad consists of 15 keys that make number intensive input more convenient. Like the [Num Lock] key, these keys are labeled in blue on the keycaps. Numeric assignments are located at the upper right of each key.

- 33 -

When the numeric keypad is engaged, the NumLock icon will appear in the System Window. The keypad is activated by pressing the [Fn] + [NumLk] key. If an external keyboard is connected, pressing the NumLock key on either the Mobile PC or external keyboard will enable/disable NumLock of both keyboards in unison.

To disable the Mobile PC numeric keypad while keeping the keypad on an external keyboard activated, use the [Fn] + [NumLk] hot key on the Mobile PC keyboard.

TThhee MMoobbiillee PPCC ’’ss HHoott KKeeyy CCoonnttrroollss

KEYS FUNCTION(S)

Power Button Press this button once to power on or enter the

suspend/resume mode. Press this button for more than 4 seconds to power off the system.

Internet Button Open Internet WWW Home short-cut key

Email Button Open Email Reader short-cut key

[Fn] + [F2] This key combination turns on/off the volume.

[Fn] + [F3] Decreases the speaker volume.

[Fn] + [F4] Increases the speaker volume.

[Fn] + [F7] Decreases the brightness level.

[Fn] + [F8] Increases the brightness level.

[Fn] + [F12] This key combination toggles the display between the LCD,

CRT, simultaneous LCD/CRT.

TThhee TToouucchhPPaadd

The touchpad is a rectangular electronic panel located just below your keyboard. You can use the static-sensitive panel of the touchpad and slit it to move the cursor. You can use the buttons below the touchpad as left and right mouse buttons.

- 35 -

TToouucchhPPaadd PPrreeccaauuttiioonnss

The TouchPad is a pressure sensitive device. Please take note of the following precautions.

• Make sure the TouchPad does not come into contact with dirt, liquids or grease.

• Do not touch the TouchPad if your fingers are dirty.

• Do not rest heavy objects on the TouchPad or the TouchPad buttons.

You can use the TouchPad with Microsoft Windows as well as non-Windows applications.

CCoonnnneeccttiinngg aann EExxtteerrnnaall TTrraacckkiinngg DDeevviicceess

The system will only enables you to use one tracking device whether it is an internal or external tracking device.

DDaattaa SSttoorraaggee aanndd RReettrriieevvaall

Data storage and retrieval are two of the most fundamental tasks you will perform when working with your computer. The Mobile PC is equipped with a hard disk drive (HDD). The HDD is removable allowing for easy upgrades.

DDVVDD--RROOMM

FFeeaattuurreess ooff tthhee DDVVDD--RROOMM MMoodduullee

The features of the CD-ROM/DVD-ROM/Combo drive are listed below.

• The Audio Play feature allows you to play music CDs

• Front panel load/unload button

• Supports CD-DA, CD-ROM mode 1 and mode 2, Multi-Session Photo CD™, CD-

I/Video CD (pcs.)

• Low power consumption

• 12.7mm height

PPrreeccaauuttiioonnss ffoorr HHaannddlliinngg CCDD--RROOMM//DDVVDD--RROOMM DDiissccss

• Always hold the disc by the edges, avoid touching the surface.

• Use a clean, dry, cloth to remove dust, smudges, or fingerprints. Wipe from the

center outward.

- 37 -

• Do not write or place objects on the surface of the disc.

• Store discs in a cool dry place not to damage the disc.

• Do not use benzene, thinners, or cleaners with detergent. Only use CD-ROM/DVD-

ROM cleaning kits.

• Do not bend or drop the discs.

LLooaaddiinngg aa DDiisscc

To play a CD disc, follow the instructions listed below.

Push the CD-ROM/DVD-ROM/Combo eject button on the CD drive door. Gently pull

11..

the tray all the way out.

Carefully lift the CD-ROM/DVD-ROM/Combo by the edges and make sure the shiny

22..

surface is face down (the side with no writing on it). Carefully insert the CD-ROM onto the tray. Push the CD-ROM/DVD-ROM down gently so that it snaps onto the center ring.

Push the tray back into the drive.

33..

To remove a disk, do the following:

Check the LED display and make sure that the computer is not accessing the CD-

11..

ROM/DVD-ROM drive.

Push the eject button and pull the tray all the way out.

22..

Carefully pick up the CD disk by the edges and – while pressing down on the center

33..

ring – remove the CD-ROM/DVD-ROM/Combo from the tray.

Do not insert any foreign objects into the disc tray. If you experience difficulty when ejecting the CD disk tray, stretch a paper clip (or use a pin or a thin metal rod) and insert it into the emergency eject hole located on the right side of the front panel. The CD disk tray should eject immediately. This procedure can also be used to remove a CD from the drive when the Mobile PC is powered off.

RReemmoovviinngg tthhee DDVVDD--RROOMM DDrriivvee

Remove the screws and push the drive into the direction of the arrow as described in

11..

the illustration.

1. Pull out the DVD-ROM drive from the bay.

- 39 -

PPoowweerr SSaavviinngg MMooddeess

This section contains information on the Mobile PC ’s power system, including the AC Adapter, the battery system, recharging the battery, and tips for conserving battery power.

The power system is comprised of two parts, the AC Adapter and the battery system. The AC Adapter converts AC power from a wall outlet to the DC power required by the computer.

TThhee BBaatttteerryy PPoowweerr SSyysstteemm

A fully charged pack will provide approximately 1.5 hours of battery life depending on your system configuration application it runs.

Charging the battery takes about 3.5 hours to charge for 8-cell when the system is in off state. If possible, always charge the battery completely.

When in the the Batterymode, Windows can lowers the processor frequency

with AMD PowerNow!TM.

RReemmoovviinngg tthhee RReemmoovvaabbllee BBaatttteerryy PPaacckk

To remove the battery pack from its compartment, please refer to Chapter Two, Inserting and Removing the Removable Battery Pack.

To calibrate the battery pack follows the instructions below:

Insert the removable battery into the battery compartment and turn on the Mobile PC .

11..

If the removable battery is completely without power go to the next step.

Otherwise, let the removable battery run down until the battery low-low warning beeps are heard.

Turn the Mobile PC off. Connect the AC adapter and let the removable battery fully

22..

recharge. When the removable battery charge indicator turns off, the battery is fully charged.

Turn On the Mobile PC , let the removable battery run down until the battery is in low-

33..

low state and you hear a warning beeps. You can now connect the AC adapter.

The removable battery pack is now calibrated properly.

44..

In general, using the removable battery until the low-low battery-warning indicator appears and fully recharges the battery each time (full discharge/charge cycle) will ensure the accurate reporting of the battery gauge status.

AAuuttoommaattiicc RReemmoovvaabbllee BBaatttteerryy PPaacckk CChhaarrggiinngg FFuunnccttiioonn

You can automatically charge the removable battery pack by using the AC Adapter. The charge time is about two hours when the Mobile PC power is turned off. The following table summarizes the charging modes:

Charge Mode Charge Time

Fast Approximately 2 hours with the system off or in Suspend mode.

The temperature must be 25°C or below room temperature.

The system will stop battery charging when the battery temperature is over 55

℃

to protect the battery from overheat.

BBaattttrryy SSttaattuuss

Windows 98SE/windows ME/Windows 2000 has an applet in the Control Panel that will display an icon in the Windows taskbar indicating when the Mobile PC is running on battery power or is attached to AC adapter. This applet also displays a meter that indicates how much charge is remaining in the battery .

- 41 -

FFoorr WWiinnddoowwss XXPP

In the “Control Panel” double click the “Power Options” icon to display the “Power Options Properties” as shown on the right screen.

Power Scheme

In setting your power options, click on the “Power Scheme” tab to select the power scheme most appropriate for you in using your computer.

Settings for Portable/Laptop power scheme

Under this item you are allowed to set the time setting for the system to enter the stand by mode whether you are operating the system by battery or AC power source.

 Turn off monitor/hard disks

Under this item you are allowed to set the time setting for the system to enter the stand by mode whether you are operating the system by battery or AC power source.

 System Stand by/Hibernates

Under this item, you are also allowed to set the time setting for the system to enter standby mode.

Power Meter

Click on the “Power Meter” tab to display the type pf power source you are using to operate your Mobile PC computer.

Current power source:

Total battery power remaining:

Current power source:

Total battery power remaining:

If the battery charge drops below a certain voltage level, a beeping sound will prompt you to save your work and turn off the computer, or connect the AC adapter. The message is :

Batteries

98%

AC power

98%

This indicates the Mobile PC

is operated with battery

This indicates the Mobile PC

is operated with an AC power source.

You should change your battery or switch to outlet power immediately to keep from losing your work.

FFoorr WWiinnddoowwss 22000000//WWiinnddoowwss MMiilllleenniiuumm

In the “Control Panel” double click the “Power Options” icon to display the “Power Options Properties” as shown on the right screen.

Power Scheme

In setting your power options, click on the “Power Scheme” tab to select the power scheme most appropriate for you in using your computer.

Settings for Portable/Laptop power scheme

Under this item you are allowed to set the time setting for the system to enter the stand by mode whether you are operating the system by battery or AC power source.

 Turn off monitor/hard disks

Under this item you are allowed to set the time setting for the system to enter the stand by mode whether you are operating the system by battery or AC power source.

 System Stand by/Hibernates

Under this item, you are also allowed to set the time setting for the system to enter standby mode.

Power Meter

Click on the “Power Meter” tab to display the type pf power source you are using to operate your Mobile PC computer.

Current power source:

Total battery power remaining:

Batteries

98%

This indicates the Mobile PC

is operated with battery

- 43 -

Current power source:

Total battery power remaining:

If the battery charge drops below a certain voltage level, a beeping sound will prompt you to save your work and turn off the computer, or connect the AC adapter. The message is :

AC power

98%

This indicates the Mobile PC

is operated with an AC power source.

You should change your battery or switch to outlet power immediately to keep from losing your work.

FFoorr WWiinnddoowwss 9988SSEE

In the “Control Panel” double click the “Power Management” icon to display the “Power Management Properties” as shown on the right screen.

Power Scheme

In setting your power options, click on the “Power Scheme” tab to select the power scheme most appropriate for you in using your computer.

• Home/Office Desk

• Potable/Laptop

• Always On

Settings for Portable/Laptop power scheme

Under this item you are allowed to set the time setting for the system to enter the stand by mode whether you are operating the system by battery or AC power source.

 Turn off monitor

Under this item you are allowed to set the time setting for the system to enter the stand by mode whether you are operating the system by battery or AC power source.

 Turn off hard disks

Under this item you are allowed to set the time setting to turn off the hard disks either operated by battery or AC power source.

Power Meter

Click on the “Power Meter” tab to display the type pf power source you are using to operate your Mobile PC computer.

Current power source:

Total battery power remaining:

Current power source:

Total battery power remaining:

Batteries

98%

AC power

98%

This indicates the Mobile PC

is operated with battery

This indicates the Mobile PC

is operated with an AC power source.

If the battery charge drops below a certain voltage level, a beeping sound will prompt you to save your work and turn off the computer, or connect the AC adapter. The message is :

You should change your battery or switch to outlet power immediately to keep from losing your work.

AMD PowerNow!

AMD PowerNow!TM Technology ! is an innovative solution available on all AMD mobile processorbased Mobile PCs. This technology can effectively increase Mobile PC battery life while

delivering performance on demand, offering you the ultimate mobile computing experience.

The Key benefits of AMD PowerNow! Technology are:

1. Lengthens battery life.

Technology !

2. Provides extra processor performance to source-requiring applications.

3. Allows the processor to dissipate less heat under normal operating conditions, resulting a cooler and quieter-running Mobile PC.

- 45 -

4. Operates automatically in the background.

Control Panel Interface

AMD PowerNow!

To take advantage of AMD’s power management capabilities, Microsoft integrated support for AMD PowerNow! Technology into its new Windows®XP operating system. The power

management control panel in Windows®XP, know as “PowerScheme”, is designed to provide the user with easy-to –use interface. The Power Schemes tab can be found in the

Power Options Properties panel that is accessible via the control panel window.

The Windows XP Power Scheme tab gives the user access to the same performance on demand control that you’ve come to expect from AMD PowerNow! Technology. Schemes are easy to understand ，based on Mobile PC usage scenarios ，and control not only processor power usage but other system peripherals as well.

Always on mode puts the processor into maximum performance mode. The other schemes control processor performance based on demand.

The screen shot to the right shows an example of the

Power Schemes tab found in Power Options Properties

of the Wndows XP operating system.

Technology and Windows®XP

- 47 -

AMD PowerNow!TM technolgy and other Windows® operating systems

For some Mobile PC ’s running previous Microsoft Windows operating systems including Windows 98. Wndows Me, and Wndows 2000，AMD PowerNow! Technology drivers will be installed at the factory or as an option during the initial system set-up. If your system supports this and if the AMD PowerNow! technology drivers have been installed, a new tab should appear in the Wndows power options panel, titled "AMD PowerNow! Technology.”

From this tab the user has access to the control of AMD PowerNow! Technology..Wth the proper settings a user can extend battery life without the worry of whether or not the most performance possible is being provided for each application.

Screen shot to the right shows example of Power Options Properties panel

，

BBaatttteerryy LLooww WWaarrnniinngg

When the removable battery pack initially reaches the “Battery Low” state approximately 10 ~ 15 minutes of the usable battery life is left.

You will hear an audible beep signal every 1.5 seconds alerting you to the “Battery Low” status. When the battery power reaches the “Battery Low Low” status the beeping sound will accelerate.

Your battery now has 1 ~ 2 minutes of battery charge remaining. You must save your data or connect AC power immediately; otherwise, you may lose your data.

Sound Meaning

Continuous beeping every 1 seconds

Beeping accelerates Battery Low Low: Indicates that there is 1 to 2

Battery Low: Indicates that there is 5 to 6 minutes charge remaining.

minutes of battery charge remaining. Save your work and turn off the Mobile PC , or connect the AC adapter.

SSmmaallll BBaatttteerryy ffoorr tthhee RReeaall TTiimmee CClloocckk

There is a small built-in battery pack that supplies power to the system in order to maintain certain system information while the power is off. If the Mobile PC is left without a power source for long period of time, this battery will be exhausted and system information will be lost.

- 49 -

RReesseettttiinngg tthhee SSyysstteemm

After installing a software application package, you may be prompted to reset the system to load the changed operating environment. To reset the system, or “reboot,” press the [Ctrl] + [Alt] + [Delete] keys simultaneously. This is known as “warm boot.” This key combination acts as “software” reset switch when you encounter hardware or software problems, which lock up the Mobile PC.

If this key combination does not shut down the Mobile PC, you can reset the Mobile PC by using the Mobile PC ’s power button. Should the Mobile PC lock up for some reason, pressing this button over 4seconds powers the Mobile PC off.

AAddjjuussttiinngg tthhee BBrriigghhttnneessss

To adjust the brightness on the LCD screen, press and hold down the [Fn] key in the lower left hand corner of the keyboard and press the [F7] key to reduce the brightness or [F8] to increase the brightness.

Chapter 4

Moobbiillee

Oppeerraattiioonn

- 51 -

Your Mobile PC is capable of providing you with efficient and productive mobile computing, it also has the speed and capacity to service as a desktop system.

This chapter discusses those functions of your Mobile PC that are typical of desktop systems.

AAuuddiioo

TThhee MMuullttiimmeeddiiaa SSoouunndd SSyysstteemm

The Mobile PC ’s built-in audio capabilities allow you to take advantage of a wide range of education and entertainment multimedia software. The Mobile PC is equipped with two internal stereo speakers, a microphone, and input audio ports for external audio units.

An external microphone can be connected to the microphone jack. External speakers or headphones can be connected to the Mobile PC ’s audio-out jack.

External audio devices can be connected to the Line in jack. All audio features are software controlled. The Mobile PC ’s multimedia sound system includes the following features:

• Supports Windows Sound System compatibility

• Full Duplex operation

• Dynamic filtering reduces noise and distortion rate

• 16-bit digitized audio playback

• A built-in microphone for convenient recording

• Two built-in stereo speakers

• Digitized audio recording through the Mobile PC ’s built-in microphone or any

external source

AAuuddiioo VVoolluummee CCoonnttrrooll

The Mobile PC is equipped with hot-key volume controls: Pressing the [Fn] + [F3] hot-key combination decreases the audio output volume, press the [Fn] + [F4] hot-key combination increases the audio output volume.

AAuuddiioo SSooffttwwaarree

Your Mobile PC comes equipped with an integrated sound system capable of providing you with quality audio sound through the built-in speakers or through external speakers connected via the system ports.

SSoouunndd RReeccoorrddiinngg

Your system allows you to record sounds and store them as files using the microphone via the microphone jack on the rear of the Mobile PC. Check the Windows Help and Support Center in Windows for information on using the various elements in sound recording.

PPllaayyiinngg SSoouunndd FFiilleess

Your Mobile PC can play audio files stored in MIDI, WAVE or MP3 file format. Check the Help and Support Center in Windows for information on the functions of the Media Player.

EExxtteerrnnaall SSppeeaakkeerrss aanndd MMiiccrroopphhoonnee

The sound system is capable in providing high-quality sound to external speakers and receiving and processing sounds from an external microphone or external sound source.

- 53 -

CCoonnnneeccttiinngg PPeerriipphheerraall DDeevviicceess

To expand your computing capabilities, you can add a variety of external devices to your computer. You may, for example, want to add a mouse, modem, or a printer.

Connect peripheral devices to the computer's interface ports as shown below:

- 55 -

nii

ngg

BII

Seett

Chapter 5

IInnttrroodduuccttiioonn

The BIOS (Basic Input and Output System) Setup program is a menu driven utility that enables you to make changes to the system configuration and tailor your system to reflect installed hardware or alter system performance. When the Mobile PC is turned back on, the system is configured with the values stored in CMOS.

NNaavviiggaattiinngg tthhrroouugghh BBIIOOSS SSeettuupp

The Setup program has been designed to make it as easy to use as possible. If you accidentally make a setting and don’t know which one to switch back to, the Setup program has a hot key that allows you to return to the previous value.

AAcccceessssiinngg tthhee BBIIOOSS SSeettuupp PPrrooggrraamm

To access the BIOS Setup program, press the DEL key after the Mobile PC has run through its POST.

IItteemm SSppeecciiffiicc HHeellpp

On the right side of the Setup screen is an area labeled Item Specific Help. This area will list navigation key shortcuts and information that is specific for the item that you are currently editing.

TThhee MMeennuu BBaarr

The top of the screen has a menu bar with the following selections:

- 57 -

SSttaannddaarrdd CCMMOOSS SSeettuupp

Set the time and date. Configure disk drives.

AAddvvaanncceedd CCMMOOSS SSeettuupp

Configure basic system performance parameters.

PPeerriipphheerraall SSeettuupp

Configure I/O support for the Mobile PC. To access the menu bar items, press the  up or  down arrow key on the keyboard until

the desired item is highlighted.

TThhee LLeeggeenndd BBaarr

At the bottom of the Setup screen you will notice a legend bar. The keys in the legend bar allow you to navigate through the various setup menus.

The following table lists the keys found in the legend bar with their corresponding alternates and functions.

Legend Key

Esc Jumps to the Exit menu or returns to the Main menu from a

↑ or ↓

PgUp/PgDn Set to modify the field selected.

F2/F3 Set the color (8 colors) of the BIOS Setup screen.

F10 Save and Exit.

Enter Will select a sub menu or show a range of options for a field.

Function

submenu.

Moves the cursor up and down between fields.

LLaauunncchhiinngg SSuubbmmeennuuss

Note that a right pointer symbol ` appears to the left of certain fields. This pointer indicates that a submenu can be launched from this field. A submenu contains additional options for a field parameter. To call up a submenu, simply move the cursor to highlight the field and press the [Enter] key. Use the [Esc] key to return to the Main menu.

GGeenneerraall HHeellpp

In addition to the Item Specific Help window, the BIOS Setup program also provides a General Help screen can be called up from any menu by simply pressing [F1] or the [Alt] + [H] combination.

Use the up and down arrow keys (↑↓) to scroll through the entire help document. Press the Home key to display the first page, press End to go to the last page. To exit the help window, press the [Enter] or [Esc] key.

SSaavvee CChhaannggeess aanndd EExxiitt tthhee SSeettuupp PPrrooggrraamm

Refer to the Exit menu section of this chapter for detailed information on saving changes and exiting the setup program.

- 59 -

TThhee SSttaannddaarrdd CCMMOOSS SSeettuupp

When the Setup program is accessed, the following screen appears:

DDaattee//TTiimmee

The current values for each category are displayed. Enter new values through the keyboard .

PPrrii MMaasstteerr,, SSeecc MMaasstteerr

Select one of these hard disk drive icons to configure the hard disk drive named in the option.

TThhee AAddvvaanncceedd CCMMOOSS SSeettuupp

When the Setup program is accessed, the following screen appears:

CCPPUU//DDRRAAMM BBaassee FFrreeqquueennccyy

Set this option to select the CPU/DRAM base frequency for your system.

 The settings are 100/100MHz or 100/133 MHz

QQuuiicckk BBoooott

Set this option to Enabled to instruct AMI BIOS to boot quickly when the computer is powered on.

- 61 -

 The settings are Disabled or Enabled (default value)

sst

BBoooott DDeevviiccee

This option sets the type of device for the first boot drives that the AMIBIOS attempts to boot from after AMIBIOS POST completes.

 The settings are Disabled, HDD (default value), CD-ROM and USB FDD.

BBoooot

DDeevviiccee

nndd

This option sets the type of device for the second boot drives that AMIBIOS attempts to boot from after AMIBIOS POST completes.

 The settings are Disabled, HDD, CD-ROM and USB FDD (default value).

rrd

BBoooott DDeevviiccee

This option sets the type of device for the third boot drives that the AMIBOOS attempts to boot from after AMIBIOS POST completes.

 The settings are Disabled, HDD, CD-ROM (default value) and USB FDD.

SS..MM..AA..RR..TT.. ffoorr HHaarrdd DDiisskkss

Set this option to Enabled to permit AMIBIOS to use the SMART (System Management System and Reporting Technologies) protocol for reporting server system information over a network.

 The settings are Enabled or Disabled (default value).

TToouucchhPPaadd SSuuppppoorrtt

Set this option to enabled or disabled the touchpad. The default setting is Enabled.

PPaasssswwoorrdd CChheecckk

This option enables password checking every time the system boots or when you run AMIBIOS Setup. If Always is chosen, a user password prompt appears every time the computer is turned on. If Setup is chosen, the password prompt appears if AMIBIOS is executed.

SShhaarree MMeemmoorryy SSiizzee

This field shows the share memory size available.

Note:32MB Max, if system memory is 128 MB; 64MB Max, if system memory is over128 MB.

The settings are Enabled (default value) or Disabled.

GGrraapphhiicc WWiinn SSiizzee

This field shows the graphic win size available.

 The settings are 32M/64M (default value) 8M/16M/32M/64M /128M .

UUSSBB KKeeyybbooaarrdd//MMoouussee//FFDDDD LLeeggaaccyy SSuuppppoorrtttt

Set this option to Enabled to enable support for older keyboards and mouse devices if the USB Function option is set to Enabled.

 The settings are Enabled (default value) or Disabled.

BBeeeepp OOnn BBoooott

Set this option to Enabled beep sound at POST time.

 The settings are Enabled or Disabled (default value)

- 63 -

KKeeyybbooaarrdd LLaanngguuaaggee IInnppuutt

Set this optios to select keyboard language.

 The settings are Standard (default value) or Brazil-PT

PPrriimmaarryy GGrraapphhiiccss AAddaapptteerr

This is only a display-only item and cannot be altered.

AAGGPP SSeelleecctt

This is only a display-only item and cannot be altered.

TThhee PPeerriipphheerraall SSeettuupp

TTVV DDiissppllaayy TTyyppee

This field allows you to choose the television display option when using the TV out port.

 The settings are PAL, NTSC (default value).

- 65 -

TTVV PPAALL DDiissppllaayy TTyyppee

This field allows you to choose the television PAL system type.

 TThhee sseettttiinnggss aarree PPAALL ((ddeeffaauulltt vvaalluuee)),, PPAALL--MM,, PPAALL--NN..

OOnnBBooaarrdd PPaarraalllleell PPoorrtt

This option specifies the base I/O port address of the parallel port on the motherboard.

 TThhee sseettttiinnggss aarree AAuuttoo,, DDiissaabblleedd,, 337788hh,, 227788hh,, oorr 33BBCChh..

PPaarraalllleell PPoorrtt MMooddee

This option specifies the parallel port mode.

 TThhee sseettttiinnggss aarree NNoorrmmaall,, BBii--ddiirr ((ddeeffaauulltt vvaalluuee)),, EEPPPP oorr EECCPP..

PPaarraalllleell PPoorrtt IIRRQQ

This option specifies the IRQ used by the parallel port. This is only a display-only item and cannot be altered.

 TThhee sseettttiinnggss aarree 55 oorr 77 ((ddeeffaauulltt vvaalluuee))..

PPaarraalllleell PPoorrtt DDMMAA CChhaannnneell

This is only a display-only item and cannot be altered.

CChhaannggee SSuuppeerrvviissoorr PPaasssswwoorrdd

This field allows you to set the Supervisor password. To set the Supervisor password, highlight this field and press the [Enter] key. The following dialog box appears:

Enter new supervisor password:

AAuuttoo CCoonnffiigguurraattiioonn wwiitthh OOppttiimmaall SSeettttiinnggss

The optimal default settings are best-case values that should optimize system performance. To set the configuration, highlight this field and press the [Enter] key. The following dialog box appears:

Load high performance settings [Y/N] ?

SSaavvee SSeettttiinnggss aanndd EExxiitt

This option saves your selections and exit the Setup program.

Save current settings and exit [Y/N] ?

EExxiitt WWiitthhoouutt SSaavviinngg

This option should only be used if you do not want to save the changes you have made to the Setup program.

- 67 -

Quit without saving [Y/N] ?

hee

offtt

Chapter 6

arree

Uttiilliittiieess

Diiss

kss

- 69 -

There are two separate procedures on how to install the

UUSSEERR''SS IINNFFOO::

driver: AutoRun installation and Manual installation.

AAuuttooRRuunn IInnssttaallllaattiioonn

• Follow the step-by-step procedures on the CD-ROM to execute the “AutoRun”

application by selecting the topic of “Driver Installation”.

• To re-run the “AutoRun” installation, please refer to the procedures on the “Manual

Installation” for a more detailed explanation.

IInnssttaalllliinngg VVGGAA DDiissppllaayy DDrriivveerrss ffoorr WWiinn9988//22KK//MMEE//XXPP

Insert the CD-ROM Driver into your CD-ROM/DVD-ROM drive.Click “Start” and Select

11..

“Run”.

Type the following: D:\VGA\Win2K&XP\setup.exe (for Win2K/XP) or

22..

D:\VGA\Win98&ME\setup.exe (for Win98/ME) (If D is not your CD-ROM drive, substitute D with the correct drive letter).

Click on “Setup” to begin the Installation Wizard.

33..

Follow the Wizard’s on-screen instructions to complete the installation.Restart the

44..

system.

IInnssttaalllliinngg HHoottkkeeyy DDrriivveerrss ffoorr WWiinn9988SSEE

function of Internet, Email, Mute/Unmute, Volume.

11..

22..

33..

44..

This driver must be installed into your system to fully utilize the hotkey

Insert the CD-ROM Driver into your CD-ROM drive. Click “Start” and Select “Run”.

Type the following: D:\Utility\Hotkey\Win98\Setup.exe (If D is not your CD-ROM drive, substitute D with the correct drive letter).

Click on “Setup” to begin the Installation Wizard.

Follow the Wizard’s on-screen instructions to complete the installation. Restart the system.

IInnttaalllliinngg tthhee AAuuddiioo DDrriivveerr ffoorr WWiinn9988SSEE//22KK//MMee//XXPP

Insert the CD-ROM Driver into your CD-ROM drive. Click “Start” and Select “Run”.

11..

Type the following: D:\Audio\Setup.exe ( If D is not your CD-ROM drive, substitute D

22..

with the correct drive letter).

Click on “Setup” to begin the Installation Wizard.

33..

Follow the Wizard’s on-screen instructions to complete the installation. Restart the

44..

system.

IInnssttaalllliinngg tthhee TToouucchhPPaadd DDrriivveerr ffoorr WWiinn9988SSEE//22KK//MMee//XXPP

- 71 -

Insert the CD-ROM Driver into your CD-ROM drive. Click “Start” and Select “Run”.

11..

Type the following: D:\Utility\Touchpad\98 & ME\Setup.exe ( for Win98SE/ME) or

22..

D:\Utility\Touchpad\2K &XP\Setup.exe ( for Win2K/XP)(If D is not your CD-ROM drive, substitute D with the correct drive letter)..

Click on “Setup” to begin the Installation Wizard.

33..

Follow the Wizard’s on-screen instructions to complete the installation. Restart the

44..

system.

IInnssttaalllliinngg tthhee EENNEE DDrriivveerr ffoorr WWiinn9988SSEE//22KK//MMee//XXPP

Insert the CD-ROM Driver into your CD-ROM drive. Click “Start” and Select “Run”.

11..

Type the following: D:\keyboard\keyboard\Setup.exe (If D is not your CD-ROM drive,

22..

substitute D with the correct drive letter)..

Click on “Setup” to begin the Installation Wizard.

33..

Follow the Wizard’s on-screen instructions to complete the installation. Restart the

44..

system.

TTM

IInnttaalllliinngg tthhee AAMMDD PPoowweerrNNooww!

Insert the CD-ROM Driver into your CD-ROM drive. Click “Start” and Select “Run”.

11..

Type the following: D:\Utility\AMD PowerNow\Win9X\setup.exe (for Win98SE/ME) or

22..

D:\Utility\AMD PowerNow\Win2K\setup.exe (for Win2K) ( If D is not your CD-ROM drive, substitute D with the correct drive letter).

Click on “Setup” to begin the Installation Wizard.

33..

Follow the Wizard’s on-screen instructions to complete the installation. Restart the

44..

system.

DDrriivveerr ffoorr WWiinn9988SSEE//MMee//22KK

TTM

IInnssttaalllliinngg tthhee AAMMDD PPoowweerrNNooww!

Please follow the instructions of auto-run program to install or,

11..

Refer to Microsoft support web side to install AMD PowerNow!TM Driver for Windows

22..

XP. The web side is http://support.microsoft.com/default.aspx?scid=kb;en-us;306458

DDrriivveerr ffoorr XXPP

- 73 -

MMaannuuaall IInnssttaallllaattiioonn

To install the driver manually, follow the step-by-step procedures described on each individual section for a more clear installation.

IInnssttaalllliinngg tthhee UUSSBB2200 DDrriivveerr ffoorr WWiinn22KK//WWiinnMMEE//WWiinn9988EE

To install the USB20 driver you must first remove the currently installed driver.

Insert the CD-ROM Driver into your CD-ROM/DVD-ROM drive. Click “Start” and Select

11..

“Run”.

Type the following:

22..

D:\USB\USB20.exe (If D is not your CD-ROM/DVD-ROM drive, substitute D with the correct drive letter).

Click on “USB20” to begin the Installation Wizard. Follow the Wizard’s on-screen

33..

instructions to complete the installation.

Restart the system

44..

For using WinXP, SiS recommends users to use Windows XP SP1inbox USB2.0 driver.

automatically to search for a suitable driver. Another is option if you are installing the driver manually where you select from a list of known drivers for your system.

IInnssttaalllliinngg tthhee UUSSBB DDrriivveerr ffoorr XXPP((ffoorr WWiinnXXPP SSPP11))

Please follow these instructions to install the USB driver:

11..

The procedures mentioned above described if you are installing the driver

From your screen, click on the "My Computer" icon and use your mouse or touchpad

right button to select the "Properties" item.

Click on the "Hardware" tab from the "System Properties" dialog window.

22..

Click on the "Other Device" (denoted by a yellow mark symbol), select the "Universal

33..

Serial Bus (USB) Controller".

Click the "Update Driver" tab and select the "Install the software automatically

44..

(Recommended)" item, and select the “Next” .

The system starts to searche and install the USB driver automatically. After the

55..

installation is finished and you click the [Finish] button, you can find “SiS PCI to USB Enhanced Host Controller” under “Universal Serial Bus Controller” directory.

IInnssttaalllliinngg tthhee WWiirreelleessss LLAANN DDrriivveerr ffoorr WWiinn9988//22KK//MMEE//XXPP

To install the Hotkey driver you must first remove the currently installed driver.

Insert the CD-ROM Driver into your CD-ROM/DVD-ROM drive. Click “Start” and Select

11..

“Run”.

Type the following:

22..

D:\Utility\Wireless LAN\Setup.exe (If D is not your CD-ROM/DVD-ROM drive, substitute D with the correct drive letter).

Click on “Setup” to begin the Installation Wizard. Follow the Wizard’s on-screen

33..

instructions to complete the installation.

Restart the system.

44..

The details of this Wireless Lan installation can be found in the D:\

- 75 -

Utility\WirelessLAN\Usermanual\Usermanual.pdf

IInnssttaalllliinngg tthhee LLAANN DDrriivveerr ffoorr WWiinn22KK//WWiinnXXPP

Please follow these instructions to install the LAN driver:

From your screen, click on the "My Computer" icon and use your mouse or touchpad

11..

right button to select the "Properties" item.

Click on the "Hardware" tab from the "System Properties" window.

22..

Click on the “Device Manager” and select the "Ethernet Controller" (denoted by a

33..

yellow mark symbol).

Click the "Update Driver" tab on the “Driver” item and select the “Next”.

44..

Select the “Search for a suitable driver for my device (recommended) and click on the

55..

“Next” item.

Select the “Specify a location”, click on the “Next” item.

66..

Select the "Browse" button and specify for the designate location of your CD driver.

77..

IInnssttaalllliinngg tthhee LLAANN DDrriivveerr ffoorr WWiinn9988SSEE//MMEE

Please follow these instructions to install the LAN driver:

From your screen, click on the "My Computer" icon and use your mouse or touchpad

11..

right button to select the "Properties" item.

Click on the "Device Manager" tab from the "System Properties" window.

22..

Double click on the "PCI Ethernet Controler (for Win98SE) or "Network Adapter" (for

33..

WinME) (denoted by a yellow mark symbol).

Click the "Update Driver" tab tab on the “Driver” item and select the “Next”.

44..

Select the "Specify the location of the driver (Advanced)" item. Select the “Specify a

55..

location”.

Select the "Browse" button and specify for the designate location of your CD driver.

66..

IInnssttaalllliinngg tthhee MMooddeemm DDrriivveerr ffoorr WWiinn22KK//XXPP

Please follow these instructions to install the Modem driver:

From your screen, click on the "My Computer" icon and use your mouse or touchpad

11..

right button to select the "Properties" item.

Click on the "Hardware" tab from the "System Properties" dialog window.

22..

Click on the "Other Device" (denoted by a yellow mark symbol), select the "PCI

33..

Device" (for Win2K) or "PCI Modem" (for WinXP).

Click the "Update Driver" tab and select the "Install from a list or specific location

44..

(Advanced)" item.

Select the “Include this location in the search” item.

55..

Select the "Browse" button from the "Include this location in the search" and specify for

66..

the designate location of your CD driver.

IInnssttaalllliinngg tthhee MMooddeemm DDrriivveerr ffoorr WWiinn9988SSEE//MMEE

- 77 -

Please follow these instructions to install the Modem driver:

From your screen, click on the "My Computer" icon and use your mouse or touchpad

11..

right button to select the "Properties" item.

Click on the “Device Manager” and select the “PCI Card” item. Use your mouse cursor

22..

to double click the “Reinstall Driver” item.

Select the “Specify the location of the driver (Advanced)” and click on the “Specify a

33..

location” item.

Select the "Browse" button from the "Include this location in the search" and specify for

44..

the designate location of your CD driver.

VVGGAA UUttiilliittiieess ffoorr WWiinn9988

After you have restarted Windows, open the “Control Panel” and double click on the “Display” icon. From the “Display Properties” window, select the “Settings” tab and click on the “Advanced” tab to enter the "SiS 740 Properties" window.

You will notice three new entries have been made in the Display Properties window: Display Modes, Video Setting, and 3D Settings.

DDiissppllaayy MMooddeess

The SiS's driver allows five simultaneous outputs to LCD, LCD/CRT, CRT/TV, TV and CRT. Before proceeding, be sure the monitor is connected to the Mobile PC computer.

- 79 -

DDrriivveerr MMooddee

This define the two status of Single , Mirror and Multi Monitor (when an external monitor is connected to your Mobile PC ).

DDiissppllaayy CCoommbbiinnaattiioonn

This applies to the display that you prefer to use. The options are VGA and LCD or TV.

• When the "Single" is selected, the display can only be seen on the Mobile

PC LCD panel or external monitor or TV.

• When the "Mirror" is selected, you can toggle between the LCD and CRT

display or CRT and TV Display. Both the LCD and CRT screen display the same image.

REMINDER:

respectively by removing the  check mark under the "Display Combination" selection field.

The "Auto" tab will serve as additional function of the "Mirror" and "VGA"

• Select the "VGA" if you want the picture to only display on the

monitor screen.

• Select "LCD" if you want the picture to only display on the Mobile

PC screen.

• Select "TV" if you want the picture to only display on the Mobile PC

screen.

Use the [Fn] + [F12] hot keys to toggle between the LCD and external

monitor display. If you prefer to use only one display in operating your system, press the [Fn] + [F12] hot keys will shut down the LCD display, external monitor display or both at this random order.

OPTION:

Single

This function will only show one single display whether it be on your Mobile PC or external monitor.

OPTION: Mirror (Simultaneous Display)

This function supports two simultaneous display paths with the features of LCD/CRT or CRT/TV).

Click on the “Control Panel” and double click on the “Display” icon. Click

11..

on the “Settings” tab to enter the “Display Properties” window. Click on the “Advanced” button.

From the “SiS 740 Properties” window, click on the “Display Modes” tab

22..

Select the "VGA" or "LCD" or ”TV” tab by clicking on the button to enable

33..

and connect the video display to the external CRT screen.

Click on the “Apply” tab and you will be ask to keep the new setting. The

44..

Mobile PC and external monitor/TV screen will now simultaneously display the same image.

OPTION:

Multi-Monitor

"Multi-Monitor" is only applicable when the function of "Dual View" is being access. This function will only be available if an external monitor is connected to your Mobile PC computer.

Use this to achieve a large desktop display on a small size screen. To do this:

 Adjust the screen resolution by increasing the desktop area in the “Display

Area”.

 Use your touch pad or mouse cursor to point at any area of the screen to

move the window screen to a larger view.

To achieve the “Dual View” function, follow the procedures below:

1 Click on the “Control Panel” and double click on the “Display” icon. Click

- 81 -

on the “Settings” tab to enter the “Display Properties” window.

2 Use the cursor to click on the Monitor “2” screen

on the sub-screen of the “Display Properties” window.

3 A message is shown on your screen to ask you

whether to enable the monitor that you have chosen. Click “Yes” to accept the change.

4 Click the “Apply” tab to run the function and restart the computer.

5 After the system has restarted, your Mobile PC LCD screen and the

external monitor screen are connected with each other.

6 From the LCD display, open the “Display Properties” and use the cursor to

drag it to the right thus moving the image to the external monitor screen.

VViiddeeoo SSeettttiinngg

From the "Setting", you can also adjust the video of your display to overlay, contrast or brightness.

- 83 -

33DD SSeettttiinnggss

This setting lets you modify the 3D display performance.

DD33DD

GGaammmmaa CCoorrrreeccttiioonn

You can adjust the right color for your window screen by moving the “Brightness” adjustment window to increase or decrease the right resolution for your screen display.

Modify the speed and quality of your 3D display.

- 85 -

WWiinnddoowwss 22000000//XXPP VVGGAA UUttiilliittiieess

You will notice four new entries have been made in the "Utility Manager" window: Gamma Correction, Video Setting, Driver Mode Setting and Product File Information.

GGaammmmaa CCoorrrreeccttiioonn

You can adjust the right color for your window screen by moving the “Tint” adjustment window. Adjust the "Brightness" to increase or decrease the right resolution for your screen display.

VViiddeeoo SSeettttiinngg

- 87 -

This dialog box has the following scroll bars and buttons for controlling the color components of the video image.

BBrriigghhttnneessss

Use this scroll bar to adjust the overall intensity of light emitted by the video display.

CCoonnttrraasstt

Use this scroll bar to adjust the contrast level between the bright and dark areas of the video image. The higher the contrast, the brighter the bright areas and the darker the dark areas, and vice versa.

DDrriivveerr MMooddee SSeettttiinnggss

The SiS's driver allows five simultaneous outputs to LCD, LCD/CRT, CRT/TV, TV and CRT. Before proceeding, be sure the monitor is connected to the Mobile PC computer.

- 89 -

DDrriivveerr MMooddee

This define the three status of Single , Mirror and Multi Monitor (when an external monitor is connected to your Mobile PC ).

DDiissppllaayy CCoommbbiinnaattiioonn

This applies to the display that you prefer to use. The options are VGA and LCD and TV.

REMINDER:

"VGA1" respectively by removing the  check mark under the "Display Combination" selection field.

• When the "Single" is selected, the display can only be seen on the

Mobile PC LCD panel or external monitor or TV.

• When the "Mirror" is selected, you can toggle between the LCD and

CRT display or CRT and TV Display. Both the LCD and CRT screen display the same image.

The "Auto" tab will serve as additional function of the "Mirror" and

• Select the "VGA" if you want the picture to only display on the

monitor screen.

• Select "LCD" if you want the picture to only display on the Mobile

PC screen.

• Select "TV" if you want the picture to only display on the Mobile PC

screen.

monitor display .

If you prefer to use only one display in operating your system, press the [Fn] + [F12] hot keys will shut down the LCD display, external monitor display or both at this random order.

Option 1:

This function will only show one single display whether it be on your Mobile PC or external monitor or TV.

Option 2:

This function supports two asynchronous simultaneous display paths with the features, LCD/CRT or CRT/TV).

1. Select the "VGA" or "LCD" or “ TV” tab by clicking on the button on "Primary"

and "Secondary" to enable and connect the video display to the external CRT or TV screen.

Use the [Fn] + [F12] hot keys to toggle between the LCD and external

Single

Mirror (Simultaneous Display)

2. Click on the “Apply” tab and you will be ask to keep the new setting. The Mobile PC and external monitor/TV screen will now simultaneously display the same image.

Option 3:

"Multi-Monitor" is only applicable when the function of "Dual View" is being access. This function will only be available if an external monitor is connected to your Mobile PC.

Multi-Monitor

- 91 -

Chapter 7

Trr

ubblleess

ottii

ngg

- 93 -

This chapter describes locating and solving problems that you may encounter while using your computer.

LLooccaattiinngg aa PPrroobblleemm

Problems with your computer can be caused by something as minor as an unplugged power cord – or as major as a damaged hard disk. The information in this chapter is designed to help you find and solve minor problems. If you try all the suggested solutions and you still have a problem, make a list of what steps you have taken to correct the problem and contact your dealer.

Successful troubleshooting is the result of careful observation, deductive reasoning, and an organized approach to solving the problem.

The problems that you will encounter can be divided into two basic categories: hardware problems and software problems. Hardware problems can be further divided into electrical and mechanical problems. You will know you have a hardware problem if the screen is dark, the computer cannot read the disk drives, or you get an error message during the Power-On Self Test (POST).

Software errors can occur at several levels. The ROM BIOS and the operating system can give you a large number of error messages. On top of this, each application software package has its own set of error messages. It is important to determine whether the software error message you are getting is from the application or the operating system. Once you know this, you can look in the respective manual for a solution to the problem.

CChheecckkiinngg CCaabblleess aanndd CCoonnnneeccttiioonnss

Start by performing a careful visual inspection of the exterior of the computer. If no LEDs are illuminated, make sure that your computer and its peripherals are getting power and communicating with each other properly.

To check the power cables, and connections:

If you have been using battery power, connect the Mobile PC to an external

11..

power source and make sure that the battery has a charge.

If you are using the Mobile PC with the AC adapter, check the power outlet,

22..

the power cord, and any power switches that may affect your computer.

• Check the wall outlet or power strip with an item that you know is

functioning properly. A lamp or radio is a convenient item for checking the power. You may also need to check the fuses and breakers in your electric box.

• If the outlet is controlled by a wall switch, make sure that the switch is on.

• If the outlet is controlled by a dimmer switch, use a different outlet.

• If your computer is plugged into a power strip with an On/Off switch, make

sure the switch is on.

With the computer’s power switched off, check all cable connections. If the

33..

computer is connected to any peripheral devices, look for loose or disconnected cables.

If the computer is too close to a wall, a cable connection may be loose or the cables may be crimped.

Do not substitute cables for different devices (other than the manufacturer recommended cables) even if they look exactly alike. The wiring inside the cable may be different.

When you are certain that you have power available and all connections are

44..

good, turn the computer on again. If the computer still does not start, you may have a hardware problem.

- 95 -

TThhee PPoowweerr--OOnn SSeellff TTeesstt

The Power-On Self Test (POST) runs every time you turn on or reset the Mobile PC. The POST checks memory, the main system board, the display, the keyboard, the disk drives, and other installed options.

A few seconds after you turn on your computer, a copyright message appears on your display screen. A memory test message appears next; as the test continues, memory size increases until all installed memory is tested. Normally, the only test routine visible on the screen will be the memory test.

Two classifications of malfunctions can be detected during the POST:

• Error messages that indicate a failure with either the hardware, the

software, or the Basic Input/Output System (BIOS). These critical malfunctions prevent the computer from operating at all or could cause

incorrect and apparent results. An example of a critical error is microprocessor malfunction.

• Messages that furnish important information on the power-on and boot

processes (such as memory status). These non-critical malfunctions are those that cause incorrect results that may not be readily apparent. An example of a non-critical error would be a memory chip failure.

In general, if the POST detects a system board failure (a critical error), the computer halts and generates a series of beeps. If failure is detected in an area other than the system board (such as the display, keyboard, or an adapter card) an error message is displayed on the screen and testing is stopped. It is important to remember that the POST does not test all areas of the computer, only those that allow it to be operational enough to run diagnostic programs.

If your system does not successfully complete the POST, but displays a blank screen, emits a series of beeps, or displays an error code, consult your dealer.

GGeenneerraall HHaarrddwwaarree PPrroobblleemmss

A few common hardware problems and suggested solutions are presented in the table below:

Problem:

Solution:

Problem:

Solution:

Problem:

Solution:

Problem:

FFaaiilluurree iinn tthhee iinnssttaallllaattiioonn ooff tthhee AAuuddiioo ddrriivveerr..

Be sure to first remove the current audio device from your system. Please follow the instruction on the installation of audio driver.

TThhee ddiissppllaayy ssccrreeeenn iiss ddaarrkk

Make sure that the computer is not in Suspend mode. Check the Brightness controls for the screen. If the controls are turned too far down, the screen will be dark.

AAnn iinnccoorrrreecctt ddaattee aanndd ttiimmee aarree ddiissppllaayyeedd..

Correct the date and time using the DOS DATE and TIME commands or the options in the Setup Utility. If the date and time become incorrect after a short time, your CMOS battery may be depleted. Contact your dealer to change the battery.

TThhee mmeessssaaggee:: ““IInnvvaalliidd ssyysstteemm ddiisskk,, RReeppllaaccee tthhee ddiisskk,, aanndd tthheenn pprreessss aannyy kkeeyy”” aappppeeaarrss dduurriinngg bboooott..

Solution:

Problem:

Check and make sure that you do not have a non-bootable floppy diskette inserted in your floppy drive. If your USB FDD is empty, you may not have an operating system installed on your drive. Contact technical support for assistance.

YYoouu hheeaarr iirrrreegguullaarr bbeeeeppss dduurriinngg ooppeerraattiioonn ooff tthhee MMoobbiillee PPCC

- 97 -

Solution:

Problem:

Solution:

Problem:

Solution:

Problem:

Solution:

Problem:

aanndd tthhee ssyysstteemm hhaallttss..

The problem is beyond the scope of this manual. Contact technical support.

AAnn uunniiddeennttiiffiieedd mmeessssaaggee iiss ddiissppllaayyeedd..

Reboot the computer and run the BIOS system setup. Confirm the Setup parameters. If the same message is displayed after booting up again, contact technical support for assistance.

TThhee ssyysstteemm ccaannnnoott aacccceessss tthhee CCDD--RROOMM//DDVVDD--RROOMM ddrriivvee..

Check that a CD is properly inserted in the drive. Make sure that you are using the correct program for that kind of CD. For example, the system cannot read a data CD using an audio program.

YYoouu ccaannnnoott ooppeerraattee tthhee pprriinntteerr..

Check the printer cable connection. Ensure that the printer power switch is turned on. Confirm that the printer is on-line.

YYoouu ccaann’’tt ssaavvee ddaattaa ttoo ddiisskk..

Solution:

Problem:

Solution:

Problem:

Ensure that the disk has been formatted. Consult your operating system manual for information on formatting floppy diskettes.

TThhee ddiisskkeettttee iiss wwrriittee--pprrootteecctteedd..

Eject the diskette, remove the write protection, and try again.

TThhee ddiisskkeettttee iiff ffuullll..

Elitegroup A535 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Power On

Battery Charge

Suspend Mode
