Elitegroup A40II User Manual

Preface



notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer.

In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.

This document contains proprietary information protected by copyright. All rights are reserved. No part of this manual may be reproduced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer.

Limitation of Liability

While reasonable efforts have been made to ensure the accuracy of this manual, the manufacturer and distributor assume no liability resulting from errors or omissions in this manual, or from the use of the information contained herein.

Notices

Federal Communications Commission Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and if not installed and used in accordance with the instruction manual may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

 Reorient or relocate the receiving antenna  Increase the separation between the equipment and receiver  Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected Consult the dealer or an experienced radio TV technician for help This device complies with Part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

Notice:

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Shielded interface cables and a nonshielded AC power cord must be used in order to comply with emission limits.

This equipment is to be used with power supply: 65W There is no internal power supply.

Table of Content

BEFORE YOU START ............................................................................... 8

LET YOUR COMPUTER ACCLIMATE ITSELF ............................................ 14

HEAT, COLD, HUMIDITY, AND GLARE .................................................. 15

SUITABLE PLACE TO WORK ................................................................. 15

INTRODUCTION...................................................................................... 17

OPENING THE LCD PANEL ................................................................. 17

LEFT VIEWS ...................................................................................... 19

RIGHT VIEW ...................................................................................... 20

REAR VIEW ....................................................................................... 21

BOTTOM VIEW ................................................................................... 22

GETTING STARTED ............................................................................... 24

CONNECTING THE AC ADAPTER ......................................................... 24

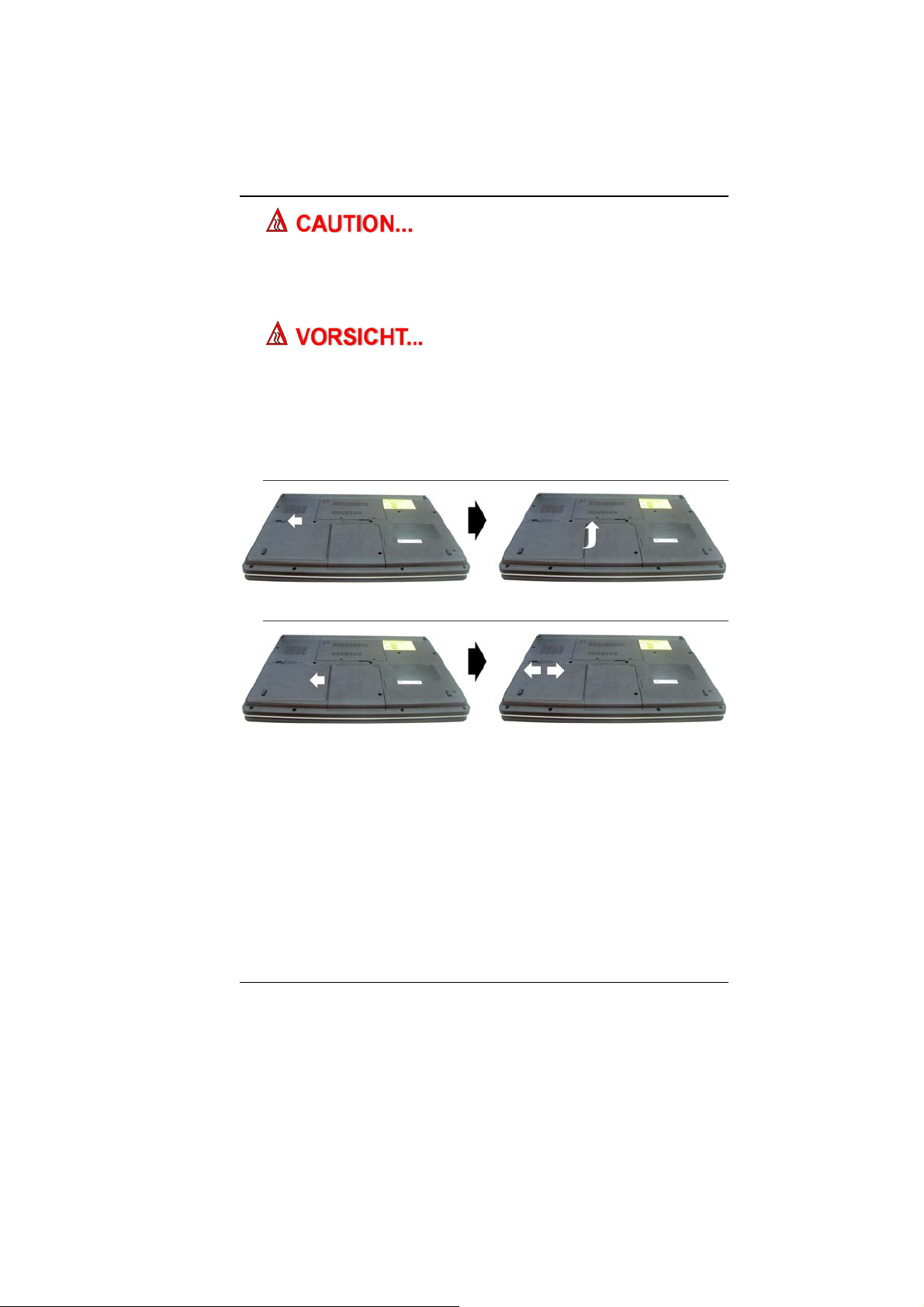

TO INSTALL THE BATTERY PACK: ........................................................ 26

USING THE NOTEBOOK COMPUTER ....................................................... 28

LCD CARE ........................................................................................ 28

EXTERNAL CRT DISPLAY ................................................................... 28

FUNCTION KEYS (QUICK KEYS) .......................................................... 29

TOUCHPAD PRECAUTIONS ................................................................. 29

FEATURES OF THE DVD DUAL/SUPERMULTI ....................................... 29

PRECAUTIONS FOR HANDLING CD DISCS ........................................... 30

LOADING A DISC ................................................................................ 30

THE BATTERY POWER SYSTEM .......................................................... 31

PREPARING THE BATTERY PACK FOR USE (BATTERY CALIBRATION) .... 31

AUTOMATIC BATTERY PACK CHARGING FUNCTION .............................. 32

BATTERY STATUS .............................................................................. 32

BATTERY LOW WARNING ................................................................... 33

SMALL BATTERY FOR THE REAL TIME CLOCK ...................................... 33

HELP WINDOWS ................................................................................ 34

DESKTOP .......................................................................................... 34

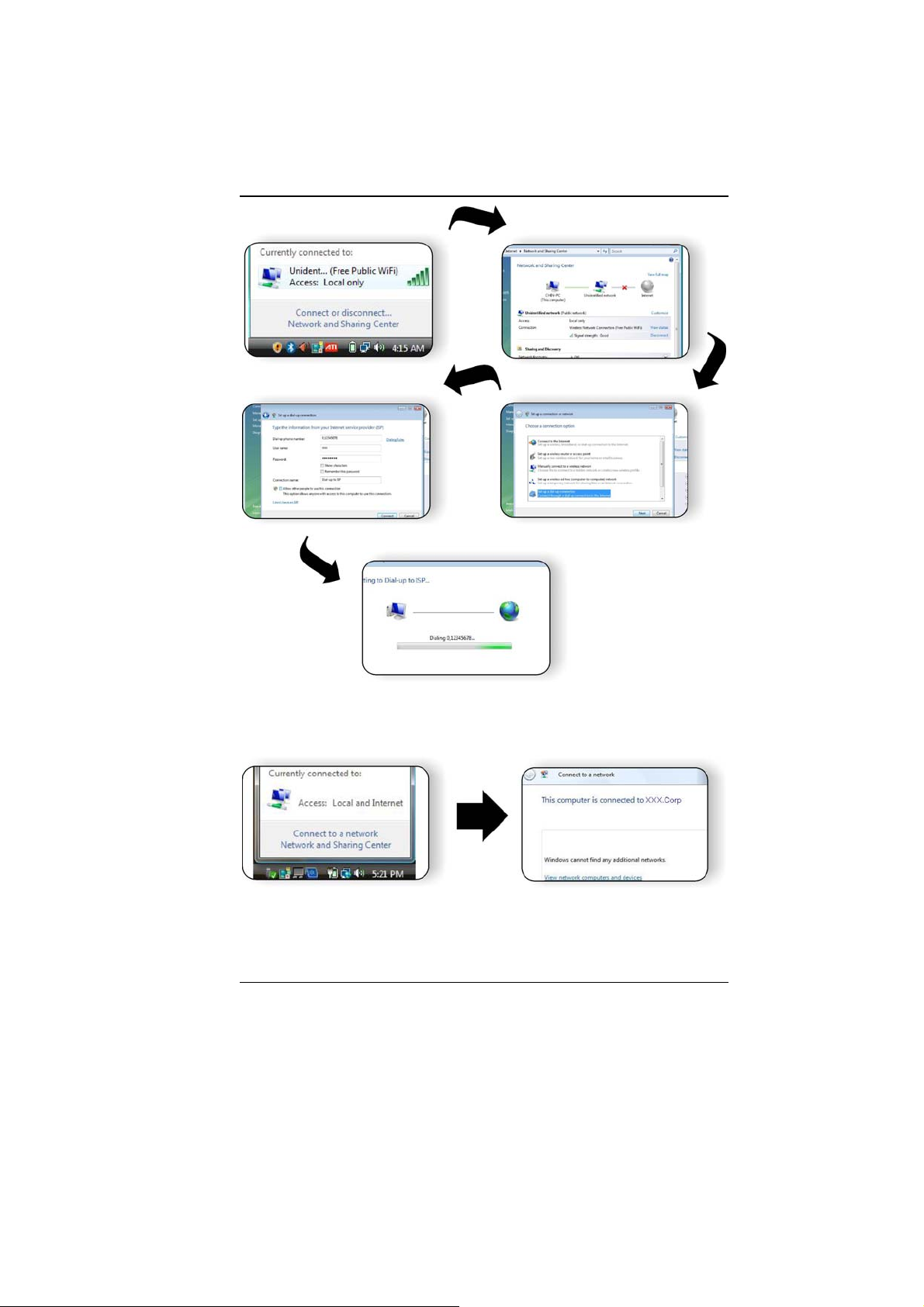

INTERNET CONNECTION ........................................................................ 39

RUNNING BIOS SETUP ......................................................................... 43

INFO SETUP ...................................................................................... 44

iii

MAIN SETUP ..................................................................................... 45

ADVANCED SETUP ............................................................................. 46

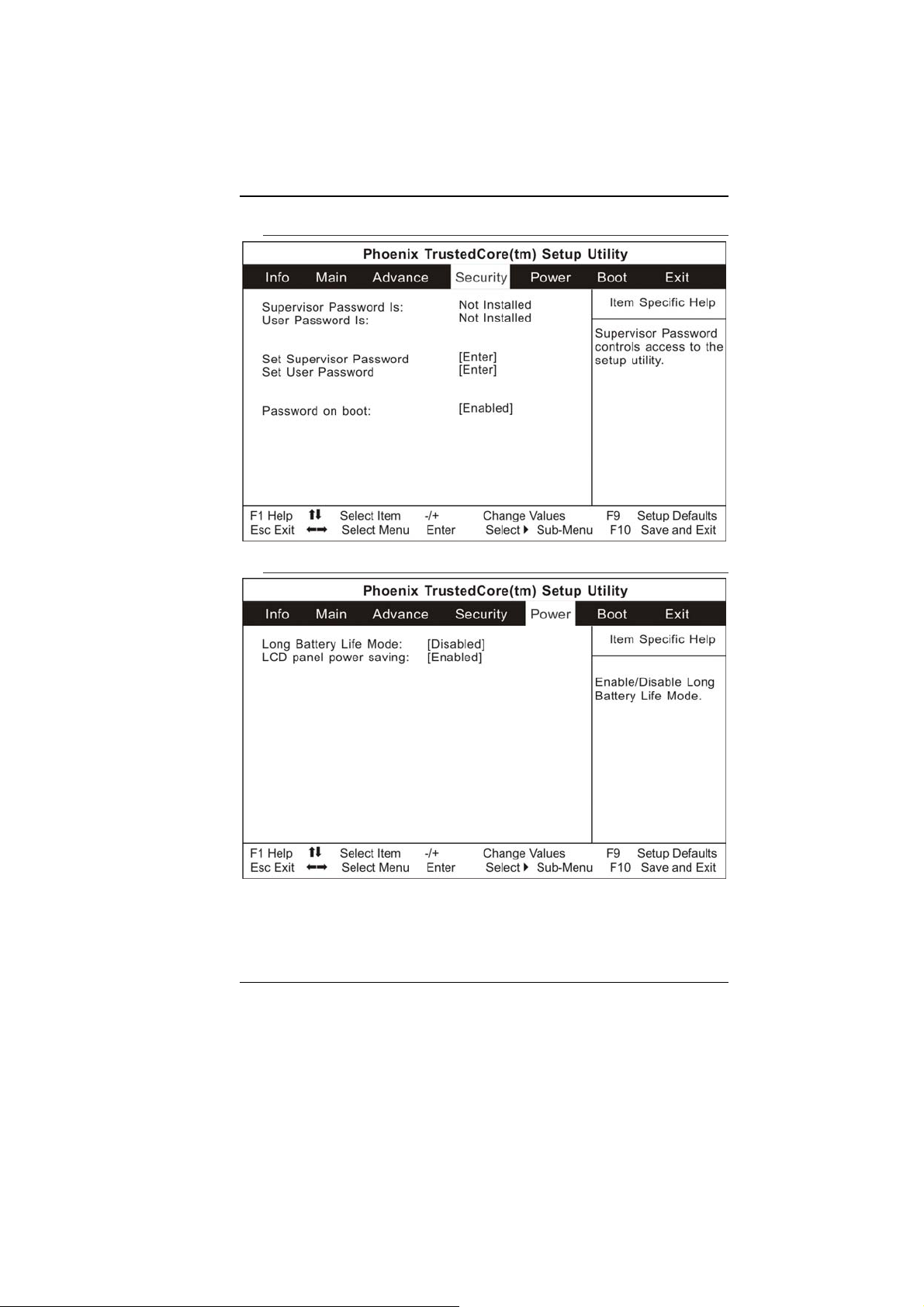

SECURITY ......................................................................................... 47

POWER SETUP .................................................................................. 47

BOOT SETUP ..................................................................................... 48

EXIT SETUP ...................................................................................... 49

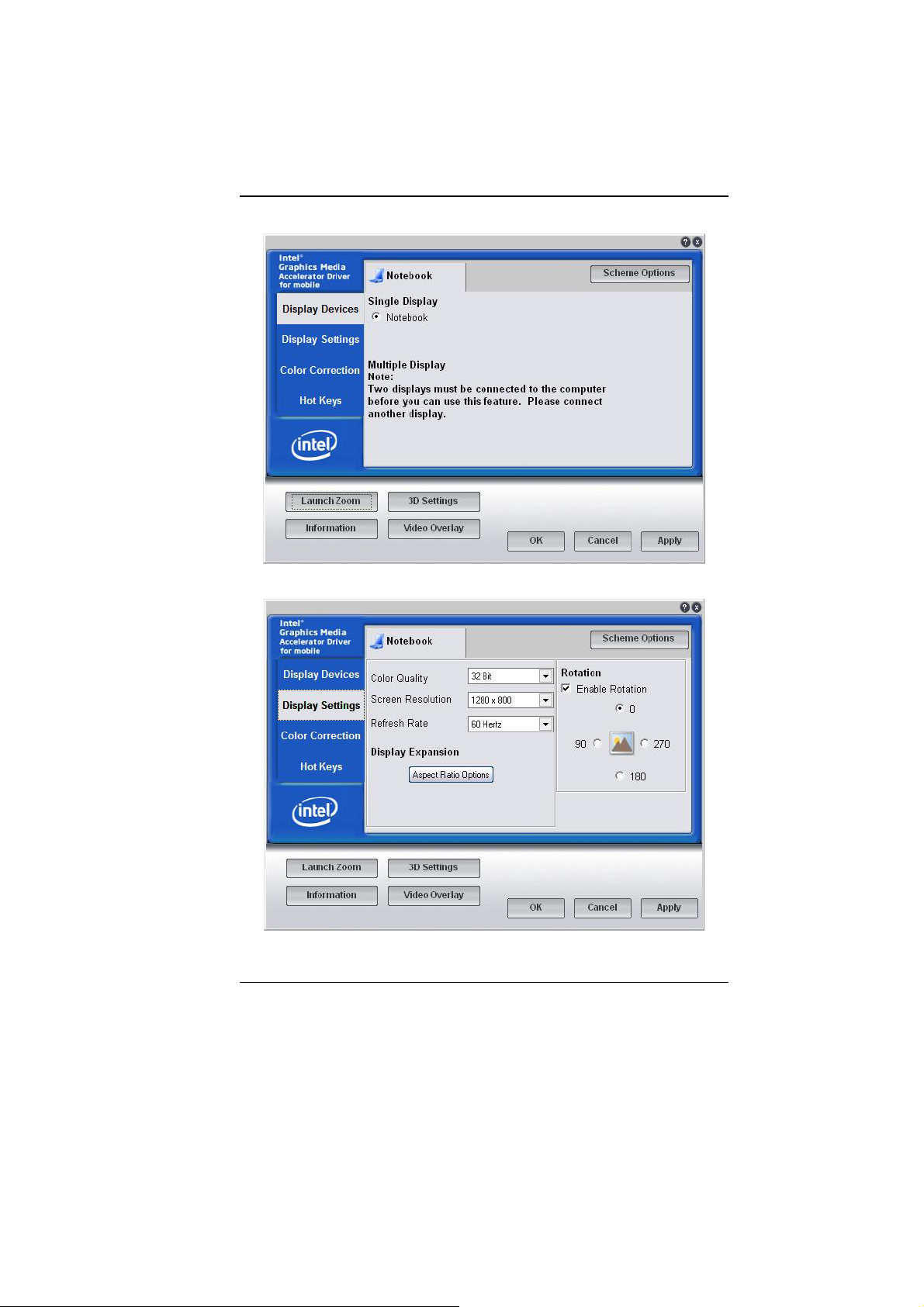

VGA UTILITIES ..................................................................................... 51

TROUBLESHOOTING .............................................................................. 57

NO SPEAKER OUTPUT - ...................................................................... 58

SOUND CANNOT BE RECORDED - ........................................................ 58

THE HARD DISK DRIVE DOES NOT WORK OR IS NOT RECOGNIZABLE ....... 59

THE HARD DRIVE IS MAKING ABNORMAL WHINING NOISES ..................... 59

THE HARD DISK DRIVE HAS REACHED ITS CAPACITY ............................. 59

THE HARD DISK TAKES LONGER TO READ A FILE ................................... 60

THE FILES ARE CORRUPTED ............................................................... 60

THE OPTICAL DRIVE DOES NOT WORK ................................................. 60

THE DRIVE DOSE NOT READ ANY DISKS ............................................... 60

THE DISK CANNOT BE EJECTED ........................................................... 60

THE COMBO OR DVD RW DRIVE (OPTIONAL DEVICE) CANNOT RECORD 60

THE DISPLAY PANEL IS BLANK WHEN THE SYSTEM IS TURNED ON .......... 61

THE SCREEN IS DIFFICULT TO READ - .................................................. 61

THE SCREEN FLICKERS - .................................................................... 61

THE BUILT-IN TOUCH PAD PERFORMS ERRATICALLY - ........................... 61

THE BUILT-IN KEYBOARD ACCEPTS NO INPUT - ..................................... 61

THE CHARACTERS ON THE SCREEN REPEAT WHILE I TYPE. ................... 61

A MESSAGE “CMOS CHECKSUM FAILURE” DISPLAYS DURING THE

BOOTING PROCESS OR THE TIME

(CLOCK) RESETS WHEN BOOTING ....... 62

THE POST DOES NOT SHOW AN INCREASED MEMORY CAPACITY WHEN

YOU HAVE ALREADY INSTALLED ADDITIONAL MEMORY

.......................... 62

THE O/S ISSUES AN INSUFFICIENT MEMORY ERROR MESSAGE DURING

OPERATION

....................................................................................... 62

PC CARDS DO NOT FUNCTION- ........................................................... 62

THE PC CARD CANNOT BE RECOGNIZED - ........................................... 63

WINDOWS CRASHES OR FREEZES WHEN YOU REMOVE THE PC CARD- .. 63

THE COMPUTER BECOMES HOT - ........................................................ 63

THE PROGRAM APPEARS STOPPED OR RUNS VERY SLOWLY - ............... 63

THE USB DEVICE DOES NOT WORK - .................................................. 64

SPECIFICATION ..................................................................................... 66

BBeeffoorree yyoouu SSttaarrtt

CCoonnvveennttiioonnss ooff TThhiiss MMaannuuaall

Use this manual will help you get the most from your notebook computer.

 If you are an experienced user of computers and/or Microsoft’s

Windows operating systems, you might find it useful to read the Quick Start Guide that comes along with your accessories.

 If you are a less experienced user, you should through the

manual carefully before using your system.

Whether or not you are an experienced user, you should consult on the Troubleshooting Chapter if you encounter any problems with your notebook.

SSaaffeettyy PPrreeccaauuttiioonnss

This section is designed to assist you in identifying potentially unsafe conditions while working with this product. Required safety features have been installed in the computer to protect you from injury. However, you should use good judgment to identify potential safety hazards:

1. Please read these safety instructions carefully.

2. Please keep this User's Manual for later reference.

3. Please disconnect this equipment from AC outlet before

cleaning. Don't use liquid or sprayed detergent for cleaning. Use moisture sheet or cloth for cleaning.

4. For pluggable equipment, that the socket-outlet shall be

installed near the equipment and shall be easily accessible.

5. Please keep this equipment from humidity.

6. Lay this equipment on a reliable surface when installed. A

drop or fall could cause injury.

7. Make sure to use the right voltage for the power source when

connecting the equipment to the power outlet.

8. Place the power cord in such a way that people can not step

on it. Do not place anything on top of the power cord.

9. All cautions and warnings on the equipment should be noted.

10. If the equipment is not use for a long time, disconnect the

equipment from the main power outlet to avoid being damaged by transient overvoltage.

11. Never pour any liquid into the opening, this could cause fire or

electrical shock.

12. Never open the equipment. For safety reason, the equipment

should only be opened by a qualified service personnel.

13. If on the following situations arises, get the equipment

checked by a service personnel:

a. The Power cord or plug is damaged. b. Liquid has penetrated into the equipment. c. The equipment has been exposed to moisture. d. The equipment has not worked well or you cannot get it

work according to the user's manual.

e. The equipment has dropped and damaged. f. If the equipment has obvious sign of breakage.

14. Do not leave this equipment in an environment unconditioned,

storage temperature above 60C (140f), it may damage the equipment.

15. The unit can be operated at an ambient temperature of max.

35C.

16. The sound pressure level at the operators position according

to IEC 704-1: 1982 is equal or less than 70 dB(A).

17. Power Cord Requirements

The power cord set used with the AC adaptor must meet the requirements of the country where you use the AC adaptor, whether it is 100-120 or 200-240 Vac. The following information explains the requirements for power cord set selection.

 The cord set must be approved for the country in

which it is used.

 The appliance coupler must have a configuration for

mating with a CEE22/EN6032/IEC 320 appliance inlet.

A. For U.S. and Canada:

 The cord set must be UL Listed and CSA Certified.

 The minimum specifications for the flexible cord are

No. 18 AWG, (2) Type SJ, and (3) 3-conductor.

B. For Japan:

 All components of the cord set must bear a “PSE” or

“ T ” mark and registration number in accordance with the Japanese Dentori Law.

 The minimum specifications for the flexible cord

are .75m ㎡ conductors, (2) Type VCT or VCTF, and (3) 3-conductor.

 The cord set must have minimum rated current

capacity of 7 A.

 The attachment plug must be a two-pole, grounded

type with a Japanese Industrial Standard C8303 (15 A, 125 VAC) configuration.

C. For Other Countries:

 The cord set fittings must bear the certification mark

of the agency responsible for evaluation in a specific country.

 The flexible cord must be of a HAR (harmonized)

type H03VV-F.

 The cord set must have a current capacity of a least

2.5 Amperes and voltage rating of 125 or 250 Vac.

CAUTION: MODEL A40II1 (x0~9) IS DESIGNED TO USE WITH THE FLLOWING AC ADAPTER MODEL ONLY

Manufacture: LISHIN INTERNATIONAL ENTERPRISE CORP. Model no.: 0335C2065 1A225R Manufacture: Delta Electronics, Inc. Model no.: ADP-65HB 1A225R LF

18. When using your telephone equipment, basic safety

precautions should always be followed to reduce the risk of fire, electric shock and injury to persons. These precautions includes the following:

 Do not use this product near water, for example, near a

bathtub, washbowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool.

 Avoid using a telephone (other than a cordless type)

during an electrical storm. There may be a remote risk of electric shock from lightning.

 Do not use the telephone to report a gas leak in the

vicinity of the leak.

 Use only the power cord indicated in this manual.

19. Do not use the AC adapter near open water or other liquids.

Never spill liquid into the AC adapter.

20. Laser Warning: Laser Class I Product Caution - Invisible laser

radiation when open avoid exposure to beam.

21. The optical drive used with this computer is certified as a

Class1 laser device according to the U.S. Department of Health and Human Services (DHHS) Radiation Performance Standard and International Standards IEC 60825-1 (EN60825-

1). The device is not considered harmful, but the following precautions are recommended:

 Do not open the unit.  Avoid direct exposure to the laser beam.  If the unit requires service, contact an authorized

service center.

 Ensure proper use by reading and following the

instructions carefully.

 Do not attempt to make any adjustment of the unit.

CCllaassss 11 LLaasseerr PPrroodduucctt AAppppaarreeiill AA LLaasseerr DDee CCllaassssee 11 LLaasseerrsscchhuuttzzkkllaassssee 11 PPrroodduukktt

the cabinet containing the laser. The laser beam used in this product is harmful to the eyes. The use of optical instruments, such as magnifying lenses, with this product increase the potential hazard to your eyes. For your safety, have this equipment serviced only by an authorized service provider.

22. Danger of explosion if battery is incorrectly replaced. Replace

only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions. Never remove the battery pack while the power is on as this may result in data loss when the system loses power.

23. The input receptacle is used as the main disconnecting device.

When you see this symbol, be careful as this spot may be very hot.

Do not attempt to disassemble

This part is hot. Be careful. Diese Flachewird sehr heiss.

WWiicchhttiiggee SSiicchheerrhheeiittsshhiinnwweeiissee

1. Bitte lesen Sie diese Hinweis sorgfältig durch.

2. Heben Sie dirse Anleitung für den späteren Gebrauch auf.

3. Vor jedem Reinigen ist das Gerät vom Stromnetz zu trennen.

Versenden Sie Keine Flüssig- oder Aerosolreiniger. Am besten eignet sich ein angefeuchtetes Tuch zur Reinigung.

4. Die Netzanschluβsteckdose soll nahe dem Gerät angebracht

und leicht zugänglich sein.

5. Das Gerät ist vor Feuchtigkeit zu schützen.

6. Bei der Aufstellung des Gerätes ist auf sicheren Stand zu

achten. Ein Kippen oder Fallen könnte Beschädigungen hervorrufen.

7. Beachten Sie beim Anschluß an das Stromnet die

Anschlußwerte.

8. Verlegen Sie die Netzanschlußleitung so, daß niemand

darüber fallen kann. Es sollte auch nichts auf der Leitun abgestellt werden.

9. Alle Hinweise und Warnungen, die sich am Gerät befinden,

sind zu beachten.

10. Wird das Gerät üeinen längeren Zeitraum nicht benutzt,

sollten Sie es vom Stromnetz trennen. Somit wird im Falle einer Überspannung eine Beschädigung vermieden.

11. Durch die Lüftungsöffnungen dürfen niemals Gegenstände

oder Flüssigkeien in das Gerät gelangen. Dies könne einen Brand bzw. Elektrischen Schlag auslösen.

12. Öffnen Sie niemals das Gerät. Das Gerät darf aus Gründen

der elektrischen Sicherheit nur von authorisiertem Servicepersonal geöffnet werden.

13. Wenn folgende Situationen auftreten ist das Gerät vom

Stromnetz zu trennen und von einer qualifizierten Servicestelle zu Überprüfung.:

a. Netzlabel oder Netzstecker sind beschädigt. b. Flüssigkeit ist in das Gerät eingedrungen. c. Das Gerät war Feuchtigkeit ausgesetzt. d. Wenn das Gerät nicht der Bedienungsanleitung entsprechend

funktioniert oder Sie mit Hilfe dieser Anleitung keine Verbesserung erzielen.

e. Das Gerät ist gefallen und/oder das Gehäuse ist besc hädigt. f. Wenn das Gerät deutliche Anzeichen eines Defektes aufweist.

14. VORSICHT: Explosiongsgetahr bei unsachgemäßen

Austausch der Batterie. Ersatz nur durch denselben oder

einem vom Hersteller empfohlenem ähnlichen Typ. Entsorgung gebrauchter Batterien nach Angaben des Herstellers.

15. Dieses Schaltnetzteil kann bis zu einer Außentemperatur von

maximal 35ºC.

16. Die Ausgangswerte dürfen nicht die auf dem Label

angegebenen Werte überschreiten.

17. Anforderungen an das Stromkabel

Das Kabel-Set, das an das Netzteil angeschlossen wird, muss den Anforderungen des Landes, in dem Sie das Netzteil einsetzen, genügen, je nachdem, ob die Netzspannung 100120 oder 200-240V Wechselspannung beträgt.

 Das Kabel-Set muss für das Land, in dem es

eingesetzt wird, zugelassen sein.

 Der Gerätestecker des Kabels muss in eine CEE22/

EN603/IEC 320 Buchse passen.

A. Für die USA und Kanada:

 Das Kabel-Set muss UL-gelistet und CSA zertifiziert

sein.

 Die Minimalanforderungen für das Kabel

entsprechen No. 18 AWG.

B. Für Japan:

 Alle Teile des Kabel-Sets müssen entsprechend

dem japanischen Dentori Law mit einem „PSE“ or „T”-Symbol markiert sein

 Die Minimalanforderungen für das Kabel sind .75m

㎡ Leiter.

C. Für andere Länder:

 Die Zubehörteile des Kabel-Sets müssen das

Prüfsiegel derjenigen Stelle, die in dem jeweiligen Land für die Sicherheitsprüfung zuständig ist, tragen.

 Das Kabel muss vom HAR (harmonisierten) Typ

H03VV-F sein.

 Das Kabel-Set muss eine Stromkapazität von

mindestens 2,5 Ampere haben und Spannungen von 125 oder 250 V Wechselstrom gestatten.

ACHTUNG: Mit dem A40II1(x=0~9) muss ein AC-Adapter folgenden Modells verwendet werden

Hersteller: Li Shin International Enterprise Corp. Modell: 0335C2065 1A225R

Hersteller: Delta Electronics, Inc Modell: ADP-65HB 1A225R LF

18. Bei der Benutzung Ihres Telefongerätes sollten Sie immer die

grundlegenden Sicherheitsmaßnahmen beachten, um das Risiko von Feuer, Stromschlägen und Verletzungen zu minimieren. Zu beachten sind u.a. folgende Punkte:

 Benutzen Sie das Gerät nicht in der Nähe von Wasser,

wie zum Beispiel Badewanne, Waschbecken, Spülbecken, Waschbottich, in feuchten Kellerräumen oder in der Nähe von Schwimmbecken.

 Benutzen Sie kein Telefon (ausgenommen schnurlose

Modelle) während eines Gewitters. Es besteht das geringe Restrisiko eines Blitzschlages.

 Benutzen Sie das Telefon nicht um ein Gasleck zu

melden, falls es sich in der Nähe des Lecks befindet.

 Benutzen Sie nur solch ein Stromkabel, wie in dieser

Anleitung beschrieben.

19. Benutzen Sie das Netzteil nicht in unmittelbarer Nähe zu

Wasser oder anderen Flüssigkeiten. Gießen Sie nie Flüssigkeiten über das Netzteil.

20. Achtung Laser: Laser Produkt der Klasse I. Achtung -

Unsichtbarer Laserstrahl, vermeiden Sie Kontakt mit dem Strahl bei offenem Gehäuse.

21. Es besteht Explosionsgefahr, wenn der Akku nicht

ordnungsgemäß ersetzt wird. Ersetzen Sie den Akku nur durch einen Akku gleichen oder äquivalenten Typs, der vom Hersteller empfohlen wird. Entsorgen Sie Akkus entsprechend den Anweisungen des Herstellers. Entfernen Sie den Akku auf keinen Fall bei eingeschaltetem Notebook, da hierdurch Daten verloren gehen könnten.

22. Der Netzeingabeanschluss dient als Hauptschalter des Geräts.

TThhiinnggss yyoouu mmuusstt rreemmeemmbbeerr bbeeffoorree wwoorrkkiinngg oonn yyoouurr ccoommppuutteerr

Let your computer acclimate itself

Your notebook can easily stand temperature extremes but it doesn’t like rapid changes in temperature, like going from the cold outdoors to a warm office.

Rapid changes in temperature can cause water droplets to condense inside your case, threatening to damage the electronic

parts inside. After receiving your notebook when it’s hot or cold outside, try not

to power up the computer immediately, let the computer adjust to the room temperature gradually at least for three to four hours.

If your system arrives in cold weather, do not apply power to the computer or monitor until they have been allowed to come to room temperature.

Heat, Cold, Humidity, and Glare

Find a suitable place for your computer that’s not too hot, too cold, too dark, or too bright. Glare can make it hard to read the screen.

 Try to avoid the computer components from being destroyed if

it is over heated, so try to allow plenty of room for air to circulate around the case.

 Do not block the ventilation opening.  Do not place your computer in direct sunlight.

Suitable place to work

Your computer will run well wherever you’re comfortable but extremes of temperature and humidity can be challenging to your system’s parts. There are some things you can tolerate that the computer can’t – things like static electricity, dust, water, steam and oil. In case you decide to pull over for roadside computing, try to choose a clean, comfortable work area for your system.

A lithium-ion battery pack will be available when you are traveling. If you are running your system for the first time on battery power, remove the battery from the package, install it into the system and recharge the battery to fully prepare for service.

IInnttrroodduuccttiioonn

WWeellccoommee ttoo tthhee NNootteebbooookk PPCC

Congratulations on your purchase of the Notebook PC. Your Notebook features the latest advances in portable computing technology. The Notebook’s modular design provides maximum expandability without compromising portability.

GGeettttiinngg ttoo KKnnooww YYoouurr CCoommppuutteerr

Opening the LCD Panel

on the top of notebook. This may damage the display

Do not place any heavy objects

To avoid damage to the display

panel:

1. Try not to slam the display upon closing it.

2. Try not to place any object on top when it is closed or open.

3. Be sure the system is turned off or in suspend mode before you close the display panel.

With the LCD screen open, you will see several features important for operating your Notebook computer.

1. CCD Camera (Optional)

2. LCD Display

3. Power / Suspend Button

 Press momentarily to turn on the system.  Press and hold for at least 4 seconds to turn off the

system.

 Press the power / suspend button again to return from

the suspend mode.

 Persistent green light indicates the Power is ON

4. Keyboard

5. Built-in Microphone

6. Speaker

7. Touch Pad

8. Touchpad Buttons

9. LED Status Indicator

System & Power Status Indicators

LED Graphic

Symbol

Green light indicates the system is ON. Blinking green light indicates the notebook is in suspend mode.

Green light indicates the WLAN is active.

Blinking orange light indicates the battery is being charged. Blinking red light indicates the battery power is low when the system is turned ON. Persistent green light indicates the battery is Full.

Green light indicates the hard drive and/or optical drive is being accessed.

Indication

Left Views

1. USB 2.0 Port

2. Stereo Headphone/SPDIF-out Jack

3. Microphone/Audio Line-in Jack

4. 4-in-1 Card Reader (SD/MMC/MS/MS Pro Memory Card)

5. Optical Drive and Disk Eject Button and Manual Eject Key

Hole

Right View

1. Modem Port (Optional)

Always disconnect all telephone lines from the wall outlet before servicing or disassembling this equipment. To reduce the risk of fire use only No. 26 AWG or larger telecommunication line cord.

+ 49 hidden pages
