Elite T92UWH Datasheet
Unit: mm
Model
Diagonal
Size/Aspect
Ratio
View Size
HxW
Screen Size
HxW
Top of
Screen at
Highest
Level (B1)
Top of
screen at
lowest
level (B2)
Screen case
at highest
point height
(C1)
Screen case
at lowest
point height
(C2)
End
cap
size
(D)
Case
length
closed
(D2)
Case
width
closed
(D3)
N.W.
(KGS)
T71NWS1 71"(1:1)
1275x1275 1346x1346
2400 1925 905 430 69 1472 150 5.4
T71UWS1 71"(1:1)
1275x1275 1346x1346
2400 1925 905 430 69 1472 150 5.4
T85NWS1 85"(1:1)
1527x1527
1600x1600 2700 2177 953 430 69 1726 150 6.5
T85UWS1 85"(1:1)
1527x1527
1600x1600 2700 2177 953 430 69 1726 150 6.5
T99NWS1 99"(1:1)
1778x1778
1854x1854 2900 2428 902 430 69 1980 150 7.4
T99UWS1 99"(1:1)
1778x1778
1854x1854 2900 2428 902 430 69 1980 150 7.4
T113NWS1 113"(1:1)
2030x2030
2108x2108 3100 2682 848 430 69 2234 150 8.1
T113UWS1 113"(1:1)
2030x2030
2108x2108 3100 2682 848 430 69 2234 150 8.1
T119NWS1 119"(1:1)
2134x2134
2209x2209 3300 2787 943 430 69 2335 150 9.3
T119UWS1 119"(1:1)
2134x2134
2209x2209 3300 2787 943 430 69 2335 150 9.3
T136NWS1 136"(1:1)
2443x2443
2514x2514 3700 3093 1037 430 69 2641 150 11.4
T136UWS1 136"(1:1)
2443x2443
2514x2514 3700 3093 1037 430 69 2641 150 11.4
T84UWV1 84"(4:3) 1280x1707 1397x1778 2400 1930 900 430 69 1906 150 6.3
T100UWV1 100"(4:3) 1524x2032 1651x2108 3100 2174 1356 430 69 2234 150 7.8
T120NWV1 120"(4:3) 1829x2438 1955x2514 3700 2480 1650 430 69 2641 150 11.2
T120UWV1 120"(4:3) 1829x2438 1955x2514 3700 2480 1650 430 69 2641 150 11.2
T92UWH 92"(16:9) 1146x2037 1270x2108 3100 1796 1734 430 69 2234 150 7.2
T100UWH 100"(16:9) 1245x2214 1371x2286 3200 1895 1735 430 69 2417 150 9.4
T120UWH 120"(16:9) 1494x2657 1625x2743 3300 2144 1586 430 69 2860 150 11.2
Unit: Inches
Model
Diagonal
Size/Aspect
Ratio
View Size
HxW
Screen Size
HxW
Top of
Screen at
Highest
Level (B1)
Top of
screen at
lowest
level (B2)
Screen case
at highest
point height
(C1)
Screen case
at lowest
point height
(C2)
End
cap
size
(D)
Case
length
closed
(D2)
Case
width
closed
(D3)
N.W.
(LBS)
T71NWS1 71"(1:1) 50"x50" 53"x53" 94.5 75.8 35.6 16.9 2.7 58.0 5.9 11.8
T71UWS1 71"(1:1) 50"x50" 53"x53" 94.5 75.8 35.6 16.9 2.7 58.0 5.9 11.8
T85NWS1 85"(1:1) 60"x60" 63"x63" 106.3 85.7 37.5 16.9 2.7 68.0 5.9 14.4
T85UWS1 85"(1:1) 60"x60" 63"x63" 106.3 85.7 37.5 16.9 2.7 68.0 5.9 14.4
T99NWS1 99"(1:1) 70"x70" 73"x73" 114.2 95.6 35.5 16.9 2.7 78.0 5.9 16.2
T99UWS1 99"(1:1) 70"x70" 73"x73" 114.2 95.6 35.5 16.9 2.7 78.0 5.9 16.2
T113NWS1 113"(1:1) 80"x80" 83"x83" 122.0 105.6 33.4 16.9 2.7 88.0 5.9 17.8
T113UWS1 113"(1:1) 80"x80" 83"x83" 122.0 105.6 33.4 16.9 2.7 88.0 5.9 17.8
T119NWS1 119"(1:1) 84"x84" 87"x87" 129.9 109.7 37.1 16.9 2.7 91.9 5.9 20.4
T119UWS1 119"(1:1) 84"x84" 87"x87" 129.9 109.7 37.1 16.9 2.7 91.9 5.9 20.4
T136NWS1 136"(1:1) 96"x96" 99"x99" 145.7 121.8 40.8 16.9 2.7 104.0 5.9 25.0
T136UWS1 136"(1:1) 96"x96" 99"x99" 145.7 121.8 40.8 16.9 2.7 104.0 5.9 25.0
T84UWV1 84"(4:3) 50"x67" 55"x70" 94.5 76.0 35.4 16.9 2.7 75.0 5.9 13.8
T100UWV1 100"(4:3) 60"x80" 65"x83" 122.0 85.6 53.4 16.9 2.7 88.0 5.9 17.1
T120NWV1 120"(4:3) 72"x96" 77"x99" 145.7 97.6 65.0 16.9 2.7 104.0 5.9 24.6
T120UWV1 120"(4:3) 72"x96" 77"x99" 145.7 97.6 65.0 16.9 2.7 104.0 5.9 24.6
T92UWH 92"(16:9) 45"x80" 50"x83" 122.0 70.7 68.3 16.9 2.7 88.0 5.9 15.8
T100UWH 100"(16:9) 49"x87" 54"x90" 126.0 74.6 68.3 16.9 2.7 95.2 5.9 20.7
T120UWH 120"(16:9) 59”x105” 64"x108" 129.9 84.4 62.4 16.9 2.7 112.6 5.9 24.6
*Measurement dimensions are intended as a reference only and subject to change without notice
Note：Data Error may be ±1"

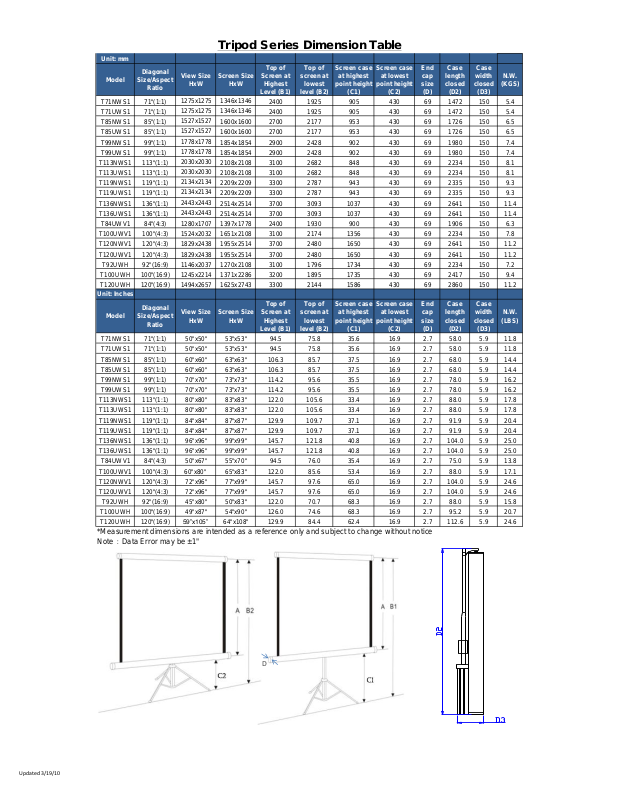

Tripod Series Dimension Table
D
Updated 3/19/10
