Elica EOL320RD Specification Sheet

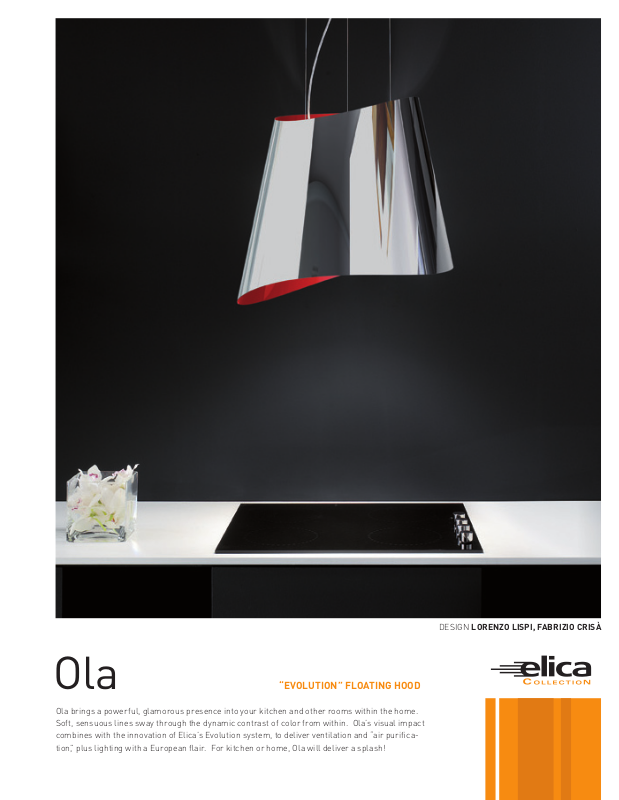

Ola “EVOLUTION” FLOATING HOOD

Ola brings a powerful, glamorous presence into your kitchen and other rooms within the home.
Soft, sensuous lines sway through the dynamic contrast of color from within. Ola’s visual impact
combines with the innovation of Elica’s Evolution system, to deliver ventilation and “air purifi ca­tion,” plus lighting with a European fl air. For kitchen or home, Ola will deliver a splash!

DESIGN LORENZO LISPI, FABRIZIO CRISÀ

Ola

12 5/8"

20 7/8"

MODEL# FINISH DIMENSIONS SHIPPING LBS.
WIDTH DEPTH HEIGHT

EOL320RD Bright & Red 20" 20" 21" 32
EOL320BU Bright & Blue 20" 20" 21" 32
EOL320GR Pearl & Green 20" 20" 21" 32
EOL320VL Pearl & Violet 20" 20" 21" 32

Blower Performance

20"

SPEED AIRFLOW IN CFM

SOUND LEVEL

LEVEL (cubic feet per minute) (IN SONES)

1 110 0.3
2 220 2.1
3 350 3.8

Electrical:

AC Input: 120V - 60Hz AC Power Max.: 450W at 4.0 Amps

3-Speed 350 CFM Internal Blower
Light Soft Controls – Discreet, softly cushioned buttons gently illuminate with just a touch, for easy

control of blower speed and lighting.

Halogen Lighting – Two bright 12V, 20W bulbs tastefully illuminate the cooking area.
Dishwasher-Safe Aluminum Mesh Filter – Removes airborne grease.
Long-Life Charcoal Filter – Removes odors and purifi es the air.
Designed for Recirculating Installation – Anodized aluminum mesh fi lter removes grease,

while the long-life charcoal fi lter purifi es the air and recirculates it back into the home.

Elic a 222 Merchandise Mart Pl aza, #947 Chicago, IL 60654 T 86 6-57 0-6 401 ww w.elica.com

NAC-SS-040-0309
