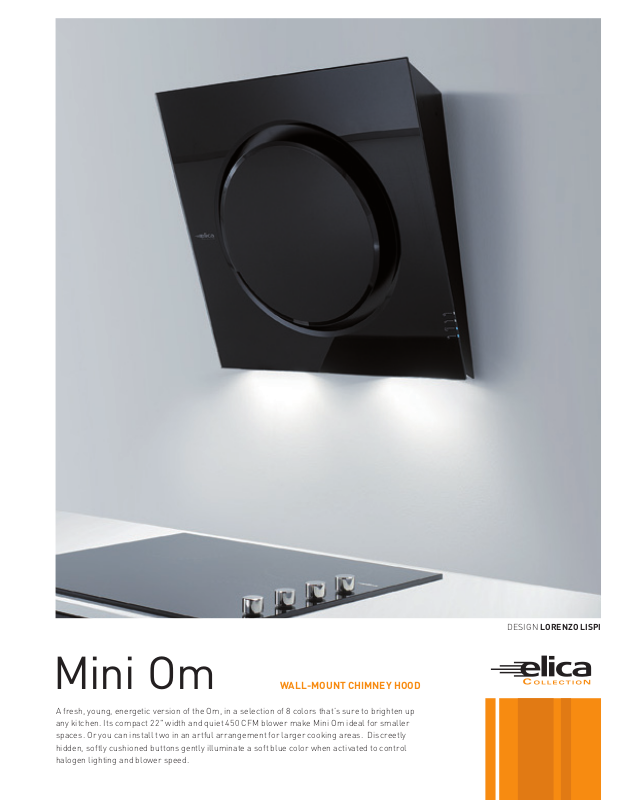

Elica EMI422WT, EMI422BL Specification Sheet
Mini Om WALL-MOUNT CHIMNEY HOOD
A fresh, young, energetic version of the Om, in a selection of 8 colors that’s sure to brighten up
any kitchen. Its compact 22" width and quiet 450 CFM blower make Mini Om ideal for smaller
spaces. Or you can install two in an artful arrangement for larger cooking areas. Discreetly
hidden, softly cushioned buttons gently illuminate a soft blue color when activated to control
halogen lighting and blower speed.
DESIGN LORENZO LISPI
Mini Om
21 5/8"
6"
6 7/8" 13 3/8"
19 11/16" - 36 3/8"
24"
20 1/4"
21 5/8"
MODEL# FINISH DIMENSIONS SHIPPING LBS.
WIDTH DEPTH HEIGHT
EMI422WT White Glass 21
EMI422BL Black Glass 21
EMI422EB Electric Blue 21
EMI422AG Apple Green 21
EMI422CY Curry Yellow 21
EMI422SO Sunrise Orange 21
EMI422PL Provence Lavender 21
EMI422TQ Turquoise 21
5
/8" 131/16" 201/4" 58.9
5
/8" 131/16" 201/4" 58.9
5
/8" 131/16" 201/4" 58.9
5
/8" 131/16" 201/4" 58.9
5
/8" 131/16" 201/4" 58.9
5
/8" 131/16" 201/4" 58.9
5
/8" 131/16" 201/4" 58.9
5
/8" 131/16" 201/4" 58.9
Blower Performance
13 1/16"
SPEED AIRFLOW IN CFM
SOUND LEVEL
LEVEL (cubic feet per minute) (IN SONES)
1 100 0.3
2 280 2.8
3 450 4.0
Mini Om Accessories
MODEL# DESCRIPTION SHIPPING LBS.
EMICEK12 Chimney Extension Kit (Short) 12.3
EMICEK13 Chimney Extension Kit (Long) 12.3
Electrical:
AC Input: 120V - 60Hz AC Power Max.: 450W at 4.0 Amps
Light Soft Controls – Discreet, softly cushioned buttons gently illuminate with just a touch, for easy
control of blower speed and lighting.
4-Speed 450 CFM Internal Blower – Offers adequate power for ever yday cooking and whisper quiet
operation for entertaining.
Perimeter Ventilation – Advanced Elica engineering draws air in through a narrowed channel
around entire circumference of the thin circular intake panel. The natural physics of airfl ow nearly
doubles suction quietly and smoothly, without increasing blower speed or energy consumption. The
panel’s aerodynamic shape creates less turbulence and noise than traditional ventilation systems.
Passive Silencer – Another quiet Elica innovation...special sound-absorbing insulation lines the
interior of Mini Om for powerful ventilation with unsurpassed noise reduction.
Halogen Lighting – Two bright 12V, 20W bulbs tastefully illuminate the cooking area.
Dishwasher-Safe Aluminum Mesh Filter
Ducted or Recirculating Installations – Standard ducted method fi lters the air to remove grease,
then vents the air outside the home. Optional Recirculating installation will fi lter and purify the air,
then recirculate it back into the home.
Available in 8 Brilliant Colors (Sunrise Orange not pictured)
White Black Electric Blue Apple Green
Tur quo iseProvence LavenderCurry Yellow
Elic a 222 Merchandise Mar t Plaza, # 947 Chicago, IL 60 654 T 866-57 0-6401 www.elica .com
NAC-SS-033-0309
