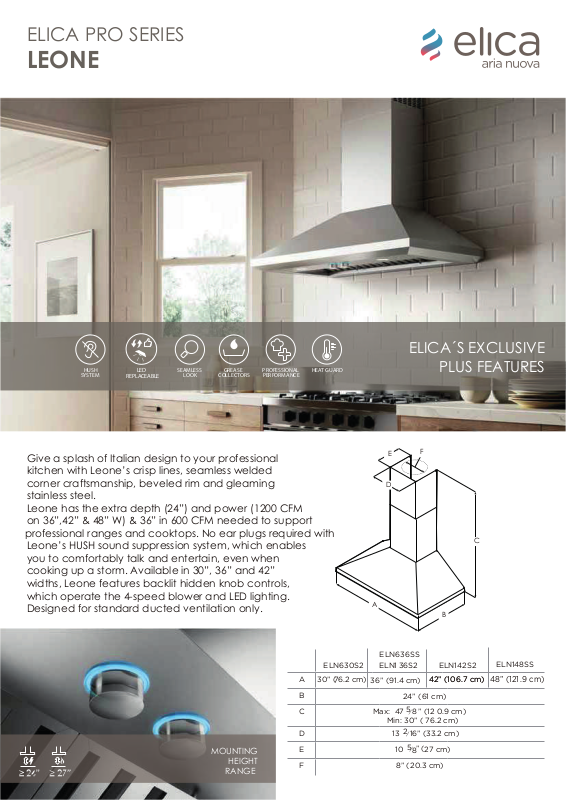

Elica ELN636SS, ELN630S2 Specification Sheet

ELICA PRO SERIES

LEONE

HUSH

SYSTEM

LED

REPLACEABLE

SEAMLESS

LOOK

GREASE

COLLECTORS

PROFESSIONAL PERFORMANCE

HEAT GUARD

Give a splash of Italian design to your professional kitchen with Leone’s crisp lines, seamless welded corner craftsmanship, beveled rim and gleaming stainless steel. Leone has the extra depth (24”) and power (1200 CFM on 36”,42” & 48” W) & 36” in 600 CFM needed to support

professional ranges and cooktops. No ear plugs required with

Leone’s HUSH sound suppression system, which enables you to comfortably talk and entertain, even when cooking up a storm. Available in 30”, 36” and 42” widths, Leone features backlit hidden knob controls, which operate the 4-speed blower and LED lighting. Designed for standard ducted ventilation only.

ELICA´S EXCLUSIVE

PLUS FEATURES

MOUNTING

HEIGHT

RANGE

ELN636SS

ELN630S2 ELN1 36S2 ELN142S2

42” (106.7 cm)

A 30” (76.2 cm)

D 13

E 10

F 8” (20.3 cm)

36” (91.4 cm)

Max: 47

Min: 30” ( 76.2 cm)

42” (106.7 cm)

24” (61 cm)

8 ” (12 0.9 cm)

16” (33.2 cm)

” (

27 cm)

ELN148SS

48” (121 .9 cm)

ELICA PRO SERIES

LEONE

SPECIFICATIONS

Model:

Dimensions: Blower Type(internal): Blower Performance:

Speed 1 Speed 2 Speed 3

Speed 4 Noise (sones):

Woking Speed

Finish: Controls:

Illumination:

(replaceable lamps 1 intensity)

Filter Type:

Angled Baffle Filters:

Duct Transition:

Installation Type:

Electrical:

30” Unit

ELN630S2

30”W x 24”D x 12 1/8”H

600 CFM(4-speed)

205 CFM 350 CFM 510 CFM

600 CFM

Min:2.01, Max:6

2 LED, 7.5 Watts

Dishwasher-Safe, Professional Stainless Steel, Angles baffled filters

1 2

HOME VENTILATING INSTITUTE

36” Unit 42” Unit

ELN636SS (600 CFM)

ELN136S2 (1200 CFM)

36”W x 24”D x 12 1/8”H

600 CFM & 1200 CFM (4-speed)

205 CFM 350 CFM

510 CFM

600 CFM

375 CFM 640 CFM 940 CFM

1200 CFM

Min: .8 , Max: 9.5

Stainless Steel

Fully retractable rotating knobs with blue backlighting

2 LED, 6.5 Watts (ELN636SS) 2 LED, 7.5 Watts (ELN136S2)

8” Round with BackDraft Damper (top only)

Ducted Installation Only

120V - 60 Hz

ELN142S2

42”W x 24”D x 12 1/8 ”H

1200 CFM(4-speed)

375 CFM

640 CFM

940 CFM

1200 CFM

Min:3.21, Max:7.7

2 LED, 7.5 Watts

48”W x 24”D x 12 1/8 ”H

1200 CFM(4-speed)

Min:3.21, Max:7.7

2 LED, 7.5 Watts

48” Unit

ELN148SS

375 CFM

640 CFM

940 CFM

1200 CFM

KITS:

Long Chimney Ext.

1200 CFM External Blower

1200 CFM In Line Blower

Replacement Grease Filter (1):

Replacement

LMP0131098

Light Bulb (1):

INSTALL HEIGHTS:

Ranger Hood: Ranger Hood with

extension duct covers:

WARRANTY:

PLUS FEATURES

HUSH SYSTEM - An exclusive sound deadening technology that effectivelyreduces sound levels by over 35%

LED CONSUMER REPLACEABLE BULB - High quality LED lighting usually requires a skilled technician to replace lamps. Avoid this expense with Elica´s new LED lamps that enable homeowners to replace in seconds

SEAMLESS CRAFTSMANSHIP - Heavy gauge stainless steel “Seamless” construction that delivers refined elegance.

** For valid warranty extension, register within 3 months from purchase. For USA & Canada Users only

2 YEARS PARTS AND LABOR, EARN A 3RD YEAR OF FULL FACTORY

WARRANTY REGISTERING YOUR PRODUCT ON ELICA.COM

KIT02785 (13’ ) & KIT01935 (11’ 4”)

KIT0153054

KIT0154387

GF09EA

LMP0131098A (ELN636SS) LMP0131098 (ELN136S2)

*Consumable parts are sold in units of one (1). Order accordingly

LMP0131098 LMP0131098

Min: 8´, Max 10´

Min: 9´9”, Max 13´

*The product images shown are for illustration purposes only and may not be an exact representation of the product.

STAINLESS STEEL BAFFLE FILTERS WITH GREASE COLLECTORS Designed for high airflow cooking, the “S” shape design traps high volumes of grease

PROFESSIONAL PERFORMANCE - Special features and high performances for models with aspiration capacity between 600 and 1200 CFM’s

HEAT GUARD - Senses extreme temperatures (>158 degrees) and automatically adjusts the blower speed to HIGH
