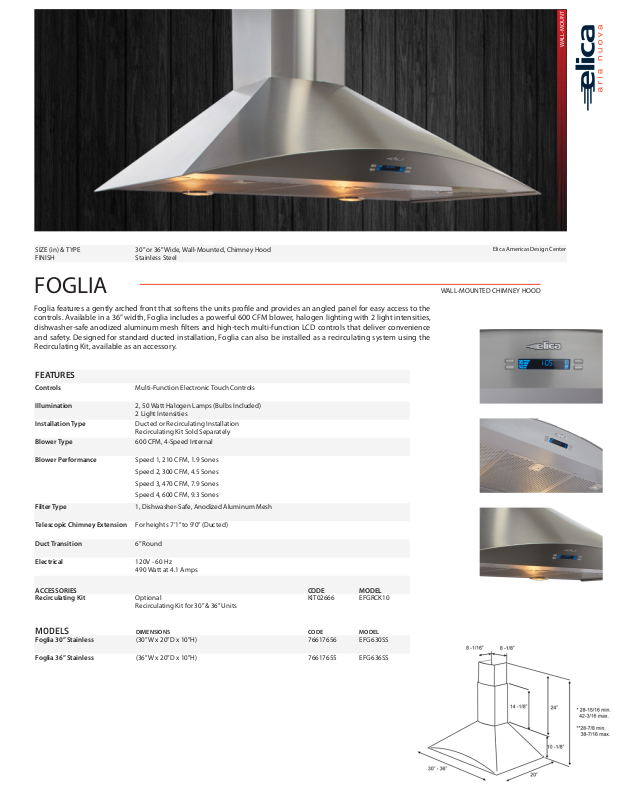

Elica EFG630SS, EFG636SS Specification Sheet

WALL-MOUNT

SIZE (in) & TYPE 30” or 36” Wide, Wall-Mounted, Chimney Hood
FINISH Stainless Steel

FOGLIA

Foglia features a gently arched front that softens the units prole and provides an angled panel for easy access to the
controls. Available in a 36” width, Foglia includes a powerful 600 CFM blower, halogen lighting with 2 light intensities,
dishwasher-safe anodized aluminum mesh lters and high-tech multi-function LCD controls that deliver convenience
and safety. Designed for standard ducted installation, Foglia can also be installed as a recirculating system using the
Recirculating Kit, available as an accessory.

FEATURES

Controls Multi-Function Electronic Touch Controls

Illumination 2, 50 Watt Halogen Lamps (Bulbs Included)

2 Light Intensities

Installation Type Ducted or Recirculating Installation

Recirculating Kit Sold Separately

Blower Type 600 CFM, 4-Speed Internal

Blower Performance Speed 1, 210 CFM, 1.9 Sones

Speed 2, 300 CFM, 4.5 Sones

Speed 3, 470 CFM, 7.9 Sones

Speed 4, 600 CFM, 9.3 Sones

Filter Type 1, Dishwasher-Safe, Anodized Aluminum Mesh

Telescopic Chimney Extension For heights 7’1” to 9’0” (Ducted)

Elica Americas Design Center

WALL-MOUNTED CHIMNEY HOOD

1 1>

Duct Transition 6” Round

Electrical 120V - 60 Hz

ACCESSORIES CODE MODEL
Recirculating Kit Optional

MODELS DIMENSIONS CODE MODEL

Foglia 30” Stainless (30”W x 20”D x 10”H) 76617656 EFG630SS

Foglia 36” Stainless (36”W x 20”D x 10”H) 76617655 EFG636SS

490 Watt at 4.1 Amps

KIT02666 EFGRCK10

Recirculating Kit for 30” & 36” Units
