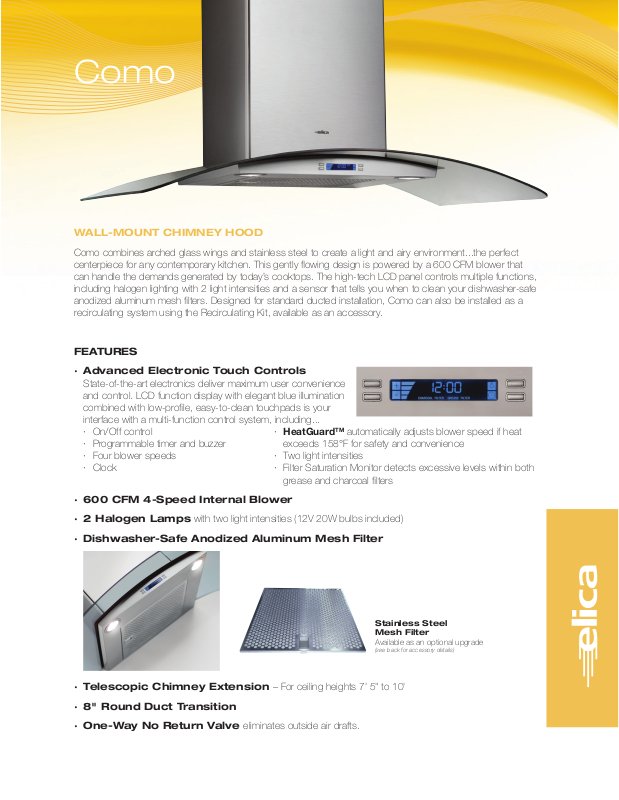

Como
WALL-MOUNT CHIMNEY HOOD
Como combines arched glass wings and stainless steel to create a light and airy environment...the perfect
centerpiece for any contemporary kitchen. This gently fl owing design is powered by a 600 CFM blower that
can handle the demands generated by today’s cooktops. The high-tech LCD panel controls multiple functions,
including halogen lighting with 2 light intensities and a sensor that tells you when to clean your dishwasher-safe
anodized aluminum mesh fi lters. Designed for standard ducted installation, Como can also be installed as a
recirculating system using the Recirculating Kit, available as an accessory.
FEATURES
· Advanced Electronic Touch Controls
State-of-the-art electronics deliver maximum user convenience
and control. LCD function display with elegant blue illumination
combined with low-profi le, easy-to-clean touchpads is your
interface with a multi-function control system, including...
· On/Off control · HeatGuard
· Programmable timer and buzzer exceeds 158°F for safety and convenience
· Four blower speeds · Two light intensities
· Clock · Filter Saturation Monitor detects excessive levels within both
grease and charcoal fi lters
TM
automatically adjusts blower speed if heat
· 600 CFM 4-Speed Internal Blower
· 2 Halogen Lamps with two light intensities (12V 20W bulbs included)
· Dishwasher-Safe Anodized Aluminum Mesh Filter
Stainless Steel
Mesh Filter
Available as an optional upgrade
(see back for accessory details)
· Telescopic Chimney Extension – For ceiling heights 7' 5" to 10'
· 8" Round Duct Transition
· One-Way No Return Valve eliminates outside air drafts.
COMO WALL-MOUNT CHIMNEY HOOD
10 7/8"
13 3/16"
8"
29 1/2" - 54"
29"
17 1/2"
30" - 36"
19 11/16"
MODEL DIMENSIONS SHIPPING
NUMBER FINISH WIDTH DEPTH WEIGHT
ECM630SS Stainless Steel & Glass 30" 19-11/16" 62 lbs
ECM636SS Stainless Steel & Glass 36" 19-11/16" 68 lbs
HOOD MOUNTING HEIGHT ABOVE COOKING SURFACE
GAS
minimum maximum
30" 34"
ELECTRIC
minimum maximum
24" 30"
CHIMNEY HEIGHT (based on recommended mounting heights listed above)
DUCTED
Gas min./ma x. El ectric m in./ma x.
7' 11" - 10' 7' 5" - 9' 8"
RECIRCULATING
Gas min./ma x. El ectric m in./ma x.
8' 3" - 10' 4" 7' 9" - 10'
BLOWER PERFORMANCE
SPEED AIRFLOW IN CFM SOUND LEVEL
LEVEL (CUBIC FEET PER MINUTE) (IN SONES)
1 160 1.6
2 280 3.5
3 470 6.5
4 600 8.7
COMO ACCESSORIES
MODEL SHIPPING
NUMBER DESCRIPTION WEIGHT
EXXRCK05 Recirculating Kit 6.6 lbs
EX XCRK02 CFM Reduction Kit 5.5 lbs
EXXGFKSS Stainless Steel Mesh Filter 5.5 lbs
ELECTRICAL:
AC Input: 120V - 60Hz, AC Power Max.: 490W at 4.1 Amps
Elica 222 Merchandise Mart Plaza, #947 Chicago, IL 60654 T 866-570-6401 www.elica.com NA-SS-017-0309
