PLEASE CHECK A BOX IF THE
HANDING IS DIFFERENT THAN
SPECIFIED IN TITLE ex. (SR9000FV-D)

D = DOUBLE

RHS = RIGHT HAND SINGLE

LHS = LEFT HAND SINGLE

SPECIFICATION

The FLT400 door panel is
constructed with food grade
approved 2 ply belting material
that is abrasion resistant. Total
door thickness of 0.240" and
reinforced hinge pocket. It
operates on the top mounted
only Eliason gravity hinging
system.

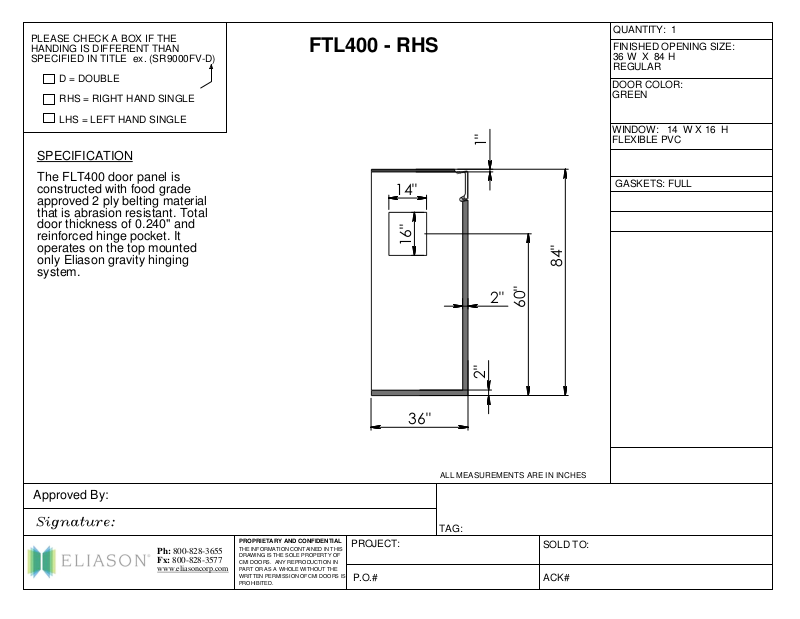

FTL400 - RHS

14"

16"

QUANTITY: 1

FINISHED OPENING SIZE:
36 W X 84 H
REGULAR

DOOR COLOR:
GREEN

WINDOW: 14 W X 16 H

1"

FLEXIBLE PVC

GASKETS: FULL

84"

Approved By:

Signature:

800-828-3655

Ph:

800-828-3577

Fx:

www.eliasoncorp.com

PROPRIETARY AND CONFIDENTIAL

THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
CMI DOORS. ANY REPRODUCTION IN
PART OR AS A WHOLE WITHOUT THE
WRITTEN PERMISSION OFCMI DOORS IS
PROHIBITED.

PROJECT:

P.O.#

36"

2"

60"

2"

ALL MEASUREMENTS ARE IN INCHES

TAG:

SOLD TO:

ACK#
