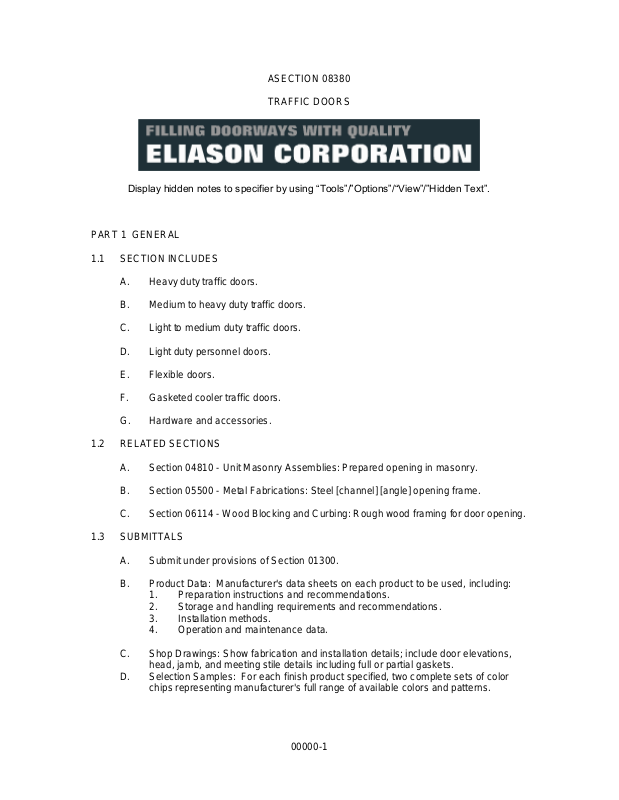

ASECTION 08380 TRAFFIC DOORS

Display hidden notes to specifier by using “Tools”/”Options”/“View”/”Hidden Text”.

PART 1 GENERAL

1.1 SECTION INCLUDES A. Heavy duty traffic doors. B. Medium to heavy duty traffic doors. C. Light to medium duty traffic doors. D. Light duty personnel doors. E. Flexible doors. F. Gasketed cooler traffic doors. G. Hardware and accessories.

1.2 RELATED SECTIONS A. Section 04810 - Unit Masonry Assemblies: Prepared opening in masonry. B. Section 05500 - Metal Fabrications: Steel [channel] [angle] opening frame. C. Section 06114 - Wood Blocking and Curbing: Rough wood framing for door opening.

1.3 SUBMITTALS A. Submit under provisions of Section 01300. B. Product Data: Manufacturer's data sheets on each product to be used, including:

1. Preparation instructions and recommendations.

2. Storage and handling requirements and recommendations.

3. Installation methods.

4. Operation and maintenance data.

C. Shop Drawings: Show fabrication and installation details; include door elevations,

head, jamb, and meeting stile details including full or partial gaskets.

D. Selection Samples: For each finish product specified, two complete sets of color

chips representing manufacturer's full range of available colors and patterns.

00000-1

E. Verification Samples: For each finish product specified, two samples, minimum size

6 inches (150 mm) square, representing actual product, color, and patterns.

F. Manufacturer’s warranties.

1.4 DELIVERY, STORAGE, AND HANDLING A. Store products in manufacturer's unopened packaging until ready for installation. Do

not lay flat.

1.5 PROJECT CONDITIONS A. Maintain environmental conditions (temperature, humidity, and ventilation) within

limits recommended by manufacturer for optimum results. Do not install products under environmental conditions outside manufacturer's absolute limits.

1.6 WARRANTY A. Provide manufacturer's standard two-year warranty that products are free of defects

in material and workmanship and guaranteeing to replace (exclusive of freight and labor) parts proven defective within two years after date of shipment to purchaser.

PART 2 PRODUCTS

2.1 MANUFACTURERS A. Acceptable Manufacturer: Eliason Corporation; P.O. Box 2128, Kalamazoo, MI

49003. ASD. Te1: Tel: (800) 828-3655. Fax: (800)828-3577. Email:

[email protected] Website: www.eliasoncorp.com.

B. Substitutions: Not permitted. C. Requests for substitutions will be considered in accordance with provisions of

Section 01600.

2.2 TRAFFIC DOORS A. Heavy Duty Traffic Doors: High strength polymer cell core, 0.125 inch (3 mm) thick

thermoplastic facing on both sides; total door thickness 1-1/2 inches (38 mm); mounting screws included. (Model HCP-10)

1. Window Size: 14 inches (356 mm) wide by 16 inches (406 mm) high.

2. Window Size: ____ wide by ____ high.

3. Window Size: ____ inch diameter.

4. Window Molding: Black rubber molding.

5. Window Frames: ABS plastic framing. a. Color: Beige. (101). b. Color: Sand. (102). c. Color: Off White (103). d. Color: Red. (104). e. Color: Blue. (106). f. Color: Black. (108). g. Color: Brown. (109). h. Color: Gray. (110).

6. Window Flush.

00000-2

7. Glazing: Clear double glazed acrylic.

8. Thermoplastic Facing Color: a. Color: Beige. (101). b. Color: Sand. (102). c. Color: Off White (103). d. Color: Red. (104). e. Color: Blue. (106). f. Color: Appliance White. (107). g. Color: Black. (108). h. Color: Brown. (109). i. Color: Gray. (110).

9. Bumpers: Easy Spring bumpers, 0.25 inch (6 mm) thick high impact resistant thermoplastic. a. Height: 18 inches (457 mm). b. Height: 24 inches (610 mm). c. Height: 30 inches (762 mm). d. Height: 36 inches (914 mm). e. Height: 42 inches (1067 mm). f. Height: 48 inches (1219 mm). g. Color: Black. h. Color: Gray. i. Color: Red. j. Color: Brown.

10. Base Plates: 0.090 inch (2.2 mm) thick thermoplastic plates to install on base of door surface, front and back. a. Height: 18 inches (457 mm). b. Height: 24 inches (610 mm). c. Height: 30 inches (762 mm). d. Height: 36 inches (914 mm). e. Height: 42 inches (1067 mm). f. Height: 48 inches (1219 mm). g. Height: ________ inches. h. Color: Beige. (101) i. Color: Sand. (102) j. Color: Off White (103) k. Color: Red. (104) l. Color: Blue. (106) m. Color: Black. (108) n. Color: Brown. (109) o. Color: Gray. (110)

11. Provide jamb guards as specified in Accessories below.

B. Heavy Duty Traffic Doors: Double-ply reinforced ABS, 1/4 inch (6 mm) total

thickness; textured finish both sides; heavy duty impact plate vertical back spline, 1/4 inch (6 mm) thick each plate. (Model PMP-2)

1. Panel Type: Full length door panels. a. ABS Color: Black. (108). b. ABS Color: Gray. (110). c. ABS Color: Beige. (101).

2. Window Size: 14 inches (356 mm) wide by 16 inches (406 mm) high.

3. Window Size: ____ wide by ____ high.

4. Window Size: ____ inch diameter.

5. Window Molding: Black rubber molding.

6. Window Frames: ABS plastic framing. a. ABS Color: Black. (108) b. ABS Color: Gray. (110)

00000-3

c. ABS Color: Beige. (101).

7. Glazing: Clear acrylic.

8. Glazing: Translucent acrylic.

9. Glazing: _______________________.

10. Provide jamb guards as specified in Accessories below.

C. Heavy Duty Traffic Doors: 3/4 inch (19 mm) exterior grade solid wood core; 1 inch

(25 mm) total thickness.

1. Facing: Reinforcing metal plates. (Model SCP-2) a. Top Panels: 0.032 inch (0.81 mm) tempered aluminum alloy, satin

anodized finish, both sides.

b. Top Panels: 0.032 inch (0.81 mm) tempered aluminum alloy, satin

anodized finish with decorative laminate, both sides.

c. Base Plates: 48 inches (1219 mm) high, through riveted 16 gauge

(2.38 mm) steel, stainless steel front, galvanized back.

d. Base Plates: 48 inches (1219 mm) high, through riveted 16 gauge

(2.38 mm) stainless steel, both sides.

e. Base Plates: 48 inches (1219 mm) high, through riveted 16 gauge

(2.38 mm) galvanized steel, both sides.

2. Window Size: 9 inches (229 mm) wide by 14 inches (356 mm) high.

3. Window Size: ____ wide by ____ high.

4. Window Size: ____ inch diameter.

5. Window Molding: Black rubber molding.

6. Window Frames: ABS plastic framing. a. Color: Beige. (101) b. Color: Sand. (102) c. Color: Off White (103) d. Color: Red. (104) e. Color: Blue. (106) f. Color: Black. (108) g. Color: Brown. (109) h. Color: Gray. (110)

7. Glazing: Clear acrylic.

8. Glazing: Translucent acrylic.

9. Glazing: _______________________.

10. Laminate Finish: As selected from manufacturer's standard selections.

11. Provide spring bumpers and jamb guards as specified in Accessories below.

D. Medium to Heavy Duty Traffic Doors: 3/4 inch (19 mm) exterior grade solid wood

core; 1 inch (25 mm) total thickness.

1. Facing: Reinforcing metal plates. (Model SCP-5) a. Top Panels: 0.032 inch (0.81 mm) tempered aluminum alloy, satin

anodized finish, both sides.

b. Top Panels: 0.032 inch (0.81 mm) tempered aluminum alloy, satin

anodized finish with decorative laminate, both sides.

c. Center Plates: 30-5/8 inches (838 mm) high, 18 gauge (1.27 mm) steel,

stainless steel front, galvanized steel back.

d. Center Plates: 30-5/8 inches (778 mm) high, 18 gauge (1.27 mm)

stainless steel, both sides.

e. Base Plates: 17-3/8 inches (441 mm) high, 14 gauge (1.90 mm) grade

D structural quality mill galvanized steel, both sides.

2. Facing: Reinforcing metal plates. (Model SCP-7) a. Top Panels: 0.032 inch (0.81 mm) tempered aluminum alloy, satin

anodized finish, both sides.

b. Top Panels: 0.032 inch (0.81 mm) tempered aluminum alloy, satin

anodized finish with decorative laminate, both sides.

00000-4

c. Base Plates: 48 inches (1219 mm) high, 18 gauge (1.27 mm) stainless

steel, both sides.

3. Window Size: 9 inches (229 mm) wide by 14 inches (356 mm) high.

4. Window Size: ____ wide by ____ high.

5. Window Size: ____ inch diameter.

6. Window Molding: Black rubber molding.

7. Window Frames: ABS plastic framing. a. Color: Beige. (101) b. Color: Sand. (102) c. Color: Off White (103) d. Color: Red. (104) e. Color: Blue. (106) f. Color: Black. (108) g. Color: Brown. (109) h. Color: Gray. (110)

8. Glazing: Clear acrylic.

9. Glazing: Translucent acrylic.

10. Glazing: _______________________.

11. Laminate Finish: As selected from manufacturer's standard selection.

12. Provide spring bumpers and jamb guards as specified in Accessories below.

E. Medium to Heavy Duty Traffic Doors: High strength polymer cell core, 0.125 inch (3

mm) thick thermoplastic facing on both sides; total door thickness 3/4 inch (19 mm); (Model P-11 PLUS)

1. Window Size: 14 inches (356 mm) wide by 16 inches (406 mm) high.

2. Window Size: ____ wide by ____ high.

3. Window Size: ____ inch diameter.

4. Window Molding: Black rubber molding.

5. Window Frames: ABS plastic framing. a. Color: Beige. (101) b. Color: Sand. (102) c. Color: Off White (103) d. Color: Red. (104) e. Color: Blue. (106) f. Color: Black. (108) g. Color: Brown. (109) h. Color: Gray. (110)

6. Glazing: Clear double glazed acrylic.

7. Thermoplastic Facing Color: a. Color: Beige. (101) b. Color: Sand. (102) c. Color: Off White (103) d. Color: Red. (104) e. Color: Blue. (106) f. Color: Appliance White. (107) g. Color: Black. (108) h. Color: Brown. (109) i. Color: Gray. (110)

8. Provide jamb guards and base plates as specified in Accessories below.

F. Light to Medium Duty Doors: 0.063 inches (1.6 mm) thick tempered aluminum alloy,

delta formed vertical edges; satin anodized finish.

1. Facing: None. (Model LWP-3)

2. Facing: Decorative laminate both sides. (Model LWP-6) a. Top Panels: 0.032 inch (0.81 mm) decorative laminate, both sides.

00000-5

b. Base Plates: 12 inches (305 mm) high 18 gauge (1.2 mm) stainless

steel both sides.

3. Facing: Decorative laminate both sides. (Model LWP-5) a. Top Panels: 0.032 inch (0.81 mm) decorative laminate, both sides. b. Base Plates: 12 inches (305 mm) high 18 gauge (1.2 mm) stainless

steel front, galvanized steel back.

c. Bumper Strips: Black aluminum, 32 inches (813 mm) from bottom of

door.

4. Window Size: 9 inches (229 mm) wide by 14 inches (356 mm) high.

5. Window Size: ____ wide by ____ high.

6. Window Size: ____ inch diameter.

7. Window Molding: Black rubber molding.

8. Glazing: Clear acrylic.

9. Glazing: Translucent acrylic.

10. Glazing: _______________________.

11. Laminate Finish: As selected from manufacturer's standard selection.

12. Provide jamb guards and base plates as specified in Accessories below.

G. Light Duty Doors: 16 gauge (2.38 mm) stainless steel, delta formed vertical edges;

stainless steel upper hinge covers (Model DSP-3).

1. Window Size: 9 inches (229 mm) wide by 14 inches (356 mm) high.

2. Window Size: ____ wide by ____ high.

3. Window Size: ____ inch diameter.

4. Window Molding: Black rubber molding.

5. Glazing: Clear acrylic.

6. Glazing: Translucent acrylic.

7. Glazing: _______________________.

H. Personnel Doors: 3/4 inch (19 mm) exterior grade solid wood core; 1 inch (25 mm)

total thickness; light to medium duty.

1. Facing: Full length stainless steel panels. (Model SCP-3) a. Full Length Panels: 18 gauge (1.27 mm) stainless steel both sides;

stainless steel top hinge covers.

2. Facing: Full length aluminum panels. (Model SCP-4) a. Full Length Panels: 0.032 inch (0.81 mm) tempered aluminum alloy,

satin anodized finish, both sides.

b. Full Length Panels: 0.032 inch (0.81 mm) tempered aluminum alloy,

satin anodized finish with decorative laminate, both sides.

c. Full Length Panels: 0.032 inch (0.81 mm) tempered aluminum alloy,

satin anodized finish, back; 0.032 inch (0.81 mm) tempered aluminum alloy, satin anodized finish with decorative laminate, front.

d. Base Plates: 12 inches (305 mm) high, 18 gauge (1.27 mm) stainless

steel, both sides.

e. Base Plates: ___________ high, 18 gauge (1.27 mm) stainless steel,

both sides.

3. Facing: Decorative plastic laminate. (Model SCP-6) a. Top Panels: Decorative laminate, both sides. b. Base Plates: 48 inches (1219 mm) high, 18 gauge (1.27 mm) stainless

steel, both sides; stainless steel edge trim.

4. Facing: Decorative plastic laminate. (Model SCP-8) a. Top Panels: 0.032 inch (0.81 mm) decorative laminate, both sides. b. Base Plates: 18 inches (457 mm) high 18 gauge (1.27 mm) stainless

steel both sides; stainless steel edge trim.

5. Window Size: 9 inches (229 mm) wide by 14 inches (356 mm) high.

6. Window Size: ____ wide by ____ high.

7. Window Size: ____ diameter.

00000-6

8. Window Molding: Black rubber molding.

9. Glazing: Clear acrylic.

10. Glazing: Translucent acrylic.

11. Glazing: _______________________.

12. Laminate Finish: As selected from manufacturer's standard selection.

13. Provide jamb guards and base plates as specified in Accessories below.

I. Personnel Doors: Cafe and gate doors; 3/4 inch (19 mm) exterior grade solid wood

core; 1 inch (25 mm) total thickness.

1. Facing: Decorative plastic laminate. a. Cafe Length Panels: 0.032 inch (0.81 mm) decorative laminate, both

sides.

b. Edge Trim: Black plastic.

2. Application: Gate doors. (Model SCP-GATE)

3. Application: Cafe doors. (Model SCP-CAFE)

4. Contours: None.

5. Contours: Top only.

6. Contours: Top and bottom.

J. Personnel Doors: Cafe and gate doors; 0.063 inches (1.6 mm) thick tempered

aluminum alloy, delta formed vertical edges; satin anodized finish both sides.

1. Facing: None.

2. Facing: 0.032 inch (0.81 mm) decorative laminate, both sides.

3. Application: Gate doors. (Model LWP -GATE)

4. Application: Cafe doors. (Model LWP -CAFE)

5. Contours: None.

6. Contours: Top only.

7. Contours: Top and bottom.

K. Personnel Doors: Cafe and gate doors; double-ply reinforced ABS, 1/4 inch (6 mm)

total thickness; textured finish both sides; heavy duty impact plate vertical back spline, 1/4 inch (6 mm) thick each plate; heavy duty gate panels. (Model PMPGATE)

1. ABS Color: Black. (108)

2. ABS Color: Gray. (110)

3. ABS Color: Beige. (101)

2.3 FLEXIBLE DOORS A. Heavy Duty Traffic Doors: Flexible door; double layered pebble embossed sheets of

flexible vinyl, each sheet 0.120 inch (3 mm) thick. (Model FMP)

1. Hardware: Top mounted bracket, double action, gray powder coat; heavy duty, adjustable, self-closing; secured to both top and side jambs; mounting hardware included

2. Windows: 14 inches (356 mm) wide by 16 inches (406 mm) high clear vinyl.

3. Windows: _______ inches wide by _______ inches high clear vinyl.

4. Color: Red. (201)

5. Color: Gray. (202)

6. Color: Green. (203)

7. Color: Tan. (204)

8. Color: Brown. (205)

9. Color: Black. (206)

B. Flexible Cooler Traffic Door: Secondary door for walk-in coolers and freezers; single

sheet of clear flexible vinyl, 0.120 inch (3 mm) thick. (Model FCD)

00000-7

1. Hardware: Top mounted bracket, double action, gray powder coat; heavy duty, adjustable, self-closing; secured to both top and side jambs; mounting hardware included.

2.4 GASKETED COOLER DOORS A. Cooler Traffic Doors: High strength polymer cell core, 0.125 inch (3 mm) thick

thermoplastic facing on both sides; total door thickness 1-1/2 inches (38 mm); heavy duty. (Model HCG-10)

1. Gaskets: Full perimeter seal.

2. Window Size: 14 inches (356 mm) wide by 16 inches (406 mm) high.

3. Window Size: _______ inches wide by _______ inches high.

4. Window Size: ____ inch diameter.

5. Window Molding: Black rubber molding.

6. Window Frames: ABS plastic framing. a. Color: Beige. (101) b. Color: Sand. (102) c. Color: Off White (103) d. Color: Red. (104) e. Color: Blue. (106) f. Color: Black. (108) g. Color: Brown. (109) h. Color: Gray. (110)

7. Window Flush.

8. Glazing: Clear double glazed acrylic.

9. Thermoplastic Facing Color: a. Color: Beige. (101) b. Color: Sand. (102) c. Color: Off White (103) d. Color: Red. (104) e. Color: Blue. (106) f. Color: Appliance White. (107) g. Color: Black. (108) h. Color: Brown. (109) i. Color: Gray. (110)

10. Bumpers: Easy Spring bumpers, 0.25 inch (6 mm) thick high impact resistant thermoplastic. a. Height: 18 inches (457 mm). b. Height: 24 inches (610 mm). c. Height: 30 inches (762 mm). d. Height: 36 inches (914 mm). e. Height: 42 inches (1067 mm). f. Height: 48 inches (1219 mm). g. Color: Black. h. Color: Gray. i. Color: Red. j. Color: Brown.

11. Base Plates: 0.090 inch (2.2 mm) thick thermoplastic plates to install on base of door surface, front and back. a. Height: 18 inches (457 mm). b. Height: 24 inches (610 mm). c. Height: 30 inches (762 mm). d. Height: 36 inches (914 mm). e. Height: 42 inches (1067 mm). f. Height: 48 inches (1219 mm). g. Height: ________ inches.

00000-8

h. Color: Beige. (101) i. Color: Sand. (102) j. Color: Off White (103) k. Color: Red. (104) l. Color: Blue. (106) m. Color: Black. (108) n. Color: Brown. (109) o. Color: Gray. (110)

12. Provide jamb guards as specified in Accessories below.

B. Insulated Cooler Traffic Doors: Urethane insulating foam core, 0.125 inch (3 mm)

thick thermoplastic facing on both sides; total door thickness 1-1/2 inches (38 mm); light to medium duty. (Model HFG-10)

1. Gaskets: Full perimeter seal.

2. Window Size: 14 inches (356 mm) wide by 16 inches (406 mm) high.

3. Window Size: _______ inches wide by _______ inches high.

4. Window Size: ____ inch diameter.

5. Window Molding: Black rubber molding.

6. Window Frames: ABS plastic framing. a. Color: Beige. (101) b. Color: Sand. (102) c. Color: Off White (103) d. Color: Red. (104) e. Color: Blue. (106) f. Color: Black. (108) g. Color: Brown. (109) h. Color: Gray. (110)

7. Window Flush.

8. Glazing: Clear double glazed acrylic.

9. Thermoplastic Facing Color: a. Color: Beige. (101) b. Color: Sand. (102) c. Color: Off White (103) d. Color: Red. (104) e. Color: Blue. (106) f. Color: Appliance White. (107) g. Color: Black. (108) h. Color: Brown. (109) i. Color: Gray. (110)

10. Bumpers: Easy Spring bumpers, 0.25 inch (6 mm) thick high impact resistant thermoplastic. a. Height: 18 inches (457 mm). b. Height: 24 inches (610 mm). c. Height: 30 inches (762 mm). d. Height: 36 inches (914 mm). e. Height: 42 inches (1067 mm). f. Height: 48 inches (1219 mm). g. Color: Black. h. Color: Gray. i. Color: Red. j. Color: Brown.

11. Base Plates: 0.090 inch (2.2 mm) thick thermoplastic plates to install on base of door surface, front and back. a. Height: 18 inches (457 mm). b. Height: 24 inches (610 mm). c. Height: 30 inches (762 mm).

00000-9

d. Height: 36 inches (914 mm). e. Height: 42 inches (1067 mm). f. Height: 48 inches (1219 mm). g. Height: ________ inches. h. Color: Beige. (101) i. Color: Sand. (102) j. Color: Off White (103) k. Color: Red. (104) l. Color: Blue. (106) m. Color: Black. (108) n. Color: Brown. (109) o. Color: Gray. (110)

12. Provide jamb guards as specified in Accessories below.

C. Insulated Cooler Traffic Doors: Urethane insulating foam core, 0.125 inch (3 mm)

thick thermoplastic facing on both sides; total door thickness 1-1/2 inches (38 mm); light to medium duty. (Model HFG-11)

1. Gaskets: Full perimeter seal.

2. Window Size: 14 inches (356 mm) wide by 16 inches (406 mm) high.

3. Window Size: _______ inches wide by _______ inches high.

4. Window Size: ____ inch diameter.

5. Window Molding: Black rubber molding.

6. Window Frames: ABS plastic framing. a. Color: Beige. (101) b. Color: Sand. (102) c. Color: Off White (103) d. Color: Red. (104) e. Color: Blue. (106) f. Color: Black. (108) g. Color: Brown. (109) h. Color: Gray. (110)

7. Window Flush.

8. Glazing: Clear double glazed acrylic.

9. Thermoplastic Facing Color: a. Color: Beige. (101) b. Color: Sand. (102) c. Color: Off White (103) d. Color: Red. (104) e. Color: Blue. (106) f. Color: Appliance White. (107) g. Color: Black. (108) h. Color: Brown. (109) i. Color: Gray. (110)

10. Base Plates: 0.090 inch (2.2 mm) thick thermoplastic plates to install on base of door surface, front and back. a. Height: 18 inches (457 mm). b. Height: 24 inches (610 mm). c. Height: 30 inches (762 mm). d. Height: 36 inches (914 mm). e. Height: 42 inches (1067 mm). f. Height: 48 inches (1219 mm). g. Height: ________ inches. h. Color: Beige. (101) i. Color: Sand. (102) j. Color: Off White (103) k. Color: Red. (104)

00000-10

l. Color: Blue. (106) m. Color: Black. (108) n. Color: Brown. (109) o. Color: Gray. (110)

D. Cooler Traffic Doors: 3/4 inch (19 mm) exterior grade solid wood core; 1 inch (25

mm) total thickness; medium to heavy duty.

1. Facing: Reinforcing metal plates. (Model SCG-1) a. Top Panels: 0.032 inch (0.81 mm) tempered aluminum alloy, satin

anodized finish, both sides.

b. Top Panels: 0.032 inch (0.81 mm) tempered aluminum alloy, satin

anodized finish with decorative laminate, both sides.

c. Base Plates: 48 inches (1219 mm) high, 18 gauge (1.27 mm) stainless

steel, both sides.

2. Facing: Reinforcing metal plates. (Model SCG-3) a. Full Length Panels: 18 gauge (1.27 mm) stainless steel both sides;

stainless steel top hinge covers.

3. Facing: Reinforcing metal plates. (Model SCG-5) a. Top Panels: 0.032 inch (0.81 mm) tempered aluminum alloy, satin

anodized finish, both sides.

b. Top Panels: 0.032 inch (0.81 mm) tempered aluminum alloy, satin

anodized finish with decorative laminate, both sides.

c. Center Plates: 30-5/8 inches (778 mm) high, 18 gauge (1.27 mm)

stainless steel, both sides.

d. Base Plates: 17-3/8 inches (441 mm) high, 14 gauge (1.90 mm) grade

D structural quality mill galvanized steel, both sides.

4. Gasket: Full perimeter seal.

5. Window Size: 9 inches (229 mm) wide by 14 inches (356 mm) high.

6. Window Size: _______ inches wide by _______ inches high.

7. Window Size: ____ inch diameter.

8. Window Molding: Black rubber molding.

9. Window Frames: ABS plastic framing. a. Color: Beige. (101) b. Color: Sand. (102) c. Color: Off White (103) d. Color: Red. (104) e. Color: Blue. (106) f. Color: Black. (108) g. Color: Brown. (109) h. Color: Gray. (110)

10. Glazing: Clear acrylic.

11. Glazing: Translucent acrylic.

12. Glazing: _______________________.

13. Laminate Finish: As selected from manufacturer's standard selection.

14. Provide jamb guards and/or spring bumpers as specified in Accessories below.

E. Insulated Cooler Traffic Doors: 1-1/2 inches (38 mm) thick insulated foam door;

same facing both sides; medium duty.

1. Facing: Reinforcing metal plates. (Model FCG-1) a. Top Panels: 0.032 inch (0.81 mm) tempered aluminum alloy, satin

anodized finish, both sides.

b. Top Panels: 0.032 inch (0.81 mm) tempered aluminum alloy, satin

anodized finish with decorative laminate, both sides.

c. Base Plates: 48 inches (1219 mm) high, 18 gauge (1.27 mm) stainless

steel both sides.

00000-11

2. Facing: Reinforcing metal plates. (Model FCG-3) a. Full Length Panels: 18 gauge (1.27 mm) stainless steel, both sides;

stainless steel hardware covers.

3. Facing: Reinforcing metal plates. (Model FCG-5) a. Top Panels: 0.032 inch (0.81 mm) tempered aluminum alloy, satin

anodized finish, both sides.

b. Top Panels: 0.032 inch (0.81 mm) tempered aluminum alloy, satin

anodized finish with decorative laminate, both sides.

c. Center Plates: 30-5/8 inches (778 mm) high, 18 gauge (1.27 mm)

stainless steel, both sides.

d. Base Plates: 17-3/8 inches (441 mm) high, 14 gauge (1.90 mm) grade

D structural quality mill galvanized steel, both sides.

4. Gasket: Full perimeter seal.

5. Window Size: 9 inches (229 mm) wide by 14 inches (356 mm) high.

6. Window Size: _______ inches wide by _______ inches high.

7. Window Size: ____ inch diameter.

8. Window Molding: Black rubber molding.

9. Laminate Finish: As selected from manufacturer's standard selection.

10. Provide jamb guards and/or spring bumpers as specified in Accessories below.

2.5 HARDWARE AND ACCESSORIES A. Hinges: Double Action Easy Swing(r) proprietary hinges.

1. Finish: Zinc coated.

2. Finish: Stainless steel.

B. Jamb Guards: Use in high impact traffic areas to protect the door jamb and bottom

pin. Installed at bottom edges of doors.

1. Finish: Zinc coated.

2. Finish: Stainless steel.

3. Size: 5 inches (127 mm) wide by 18 inches (457 mm) high.

4. Size: 3 inches (76 mm) wide by 9 inches (229 mm) high.

C. Spring Bumpers: Easy Spring bumpers, 0.25 inch (6 mm) thick high impact resistant

thermoplastic.

1. Dimensions: 18 inches (457 mm) high.

2. Dimensions: 24 inches (610 mm) high.

3. Dimensions: 36 inches (914 mm) high.

4. Dimensions: 42 inches (1067 mm) high.

5. Dimensions: 48 inches (1219 mm) high.

6. Color: Black.

7. Color: Gray.

8. Color: Red.

9. Color: Brown.

D. Base Plates: Base plates to install on base of door surface; in pairs for front and

back.

1. Material: Stainless steel, both sides.

2. Material: Galvanized steel, both sides.

3. Material: Stainless steel front; galvanized steel back.

4. Material: 0.25 inch (6 mm) thick thermoplastic, both sides.

5. Material: .090 inch (2.28 mm) thick thermoplastic, both sides.

6. Color: Beige. (101)

00000-12

7. Color: Sand. (102)

8. Color: Off White. (103)

9. Color: Red. (104)

10. Color: Blue. (106)

11. Color: Black. (108)

12. Color: Brown. (109)

13. Color: Gray. (110)

14. Height: 12 inches (305 mm).

15. Height: 24 inches (610 mm).

16. Height: 30 inches (762 mm).

17. Height: 36 inches (914 mm).

18. Height: 48 inches (1219 mm).

19. Height: ___________.

E. Bumper Strips: 3/4 inch (19 mm) by 1-1/2 inches (38 mm) extruded 6061-T6

aluminum; set is two bumpers.

1. Mounting: Ship loose, to be mounted at installation.

2. Mounting: Ship mounted, __________ from bottom of door. F. Push Plates: Stainless steel; 5-3/4 inches (146 mm) by 11-3/4 inches (298 mm). G. Push Plates: ABS plastic; 5-3/4 inches (146 mm) by 11-3/4 inches (298 mm).

1. Color: Beige. (101)

2. Color: Sand. (102)

3. Color: Off White. (103)

4. Color: Red. (104)

5. Color: Blue. (106)

6. Color: Black. (108)

7. Color: Brown. (109)

8. Color: Gray. (110) H. Padlock Bracket: Stainless steel. I. Chain Lock Holes: Stainless steel. J. Deadbolt Lock: Toggle switch / keyed entry.

PART 3 EXECUTION

3.1 EXAMINATION A. Do not begin installation until substrates have been properly prepared. B. Verify jambs plumb and square. C. If substrate preparation is the responsibility of another installer, notify Architect of

unsatisfactory preparation before proceeding.

3.2 PREPARATION A. Clean surfaces thoroughly prior to installation. B. Prepare surfaces using the methods recommended by the manufacturer for

achieving the best result for the substrate under the project conditions.

00000-13

3.3 INSTALLATION A. Install in accordance with manufacturer's instructions. B. Anchor assembly to wall construction and building framing without distortion or

stress. C. Fit and align door assembly including hardware. D. Minimum jamb construction of double studded 2 by 4 wood construction or

equivalent. E. Reinforce hollow metal jambs at hardware locations. F. Steel channel jambs are required for heavy duty traffic doors. G. Adjust door assembly to smooth operation and in full contact with weatherstripping.

3.4 CLEANING A. Clean doors, frames [and glass]. B. Remove temporary labels and visible markings.

3.5 PROTECTION A. Protect installed products until completion of project. B. Touch-up, repair or replace damaged products before Substantial Completion.

END OF SECTION

00000-14
