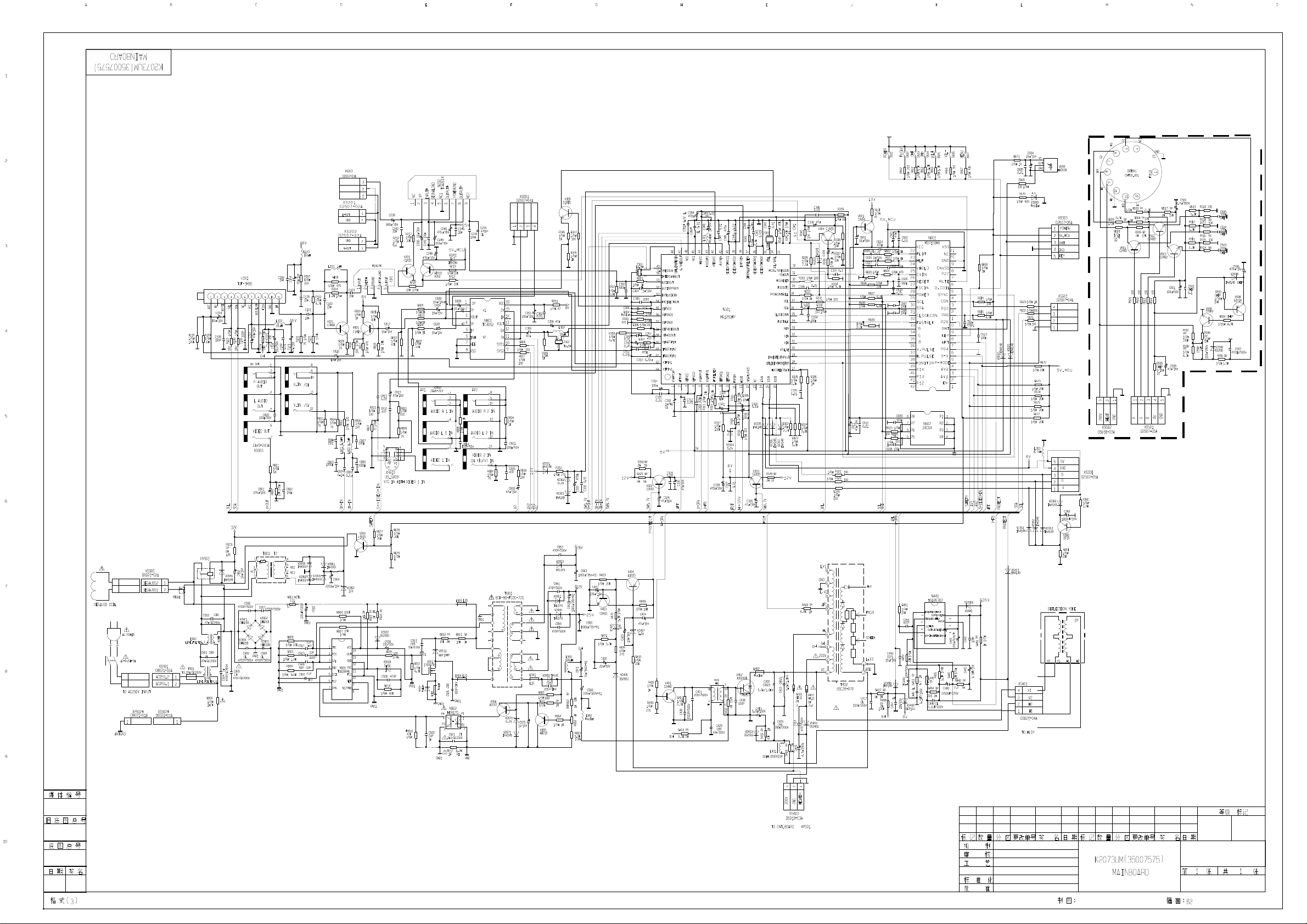

Elenberg CTV-1570 Schematic

Download
Page 1

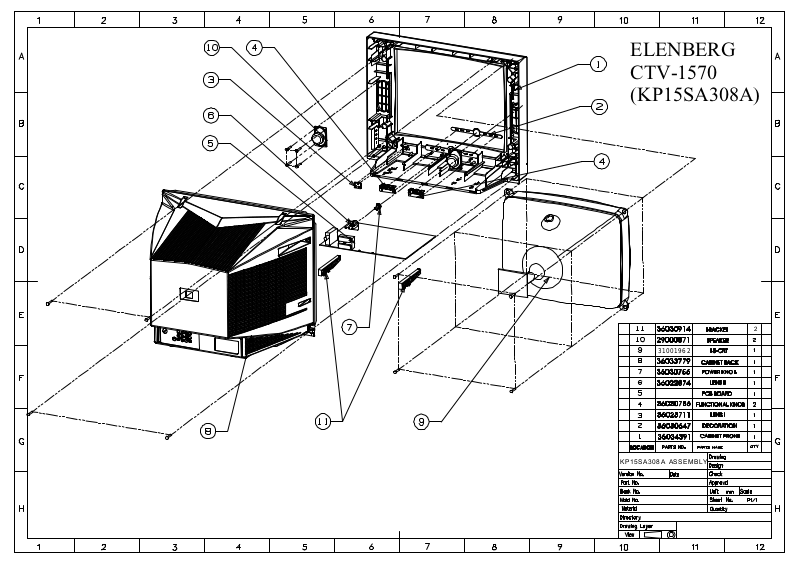

ELENBERG  CTV-1570  (KP15SA308A)
2
31001962
KP15SA308AASSEMBLY
Page 2
Spare Parts List ELENBERG CTV-1570 (KP15SA308A)
№ Part Number Description
1 12001175 *DEGAUSSING COILBKK37B-40T4D0.44-1065/A 2 26000092 CRT CONNECTOR ZJ101802-0D1 3 26000314 FOUR-PIN CONNECTOR 11-4T04/T00-410 4 26000370 TWO-PIN CONNECTOR 02-2T01/T00-250 5 26005633 *TWO-PIN CONNECTOR 02-2T01/T00-460(400) 6 28000094 *SHRINK PLASTIC SLEEVEΦ3.5-125℃BLA/U.C 7 29000871 SPEAKER YDT310N-4B-16Ω/3W 8 31003842 *CRT-A36AKJ13X20(M)-02-CHUNGHWA/#AU*
9 33000365 BATTERY RO3P-AAA-10.2X44.5 1.5V 10 36000728 *WASHER 229*382101-01 11 36002115 *RUBBER PAD 334*371601-01 12 36002222 *OVERLAY 384*212801-01 13 36003210 *WIRE TIE 680*101261-01R 14 36003216 *SEPARATE RING 680*392101-00 15 36004646 *FIBER PAPER PAD Φ8.2×Φ22×0.8 16 36006344 *RUBBER SPACER PLATE 334*299301-01 17 36006414 *FELT PAPER 150X15X0.5-GENERAL PURPOSE 18 36014984 *AC LINE CORE CLIP 254*000210/00-F 19 36022874 *LENS 263*KP210810/101H 20 36023711 *LENS 263*K140820/101J 21 36030647 *PLATE 388*KP14SA308U10/101 22 36030756 *POWER BUTTON 292*KP210810/105D 23 36030786 *FUNCTION BUTTON291*KP14SA308U110/101D 24 36030817 *STUD 250*KP14SA308U110/101 25 36030914 *BRACKET 229*T292610/100C 26 36031326 * PLATE389*KP14SA308U110/01 27 36033776 *CHASSIS BRACKET220*K140110/100CR 28 36033779 BACK CABINET 202*KP14SA308U110/101B 29 36034391 FRONT CABINET 200*KP14SA308U110/101A 30 36034628 PLATE 389*K15SA308A10/00 31 37000403 *WIRE CLIP 451*701201-01 32 37000425 *SWITCH SPRING 477*212802-01 33 37003061 *CRT SPRING 477*P290010/00 34 37003150 *FIXED-HOOK 451*P2989N10/00 35 37011010 NAME PLATE 401*15寸Elenberg10/02 36 38000081 *TAPPING SCREW P-ST3×10-Zn-FT-H 优 37 38000093 *TAPPING SCREW P-ST3×8-Zn-C 38 38000132 *TAPPING SCREW B-ST3×12-Zn-C-H 39 38000133 *TAPPING SCREW B-ST3×16-O-C-H 40 38000165 *TAPPING SCREW B-ST4×25-Zn-C-H 41 38000201 *TAPPING SCREW W-ST3×12-Zn-FT 42 38000202 *TAPPING SCREW B-ST5×38-Zn-C 43 38000561 *TAPPING SCREW P-ST4×12-0-C 44 39002596 *BIG BUBBLE SHEET W 1M，1ROLL=45M 45 39003651 *CARDBOARD 512*587-457-双 46 39004416 *POLYBAG 310*280-K180-0.04/2 47 39004417 *POLYBAG 310*350-K280-0.04/2 48 39005374 PACKINGBAG310*1200-K1100-0.04/4 49 39011083 *PACKINGBAG310*800-K800-0.04/4 50 39017267 *SKDFRONTCABINET CARTON 519*KDT159AST210 51 39017268 *SKD BACKCABINET CARTON 519*KDT159AST220 52 39022194 CARTON BOX 510*157010/01-ELENBERG 53 39022195 MANUAL570*1570/01-二合一ELENBERG 54 39022305 WARRANTY CARD 901*157010/01-ELENBERG 55 41000086 *QC LABEL 569*018101-10 56 41001864 *SERIAL LABEL 569*380501-06 57 41003843 *SERIAL BAR CODE LABEL 569*2004001/01 58 41005756 *LABEL 569*装箱清单10/03 59 KK-Y294F REMOTE HANDSET KK-Y294F 60 KP15SA308ASKD-00KP15SA308A CHASSIS ASSEMBLY GENERAL 61 KP15SA308AZZ-00 KP15SA308A ASSEMBLY PARTS GENERAL 62 KP15SA308AZZ-18 KP15SA308A ASSEMBLY PARTS SPECICAL 63 KP15SA308AZZ-RUKP15SA308A ASSEMBLY PARTS GENERAL
Page 3
KONKA GROUP CO, LTD
Process Document
Volume One
Total Volumes: One
Total Pages: 23
Product Name 15”Color Television Set
Product Model KP15SA308A
Contents: Final Assemble
Approved by :
Year Month Date
2007.01.04
Page 4
KONKA GROUP CO, LTD Process Document
Process Document Contents
Serial No.
1 Process Document Contents 1
2 Process Flow Diagram 1
3 Apparatuses and Meters List 1
4 Tools and Implements List 1
5 Auxiliary Materials Consumption Quota Summary Sheet 1
6 Complete Machine Assembly 10
7 Inspection Process Card 3
8 Complete Machine Adjustment Process Card 5
Prepared by
Checked by
Standardized by
Changing Marks Quantity
Document Name
Changing Sheet No.
Signature Date Approved by
Product Name 15”Color Television Set
Product Type KP15SA308A
Page
Andy 2007-1-4
Pengxiao hua Chenzaiz ai Chenguo jing
2007-1-4
2007-1-4 Edition 0
2007-1-5
Remarks
KP15SA308A-
GMX
Page 1 Total Pages 1
Page 5
KONKA GROUP CO, LTD
Process Document
Product Name 15”Color Television Set
Product Type KP15SA308A
(Final Assemble) Process Flow Diagram
1（1－5） 2（1、4－7） 2（8－13）
Front Cabinet
Assembly
2（2）
Speaker Parts and
Components
Complete Machine
Assembly
SKD Parts and
Components
Complete Machine
Assembly
Complete Machine
Inspection
2（16）
Complete Machine
Assembly
High-voltage Test
Manuals and
Antennas
Complete Machine
Packaging
4（1）
5（1）
5（2－8）
2（3）
CRT Parts and
Components
3（3－8） 3（9）
Complete Machine
Adjusting
2（14、15）
Back Cabinet Parts
& Components
4（2－4）
4（7）
Appearance Repair
4（8）
Appearance
Inspection
Automatic
Degaussing
3（9）
Complete
Machine Repair
TV Performance
Inspection
3（2）
Repair
3（1）
Initial White
Balance Adjustment
Normal Temperature
Aging
4（5、6）
AV Performance
Inspection
2（17）
Complete Machine
Assembly
In-warehousing
Prepared by
Checked by
Standardized by
Changing Marks Quantity
Changing Sheet No.
Signature Date Approved by
Andy 2007-1-4
Pengxiao hua Chenzaiz ai Chenguo jing
2007-1-4
2007-1-4 Edition 0
2007-1-5
KP15SA308A-
GLC
Page 1 Total Pages 1
Page 6
KONKA GROUP CO, LTD
. Serial No.
Process Document
Apparatuses and Meters List
Product Name 15”Color Television Set
Product Type KP15SA308A
Name and Model Number Purpose Quanti
1 TV Signal Generator PM5418 AV INPUT
2 Isolation Tester TOS5050 Isolation Test
3
4 White Balance Adjust Computer LEGEND Adjustment
5 TV Colour Analyzer CA-100 Adjustment 1
6 Degaussing Machine D08-2 Adjustment 1
7
Digital Voltmeter
TV Signal Generator
RM13-74 Adjustment
FLUKE-54 200
Adjustment
ty
2
1
2
1
1
Prepared by
Checked by
Standardized by
Changing Marks Quantity
Changing Sheet No.
Signature Date Approved by
Andy 2007-1-4
Pengxiao hua Chenzaiz ai Chenguo jing
2007-1-4
2007-1-4 Edition 0
2007-1-5
Remarks
KP15SA308A-
GYM
Page 1 Total Pages 1
Page 7
KONKA GROUP CO, LTD
Product Name 15”Color Television Set
Product Type KP15SA308A
Process Document
Tools and Implements List
Serial No. Name and Model Quantity Remarks
1 60W Electric Soldering Iron 2
2 40W Electric Soldering Iron 2
3 Pneumatic Screwdriver 4
4 Adhesive Tape Set 1
5
6
7
Packaging Stapler
Multi-meter 3
Screwdriver 3
1
Prepared by
Checked by
Standardized by
Changing Marks Quantity
Changing Sheet No.
Signature Date Approved by
Andy 2007-1-4
Pengxiao hua Chenzaiz ai Chenguo jing
2007-1-4
2007-1-4 Edition 0
2007-1-5
KP15SA308A-
GGM
Page 1 Total Pages 1
Page 8
KONKA GROUP CO, LTD
Product Name 15”Color Television Set
Product Type KP15SA308A
Process Document
Auxiliary Materials Process Consumption Quota Summary Sheet
Serial No.
1 Nitryl Lacquer 40000022 Reinforcement of
2 Stationery Adhesive
3 Pakaging Adhesive
4 Water-Resist and
5 Red Glue 40000016 Reinforcement for
6
7 Radiator Cooling
Prepared by
Checked by
Standardized by
Changing Marks Quantity
Name Serial
No.:(P/M)
40000030 Manual and AC
Tape
40001090 Carton M 1.58
Tape
40000981 Insulating Silicon Grease
Gray Silica Gel
Glue
40000011 Reinforcement for
40000013 Cooling Fin G 0.5
Changing Sheet No.
Purpose Unit Consumption/Set Consumption/Th
ousand Sets
Accelerate & Focus Electrodes
Line Cord
G 0.2
M 0.24
Hi-Volt Mouth
CRT Nut
Big Capacity
G 0.6
G 0.3
G 1
Andy 2007-1-4
Signature Date Approved by
Pengxiao hua Chenzaiz ai Chenguo jing
2007-1-4
2007-1-4 Edition 0
2007-1-5
KP15SA308A-
Page 1 Total Pages 1
Remarks
GFH
Page 9
KONKA GROUP CO, LTD
Product Name 15”Color Television Set
Product Type KP15SA308A
Process Document
Assembly Process Card (1)
No. Material Name Serial No. (P/N) Quantity Location Procedure Contents and Requirements
1 FRONT CABINET 36034391 1
Procedure Name Procedure No. 1
2 NAME PLATE 37011010 1 3 LENS 36023711 1 4 TAPPING SCREW 38000093 1 5 TAPPING SCREW 38000081 6 6 Power LENS 36022874 1 7 SWITCH SPRING 37000425 7 8 POWER BUTTON 36030756 1 9 FUNCTION
36030786 2
BUTTON
10 PLATE 36030647 1 11
Whole Machine Assembly
1、 Mount the name plate to the front
cabinet;
2、 Mount the lens 36023711 on the front
cabinet with tapping screw 38000093;
3、 Assemble the lens 36022874、switch
spring and power button together then mount it on the front cabinet with tapping screw 38000081;
4、 Mount the function button on the
front cabinet with tapping screw 38000081;
5、 Mount the plate on the front cabinet.
Frock and Tools
Prepared by
Checked by
Standardized by
Changing Marks Quantity
Work-type
Man-hour
Changing Sheet No.
Signature Date Approved by
Andy 2007-1-4
Pengxiao hua Chenzaiz ai Chenguo jing
2007-1-4
2007-1-4
2007-1-5
KP15SA308A-G ZP
Edition 0
Page 1 Total Pages 10
Page 10
KONKA GROUP CO, LTD
with taping screw 38000201
Product Name 15”Color Television Set
Product Type KP15SA308A
Process Document
Assembly Process Card (1)
No. Material Name Serial No. (P/N) Quantity Location Procedure Contents and Requirements
1 FRONT CABINET 1
Procedure Name Procedure No. 2
2 SIDE AV BOARD 35009576 1 3 TAPPING SCREW 38000081 3 4 FUNCTION BOARD 35009338 1 5 POWER SWITCH 1 6 RECEIVER BOARD 35009389 1 7 TAPPING SCREW 38000201 12
Whole Machine Assembly
1、 Mount the side AV board on the front
cabinet with tapping screw 38000081;
2、 Insert XP603->XS603A to connect
receiver board and function board;
3、 Mount the function board and the
power switch on the front cabinet
(Mounting the function board must be first).
Frock and Tools
Prepared by
Checked by
Standardized by
Changing Marks Quantity
Work-type
Man-hour
Changing Sheet No.
Signature Date Approved by
Andy 2007-1-4
Pengxiao hua Chenzaiz ai Chenguo jing
2007-1-4
2007-1-4
2007-1-5
KP15SA308A-G ZP
Edition 0
Page 2 Total Pages 10
Page 11
KONKA GROUP CO, LTD
Product Name 15”Color Television Set Product Type KP15SA308A
Process Document
Assembly Process Card (1)
No. Material Name Serial No. (P/N) Quantity Location Procedure Contents and Requirements
1 FRONT CABINET 1 2 SPEAKER 2 3 SHRINK PLASTIC
SLEEVE 4 WIRE CLIP 37000403 2 5 TAPPING SCREW 38000081 8 6 CHASSIS BRACKET 36033776 1 7 TAPPING SCREW 38000133 4
28000094 0.08m
Procedure Name Complete Machine Assembly Procedure No. 3
1、 Scissor the shrink plastic sleeve to
0.04m per piece and make the wire clip invaginate;
2、 Mount the speaker on the
designated position of the front cabinet with tapping screws 38000081;
3、 Mount the chassis bracket on the
designated position of the front cabinet with tapping screws
38000133.
Frock and Tools
Prepared by
Checked by
Standardized by
Changing Marks Quantity
One Pneumatic Screwdriver
Man-hour
Changing Sheet No.
Signature Date Approved by
Andy 2007-1-4
Pengxiao hua Chenzaiz ai Chenguo jing
2007-1-4
2007-1-4
2007-1-5
Work-type
KP15SA308A-G ZP
Edition 0
Page 3 Total Pages 10
Page 12
KONKA GROUP CO, LTD
Product Name 15”Color Television Set
Product Type KP15SA308A
Process Document
Assembly Process Card (1)
No. Material Name Serial No. (P/N) Quantity Location Procedure Contents and Requirements
1 CRT 31003842 1
2 CRT CONNECTOR 26000092 1
3 CRT SPRING 37003061 1
Procedure Name Complete Machine Assembly Procedure No. 4
1、 Put CRT on a flat-form; 2、 Suspend one side of CRT Connector
from a metal ear of CRT upside and suspend the other side from CRT spring, which hook the hole of that diagonal metal ear of the CRT.
Frock and Tools
Prepared by
Checked by
Standardized by
Changing Marks Quantity
One Air Pressure Gun
Man-hour
Changing Sheet No.
Signature Date Approved by
Andy 2007-1-4
Pengxiao hua Chenzaiz ai Chenguo jing
2007-1-4
2007-1-4
2007-1-5
Work-type
KP15SA308A-G ZP
Edition 0
Page 4 Total Pages 10
Page 13
KONKA GROUP CO, LTD
Product Name 15”Color Television Set
Product Type KP15SA308A
Process Document
Assembly Process Card (1)
No. Material Name Serial No. (P/N) Quantity Location Procedure Contents and Requirements
1 FRONT CABINET 1
Procedure Name Procedure No. 5
2 TAPPING SCREW 38000202 4 3 RUBBER SPACER
36006344 1
PLATE 4 FIBER PAPER PAD 36004646 4 5 RUBBER PAD 36002115 4 6 WASHER 36000728 4 7 HOOK 37003150 2 8 CRT GOUPWARE 1 9 DEGAUSSING COIL 12001175 1
Whole Machine Assembly
1、 Set fiber paper pad and rubber pad on
the designated position of the front cabinet;
2、 Put CRT groupware and washer that
hook set upside;
3、 Fix CRT with tapping screw; drop
some red glue on the CRT bracket;
4、 Stick the rubber space plate on
middle downside edge of CRT (up the switch lens) to prevent shining the screen from LED when the TV is switched on;
5、 Mount Degaussing Coil on the CRT,
fixed with hook.
Frock and Tools
Prepared by
Checked by
Standardized by
Changing Marks Quantity
Work-type
Man-hour
Changing Sheet No.
Signature Date Approved by
Andy 2007-1-4
Pengxiao hua Chenzaiz ai Chenguo jing
2007-1-4
2007-1-4
2007-1-5
KP15SA308A-G ZP
Edition 0
Page 5 Total Pages 10
Page 14
KONKA GROUP CO, LTD
Product Name 15”Color Television Set
Product Type KP15SA308A
Process Document
Assembly Process Card (1)
No. Material Name Serial No.(P/N) Quantity Location Procedure Contents and Requirements
1 FRONT CABINET 36034391 1 2 FOUR-PIN
CONNECTOR 3 CHASSIS
GROUPWARE 4 SEPARATE RING 36003216 1 5 STUD 36030817 3
26000314 1
1
Procedure Name Complete Machine Assembly Procedure No. 6
1、 Solder the four-pin connector to
the DY;
2、 Insert the stud to the designed hole
of main PCB board bottom;
3、 Dust and dirt around high-voltage
cap and high-voltage nozzle should be blown off with air blower.； Set
separate ring at proper position
of the high voltage cable to keep the high voltage cable away from DY coil.
4、 Insert the CRT connector to XS501
and fix it with gray glue; Insert CRT board into the CRT.
Frock and Tools
Prepared by
Checked by
Standardized by
Changing Marks Quantity
Work-type
Man-hour
Changing Sheet No.
Signature Date Approved by
Andy 2007-1-4
Pengxiao hua Chenzaiz ai Chenguo jing
2007-1-4
2007-1-4
2007-1-5
KP15SA308A-G ZP
Edition 0
Page 6 Total Pages 10
Page 15
KONKA GROUP CO, LTD
Product Name 15”Color Television Set
Product Type KP15SA308A
Process Document
Assembly Process Card (1)
No. Material Name Serial No.(P/N) Quantity Location Procedure Contents and Requirements
1 FRONT CABINET 1 2 WIRE TIE 36003210 3 3 OVERLAY 36002222 1
Procedure Name Complete Machine Assembly Procedure No. 7
1、 Insert DY coil plug into XS401. 2、 Insert speaker connector into
XS203 and XS204, earphone wire into XS201.
3、 Insert degaussing coil connector
into XS902;.
4、 Insert key board connector、side
AV wire connector;
5、 Tie the wires proportionally; 6、 Ring the neck of U101’s mouth
with overlay.
Frock and Tools
Prepared by
Checked by
Standardized by
Changing Marks Quantity
One Electric Soldering Iron
Man-hour
Changing Sheet No.
Signature Date Approved by
Andy 2007-1-4
Pengxiao hua Chenzaiz ai Chenguo jing
2007-1-4
2007-1-4
2007-1-5
Work-type
KP15SA308A-G ZP
Edition 0
Page 7 Total Pages 10
Page 16
KONKA GROUP CO, LTD Process Document
Assembly Process Card (1)
No. Material Name Serial No. (P/N) Quantity Location Procedure Contents and Requirements
1 BACK CABINET 36033779 1 2 FELT PAPER 36006414 5 3 BRACKET 36030914 2 4 TAPPING SCREW 38000133 2
Product Name 15”Color Television Set
Product Type KP15SA308A
Procedure Name Whole Machine Assembly
Procedure No. 8
1、 Stick the felt paper on the edge of the
back cabinet；
2、 Mount the bracket in the designated
position of the back cabinet.
Frock and Tools
Prepared by
Checked by
Standardized by
Changing Marks Quantity
Work-type
Man-hour
Changing Sheet No.
Signature Date Approved by
Andy 2007-1-4
Pengxiao hua Chenzaiz ai Chenguo jing
2007-1-4
2007-1-4
2007-1-5
KP15SA308A-G ZP
Edition 0
Page 8 Total Pages 10
Page 17
KONKA GROUP CO, LTD
Product Name 15”Color Television Set Product Type KP15SA308A
Process Document
Assembly Process Card (1)
No. Material Name Serial No. (P/N) Quantity Location Procedure Contents and Requirements
1 FRONT CABINET 1
2 AC LINE CORE CLIP 36014984 1
3 BACK CABINET 36033779 1
4 TAPPING SCREW 38000165 4
5 TAPPING SCREW 38000132 2
6 TAPPING SCREW 38000561 1
7 ASIDE AV PLATE 36031326 1
8 PLATE 36034628 1
9 QC LABEL 41000086 1
10 POLYBAG 39004416 1
11 SERIAL BAR CODE
LABEL
12
41003843 2
Procedure Name Complete Machine Packaging Procedure No. 9
1、 Mount the back cabinet onto the front
cabinet; clip the power cord with clip 36014984;
2、 Fix the cabinet with tapping screw
38000165; fix the back terminal with the tapping screw 38000132; fix the FBT at the back cabinet with the tapping screw 38000561;
3、 Stick the aside AV plate and other labels
or plates on the designated position;
4、 Fold the AC line core then pack it.
Frock and Tools
Prepared by
Checked by
Standardized by
Changing Marks Quantity
Work-type
Man-hour
Changing Sheet No.
Signature Date Approved by
Andy 2007-1-4
Pengxiao hua Chenzaiz ai Chenguo jing
2007-1-4
2007-1-4
2007-1-5
KP15SA308A-G ZP
Edition 0
Page 9 Total Pages 10
Page 18
KONKA GROUP CO, LTD
Product Name 15”Color Television Set Product Type KP15SA308A
Process Document
Assembly Process Card (1)
No. Material Name Serial No. (P/N) Quantity Location Procedure Contents and Requirements
1 POLYBAG 39004417 1
2 WARRANTY CARD 9022305 1
3 REMOTE HANDSET KK-Y294F 1
4 MANUAL 39022195 1
5 BATTERY 33000365 2
6 CARTON BOX 39022194 1
7 TV SET 1
8 PACKINGBAG 39005395 1
9
10 POLYFOAM
11
12
POLYFOAM（UP）
（DOWN）
1
1
Procedure Name Complete Machine Packaging Procedure No. 10
1. Put warranty card, remote handset and manual and battery etc into plastic bag;
2. Shape the carton; package the TV with the packing bag and carton box;
3. Stick carton label and bar code label on the proper location of the carton
Frock and Tools
Prepared by
Checked by
Standardized by
Changing Marks Quantity
Work-type
Man-hour
Changing Sheet No.
Signature Date Approved by
Andy 2007-1-4
Pengxiao hua Chenzaiz ai Chenguo jing
2007-1-4
2007-1-4
2007-1-5
KP15SA308A-G ZP
Edition 0
Page 10 Total Pages 10
Page 19
KONKA GROUP CO, LTD
Product Name
15”Color Television Set
Process Document
Adjustment Process Card
Adjustment Items
Power Supply and Voltage adjustment
1. Check AC voltage is normal or not, AC220V，50Hz.
2. Receive Television broadcast signal, adjust Brightness and Contrast until the standard picture is obtained.
3. Adjust RP950 until voltage between cathode of VD950 and GND of chassis is 110V±0.5V。( Detail voltage please see B/M ) High Voltage check Connect normal AC voltmeter between R406 (the side to CRT) and GND, and measure the filament voltage may be 6.3V±0.25V(refer to the BOM for the voltage range of the special CRT) .
Power Supply and filament voltage adjustment
Product Type
Procedure Name
Chart No.
Oscillogram and meter connection
KP15SA308A
Chassis Adjustment
KP15SA308A-TS
Apparatus and Tools
GDM-8145 Digital voltmeter×1 , DC Power Supplier X2,
Adjustment Screwdriver X1, PHILIP Pattern Signal Generator（5820）
Changing Marks
Quanti ty
Changing Sheet No.
Signature Date Approved
Prepared by Checked by Pengxiaohua 2007-1-4
Standardize d by
by
Andy 2007-1-4
Chenzaizai 2007-1-4 Version
Chenguojin g
2007-1-5
Page1 of 5
Page 20
KONKA GROUP CO, LTD
Product Name
15”Color Television Set
Process Document
Adjustment Process Card
Adjustment Items
1. Elect CROSSHATCH and DOT signal, then set
PICTURE to STANDARD mode;
2. Adjust FOCUS to make the picture on the CRT is the clearest.
Focus adjustment
Product Type
Procedure Name
Chart No.
Oscillogram and meter connection
KP15SA308A
Chassis Adjustment
KP15SA308A-TS
Apparatus and Tools
Remote handset KK-Y94F PM5418
Changing Marks
Quanti ty
Changing Sheet No.
Signature Date Approved
Prepared by Checked by Pengxiaohua 2007-1-4
Standardize d by
by
Andy 2007-1-4
Chenzaizai 2007-1-4 Version
Chenguojin g
2007-1-5
Page 2 of 5
Page 21
KONKA GROUP CO, LTD
Product Name
15”Color Television Set
Process Document
Adjustment Process Card
Adjustment Items White balance adjustment
White balance and sub-brightness adjustment Note: BLUE BACK must be turned off and factory menu must be ON before placing the set with aging test. 1 Set Unit to AV, and set the picture to standard mode. 2 Enter FACTORY MENU 00, press P+ or P- button to choose V-KILL, then press V+ button to display horizontal light line on the screen, adjust SCREEN potentiometer so that the horizontal light line just displays anyone color of R,G and B, press V- button to restore the screen. 3 Input left black and right white signal for white balance adjustment. 4 Insert I2C controller plug which is used for automatic adjustment system into XS600 socket on the main board. 5 Turn on color analyzer CA100 to make zero correction. 6 Run the program （WB76931.exe） 7 Press “SPACE” key or press switch on the controller socket, white balance adjustment will be operated automatically. If OK, “ Click” will be heard. 8 Pull out I2C controller plug from XS600, receive black-white NTSC five circles pattern signal, and set the picture to standard mode.
9. Enter FACTORY MENU 00, adjust sub-brightness until
black-white gray scale is 7~7.5.
Product Type
Procedure Name
Chart No.
Oscillogram and meter connection
KP15SA308A
Chassis Adjustment
KP15SA308A-TS
Apparatus and Tools
White Balance Adjust Computer, 2842C、Remote handset KK-294F×1
Colour Analyzer CA-100
Changing Marks
Quanti ty
Changing Sheet No.
Signature Date Approved
Prepared by Checked by Pengxiaohua 2007-1-4
Standardize d by
by
Andy 2007-1-4
Chenzaizai 2007-1-4 Version
Chenguojin g
2007-1-5
Page 3 of 5
Page 22
KONKA GROUP CO, LTD
Product Name
15”Color Television Set
Process Document
Adjustment Process Card
Adjustment Items
Geometric Distortion and Sub-brightness adjustment
1. Receive black-white NTSC five circles pattern signal, and set
the picture to standard mode, apply 80dBμV signal.
2. Enter into factory submenu FACTORY MENU 00 to adjust the
following items.
H-PHASE
OSD-H-POSITION
V-SIZE V-POSITION V-LINEARRITY V-SC
Geometric Distortion adjustment Oscillogram and meter connection
Product Type
Procedure Name
Chart No.
KP15SA308A
Chassis Adjustment
KP15SA308A-TS
Apparatus and Tools
Remote handset KK-294F×1
Changing Marks
Quanti ty
Changing Sheet No.
Signature Date Approved
Prepared by Checked by Pengxiaohua 2007-1-4
Standardize d by
by
Andy 2007-1-4
Chenzaizai 2007-1-4 Version
Chenguojin g
2007-1-5
Page 4 of 5
Page 23
KONKA GROUP CO, LTD
Product Name
15”Color Television Set
Process Document
Adjustment Process Card
Adjustment Items
HF AGC automatic adjustment 1 Receive signal (VHF channel) 2 Set input field strength to 60dBμV 3 Enter into FACTORY MENU 00, select RF AGC item, press V+ button to adjust RF AGC automatically, and when the adjustment is finished, the screen will display RF AGC value.
HF AGC automatic adjustment
Product Type
Procedure Name
Chart No.
KP15SA308A
Chassis Adjustment
KP15SA308A-TS
Oscillogram and meter connection
Apparatus and Tools
Remote handset KK-294G×1
Changing Marks
Quanti ty
Changing Sheet No.
Signature Date Approved
Prepared by Checked by Pengxiaohua 2007-1-4
Standardize d by
by
Andy 2007-1-4
Chenzaizai 2007-1-4 Version
Chenguojin g
2007-1-5
Page 5 of 5
Page 24
KONKA GROUP CO, LTD
Process Document
Inspection Process Card
Product Name
Product Type
Procedure Name
Chart No.
15”Color Television Set
Chassis Adjustment
KP15SA308A--TS
Inspection Items Factory menu data inspection
NO.
NO.
FACTORY MENU 00
H.PHASE
1
OSD-H-POSITION
2
V.SIZE
3
V.POSITION
4
V.LINEARRITY
5
V.SC
6
V.KILL
7
SUB-BRIGHT
8
RF-AGC AUTO
9
FACTORY MENU 01
H-BLK-L
1
H-BLK-R
2
B-Y DC LEVEL
3
R-Y DC LEVEL
4
B-Y DC LEVEL-YUV
5
R-Y DC LEVEL-YUV
6
B-Y DC LEVEL-SECAM
7
R-Y DC LEVEL-SECAM
8
NO.
FACTORY MENU 02
1 RED-BIAS
GREEN-BIAS
2
BLUE-BIAS
3
RED-DRIVE
4
GREEN-DRIVE
5
BLUE-DRIVE
6
Apparatus and Tools
Initial DATA NO.
△（11）
1
△（25） △（82）
△（4） △（22） △（5）
0
△（85） △(AUTO)
DATA
△4
NO.
1
△4 △2
△2 △6 △6 △8
△18
Initial DATA NO.
△(127) △(127) △(127)
△(90) △（10） △（90）
REMOTE HANDSET KK-Y294F
OPTION MENU 00
AV-SW 0: 4052 1:938
SVHS 0:AUTO 1:FIX
2
OPT-AV-SYSTEM
3
OPT-YUV
4
Y-IN 0:P48 1:P54
5
P48 0:RGB 1YUV
6
0:AUIO IN 1:VMOUT
7
OPTION MENU 01
TUNER 0:QJ 1:ALPS
用 32000859 设为“0”，32001099 设为“1”
VOL LINEAR MEASURE 1
2
LV1116 OPT 0
3
SIF6.5 1
4
SIF6.0 1
5
SIF5.5 1
6
SIF4.5 1
7
OPTION MENU 02
CH MUTE 0:OFF 1:ON 1
1
BACK COVER OPTION 0
2
Q-ASM OPTION 0
3
OPTION-TURKISH 0
4
CHILD LOCK OPT 1
5
SUB WOOFER OPT 0
6
Changing Marks
Quantity Changing
Sheet No.
Signatu re
Prepared by Andy 2007-1-4
Checked by Pengxiaohua 2007-1-4
Standardized by Chenzaizai 2007-1-4 Version
Approved by Chenguojing
KP15SA308A
KP15SA308A—TS--
2007-1-5
Page 1 of 3
GJC
DATA
1
0
1
0
0
1
0
DATA
0/1
DATA
0
Page 25
KONKA GROUP CO, LTD
Product Name
15”Color Television Set
Process Document
Inspection Process Card
Inspection Items Factory menu data inspection
NO.
1
2
3
4
5
6
7
8
NO.
1
2
3
4
5
6
NO.
1
2
3
4
5
6
7
8
NO.
1
2
3
4
5
Apparatus and Tools
Changing Marks
ENGINEER MENU 01 DATA
H-FREQ
V-SIZE-COMP AFC-GAIN-AND-GATE VSYNC-SEP-UP BLK STR GAIN BLK STR START DC TEST RF-AGC MANUAL
4
ENGINEER MENU 02 DATA 5
OSD-CONTRAST EXT.RGB CONTRAST
MAX BRIGHT SUB-CONTRAST SUB-COLOR SUB-SHARP
ENGINEER MENU 03 DATA 3
S TRAP SW SOUND- TRAP BRT-ABL-DEF BRT-ABL-THRESHOLD BRT-MTD-STOP-DEF CORING R-Y/B-Y GAIN-BAL R-Y/B-Y ANGLE
ENGINEER MENU 04 DATA 2
CROSS B/W GRAY MODE FSC OR CSYNC FBPBLK SW VBLK SW
REMOTE HANDSET KK-Y294F
Quantity Changing
Sheet No.
Signatu re
19
7 1 1 0 0 0
18
4
0
80
63
63
55
1 4 0 7 0 0
8
8
1
0 3 0 4 0 0 0
Prepared by Andy 2007-1-4
Checked by Pengxiaohua 2007-1-4
Standardized by Chenzaizai 2007-1-4 Version
Approved by Chenguojing
Product Type
Procedure Name
Chart No.
NO.
6
C BPF TEST
7
C TRAP TEST
8
C.TRAP.TEST /60H
NO.
1
OVER MOD LEVEL
2
OVER MOD SW
3
VIF SYS SW
G-Y ANGLE G-Y AMP
6
Y GAIN
7
Y TH
V POSITION AC PAL 1
8
V POSITION AC NTSC
9
NO.
1
VCO FREQ
2
VIDEO SW VIDEO LEVEL
4
VIDEO LEVEL OFFSET
5
VM DELAY ADJUST
6
VM GAIN
7
C KILL ON
8
C KILL OFF
9
HT NO-COLOR
NO.
Y GAMMA COLOR KILLER OPE PAL APC SW C VCO ADJ
Chassis Adjustment
KP15SA308A--TS
ENGINEER MENU 04 DATA
ENGINEER MENU 05 DATA
ENGINEER MENU 06 DATA
ENGINEER MENU 07 DATA
KP15SA308A
KP15SA308A—TS
2007-1-5
Page 2 of 3
0
7
7
6
1
0
0
10
2
2
10
108
0（auto）
5
0
3
4
0（auto）
0（auto）
0
3 7
0
4
—GJC
0
Page 26
KONKA GROUP CO, LTD
Product Name
15”Color Television Set
Process Document
Inspection Process Card
Inspection Items Factory menu data inspection
NO.
1
2
3
4
5
6
7
NO. ENGINEER MENU 09 DATA NO. ENGINEER MENU 11 DATA
1
2
3
4
5
Apparatus and Tools
Changing Marks
ENGINEER MENU 08 DATA
OVER-SHOOT ADJ PRE-SHOOT ADJ
WPL POINT AUTO-FLESH
A.MONI.SW 1
V.TRANS V-RESET TIMING
LV1116 GAIN LV1116 L+R GAIN MAX VOLUME - DB MAX TREBLE - DB MAX BASS - DB
NOTE: Press MENU button on the remote control firstly, then press RECALL button three times sequentially to enter FACTORY MENU.，then press MUTE button to enter ENGINEER MENU, press DISPLAY to exit menu. Press RECALL button again to exit FACTORY MENU
1 Press P+ or P- button on the remote control to select test item. 2 Press V+ or V- button on the remote control to adjust the value of selected item.
3.Only the FACTORY MENU data with “△”can be adjusted; If need to adjust the others, please consult
the designer.
REMOTE HANDSET KK-Y294F
Quantity Changing
Sheet No.
6
Signatu re
2 2 1 0
0 1
3△ 1
7
5△ 3
0
0
Prepared by Andy 2007-1-4
Checked by Pengxiaohua 2007-1-4
Standardized by Chenzaizai 2007-1-4 Version
Approved by Chenguojing
Product Type
Procedure Name
Chart No.
NO.
1
SYNC SEP SENS POWER-ON-TIME
2
BELL.ADJ.SW
3
BELL.ADJ
4
EQU.ON
5
EQU.ADJ
6
SEC.KILL.ON
7
SEC.KILL.OFF
8
COLOR SYS
2
FILTER-SYSTEM C-EXT
4
C-BYPASS
5
CBCR-IN Y-APF
KP15SA308A
Chassis Adjustment
KP15SA308A--TS
ENGINEER MENU 10 DATA
2007-1-5
1△
1△
0△ 8△
6（auto） 0（auto） 0（auto）
KP15SA308A—TS--
GJC
Page 3 of 3
4
1
0 0
2
0
0
0

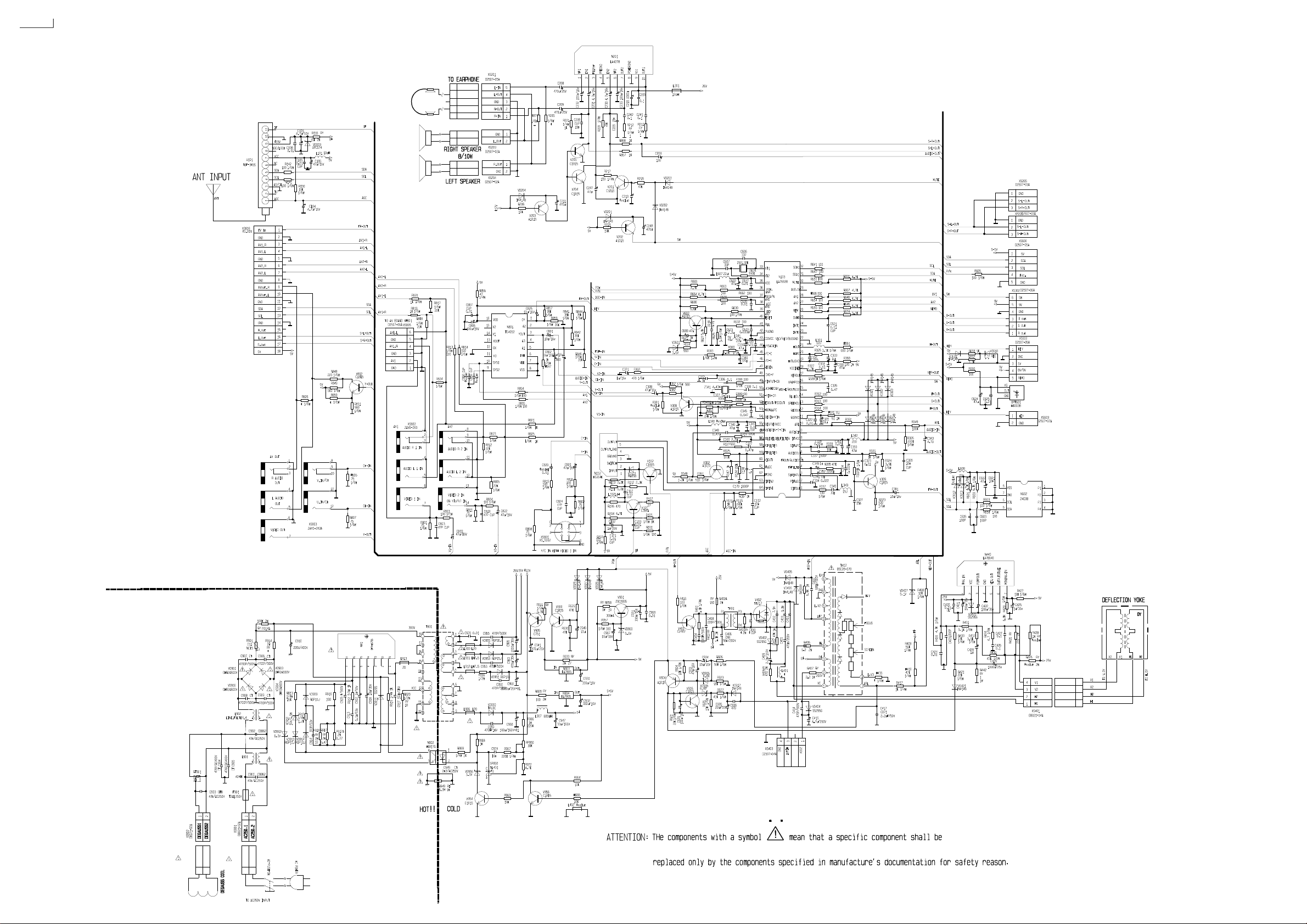

Page 27
Page 28

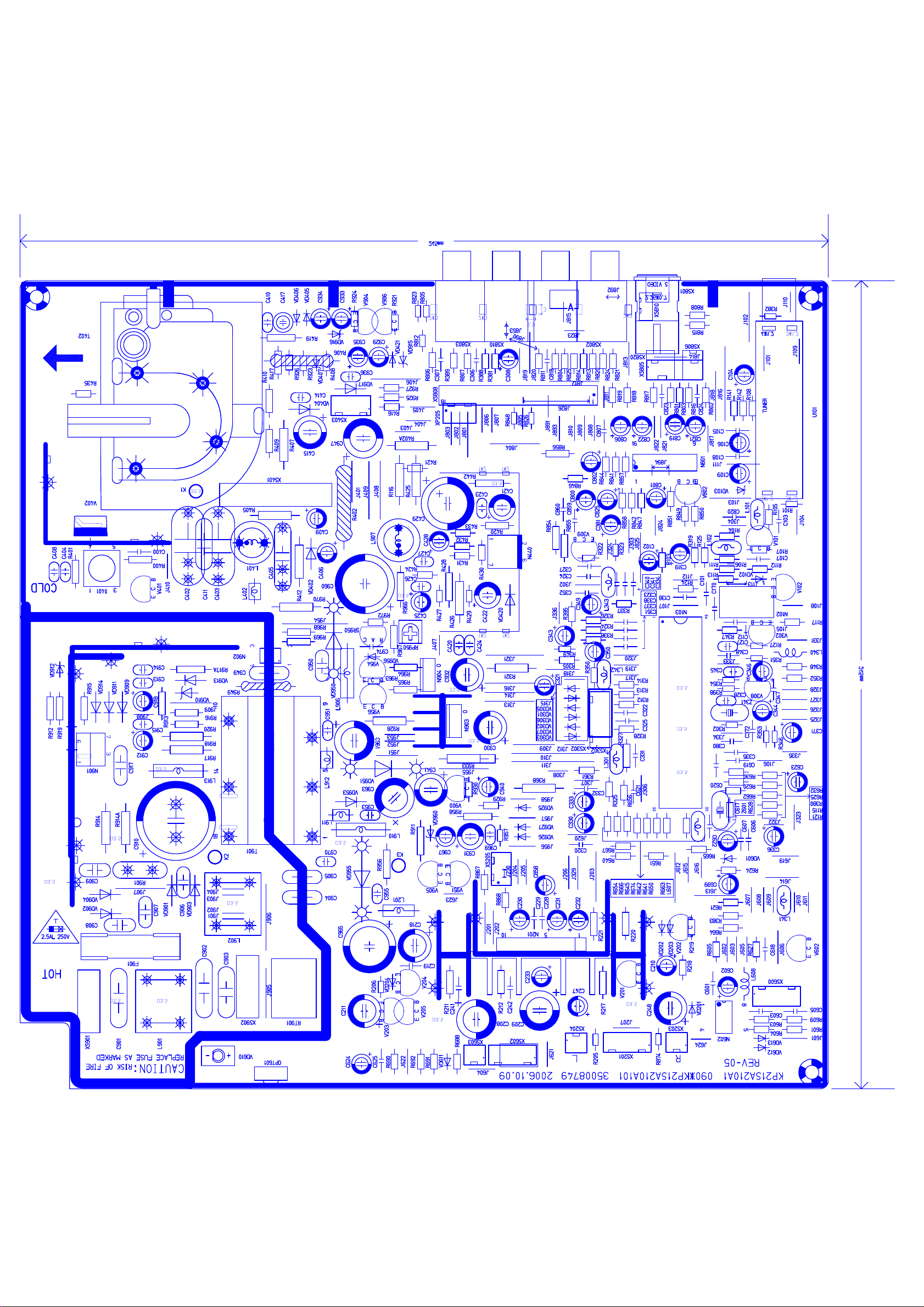

Page 29

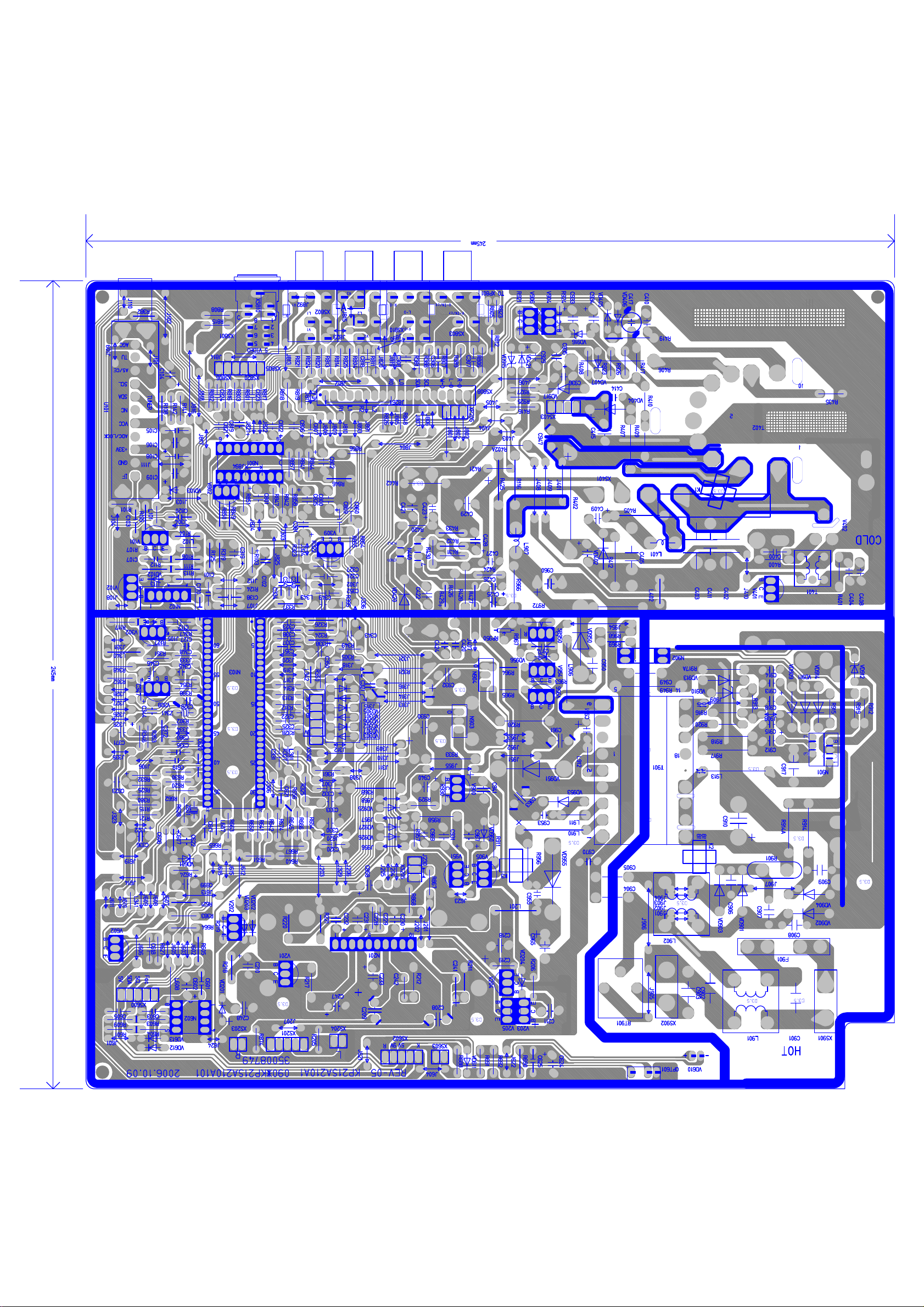

Page 30
Page 31
1 10 KP15SA308ASKD-00 KP15SA308A CHASSIS ASSEMBLY GENERAL 1SET
*SHRINK PLASTIC SLEEVEΦ3.5-125
BLA/U.C
*SHRINK PLASTIC SLEEVEΦ6.0-125
BLA/U.C
-2
-1
* ELEC.CAP.CD293-400V 227M/2540
*CERAMIC CAP.CT81-1KV 2B4 471K/c7.5
BOM ELENBERG CTV-1570 (KP15SA308A)
2 10 23000651 AAPOWERSWITCH KDC-A04-5A/80A-2H-26A-HF/AU 046*100001-15A 1PCS 2 11 23000029 AAPOWER SWITCH KDC-A04-5A/80A-2H-26A/A 046*100001-15A 1PCS 2 20 26002499 TWO-PIN CONNECTOR 08-2T04/T00-280 08-2T04/T00-280 1PCS 2 40 28000094
130MMX4POWER SWITCH
2 50 28000107
1POWER CORD 2 60 41000214 *PROCEDURE CARD 592*930101-01 592*930101-01 1PCS 2 70 27001317 *FUSE RT1-20-2.5A-250V/A 1PCSV0611360A-B
1F901 2 80 25000924 SIX HOLE AV SOCKET AV6-8.4-1 1PCS
1XS810 2 90 36003210 *WIRE TIE 680*101261-01R 680*101261-01R 3PCSV0612358A-P
1
聚焦线
2
电源线
2 110 KP15SA308ASCZJ-00 KP15SA308A MANUAL-INSERTION ASS'Y 1SET
3 10 KP15SA308AZB-00 KP15SA308A MAIN BOARD GENERAL MATERIAL 1SET
4 10 14002241 *HIGH FREQUENCE ELEC.CAP. 127*227135-81 1PCS
CD288-160V227T/1940
1C960
4 20 14001942 *MINI. ELEC.CAP.CD110X-25V108M/1020 127*108057-31 1PCS
1C429
4 30 14007132 *HIGH FREQUENCE ELEC.CAP. 1PCSV0610008A
1C961
4 40 14007112 *HIGH FREQUENCE ELEC.CAP. 1PCSV0609042A-I
1C965
4 50 14001758 *AC CERAMIC CAP. 123*222467-42 1PCS
CT81-250VAC-2E4-222MYA/b12.5A
1C949
4 60 14006422
1C910
4 70 14002355 *HIGH FREQUENCE ELEC.CAP. 127*336135-81 1PCS
CD288-160V336T/1225
1C947
4 80 14004022 *AC CERAMIC CAP. 2PCS
CT81-250VAC-2B4-471-K-YA/b10A
1C904
2C905
4 90 14002488
℃
℃
优
优
079*403500-00 0M
079*806000-00 0M
1PCSV0612166A
123*471650-40 1PCS
Page 32
1C950
*CERAMIC CAP.CT1-500V 2E4 472Z/b7.5
*ELEC.CAP.CD110-35V 108M/1220
*IC STR-W6753-TO220-
/#
4 100 14002267
优
123*472580-42 4PCS 1C906 2C907 3C908 4C909
4 110 14005522 * ANTI-INTERFERENCE META.CAP. 2PCS
1C901 2C902
4 120 14003317 *MINI. ELEC.CAP.CD110X-250V475T/1012 127*475215-31 1PCS
1C415
4 130 14007132 *HIGH FREQUENCE ELEC.CAP. 1PCSV0610008A
1C963
4 140 33000006 *FERRITE BEAD TY3.5×1.0×5/L=7 084*030105-00B 1PCS
1L402
4 160 15000177 *INDUCTANCE COIL L600-001-60μHK/L7.5 105*600101-01 1PCS
1L907
4 170 33000006 *FERRITE BEAD TY3.5×1.0×5/L=7 084*030105-00B 2PCS
1L911 2L912
4 180 33000018 *FERRITE BEAD TY4.0×1.0×15-KH/L=20 084*040116-05 2PCS
1L906 2L910
4 190 11001572 POWER FILTER LCL-2629V-/A 1PCS
1L901
4 200 14001956
优
127*108067-01 1PCS 1C209
4 210 37000407 *FUSE BRACKET 466*701201-01 466*701201-01 2PCS
1F901
4 220 19003790
三垦
1PCS
1N901
4 230 20000642 *SAW FILTER F6264K 1PCSV0608351A-E
1N102
4 240 19004903 IC LA4268-SANYO/# 1PCS
1N201
4 245 19002979 A3*IC HCF4052BEY-DIP16-ST/# 1PCS
1N801
4 246 19000752 A3*IC TC4052BP-DIP16-TOSHIBA/# 033-304052-14 1PCS 4 250 19003471 A1*ICLA78040-SANYO/# 1PCS
1N440
4 251 19003411 A1*IC STV9302A-ST/# 1PCS 4 252 19005226 A1*IC STV9302B-ST/# 1PCS 4 260 19003783 A2*IC M24C08-WBN6-ST/# 1PCS
Page 33
1N602
* HS817B
-VISHAY/#
*METAL OXIDE FILM RESIS.
4 261 19003349 A2*IC AT24C08A-PDIP8-ATMEL/# 1PCS 4 280 19000695 A4
（G）
1PCS
1N902
4 281 21000251 A4*OPTOCOUPLER IC TCET1108(G)-Vishay/# 1PCS 4 290 19002029 A5*IC L7809CV-TO220-S.T/# 1PCS
1N903
4 291 19002611 A5*IC MC7809CT-TO220-ONSEMI/# 1PCS 4 300 19000771 A6*IC L7805CV-TO220FP-SGS/# 033-507805-31 1PCS
1N904
4 301 19002610 A6*IC MC7805CT-TO220-ONSEMI/# 1PCS 4 320 13000162 *METAL OXIDE FILM RESIS. 013*109305-75 1PCS
RY21-1W1ΩJ/S(L)12.5
1R442
4 340 13000017 *METAL OXIDE FILM RESIS. 013*100305-75 1PCS
RY21-1W10ΩJ/S(L)12.5
1R958
4 341 13003413 *METAL OXIDE FILM RESIS. 013*478405-75 1PCS
RY21-2W0.47ΩJ/L15
1R917
4 350 13000123 *METAL OXIDE FILM RESIS. 013*104405-75 2PCS
RY21-2W100KΩJ/L15
1R914A 2R970
4 360 13000197 *METAL OXIDE FILM RESIS. 013*121305-75 1PCS
RY21-1W120ΩJ/S(L)12.5
1R368
4 370 13000505 *METAL OXIDE FILM RESIS. 013*153405-75 1PCS
RY21-2W15KΩJ/L15
1R116
4 380 13000718 *METAL OXIDE FILM RESIS. 013*181405-75 1PCS
4 390 13003804 *COATING QUICK-FUSED RESIS. 1PCS
4 400 13001241 *METAL OXIDE FILM RESIS. 013*221405-75 1PCS
4 410 13001423
RY21-2W180ΩJ/L15
1R402A
RF10B-1W2.2ΩK/L15-A
1R407
RY21-2W220ΩJ/L15
1R425
优
RY21-1W220KΩJ/S(L)12.5
1R966
013*224305-75 1PCS
Page 34
4 420 13001689 *METAL OXIDE FILM RESIS. 013*270405-75 1PCS
SWITCHING TRANSF. BCK35-067/A-
*DEGAUSSING THERMISTOR MZ73L-9RM
TUNER ETA-SF03/12-
*TRANSISTOR TT2140LS-SANYO/#
*ZENER DIODE INTEGRATED POTENTIOSTAT
*ZENER DIODE INTEGRATED POTENTIOSTAT
*RECTIFIER DIODE CHR208-2A800V/L12.5
RY21-2W27ΩJ/L15
1R933
4 430 13001938 *METAL OXIDE FILM RESIS. 013*278405-75 1PCS
RY21-2W0.27ΩJ/L15
1R918
4 440 13000734 *METAL OXIDE FILM RESIS. 013*473305-75 1PCS
RY21-1W47KΩJ/S(L)12.5
1R412
4 450 13001009 *METAL OXIDE FILM RESIS. 013*510405-75 1PCS
RY21-2W51ΩJ/L15
1R321
4 460 13001362 *METAL OXIDE FILM RESIS. 013*682305-75 1PCS
RY21-1W6.8KΩJ/S(L)12.5
1R419
4 470 13005103 *HIGH VOLTAGE INSULATED RESIS. 1PCS
R182-1W8.2MΩJ/A
1R949
4 480 13004302 *NTC MF72-1-5Ω M 270V 1PCS
1R901
4 490 13002599 *GLASSGLAZE TRIMMER POTENTIOMETER 112*303342-06 1PCS
WI06-2B-A303L
1RP950
4 500 11001522 LINE DRIVE TRANSF.BCT19I-001 1PCS
1T401
4 510 11001652
晶辰
1PCS
1T901
4 520 13005255
优
1PCS
1RT901
4 540 32001099 B1
庆佳
1PCS
1U101
4 541 32000859 B1TUNER ETA-SF03/1-QINGJIA 1PCS 4 560 17001911
优
1PCS
1V402
4 570 13005223 *COATING QUICK-FUSED RESIS. 1PCS
1R956
4 580 16000290 B2
130*410574-00V 1PCS
优
1VD103
4 581 16002370 B2 4 590 16000746
优
130-410574-00V 1PCS
优
4PCS 1VD901 2VD902 3VD903
Page 35
4VD904
*FAST RECOVERY DIODE
*FAST RECOVERY DIODE
* CERAMIC CAP.CT81-2KV Bn 681J/c7.5
4 600 33000018 *FERRITE BEAD TY4.0×1.0×15-KH/L=20 084*040116-05 1PCS
1L913
4 610 14002642 *MINI. ELEC.CAP.CD110X-25V477M/1020 127*477057-31 1PCS
2C218
4 620 16000172
优
130*310014-00A 1PCSV0701235A-B
RU4A-3A600V400ns
1VD955
4 630 16001261
优
2PCSV0701235A-B 1VD950 2VD951
4 640 34000039 CONNECTOR D2507-2A 060*102255-23 4PCS
1XS203 2XS204 4XS806 5XS805(1,2PIN)
4 650 28002420 *BARE WIRE AWG#26 φ0.6 1Kg=375m 072*726000-00 0G V0612319A-K
1J826,J110
4 660 34000072 CONNECTOR D2507-4A 060*104255-23 1PCS
1XS403
4 670 34000088 CONNECTOR D2507-5A 060*105255-23 3PCS
1XS201 2XS600 3XS602
4 680 34000100 CONNECTOR D2507-6A 060*106255-23 1PCS
1XS302
4 690 34000080 CONNECTOR D8021-4A 060*104805-08 1PCS
1XS401
4 700 34000045 CONNECTOR D8021-2A 060*102805-08 2PCS
1XS902 2XS901
4 720 14002357
优
123*681840-40 1PCS
1C917
4 740 22000022 *QUARTZ CRYSTAL HC49U-4.433M20-16PF-90Ω 037*443361-20 1PCS
1Z341
4 750 22000002 *QUARTZ CRYSTAL JU38-32.768K20-12.5PF 037*032768-10 1PCS
40KΩ
1Z601
4 760 37005452 *HEAT SINK EQUIPMENT 484*P2171S20/00 484*P2171S20/00 1PCS
1N901
4 770 37000688 *HEAT SINK PLATE 484*292108-01 484*292108-01 1PCS
1N903
4 780 37001502 *HEAT SINK PLATE 484*213914-01K2161 484*213914-01 1PCS
Page 36
1N440
*TAPPING SCREW W-ST3×8-Zn-C-H
4 790 37008772 *HEAT SINK EQUIPMENT 484*P2171S13/00 484*P2171S13/00 1PCS
1V402
4 800 37008882 *HEAT SINK EQUIPMENT 484*T147612/00 484*T147612/00 1PCS
1N201
4 801 38000177 *SPRING WASHER M3 633*055032-07 3PCS
1N440 2V402 3N901
4 802 38000183 *PLAIN WASHER M3 634*070033-05 2PCS
1V402 2N901
4 803 38000224
优
612*300308-10 1PCS
1N201-1
4 804 38000239 *MACHINE SCREW P-M3×10-Zn 600*305010-10 2PCS
1N440 2V402
4 805 38000239 *MACHINE SCREW P-M3×10-Zn 600*305010-10 1PCS
1N901
4 806 38000116 *TAPPING SCREW P-ST3×8-Zn-FT-H 610*300408-10 1PCS
1N903
4 807 38000558 *NUT M3 620*305025-55 2PCS
1N440 2V402
4 808 38000558 *NUT M3 620*305025-55 1PCS
1N901
4 820 19005741 IC CKP1510S-DIOP64-LA76936N-SANYO/# 1PCS
1N103
4 830 99001332 KP15SA308A MAIN BOARD GENERAL MATERIAL 1SET 4 840 99000411 KP15SA308A MAIN BOARD GENERAL MATERIAL 1SET 4 841 99002254 KP15SA308A MAIN BOARD GENERAL MATERIAL 1SET 4 850 14005756 A7*AC POLYPROPYLENE CAP. 1PCS
3C903
4 851 14000937 A7*AC POLYPROPYLENE CAP. 026*473212-61 2PCS
CBB62-250VAC473M/12.5A
4 860 14002446 *TV CERAMIC CAP.CT1-500V-2B4-471K/b5 123*471550-40 1PCSV0612166A
1C410
4 870 13005203 *CARBON FILM RESIS. RT13-1/6W68ΩJ/ 013*680005-12 1PCSV0612319A-K
1R382
4 890 KP15SA308AZB-04 0KP15SA308A MAIN BOARD ASS'Y 1SET
5 10 14000909 *METALIZED POLYPROPYLENE CAP. 026*472160-41 1PCS
CBB81-1600V472J/20
1C402
Page 37
5 20 14000977 *METALIZED POLYPROPYLENE CAP. 026*562160-41 1PCS
*FUSED RESIS. RF10-2W3.3ΩJ/L25A
*FUSED RESIS. RF10-2W1.8ΩJ/L25A
CBB81-1600V562J/20
1C403
5 30 14005382 *METALIZED POLYPROPYLENE CAP. 1PCS
1C405
5 40 30001892 A1FLYBACK TRANSFORMER BSC25-092/A BSC25-0188 1PCSV0609389A
1T402
5 41 30001482 A1FLYBACK TRANSFORMER BSC JF0501-004/A BSC25-0146 1PCSV0609389A 5 50 15000653 HORI. LINEARITY COIL HXC-112A/L7.5 1PCS
1L401
5 60 13000713 *METAL OXIDE FILM RESIS. 013*471405-75 1PCS
RY21-2W470ΩJ/L15
1R405
5 70 13002035
优
013*339405-85 1PCS
1R406
4 900 KP15SA308AZB-04A 0KP15SA308A MAIN BOARD ASS'Y 1SET
5 10 14000909 *METALIZED POLYPROPYLENE CAP. 026*472160-41 1PCS
CBB81-1600V472J/20
1C402
5 20 14000977 *METALIZED POLYPROPYLENE CAP. 026*562160-41 1PCS
CBB81-1600V562J/20
1C403
5 30 14005304 *METALIZED POLYPROPYLENE CAP. 1PCS
CBB21B-250V364J/20
1C405
5 40 30001892 A1FLYBACK TRANSFORMER BSC25-092/A BSC25-0188 1PCSV0609389A
1T402
5 41 30001482 A1FLYBACK TRANSFORMER BSC JF0501-004/A BSC25-0146 1PCSV0609389A 5 50 15000172 HORI. LINEARITY COIL HXC-25A/L7.5 105*570101-01 1PCS
1L401
5 60 13000713 *METAL OXIDE FILM RESIS. 013*471405-75 1PCS
RY21-2W470ΩJ/L15
1R405
5 70 13000898
优
013*189405-85 1PCS
1R406
4 910 KP15SA308AZB-18 0KP15SA308A MAIN BOARD ASS'Y 1SET
5 10 14000977 *METALIZED POLYPROPYLENE CAP. 026*562160-41 1PCS
CBB81-1600V562J/20
1C402
5 20 14000686 *METALIZED POLYPROPYLENE CAP. 026*222160-41 1PCSV0612166A
CBB81-1600V222J/15
1C403
5 30 14003419 *METALIZED POLYPROPYLENE CAP. 026*304210-41B 1PCS
Page 38
CBB21B-250V304J/15
*FUSED RESIS. RF10-2W2.4ΩJ/L25A
* CERAMIC CAP.CT81-2KV Bn 821J/c7.5
* CERAMIC CAP.CT81-2KV Bn 222J/c10
*METAL OXIDE FILM RESIS.
* CERAMIC CAP.CT1-500V 2B4 103K/b7.5
*METAL OXIDE FILM RESIS.
1C405
5 40 15000134 HORI. LINEARITY COIL HXC-47A/L7.5 105*510101-01 1PCS
1L401
5 50 30001892 A1FLYBACK TRANSFORMER BSC25-092/A BSC25-0188 1PCSV0609389A
1T402
5 51 30001482 A1FLYBACK TRANSFORMER BSC JF0501-004/A BSC25-0146 1PCSV0609389A 5 60 13000713 *METAL OXIDE FILM RESIS. 013*471405-75 1PCS
RY21-2W470ΩJ/L15
1R405
5 70 13001660
优
013*249405-85 1PCS
1R406
5 80 14002403
优
123*821840-40 1PCSV0612166A
1C411
3 20 KP15SA308ACRT-00 KP15SA308A CRT BOARD GENERAL MATERIAL 1SET
4 10 14001776
优
123*222840-40 1PCS
1C508
4 20 13001928
优
013*335305-75 1PCS
RY21-1W3.3MΩJ/S(L)12.5
1R504
4 30 13000505 *METAL OXIDE FILM RESIS. 013*153405-75 3PCS
RY21-2W15KΩJ/L15
1R515 2R525 3R535
4 40 34000022 CONNECTOR D8021-1A-1 060*101001-08 1PCS
1XS501
4 50 26000505 SIX-PIN CONNECTOR ZJ206360-070 ZJ*206360-070 1PCS
1XP501->XS302
4 60 26000654 FOUR-PIN CONNECTOR ZJ204300-052 ZJ*204300-052 1PCS
1XP502->XS403
4 70 17000065 *TRANSISTOR 2SC2482 031*232482-00 1PCSV0610008A
4V504
4 230 14002895 *MINI. ELEC.CAP.CD110X-250V106M/1016 127*106217-31 1PCS
1C501
4 240 14003832
优
1PCS 1C505
4 250 13000120
优
013*104305-75 1PCS
RY21-1W100KΩJ/S(L)12.5
1R502
4 260 13001831 *METAL OXIDE FILM RESIS. 013*272305-75 1PCS
RY21-1W2.7KΩJ/S(L)12.5
1R503
Page 39
4 270 17000284 TRANSISTOR 2SC4544-TOSHIBA/# 031-234544-00 3PCSV061212
*LED BT-H202YXN-31-R LUCID Φ3
XP602(
)->XS602
XP803(1,2PIN)->XS805
1V511 2V521 3V531
4 300 KP15SA308ACRT-04 0KP15SA308A CRT BOARD ASS'Y 1SET
5 10 25000747 CRT SOCKET GZS10-2-AC3-5-14~17KV/A.U 061*540006U01E 1PCS
1CRT1
4 310 KP15SA308ACRT-04A 0KP15SA308A CRT BOARD ASS'Y 1SET
5 10 25000747 CRT SOCKET GZS10-2-AC3-5-14~17KV/A.U 061*540006U01E 1PCS
1CRT1
4 320 KP15SA308ACRT-18 0KP15SA308A CRT BOARD ASS'Y 1SET
5 10 25001392 CRT SOCKET GZS8-6-AC/A 1PCS
1CRT2
3 40 KP15SA308AAJB-00 KP15SA308A KEY BOARD ASS'Y 1SET
4 10 23000226 TOUCH SWITCH KFC-A06-L4-4.5×6.5-4.3B 046*100001-45 6PCS
1S601A 2S602A 3S603A 4S604A 5S605A 6S606A
4 30 26003829 THREE-PIN CONNECTOR 01-3T01/3T02-300 01-3T01/3T02-300 1PCS
1XP603->XS603A
3 50 KP15SA308AYKJSB-00 KP15SA308A REMOTE CONTROL RECEIVING 1SET
4 10 16000723
优
1PCS 1VD610A
4 20 21000291 A1*IR REMOTE CONTROL RECEIVER 1PCS
1OPT601A
4 21 21000292 A1*IR REMOTE CONTROL RECEIVER 1PCS 4 22 21000311 A1*IR REMOTE CONTROL RECEIVER 1PCS 4 30 26001305 FIVE-PIN CONNECTOR 04-5T01/5T02-280 04-5T01/5T02-280 1PCS
1
反丝印
4 40 34000053 CONNECTOR D2507-3A 060*103255-23 1PCS
1XS603A
3 60 KP15SA308ACDAVB-00 KP15SA308A AV ASS'Y 1SET
4 10 25000187 THREE HOLE AV SOCKET WK3-8.4-13 061*468401-00 1PCS
1XS801A
4 20 25001375 STEREO JACK ST-035-070-100 1PCS
1XS202A
4 30 26003810 FIVE-PIN CONNECTOR 01-5T01/5T02-260 01-5T01/5T02-260 1PCS
1XP201->XS201
4 40 26000279 TWO-PIN SHIELD 18-2T01/2T02-430 18-2T01/2T02-430 1PCS
1
(1,2PIN)
Page 40
4 50 26005631 *TWO-PIN CONNECTOR 01-2T01/2T02-360 01-2T01/2T02-360 1PCS
* CERAMIC CAP.CT1-50V 2F4 102Z/V
*METALIZED POLY.CAP.CL21-63V 103K/V
1XP802->XS806
4 60 13000036 *CARBON FILM RESIS. RT15-1/2W100ΩJ/ 013*101205-12 2PCS
1R201A 2R202A
2 120 KP15SA308ADCZJ-00 KP15SA308A AUTO-INSERTION ASS'Y 1SET
3 10 KP15SA308AZBDC-00 KP15SA308A BOARD AUTO-INSERTION ASS'Y 1SET
4 10 14004202 *AXIAL LEADED CERAMIC CAP. 2PCS
UP050CH101J-B-BZ-TAIYANGYOUDIAN/#H
1C603 2C605
4 20 14004211 *AXIAL LEADED CERAMIC CAP. 1PCS
UP050B102K-B-B-TAIYANGYOUDIAN/#H
1C170
4 30 14001870
优
123*102370-30V 1PCS
1C423
4 40 14000396
优
026*103081-21V 1PCS
1C404
4 50 14004942 *AXIAL LEADED CERAMIC CAP. 21PCSV0612319A-K
UP050B103K-B-BZ-TAIYOYUDEN/#H
1C101 2C103 3C105 4C107 5C112 6C322 7C331 8C335 9C347
10C351 12C338 14C601 15C617 16C618 17C620 18C621 20C807 22C974 23C327 24C320 25C324
4 60 14001536 *TV CERAMIC CAP.CC1-50V-SL180K/V 123*180350-10V 1PCS
1C328
Page 41
4 70 14000405 *INDUCTIVE POLY. CAP. CL11-100V103K/V 026*103111-01V 1PCSV0611264A-I
*TERRACE META.POLY.CAP.CL23B-63V104K/V
1C914
4 80 14005590 *AXIAL LEADED CERAMIC CAP. 6PCS
1C108 2C138 3C219 5C242 8C859 9C860
4 90 14000469
026*104081-71V 3PCS
优
1C913 2C426 3C427
4 100 14002800 *ELEC.CAP.CD110-16V105M/0512V 127*105047-01V 8PCS
1C102 2C333 3C349 4C371 5C428 6C425 7C819 8C822
4 110 14002807 *NON-POLARIZED ELEC.CAP 127*105047-21V 1PCS
CD71-16V105M/0512V
1C970
4 120 14002863 *ELEC.CAP.CD110-16V106M/0512V 127*106047-01V 8PCS
1C381 3C940 4C934 5C967 6C802 7C800 8C858 9C801
4 130 14005042 *ELEC.CAP.CD110-35V106M/0512V 127*106067-01V 1PCS
1C918
4 140 14002910 *MINI. ELEC.CAP.CD110X-16V107M/0612V 127*107047-31V 7PCS
1C232 2C233 3C321 4C929 5C806 6C248
Page 42
7C247
*CERAMIC CAP.CT1-500V 2B4 221K/V
*ELEC.CAP.CD110-50V 225M/0511V
*
CD110-160V 225M/0511V
*ELEC.CAP.CD110-50V 226M/0511V
4 150 14002922 *MINI. ELEC.CAP.CD110X-35V107M/0812V 127*107067-31V 2PCS
1C421 2C422
4 160 14005666 *AXIAL LEADED CERAMIC CAP. 1PCS
1C337
4 170 14005662 *AXIAL LEADED CERAMIC CAP. 2PCS
4C332 5C323
4 180 14004209 *AXIAL LEADED CERAMIC CAP. 1PCS
UP050CH221J-B-BZ-TAIYANGYOUDIAN/#H
1C380
4 190 14001831
优
123*221550-40V 1PCS
1C408
4 200 14004208 *AXIAL LEADED CERAMIC CAP. 1PCS
UP050B222K-B-BZ-TAIYANGYOUDIAN/#H
1C352
4 210 14004972 *AXIAL LEADED CERAMIC CAP. 1PCS
UP050F223Z-B-BZ-TAIYANGYOUDIAN/#H
2C334
4 220 14002014
优
127*225077-01V 1PCS
1C912
4 230 14002951 *ELEC.CAP.CD110-16V225M/0512V 127*225047-01V 2PCS
1C319 2C623
4 240 14002017 *NON-POLARIZED ELEC.CAP. 127*225077-21V 1PCS
CD71-50V225M/0512V
1C417
4 250 14004863
普通电解
优
127*225137-31V 1PCS
1C409
4 260 14002092
优
127*226077-01V 1PCS
1C935
4 270 14004213 *AXIAL LEADED CERAMIC CAP. 4PCS
UP050CH330J-B-BZ-TAIYANGYOUDIAN/#H
1C340 2C341 3C606 4C607
4 280 14005589 *AXIAL LEADED CERAMIC CAP. 1PCS
1C619
4 290 14002124 *MINI. ELEC.CAP.CD110X-16V227M/0812V 127*227047-31V 3PCS
1C930 2C931
Page 43
3C932
*CERAMIC CAP.CT1-50V 2B4 471K/V
*CERAMIC CAP.CT1-500V 2B4 471K/V
*ELEC.CAP.CD110-50V 475M/0511V
*ELEC.CAP.CD110-16V 477M/0812V
*INDU.WITH COLOR CODES LGB0606-1ROK/V
*INDU.WITH COLOR CODES LGB0606-100K/V
*INDU.WITH COLOR CODES LGB0606-120K/V
*INDU.WITH COLOR CODES LGB0606-150K/V
4 300 14004214 *AXIAL LEADED CERAMIC CAP. 2PCS
UP050CH470J-B-BZ-TAIYANGYOUDIAN/#H
1C818 2C823
4 310 14002434
优
123*471350-40V 1PCS
1C936
4 320 14002472
优
123*471550-40V 4PCS 1C414 2C951 3C953 4C955
4 330 14000949 *MINI. METALIZED POLY.CAP.CL21X-63V474K/ 026*474081-21V 1PCS
1C325
4 340 14002516 *ELEC.CAP.CD110-16V474M/0512V 127*474047-01V 1PCS
1C344
4 350 14005664 *AXIAL LEADED CERAMIC CAP. 1PCS
1C348
4 360 14002465
优
127*475077-01V 1PCS 1C109
4 370 14002720 *MINI. ELEC.CAP.CD110X-16V476M/0512V 127*476047-31V 11PCSV0612319A-K
1C106 3C308 4C330 5C336 6C346 7C350 8C602 9C622
11C699 15C933 16C230
4 380 14002616
优
127*477047-01V 1PCS 1C211
4 400 15000013
105*010103-00V 1PCS
优
1L102
4 410 15000017
105*100101-02V 1PCS
优
1L101
4 420 15000055 A1
105*120101-02V 1PCSGYM070101A
优
1L301
4 421 15001822 A1*AXIALINDUCTORCOLOR CODES LAV35VB 120K/V 1PCSGYM070101A 4 430 15000072
105*150101-02V 1PCS
优
1L343
Page 44
4 440 15000103
*INDU.WITH COLOR CODES LGB0606-220K/V
*INDU.WITH COLOR CODES LGA0307-220K/H
*CARBON FILM RESIS. RT13-1/6W100ΩJ/H
*CARBON FILM RESIS. RT13-1/6W 1KΩJ/H
4 450 15000106
4 470 13000030
4 480 13000058
2L341 3L342 4L607
1L608 2L340
1R101 2R103 3R141 4R142 5R312 6R313 7R314
10R416 11R603 12R604 13R605 14R620 15R630 16R632 17R641 18R642 19R650 20R654 21R656 22R662 23R663 24R666 26R803 27R804 32R916 33R854 34R855
1R105 2R117 3R121 4R322 6R328 7R354 8R398
优
优
105*220101-02V 3PCS
优
105*220103-77H 2PCS
优
013*101005-12H 27PCSV0612319A-K
013*102005-12H 14PCS
Page 45
4 490 13000062
*CARBON FILM RESIS. RT14-1/4W 1KΩJ/H
*CARBON FILM RESIS. RT13-1/6W10KΩJ/H
*CARBON FILM RESIS. RT13-1/6W100KΩJ/H
*CARBON FILM RESIS. RT13-1/6W120ΩJ/H
*CARBON FILM RESIS. RT13-1/6W1.2KΩJ/H
*CARBON FILM RESIS. RT14-1/4W1.2KΩJ/H
*CARBON FILM RESIS. RT13-1/6W13KΩJ/H
*CARBON FILM RESIS. RT13-1/6W15KΩJ/H
*CARBON FILM RESIS. RT13-1/6W1.5MΩJ/H
*CARBON FILM RESIS. RT13-1/6W1.8KΩJ/H
*CARBON FILM RESIS. RT13-1/6W18KΩJ/H
4 500 13000083
4 510 13000106
4 520 13000190
4 530 13000208
4 540 13000211
4 550 13000305
4 560 13000487
4 570 13000564
4 580 13000730
4 590 13000769
9R621
11R821 12R825 14R868 15R968 20R812 21R817
2R417 3R912 4R919 5R969 6R401
1R108 2R206 3R219 4R338 5R408 6R924 7R963 8R964 9R965
10R218
1R124 2R125 3R349
1R323
1R348
1R915
1R433
1R925
1R625
1R383
优
优
优
优
优
优
优
优
优
优
优
013*102105-12H 5PCS
013*103005-12H 10PCS
013*104005-12H 3PCS
013*121005-12H 1PCS
013*122005-12H 1PCS
013*122105-12H 1PCS
013*133005-12H 1PCS
013*153005-12H 1PCS
013*155005-12H 1PCS
013*182005-12H 1PCS
013*183005-12H 3PCS
Page 46
4 600 13001253
*CARBON FILM RESIS. RT13-1/6W2.2KΩJ/H
*CARBON FILM RESIS. RT13-1/6W22KΩJ/H
*CARBON FILM RESIS. RT14-1/4W 1ΩJ/H
*CARBON FILM RESIS. RT13-1/6W220KΩJ/H
*CARBON FILM RESIS. RT14-1/4W220KΩJ/H
*CARBON FILM RESIS. RT13-1/6W24KΩJ/H
*CARBON FILM RESIS. RT13-1/6W240KΩJ/H
*CARBON FILM RESIS. RT13-1/6W 27ΩJ/H
*CARBON FILM RESIS. RT14-1/4W2.7KΩJ/H
*CARBON FILM RESIS. RT13-1/6W 330ΩJ/H
*CARBON FILM RESIS. RT13-1/6W3.3KΩJ/H
*CARBON FILM RESIS. RT13-1/6W3.9KΩJ/H
*CARBON FILM RESIS. RT13-1/6W390ΩJ/H
*CARBON FILM RESIS. RT13-1/6W390KΩJ/H
*CARBON FILM RESIS. RT13-1/6W 43KΩJ/H
*CARBON FILM RESIS. RT13-1/6W4.7ΩJ/H
*CARBON FILM RESIS. RT13-1/6W 470ΩJ/H
*CARBON FILM RESIS. RT13-1/6W4.7kΩJ/H
4 610 13001312
4 620 13000154
4 630 13001376
4 640 13001383
4 650 13001626
4 660 13001647
4 670 13001672
4 680 13001791
4 690 13002159
4 700 13002064
4 710 13000375
4 720 13000343
4 730 13000443
4 740 13000554
4 750 13000819
4 760 13000670
4 770 13000739
1R346 2R427 3R923
1R112 2R113
1R421 6R921
1R212
1R305
1R967
1R353
1R115
1R107
1R911
1R337
1R325 2R674
1R432
1R957
1R628
2R927
1R424
1R106 2R302
1R104
优
优
优
优
优
优
优
优
优
优
优
优
优
优
优
优
优
优
013*222005-12H 2PCS
013*223005-12H 2PCS
013*109105-12H 1PCS
013*224005-12H 1PCS
013*224105-12H 1PCS
013*243005-12H 1PCS
013*244005-12H 1PCS
013*270005-12H 1PCS
013*272105-12H 1PCS
013*331005-12H 1PCS
013*332005-12H 2PCS
013*392005-12H 1PCS
013*391005-12H 1PCS
013*394005-12H 1PCS
013*433005-12H 1PCS
013*479005-12H 1PCS
013*471005-12H 2PCS
013*472005-12H 11PCS
Page 47
4 772 13000416
*CARBON FILM RESIS. RT13-1/6W 39KΩJ/H
*CARBON FILM RESIS. RT14-1/4W 47ΩJ/H
*CARBON FILM RESIS. RT13-1/6W 47kΩJ/H
*CARBON FILM RESIS. RT14-1/4W47kΩJ/H
*CARBON FILM RESIS. RT13-1/6W 510ΩJ/H
*CARBON FILM RESIS. RT13-1/6W560ΩJ/H
*CARBON FILM RESIS. RT13-1/6W5.6KΩJ/H
*CARBON FILM RESIS. RT13-1/6W 56kΩJ/H
*CARBON FILM RESIS. RT14-1/4W56KΩJ/H
*CARBON FILM RESIS. RT13-1/6W 680ΩJ/H
4 774 13000590
4 780 13000754
4 790 13000758
4 800 13000973
4 810 13001090
4 812 13001095
4 830 13001170
4 840 13001187
4 860 13001398
2R327 3R420 4R601 5R609 6R640 7R645 8R651 9R664
10R665 11R667
1R841 2R842 3R844 4R846 5R857 6R858
1R856
2R350 4R929 5R930
2R410
1R351
1R127 2R352 3R624
1R972 3R627 4R380 5R395 6R688
1R926
1R409
1R361
优
优
优
优
优
优
优
优
优
优
013*393005-12H 6PCS
013*470105-12H 1PCS
013*473005-12H 3PCS
013*473105-12H 1PCS
013*511005-12H 1PCS
013*561005-12H 3PCS
013*562005-12H 5PCSV0702002A-K
013*563005-12H 1PCS
013*563105-12H 1PCS
013*681005-12H 1PCS
Page 48
4 870 13001400
*CARBON FILM RESIS. RT13-1/6W6.8KΩJ/H
*CARBON FILM RESIS. RT13-1/6W680KΩJ/H
*CARBON FILM RESIS. RT13-1/6W 75ΩJ/H
*CARBON FILM RESIS. RT13-1/6W750ΩJ/H
*CARBON FILM RESIS. RT13-1/6W9.1KΩJ/H
*TRANSISTOR 2SC388A-20~200/V
*TRANSISTOR 2SC1815-Y/V
*TRANSISTOR 2SA1015-Y/V
*TRANSISTOR 3DG2655/V
* DIODE IN4148-PHILIPS/#H
4 880 13001407
4 890 13001752
4 900 13001755
4 910 13000234
4 920 17000058
4 930 17000060
4 940 17000056
4 950 17001211
4 960 16001670 Z1
1R111 2R429
1R319
1R801 6R811
1R217
1R431
1V101
1V102 2V201 3V204 5V309 6V900 7V906 8V954 9V956
1V202 2V203 3V302 4V308 5V602 6V904
优
1V951
1VD201 2VD202 3VD203 4VD204 8VD305 9VD306
10VD307 11VD405 12VD406 13VD421
优
优
优
优
优
优
优
优
优
013*682005-12H 2PCS
013*684005-12H 1PCS
013*750005-12H 2PCS
013*751005-12H 1PCS
013*912005-12H 1PCS
031*230388-00V 1PCS
031*231815-26V 8PCS
031*211015-00V 6PCS
1PCS
14PCSV0612319A-K
Page 49
15VD917
*SWITCHING DIODE IN4148-0.1A75V4ns/H
*FAST RECOVERY DIODE
* DIODE BZX79-B/C3V6-PHILIPS/#H
*ZENER DIODE 0.5W3V6-3.4~3.8/H
* DIODE BZX79-B/C3V9-PHILIPS/#H
*ZENER DIODE 0.5W3V9-3.7
4.1/H
* DIODE BZX79-B/C5V1-PHILIPS/#H
*ZENER DIODE 0.5W5V1-4.85
5.35/H
* DIODE BZX79-B/C5V6-PHILIPS/#H
*ZENER DIODE 0.5W5V6-5.35
5.85/H
* DIODE BZX79-B/C6V2-PHILIPS/#H
*ZENER DIODE 0.5W6V2-5.95
6.45/H
* DIODE BZX79-B/C6V8-PHILIPS/#H
*ZENER DIODE 0.5W6V8-6.55
7.05/H
*HIGH-FREQUENCY RECTIFIER DIODE
J202,J203,J101-J109
J207
R826,J206,R435,R824,R823,
J302,J304,J306-J329,
J403-J410,J401,
J901-J909,J804-J815,
16VD925 17VD926
18VD927 4 961 16000165 Z1 4 970 16001890
优
优
130*134148-00H 15PCS
130*315295-00H 4PCS 1VD402 2VD404 3VD420 4VD911
4 980 16001672 Z2
优
1PCS
1VD601
4 981 16001121 Z2 4 990 16001673 Z3
优
优
130*410036-00H 1PCS
1PCS
1VD956
4 991 16000215 Z3 4 100016001674 Z4
～
优
优
130*410039-00H 1PCS
1PCS
1VD407
4 100116000223 Z4 4 101016001675 Z5
～
优
130*410051-01H 1PCS
1PCS
1VD960
4 101116000225 Z5 4 102016001676 Z6
～
优
优
130*410056-00H 1PCS
1PCS
1VD912
4 102116000231 Z6 4 103016001677 Z7
～
优
优
130*410062-00H 1PCS
2PCS 1VD915 2VD916
4 103116000236 Z7 4 104016000184
～
优
优
130*410068-00H 2PCS 130*310858-00H 1PCS
MA858-0.1A35V/H
1VD102
4 105028002420 *BARE WIRE AWG#26 φ0.6 1Kg=375m 072*726000-00 9G V0612319A-K
1 2 3 4
，
J331,J333,J335,J336,R928, J601-J616,J817-J825 J951-J958,J892,J111-J112 J619-J621
4 106038000209 *EYELET 2.3×3 TINNING 640*023030-01 20PCSV0701235A-B
1N901-2 2C910-2 3V402-2 4N201-2 5VD955-2
Page 50
6T901-6
*FAST RECOVERY DIODE
*FAST RECOVERDIODE
*TRANSISTOR 3CG751-150~400/H
*METALIZED POLY.CAP.CL21-63V 473K/V
*CERAMIC CAP.CT1-50V 2F4 103Z/V
*CARBON FILM RESIS. RT13-1/6W20KΩJ/H
7VD950-2 8VD951-2
4 107038000199 *EYELET 1.7×3 TINNING 640*017030-01 20PCS
1L901-4 2T402-4 4L907-2 5R901-2 6C402-2 7C403-2 8L401-2 9C405-2
4 108041000091 *DATE LABEL 569*028001-00 569*028001-00 1PCS 4 109041000131 *QC LABEL (BLUE)569*382801-01 569*382801-01 1PCS 4 110014002548 *ELEC.CAP.CD110-16V475M/0512V 127*475047-01V 2PCS
1C104 2C343
4 111014003617 *MINI. ELEC.CAP.CD110X-50V476M/0612V 127*476077-31V 1PCS
1C406
4 112035008749 *MAIN BOARD 090*KP21SA210A101/00/A 090*KP21SA210A101 1PCS 4 113013005803 *METAL OXIDE FILM RESIS. 013*100205-72H 1PCS
1R920
4 114033000531 *FERRITE BEAD TY3.5×1.0×9-KE/H 084*030109-00H 1PCS
1L201
4 115019005689 Z8*IC AZ431AZ-ATRE1-TO92-BCD/V# 1PCSV060929
1SR950
4 115119005840 Z8*IC KA431Z-TO92-FAIRCHILD/#V 033-500341-61V 1PCSV060929 4 116016001891
优
2PCSV0612400A-B 1VD909 2VD914
4 117016002070
优
1PCS 1VD953
4 118017001891
优
031*630751-00H 1PCS
1V905
4 119014003515
优
026*473081-21V 2PCS 1C127 2C345
4 120014001253
优
123*103370-30V 3PCS 1C420 2C424 3C969
4 121013000981
优
013*203005-12H 2PCS 1R326
Page 51
2R324
*CARBON FILM RESIS. RT13-1/6W8.2KΩJ/H
*TRANSISTOR 3DG2383(Y)/V
PCB
板上的保险丝
*CARBON FILM RESIS. RT13-1/6W33KΩJ/H
*CARBON FILM RESIS. RT13-1/6W33KΩJ/H
*CARBON FILM RESIS. RT13-1/6W33KΩJ/H
*CARBON FILM RESIS. RT13-1/6W100ΩJ/H
*CARBON FILM RESIS. RT13-1/6W1.5KΩJ/H
*CARBON FILM RESIS. RT13-1/6W 330ΩJ/H
*FAST RECOVERY DIODE
*CARBON FILM RESIS. RT13-1/6W10KΩJ/H
*CERAMIC CAP.CT1-500V 2B4 561K/V
4 122013001777
优
013*822005-12H 1PCS 1R220
4 123017001971
优
1PCSGV060905A-M
1V401
4 124041005622 *LABEL 569*2.5A10/01 569*2.5A10/01 1PCSV0611360A-B
1
贴住
印
4 1250KP15SA308AZBDC-04 0KP15SA308A BOARD AUTO-INSERTION ASS'Y 1SET
5 10 13002106
优
013*333005-12H 1PCSV0702098A 1R430
4 1260KP15SA308AZBDC-04A 0KP15SA308A BOARD AUTO-INSERTION ASS'Y 1SET
5 10 13002106
优
013*333005-12H 1PCSV0702098A 1R430
4 1270KP15SA308AZBDC-18 0KP15SA308A BOARD AUTO-INSERTION ASS'Y 1SET
5 10 13002106
优
013*333005-12H 1PCSV0702098A 1R430
3 20 KP15SA308ACRTDC-00 KP15SA308A CRT AUTO-INSERTION ASS'Y 1SET
4 10 13000030
优
013*101005-12H 2PCS 2R531 3R501
4 20 13000421
优
013*152005-12H 3PCS 1R519 2R529 3R539
4 30 13002159
优
013*331005-12H 3PCS 1R512 2R522 3R532
4 40 28002420 *BARE WIRE AWG#26 φ0.6 1Kg=375m 072*726000-00 0G
1501-503,504,
4 S50 35005925 *P.C.B 090*K2073UM01/00/A/U 090*K2073UM01/00 1PCS 4 210 13005923 A1*ORGANIC SOLID COMPOSITION RESIS. 2PCS
1R518 2R528
4 220 13006145 A1*ORGANIC SOLID COMPOSITION RESIS. 2PCS 4 230 16001890
优
130*315295-00H 1PCS 1VD501
4 240 13000083
优
013*103005-12H 1PCS 1R599
4 250 KP15SA308ACRTDC-04 0KP15SA308A CRT BOARD ASS'Y 1SET
5 10 14002304
优
123*561550-40V 3PCS 1C512 2C518
Page 52
3C532
*CARBON FILM RESIS. RT13-1/6W100ΩJ/H
*CERAMIC CAP.CT1-500V 2B4 561K/V
*CARBON FILM RESIS. RT13-1/6W100ΩJ/H
*CERAMIC CAP.CT1-500V 2B4 561K/V
*CARBON FILM RESIS. RT13-1/6W100ΩJ/H
*CARBON FILM RESIS. RT13-1/6W390ΩJ/H
*CARBON FILM RESIS. RT13-1/6W1.2KΩJ/H
*CARBON FILM RESIS. RT13-1/6W2.7KΩJ/H
*CARBON FILM RESIS. RT13-1/6W4.3KΩJ/H
*CARBON FILM RESIS. RT13-1/6W7.5KΩJ/H
*CARBON FILM RESIS. RT13-1/6W12KΩJ/H
5 20 13000030
优
013*101005-12H 2PCS 1R511 2R521
5 30 13005923 A *ORGANIC SOLID COMPOSITION RESIS. 1PCS
1R538
5 31 13006145 A *ORGANIC SOLID COMPOSITION RESIS. 1PCS
4 260 KP15SA308ACRTD-04A 0KP15SA308A CRT BOARD ASS'Y 1SET
5 10 14002304
优
123*561550-40V 3PCS 1C512 2C518 3C532
5 20 13000030
优
013*101005-12H 2PCS 1R511 2R521
5 30 13005923 B *ORGANIC SOLID COMPOSITION RESIS. 1PCS
1R538
5 31 13006145 B *ORGANIC SOLID COMPOSITION RESIS. 1PCS
4 270 KP15SA308ACRTDC-18 0KP15SA308A CRT BOARD ASS'Y 1SET
5 10 14002304
优
123*561550-40V 3PCS 1C512 2C518 3C532
5 20 13000030
优
013*101005-12H 2PCS 1R511A 2R521A
5 30 13005923 B *ORGANIC SOLID COMPOSITION RESIS. 1PCS
1R538A
5 40 13006145 B *ORGANIC SOLID COMPOSITION RESIS. 1PCS
3 40 KP15SA308AAJDC-00 KP15SA308A KEY BOARD AUTO-INSERTION ASS 1SET
4 10 35009338 P.C.B 090*KP14SA308U102/00/A.U 090*KP14SA308U102 1PCS 4 20 13000343
优
013*391005-12H 1PCS 1R682A
4 30 13000208
优
013*122005-12H 1PCS 1R683A
4 40 13001781
优
013*272005-12H 1PCS 1R684A
4 50 13000542
优
013*432005-12H 1PCS 1R685A
4 60 13001760
优
013*752005-12H 1PCS 1R686A
4 70 13000224
优
013*123005-12H 1PCS 1R687A
Page 53
3 50 KP15SA308AYKJSDC-0 KP15SA308A REMOET CONEROL RECEIVING 1SET
*CARBON FILM RESIS. RT13-1/6W100ΩJ/H
*CARBON FILM RESIS. RT13-1/6W 1KΩJ/H
*CARBON FILM RESIS. RT13-1/6W3.3KΩJ/H
* DIODE IN4148-PHILIPS/#H
*SWITCHING DIODE IN4148-0.1A75V4ns/H
*CERAMIC CAP.CT1-50V 2F4 103Z/V
AV
-2
-2
4 10 13000030
优
013*101005-12H 1PCS 1R690A
4 20 13000058
优
013*102005-12H 1PCS 1R691A
4 30 13002064
优
013*332005-12H 1PCS 1R692A
4 40 16001670 D
优
1PCS
1VD611A
4 41 16000165 D 4 50 14001253
优
优
130*134148-00H 1PCS
123*103370-30V 1PCS 1C625A
4 60 14002720 *MINI. ELEC.CAP.CD110X-16V476M/0512V 127*476047-31V 1PCS
1C624A
4 70 35009389 P.C.B 090*KP14SA308U103/00/A 090*KP14SA308U103 1PCS
3 60 KP15SA308ACDAVDC-0 KP15SA308A AV BOARD AUTO-INSERTION ASS’ 1SET
4 10 35009576 P.C.B 090*KP14SA308U101/01/A.U 090*KP14SA308U101 1PCS 4 30 28002420 *BARE WIRE AWG#26 φ0.6 1Kg=375m 072*726000-00 0G
1J201A,J202A
2 130 KP15SA308ASKD-KK A1KP15SA308ASKD CHASSIS ASSEMBLE 1SETV0611318A
3 10 27001007 POWER SUPPLY CORD 1PCS
2 140 KP15SA308ASKD-RU A1KP15SA308A CHASSIS ASSEMBLY GENERAL 1SETV0611318A
3 10 27001007 POWER SUPPLY CORD 1PCS
2 150 KP15SA308ASKD-NP A1KP15SA308A CHASSIS ASSEMBLY GENERAL 1SETV0612346A
3 10 27001007 POWER SUPPLY CORD 1PCS
1 20 KP15SA308AZZ-00 KP15SA308A ASSEMBLY PARTS GENERAL 1SET
2 10 38000132 *TAPPING SCREW B-ST3×12-Zn-C-H 614*300312-10 2PCS
1
座与后壳
2 20 36023711 *LENS 263*K140820/101J 263*K140820/101J 1PCS 2 30 38000201 *TAPPING SCREW W-ST3×12-Zn-FT 612*300112-10 12PCS
1CONTROL BOARD-8 2POWER SWITCH -2 4
遥控接收板
2 40 36030786 *FUNCTION BUTTON291*KP14SA308U110/101D 291*KP14SA308U110 2PCS 2 50 36030756 *POWER BUTTON 292*KP210810/105D 292*KP210810/105D 1PCS 2 60 37003061 *CRT SPRING 477*P290010/00 477*P290010/00 1PCS 2 70 36034391 FRONT CABINET 200*KP14SA308U110/101A 200*KP14SA308U110 1PCS 2 80 36033779 BACK CABINET 202*KP14SA308U110/101B 202*KP14SA308U110 1PCS 2 S90 36033776 *CHASSIS BRACKET220*K140110/100CR 220*K140110/100CR 1PCS 2 S100 36030914 *BRACKET 229*T292610/100C 229*T292610/100C 2PCS 2 110 39004416 *POLYBAG 310*280-K180-0.04/2 310*280-K180-0.04 1PCS
PROTECTION
2 120 39004417 *POLYBAG 310*350-K280-0.04/2 310*350-K280-0.04 1PCS
Page 54
PROTECTION
-1
*POLYFOAM
300*KP14SA308U110/00-EPS
*POLYFOAM
DOWN
300*KP14SA308U120/00-EP
*TAPPING SCREW P-ST3×10-Zn-FT-H
-2
FRONT CABINET,BACK
-1
XS204->LEFT SP
XS203->RIGHT SP
1MANUAL PACKAGE
2 130 39005395 PACKING BAG310*800-K800-0.04/4 310*800-K800-0.04 1PCSV0612346A
1TV SET PACKAGE
2 140 36022874 *LENS 263*KP210810/101H 263*KP210810/101H 1PCS
1
电源导光圈
2 150 36002222 *OVERLAY 384*212801-01 384*212801-01 1PCS
1TUNER
2 160 41003843 *SERIAL BAR CODE LABEL 569*2004001/01 569*2004001/01 2PCS 2 201 36031326 * PLATE389*KP14SA308U110/01 389*KP14SA308U110 1PCS 2 202 36034628 PLATE 389*K15SA308A10/00 389*K15SA308A10/00 1PCS 2 210 37000403 *WIRE CLIP 451*701201-01 451*701201-01 2PCS
1FIX SPEAKER WIRE
2 230 37000425 *SWITCH SPRING 477*212802-01 477*212802-01 1PCS 2 240 36006414 *FELT PAPER 150X15X0.5-GENERAL PURPOSE 5PCS
1BACK CABINET-5
2 250 39018049 2 260 39018050
（UP） （
）
300*KP14SA308U110 1PCS
300*KP14SA308U120 1PCS
2 270 41000086 *QC LABEL 569*018101-10 569*018101-10 1PCS
1FOR BACK COVER CRT
2 280 38000081
优
610*300110-10 17PCS 1CONTROL-KEY-4 2SPEAKER-8 3SIDE AV BOARD-3 4
电源导光圈
2 290 38000133 *TAPPING SCREW B-ST3×16-O-C-H 614*300316-00 6PCS
1BRACKET-6
2 300 38000165 *TAPPING SCREW B-ST4×25-Zn-C-H 614*400325-10 4PCS
1
CABINET 2 310 36003210 *WIRE TIE 680*101261-01R 680*101261-01R 3PCS 2 320 36003216 *SEPARATE RING 680*392101-00 680*392101-00 1PCS
1FIXUP HIGH VOLTAGE
2 321 36006344 *RUBBER SPACER PLATE 334*299301-01 334*299301-01 1PCS
1
电源导光圈
2 440 26000092 CRT CONNECTOR ZJ101802-0D1 ZJ*101802-0D1 1PCS 2 460 26005633 *TWO-PIN CONNECTOR 02-2T01/T00-460(400) 02-2T01/T00-460 1PCSV0612166A
1
(RED END->SP"+" 2 470 26000370 TWO-PIN CONNECTOR 02-2T01/T00-250 02-2T01/T00-250 1PCSV0612166A
1
(RED END->SP"+" 2 480 29000871 SPEAKER YDT310N-4B-16Ω/3W 2PCS 2 S490 36014984 *AC LINE CORE CLIP 254*000210/00-F 254*000210/00F 1PCS 2 500 36030817 *STUD 250*KP14SA308U110/101 250*KP14SA308U110 3PCS
1K1-1
Page 55
2K2-1
*SHRINK PLASTIC SLEEVEΦ3.5-125
BLA/U.C
-1
DY
DY
D.Y
3K4-1
2 520 28000094
℃
079*403500-00 0M
140MM X 2 SPEAKER
2 530 38000093 *TAPPING SCREW P-ST3×8-Zn-C 610*300208-10 1PCS
1LED-1
2 540 38000561 *TAPPING SCREW P-ST4×12-0-C 610*400212-00 1PCS
1
高压包-后壳
2 560 36030647 *PLATE 388*KP14SA308U10/101 388*KP14SA308U10 1PCS 2 590 KP15SA308AZZ-04 0KP15SA308A ASSEMBLY PARTS SPECICAL 1SET
3 S10 31001962 CRT-A36CPAA00X02-CAIHONG/AU 1PCS
1B+=108V
3 S20 12001175 *DEGAUSSING COILBKK37B-40T4D0.44-1065/A 1PCS
1TO/XS902
3 30 26000314 FOUR-PIN CONNECTOR 11-4T04/T00-410 11-4T04/T00-410 1PCS
1
线
3 40 37005460 *CRT BRACKET 428*KPO140610/00 428*KPO140610/00 4PCS 3 60 38000163 *TAPPING SCREW B-ST4×20-Zn-C-H 614*400320-10 12PCS 3 70 36002115 *RUBBER PAD 334*371601-01 334*371601-01 4PCS 3 80 36000728 *WASHER 229*382101-01 229*382101-01 2PCS 3 90 37003150 *FIXED-HOOK 451*P2989N10/00 451*P2989N10/00 2PCS
2 600 KP15SA308AZZ-04A 0KP15SA308A ASSEMBLY PARTS SPECICAL 1SET
3 S10 31003843 B *CRT-A36CPAB00X01(E)-02-CAIHONG/AU* 1PCS
1B+=108V 3 11 31003883 B *CRT-A36CPAB00X01(E)-01-CAIHONG/A* 1PCS 3 S20 12001175 *DEGAUSSING COILBKK37B-40T4D0.44-1065/A 1PCS
1TO/XS902 3 30 26000314 FOUR-PIN CONNECTOR 11-4T04/T00-410 11-4T04/T00-410 1PCS
1
线
3 40 36002115 *RUBBER PAD 334*371601-01 334*371601-01 4PCS 3 50 37005460 *CRT BRACKET 428*KPO140610/00 428*KPO140610/00 4PCS 3 70 38000163 *TAPPING SCREW B-ST4×20-Zn-C-H 614*400320-10 12PCS
1CRT BKT-12 3 80 36000728 *WASHER 229*382101-01 229*382101-01 2PCS 3 90 37003150 *FIXED-HOOK 451*P2989N10/00 451*P2989N10/00 2PCS
2 610 KP15SA308AZZ-18 0KP15SA308A ASSEMBLY PARTS SPECICAL 1SET
3 10 31003842 *CRT-A36AKJ13X20(M)-02-CHUNGHWA/#AU* 1PCS
1B+=108V 3 20 12001175 *DEGAUSSING COILBKK37B-40T4D0.44-1065/A 1PCS
1TO/XS902 3 40 26000314 FOUR-PIN CONNECTOR 11-4T04/T00-410 11-4T04/T00-410 1PCS
1
线
3 50 38000202 *TAPPING SCREW B-ST5×38-Zn-C 614*500238-10 4PCS
Page 56
3 60 36004646 *FIBER PAPER PAD Φ8.2×Φ22×0.8 4PCS
NAME PLATE 401*15
Elenberg10/02
401*15
ELENBERG10
MANUAL570*1570/01-
ELENBERG
-0.22CRT
-0.1
电源部分大电容
DVD
3 70 36002115 *RUBBER PAD 334*371601-01 334*371601-01 4PCS 3 80 36000728 *WASHER 229*382101-01 229*382101-01 4PCS 3 90 37003150 *FIXED-HOOK 451*P2989N10/00 451*P2989N10/00 2PCS
2 620 KP15SA308AZZ-KK A1KP15SA308A ASSEMBLY PARTSSPECICAL 1SETV0611318A
3 10 37002522 *NAME PLATE 401*DT13810/01 401*DT13810/01 1PCS 3 20 39020470 CARTON BOX 510*KP15SA308A10/01 510*KP15SA308A10 1PCS 3 30 36034038 MODEL PLATE 412*KP15SA308A10/01 412*KP15SA308A10 1PCS 3 40 39018665 *MANUAL570*KP15SA308A/01-ENGLISH 570*KP15SA308A/01 1PCS
2 630 KP15SA308AZZ-RU A1KP15SA308A ASSEMBLY PARTS GENERAL 1SETV0611318A
3 10 37011010
寸
寸
1PCS 3 20 39022194 CARTON BOX 510*157010/01-ELENBERG 510*157010/01 1PCS 3 30 39022195
二合一
570*1570/01 1PCS 3 40 39022305 WARRANTY CARD 901*157010/01-ELENBERG 901*157010/01 1PCS 3 50 33000365 BATTERY RO3P-AAA-10.2X44.5 1.5V 2PCS 3 60 41001864 *SERIAL LABEL 569*380501-06 569*380501-06 4PCSV0612413A-G
打印康佳串号贴于保修卡上
2 640 KP15SA308AZZ-NP A1KP15SA308A ASSEMBLY PARTS GENERAL 1SETV0612346A
3 10 37002522 *NAME PLATE 401*DT13810/01 401*DT13810/01 1PCS 3 20 36034038 MODEL PLATE 412*KP15SA308A10/01 412*KP15SA308A10 1PCS 3 30 39020470 CARTON BOX 510*KP15SA308A10/01 510*KP15SA308A10 1PCS 3 40 39018665 *MANUAL570*KP15SA308A/01-ENGLISH 570*KP15SA308A/01 1PCS 3 50 33000365 BATTERY RO3P-AAA-10.2X44.5 1.5V 2PCS
1 30 T5428D1FL-00 T5428D1 T5429D1 CONSUMERABLE PARTS 1SET
2 10 40000016 *RED SCREW LOCKING AGENT A231 1can=1kg/# 800-110002-01 0G
1
显像管螺母
2 20 40000017 *BLACK ADHESIVE FOR PLASTIC 33B 800-120001-04 1G
1can=1kg/#
1
点固喇叭，网罩等
2 30 40000075 *HOT MELT ADHESIVE WITH MELTING POINT 800*130001-01 5G
AT 85°C 1bottle=30 1box=25kg
1
封埋光耦等
2 40 40000012 T5428D1 T5429D1 CONSUMERABLE PARTS 800-190001-01 0G
ADHESIVES KE45-W WHITE 1bottle=100g/#
1
遥控晶振
板地线插头
2 50 40000011 *ONE COMPONENT RTV SILICON ADHESIVE 800*190002-02 1G
KQ3109-M V0 GREY 1bottle=100g
1
机芯输出连接器和连接线
2 60 40000013 *HEAT SINK SILIXON GREASE G746 INSULATED 800-190003-01 1G
1can=1kg/#
1
散热片
2 70 40000022 NITRYL LACQUER 1barrel=4liter 800*100001-00 0G
Page 57
1
固定加速极，聚焦极电
OEM
显像管扣高压帽处
CRT
主板（信号、电源板）
平面直角面壳四角转角
0.05
*
SONY
T4082S
18mm
位旋钮
2 80 40000030 *STATIONARY TAPES WITH 12mm WIDTH 806*002712-01 0M
1roll=27m
1
包装遥控
2
说明书
3
电源线
2 90 40001090 A1*KONKA PACKAGING TAPES WITH 60mm WIDTH 2M V0209177A
OPACITY 1roll=1000m
1
封装电视机
2 91 40001280 A1*KONKA PACKAGING TAPES WITH 60mm WIDTH 2M V0209177A
OPACITY 1roll=500m
外销机和
机专用
2 92 40001089 A1*KONKA PACKAGING TAPES WITH 60mm WIDTH 2M V0508454A
OPACITY 1roll=45m
2 120 40000981 *DAMPPROOF INSULATED SILICON GREASE 1G V0108224A
1CAN=1KG
1
管座聚焦极焊接端下
2 130 40001069 *CLEANE SHENZHEN LONGTAI 302# 1CAN=20L 0L V0110191A
1
清洗
2 140 40000026 A2*CASSETTE DOOR TAPE 3M810 MILK WHITE 801-003234-01 0M GV0302005A
3M 1roll=32m/#
2 150 40001240 A2
保护胶纸
1
浅蓝色
各
一卷50米
米
0M GV0302005A
1 E40 KK-Y294F REMOTE HANDSET KK-Y294F 1SET
Page 58
Short Spare Parts List ELENBERG CTV-1570 (KP15SA308A)
Part Model Part Name Quantity
19003790 IC STR-W6753-TO220
19004903 IC LA4268-SANYO
19002979 IC HCF4052BEY-DIP16-ST
19003471 IC LA78040-SANYO
19003783 IC M24C08-WBN6-ST
19000695
19005741 IC CKP1510S-DIOP64-LA76936N-SANYO
17000284 TRANSISTOR 2SC4544-TOSHIBA
17001911 TRANSISTOR TT2140LS-SANYO
17000065 TRANSISTOR 2SC2482
17001211 TRANSISTOR 3DG2655
32001099 TUNER ETA-SF03/12
30001482 FLYBACK TRANSFORMER BSC JF0501-004/A
27001317 FUSE RT1-20-2.5A-250V/A
KK-Y294F REMOTE HANDSET KK-Y294F
HS817B（G）-VISHAY
Page 59
1 10 KP15SA308ASKD-00 KP15SA308A CHASSIS ASSEMBLY GENERAL 1SET
AV
-2
-2
-1
*POLYFOAM
300*KP14SA308U110/00-EPS
*POLYFOAM
DOWN
300*KP14SA308U120/00-EP
*TAPPING SCREW P-ST3×10-Zn-FT-H
SHORT BOM ELENBERG CTV-1570 (KP15SA308A)
1 20 KP15SA308AZZ-00 KP15SA308A ASSEMBLY PARTS GENERAL 1SET
2 10 38000132 *TAPPING SCREW B-ST3×12-Zn-C-H 614*300312-10 2PCS
1
座与后壳
2 20 36023711 *LENS 263*K140820/101J 263*K140820/101J 1PCS 2 30 38000201 *TAPPING SCREW W-ST3×12-Zn-FT 612*300112-10 12PCS
1CONTROL BOARD-8 2POWER SWITCH -2 4
遥控接收板
2 40 36030786 *FUNCTION BUTTON291*KP14SA308U110/101D 291*KP14SA308U110 2PCS 2 50 36030756 *POWER BUTTON 292*KP210810/105D 292*KP210810/105D 1PCS 2 60 37003061 *CRT SPRING 477*P290010/00 477*P290010/00 1PCS 2 70 36034391 FRONT CABINET 200*KP14SA308U110/101A 200*KP14SA308U110 1PCS 2 80 36033779 BACK CABINET 202*KP14SA308U110/101B 202*KP14SA308U110 1PCS 2 S90 36033776 *CHASSIS BRACKET220*K140110/100CR 220*K140110/100CR 1PCS 2 S100 36030914 *BRACKET 229*T292610/100C 229*T292610/100C 2PCS 2 110 39004416 *POLYBAG 310*280-K180-0.04/2 310*280-K180-0.04 1PCS
PROTECTION
2 120 39004417 *POLYBAG 310*350-K280-0.04/2 310*350-K280-0.04 1PCS
PROTECTION
1MANUAL PACKAGE
2 130 39005395 PACKING BAG310*800-K800-0.04/4 310*800-K800-0.04 1PCSV0612346A
1TV SET PACKAGE
2 140 36022874 *LENS 263*KP210810/101H 263*KP210810/101H 1PCS
1
电源导光圈
2 150 36002222 *OVERLAY 384*212801-01 384*212801-01 1PCS
1TUNER 2 160 41003843 *SERIAL BAR CODE LABEL 569*2004001/01 569*2004001/01 2PCS 2 201 36031326 * PLATE389*KP14SA308U110/01 389*KP14SA308U110 1PCS 2 202 36034628 PLATE 389*K15SA308A10/00 389*K15SA308A10/00 1PCS 2 210 37000403 *WIRE CLIP 451*701201-01 451*701201-01 2PCS
1FIX SPEAKER WIRE 2 230 37000425 *SWITCH SPRING 477*212802-01 477*212802-01 1PCS 2 240 36006414 *FELT PAPER 150X15X0.5-GENERAL PURPOSE 5PCS
1BACK CABINET-5 2 250 39018049 2 260 39018050 2 270 41000086 *QC LABEL 569*018101-10 569*018101-10 1PCS
2 280 38000081
（UP） （
）
1FOR BACK COVER CRT
优
300*KP14SA308U110 1PCS 300*KP14SA308U120 1PCS
610*300110-10 17PCS
Page 60
1CONTROL-KEY-4
-2
FRONT CABINET,BACK
-1
XS204->LEFT SP
XS203->RIGHT SP
*SHRINK PLASTIC SLEEVEΦ3.5-125
BLA/U.C
-1
D.Y
2SPEAKER-8
3SIDE AV BOARD-3
4
电源导光圈
2 290 38000133 *TAPPING SCREW B-ST3×16-O-C-H 614*300316-00 6PCS
1BRACKET-6 2 300 38000165 *TAPPING SCREW B-ST4×25-Zn-C-H 614*400325-10 4PCS
1
CABINET 2 310 36003210 *WIRE TIE 680*101261-01R 680*101261-01R 3PCS 2 320 36003216 *SEPARATE RING 680*392101-00 680*392101-00 1PCS
1FIXUP HIGH VOLTAGE
2 321 36006344 *RUBBER SPACER PLATE 334*299301-01 334*299301-01 1PCS
1
电源导光圈
2 440 26000092 CRT CONNECTOR ZJ101802-0D1 ZJ*101802-0D1 1PCS 2 460 26005633 *TWO-PIN CONNECTOR 02-2T01/T00-460(400) 02-2T01/T00-460 1PCSV0612166A
1
(RED END->SP"+" 2 470 26000370 TWO-PIN CONNECTOR 02-2T01/T00-250 02-2T01/T00-250 1PCSV0612166A
1
(RED END->SP"+" 2 480 29000871 SPEAKER YDT310N-4B-16Ω/3W 2PCS 2 S490 36014984 *AC LINE CORE CLIP 254*000210/00-F 254*000210/00F 1PCS 2 500 36030817 *STUD 250*KP14SA308U110/101 250*KP14SA308U110 3PCS
1K1-1 2K2-1 3K4-1
2 520 28000094
℃
079*403500-00 0M
140MM X 2 SPEAKER
2 530 38000093 *TAPPING SCREW P-ST3×8-Zn-C 610*300208-10 1PCS
1LED-1
2 540 38000561 *TAPPING SCREW P-ST4×12-0-C 610*400212-00 1PCS
1
高压包-后壳
2 560 36030647 *PLATE 388*KP14SA308U10/101 388*KP14SA308U10 1PCS 2 610 KP15SA308AZZ-18 0KP15SA308A ASSEMBLY PARTS SPECICAL 1SET
3 10 31003842 *CRT-A36AKJ13X20(M)-02-CHUNGHWA/#AU* 1PCS
1B+=108V
3 20 12001175 *DEGAUSSING COILBKK37B-40T4D0.44-1065/A 1PCS
1TO/XS902
3 40 26000314 FOUR-PIN CONNECTOR 11-4T04/T00-410 11-4T04/T00-410 1PCS
1
线
3 50 38000202 *TAPPING SCREW B-ST5×38-Zn-C 614*500238-10 4PCS 3 60 36004646 *FIBER PAPER PAD Φ8.2×Φ22×0.8 4PCS 3 70 36002115 *RUBBER PAD 334*371601-01 334*371601-01 4PCS 3 80 36000728 *WASHER 229*382101-01 229*382101-01 4PCS 3 90 37003150 *FIXED-HOOK 451*P2989N10/00 451*P2989N10/00 2PCS
Page 61
2 630 KP15SA308AZZ-RU A1KP15SA308A ASSEMBLY PARTS GENERAL 1SETV0611318A
NAME PLATE 401*15
Elenberg10/02
401*15
ELENBERG10
MANUAL570*1570/01-
ELENBERG
3 10 37011010
寸
寸
1PCS 3 20 39022194 CARTON BOX 510*157010/01-ELENBERG 510*157010/01 1PCS 3 30 39022195
二合一
570*1570/01 1PCS 3 40 39022305 WARRANTY CARD 901*157010/01-ELENBERG 901*157010/01 1PCS 3 50 33000365 BATTERY RO3P-AAA-10.2X44.5 1.5V 2PCS 3 60 41001864 *SERIAL LABEL 569*380501-06 569*380501-06 4PCSV0612413A-G
打印康佳串号贴于保修卡上
1 30 T5428D1FL-00 T5428D1 T5429D1 CONSUMERABLE PARTS 1SET 1 E40 KK-Y294F REMOTE HANDSET KK-Y294F 1SET
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
