Basic 240
Betriebsanleitung . . . . . . . . . . . . . . . . . . . . .3
Operating Instruction . . . . . . . . . . . . . . . . . .7
Instructions d'utilisation . . . . . . . . . . . . . . .11
Handleiding . . . . . . . . . . . . . . . . . . . . . . . .16
Manuale d’istruzioni . . . . . . . . . . . . . . . . . .21
Manual de uso . . . . . . . . . . . . . . . . . . . . . .26
Manual de operação . . . . . . . . . . . . . . . . .31
Betjeningsvejledning . . . . . . . . . . . . . . . . .36
Bruksanvisning . . . . . . . . . . . . . . . . . . . . .40
Bruksanvisning . . . . . . . . . . . . . . . . . . . . .44
Käyttökäsikirja . . . . . . . . . . . . . . . . . . . . . .48
Kezelési utasítás . . . . . . . . . . . . . . . . . . . .52
Instrukcja obsługi. . . . . . . . . . . . . . . . . . . .57
115 166 3636 / 0302 - 1.2
Οδηγες Χρσης . . . . . . . . . . . . . . . . . . .62
Page 2
Ñ
Ê
ÖRSÄ
U2K0005.fm
D DEUTSCH ENG ENGLISH
KONFORMITÄTSERKLÄRUNG DECLARATION OF CONFORMITY
Wir erklären in alleiniger Verantwortlichkeit, daß dieses Produkt mit den
folgenden Normen übereinstimmt* gemäß den Bestimmungen der Richtlinien**
Prüfbericht *** ausstellende Prüfstelle **** Gemessener/ Garantierter
Schalleistungspegel*****
F FRANÇAIS NL NEDERLANDS
DECLARATION DE CONFORMITE CONFORMITEITSVERKLARING
Nous déclarons, sous notre seule responsabilité, que ce produit est en conformité
avec les normes ou documents normatifs suivants* en vertu des dispositions des
directives **Compte-rendu de
revision *** effectué par ****Niveau de puissance acoustique mesuré/ garanti*****
IT ITALIANO ES ESPA
DICHIARAZIONE DI CONFORMITÀ DECLARACION DE CONFORMIDAD
Noi dichiariamo sotto la nostra esclusiva responsabilità che il presente prodotto è
conforme alle seguenti norme* in conformità con le disposizioni delle normative
** verbale di prova *** eseguita da ****Livello di potenza sonora misurato/
garantito*****
PT PORTUGU
DECLARAÇÃO DE CONFORMIDADE
Declaramos sob nossa responsabilidade que este produto está de acordo com
as seguintes normas* de acordo com as directrizes dos regulamentos ** Acta de
revisão *** efectuado por ****Nível de potência
acústica medido/ garantido*****
FIN SUOMI NO NORGE
VAATIMUKSENMUKAISUUSVAKUUTUS SAMSVARSERKLÆRING
Vakuutamme, että tämä tuote vastaa seuraavia normeja* on direktiivien
määräysten mukainen**tarkastusraportti*** testin suorittaja****Mitattu/ Taattu
äänen tehotaso*****
DA DANSK POL POLSKI
OVERENSSTEMMELSESATTEST OŚWIADCZENIE O ZGODNOŚCI
Hermed erklærer vi på eget ansvar, at dette produkt stemmer overens ed
følgende standarder* iht bestemmelserne i direktiverne** rapport *** gennemført
af ****Målt/ Garanteret lydeffektniveau*****
We herewith declare in our sole responsibility that this product complies with
the following standards* in accordance with the regulations of the
undermentioned Directives** testreport *** issuing test office ****measured/
guaranteed noise output level*****
Wij verklaren als enige verantwoordelijke, dat dit product in overeenstemming
is met de volgende normen*
conform de bepalingen van de richtlijnen** keuringsinstantie *** uitgevoerd door
****Gemeten/ Gegarandeerd geluidsnviveau*****
OL
Declaramos bajo nuestra exclusiva responsabilidad, que el presente producto
cumple con las siguientes normas* de acuerdo a lo dispuesto en las
directrices** Acta de revisión *** llevada a cabo por ****Nivel de potencia
acústica medido/ garantizado*****
S SV SVENSKA
F
KRAN OM ÖVERENSSTÄMMELSE
Vi försäkrar på eget ansvar att denna produkt överensstämmer med följande
standarder* enligt bestämmelserna i direktiven**provningsrapport ***
genomfört av ****Uppmätt/ Garanterad ljudnivå*****
Vi erklærer under eget ansvar at dette produkt samsvarer med følgende
normer* henhold til bestemmelsene i direktiv**
prøverapport *** utstilt av ****Målt/ Garantert lydeffektnivå*****
Oświadczamy z pełną odpowiedzialnością, że niniejszy produkt odpowiada
wymogom następujących norm* według ustaleń wytycznych **sprawozdanie z
kontroli technicznej *** przeprowadzone przez **** Zmierzony/ Gwarantowany
poziom ciśnienia akustycznego*****
EL ΕΛΛHNIKA HU MAGYAR
∆ΗΛΩΣΗ ΑΝΤΙΣΤΟΙΧΕΙΑΣ MEGEGYEZŐSÉGI NYILATKOZAT
∆ηλώνουµε µε ιδία ευθύνη ότι το προϊόν αυτό αντιστοιχεί στις ακόλουθες
προδιαγραφές* σύµφωνα µε τις διατάξεις των οδηγιών** Εκθεση ελεγχου***
πραγµατοποιούµενος από το****Μετρηθείσα/ Εγγυηµένη στάθµη απόδοσης
ήχου*****
Kizárólagos felelősségünk tudatában ezennel igazoljuk, hogy ez a termék
kielégíti az alábbi szabványokban lefektetett követelményeket* megfelel az
alábbi irányelvek előírásainak** Vizsgálati jegyzőkönyv *** a **** Mért/ Garantált
zajszint****'*
BASIC 240 / BASIC 240 EuroBasic / BASIC 240 (GB) 110/1/50
* EN 1012-1, EN 60204-1, EN ISO 3744
** 98/37/ EWG, 89/336/ EWG, 73/23/ EWG, 93/68/ EWG, 2000/14/ EG
*** CE-DE10-143 677
**** DE10 - TÜV Hannover/ Sachsen Anhalt e.V.
***** LWA = 93,0 dB/1pW - L
Dipl. Ing. Jürgen Kusserow
Vorstand
= 94,3 dB/1pW
WAd
ELEKTRA BECKUM AG – Daimlerstraße 1 – 49716 Meppen
Meppen, 20.12.2001 1001045
2
Page 3
XK0005E2.fm Operating Instruction ENGLISH

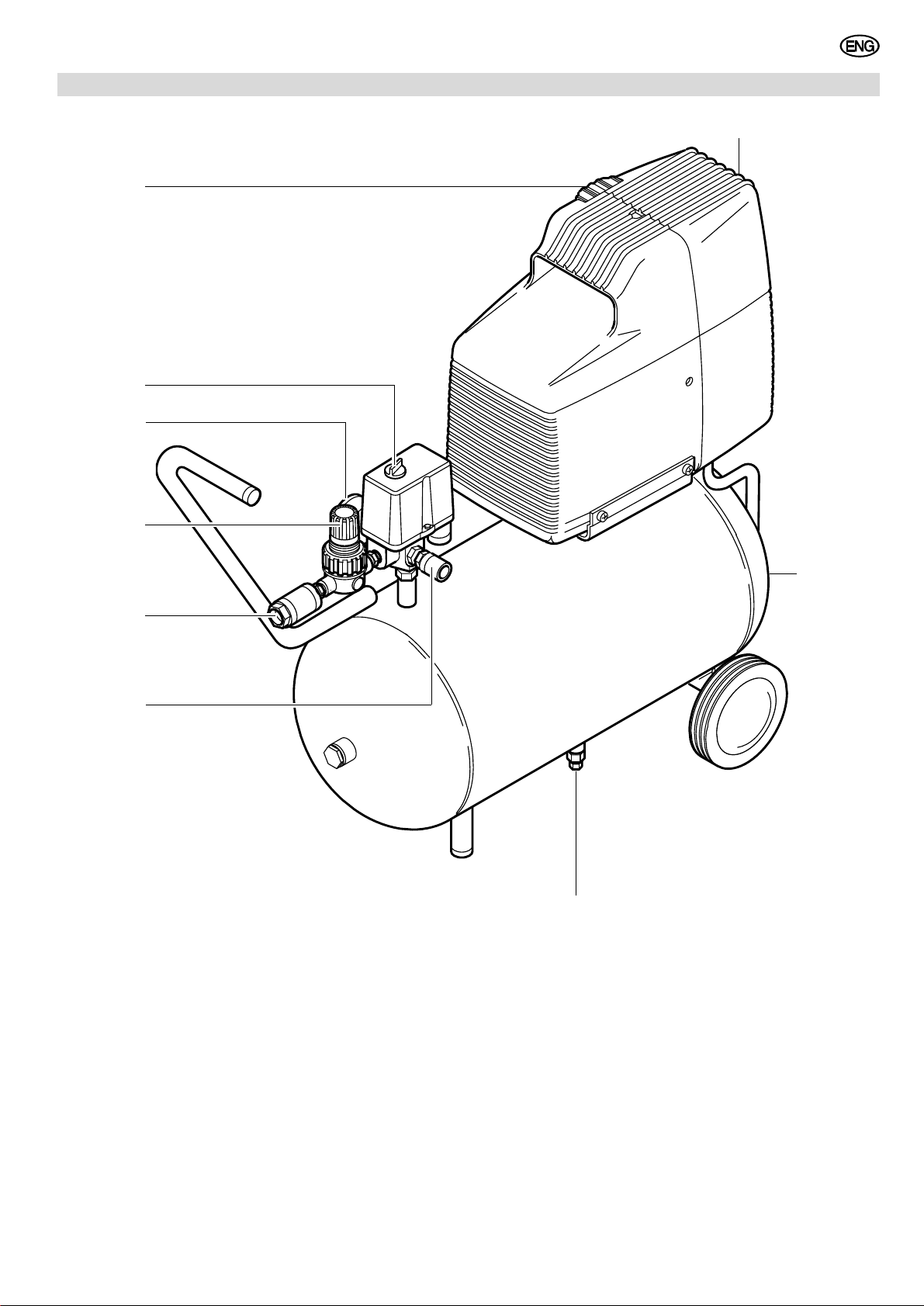

1. Machine Overview
9
8
7
ENGLISH
1
6
5
4
1 Compressor pump
2
3
7 Tank pressure gauge
2 Pressure vessel
3 Condensate drain cock
4 Safety valve
5 Compressed air outlet
(quick coupler)
6 Pressure regulator
8 On/Off switch
9 Air intake filter housing
7
Page 4
ENGLISH
Table of Contents
1. Machine Overview.......................7
2. Please Read First!.......................8
3. Safety ...........................................8
3.1 Specified conditions of use ...........8
3.2 General safety information............8
3.3 Safety devices...............................9
4. Operation.....................................9
4.1 Prior to initial operation .................9
4.2 Mains connection..........................9
4.3 Generating compressed air ...........9
5. Care and Maintenance................9
5.1 Periodic maintenance....................9
5.2 Machine storage............................9
6. Trouble Shooting ........................9
7. Repairs.......................................10
8. Environmental Protection ........10
9. Technical Specifications..........10
2. Please Read First!
• Read these instructions before use.
Pay special attention to the safety
information.
• If you notice transport damage while
unpacking, notify your supplier
immediately. Do not operate the
machine!
• Dispose of the packing in an environmentally friendly manner. Take
to a proper collecting point.
• Keep these instructions for reference on any issues you may be
uncertain about.
• If you lend or sell this machine be
sure to have the instructions to go
with it.
3. Safety
3.1 Specified conditions of use
This machine is intended to generate
compressed air required for the operation of air tools.
Any use for medical purposes, food
processing as well as filling of oxygen
cylinders for breathing equipment is not
permitted.
Explosive, combustible gases or gases
detrimental to health may not be compressed. Operation in hazardous locations is not permitted.
Any other use is not as specified. Use
not as specified, alteration of the
machine or use of parts that are not
approved by the equipment manufacturer, can cause unforeseeable damage!
Children, juveniles and persons not having been instructed in its usage are not
permitted to operate this machine and
any air tools connected to it.
3.2 General safety information
When using this electric tool observe the
following safety instructions, to exclude
the risk of personal injury or material
damage.
Please also observe the special safety
instructions in the respective chapters;
Keep all documents, supplied with the
machine, for future reference.
Observe the statuary accident insurance
institution regulations and regulations for
the prevention of accidents pertaining to
the operation of air compressors and air
tools, where applicable.
General Hazard!
Keep your work area tidy – a messy
work area invites accidents.
Be alert. Know what you are doing. Set
out to work with reason. Do not operate
electric tool while under the influen ce of
drugs, alcohol or medication.
Consider environmental conditions.
Keep work area well lighted.
Prevent adverse body positions. Ensure
firm footing and keep your balance at all
times.
Do not operate electric tool near inflammable liquids or gases.
Keep bystanders, particularly children,
out of the work area. Do not permit other
persons to touch the tool or power cable
while the electric tool is running.
Do not overload electric tool – use it only
within the performance range it was
designed for (see Technical Specifications).
Danger! Risk of electric shock!
Do not expose electric tool to rain.
Do not operate electric tool in damp or
wet environment.
Prevent body contact with earthed
objects such as radiators, pipes, cooking
stoves or refrigerators when operating
this electric tool.
Do not use the power cable for any purpose it is not intended for.
Risk of personal injury by
escaping compressed air and parts
hurled about by escaping air!
Never direct compressed air against persons or animals!
Ensure all air tools and accessories
used are designed for the working pressure or are supplied via a pressure regulator.
Please note that, when disconnecting
the quick coupler, the compressed air
contained in the pressure hose will
escape all of a sudden. You should
therefore firmly hold the air hose when
disconnecting it.
Ensure all screwed connections are fully
tightened at all times.
Do not attempt to repair the machine
yourself! Only trained specialists are
permitted to service or repair compressors, pressure vessels and air tools.
Hazard generated by oil-satu-
rated compressed air!
Use oil saturated compressed air only
for air tools requiring such supply. Do
not use an air hose used to supply compressed air containing oil to supply air
tools not designed for operation on compressed air containing oil. Do not fill tires
with compressed air containing oil.
Risk of burns from the surfaces of parts carrying compressed
air!
Let tool cool off before servicing.
Risk of personal injury and
crushing by moving parts!
Do not operate the electric tool without
installed guards.
Please note that the compressor will
start automatically when the pressure
falls off to minimum! – disconnect from
power supply prior to any servicing.
Ensure that when switching on (e.g. after
servicing) no tools or loose parts are in
the electric tool.
Hazard generated by insufficient personal protection gear!
Wear hearing protection.
Wear safety glasses.
Wear mask respirator when work generates dust or mist detrimental to health.
Wear suitable work clothes When working outdoors wearing of non-slip shoes is
recommended.
Hazard generated by electric
tool defects!
Keep electric tool and accessories in
good repair. Observe the maintenance
instructions.
Check electric tool for possible damage
before any use: Before operating the
electric tool all safety devices, protection
devices or slightly damaged parts must
be inspected for proper functioning as
specified. Check to see that all moving
parts work properly and do not jam. All
parts must be correctly installed and
meet all conditions necessary for the
proper operation of the electric tool.
Damaged protection devices or parts
must be repaired or replaced by an qualified specialist. Have damaged switches
replaced by a service centre. Do not
operate electric tool if the switch can not
be turned ON or OFF.
Keep handles free of oil and grease.
8
Page 5
ENGLISH
3.3 Safety devices
Safety valve
10

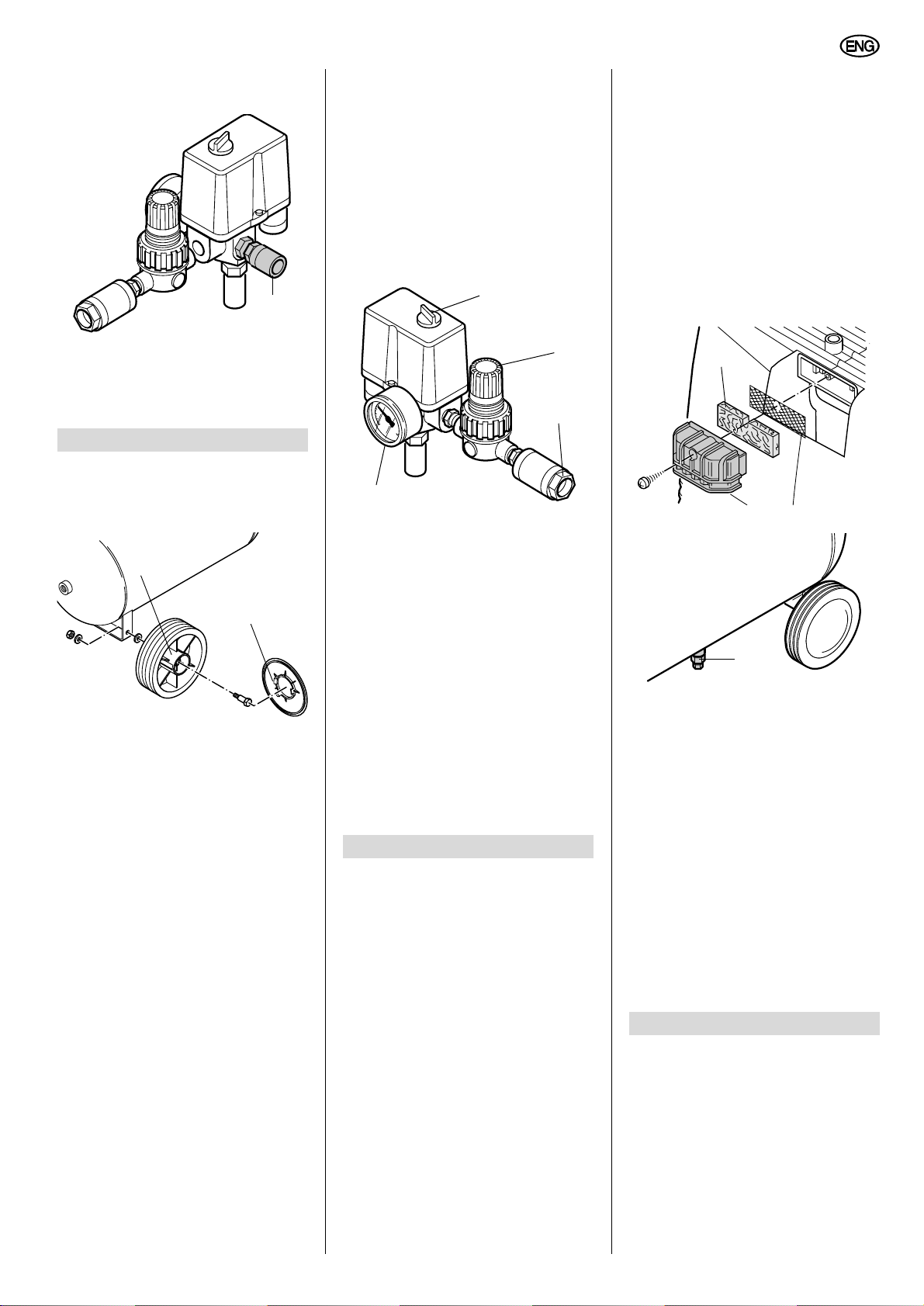

The spring safety valve (10) is incorporated into the pressure switch unit. The
safety valve opens if the max. permissible pressure is exceeded.
4. Operation
4.1 Prior to initial operation
Wheel installation
1. Install wheels as illustrated.
12
11
2. Place starlocks on the wheels so
that the starlock’s (12) clips are positioned exactly opposite the receiving
grooves of the wheels (11) Then
push the starlocks onto the wheels.
4.2 Mains connection
Danger! High voltage
Operate machine in dry environment only.
Operate machine only on a power
source complying with the following
requirements:
− outlets properly installed, earthed
and tested;
− fuse protection in accordance
with the Technical Specifications.
Position power cable so it does not
interfere with the work and is not
damaged.
Always check to see that the machine
is switched OFF before plugging in.
Protect power cable from heat,
aggressive liquids and sharp edges.
Use only extension cables with sufficient lead cross section (see "Technical Specifications").
Do not stop the compressor by
unplugging, but switch OFF using the
switch.
Unplug after use.
4.3 Generating compressed air
1. Start compressor (13) and wait until
the max. tank pressure is reached
(compressor shuts off). The tank
pressure is indicated by the tank
pressure gauge (14).
13
15
16
14
2. Set pressure regulator (15) to
required working pressure.
Caution!
The regulated pressure may
not be set higher than the max. working pressure of the connected air
tools!
3. Connect air hose to compressed air
outlet (16).
4. Connect air tool.
You are now ready to work with the
air tool.
5. Switch the compressor OFF, if you
do not continue working immediately
afterwards. Unplug after switching
OFF.
5. Care and Maintenance
Danger!
Prior to all servicing:
− Switch Off.
− Unplug.
− Wait until the compressor has
come to a complete stop.
− Ensure the compre sso r and al l air
tools and accessories connected
to it are relieved from pressure.
After all servicing:
− Check to see that all safety
devices are operational.
− Make sure that no tools or other
parts remain on or in the
machine.
Repair and maintenance work other
than described in this section must
only be carried out by qualified specialists.
5.1 Periodic maintenance
Prior to each use
• Check air hoses for damage,
replace if necessary.
• Check all screwed connections for
tightness, tighten if necessary.
• Check power supp ly cable for damage, if necessary have replaced by
a qualified electrician.
Every 50 operating hours
• Check air inta ke filter , clean if necessary (17).
17
• Drain condensate (18).
18
Every 250 operating hours
• Replace air filter element.
5.2 Machine storage
1. Switch unit OFF and unplug.
2. Release pressure from tank and all
connected air tools.
3. Store machine in such way that it
cannot be started by unauthorized
persons.
Caution!
Do not store machine unprotected outdoors or in damp environment.
Do not lay machine on its side for
transportation or storing.
6. Trouble Shooting
Danger!
Prior to all servicing:
− Switch Off.
− Unplug.
− Wait until the compressor has
come to a complete stop.
− Ensure the compre sso r and al l air
tools and accessories connected
to it are relieved from pressure.
9
Page 6
ENGLISH
After all servicing:
− Check to see that all safety
devices are operational.
− Make sure that no tools or other
parts remain on or in the
machine.
Compressor does not run:
• No mains voltage.
− Check cables, plug, outlet and
mains fuse.
• Mains voltage too low.
− Use only extension cables with
sufficient lead cross section (see
"Technical Specifications"). Avoid
using extension cable with cold
machine.
• Compressor was stopped by
unplugging.
− Switch compressor OFF at the
On/Off switch, then ON again.
9. Technical Specifications
• Motor has overheated, caused by
insufficient cooling (cooling fins covered).
− Remove cause for overheating
and allow to cool down for
approx. 10 minutes, then start
again.
Compressor runs but does not build
up sufficient pressure.
• Check valve leaky.
− Have check valve serviced by
qualified service centre.
Air tool is not supplied with sufficient
pressure.
• Pressure regulator not opened wide
enough.
− Open pressure regulator more.
• Hose connection between compres-
sor and air tool leaky.
− Check air hoses, replace defec-
tive parts if necessary.
7. Repairs
Danger!
A
Repairs to power tools must be
carried out by qualified electricians
only!
Electric tools in need of repair can be
send to the service centre in your country. See spare parts list for address.
Please attach a description of the fault to
the power tool.
8. Environmental Protection
The machine's packaging can be 100 %
recycled.
Worn out machines and accessories
contain considerable amounts of valuable raw and plastic materials, which can
be recycled.
These instructions are printed on chlorine-free bleached paper.
Basic 240 Basic 240 (GB 110V)
Suction capacity l/min 220 220
Free air delivery (volume flow rate) l/min 105 105
Filling rate l/min 110 110
Working pressure (compression end pressure) bar 8 8
Pressure vessel volume l 24 24
Pump model F 205 F 205
No. of cylinders 1 1
-1
Motor speed min
Motor capacity kW 1.1 1.35
Supply voltage (50 Hz) V 230 110
Rated current A 6.2 14.0
Fuse protection min. A 10 (time-lag)
Degree of protection IP 20 IP 20
Max. overall cable length when using extension cables:
– at 3 x 1.0 mm
– at 3 x 1.5 mm
– at 3 x 2.5 mm
Dimensions length x width x height mm 615 x 325 x 630 615 x 325 x 630
2
lead cross section
2
lead cross section
2
lead cross section
2850 2750
m
m
m
10
25
50
Weight kg 21.5 21.5
Sound pressure level at 1 m max. dB (A) 85 ± 3 85 ± 3
10
Page 7
U4BA_EB3.fm
www.elektra-beckum.de
ZINDEL - Technische Dokumentation und Multimedia, www.zindel.de
Loading...
