EVID-S Surface Mount Dual 10” Subwoofers

EVID-S10.1DB | EVID-S10.1DW

en | Installation manual

Table of contents

1

Safety 4

1.1 Suspension 4

1.2 Notices 4

2

Short information 5

3

Introduction 6

3.1 System features 6

3.2 Packing list 7

3.3 Product information 8

4

Installation 9

4.1 Suspending the subwoofer 9

4.2 Replacing the logo 10

4.3 Installing the IP65 port covers 11

4.4 Installing the U-bracket - optional accessory 12

4.5 Installing the transformer input panel - optional accessory 12

4.6 Installing the crossover input panel - optional accessory 14

5

Wiring 15

5.1 Standard input panel 15

5.1.1 Mono operation 15

5.1.2 Stereo operation 16

5.2 Transformer input panel - optional accessory 17

5.2.1 Mono operation 17

5.2.2 Stereo operation 19

5.3 Crossover input panel - optional accessory 20

5.3.1 Mono operation 20

5.3.2 Stereo operation 21

6

Troubleshooting 23

7

Technical data 24

7.1 Dimensions 25

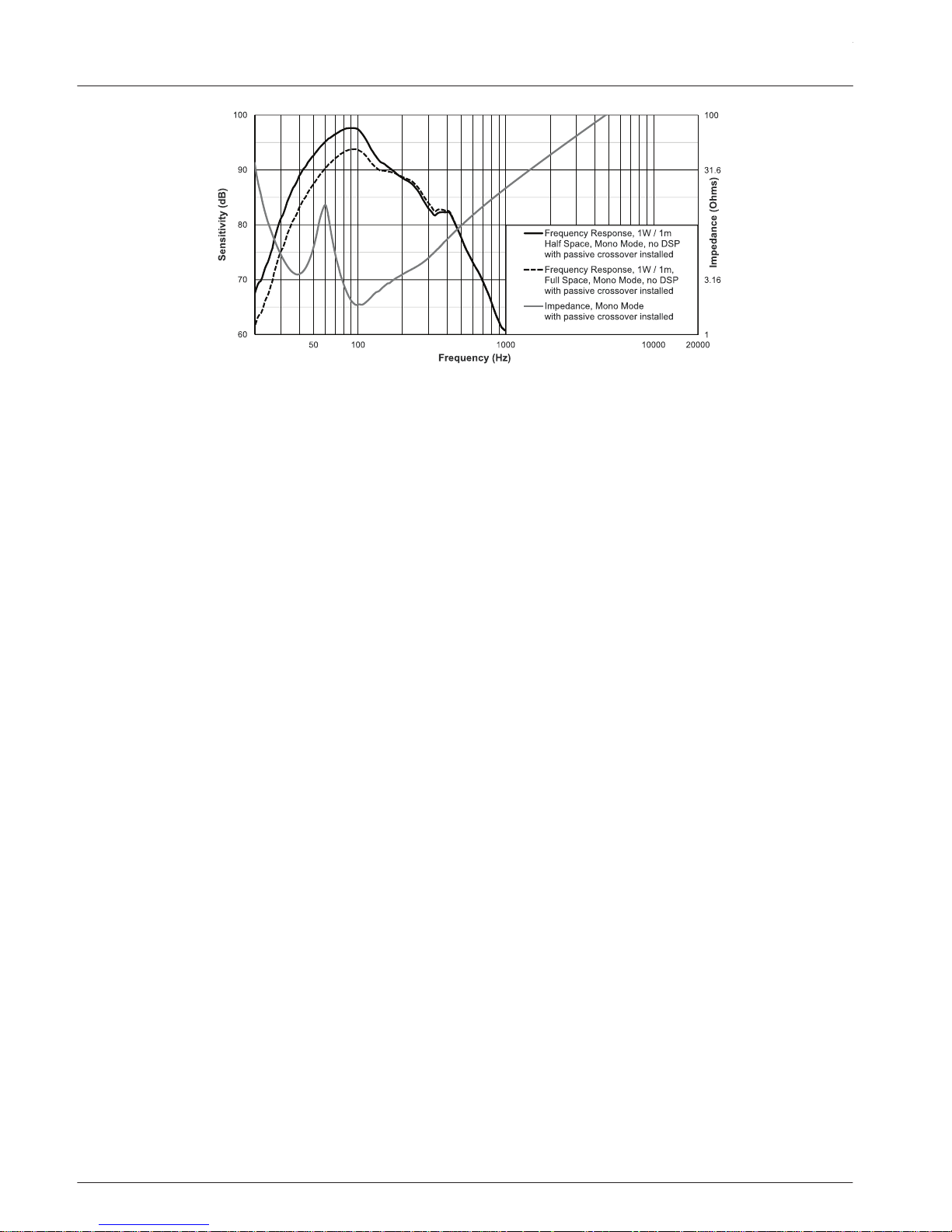

7.2 Frequency response and impedance 25

8

U-bracket dimensions - optional accessory 27

en 3

Electro-Voice Installation manual 2017.08 | 01 | F.01U.345.359

Safety

Suspension

!

Warning!

Suspending any object is potentially dangerous and should only be attempted by individuals

who have a thorough knowledge of the techniques and regulations of suspending objects

overhead. Electro-Voice strongly recommends all loudspeakers be suspended taking into

account all current national, federal, state, and local laws and regulations. It is the

responsibility of the installer to ensure all loudspeakers are safely installed in accordance

with all such requirements. When loudspeakers are suspended, Electro-Voice strongly

recommends the system be inspected at least once per year or as laws and regulations

require. If any sign of weakness or damage is detected, remedial action should be taken

immediately. The user is responsible for making sure the wall, ceiling, or structure is capable

of supporting all objects suspended overhead. Any hardware used to suspend a loudspeaker

not associated with Electro-Voice is the responsibility of others.

Safety point

As an added safety measure, it is suggested the user install an extra suspension point back to
the building structural supports. This safety point should have as little slack as possible (less
than 1-inch is preferable).

Notices

Old electrical and electronic appliances

Electrical or electronic devices that are no longer serviceable must be collected separately and
sent for environmentally compatible recycling (in accordance with the European Waste
Electrical and Electronic Equipment Directive).
To dispose of old electrical or electronic devices, you should use the return and collection
systems put in place in the country concerned.

Copyright and disclaimer

All rights reserved. No part of this document may be reproduced or transmitted in any form by
any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior
written permission of the publisher. For information on getting permission for reprints and
excerpts, contact Electro-Voice.
The content and illustrations are subject to change without prior notice.

1

1.1

1.2

EVID-S Surface Mount Dual 10” Subwoofers

2017.08 | 01 | F.01U.345.359 Installation manual Electro-Voice

Short information

The following table lists products in a family, with CTN (Commercial Type Number) and
identifying product name DESCRIPTION.

CTN Description

EVID-S10.1DB Cabinet subwoofer 2x10" black

EVID-S10.1DW Cabinet subwoofer 2x10" white

UB-10DB U-bracket for 10" subwoofer black

UB-10DW U-bracket for 10" subwoofer white

IP-10D-TB Transformer input 10" subwoofer bk

IP-10D-TW Transformer input 10" subwoofer wh

IP-10D-CB Crossover input 10" subwoofer bk

IP-10D-CW Crossover input 10" subwoofer wh

2

en 5

Electro-Voice Installation manual 2017.08 | 01 | F.01U.345.359

Introduction

The EVID-S10.1D subwoofer, from Electro-Voice, is a compact, high-performance, dual woofer
loudspeaker with outstanding performance for the most demanding professional and
commercial sound applications. Designed and engineered for use in background and
foreground music, and sound reinforcement applications, the EVID-S10.1D subwoofer is the
ideal solution for indoor and outdoor applications, such as restaurants, bars, patios, retail,
fitness clubs, hospitality, theme parks, leisure venues, and others. Ease of installation, and
flexible options for mounting solutions and weather resistance, the EVID-S10.1D subwoofer is
the perfect solution for a wide variety of surface mount applications.

The EVID-S10.1D subwoofer has been carefully engineered to resist outdoor environments,
without compromising on performance for indoor applications. The subwoofer is IP54 rated,
and its weather-proofing is complemented with exceptional cabinet and grille resistance
against sun, salt and moisture. For the toughest weather conditions, the IP rating of the EVID­S10.1D subwoofer can be upgraded to IP65, using the included port plug accessory.

Read through this manual to familiarize yourself with the safety information, features, and
applications before you use these products.

System features

▪ Two 10 inch high-excursion woofers
▪ Carefully engineered for outdoor environments (IP54 and IP65), without compromising

performance

▪ 400 W power handling provides for 120 dB maximum SPL (126 dB peak)
▪ 70/100 V transformer input panel accessory available
▪ Crossover input panel accessory available

3

3.1

EVID-S Surface Mount Dual 10” Subwoofers

2017.08 | 01 | F.01U.345.359 Installation manual Electro-Voice

Packing list

Quantity Component

A 1 Subwoofer

B 5 Mounting point covers

C 1 Logo (spare)

D 1 Allen wrench

E 1 Weather input cover

F 8 Screws for weather input cover

G 2 IP65 port covers

H 12 IP65 port cover screws

I 1 Installation manual

Table 3.1: Components list

A (x 1)

C

I

E

F (x 8)

G (x 2) H (x 12)

D

B (x 5)

Figure 3.1: Components

3.2

en 7

Electro-Voice Installation manual 2017.08 | 01 | F.01U.345.359

Product information

E

A

B

C

F

G

D

Figure 3.2: Product information (subwoofer on the right is shown upside down)

Item

Description

A Grille

B U-bracket mounting points

C M8 flying points

D M8 safety point

E Input panel

F Subwoofer feet

G Weather input cover

Table 3.2: Product information

3.3

EVID-S Surface Mount Dual 10” Subwoofers

2017.08 | 01 | F.01U.345.359 Installation manual Electro-Voice

Installation

For safety, ensure the mounting surface supports more than the weight of the speaker. Use
only industry-accepted fasteners and mounting methods when mounting the loudspeaker.
Consult an expert if you are unsure.

!

Caution!

It is the installer's responsibility to determine and use the proper mounting hardware for

the wall construction type.

Disregarding this caution could result in damage to the product and personal injuries may

occur.

Safety point

As an added safety measure, it is suggested the user install an extra suspension point back to
the building structural supports. This safety point should have as little slack as possible (less
than 1-inch is preferable).

Suspending the subwoofer

To suspend the subwoofer, do the following:

1. Turn the subwoofer upside down.

2. Remove the two subwoofer feet with the supplied Allen wrench.

3. Attach the mounting point covers on the U-bracket mounting points.

4. Rotate the logo by replacing it, as shown in the Replacing the logo section.

4

4.1

en 9

Electro-Voice Installation manual 2017.08 | 01 | F.01U.345.359

5. Install four 8-mm rated forged eyebolts (not included) into the threaded fly points.

6. Install an 8-mm rated forged eyebolt (not included) into the safety point.

7. Suspend the subwoofer from the eyebolts using rated fittings and steel cable.

8. Secure the subwoofer from the safety eyebolt using rated fittings and steel cable.

See also

• Replacing the logo, page 10

Replacing the logo

An additional logo is included, vertical installation is shown.

To

replace the logo, do the following:

1. Remove the existing logo.

2. Clean the surface with alcohol.

3. Remove the paper backing.

4.2

EVID-S Surface Mount Dual 10” Subwoofers

2017.08 | 01 | F.01U.345.359 Installation manual Electro-Voice

4. Insert the logo.

Press firmly to ensure the logo is applied.

Installing the IP65 port covers

To install the IP65 port covers, do the following:

!

Caution!

Ensure you securely tighten the screws for the IP65 port cover to prevent water leaks.

If the IP65 port cover is not properly installed, you may cause damage to the subwoofer.

1. Remove the grille.

2. Install the IP65 port cover.

Repeat step this step to install the second IP65 port cover.

3. Reinstall the grille.

4.3

en 11

Electro-Voice Installation manual 2017.08 | 01 | F.01U.345.359

Installing the U-bracket - optional accessory

To install the U-bracket, do the following:

1. Install the four screws (provided) into the U-bracket mounting points.

2. Install an 8-mm rated forged eyebolt (not included) into the safety point.

3. Secure the subwoofer from the safety eyebolt using a rated fittings and steel cable.

Suspending the subwoofer in a down-fire position using the U-bracket

To suspend the subwoofer in a horizontal down-fire position, do the following:

1. Install two 8-mm rated forged eyebolts using lock washers (eyebolts and lock washers
not included) into the fly points on the U-bracket.

2. Install an 8-mm rated forged eyebolt (not included) into the safety point.

3. Suspend the subwoofer from the eyebolts using rated fittings and steel cable.

4. Secure the subwoofer from the safety eyebolt using a rated fittings and steel cable.

Installing the transformer input panel - optional accessory

To install the transformer input panel, do the following:

4.4

4.5

EVID-S Surface Mount Dual 10” Subwoofers

2017.08 | 01 | F.01U.345.359 Installation manual Electro-Voice

1. Remove the standard input panel.

2. Disconnect the standard input panel.

3. Connect the transformer input panel.

4. Install the transformer input panel.

5. Install the weather cover, if applicable.

en 13

Electro-Voice Installation manual 2017.08 | 01 | F.01U.345.359

Installing the crossover input panel - optional accessory

To install the crossover input panel, do the following:

1. Remove the standard input panel.

2. Disconnect the standard input panel.

3. Connect the crossover input panel.

4. Install the crossover input panel.

5. Install the weather cover, if applicable.

4.6

EVID-S Surface Mount Dual 10” Subwoofers

2017.08 | 01 | F.01U.345.359 Installation manual Electro-Voice

Wiring

Standard input panel

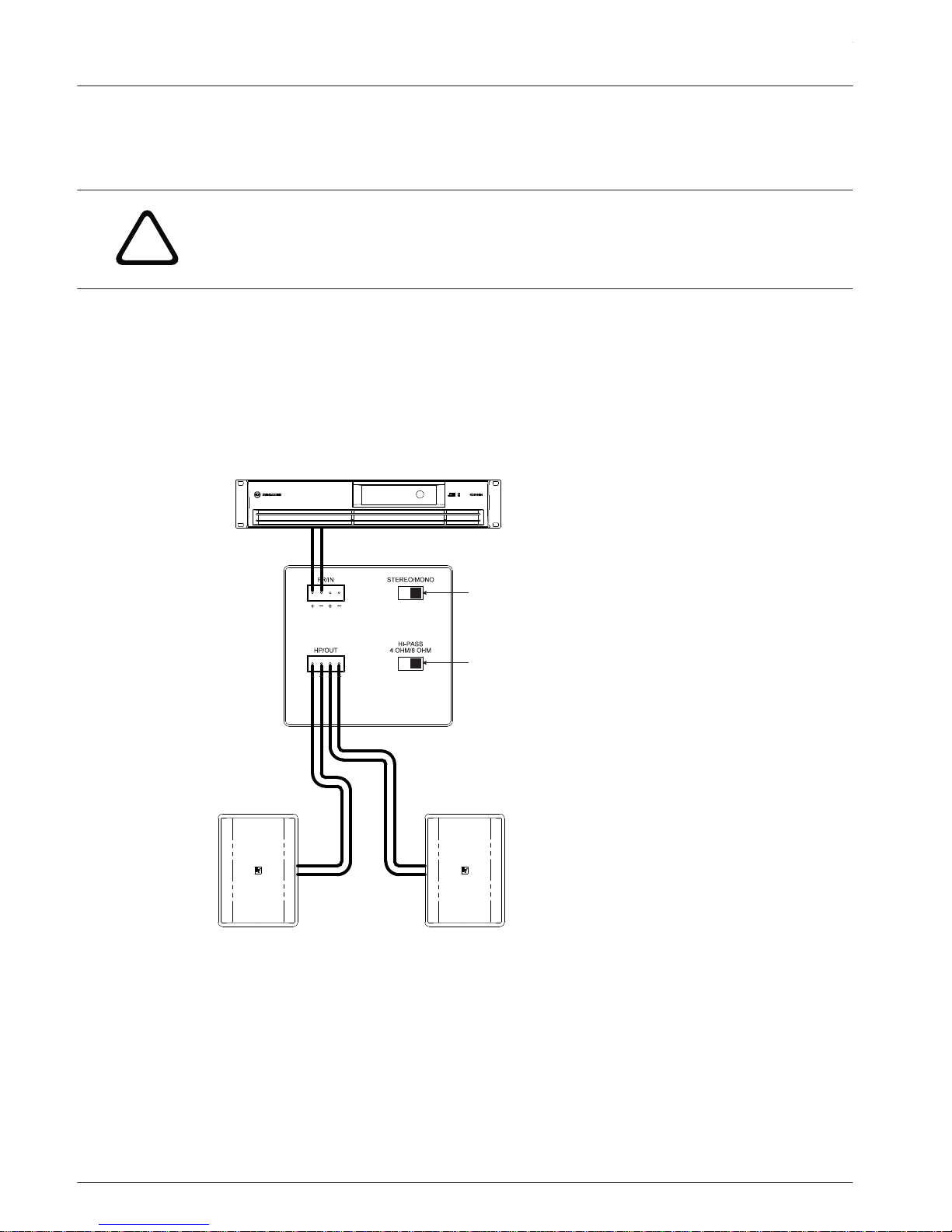

Mono operation

!

Caution!

For mono operation only use either the first two pins or the last two pins of the FR/IN

connector. Do not wire the amplifier to all four pins.

May cause damage to the amplifier if connected improperly.

The amplifier, the subwoofer, and the speakers are wired for MONO operation. It is highly
advisable to support the unit while these connections are being made. Connect all wires to
the speaker at the back terminal plate observing proper polarity of the connections. After all
connections are made test the complete system operation.

A: Full-range parallel out
B: STEREO/MONO switch set to mono.

A

B

5

5.1

5.1.1

en 15

Electro-Voice Installation manual 2017.08 | 01 | F.01U.345.359

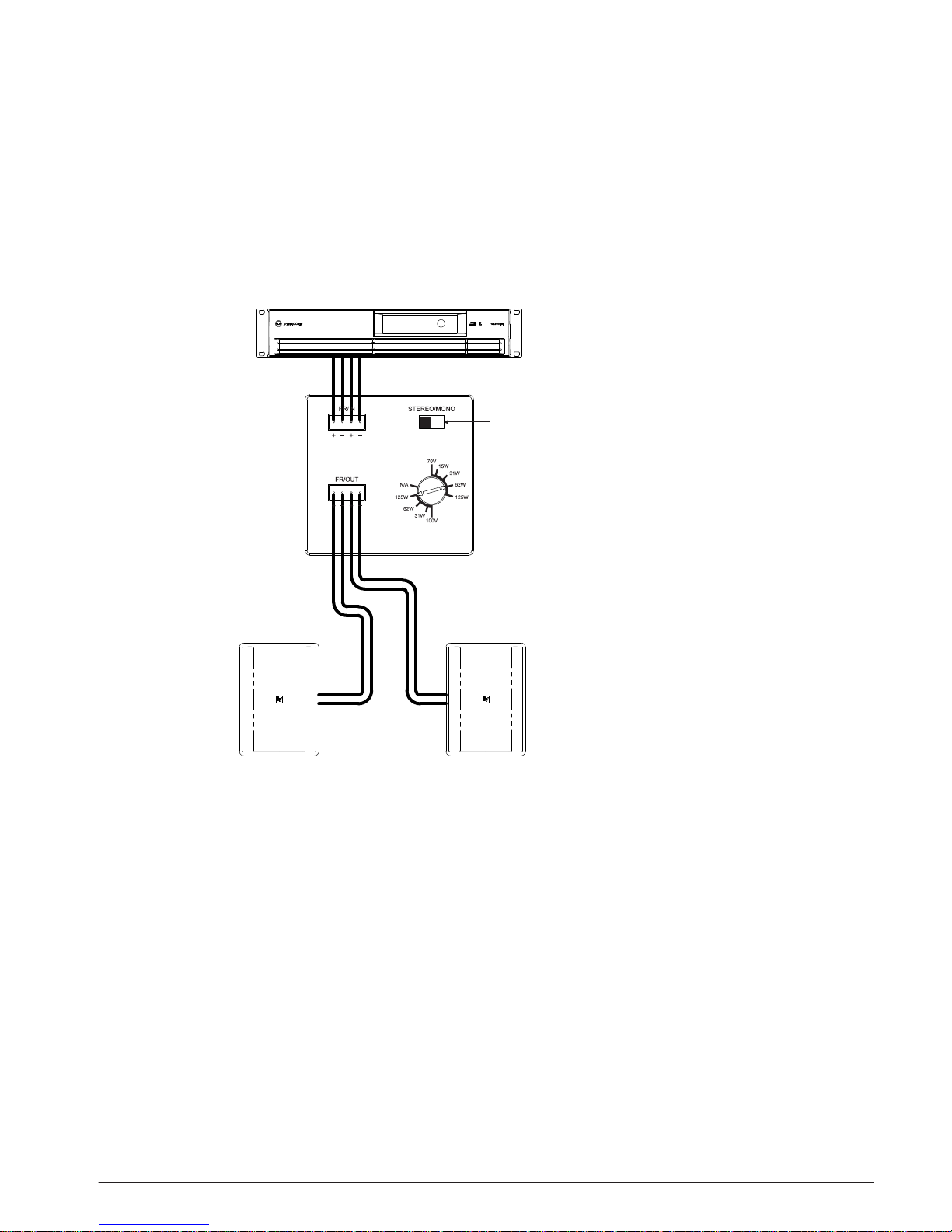

Stereo operation

The amplifier, the subwoofer, and the speakers are wired for STEREO operation. It is highly
advisable to support the unit while these connections are being made. Connect all wires to
the speaker at the back terminal plate observing proper polarity of the connections. After all
connections are made test the complete system operation.

A: Full-range parallel out
B: STEREO/MONO switch set to stereo.

A

B

5.1.2

EVID-S Surface Mount Dual 10” Subwoofers

2017.08 | 01 | F.01U.345.359 Installation manual Electro-Voice

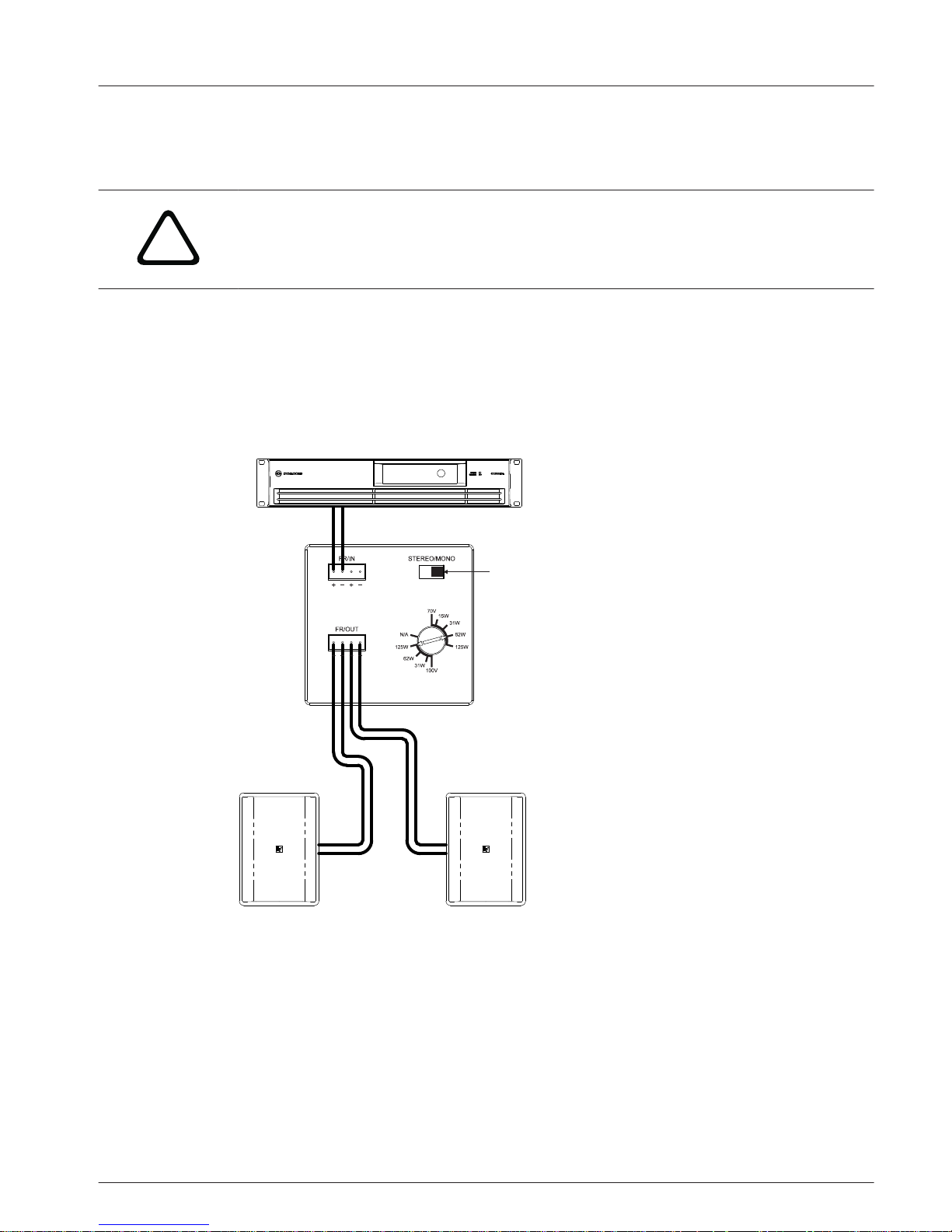

Transformer input panel - optional accessory

Mono operation

!

Caution!

For mono operation only use either the first two pins or the last two pins of the FR/IN

connector. Do not wire the amplifier to all four pins.

May cause damage to the amplifier if connected improperly.

The amplifier, the subwoofer, and the speakers are wired for MONO operation. It is highly
advisable to support the unit while these connections are being made. Connect all wires to
the speaker at the back terminal plate observing proper polarity of the connections. After all
connections are made test the complete system operation.
The speakers must be set to 70V/100V mode.

A: STEREO/MONO switch set to mono.

A

Figure 5.1: Mono configuration 1

5.2

5.2.1

en 17

Electro-Voice Installation manual 2017.08 | 01 | F.01U.345.359

A: STEREO/MONO switch set to mono.

A

Figure 5.2: Mono configuration 2

EVID-S Surface Mount Dual 10” Subwoofers

2017.08 | 01 | F.01U.345.359 Installation manual Electro-Voice

Stereo operation

The amplifier, the subwoofer, and the speakers are wired for STEREO operation. It is highly
advisable to support the unit while these connections are being made. Connect all wires to
the speaker at the back terminal plate observing proper polarity of the connections. After all
connections are made test the complete system operation.
The speakers must be set to 70V/100V mode.

A: STEREO/MONO switch set to stereo.

A

5.2.2

en 19

Electro-Voice Installation manual 2017.08 | 01 | F.01U.345.359

Crossover input panel - optional accessory

Mono operation

!

Caution!

For mono operation only use either the first two pins or the last two pins of the FR/IN

connector. Do not wire the amplifier to all four pins.

May cause damage to the amplifier if connected improperly.

The amplifier, the subwoofer, and the speakers are wired for MONO operation. It is highly
advisable to support the unit while these connections are being made. Connect all wires to
the speaker at the back terminal plate observing proper polarity of the connections. After all
connections are made test the complete system operation.
The option shown is using 8 ohm speakers.

A: STEREO/MONO switch set to mono.
B: HI-PASS 4 OHM/8 OHM switch set to 8 ohm.

A

B

5.3

5.3.1

EVID-S Surface Mount Dual 10” Subwoofers

2017.08 | 01 | F.01U.345.359 Installation manual Electro-Voice

Stereo operation

The amplifier, the subwoofer, and the speakers are wired for STEREO operation. It is highly
advisable to support the unit while these connections are being made. Connect all wires to
the speaker at the back terminal plate observing proper polarity of the connections. After all
connections are made test the complete system operation.
Both options shown are using 8 ohm speakers.

A: STEREO/MONO switch set to stereo.
B: HI-PASS 4 OHM/8 OHM switch set to 8 ohm.

A

B

Figure 5.3: Stereo configuration 1

5.3.2

en 21

Electro-Voice Installation manual 2017.08 | 01 | F.01U.345.359

A: STEREO/MONO switch set to stereo.
B: HI-PASS 4 OHM/8 OHM switch set to 4 ohm.

A

B

Figure 5.4: Stereo configuration 2

EVID-S Surface Mount Dual 10” Subwoofers

2017.08 | 01 | F.01U.345.359 Installation manual Electro-Voice

Troubleshooting

Problem Possible Causes Action

No Sound Amplifier Connect a known working test speaker to the amplifier outputs. If

there is no sound, check all electronics are on, the signal routing is
correct, the source is active; the volume is turned up, and so on.
Correct/Repair/Replace as necessary. If there is sound, the problem is
in the wiring.

Wiring Verify you have connected the correct wire pairs to the amplifier. Play

something at low level through the amplifier (for example, from a CD
player or tuner). Connect the test speaker in parallel with the
malfunctioning line. If the sound has gone or is very weak, the line has
a short in it (possibly a severe scrape, pinch, or staple puncture). If
the sound level is normal the wire is open (possibly a cut wire or
missed connection). Using the test speaker, move down the line and
test each connection/junction until you find the problem and correct
it. Observe proper polarity.

Verify you have the inputs and outputs connected to the correct wires.
If the subwoofer input panel is not correctly wired, there will be little
or no sound. Observe proper polarity.

Poor Low­Frequency
Response

Speakers Wired Out­of-Polarity

When two speakers are connected out of polarity (out of phase), the
low frequencies will cancel each other acoustically. Carefully observe
the wire markings or tracers on your speaker wires. Verify the
amplifier (+) terminal is connected to the red speaker terminals and
the amplifier (-) terminal is connected to the black speaker terminals.

Improperly Wired
Subwoofer Panel

Using a test speaker as described above, verify all amplifier and
speaker wires are connected to their proper terminals with the correct
polarity. Reversing just one set of amplifier wires can cut out all bass
output from the subwoofer.

Intermittent
Output such as,
Crackling or
Distortion

Faulty Connection Check all connections at amplifier and speakers to ensure they are

clean and tight. If the problem persists, it may be in the amplifier or
wiring. See other actions above.

Constant Noise
such as Buzzing,
Hissing, Humming

Defective Amplifier
or other Electronic
Device

If the noise is present but no program material is playing, the likely
cause is the signal chain in the electronics. Evaluate each component
as necessary to isolate the problem.

Poor System
Grounding or
Ground Loop

Check and correct the system grounding, as required.

If these suggestions do not solve your problem, contact your nearest Electro-Voice dealer or
Electro-Voice distributor.

6

en 23

Electro-Voice Installation manual 2017.08 | 01 | F.01U.345.359

Technical data

Frequency response (-10 dB): 33 Hz – 500 Hz

1

Sensitivity: 94 dB

2

Max. SPL (Calculated): 120 dB (126 dB Peak)

Power handling: 400 W (1600 W Peak) Continuous Pink Noise (100 hours)

Low Z: Yes

Nominal impedance: (2) 8 Ω (stereo mode); (1) 4 Ω (mono mode)

Recommended High-Pass: 40 Hz (24 dB/octave)

Input transformer (70 V/100 V): Optional accessory

Transformer taps: Optional accessory

LF transducer: Two 10 inch (254 mm)

Connectors: Two removable locking 4-pin connector (Euroblock) –

Input and output.
Max. wire size 12 AWG (2.5 mm).

Environmental: IP-54 (per IEC-60529); IP-65 with port covers

Color: Black (RAL 9004) or white (RAL 9003)

Dimensions (H x W x D): 356 mm x 651 mm x 491 mm (14.0 in x 25.6 in x 19.3 in)

3

Net weight: 17.9 kg (39.5 lb)

3

Shipping weight: 21 kg (46.3 lb)

Included hardware: (2) Subwoofer feet, Allen wrench, weather input cover,

(8) screws for the weather input cover, (2) IP65 port
covers, (12) IP65 port cover screws

Packaged quantity: 1

1

Half space (wall mounting).

2

Half space (on wall) averaged 50 Hz – 150 Hz, 1 W.

3

Without U-Bracket.

7

EVID-S Surface Mount Dual 10” Subwoofers

2017.08 | 01 | F.01U.345.359 Installation manual Electro-Voice

Dimensions

632.0 mm [24.88 in]

490.8 mm [19.32 in]

356.0 mm
[14.02 in]

360.5 mm
[14.19 in]

578.8 mm [22.79 in]

650.7 mm [25.62 in]

532.3 mm
[20.96 in]

Frequency response and impedance

Figure 7.1: Frequency response and impedance

7.1

7.2

en 25

Electro-Voice Installation manual 2017.08 | 01 | F.01U.345.359

Figure 7.2: Frequency response and impedance with cross-over

EVID-S Surface Mount Dual 10” Subwoofers

2017.08 | 01 | F.01U.345.359 Installation manual Electro-Voice

U-bracket dimensions - optional accessory

The U-bracket dimensions are not to scale and are for reference only.

100.0 mm
[3.94 in]

8x 10.0 mm [8x 0.39 in]

8x 38.1 mm

[8x 1.50 in]

2x 21.0 mm

[2x 0.82 in]

2x 21.0 mm

[2x 0.82 in]

4x 22.5 mm [4x 0.87 in]

4x 22.5 mm

[4x 0.89 in]

3x 13.0 mm

∅

[3x 0.51 in]∅

632.0 mm
[24.88 in]

220.0 mm
[8.66 in]

220.0 mm
[8.66 in]

2x 21.0 mm

[2x 0.82 in]

316.0 mm
[12.44 in]

2x 21.0 mm

[2x 0.82 in]

3x 50.0 mm

[3x 1.97 in]

8

en 27

Electro-Voice Installation manual 2017.08 | 01 | F.01U.345.359

Bosch Sicherheitssysteme GmbH

Robert-Bosch-Ring 5

85630 Grasbrunn

Germany

www.boschsecurity.com

© Bosch Sicherheitssysteme GmbH, 2017

Bosch Security Systems, Inc

12000 Portland Avenue South

Burnsville MN 55337

USA

www.electrovoice.com
