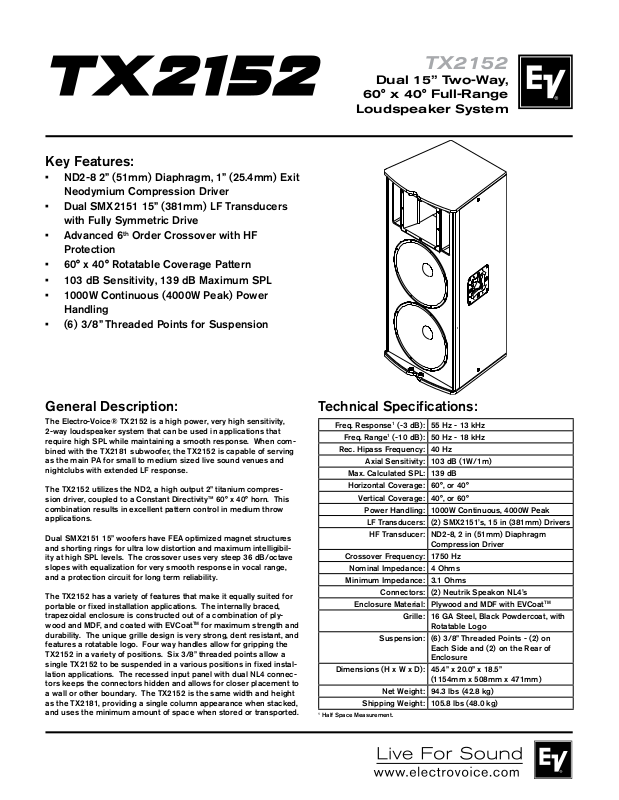

Electro-Voice TX2152 User Manual

Key Features:

ND2-8 2” (51mm) Diaphragm, 1” (25.4mm) Exit •
Neodymium Compression Driver

Dual SMX2151 15” (381mm) LF Transducers •
with Fully Symmetric Drive

th

Advanced 6•
Protection

60° x 40° Rotatable Coverage Pattern•
103 dB Sensitivity, 139 dB Maximum SPL•
1000W Continuous (4000W Peak) Power •

Handling
(6) 3/8” Threaded Points for Suspension•

Order Crossover with HF

TX2152

Dual 15” Two-Way,

60° x 40° Full-Range

Loudspeaker System

General Description: Technical Specifications:

The Electro-Voice® TX2152 is a high power, very high sensitivity,
2-way loudspeaker system that can be used in applications that
require high SPL while maintaining a smooth response. When com­bined with the TX2181 subwoofer, the TX2152 is capable of serving
as the main PA for small to medium sized live sound venues and
nightclubs with extended LF response.

The TX2152 utilizes the ND2, a high output 2” titanium compres­sion driver, coupled to a Constant Directivity™ 60° x 40° horn. This
combination results in excellent pattern control in medium throw
applications.

Dual SMX2151 15” woofers have FEA optimized magnet structures
and shorting rings for ultra low distortion and maximum intelligibil­ity at high SPL levels. The crossover uses very steep 36 dB/octave
slopes with equalization for very smooth response in vocal range,
and a protection circuit for long term reliability.

The TX2152 has a variety of features that make it equally suited for
portable or fixed installation applications. The internally braced,
trapezoidal enclosure is constructed out of a combination of ply­wood and MDF, and coated with EVCoatTM for maximum strength and
durability. The unique grille design is very strong, dent resistant, and
features a rotatable logo. Four way handles allow for gripping the
TX2152 in a variety of positions. Six 3/8” threaded points allow a
single TX2152 to be suspended in a various positions in fixed instal­lation applications. The recessed input panel with dual NL4 connec­tors keeps the connectors hidden and allows for closer placement to
a wall or other boundary. The TX2152 is the same width and height
as the TX2181, providing a single column appearance when stacked,
and uses the minimum amount of space when stored or transported.

Freq. Response1 (-3 dB): 55 Hz - 13 kHz

Freq. Range1 (-10 dB): 50 Hz - 18 kHz

Rec. Hipass Frequency: 40 Hz

Axial Sensitivity: 103 dB (1W/1m)
Max. Calculated SPL: 139 dB
Horizontal Coverage: 60°, or 40°

Vertical Coverage: 40°, or 60°

Power Handling: 1000W Continuous, 4000W Peak

LF Transducers: (2) SMX2151’s, 15 in (381mm) Drivers

HF Transducer: ND2-8, 2 in (51mm) Diaphragm

Crossover Frequency: 1750 Hz

Nominal Impedance: 4 Ohms

Minimum Impedance: 3.1 Ohms

Connectors: (2) Neutrik Speakon NL4’s

Enclosure Material: Plywood and MDF with EVCoat

Suspension: (6) 3/8” Threaded Points - (2) on

Dimensions (H x W x D): 45.4” x 20.0” x 18.5”

Net Weight: 94.3 lbs (42.8 kg)

1

Half Space Measurement.

Shipping Weight: 105.8 lbs (48.0 kg)

Compression Driver

Grille: 16 GA Steel, Black Powdercoat, with

Rotatable Logo

Each Side and (2) on the Rear of
Enclosure

(1154mm x 508mm x 471mm)

TM

Dimension Drawings:

20000

10000

1000

1005020

316

100

10

3.16

70

80

90

100

110

Frequency (Hz)

Sensitivity (dB)

Impedance (Ohms)

Frequency Response, Half Space
Frequency Response, Full Space
Impedance

Top View

Frequency Response & Impedance:

(6) 3/8” Threaded
Points - (2) on Each
Side and (2) on the

Rear of Enclosure

Block Diagram:

This TX2152 Loudspeaker should be suspended overhead only in accordance with the procedures and limitations specified.

Electro-Voice

12000 Portland Avenue South, Burnsville, MN 55337
Phone: [phone], Fax: [phone]

www.electrovoice.com

© Bosch Communications Systems 05/2008

Part Number LIT000177 Rev 4

Front View Bottom ViewRight View

Rear View

TX2152 Part Numbers

PRD000140-001 TX2152, Dual 15” Two Way, 60° x 40° •
Full-Range, Black Finish

Performance Match

PRD000143-001 TX2181, Dual 18” Sub, Black Finish•
D170401 CP4000S, 120V Power Amplifier, 2 x 1400W•
D170312 CP3000S, 120V Power Amplifier, 2 x 1100W•
D170258 CP2200, 120V Power Amplifier, 2 x 800W•
PRD000043-001 DC-One, 120V Digital Loudspeaker Controller•

Accessories

5542930 EBK-1, 3/8” Forged Eyebolt Kit, Set of Three•

CAUTION

This system should be suspended with certified rigging hardware by an authorized rigging professional and in compliance

with local, state, and federal overhead suspension ordinances.

®

Europe, Africa, and Middle East only. For customer orders, contact Customer Service at:

U.S.A. and Canada only. For customer orders, contact Customer Service at:

800/392-3497 Fax: [phone]

+ 49 9421-706 0 Fax: + 49 9421-706 265

Other Internatonal locations. For customer orders, Contact Customer Service at:

+ 1 952 884-4051 Fax: + 1 952 887-9212

For warranty repair or service information, contact the Service Repair department at:

800/685-2606

For technical assistance, contact Technical Support at: 866/78AUDIO

Specifications subject to change without notice.
