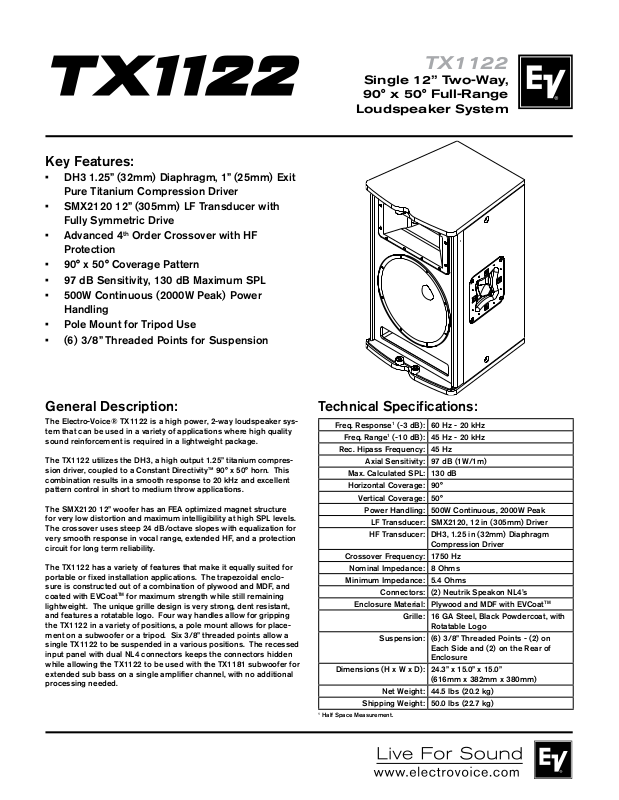

Electro-Voice TX1122FM User Manual

Key Features:

DH3 1.25” (32mm) Diaphragm, 1” (25mm) Exit •
Pure Titanium Compression Driver

SMX2120 12” (305mm) LF Transducer with •
Fully Symmetric Drive

th

Advanced 4•
Protection

90° x 50° Coverage Pattern•
97 dB Sensitivity, 130 dB Maximum SPL•
500W Continuous (2000W Peak) Power •

Handling
Pole Mount for Tripod Use•
(6) 3/8” Threaded Points for Suspension•

Order Crossover with HF

TX1122

Single 12” Two-Way,
90° x 50° Full-Range

Loudspeaker System

General Description: Technical Specifications:

The Electro-Voice® TX1122 is a high power, 2-way loudspeaker sys­tem that can be used in a variety of applications where high quality
sound reinforcement is required in a lightweight package.

The TX1122 utilizes the DH3, a high output 1.25” titanium compres­sion driver, coupled to a Constant Directivity™ 90° x 50° horn. This
combination results in a smooth response to 20 kHz and excellent
pattern control in short to medium throw applications.

The SMX2120 12” woofer has an FEA optimized magnet structure
for very low distortion and maximum intelligibility at high SPL levels.
The crossover uses steep 24 dB/octave slopes with equalization for
very smooth response in vocal range, extended HF, and a protection
circuit for long term reliability.

The TX1122 has a variety of features that make it equally suited for
portable or fixed installation applications. The trapezoidal enclo­sure is constructed out of a combination of plywood and MDF, and
coated with EVCoatTM for maximum strength while still remaining
lightweight. The unique grille design is very strong, dent resistant,
and features a rotatable logo. Four way handles allow for gripping
the TX1122 in a variety of positions, a pole mount allows for place­ment on a subwoofer or a tripod. Six 3/8” threaded points allow a
single TX1122 to be suspended in a various positions. The recessed
input panel with dual NL4 connectors keeps the connectors hidden
while allowing the TX1122 to be used with the TX1181 subwoofer for
extended sub bass on a single amplifier channel, with no additional
processing needed.

Freq. Response1 (-3 dB): 60 Hz - 20 kHz

Freq. Range1 (-10 dB): 45 Hz - 20 kHz

Rec. Hipass Frequency: 45 Hz

Axial Sensitivity: 97 dB (1W/1m)
Max. Calculated SPL: 130 dB
Horizontal Coverage: 90°

Vertical Coverage: 50°

Power Handling: 500W Continuous, 2000W Peak

LF Transducer: SMX2120, 12 in (305mm) Driver

HF Transducer: DH3, 1.25 in (32mm) Diaphragm

Crossover Frequency: 1750 Hz

Nominal Impedance: 8 Ohms

Minimum Impedance: 5.4 Ohms

Connectors: (2) Neutrik Speakon NL4’s

Enclosure Material: Plywood and MDF with EVCoat

Suspension: (6) 3/8” Threaded Points - (2) on

Dimensions (H x W x D): 24.3” x 15.0” x 15.0”

Net Weight: 44.5 lbs (20.2 kg)

1

Half Space Measurement.

Shipping Weight: 50.0 lbs (22.7 kg)

Compression Driver

Grille: 16 GA Steel, Black Powdercoat, with

Rotatable Logo

Each Side and (2) on the Rear of
Enclosure

(616mm x 382mm x 380mm)

TM

20000

10000

1000

1005020

316

100

10

3.16

70

80

90

100

110

Frequency (Hz)

Sensitivity (dB)

Impedance (Ohms)

Frequency Response, Half Space
Frequency Response, Full Space
Impedance

Dimension Drawings:

Top View

Frequency Response & Impedance:

(6) 3/8” Threaded
Points - (2) on Each
Side and (2) on the

Rear of Enclosure

Front View Bottom ViewRight View

Rear View

TX1122 Part Numbers

PRD000138-001 TX1122, Single 12” Two Way, 90° x 50° •

Block Diagram:

Full-Range, Black Finish

Performance Match

PRD000142-001 TX1181, Single 18” Sub, Black Finish•
D170401 CP4000S, 120V Power Amplifier, 2 x 1400W•
D170312 CP3000S, 120V Power Amplifier, 2 x 1100W•
D170258 CP2200, 120V Power Amplifier, 2 x 800W•
PRD000043-001 DC-One, 120V Digital Loudspeaker Controller•

Accessories

302053-001 TSS-1, Single Aluminum Tripod Stand, Black•
302053-000 TSP-1, Two Aluminum Tripod Stands with •
Carrying Case
5542930 EBK-1, 3/8” Forged Eyebolt Kit, Set of Three•

CAUTION

This TX1122 Loudspeaker should be suspended overhead only in accordance with the procedures and limitations specified.

This system should be suspended with certified rigging hardware by an authorized rigging professional and in compliance

with local, state, and federal overhead suspension ordinances.
