Electro-Voice TS940S Specifications

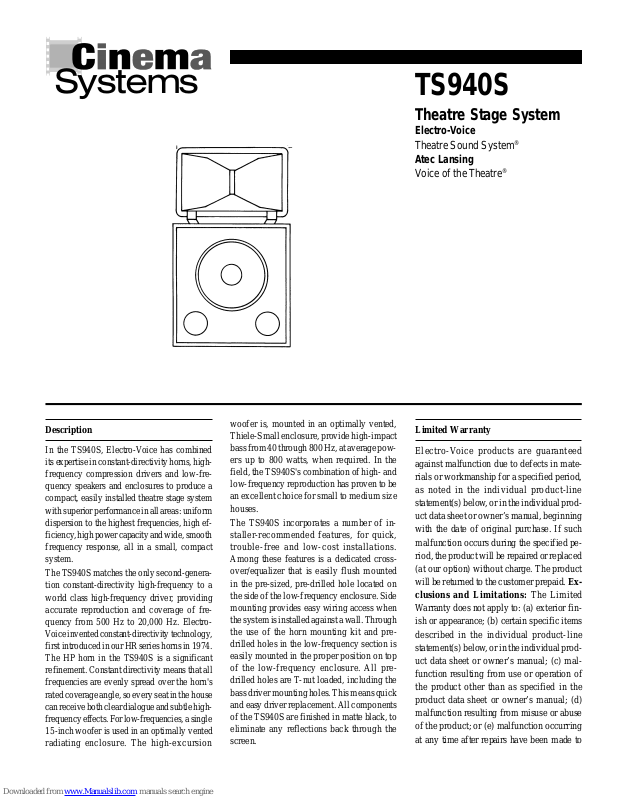

R

Systems

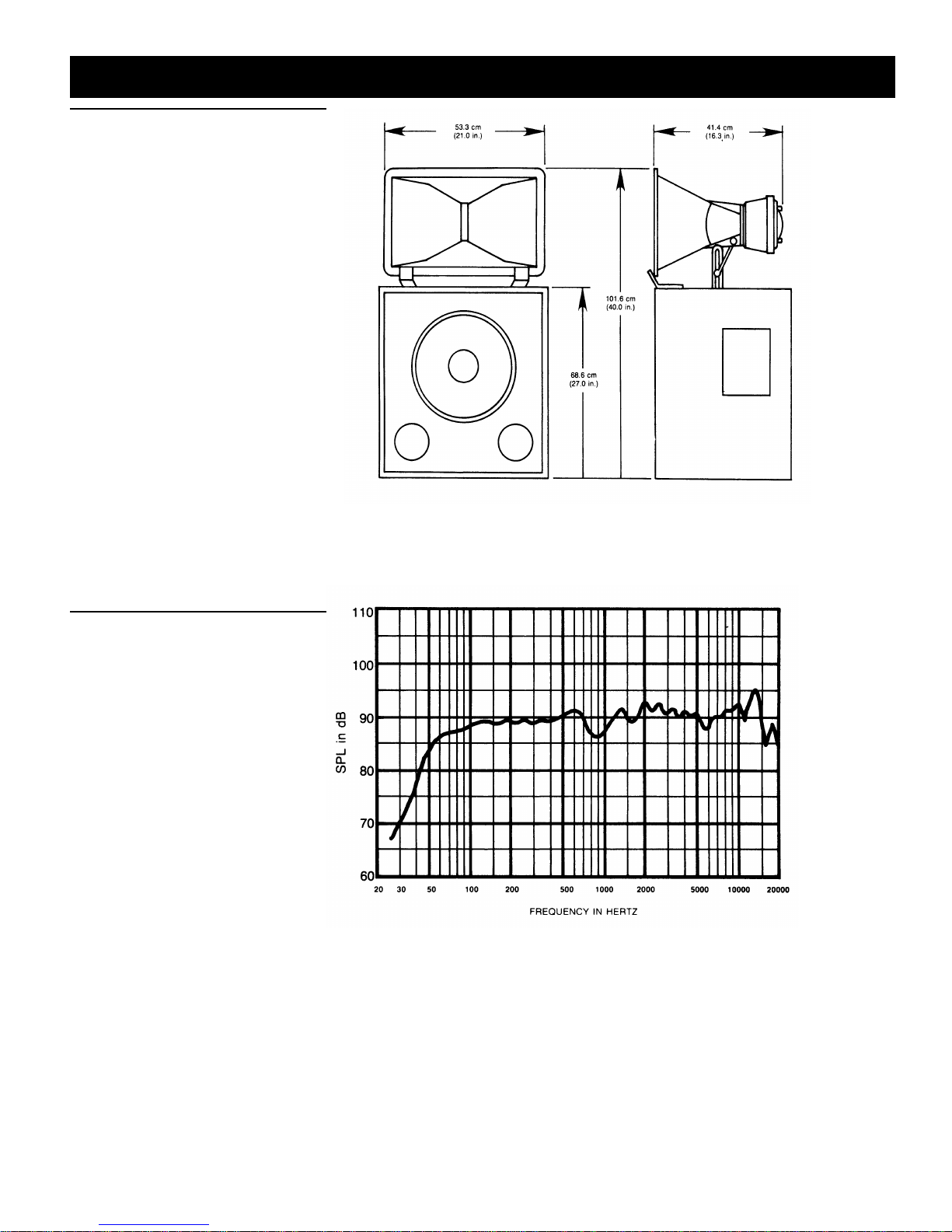

TS940S

Theatre Stage System

Electro-Voice

Theatre Sound System

Atec Lansing

Voice of the Theatre

®

®

Description

In the TS940S, Electro-Voice has combined
its expertise in constant-directivity horns, high­frequency compression drivers and low-fre­quency speakers and enclosures to produce a
compact, easily installed theatre stage system
with superior performance in all areas: uniform
dispersion to the highest frequencies, high ef­ficiency, high power capacity and wide, smooth
frequency response, all in a small, compact
system.

The TS940S matches the only second-genera­tion constant-directivity high-frequency to a
world class high-frequency driver, providing
accurate reproduction and coverage of fre­quency from 500 Hz to 20,000 Hz. Electro­V oice invented constant-directivity technology ,
first introduced in our HR series horns in 1974.
The HP horn in the TS940S is a significant
refinement. Constant directivity means that all
frequencies are evenly spread over the horn's
rated coverage angle, so every seat in the house
can receive both clear dialogue and subtle high­frequency effects. For low-frequencies, a single
15-inch woofer is used in an optimally vented
radiating en

closure. The high-excursion

woofer is, mounted in an optimally vented,
Thiele-Small enclosure, provide high-impact
bass from 40 through 800 Hz, at average pow­ers up to 800 watts, when required. In the
field, the TS940S's combination of high- and
low-frequency reproduction has proven to be
an excellent choice for small to medium size
houses.

The TS940S incorporates a number of in­staller-recommended features, for quick,
trouble-free and low-cost installations.
Among these features is a dedicated cross­over/equalizer that is easily flush mounted
in the pre-sized, pre-drilled hole located on
the side of the low-frequency enclosure. Side
mounting provides easy wiring access when
the system is installed against a wall. Through
the use of the horn mounting kit and pre­drilled holes in the low-frequency section is
easily mounted in the proper position on top
of the low-frequency enclosure. All pre­drilled holes are T-nut loaded, including the
bass driver mounting holes. This means quick
and easy driver replacement. All components
of the TS940S are finished in matte black, to
eliminate any reflections back through the
screen.

Limited Warranty

Electro-Voice products are guaranteed
against malfunction due to defects in mate­rials or workmanship for a specified period,
as noted in the individual product-line
statement(s) below, or in the individual prod­uct data sheet or owner’s manual, beginning
with the date of original purchase. If such
malfunction occurs during the specified pe­riod, the product will be repaired or replaced
(at our option) without charge. The product
will be returned to the customer prepaid. Ex-
clusions and Limitations: The Limited
W arranty does not apply to: (a) exterior fin­ish or appearance; (b) certain specific items
described in the individual product-line
statement(s) below, or in the individual prod­uct data sheet or owner’s manual; (c) mal­function resulting from use or operation of
the product other than as specified in the
product data sheet or owner’s manual; (d)
malfunction resulting from misuse or abuse
of the product; or (e) malfunction occurring
at any time after repairs have been made to

TS940S Theatre Stage System

the product by anyone other than Electro-V oice
Service or any of its authorized service repre­sentatives. Obtaining Warranty Service:
To obtain warranty service, a customer must
deliver the product, prepaid, to Electro-V oice
Service or any of its authorized service rep­resentatives together with proof of purchase
of the product in the form of a bill of sale or
receipted invoice. A list of authorized ser­vice representatives is available from Elec­tro-V oice Service at 600 Cecil Street, Bucha­nan, MI 49107 (800/234-6831 or FAX

TS940S Theatre Stage System

616/695-4743). Incidental and Conse­quential Damages Excluded: Product re-

pair or replacement and return to the cus­tomer are the only remedies provided to the
customer. Electro-Voice shall not be liable
for any incidental or consequential damages
including, without limitation, injury to per­sons or property or loss of use. Some states
do not allow the exclusion or limitation of
incidental or consequential damages so the
above limitation or exclusion may not apply
to you. Other Rights: This warranty gives

you specific legal rights, and you may also
have other rights which vary from state to
state.

For warranty repair or service informa­tion, contact the service repair department
at: 616/695-6831 or 800/685-2606.

For technical assistance, contact Technical
Support at 800/234-6831 or 616/695-6831,
M-F, 8:00 a.m. to 5:00 p.m. Eastern Time.

Specifications subject to change without no­tice.
