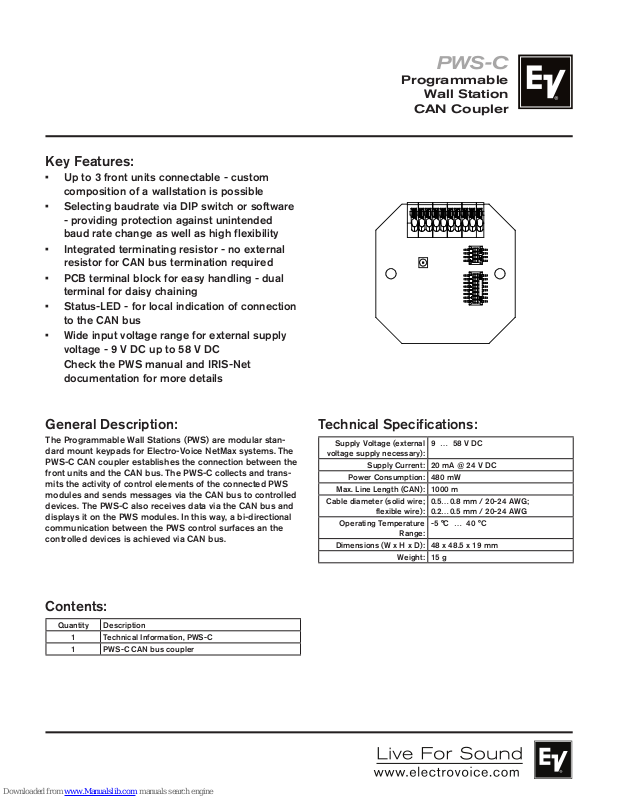

Electro-Voice PWS-C Technical Specifications
Key Features:
• Up to 3 front units connectable - custom
composition of a wallstation is possible
• Selecting baudrate via DIP switch or software
- providing protection against unintended
baud rate change as well as high flexibility
• Integrated terminating resistor - no external
resistor for CAN bus termination required
• PCB terminal block for easy handling - dual
terminal for daisy chaining
• Status-LED - for local indication of connection
to the CAN bus
• Wide input voltage range for external supply
voltage - 9 V DC up to 58 V DC
Check the PWS manual and IRIS-Net
documentation for more details
PWS-C
Programmable
Wall Station
CAN Coupler
General Description:
The Programmable Wall Stations (PWS) are modular standard mount keypads for Electro-Voice NetMax systems. The
PWS-C CAN coupler establishes the connection between the
front units and the CAN bus. The PWS-C collects and transmits the activity of control elements of the connected PWS
modules and sends messages via the CAN bus to controlled
devices. The PWS-C also receives data via the CAN bus and
displays it on the PWS modules. In this way, a bi-directional
communication between the PWS control surfaces an the
controlled devices is achieved via CAN bus.
Contents:
Quantity Description
1 Technical Information, PWS-C
1 PWS-C CAN bus coupler
Technical Specifications:
Supply Voltage (external
voltage supply necessary):
Supply Current: 20 mA @ 24 V DC
Power Consumption: 480 mW
Max. Line Length (CAN): 1000 m
Cable diameter (solid wire;
flexible wire):
Operating Temperature
Range:
Dimensions (W x H x D): 48 x 48.5 x 19 mm
Weight: 15 g
9 … 58 V DC
0.5…0.8 mm / 20-24 AWG;
0.2…0.5 mm / 20-24 AWG
-5 °C … 40 °C
Block Diagram:
+5V
GND
MICRO-
CONTROLLER
WATCH
DOG
EEPROM
LED
Yellow
SRAM FLASH
+5V
CAN Address
DC
DC
+5V
t
VCC
CAN
Status
Undervoltage
detect
CAN H
RESET
GND
CAN L
Up to 3
PWS-X
Baudrate, Termination
1
3
2
4
5
VCC
CAN H
GND
CAN L
1
3
2
4
5
Resetable
fuse
USE SPACERS IF
NO PWS-C IS USED
CAN Address and Baud Rate:
Installation Example for 1-gang US
Wallbox:
CAN Address
8 7 6 5 4 3 2 1
OFF OFF OFF OFF OFF OFF OFF OFF 0 (disconnected)
OFF OFF OFF OFF OFF OFF OFF
OFF OFF OFF OFF OFF OFF
OFF OFF OFF OFF OFF OFF
OFF OFF OFF OFF OFF
OFF OFF OFF OFF OFF
OFF OFF OFF OFF OFF
: : : : : : : : :
ON ON ON ON ON
Default values are highlighted.
Notes: The CAN Address must be unique for each device. The CAN bus must be terminated at both ends. The Baud Rate
must be identical for all devices, in PROG mode it is preset to 10 kbit/s by default.
Electro-Voice
ON
ON ON
ON
OFF OFF 4
ON
OFF
ON ON
ON
OFF
®
12000 Portland Avenue South, Burnsville, MN 55337
Phone: 952/884-4051, Fax: 952/884-0043
www.electrovoice.com
© Bosch Communications Systems 07/2008
Part Number LIT000xxx Rev 1
ON
1
OFF 2
3
ON
5
OFF 6
OFF 250
Termination and Baud Rate
4 3 2 1
- OFF OFF OFF 10 kbit/s
- OFF OFF
- OFF
- OFF
ON
-
ON
-
ON ON ON
-
ON
- - - Terminated
ON
ON
OFF 62.5 kbit/s
ON ON
20 kbit/s
125 kbit/s
OFF OFF 250 kbit/s
ON
OFF
500 kbit/s
PROG
OFF - - - Not Terminated
U.S.A. and Canada only. For customer orders, contact Customer Service at:
Europe, Africa, and Middle East only. For customer orders, contact Customer Service at:
Other Internatonal locations. For customer orders, Contact Customer Service at:
For warranty repair or service information, contact the Service Repair department at:
For technical assistance, contact Technical Support at: 866/78AUDIO
Specifications subject to change without notice.
