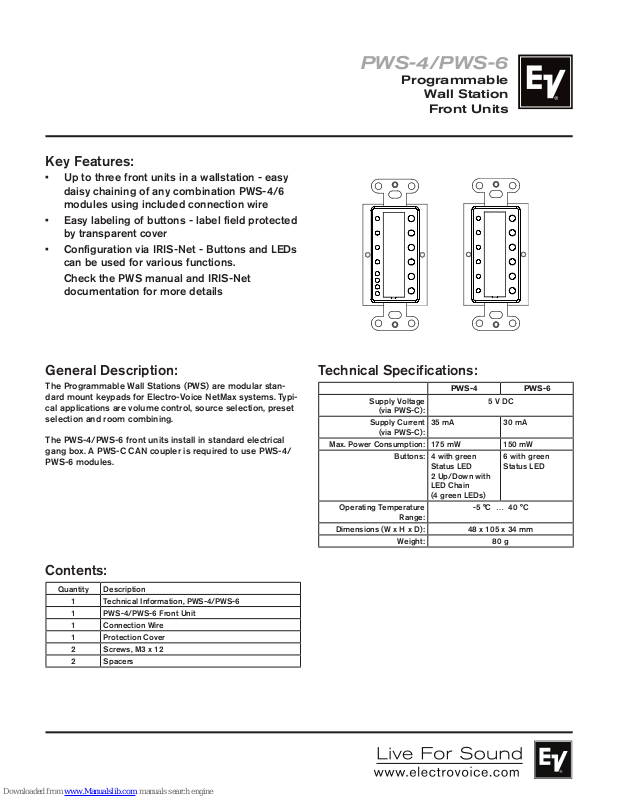

Electro-Voice PWS-4, PWS-6 Technical Specifications

Key Features:

• Up to three front units in a wallstation - easy
daisy chaining of any combination PWS-4/6
modules using included connection wire

• Easy labeling of buttons - label field protected
by transparent cover

• Configuration via IRIS-Net - Buttons and LEDs
can be used for various functions.

Check the PWS manual and IRIS-Net

documentation for more details

PWS-4/PWS-6

Programmable

Wall Station

Front Units

General Description:

The Programmable Wall Stations (PWS) are modular stan­dard mount keypads for Electro-Voice NetMax systems. Typi­cal applications are volume control, source selection, preset
selection and room combining.

The PWS-4/PWS-6 front units install in standard electrical
gang box. A PWS-C CAN coupler is required to use PWS-4/
PWS-6 modules.

Contents:

Quantity Description

1 Technical Information, PWS-4/PWS-6
1 PWS-4/PWS-6 Front Unit
1 Connection Wire
1 Protection Cover
2 Screws, M3 x 12
2 Spacers

Technical Specifications:

PWS-4 PWS-6

Supply Voltage

(via PWS-C):

Supply Current

(via PWS-C):

Max. Power Consumption: 175 mW 150 mW

Buttons: 4 with green

Operating Temperature

Range:

Dimensions (W x H x D): 48 x 105 x 34 mm

Weight: 80 g

35 mA 30 mA

Status LED
2 Up/Down with
LED Chain
(4 green LEDs)

5 V DC

6 with green
Status LED

-5 °C … 40 °C

Front Unit Connection:

Dimension Drawing:

Electro-Voice

12000 Portland Avenue South, Burnsville, MN 55337
Phone: [phone], Fax: [phone]

®

www.electrovoice.com

© Bosch Communications Systems 07/2008

Part Number LIT000xxx Rev 1
