Prox.pad plus Access System Installer Guide

Access system programming - System Requirements

• Hub Manager Professional

TM

access control software version 5 or higher (part number

HUBSWR includes software installation instructions)

PC Hardware Requirements

• IBM-compatible Pentium-class computer

• 30MB available hard disk space

• VGA monitor or better, 800 x 600 resolution recommended

• CD-ROM or DVD-ROM drive

• Mouse

Operating System List

• Windows 98; Windows 2000; Windows XP

Technical Support

Service Company: To contact IEI’s Technical Support department, call 1-800-343-9502

between 8:00 a.m. - 7:00 p.m. (Eastern Standard Time), Monday
through Friday. Questions can also be submitted through our website
at

www.ieib.com.

End User: Contact your service company.

2 Part No. 6045679, Rev. 1.0, D5

Prox.pad plus Access System Installer Guide

Description

The prox.pad plus unit is a single door access system that is programmed and managed
from a personal computer using Hub Manager Professional software (version 5 or higher).
The prox.pad plus unit is equipped with RS-485 communications which allow up to 32
prox.pad plus doors to be networked together. Connectivity options include direct connection
to a personal computer (PC) com port using the IEI 232 to 485 converter as well as LAN/WAN
connectivity using the network gateway for IEI access systems.

Theprox.padplusunitisuniqueinthatnoseparatecontrollerisneededandthereisnoneed
to run cables from a reader to a control. The unit is self-contained and includes built in HID
proximity and IEI keypad readers as well as the controller.

Separate options include the prox.pad plus power supply, which provides additional security
with a tamper circuit that prevents lock release should the case be pried open. In addition,
the prox.pad plus unit can be programmed manually with the unit's keypad.

Important features include:

• Managed with Hub Manager™ Professional access software

• 32 doors per site

• No separate control to install

• Eliminate costly reader wiring

• 2000 users per door

• 2000 event audit trail

• Integrated-HID proximity

• Card, code, card and/or code

• Locate proximity 10 ft from control

• Indoor and outdoor

• Glass mount kit

• RS-485 network

• LAN/WAN connectivity option

• Option for data collection with PDA

• Door monitor

• Main relay for lock

• Programmable auxiliary relay

• Local sounder for alerts

Part No. 6045679, Rev. 1.0, D5 3

Prox.pad plus Access System Installer Guide

NOTE: prox.pad plus RS 485 communications--Theprox.padplusunitcommunicateswith

the host computer via the IEI RS232-RS485 interface (part number IEI232-485). For additional
details see pages 16 and 17. For wire specifications, see page 23.

NOTE: Use with IEI Secured Series™ (Hub, Hub Max, Hub MiniMax) Networks--The RS
485 network characteristics for the prox.pad plus unit are different than those of IEI's Secured
Series access systems. This means the prox.pad plus unit can operate in the same system
as Secured Series controllers but not on the same physical network. Hub Manager Profes­sional software (v5 or higher) can manage Secured Series doors and prox.pad plus doors
(and LS doors as well), but these door controllers cannot be “connected” to the same
network and network wires. Secured Series communication is RS-232; prox.pad plus
communication is RS-485. These communication protocols are different. However, the ability
of the Hub Manager Professional software to set up multiple local and LAN/WAN sites makes
this an advantage rather than a problem.

4 Part No. 6045679, Rev. 1.0, D5

S

F
C

1
2

3

4
5

)

)

n)

Prox.pad plus Access System Installer Guide

prox.pad plus Wiring Connection Overview

Figure 1 below illustrates the Pin connectors on the prox.pad plus main circuit board; the ta­ble on page 7 describes the four Pin connectors (P1, P2, P4, and P5) in detail. Specifica-

tions are listed on page 23.

1-Green (Aux Relay N/O

-Gray (Main Relay N/C)

-Green (Main Relay N/C)

-Blue (Main Relay C)

-Black (-V)

-Red (+V

)

ystem Power: 12VDC

2-Gray (Aux Relay N/C
3-Blue (Aux Relay C)
4-Brown (REX Loop)
5-Orange (Door Loop )

6-White (Loop Commo

or RS-485

ommunications
1-Blue (Terminator)
2-Brown (DataA)

3-White (Data B)

4-Green (Data GND)

NOTE: P3 Not Used

P5

1-Red (Bi Color LED)
2-Black (Bi Color LED)
3-White (Antenna +)
4-White (Antenna -)

Connections for remote
installation of proximity
antenna

Figure 1 Identifying Pin Connectors

Part No. 6045679, Rev. 1.0, D5 5

Prox.pad plus Access System Installer Guide

IEI-Supplied Parts/Optional Items

Quantity Description

1

1 Filler Piece/REX Button

1PresstoExitLabel

4WallAnchors

4MountingScrews

1 Antenna Backplate for remote mounting

1 Silicone Rubber “dogbone”

4 Self-Adhering Pads (for glass mounting)

1 Installer Guide

4 Cable Assemblies

1TamperScrew

1 Replacement Battery: Panasonic BR1225 or equivalent

lots of 25 only ProxKey Keytags (IEI part number 0297301)

Keypad/control unit assembly, with Prox Sensor, Backplate, hex
socket screw

Optional Items

lots of 25 only ProxCard II Cards (IEI part number 0297401)

1HubManager

1 IEI Data Collection Device (DCD) PDA software

TM

Professional PC software (version 5 or higher)

Default Settings

Parameter Default Setting

Main Relay Lock Output

Auxiliary Relay Alarm shunt function

Audio Alert #1 Forced Door

Audio Alert #2 Propped Door

Master Code (user one) 1234*

Main Relay energizes for Five (5) seconds

Audible Keypress Feedback ON

Propped Door Output activates after Thirty (30) seconds

Forced Door Output activates for Ten (10) seconds

6 Part No. 6045679, Rev. 1.0, D5

prox.pad plus Pin Connectors

Prox.pad plus Access System Installer Guide

Pin Connector (on main
circuit board)

P1 (5-pin connector, top
left-most location)

P2 (6-pin connector, top
right-most location)

Description/Use

Pin Wire Color Use

1 GRAY Main Relay, Normally Closed (N.C.)
2 GREEN Main Relay, Normally Open (N.O.)
3 BLUE Main Relay, Common
4 BLACK Ground
5RED PowerIn,+12VDC

Pin Wire Color Use

1GREENAuxRelayN.O.
2 GRAY Aux Relay N.C.
3 BLUE Aux Relay Common
4 BROWN REX Loop (if used) (NO contact)
5 ORANGE Door Loop Contact (NC contact)
6 WHITE Loop Common (shared by REX

and door loop)
NOTE: Pins 1 and 2 can be wired at the installer’s option
for one of the following alarm outputs, Alarm Shunt, Forced
Door, or Propped Door. Mandatory: If you do not wish to
install door contacts per Figure 7, twist the white and
orange wires together. If not done, REX input will not

work.

P4 (4-pin connector, bottom
location)

P-5 (4-pin connector,
left-hand side location)

Pin Wire Color Use

1 RED Bi-Color LED (Red +)
2 BLACK Bi-Color LED (Green +)
3 WHITE Antenna (+)
4 WHITE Antenna (-)

Pin Wire Color Use

1Blue Terminator
2Brown DataA
3White DataB
4Green DataGND

Part No. 6045679, Rev. 1.0, D5 7

Prox.pad plus Access System Installer Guide

Performing a Secure Installation
(keypad/controller away from antenna)

In this configuration, the prox.pad plus keypad/controller antenna housing is removed from
the keypad/controller and located a maximum of 10 feet away. The controller/keypad is
located inside a secure area.

1. Remove the antenna from the prox.pad plus keypad/controller as described below:

• Disconnect the backplate of the prox.pad plus unit from the front keypad/controller.

• When handling the main printed circuit board, to guard against possible static

discharges, touch a grounded object BEFORE touching the prox.pad plus unit.

Remove the main printed circuit board by pressing the two spring tabs in the direc­tionofthearrowsasshowninFigure3.Becarefulwiththewires.

• Pull up the main circuit board and remove Pin connector P4 (a 4-pin connector)

from the bottom of the main board. A ribbon cable now holds the main board to the
keypad board. DO NOT pull this ribbon cable out of its connector! Once the
main board is removed, you can access the interior of the antenna.

• Remove the antenna housing from the keypad/controller by pressing the labeled

four secure tabs inward until the sensor housing “pops out.”

2. Prepare the wiring and extension wiring as follows:

• Cut off the plastic end of the prox.pad plus sensor housing harness.

• Splice the recommended remote antenna cable Alpha 1174C (22AWG), 10-foot maxi-

mum length, to the properly cut antenna cable using standard electrical techniques.

KEYPAD/
CONTROLLER

Figure 2 Performing a Secure Installation

8 Part No. 6045679, Rev. 1.0, D5

Prox.pad plus Access System Installer Guide

3. Mount the antenna backplate in a vertical orientation and secure it to the wall through
the two screw holes using two IEI-provided screws. Ensure that the two “weep holes”
(drainage holes), provided to remove possible moisture, are positioned on the bottom.
Pull the antenna wire through the wiring exits in the antenna backplate as required.
(Four external cut-outs on the antenna backplate match the four spring-loaded tabs on
the antenna.)

NOTE: Two side cut-outs are furnished on the antenna backplate for the wiring, if
the installation does not permit the wiring to run through the wall. These must be
“cut out” to be used.

• Once the antenna backplate is mounted properly, align the antenna to the backplate

and connect the antenna to the antenna backplate. The large tab in the center of the
antenna assembly must be broken off before being attached to the antenna back­plate.

4. Run the antenna wiring back to the secure keypad/controller and connect it to the
main circuit board, using the 10-inch 4-wire harness (red, black, white, and white)
that you plug into connector P4 on the controller board. Connect the red wire of the
antenna to the red wire of the P4 harness, etc. Seal the wire holes with silicone.

5. Select “Filler” or “Request to Exit” (REX) operation as follows:

• If you elect to use the filler piece as a REX switch, return to the keypad/controller and

break off two tabs on the filler piece as illustrated in Figure 2. The filler piece replaces
the antenna on the front of the keypad/controller for secure installations.

• If the filler piece is not be be used as a REX switch, DO NOT remove the two

tabs.

• Select “Filler or “REX” operation and affix the appropriate IEI-provided label to the

filler piece.
ForFilleroperation,notabsarebrokenoffthefillerpiece, which merely sits in place
of the remotely located antenna, once the main circuit board and cabling are re­placed.
For REX operation, break off the labeled tabs, which allows a spring-loaded tab to
engage the REX switch on the main circuit board and open the door.

• Replace the main circuit board into the keypad/controller and Pin connector P4 to the

main circuit board.

• Connect the front keypad/controller of the unit to the back housing.

• Secure with a hex socket screw using the supplied hex wrench, or secure with a

tamper screw (optional tool required).

Part No. 6045679, Rev. 1.0, D5 9

Prox.pad plus Access System Installer Guide

Removing/Inserting Circuit Boards

If it proves necessary to remove o r insert the main circuit board from/into the prox.pad plus
controller/keypad, follow the steps below.

1. Disconnect the back housing of the prox.pad plus unit from the front
keypad/controller.

2. (When handling the main printed circuit board, to guard against possible static

discharges, touch a grounded object BEFORE touching the prox.pad plus unit.)

Remove the main printed circuit board by pressing the two spring tabs in the direction
ofthearrowsasshowninFigure3.Becarefulwiththewires.

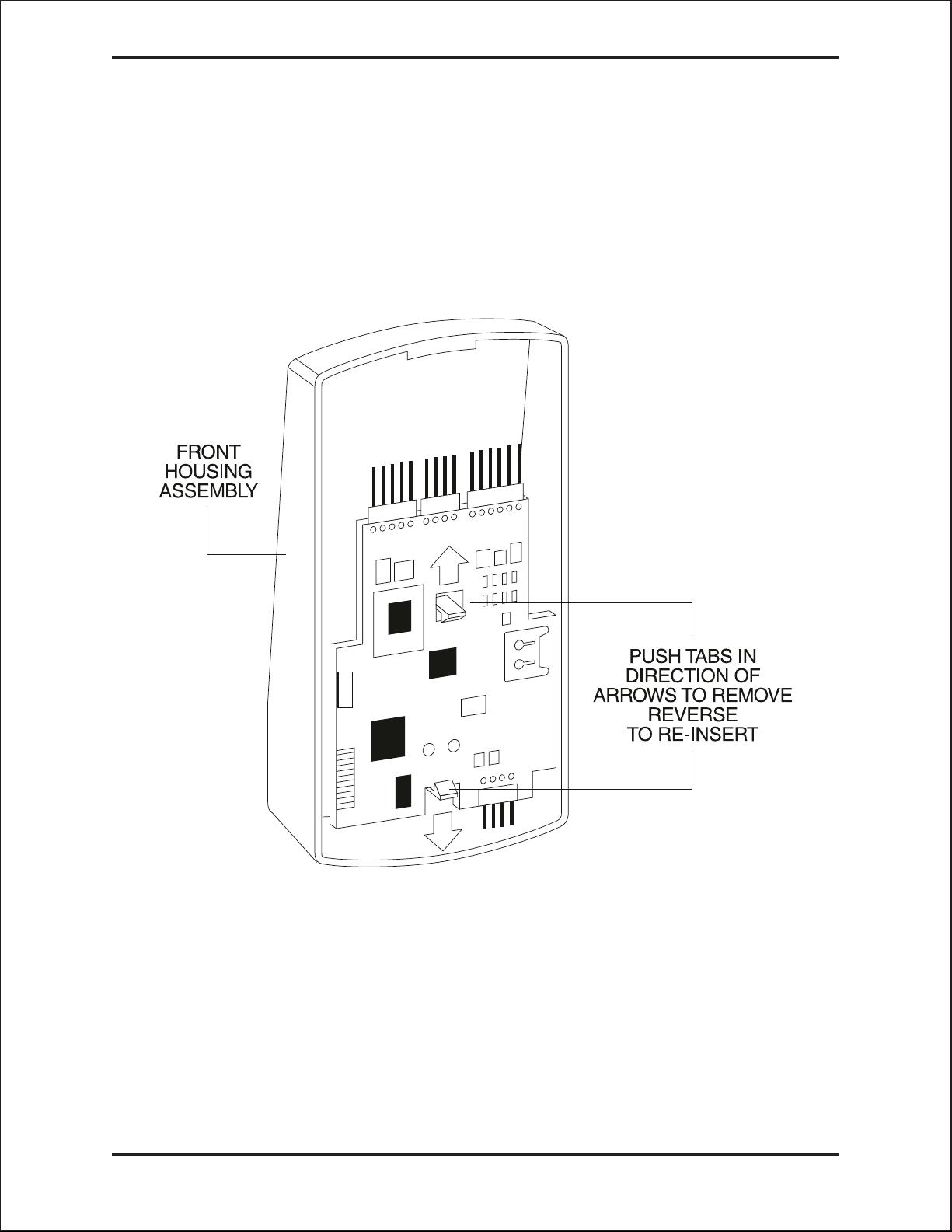

Figure 3 Removing/Inserting Printed Circuit Board

3. Fold up the main circuit board and remove the P4 connector (a 4-conductor harness)
from the bottom of the board.

4. To re-insert, replace the main circuit board into the keypad/controller and the P4
connector to the main circuit board.

5. Connect the keypad/controller to the back housing.

10 Part No. 6045679, Rev. 1.0, D5

P5

ORANGE

TO ALARM PANEL

Prox.pad plus Access System Installer Guide

DOOR
CONTACT
(Normally Closed)

WHITE

DOOR
CONTACT
GOING BACK
TO ALARM
PANEL

Figure 4 Wiring the Door Contact Input

BLUE ( C )

TO ALARM PANEL

GREEN

(N/O)

P5

ORANGE

WHITE

DEDICATED DOOR
CONTACT (NC) BEING
MONITORED BY THE
prox.pad unit

Figure 5 Wiring the Aux Relay for Alarm Shunt Relay

Part No. 6045679, Rev. 1.0, D5 11

TO POWER SUPPLY

TO POWER SUPPLY

Prox.pad plus Access System Installer Guide

V-

V+

GREEN
(NO)

P5

BLUE

(C)

ORANGE

DEDICATED DOOR
CONTACT (NC) BEING
MONITORED BY THE
prox.pad unit

WHITE

Figure 6 Wiring the Aux Relay for Forced Door Alarm

V-

V+

BLUE

(C)

ORANGE

GREEN
(NO)

P5

DEDICATED DOOR
CONTACT (NC) BEING
MONITORED BY THE
prox.pad unit

WHITE

Figure 7 Wiring the Aux Relay for Propped Door Alarm

12 Part No. 6045679, Rev. 1.0, D5

Prox.pad plus Access System Installer Guide

Wiring the REX Switch (Request to Exit)

The prox.pad plus unit can be wired to monitor a remote switching device, which is intended
to be installed on the “safe” side of a door. The Request to Exit (REX) switch is a momentary
input closure that engages the main relay forthesamelengthoftimeforwhichthemain
relay is programmed. This feature can be stored in the Transaction Log for viewing.

If you elect to perform a secure installation where the controller is mounted on the secure
side of the door, you can use the filler piece as a REX switch.

Other REX devices can be used to include a remote button placed at a receptionist’s desk,
a press-to-exit switch on the inside of a door, or a passive infrared detector, allowing free and
convenientegress.TheREXfeaturerequiresnoprogramming;simplywiretheunitasillus­trated in Figure 8. To incorporate this feature, follow the steps below:

1. Turn OFF power to the prox.pad plus unit, and then remove the front keypad/controller
from the backplate.

2. Locate connector P2 on the main circuit board.

3. Plug the 6-conductor harness into connector P2. (The 2-pin jumper on pins 5 and 6
of connector P2 must be removed first.)

4. If you do not wish to install the door contacts per Figure 8, twist the white wire

and the orange wires together; this is mandatory. If this is not done, the REX
input will not function.

NOTE: The door contact MUST be closed for the REX feature to work properly.

P5

P5

(Normally Closed)

Figure 8 Wiring the REX Switch

Part No. 6045679, Rev. 1.0, D5 13

Prox.pad plus Access System Installer Guide

Wiring the Main Relay

The door lock is wired to connector P1 on the prox.pad plus main circuit board.

Wiring for this 5-pin connector is described in the first table on page 7. Figure 9 provides an
Electric Strike (Fail Secure) wiring diagram, Figure 10 a MagLock (Fail Safe) wiring diagram.

Power for the prox.pad plus unit must be from a minimum 10-15 volt DC linear, filtered and
regulated power supply. It is typical for the chosen power supply to power BOTH the
prox.pad plus unit and the selected locking device. When using one power supply for both
the prox.pad plus unit and locking device, be sure to include both devices in your current
requirements calculations.

NOTE: IEI recommends that you ground the power supply to earth ground.

P5

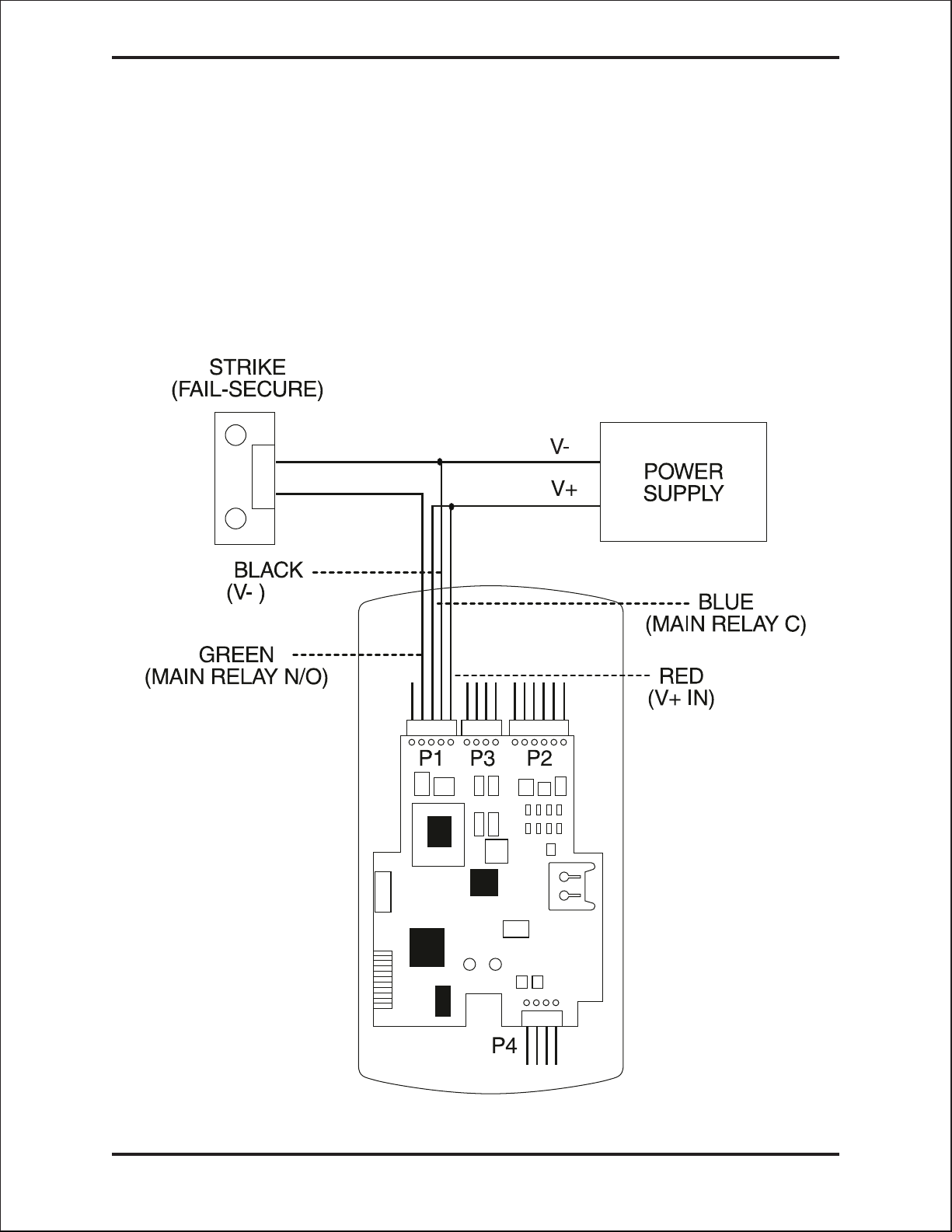

Figure 9 Electric Strike (Fail Secure Wiring Diagram)

14 Part No. 6045679, Rev. 1.0, D5

MAGLOCK
(FAIL SAFE)

BLACK
(V-)

GRAY

(MAIN RELAY N/C)

Prox.pad plus Access System Installer Guide

V-

POWER

V+

SUPPLY

BLUE

(MAIN RELAY C)

RED

(V + IN)

P1

P3

P2

P5

P4

Figure 10 MagLock (Fail Safe) Wiring Diagram

Part No. 6045679, Rev. 1.0, D5 15

Prox.pad plus Access System Installer Guide

prox.pad plus Communications

The prox.pad plus is equipped with RS-485 communications with a data rate of 19200
bits/sec. This allows you to connect the unit to a personal computer (PC) either via the com­puter’s COM (serial) port or over a computer network to manage the system using Hub Man-

TM

ager
COM port (which is RS-232), an RS-232 to RS-485 converter is required. To connect the
prox.pad plus unit via a computer network, the IEI Gateway device is required. The maximum
distance from the RS-485 device is 4000 feet using the specified cable. The illustrations
below show examples of both connection types. Please see the instructions for your RS-232
toRS-485converterortheinstructionsfortheIEIGatewayfordetailsaboutthosedevices.
Also, refer to the EIA RS-485 specifications for further details.

Professional (v 5 or higher) software. To connect the prox.pad plus unit to a computer

NOTE: The Terminator wire
may not be required.

2-Brown (Data A)
3-White (Data B)
4-Green (Data GND)

P1

P3

P2

RS-232 RS-485

To PC
COM port

P5

ó

RS-232 to RS-485
Converter

P4

Figure 11 Connecting the prox.pad plus to a PC COM Port

2-Brown (Data A)

To Computer
Network

3-White (Data B)
4-Green (Data GND)

RS-485

ó

IEI Gateway

P5

P1

P3

P2

P4

Figure 12 Connecting the prox.pad plus to a Network

16 Part No. 6045679, Rev. 1.0, D5

Device #1

Prox.pad plus Access System Installer Guide

Networking Multiple prox.pad plus Units Together

For multiple door applications, the prox.pad plus can be networked together. When network­ing prox.pad plus devices together on an RS-485 system, the prox.pad plus units are all wired
in parallel. This networking capability is available when connecting directly to your personal
computer’s COM port or when communicating over a computer network with the IEI Gateway.
The illustration below is an example of networking multiple units together.

NOTE: The maximum
number of devices on a
single network is 32.

P1

P3

P2

Door #1

2-White (Data A)
3-Brown (Data B)
4-Blue (Data GND)

RS-232 to RS-485
Converter or IEI
Gateway

P5

P5

P1

P4

Device #2

P3

P2

Door #2

Figure 13 Networking Multiple prox.pad plus Units Together

Part No. 6045679, Rev. 1.0, D5 17

P4

Prox.pad plus Access System Installer Guide

Program Commands

In addition to personal computer (PC) programming, the prox.pad plus unit can be
programmed manually using the keypad on each unit and without the use of a personal
computer and software. Keypad programming can be helpful to get a door or doors up and
running prior to having the availability of the host computer. In all cases, the personal com­puter programming options supersede the keypad programming options.

Defaults are in bold. See the prox.pad plus Installation/Programming Manual located on the
supplied CD-ROM for further details.

Action Desired Press Details

To enter program
mode

1. Change master code

Code-only operation

(example, 4321 master
code)

2. Assign outputs

3. Set lock output
duration

4. Delete users

5. Set/clear keypad
options

99 # (Master Code) *

1 # (new code) * (repeat code) *

1 # 4321 * 4321 *

10 # virtual output # physical output # **

Virtual Output Physical Output

1-Lock 1-Relay1(Main)
2 - Alarm Shunt 2 - Relay 2 (Aux)
3-ProppedDoor 5-AudioAlert#1
4-ForcedDoor 6-AudioAlert#2

11 # tt # 0 # * *

user-location # **

30 # option # set/clear # **

Option Set/Clear

0-audio keypress feedback 0=off, 1=ON
1-visual keypress feedback 0=off, 1=ON
2-auto entry enable 0=OFF, 1=on
3-Card and PIN required for 0=OFF,1=on
Program mode
5-user lockout enable 0=off, 1=ON
7-internal REX select 0=OFF,1=on
8-user lockout select 0=BY LOCATION,

1=by group
9-timezones select 0=OFF,1=on
10-holiday timezone midnight 0=off, 1=ON
crossing
11-auto-unlock select 0=OFF,1=on
12-first-in auto-unlock 0=OFF,1=on
13-daylight savings time select 0=off, 1=ON
15-daylight savings time format 0=USA,

1=European
16-anti-passback 0=off,1=ON
17-user dump select 0=all users

1=programmed

users only

Default Master code =

1234.
Yellow LED blinks slowly

Entering a zero (0) for a
virtual output disables
the physical output

tt = number of seconds
to operate lock on
access (1 through 255)

defaults to 5 seconds

See options below

18 Part No. 6045679, Rev. 1.0, D5

Prox.pad plus Access System Installer Guide

Program Commands (continued)

Action Desired Press Details

6a. Print programmed
user list

6b. Print programmed
user list (starting at a
certain user)

7. Change keypad
parameters

25#0#0#**

25#0#startuser#**

32#parameter#value#**

Parameter Value

0-error lockout threshold 1-50 (def=3)
1-error lockout duration 1-255 (def=10 sec)
3-extended unlock time 1-255 (def=10 sec)
4-site ID (for cmds 51, 57) 0-255 (def=11)
5-user timezone mask 0-255 (def=255)
(for programming users through
the faceplate)
6-user lockout group 0-15 (def=4)
7-lockout by group operand 0-3 (def=0)

(see below)

0=lockout users in all other groups
1=lockout users in this group
(except lockout users)
2=lockout users in higher numbered
groups
3=lockout users in lower numbered
groups

8-anti-passback delay 2-240 (1/4 second

increments, default

= 4 or 1 second

See options below

8. Set/clear auto-unlock
mask

9. Restore system
defaults (master user
and system
options/parameters only)

10. Set system time

11. Set system date

12. Set do or number

13. Set pro pped door
output time

38 # autz # set/clear # * *

40 # 00000 # 00000 # * *

41 # hhmm # 0 # **

42 # mmddyy # dow # **

43 # nnnnn # 0 # **

44#ttt#0#**

autz - auto-unlock
timezone (1-8)
Entering a 1 sets the
timezone as
auto-unlock and a 0
clears it

hhmm=hour/minute,
24-hr format

mmddyy=month, date,
year; dow=day of
week,1=Sunday,etc.

nnnnn=door number
Default=0001 (max
number=65535)

ttt=propped door time,
to nearest 10’s
seconds, entered as
00-990; default=30 secs
entering 00 disables
propped door

Part No. 6045679, Rev. 1.0, D5 19

Prox.pad plus Access System Installer Guide

Program Commands (continued)

Action Press Details

ttt=forced door time, to

14.Setforceddoor
output time

15. Clear eeprom
memory and restore
default settings

45#ttt#0#**

46 # 00000 # 00000 # **

User Types

0-toggle code
1-standard access
2-Log Dump
3-lockout
4-extended lockout
5-single use
6-relock code
7-emergency

nearest 10’s seconds,
entered as 00-990 (00
latches it); default=10
secs

(See page 2)

16a. “Code only” user

16b. “Card only” user
by presentation

16c. “Card AND code”
user

16d. Delete user

17. Program 26-bit
“card only” user without
presenting card

18. Program “card OR
code” user

19. Program
consecutive “card only”
users by presentation

20. Enable/disable users

21. Program block of
26-bit “card only” users
without presenting cards

50#type#location#keypin*keypin*

50#type#location#**<presentcard>

50#type#location#keypin*keypin*
<present card>

50#0#location#**

51#type#location#cardpin*cardpin*

52#type#location#keypin*keypin*
<present card>

53 # type # start user # ** <present card>
<present card> ...

56 # enable/disable # user # **

57#numberofusers#startuser#cardpin*
card pin *

Location must be
greater than 2;
master/supervisor
cannot be set as “card
only”

Startusermustbe
greater than 2;
master/supervisor
cannot be set as “card
only”

0=Enablesthatuser
1=Disablesthatuser;
master user cannot be
disabled; an
unprogrammed user
cannot be enabled or
disabled (generates a
program error)

Startusermustbe
greater than 2;
master/supervisor
cannot be set as “card
only”; uses site ID set
in command 32,
parameter 4

20 Part No. 6045679, Rev. 1.0, D5

Prox.pad plus Access System Installer Guide

Program Commands (continued)

Action Press Details

22. Delete block of
consecutive users

23. Dump transactions
to IR port

24. Set/clear ev ent log
mask

58 # start user # start user # number of users
* number of users *

70#0#0#**

73#event#set/clear#**

Event

1-access denied - invalid PIN
2-program denied
4-REX
5-Propped Door
6-Door Closed
7ForcedDoor
16-log dumped by user #N
17-access granted to user #N
19-access denied to user #N, bad timezone
20-togglemodeactivatedbyuser#N
(latch set)
21 - t oggle mode de-activated by user #N
(latch clear)
22 - 1st in auto-unlock triggered by user #N
23 - door relocked by user #N
24 - user lockout enabled by user #N
25 - user lockout disabled by user #N
26 - access denied to user #N - user is
disabled
27 - card/code mismatch
29 - program mode started by user #N
30 - log erased by user #N
32-unprogrammedcarddata
33 - unprogrammed code data
50 - log retrieved
51 - access denied to user #N, user group

lockout

This command must be
used while in Program
mode

See options below; all
events are logged by
default unless stated
otherwise below

Events 30 and 50
cannot be disabled

Events 32 and 33 are
disabled by default

25. Reset (erase)
transaction log

26. To exit Program
mode

76 # 00000 # 00000 # **

*(afterfinalcommand)

Part No. 6045679, Rev. 1.0, D5 21

Yellow stops flashing

Prox.pad plus Access System Installer Guide

Led Indicators/Sounder Operations

LED or Sounder

Yellow LED Slow blink Unit is in Program mode

Bi-color LED Steady red Lock output deenergized

Sounder

Visual/Audible
Condition

Rapid blink

Steady Program error; to clear, press * or error lockout

Very rapid blink

Steady green Lock output is energized (timed or latched)

Red/green alternating

Green blink Auto-unlock active

Short beep
(100 ms) every 2
seconds

Sounder 1/2 sec on,
1/2 sec off

Double beep Lockout is canceled

Description

Verify mode is active (checking that the last two
values in sequence match)

Memory (eeprom) erase is in progress
(commands 40/46, loop-back)

Awaiting second PIN during “Card AND Code”
access attempt

Audio alert #2 is active

Audio alert #1 is active

Sounder After
PIN/Card

Pair of double beeps Lockout is activated

3 slow beeps (250
ms), then single beep

1 single beep Valid card access

1 long beep followed
by 1 short beep

1 long beep followed
by 2 short beeps

1 long beep followed
by 3 short beeps

3 rapid beeps after
code entered or card
presented

4 quick beeps First-In Auto-unlock

6 quick beeps Toggle mode is active

Self-test is complete

User disabled

Bad timezone

User lockout

Code or Card is not found

22 Part No. 6045679, Rev. 1.0, D5

prox.pad plus Specifications

ELECTRICAL

Prox.pad plus Access System Installer Guide

Power Supply/Current
Requirements

WIRING

Remote Antenna Cable

RS-485 Cable

Power Supply Cable 18AWG - 22AWG 2-wire stranded (depends on distance)

Door Lock Cable 18AWG - 22AWG 2-wire stranded (depends on distance)

Door Monitor Cable 18AWG - 22AWG 2-wire stranded (depends on distance)

REX Cable (if using remote switch) 2-wire stranded

MECHANICAL

Height 5.25 in (13.3 cm)

Width 2.75 in (7 cm)

10-15 VDC, linear filtered and regulated power supply
500 mA (not including locking device or peripherals)

ALPHA 1174C (22AWG) 4-wire, stranded (this is required
ONLY if you choose to remote the antenna 10 feet away
from the keypad/controller)

24AWG, shielded, two twisted-pair telephone cable with a
shunt capacitance of 16 pF/Ft (required only when using
software)

Depth 1.375 in (3.5 cm)

RELAY OUTPUTS

Main Relay - Form C (switches up to 2A)

Aux Relay - Form C (switches up to 2A)

MONITOR INPUTS

Door Position (Normally Closed, dry contact)

Request to Exit (REX, Normally Open, dry contact)

OTHER OUTPUTS

Infrared output to optional PDA program (38400 bits/sec)

SOUNDER 4000 Hz, defeatable

LEDs Bi-Color (red/green)

Yellow

Part No. 6045679, Rev. 1.0, D5 23

Prox.pad plus Access System Installer Guide

COMPATIBLE PROXIMITY
CARDS

UNIT CAPACITY

Users

Transactions

Lock Time 1-255 seconds

Lock Mode Access Time or Toggle/Latch

ALARM OUTPUT

USER ACCESS
CONFIGURATIONS

All 26-bit HID card, including the following: ProxCard II,
IsoProx II, Duo Prox II, and Proxkey FOB; 26-bit cards are
required for manual or batch programming

2,000 users maximum; each user can have a card/tag, a
PINcode,oracard/tagplusaPINcode

2,000 transactions maximum; each transaction includes
time, date, user “slot number,” and event

One of these three events can be programmed: Alarm
Shunt Relay, Forced Door Relay, or Propped Door Relay

Code ONLY

Code AND Card

Card ONLY

Code OR Card

PROGRAMMABLE USER
TYPES

SYSTEM USES/
INSTALLATION
CONFIGURATIONS

ENVIRONMENTAL Indoor or outdoor

Operating Temperature -31° to 150° F (-35° to 66° C)

Each user is assigned one of the following user types:

0-Toggle/latch strike

1-Normal access

2-log Dump

3-Lockout

4-Extended unlock

5-Single use

6-Relock

7-Emergency

Suitable for small installations or remote locations,
indoors or outdoors
Wall mounted, glass mounted, or s ecure installation

Operating Humidity 5% to 95% relative humidity, non-condensing

24 Part No. 6045679, Rev. 1.0, D5

Prox.pad plus Access System Installer Guide

This page is left blank intentionally.

Part No. 6045679, Rev. 1.0, D5 25

Prox.pad plus Access System Installer Guide

This page is left blank intentionally.

26 Part No. 6045679, Rev. 1.0, D5

Prox.pad plus Access System Installer Guide

This page is left blank intentionally.

Part No. 6045679, Rev. 1.0, D5 27

Prox.pad plus Access System Installer Guide

Questions or Problems

If you have any questions about initial prox.pad plus programming or operation, or encounter
any installation problems, contact your prox.pad plus dealer or distributor. The complete
Installation/Programming Reference manual is contained on the supplied CD-ROM.

Warranty Policy

International Electronics Inc. (IEI) warrants its products to be free from defects in material and
workmanship when they have been installed in accordance with the manufacturer’s instruc­tions and have not been modified or tampered with. IEI does not assume any responsibility
for damage or injury to person or property due to improper care, storage, handling, abuse,
misuse, normal wear and tear, or an act of God.

IEI’s sole responsibility is limited to the repair (at IEI’s option) or the replacement of the defec­tive product or part when sent to IEI’s facility (freight and insurance charges prepaid) after ob­taining IEI’s Return Material Authorization. IEI will not be liable to the purchaser or any one
else for incidental or consequential damages arising from any defect in, or malfunction of, its
products.

Except as stated above, IEI makes no warranties, either expressed or implied, as to any mat­ter whatsoever, including, and without limitation to, the condition of its products, their mer­chantability, or fitness for any particular purpose.

Warranty Periods Are:

1 Year PowerKey

2 Years Door Gard & Secured Series Products

2 Years prox.pad and prox.pad plus

2 Years LS Series

2 Years Glass Break

5 Years ‘e’ Series Keypads

2 Years Network Gateway

All products have date code labeling to determine the warranty period. A 90-day grace period
is added to all products to account for shelf life.

International Electronics, Inc. © Copyright 2003 International Electronics, Inc.
427 Turnpike Street All Rights Reserved Published in U.S.A.
Canton, MA 02021 U.S.A.

Telephone: [phone] (main) 800-733-9502 (sales in MA) 800-343-9502 (sales)
Fax: [phone] Fax Info Ctr: 781-821-0734 Internet:

28 Part No. 6045679, Rev. 1.0, D5

www.ieb.com
