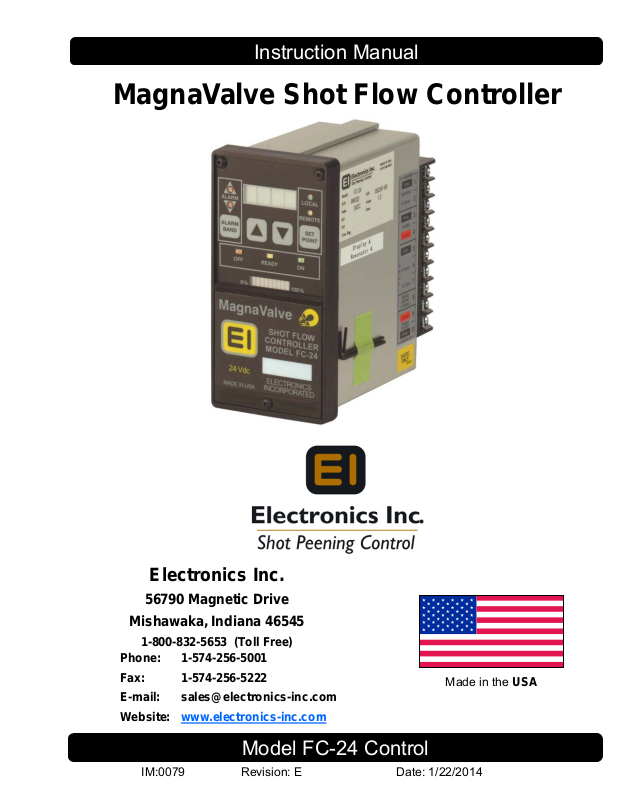

Instruction Manual

MagnaValve Shot Flow Controller

Electronics Inc.

56790 Magnetic Drive

Mishawaka, Indiana 46545

1-800-832-5653 (Toll Free)

Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
Website: www.electronics-inc.com

Model FC-24 Control

IM:0079 Revision: E Date: 1/22/2014

Made in the USA

Table of Contents

PRODUCT DESCRIPTION 3

THEORY OF OPERATION 3

LOCATION OF ADJUSTMENTS 3

PRELIMINARY ADJUSTMENTS 3

CALIBRATION 4

OPERATION 4

STABILITY ADJUSTMENTS 5
SPARE PARTS LISTS 6
TROUBLE-SHOOTING GUIDE 6

MAINTENANCE 7
Figure 1 Upper Front Panel 8
Figure 2 Lower Front Panel 9
SPECIFICATIONS 10
WIRING CONNECTIONS 10
HOW TO RETURN CONTROLLERS FOR REPAIR 12

2

1.PRODUCT DESCRIPTION

The Model FC-24 Shot Flow Controller will measure and control the rate of flow of steel shot
passing through a special normally closed magnetic valve called a MagnaValve. A digital dis­play is provided for indications of shot flow rate. A 0-10 Volt dc output signal representing
flow rate is available for remote indication or strip-chart recording. High and low alarms are
set to bracket the requested shot flow rate. The alarm bandwidth, for either percent of full
scale or percent of setpoint, is adjustable from the front panel. Either local (front panel) or re­mote (0-10Vdc) set point commands may be used.

2.THEORY OF OPERATION

The MagnaValve uses permanent magnets to hold the shot and electro-magnets to cancel the
magnetic field. When power is applied to electro-magnets the shot is free to flow. The desired
flow rate command or setpoint is compared to the actual flow rate and a control signal is sent
to the MagnaValve to achieve desired flow rate. If the desired flow rate is not achieved within
an adjustable time period, then a high/low alarm relay will be triggered. This output signal may
be used to inhibit further machine operations and signal the operator. The FC Controller can
be used with any MagnaValve with built-in flow rate sensors, which have a 0- 10 Vdc output
signal.

3.LOCATION OF ADJUSTMENTS

For location of adjustments see Figures 1 and 2. Numbers in parenthesis (figure-balloon) rep­resent figure number and balloon call-out number. For example, digital display is (1-3), mean­ing figure 1 and balloon number 3. Notice that the yellow buttons also require the use of the
▲or ▼ buttons to change the display readings. The black buttons act alone to change the
status of a function.

4.PRELIMINARY ADJUSTMENTS

A. Apply 24Vdc power.
B. Zero: The display (1-1) should read 0.0 during no-flow condition. If the digital display does

not show zero then push the “Zero” button (2-26).

C. Calibration of the display range may be required. Use the arrow buttons to adjust the dis-

play to read 0.0 Other full-scale values may be used with different MagnaValves. Push
the “Display Coarse” button (2-28) to show the current value of full scale range. To change
the range use the ▲or ▼ buttons. The following table shows available scaled settings.

MagnaValve Flow Range

576-24 2 Lbs/min 1 Kg/min

577-24 10 Lbs/min 5 Kg/min
578-24 20 or 30 Lbs/min 10 or 15 Kg/min

579-24 100 Lbs/min 45 Kg/min

580-24 200 Lbs/min 100 Kg/min

590-24 300 Lbs/min 150 Kg/min

500-24 700-1200 Lbs/min 300-600 Kg/min

Note: MagnaValves are calibrated to give a 0-10 Vdc output signal at rated flow. Because of calibration
differences caused by shot type and size, custom factory calibration is recommended .Please state type of
shot, size of shot and desired flow range from the table above.
Multiple shot sizes may be used with one valve with slight degradation of accuracy. Adjustments for differ­ent flow ranges can be made by adjusting the “Span” at the MagnaValve or at the FC-24 control.

3

D. For automatic machine cycle, push the “Mode” button (2-22) until the “Ready” LED (1-6) is

on. When a 24Vdc "Enable" signal is received the "On" LED indicator (1-7) will come on
and activate the valve output. The bar graph display (2-13) will indicate the relative signal
strength sent to the MagnaValve. Adjust the flow rate setpoint with button (1-8) and ▲or
▼ buttons to the desired flow rate. The display is usually scaled in pounds/minute, but
may be scaled in Kg/minute.

E. Display the alarm bandwidth by pushing button (1-4) and using ▲or ▼ to change the set-

tings. A typical setting is 5% of full scale.

F. Select either percent of point (PT) or percent of full scale (FS) for the alarm band by push-

ing button (2-16). Typical setting is percent of full scale (FS). The alarm bandwidth is +/­this value and follows the set point command.

G. Adjust the alarm delay time (2-17) from 0-10 seconds. A typical setting is 5 seconds.

5.CALIBRATION

A. The MagnaValve has been factory calibrated to provide a 10 Vdc signal output at its rated

flow If a different type or size of shot is used it maybe necessary to re-calibrate the sys­tem. The span setting can be changed at the MagnaValve or at the FC 24 controller. The
calibration change should be made at the FC 24 controller for convenience, since replace­ment MagnaValves will have the same calibration as the original and the span setting at
the FC-24 controller can easily be displayed as described below.

B. Push the “Span” button (2-19) to display the current span setting. The factory standard

setting is 1.000 for unity gain. The range of the span function is between .750 and 1.500.

C. To check the flow accuracy, perform a catch and weigh test. Run shot through the Magna-

Valve for 1 minute and catch it in a container. Weigh the shot. Use the ▲or ▼ buttons to
increase or decrease the flow rate. Repeat the trial to confirm calibration. Keep a record of
the span setting to be used in case the FC-24 controller is replaced.

6.OPERATION

A. Operation consists of controlling the shot flow rate through the MagnaValve and transmit-

ting an alarm signal when the flow rate is above or below the desired flow range. The shot
flow rate for the MagnaValve is controlled by a servo loop that compares the setpoint com­mand to the actual shot flow rate.

B. SETPOINT - To read the current setpoint push the “Setpoint” button (1-8). To change the

value use the ▲or ▼ buttons.

C. MODE - The FC controller has three mode settings: “Off”, “Ready” and “On” as indicated

by LEDs (1-5, 6, 7). The “Off” mode prevents any shot flow. The “On” mode will activate
the MagnaValve manually. The “Ready” mode will only activate the MagnaValve upon re­ceipt of a 24 Vdc “Enable” signal. The “On” LED will come on upon receipt of the enable
signal and will get brighter upon expiration of the “Enable Delay”.

D. ENABLE DELAY – The “Enable Delay” feature is set by button (2-21) and is used to allow

the air pressure to stabilize prior to activating the MagnaValve output. A typical setting is 3
seconds. Without this delay the air blast system may exhibit unstable flow conditions for
15 or more seconds.

E. ALARM BANDWIDTH - The alarm bandwidth is adjustable from 0 to 50% of full scale or of

setpoint and is factory set at 5% of full scale (FS). The alarm circuit is available only when
the servo is "on" and the control is enabled. The flow set point is also the alarm mid-point.
The alarm bandwidth, usually set at 5%, will track the flow set point setting.

F. If the Alarm Mode is set for percent of full scale (FS) as indicated by LED (2-14) then, with

5% of full scale and a full scale of 20 lb/min, the alarm band is ± 1 lb/min. For a setpoint of
12 pounds/minute the alarms would be active below 11 and above 13 pounds/minute.

4

Changing the set point to 15 would change the alarm trigger points to 14 and 16 pounds/
minute automatically. The alarm bandwidth of ±1 stays fixed until the alarm bandwidth is
changed.

G. If the Alarm Mode is set for percent of point (PT) as indicated by LED (2-15) then, with 5%

of point mode the alarm band diminishes as the flow setpoint is reduced. For a full scale
range of 20 lb/min and a setpoint setting of 20 lb/min the alarms will activate at ± 1.0 lb/
min. If the setpoint is reduced to 5.0 lb/min, then the alarm band automatically changes to
± 5% of that value or ± 0.25 lb/min.

H. ALARM TIMER - When the control is "Enabled" and in automatic servo mode, the

"High" (1-2) or "Low" (1-3) alarm light will come on if the flow rate goes above or below the
alarm limits. An adjustable timer, labeled "ALARM DELAY” (2-17), which is adjustable
from 0 - 10 seconds, will start each time the "High" or "Low" light comes on. If the fault
lasts longer than the timer setting the high (or low) light will get brighter and the high (or
low) alarm relay contact will transfer and latch. The alarm will stay on after the “Enable”
signal is removed until the alarm is reset, either by a remote “Alarm Reset” 24Vdc signal or
application of the next “Enable” signal.

I. ALARM RESET - Activating the alarm-reset circuit (24Vdc applied to Terminal #12) will

cancel the alarm relay and the alarm "high" or "low" LED's will go off. Continuous applica­tion of the reset signal will disable or inhibit the alarm output signal. The alarms are auto­matically reset upon receipt of each new "Enable" command.

J. REMOTE SETPOINT - A remote set point command may be used by pushing button (2-

27) until the “Remote” LED (1-9) is on. Apply a 0 - 10 Vdc analog remote set point com­mand signal to the remote input, Terminal #2. A Zero Volt dc signal will correspond to a
0% flow rate command and a 10 Vdc signal will correspond to a 100% flow rate. To verify
the remote set point command, push button (1-8). The remote command may come from
a remote potentiometer or any 0 - 10 Vdc signal source.

K. RECORDER OUTPUT- An analog voltage recorder output signal, Terminal #18 with a 0 -

10 Vdc range is available to operate a strip-chart recorder or analog input card in data log­gers. The minimum load on this output is 10K Ohms. Shielded cable (20 AWG or larger
gage) should be used and the shield should be connected to rear chassis of the FC con­trol. This analog output signal is heavily filtered with a capacitor to provide noise immunity.
Additional electrical noise filtering may be necessary at the input terminals of an analog
input card to prevent erroneous readings.

L. MAGNAVALVE OUTPUT- During operation of the MagnaValve a bar graph display (2-13)

will indicate the servo command output signal sent to the MagnaValve. The MagnaValve
also has an LED on its valve driver junction box to show this function. This LED will pulse
at approximately 10 Hertz with the duty cycle (on time to off time ratio) proportional to flow
rate. A low duty cycle will provide a low flow rate and the Valve LED will be relatively dim.
A long, or continuously on, duty cycle will provide a high flow rate. At 100% duty cycle the
Valve LED is constantly on and the permanent magnet field is completely canceled. Shot
will fall freely through the valve.

7.STABILITY ADJUSTMENTS - (SERVO STABILITY)

A. The servo adjustments have been factory set to typical settings and the customer may fine

-tune to optimize the speed of response if desired. Since there are many factors that deter­mine system stability, these adjustments should be made slowly. Use the “Servo Gain” (2-

23) and “Servo Speed” (2-24) buttons along with ▲or ▼ to change the servo response.

B. If the shot flow rate cannot be stabilized, it will be necessary to perform a simple test. Turn

the servo “Off” using button (2-20). Enable the control by pressing the “Mode” button (2-

22) until the “on” LED is activated and slowly increase the set point from 0% until the flow

5

display reads the desired value. Since the control is in manual mode, an unstable flow
rate indicates that the machine itself is causing the problem, not the servo adjustments
(the servo is off).

8.SPARE PARTS LIST

There are no spare parts for the FC-24 controller. It is recommended that a spare controller
be purchased or the controller be sent to Electronics Inc. for repair service.

9.TROUBLE-SHOOTING GUIDE

A. SYMPTOM: Unstable operation. If the display indicates flow rate variations of more than

5%, check for the following:

1. Air Blast Systems: Air leaks - nozzle, hose, valve, etc.

2. Pressure regulator malfunction (may be pulsing).

3. Contaminated shot (dust, oil, water, and broken shot).

4. Blast hose restricted during nozzle movement.

B. SYMPTOM: Display reads high value and doesn't change.

1. Wiring defect in the cable to the MagnaValve. Check voltages at Terminals #17 and
#18 for proper connection to the MagnaValve.

2. Be sure the MagnaValve is installed right side up (see flow arrow).

3. Check to see if the lower portion of the MagnaValve is full of shot due to hose blockage
etc.

4. SYMPTOM: Setpoint does not control flow rate.

5. Control must be in “Ready” mode, the “Enable” signal must be present (Terminal #4)
and the "On" LED must be lighted (1-7).

6. MagnaValves operate using a magnetic field and have no moving parts. High differen­tial air pressure in air peening applications or suction in wheel peening applications,
may force shot through the valve. This symptom is characterized by having shot flow­ing when the valve is off (red valve LED=off). For direct pressure air-peening systems,
be sure the air pressure in the pressure pot is equal to boost the air supply. This will
eliminate the differential air pressure that can force shot through the MagnaValve.

C. SYMPTOM: No alarm output.

1. “On” LED must be on (1-7).

2. “Servo” must be on (2-19).

3. High (1-2) or low (1-3) Alarm LED must be on (bright) for alarm relay contact to trans­fer.

4. Check ± alarm bandwidth; it may be too large.

5. “Alarm Reset” signal, (24Vdc) should be absent from terminal #12

D. SYMPTOM: Cannot achieve any flow, or flow rate is very low.

1. “On” light must be on (1 -7).

2. Setpoint command must be present, push (1-8).

3. Bar graph display must have one or more elements on.

4. Check the red LED (2-13) at the MagnaValve. If it is not "on", check for a wiring prob­lem. Check for contamination in or above the MagnaValve, especially check for water,
oil, or dust mixture in the shot, or other obstructions. To check, remove the Magna­Valve from the machine (keep wires attached). Enable the output and get the red LED
valve "on" at 100% duty cycle. When the Valve LED is on, the magnetic field inside the
MagnaValve should be completely canceled. No shot should stick inside the Magna­Valve. If any shot sticks to the valve, then the MagnaValve is defective.

6

E. SYMPTOM: High flow alarm or flow continues when set point is reduced or Enable is

turned off.
The MagnaValve is leaking shot. This is usually caused by a pressure difference above
and below the valve. Direct pressure air blast systems: The boost air pressure must be
equal to the pressure vessel pressure. Gravity fed (suction) air blast systems: The suction
induced by some venturi nozzles is quite large. Be sure there is a large (1/2") aspiration
air inlet near the bottom of the MagnaValve. The shot needs air to convey it to the nozzle.
Older practice was to "choke" the shot like a carburetor to get richer flow rate. Since the
MagnaValve acts more like a fuel injector, this choking is not required.

F. SYMPTOM: Shot flow rate is unstable.

1. New installations - refer to servo adjustments.

2. Old installations - machine worked fine until recently.

3. Check shot for cleanliness.

4. Check shot for cleanliness.

5. Check shot for cleanliness.

6. Do not make any servo adjustments.

7. Call the factory for advice.

8. NOTE: This category is the most challenging to troubleshoot. Shot cleanliness and for­eign objects are usually the problem. Items such as: wire, welding rod, nuts and bolts
from the machine or screen separators, masking tape, razor blades, milk cartons, ciga­rette butts, etc., seem to find their way to the valve. Remove the MagnaValve and in­spect it for contamination. Be sure the shot hopper does not have contamination.

7

FIGURE 1: FRONT PANEL (Operator Controls)

1-12

1-1

1-2

1-3

1-4

1-5

1-6

1-11

1-10

1-9

1-8

1-7

Black switches toggle sequence
Yellow switches require up/down ▲▼

FRONT PANEL (upper portion)

(1-1) Digital Display (1-7) Mode status “On” LED

(1-2) High Alarm LED (1-8) Setpoint button

(1-3) Low Alarm LED (1-9) Remote Setpoint LED

(1-4) Alarm Band button (1-10) Local Setpoint LED

(1-5) Mode status “Off” LED (1-11) Decrement button ▼

(1-6) Mode status “Ready” LED (1-12) Increment button ▲

8

FIGURE 2: FRONT PANEL (Technical Adjustments)

2-13

2-14

2-15

2-16

2-27

2-17

2-22

2-25

2-28

2-18

2-23

2-19

2-20

2-29

2-30

2-21

2-24

FRONT PANEL (lower portion with plate removed)

2-13 MagnaValve output signal level 2-22 Control Mode button

2-26

2-14 Alarm bandwidth % of full scale 2-23 Servo Gain button

2-15 Alarm bandwidth % of setpoint 2-24 Servo Speed button

2-16 Alarm mode button 2-25 Span button for amperage calibrate

2-17 Alarm delay button 2-26 Zero button for zero amperage

2-18 Servo “Off” LED indicator 2-27 Setpoint local/remote button

2-19 Servo “On” LED indicator 2-28 Coarse Display Range

2-20 Servo On-Off button 2-29 Fine Display Range

2-21 Enable Delay button 2-30 Decimal Point

9

10. MAINTENANCE

Power: 24 Vdc @ 0.5 Amp

Inputs: 0-5 A ac from current transformer loop

Remote analog setpoint 0-10 Vdc

Enable input 24 Vdc

Alarm reset 24 Vdc

Outputs: Servo output signal 0-10 Vdc

Recorder Analog output 0-10 Vdc

Alarm relay contacts (rated at 120 Vac @ 0.5 Amp)

Enable output signal 24 Vdc

Weight: 2.2 pounds / 1 Kg

Display range: 0-1999

Decimal Points: 1000, 100.0, 10.00

Alarm Bandwidth: 0-50% of full scale or of set point

Alarm Delay: 0-10 seconds

Enable Delay: 0-10 seconds

There is no maintenance required for the FC-24 controller.

0 Vdc, Common 0 Vdc, Common 11

1

Remote Setpoint (0-10 Vdc) Alarm Reset (24 Vdc)

2

0 Vdc, Common Alarm High Relay Contact

3

Enable Input (24 Vdc) Alarm Common Relay Contact

4

0 Vdc, Common

5

Process Input (0-10 Vdc)

6

Process Input (0- 0.5 Vac)

7

Servo Output (0-10 Vdc) Recorder Output (0-10 Vdc)

8

Enable Output (24 Vdc) 24 Vdc Power

9

Alarm Low Relay Contact

Flow “OK” Relay Contact

0 Vdc, Common

12
13
14
15
16
17
18
19

0 Vdc, Common 0 Vdc, Common

10

10

20

11

11. SPECIFICATIONS

1

Installed in panel. Turn “Off” all power sources to
controller before going to step 2.

3

2

Remove terminal blocks and leave wires attached.

4

Remove Rails and Rail Mounting Screws.
Slide controller forwards.

5

Controller is ready to return.

Slide Rails back on and install the Rail Mounting
Screws.

6

Call 1-574-256-5001 ask for a Returns Goods
(RG) Number (#)

Ship controller with RG # to:

Electronics Incorporated
56790 Magnetic Drive
Mishawaka, IN 46545

12. WIRING CONNECTIONS

13. HOW TO RETURN CONTROLLERS FOR REPAIR

12
