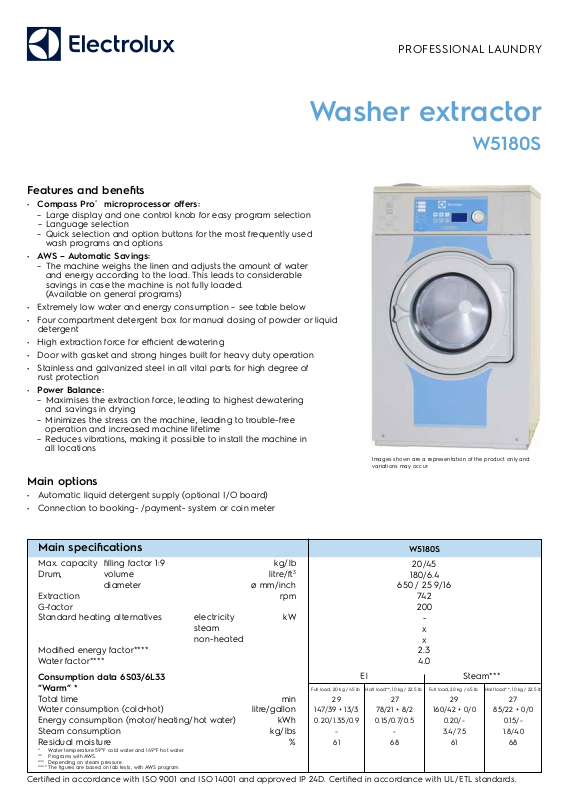

Electrolux W5180S User Manual
Washer extractor
Features and benefits
• Compass Pro
– Large display and one control knob for easy program selection
– Language selection
– Quick selection and option buttons for the most frequently used
wash programs and options
• AWS – Automatic Savings:
– The machine weighs the linen and adjusts the amount of water
and energy according to the load. This leads to considerable
savings in case the machine is not fully loaded.
(Available on general programs)
• Extremely low water and energy consumption – see table below
• Four compartment detergent box for manual dosing of powder or liquid
detergent
• High extraction force for efficient dewatering
• Door with gasket and strong hinges built for heavy duty operation
• Stainless and galvanized steel in all vital parts for high degree of
rust protection
• Power Balance:
– Maximises the extraction force, leading to highest dewatering
and savings in drying
– Minimizes the stress on the machine, leading to trouble-free
operation and increased machine lifetime
– Reduces vibrations, making it possible to install the machine in
all locations
®
microprocessor offers:
PROFESSIONAL LAUNDRY
W5180S
Images shown are a representation of the product only and
variations may occur.
Main options
• Automatic liquid detergent supply (optional I/O board)
• Connection to booking- /payment- system or coin meter
Main specifications
Max. capacity filling factor 1:9 kg/lb
Drum, volume litre/ft3
diameter ø mm/inch
Extraction rpm
G-factor
Standard heating alternatives electricity kW
steam
non-heated
Modified energy factor****
Water factor****
Consumption data 6S03/6L33
”Warm” *
Total time min
Water consumption (cold+hot) litre/gallon
Energy consumption (motor/heating/hot water) kWh
Steam consumption kg/lbs
Residual moisture %
* Water temperature 59°F cold water and 149°F hot water.
** Programs with AWS.
*** Depending on steam pressure.
**** The figures are based on lab tests, with AWS program.
Certified in accordance with ISO 9001 and ISO 14001 and approved IP 24D. Certified in accordance with UL/ETL standards.
El Steam***
Full load, 20 kg / 45 lb Half load**, 10 kg / 22.5 lb Full load, 20 kg / 45 lb Half load**, 10 kg / 22.5 lb
29 27 29 27
147/39 + 13/3 78/21 + 8/2 160/42 + 0/0 85/22 + 0/0
0.20/1.35/0.9 0.15/0.7/0.5 0.20/- 0.15/-
- - 3.4/7.5 1.8/4.0
61 68 61 68
W5180S
20/45
180/6.4
650 / 25 9/16
742
200
x
x
2.3
4.0
A
Electrical connections
Heating Main voltage Heating Total Recommended
alternative power power ITCB
Hz kW kW A
208-240V 1 ~ 60 13.0 13.5 80
Electric heated
208-240V 3 ~ 60 13.0 13.3 50
440/480V 3 ~ 60 13.0 13.3 25
Steam or
120-480V 1/3 ~ 60 - 1.0 15
Non heated
3
1
2
Water and steam connection
Water valves DN/inch
Water pressure psi
Capacity at 300 kPa l/min
Drain valve ø mm/inch
Draining capacity l/min
Steam valve DN/inch
Steam pressure psi
Liquid detergent supplies
Floor requirements
Frequency of the dynamic force Hz
Floor load at max extraction kN
Sound levels
Sound pressure level*
Wash dB(A)
Extraction dB(A)
Heat emission
% of installed power, max
Shipping data**
Weight net, kg/lbs
Shipping volume m
3
3
/ft
Accessories
Steel base
Hose kits for water or steam
Fluff collector
Dimensions in mm/inch
A Width
B Depth
C Height
D
E
F
G
H
I
J
K
L
M
N
O
P
1 Operating panel
2 Door opening ø 395 mm /
15 9/16 inch
3 Detergent box
4 Cold water
5 Hot water
Front and side panels in light grey and blue (RAL 260 70 05, 250 60 30)
* A-weighted emmission sound pressure level at workingstations.
** Average data. Crated weight/shipping volume depends on configuration.
Please contact logistics for exact measures.
6 Re-used water
7 Drain
8 Liquid detergent supply
9 Electrical connection
10 Steam connection
W5180S
20 / 3/4
30-90
30
75 / 3
170
15 / 1/2
40-90
5
12.4
3.0 ± 4.8
70
74
5
221 / 487
1.26 / 44
x
x
x
750 / 29 1/2
914 / 36
1345 / 52 15/16
500 / 19 11/16
1440 / 56 11/16
1048 / 41 1/4
80 / 3 1/8
1247 / 49 1/8
297 / 11 11/16
217 / 8 9/16
1227 / 48 5/16
1127 / 44 3/8
278 / 10 15/16
104 / 4 1/8
223 / 8 3/4
132 / 5 3/16
10
C
Front
E
D
B
Side view
I
J
G
5
P
4
6
9
8
H
K
F
L
N
www.electrolux.com/professional
Share more of our thinking at www.electrolux.com
M
Rear
O
7
Art. No. 438919505US/2016.02.01
We reserve the right to alter specifications without notice.
