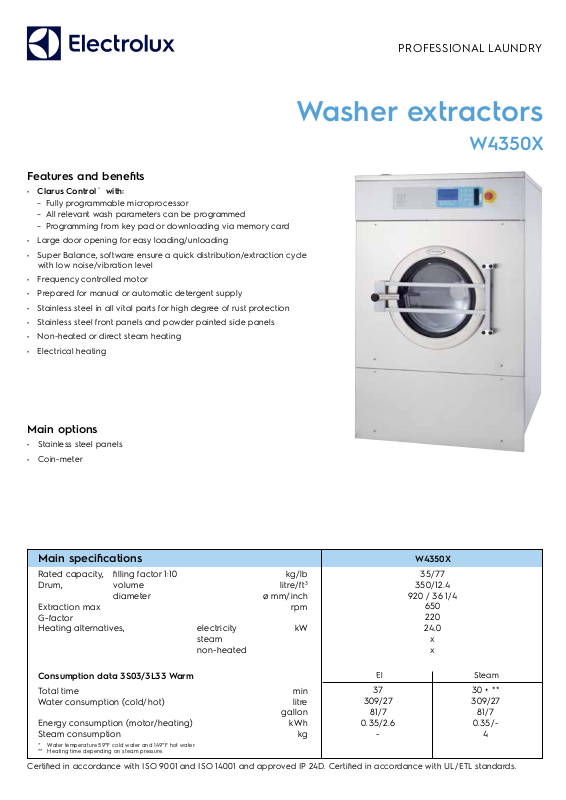

Electrolux W4350X User Manual

Washer extractors

Features and beneﬁts

• Clarus Control ® with: – Fully programmable microprocessor – All relevant wash parameters can be programmed – Programming from key pad or downloading via memory card

• Large door opening for easy loading/unloading

• Super Balance, software ensure a quick distribution/extraction cycle with low noise/vibration level

• Frequency controlled motor

• Prepared for manual or automatic detergent supply

• Stainless steel in all vital parts for high degree of rust protection

• Stainless steel front panels and powder painted side panels

• Non-heated or direct steam heating

• Electrical heating

PROFESSIONAL LAUNDRY

W4350X

Main options

• Stainless steel panels

• Coin-meter

Main speciﬁcations

Rated capacity, ﬁlling factor 1:10 kg/lb Drum, volume litre/ft3 diameter ø mm/inch Extraction max rpm G-factor Heating alternatives, electricity kW steam non-heated

Consumption data 3S03/3L33 Warm

Total time min Water consumption (cold/hot) litre gallon Energy consumption (motor/heating) kWh Steam consumption kg

* Water temperature 59°F cold water and 149°F hot water. ** Heating time depending on steam pressure.

Certiﬁed in accordance with ISO 9001 and ISO 14001 and approved IP 24D. Certiﬁed in accordance with UL/ETL standards.

El Steam

37 30 + ** 309/27 309/27 81/7 81/7

0.35/2.6 0.35/-

- 4

W4350X

35/77

350/12.4

920 / 36 1/4

650 220

24.0 x x

6745

6746

6747

Electrical connections

Heating Main voltage Heating Total Recommended alternative power power ITCB Hz kW kW A

Electric heated

208-240V 3 ~ 60 24.0 25.1 80 440/480V 3 ~ 60 24.0 25.1 50

208-480V 1/3 ~ 60 - 2.0 15

Steam or Non heated

Water and steam connection

Water valves DN/inch Water pressure psi Capacity at 300 kPa l/min Drain valve ø mm/inch Steam valve DN/inch Steam pressure psi

Floor requirements

Frequency of the dynamic force Hz Floor load at max extraction kN

Sound levels

Sound pressure level* Wash dB(A) Extraction dB(A)

Heat emission

% of installed power, max

Shipping data

Weight net, kg/lbs

Dimensions in mm

A Width B Depth C Height D E F G H I K L M N O

1 Operating panel 2 Detergent box 3 Door opening ø 535 mm / 21 1/16 inch 4 Cold water 5 Hot water 6 Cold or hot water 7 Steam connection 8 Drain 9 Electrical connection 10 Liquid detergent supply 11 Water reuse

W4350X

20 / 3/4

30-90

75 / 3

15 / 1/2

7-40

10.8

6.9 ± 10.7

<70

560/1235

1085 / 42 11/16

1105 / 43 1/2

1570 / 61 13/16

530 / 20 7/8

120 / 4 3/4

525 / 20 11/16

55 / 2 3/16

1465 / 57 11/16

185 / 7 5/16

1445 / 56 7/8

315 / 12 3/8

395 / 15 9/16

120 / 4 3/4

190 / 7 1/2

Front

Left side

* A-weighted emmission sound pressure level at workingstations.

www.electrolux.com/professional

Share more of our thinking at www.electrolux.com

Rear side

Art. No. 438919570US/2016.05.20

We reserve the right to alter speciﬁcations without notice.
