SIG 331
Operating
and
Installation Instructions
Introduction
This gas appliance has been designed and manufactured to all the
Introduction
necessary British Standards. It also carries the C.E. mark. The
appliance complies with European Council Directive 90/396/EEC.
It is important that you understand how to use and care for the appliance
properly before you use it for the first time.
We have written this booklet with your safety in mind. Read the booklet
thoroughly before you use the appliance. Keep the booklet in a safe
place so that anyone who uses the appliance can read it. Pass the
booklet on with the appliance if you give or sell it to someone else.
SIG 331
For your safety
The appliance is designed for domestic use to cook food. You
must not use it for any other purpose. It is not designed for
commercial use.
Keep children, babies and toddlers away from the appliance at all
times.
The installation instructions tell you how and where it can be
fitted. If the appliance is already installed you must make sure
that all instructions have been followed. If you are in any doubt
ask a registered person. More details on installation on page 27.
We have included several drawings to show the right and wrong way
of doing things.
The right way will have a smiling face by it.
A sad face shows something is wrong.
RATING PLATE
This is situated on the lower front frame of the appliance and can be
seen upon opening the top oven cavity door. Alternatively the rating
plate may also be found on the back or top of some models (Where
applicable). Do not remove the rating plate from the appliance as
this may invalidate the guarantee.
2
S I G 3 3 1
Contents
Lighting the appliance 4
The grill 7
The hotplate 10
The ovens 13
Oven cooking chart - main oven 16
- second oven 19
Slow cooking 22
Care and cleaning 24
Installing the appliance 27
General information 29
What is wrong and why? 31
Servicing 33
Page
Contents
Contents
Installation instructions 35
Technical data 36
Safety requirements/ventilation 37

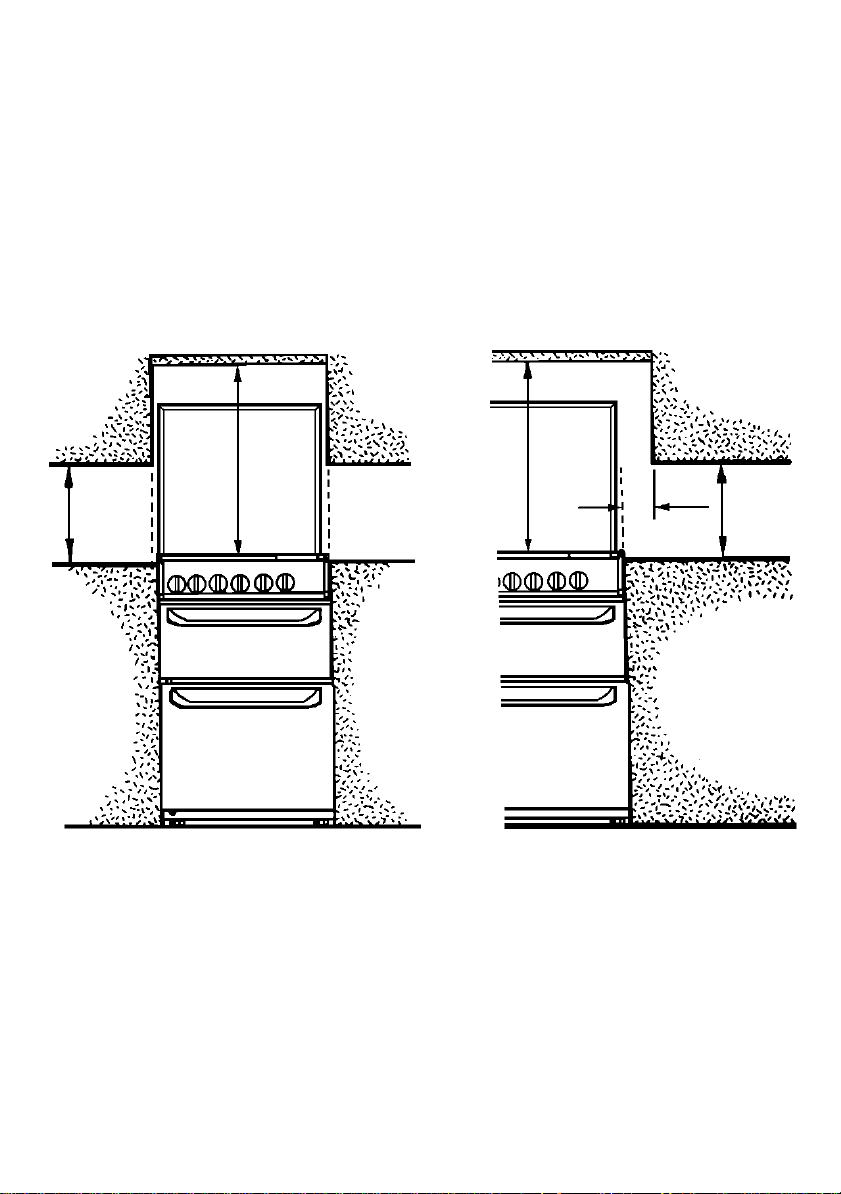

Location of appliance 38
Pressure testing 40
3
S I G 3 3 1
Lighting the appliance

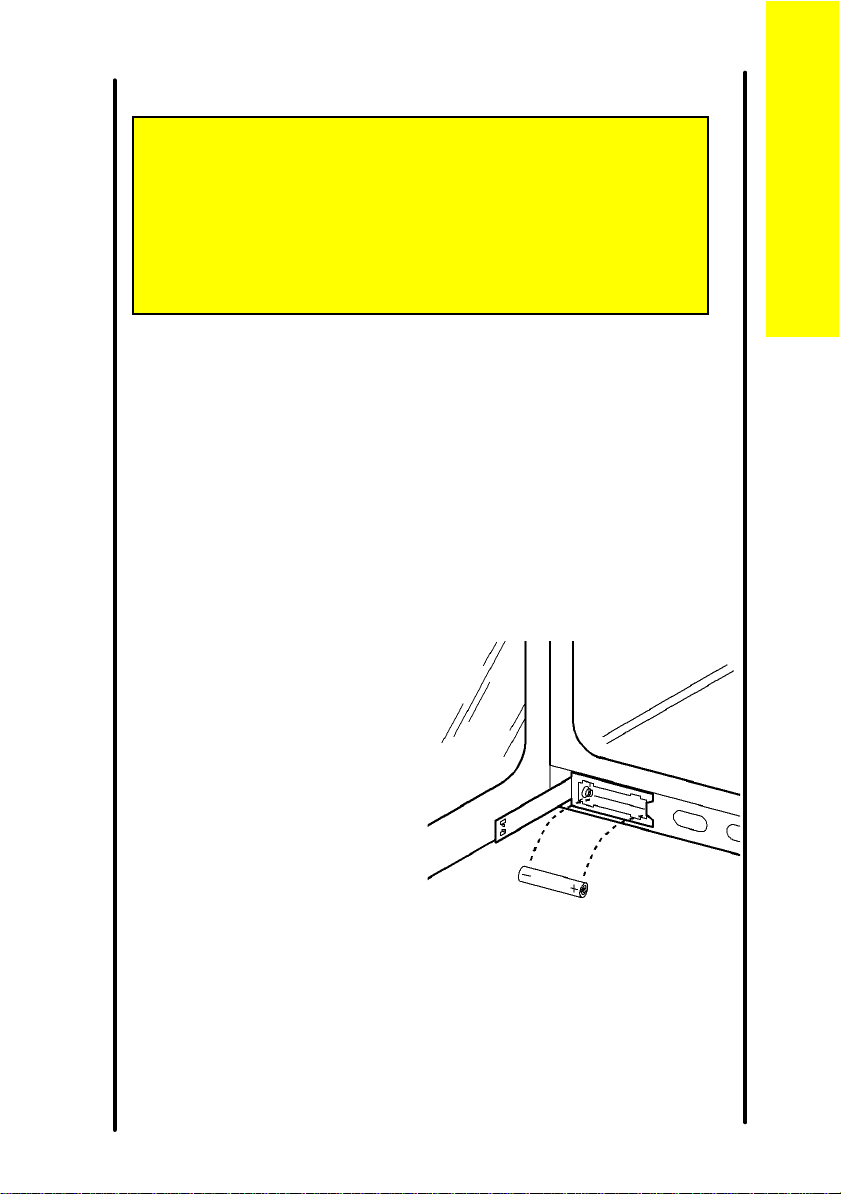

The ignition system works by means of a battery. Details on how to
replace the battery are given on page 31.
Hotplate
Lighting the appliance
To light
1 Lift up the lid. You cannot use the hotplate when the lid is down.
2 Push in the control knob and turn to the large flame symbol (highest
setting), and press the ignition button immediately. When the burner
has lit release the button.
Warning: If the ignition button is not pressed immediately a build up of
gas may cause the flame to spread.
For your safety
If you close the lid of the appliance while any of the hotplate
burners are lit the gas will go out. This is because it would be
dangerous if the burners stayed on when the lid was closed.
Always use the control knob to turn off a burner. Do not use
the lid as a cut-off device. This will only cut off the gas when
the lid is closed. The gas will flow again when the lid is
opened.

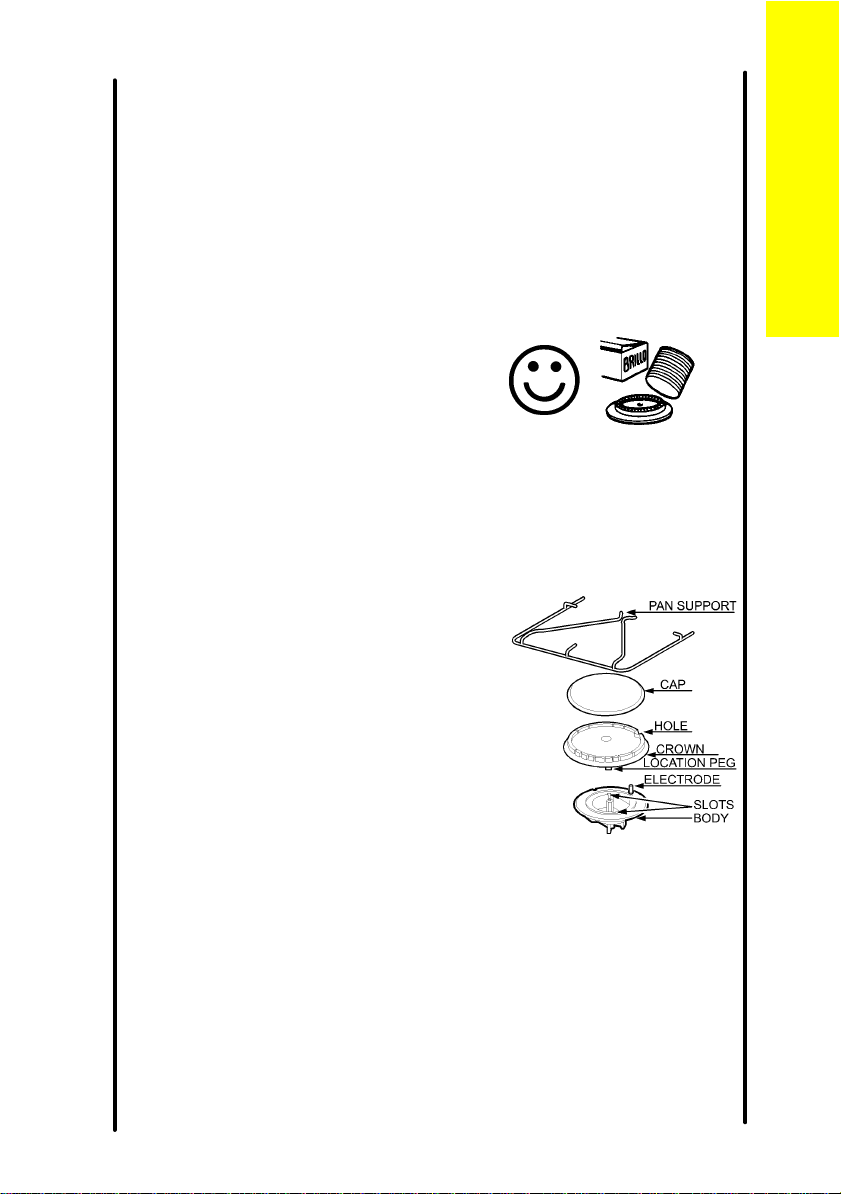

Please note: If you have any trouble lighting a hotplate burner turn all
the hotplate control knobs off. Make sure that the burner parts have
been replaced correctly. See page 25 for more information.
4
S I G 3 3 1
Grill/second oven
The grill and the second oven are operated by the same control so you
cannot use them both at the same time.
Grill
To light:
1 Open the door.
2 Push in the control knob and turn it to the right to the large flame
symbol (highest setting), press the ignition button immediately. When
the burner has lit release the button.
3 Leave the grill door open when you are using the grill.
Warning: If the ignition button is not pressed immediately a build up of
gas may cause the flame to spread.
For your safety
Never cover the grill pan or grid with foil as this can lead to grill
fires.
Lighting the appliance
Second oven
To light:
1 Open the oven door.
2 Push in the control knob and turn it to the left to gas mark 1. Press
the ignition button immediately. When the burner has lit release the
button. There will only be small flames at first.
3 Now turn the control knob to the
gas mark you want.
4 Wait until the burner is showing
large flames.
5 Close the oven door.
Important: Remember to remove the grill pan handle before you use
the second oven.
5
Main oven
To light:
1 Open the oven door.
2 Push in the control knob and turn it to gas mark 9, and press the
ignition button immediately. When the burner has lit release the
button. There will only be small flames at first.
Lighting the appliance
3 Now turn the control knob to the
gas mark you want.
4 Wait until the burner is showing
large flames.
5 Close the oven door.
To turn off any burner
1 Push in the control knob and turn it to the off position. This is shown
by a large dot.
S I G 3 3 1
MAIN OVEN
MAIN OVEN
For your safety
When you are lighting any burner check that it has lit before you
leave the appliance.
When you are turning off a burner, do not leave the appliance
until the flame has gone out.
6
S I G 3 3 1
The grill
The grill is a high-speed grill. The instructions below tell you how to vary
the heat setting and how to change the height of the grid to suit the food
you are cooking. You should remember to turn the food regularly.
You should not use the grill to keep food warm as it will continue to
cook the food.
Prior to using the grill
We suggest that you operate the grill for approximately 5 - 10 mins to
burn off any residue from the surface. During this period a slight odour
may be emitted, it is therefore advisable to open a window for
ventilation.
When you first operate the grill you may hear some sounds as the
burner heats up, this is quite normal and is not a fault on the appliance.
For your safety
The grill pan and handle must be in place before igniting the grill.
You must keep the grill door open when the grill burner is lit.
The grill
Caution
Accessible parts may be hot when the grill is used. Young
children should be kept away.
Never cover the grill pan or grid with foil as this can lead to
grill fires.
Heat control
The grill control has two heat
settings.
The control knob turns to the
right from 'OFF' to 'LOW' and then
to 'HIGH'. Use the high setting for
fast cooking such as toast. Use the
low setting to cook thicker food such
as chicken after you have browned
it on the high setting.
7
The grill
S I G 3 3 1
Cooking positions
There is only one position for the grill
shelf (Position 2). Positions are counted
from the top downwards.
Most food should be cooked on the
grid in the grill pan. You can turn the grid
over to suit different thicknesses of food.
You can place some dishes straight
onto the grill shelf. This is useful when
you are browning the top of food such
as cauliflower cheese.
General
The shelf in the grill/second oven is different from the shelves in the
main oven. It is important that you do not swap them over. Only use the
shelf with the solid metal plate underneath it in the grill/second oven.
When you are not using the grill you should remove the handle and
store the pan on the shelf in the grill. Turn the grill burner off before you
store the pan. Remember that the pan will get hot when you are using
the main oven.
You can use the grill compartment to warm plates when you are
using the main oven.
Preheating
You don't usually need to preheat the grill. You may wish to preheat it for
a couple of minutes when you are cooking steak or browning food.
Positioning food on the grid
Place food such as toast, tea-cakes and
muffins towards the centre of the grid.
Place food which needs a gentle
heat, such as tomatoes and mushrooms
towards the edge of the grid.
Arrange meat, meat products and
fish to suit their thickness and how you
like them cooked.
8
S I G 3 3 1
The grill pan and handle
The grill pan is supplied with a removable handle.
To attach the handle, place the wirework under the cut out in the pan so
that the metal plate hooks over the top of the grill pan.
Slide the handle to the left and over the central bump on the grill pan.
Ensure the handle is correctly located. It is not necessary to
remove the grill pan handle during grilling.
The grill
Place the grill pan on the shelf so that the pan is positioned centrally
beneath the grill.
To remove the handle, slide the handle to the right and lift the handle
away from the cut out on the grill pan.
Note
If you require an additional handle for your grill pan, this can be ordered
from your local Service Force Centre by quoting part number
311479800\6.
9
The hotplate
You can only use the hotplate when the lid is open. If you have any
trouble lighting a hotplate burner, turn all hotplate control knobs off and
The hotplate
make sure that the burner parts have been replaced correctly. Now light
the burner in the usual way. See page 25 for more detailed information.
Heat control
The hotplate control knobs turn
anticlockwise from 'OFF' to 'HIGH'
and then to 'LOW'. You can adjust
the heat by turning the control
between the highest and lowest
settings. These are shown as a
large and a small flame symbol.
Burner sizes
The hotplate has three burner sizes
to suit different types of cooking:
S I G 3 3 1
Largest burner (Rapid) - use a large
pan for food such as chips.
Medium burners (Normal) - use for
everyday cooking.
Small burner (Simmer) - use for
simmering food such as soups and
stews.
The largest pan which you should use on any burner is 230mm (9").
The base of the smallest pan should not measure less than 100mm (4").
10
S I G 3 3 1
For your safety
1 Take care to avoid burns and scalds when you are
reaching across the hotplate.
2 Use pans with flat bases. They are more stable than
pans which are warped.
3 Do not use pans with very heavy handles which cause
the pan to tip.
4 Put pans on the centre of the burners.
5 Position pan handles so they cannot be accidentally
knocked.
6 Take extra care when you are deep fat frying. Do not
cover the pan with a lid.
Do not leave a pan unattended. If the pan catches fire,
leave it where it is and turn off all controls.
The hotplate
Place a damp cloth or a fitting lid over the pan to
smother the flames.
Never put water on the fire.
Leave the pan to cool for 30 minutes.
7 If you are using a Wok we recommend it has a flat base
as it will stand stable on the pan supports. If you use a
round based Wok with a collar support, the collar must
be of the open wire work type. A closed collar will affect
the performance of the burner. Before you use the Wok
make sure that the collar is stable on the pan supports.
Always follow the instructions that come with the Wok.
8 Do not use the lid as a work surface or chopping board.
this could damage the glass and reduce its strength.
11
S I G 3 3 1
The hotplate
1 Keep flames under the base of the pans. If the
2 Only heat the amount of liquid you need. Do
3 Cover pans with a lid whenever possible. The
4 Try cooking more than one vegetable in the
Helpful hints
flames lick round the sides of the pans you are
wasting gas.
not overfill pans.
food will heat up more quickly and there will be
less steam in the kitchen.
same pan, for example potatoes and carrots.
5 Cut vegetables into smaller pieces. This way
they will cook more quickly.
6 A pressure cooker will save time and energy.
12
S I G 3 3 1
The ovens
Before you use the ovens you should wipe them out with a damp cloth.
This will remove any dust.
Heat zones
Main oven - There are zones of heat within
the oven. The temperature in the middle is the
gas mark you have chosen. The top of the
oven is slightly hotter and the lower shelf
slightly cooler. The base of the oven is quite a
lot cooler. You can make use of these heat
zones when you are cooking foods that need
different temperatures all at the same time.
If you are cooking more than one tray of similar items, for example
cakes or biscuits, swap the trays around during cooking. Or you can
remove the top tray when the food is cooked and move the lower tray to
the higher shelf to finish cooking.
Second oven - You should turn food round during the cooking time.
Preheating
You do not need to preheat the main or second oven for casseroling
and so on.
Preheat the ovens for baking or when you are cooking sensitive food
such as Yorkshire puddings, soufflés and yeast mixtures.
When you are cooking or reheating frozen or chilled food read the
instructions on the packaging. When you are using the second oven to
reheat food you should preheat the oven to gas mark 8.
When you need to preheat the oven, we recommend you do so for
20 minutes.
The ovens
Oven shelves
You can slot the oven shelves into any of five
positions in the main oven. Positions are
counted from the top downwards.
There is only one position in the second
oven.
13
The shelf in the grill/second oven is different
from the shelves in the main oven. Only use
The ovens
the shelf with the solid metal plate
underneath it in the grill/second oven. The
plate may glow red when you are using the
oven. This will not affect the cooking
performance.
provided in shelf position 2. However when cooking a small joint or a
deep cake you can use the shelf on the base of the second oven to
allow enough air to circulate around the food.
shelf completely, pull it forward as far as it will go, raise the front edge
and lift it out. To put the shelf into a different position, keep the front
edge raised, slot the shelf on to the runner, lower the front edge and
slide the shelf in.
S I G 3 3 1
Shelf on base
Most second oven cooking should be carried out using the shelf
For safety the shelf will only pull out so far. If you want to remove a
Baking trays and dishes
For the best results from the main oven we recommend that you use a
baking tray which is 310mm (12") square. If you use a tray or tin which is
larger than this, you may need to turn it around during cooking.
The size of tray which you should use in the second oven should not
measure any bigger than 310mm x 230mm (12" x 9" ). Place the longest
side parallel with the door.
Place single dishes on the centre of the shelf. You may need toturnlarge
items around during cooking. Turn all food round in the second oven.
For your safety
Never place cooking dishes, trays and
so on over the oven burners. This will
damage the appliance as well as the
cookware and possibly the floor
covering underneath the appliance.
Leave a gap of 13mm (½") between all
dishes and the sides of the oven so the
heat can circulate properly.
Do not push dishes too far back as
food will burn if it overhangs the
burner flames.
14
S I G 3 3 1
Roasting
For best results we recommend open roasting using minimal fat or oil to
prevent splashing.
It is not necessary to cover meat or poultry or wrap food in foil when
roasting as this restricts the circulation of heat and will lead to extended
cooktimes.
If you are using a roasting bag or cover chicken breast with foil, be
prepared to allow an extra 10 - 15 minutes for each 1/2kg (1lb).
When cooking large items such as turkeys, the use of foil may be
required to prevent the breast becoming dry before the rest of the bird is
fully cooked.
Condensation
Condensation may form on the appliance. This is quite normal and
nothing to worry about. The condensation forms when heat and
moisture are present, for example during cooking. Whenever possible
try to make sure that food which contains a lot of moisture, for example
casseroles, are covered. If you do notice any condensation, wipe it up
straight away.
The ovens
15
Oven cooking chart
S I G 3 3 1
Approximate
Shelf
20 mins. per ½kg (1lb) and 30 mins.
25 mins. per ½kg (1lb) and 25 mins.
30 mins. per ½kg (1lb) and 30 mins.
25 mins. per ½kg (1lb) and 25 mins.
30 mins. per ½kg (1lb) and 30 mins.
30 mins. per ½kg (1lb) and 30 mins.
35 mins. per ½kg (1lb) and 35 mins.
cooking time
position
Medium:
Well Done:
Well Done:
Well Done:
Gas
mark
Lamb 5 4 Medium:
Food
Oven cooking chart - Main oven
These instructions are for cooking in the oven after it has been pre-heated for 20 minutes.
If you are cooking more than one tray of similar items, for example cakes or biscuits, swap the trays around during cooking. Or you
can take the top tray out of the oven when the food is cooked and move the lower tray to the higher shelf to finish cooking.
Always leave at least one shelf position between shelves to allow heat to circulate.
The recommended shelf positions give the best results.
Put the dishes in the centre of the shelf.
You can change the gas marks and cooking times to suit your own tastes.
It is important to check that food is piping hot before serving.
If you are using both ovens at the same time you may need to adjust the cooking times.
Roasting meat: Beef 5 4 Rare:
Pork and Veal 5 4 Medium:
Thaw frozen joints thoroughly before cooking them.
16
Approximate
cooking time
20 mins. per ½kg (1lb) and 20 mins.
Shelf
position
4
S I G 3 3 1
25 mins. per ½kg (1lb) and 25 mins.
15 mins. per ½kg (1lb) and 15 mins.
25 mins. per ½kg (1lb)
4
4 or 5
4
25-30 mins.
15-25 mins.
2
2
4-5 hours
2¼-2¾hours
2½-2¾ hours
1 hour
15-25 mins.
10-20 mins.
44442 & 4
2 & 4
20-30 mins.
20-35 mins.
2 & 4
2 & 4
Oven cooking chart
Gas
mark
Food
5
4
4
5
Thoroughly thaw frozen joints before cooking them.
Turkey below 4.5kg (10lbs)
over 4.5kg (10lbs)
Duck and duckling
Stuffed poultry Cook as above but calculate weight including stuffing.
Poultry: Chicken
7
7
22 245
- individual
Christmas cake (8")
Rich fruit, 180mm (7")
205mm (8")
The times given above are for open roasting in a preheated oven. If you cover the food with foil or a lid allow an extra 10 - 15
minutes for each ½kg (1lb).
Yorkshire pudding - large
Cakes:
17
7
4
4
Madeira, 180mm (7")
Small cakes
Scones
Victoria sandwich
180mm (7")
205mm (8")
Oven cooking chart
To help pastry brown on the underside
cook on a metal plate, or if plates are flat
Approximate
cooking time
25 -35 mins.
25-35 mins.
Shelf
position
2
2
S I G 3 3 1
and have no rim underneath, place on
baking tray.
15-25 mins.
2 & 4
2 hrs.
45-60 mins.
50-60 mins.
3
4
4
30-40 mins.
30-40 mins.
10-20 mins.
3
3
2
Gas
mark
6
6
5
Fruit pie (shortcrust)
Mince pies (flan pastry)
Food
Pastries: Plate tart (shortcrust)
2
4
3
8*8*8*
Baked sponge pudding
Baked custard
Puddings: Milk pudding
0.90kg (2lb loaves)
Rolls and buns
Yeast mixtures: Bread 0.45kg (1lb loaves)
18
*Note: When baking bread cook for 10 minutes at Gas mark 8 then reduce to mark 6 for the remaining cook time.
Note: You must soak dried beans then boil them in an open pan for 15 minutes before you add them to any dish.
S I G 3 3 1
Approximate
cooking time
Shelf
position
20 mins. per ½kg (1lb) and 30 mins.
25 mins. per ½kg (1lb) and 25 mins.
30 mins. per ½kg (1lb) and 30 mins.
25 mins. per ½kg (1lb) and 25 mins.
30 mins. per ½kg (1lb) and 30 mins.
30 mins. per ½kg (1lb) and 30 mins.
35 mins. per ½kg (1lb) and 35 mins.
Rare:
Medium:
Well Done:
Medium:
Well Done:
Medium:
Well Done:
base
base
base
Oven cooking chart
Gas
mark
Thaw frozen joints thoroughly before cooking them.
Lamb 5 Shelf on
Food
Oven cooking chart - Second oven
These instructions are for cooking in the oven after it has been pre-heated for 20 minutes.
The recommended shelf positions give the best results.
Put the dishes centrally on the shelf and turn food around during the cooking time.
You can change the gas marks and cooking times to suit your own tastes.
It is important to check that food is piping hot before serving.
If you are using both ovens at the same time you may need to adjust the cooking times.
Roasting meat: Beef 5 Shelf on
Pork and Veal 5 Shelf on
19
Oven cooking chart
Approximate
cooking time
20 mins. per ½kg (1lb) and 20 mins.
25 mins. per ½kg (1lb)
Shelf
position
Shelf on
base
S I G 3 3 1
3½-4½ hours
2-2½ hours
1 hour
15-25 mins.
Shelfonbase22
8-12 mins.
20-30 mins.
2
To help pastry brown on the underside
cook on a metal plate, or if plates are
flat and have no rim underneath, place
on baking tray.
25-35 mins.
30-40 mins.
15-25 mins.
2
2
2
Gas
mark
Food
5
5
Thaw frozen joints thoroughly before cooking them.
Duck and duckling
Stuffed poultry Cook as above but calculate weight including stuffing.
Poultry: Chicken
22 457
Rich fruit, 180mm (7")
Madeira, 180mm (7")
Small cakes
The times given above are for open roasting in a preheated oven. If you cover the food with foil or a lid allow an extra 10 - 15
minutes for each ½kg (1lb).
Yorkshire pudding - individual 7 2 20-30 mins.
Cakes: Christmas cake (8")
20
4
6
Scones
Victoria sandwich
180mm (7")
Plate tart (shortcrust)
6
5
Fruit pie (shortcrust)
Mince pies (flan pastry)
Approximate
Shelf
2 hrs. approx.
cooking time
2
position
45-60 mins.
50-60 mins.
2
2
S I G 3 3 1
Oven cooking chart
Gas
2
mark
Puddings: Milk pudding
Food
3
3
Baked sponge pudding
Baked custard
Note: You must soak dried beans then boil them in an open pan for 15 minutes before you add them to any dish.
21
Slow cooking
Please note: There is no slow cook on the second oven.
The slow cook setting gives a very low heat in the oven. It is
Slow cooking
particularly useful when cooking soups, stews and casseroles because
the long slow cooking will make cheaper, tougher cuts of meat more
tender.
You need to cook food at gas mark 6 for 30 minutes before you turn
the oven down to a slow cook setting. This makes sure that the
temperature of the food gets hot enough to start the food cooking.
Some foods such as pastry and biscuits are not suitable for slow
cooking because the temperature is too low.
Cover all food during cooking to prevent it from drying out. You can
uncover food for the last half hour if it is normally served golden brown.
S I G 3 3 1
Food preparation-slow cooking
Joints of meat and poultry
l
Do not cook meat joints over 2.7kg (6lb).
l
Do not cook poultry over 2kg (4lb 8oz).
l
Cook on the middle shelf of the oven or above.
l
Cook stuffing separately.
l
Cook for a minimum of 6 hours.
l
Joints of pork must only be cooked if you can ensure, by using a
meat thermometer, that an internal temperature of at least 88
been reached .
l
For good air circulation always stand joints on a rack in a roasting tin
or casserole.
l
Thaw all frozen meat and poultry before cooking.
l
Prime cuts of meat do not benefit from slow cooking.
l
Remove excess fat and skin unless browned first.
l
Cook for 30 minutes at gas mark 6, then reduce to the slow cook
setting.
22
o
C has
S I G 3 3 1
Soups, casseroles and stews
l
Do not cook casseroles over 2.7kg (6lb).
l
Bring to the boil on the hotplate then cook on slow cook.
l
Cook in the middle of the oven or above.
l
Cover food with a tight fitting lid or tin foil.
Vegetables
l
Cut into small pieces.
l
Dried beans must be pre-soaked then boiled in an open pan for 15
minutes before adding to any dish.
l
Place vegetables under meat in casseroles.
l
Cover food with a tight fitting lid or tin foil.
l
Cook for 30 minutes at gas mark 6, then reduce to the slow cook
setting.
Milk puddings
l
Cover the cereal with boiling water and allow to stand for 30 minutes.
l
Drain and make the pudding in the usual way.
l
Cook for 30 minutes at gas mark 6, then reduce to the slow cook
setting.
General points for slow cooking
Slow cooking
Frozen foods
Thaw thoroughly before cooking.
Thickening
Toss meat in flour for casseroles. Alternatively blend cornflour with
water and add it at the end of cooking.
Flavouring
Flavours are retained because there is little evaporation. Adjust at the
end of the cooking time.
Liquid
Reduce normal liquid quantities slightly as there is little evaporation
during cooking.
Milk and milk products, for example cream
Add towards the end of the cooking to prevent curdling.
Reheating
Left over food should be cooled quickly and refrigerated.
Do Not reheat food using the slow cook setting. Reheat food
conventionally or in a microwave. Food must only be reheated once.
23

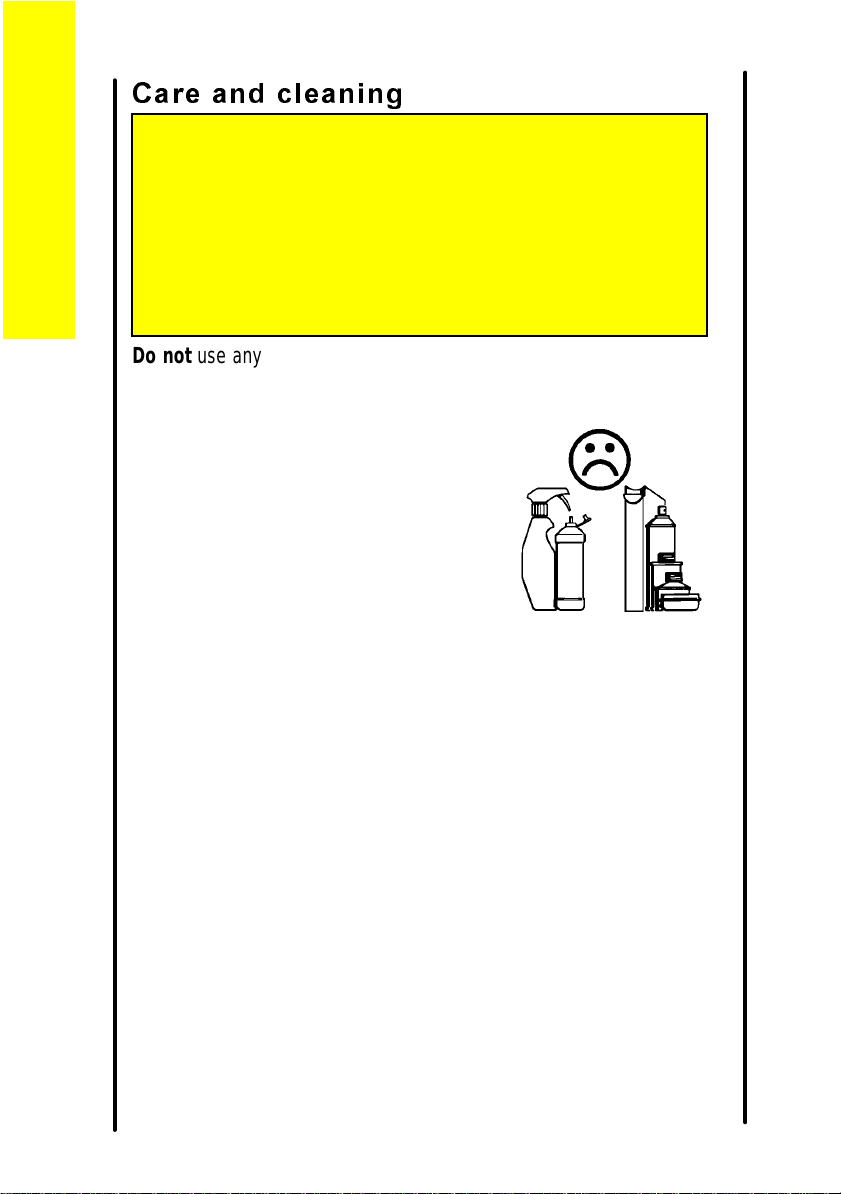

Care and cleaning
For your safety
For hygiene and safety reasons you must keep this gas
appliance clean. A build up of fat or other foodstuff could cause a
Care and cleaning
fire.
Try to mop up spills and splashes as soon as they happen.
But be careful as parts of the appliance will be hot.
Do not use any polishes, caustic cleaners, abrasives, washing soda or
soap except those recommended.
Please note: If we recommend you use hot
soapy water we mean hot water with
washing up liquid in it and not any other
cleaning product.
If you own a dishwasher please read the
operating instructions for the machine before
you wash any part of your appliance in it.
Clean your appliance regularly using a
cloth that has been wrung out in hot soapy
water. Rinse and polish it dry using a soft
cloth.
When you remove parts of your appliance for cleaning do not
plunge them into water whilst they are very hot as this may damage the
finish of the parts.
S I G 3 3 1
The hotplate
Clean the hotplate top using a mild abrasive such as 'Cif'. Take care not
to damage the spark electrodes. If the spark electrodes are damaged
the burners will not light.
You can remove the pan supports, burner caps and burner crowns
to clean them. Again take care not to damage the spark electrodes.
If any food spills during cooking you can place the pan on another
burner to finish cooking. Then you can remove the dirty parts and clean
them before the spill 'burns on'.
24
S I G 3 3 1
You can wash the removable parts in very hot soapy water. You may
use mild abrasives. Make sure that the electrode and the hole and slots
in the crown are not blocked with food or cleaning materials.
Clean the burner crowns by soaking them in very hot soapy water.
You can remove any stubborn stains by scouring with a soap filled pad
such as 'Brillo'. If you look after the burner crowns in this way they will
stay reasonably clean. However the surface will dull with time.
Aluminium based saucepans can leave shiny metal marks on the pan
supports. Clean the pan supports regularly to remove the marks using a
mild abrasive like 'Cif' with a soft scourer. For more stubborn marks you
can use a soap-filled pad such as 'Brillo'.
After cleaning the appliance parts, dry
them thoroughly before you put them back.
When replacing hotplate burner parts
1. Crown to body (Do not try to force the
crown on to the body).
Make sure that the hole in the crown is
over the electrode. Check that the two
longer location pegs sit in the slots in the
body. When the crown is in this position
let it fall freely on to the body. Check that
the crown can be moved slightly from
side to side.
2. Cap to crown
Place cap centrally on the top of the
crown (enamel side up). Move sideways
and front to back to check the cap is
properly fitted.
3. Check for ignition
If a burner will not light then you need to
check the crown and cap positions.
Care and cleaning
The grill and second oven
Clean the grill and oven frequently using hot soapy water.
After use you can soak the grill pan for a few minutes and then clean
it using mild abrasives or a soap filled pad such as 'Brillo'. Clean the
shelf using hot soapy water. Mild abrasives can be used if necessary.
The heat in the oven will change the colour of the solid plate on the
shelf. You must not remove the solid plate from the shelf. You can soak
the shelf for a few minutes in hot soapy water to make cleaning easier.
25
The grill
Do not clean the grill burner itself.
The burner is designed to be self cleaning. Cleaning the grill may cause
the holes in the burner to become blocked preventing it from operating
correctly.
Care and cleaning
Please note that due to the nature of stainless steel the grill burner may
tarnish through use over a period of time. This is quite normal and is not
a fault on the appliance.
Clean the area around the grill frequently using hot soapy water.
After use you can soak the pan for a few minutes and then clean it using
mild abrasives or a soap filled pad such as 'Brillo'.
Clean the grill shelf using hot soapy water. Mild abrasives can be used
if necessary.
S I G 3 3 1
26
S I G 3 3 1
The main and top oven
The insides of the ovens are finished in vitreous enamel. You should
clean the ovens regularly using hot soapy water and mild abrasives or a
soap filled pad such as 'Brillo'. If you use any oven cleaners they must
have the Vitreous Enamel Development Council (VEDC) seal of
approval. Follow the instructions on the cleaning agent and protect the
ovens burner with foil to prevent it becoming blocked.
General
Clean the base of the ovens, the ovens shelves, and the ovens door
while they are still slightly warm. This way you can easily remove any
splashes and spills. Wipe the base with a cloth that has been wrung out
in hot soapy water. You may use mild abrasives.
Installing the appliance
For your safety
This appliance must be installed and serviced by a competent
person as stated in the Gas Safety (Installation & Use)
regulations current editions and the IEE Wiring Regulations.
It is important that the appliance is suitable for your gas supply.
Your installer should check the rating plate.

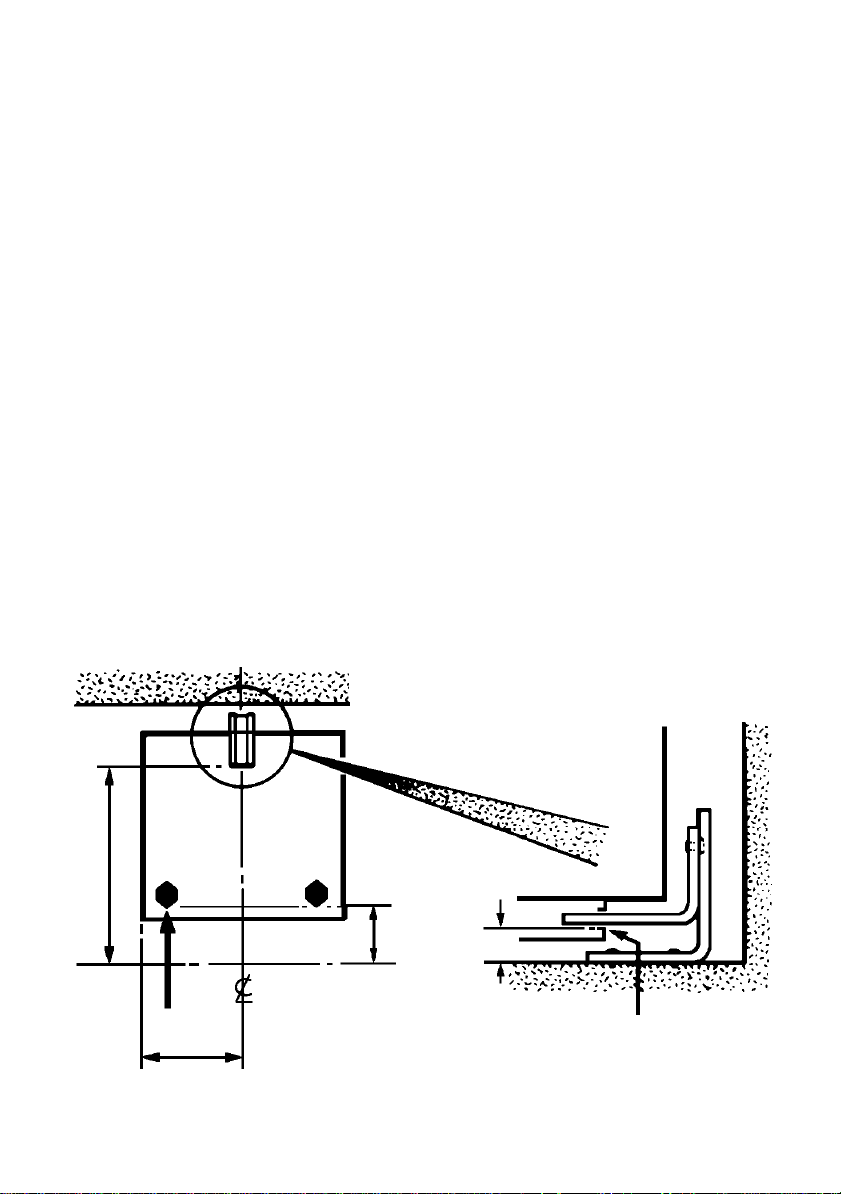

Make sure that a stability bracket is fitted.
Installation
Location
For your safety
The use of a gas cooking appliance results in the production of
heat and moisture in the room in which it is installed. Ensure that
the kitchen is well ventilated: keep natural ventilation holes open
or install a mechanical ventilation device (mechanical extractor
hood).
Prolonged intensive use of the appliance may call for additional
ventilation, for example opening of a window, or more effective
ventilation, for example increasing the level of mechanical
ventilation where present.
For further details see page 37.
27

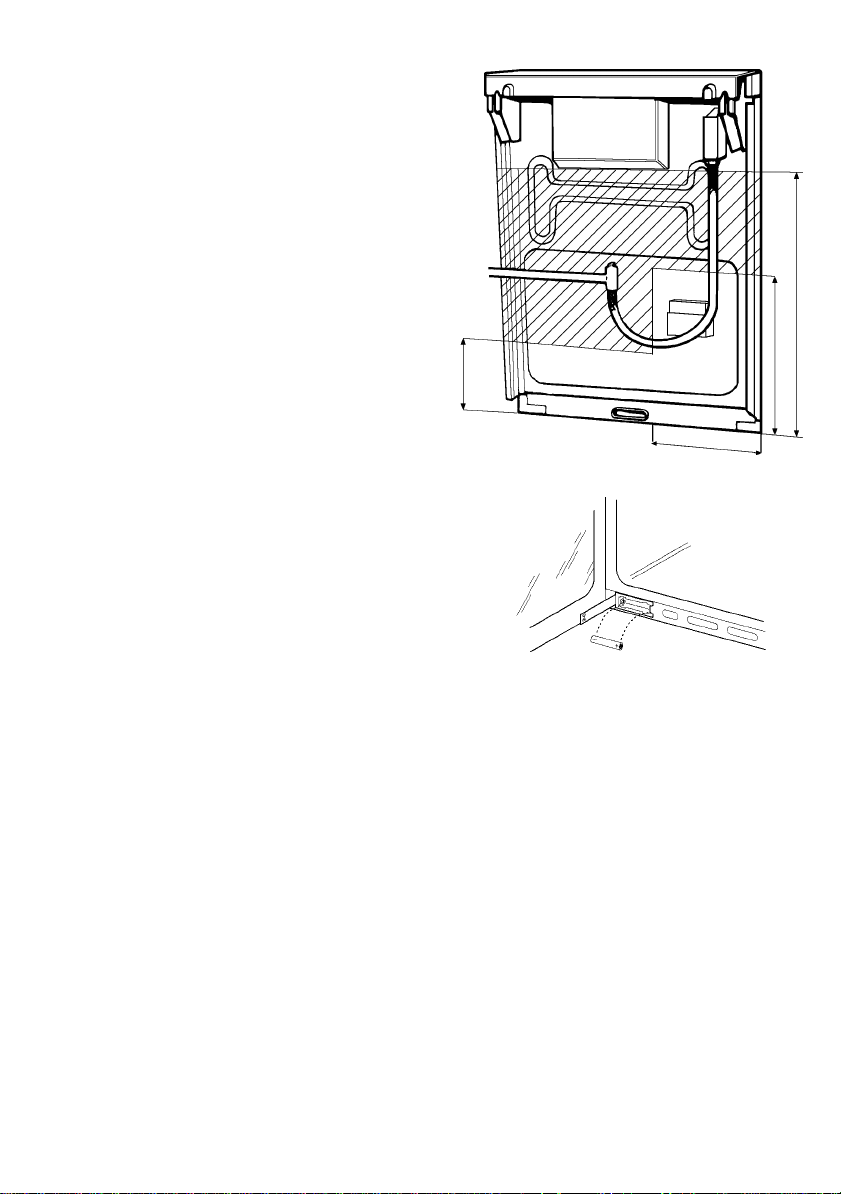

Positioning
The diagram shows how close to the appliance cupboards, shelves,
Installation
curtains and so on can be fitted. Check the diagram and carefully read
the instructions to make sure your appliance is fitted safely. If you are in
doubt your installer will give you advice.
l
S I G 3 3 1
Do not fit any materials which may catch fire for example wood or
curtains behind the appliance.
l
Base units which are higher than the hotplate must be 100mm away.
l
If a cooker hood is fitted read the cooker hood installation
instructions.
l
We recommend that cabinets fitted next to or above the appliance
meet British Standards. Your installer will give you advice if you are
not sure.
Appliance dimensions
Height to hotplate:
Width:
Depth:
898mm-920mm
498mm
600mm (to front of door panel)
28
S I G 3 3 1
General information
For your safety
Do not block any of the appliance vents.
Never line any part of the appliance with foil.
Do not let items which can catch fire or electric mains leads such
as kettle flexes trail over any part of the appliance.
Moving your appliance
You may damage some soft or badly fitted floor coverings when you
move the appliance. The floor covering under the appliance should be
securely fixed so it does not ruck up when you move the appliance
across it. Alternatively you could remove the floor covering.
To move the appliance open the second oven door. Raise the
appliance off its front feet by lifting it from inside the oven. Pull the
appliance forward. When you replace the appliance push it back to the
stop and make sure there is the same gap at each rear corner.
The battery
The battery for the ignition will
usually last for many months. If the
ignition system doesn't work you
probably need to replace the battery.
The battery is at the base of the
appliance on the left-hand side of the
front. When you need to replace the
battery, open the main oven door, lift
up the battery holder lid and replace
the battery as shown in the diagram.
The battery you need to replace is
AA size.
When you fit the new battery, make sure the positive end (marked with a
+ sign) is next to the (+) sign on the battery holder. Close the lid of the
battery holdler.
You can light the burners with a match until you have time to change the
battery.
General information
29
n
For your safety
Do not try to disconnect the appliance from the gas supply if the
supply pipe does not have a bayonet connection, as described in
General informatio
the installation instructions. If this is the case contact the person
who installed the appliance.
S I G 3 3 1
30
S I G 3 3 1
What is wrong and why?
We strongly recommend that you carry out the following checks on your
appliance before calling your local Service Force Centre.
Problem
The oven, grill or hotplate will not light.
Check
l
If only the hotplate burners will not light make sure that the burner
parts have been placed correctly. See instructions on page 25.
l
If you cannot hear any sparking or the sparking is slow when you
press the ignition button it may not be strong enough to light the
appliance. You will probably need to replace the battery. For
instructions on how to do this see page 29. You can light the burners
with a match until you have time to change the battery.
l
Check that there is not a problem with your gas supply. You can do
this by making sure that other gas appliances such as your central
heating or gas fire are working.
Problem
Food is cooking too quickly or too slowly.
Check
l
Check that you are using the recommended gas marks and shelf
positions. See pages 16 - 21. Be prepared to adjust the gas mark up
or down to get the results you want.
What is wrong and why?
Problem
Having difficulty cleaning any part of the appliance.
Check
l
Check that the instructions for care and cleaning, beginning on page
24 are being followed.
31
Problem
The oven is not cooking evenly.
Check
l
Check that the appliance is installed properly and is level.
l
Check that you are using the recommended size baking trays. See
page 14.
l
Check that you are using the recommended temperatures and shelf
What is wrong and why?
positions.
l
If you are cooking a large item be prepared to turn it round during
cooking.
l
Turn round all food in the second oven.
S I G 3 3 1
32
S I G 3 3 1
Service and spare parts
In the event of your appliance requiring service, or if you wish to
purchase spare parts please contact your local Service Force Centre by
telephoning:-
Your telephone call will be automatically routed to the Service Force
Centre covering your post code area.
For the address of your local Service Force Centre and further
information about Service Force, please visit the website at
www.serviceforce.co.uk
Customers in Ireland should telephone (01) 4090755
Before you call an engineer check through the information under the
heading 'What is wrong and why? '
In-guarantee customers should ensure that the checks
under the heading 'What is wrong and why?' have been
made as the engineer will make a charge if the fault is not a
mechanical or electrical breakdown.
Please note that it is necessary to provide proof of purchase
for any in-guarantee service calls.
0 8 7 0 5 9 2 9 9 2 9
Servicing
When you report a problem try to describe the nature of the fault.
Always give your appliance's full name, model and serial number.
Make a note of this information in this space:
Name:
Model Number:
Serial Number:
P.N.C. Number:
33
S I G 3 3 1
Servicing
Customer Care Department
For general enquiries concerning your Parkinson Cowan appliance or
further information on products, you are invited to contact our Customer
Care Department by letter or telephone as follows:
Customer Care Department
Parkinson Cowan
55-77 High Street
Slough
Berkshire
SL1 1DZ
* calls to this number may be recorded for training purposes.
For your safety
Maintenance must only be carried out by a competent /qualified
person. Do not try to repair or alter/modify the appliance
yourself as this could be dangerous.
We recommend that your appliance has an annual gas safety
check carried out by our approved service organisation.
Tel: 08705 950950 *
The Gas Consumers' Council
The Gas Consumers' Council (GCC) is an independent organisation
which protects the interests of gas users.
If you need advice, you will find the telephone number in your local
telephone directory under Gas.
34
INSTALLATION INSTRUCTIONS
Serial number at front.
Rating Plate on top rear of
panel.
Please note that the handle may differ in type and shape from that shown in the diagram.
Please note that the lid may differ in type and shape from that shown in the diagram.
For your safety
Where applicable Natural Gas and L.P. Gas versions of this
appliance are available.
Check that this model is suitable for the type of supply available.
In the interest of safety this appliance must be installed and/or
serviced by a competent person, as stated in the Gas Safety
(Installation and Use) Regulations Current Editions.
35
TECHNICAL DATA
DIMENSIONS
Height to hotplate 900mm (nominal) 500mm (nominal) 600mm
Space for fixing at hotplate level 2mm minimum clearance
Space for fixing above hotplate level See important note 'Location of Appliance' page 38.
Minimum space above hotplate 787mm (If a cooker hood is fitted refer to the cooker hood
Weight of appliance 52.5kg.
Minimum distance from rear wall 5mm (spacer given by pressed spacer on vent panel).
CONNECTIONS
Gas Rear left hand side of appliance at hotplate level.
Rc½ (½" B.S.P. female).
Electric None
IGNITION
Battery 1.5 Volt AA size
Height Width Depth
(to front of
door panel)
installation instructions).
GRILL
Heat Input 2.7kW (9215 Btu/h) 2.45kW (176g/h)
Injector Marking 121 78
Natural Gas L.P. Gas
HOTPLATE
Natural Gas
Heat Input 1.0kW 2.0kW 2.0kW 2.8kW
Injector Marking 079 104 104 130
Heat Input 1.0kW 2.0kW 2.0kW 2.7kW
Injector Marking 051 072 072 083
MAIN OVEN
Heat Input 2.4kW (8189Btu/h) 2.4kW (172.4 g/h)
Injector Marking 108 78
Thermostat By-Pass 69 78
R.H.F. R.H.R. L.H.R. L.H.F
(3412 Btu/h) (6824 Btu/h (6824 Btu/h) (9554 Btu/h)
L.P. Gas
(71.8 g/h) (143.7 g/h) (143.7 g/h) 194.0 g/h)
Natural Gas L.P. Gas
36
SECOND OVEN
Heat Input 2.4kW (8189 Btu/h) 2.4kW (172.4g/h)
Injector Marking 108 78
Dual Control By-pass Fixed Internal Fixed Internal
Natural Gas L. P. Gas
GENERAL
Ignition H. T. Spark
Spark Gap 3-4mm
IMPORTANT - SAFETY REQUIREMENTS
This appliance must be installed in accordance with the Gas Safety (Installation and Use) Regulations
Current Editions. Detailed recommendations are contained in the following British Standard Codes of Practice
- BS. 6172, BS.5440: Part 2 and B.S.6891. All British Standards must be 'Current Editions'.
PROVISION FOR VENTILATION
This appliance is not connected to a combustion products evacuation device. It shall be installed and
connected in accordance with the current installation regulations. Particular attention shall be given to the
relevant requirements regarding ventilation.
The room containing the appliance should have an air supply in accordance with BS. 5440: Part 2 Current
Edition. All rooms require an openable window or equivalent and some rooms will require a permanent vent
as well. For room volumes up to 5m³ an air vent of 100cm² is required: for room volumes between 5m³ and
10m³ an air vent of 50cm² is required. If the room has a door that opens directly to the outside, no air vent is
required. For room volumes that exceed 11m³ no air vent is required. If there are other fuel burning
appliances in the same room, BS.5440: Part 2 Current Edition should be consulted to determine the requisite
air vent requirements.
Prolonged intensive use of the appliance may call for additional ventilation, for example opening a window, or
more effective ventilation, for example increasing the level of mechanical ventilation where present.
37
LOCATION OF APPLIANCE
This appliance must not be installed in a bed-sitting room of volume less than 20m³ or in a bathroom , shower
room or garage. It is essential that the appliance is positioned as stated below (see Fig. 1a) i.e. shelves, wall
cabinets and appliance hoods must be fitted a minimum of 787mm directly above the top of hotplate and
400mm above the hotplate when fitted in line with the outside of the appliance. If the units are intended to be
fitted adjacent to the appliance but less than 400mm above the hotplate, then a minimum space of 100mm
must be maintained between the sides of the unit and the appliance (see Fig.1b). Curtains must not be fitted
immediately behind the appliance or within 150mm of the sides of the hotplate. If fitted next to or between two
base units a minimum space of 1mm must be left between each unit and the sides of the appliance. The
levelling feet fitted to the appliance will achieve a nominal height to hotplate trims of 900mm - 2mm + 20mm.
L.P.G. cookers MUST NOT be installed below ground level, i.e. in a basement, or be fitted aboard any boat,
yacht or other vessel.
400
787
Fig.1a All dimensions in mm Fig.1b
787
100
less
than
400
38
INSTALLATION
1. PARTS REQUIRED
The loose hotplate parts and battery are packed in the polystyrene fitment on top of the hotplate.
2. LEVELLING THE APPLIANCE
Adjustable levelling feet at the front and the rear are provided on the base of the appliance.
Adjustment to suit floor conditions is obtained by rotating in or out the hexagonal feet from the underside of
the appliance.
A spirit level should be placed on one of the oven shelves to confirm the appliance is correctly levelled.
3. FITTING THE STABILITY BRACKET
It is recommended that if the appliance is to be installed with a flexible supply pipe a stability bracket
(SK.4729.A) is fitted and is available from your supplier (see Important Safety Requirements, Page 37).
These instructions should be read in conjunction with the leaflet packed with the stability bracket.
1. Place the appliance in its intended position and level appliance.
2. Mark off 250mm from the left hand side of the appliance as shown in dimension 'A', Fig 2. This is the
centre line of the fixing bracket.
3. Draw a line 100mm from the front edge of the levelling feet (see Fig 2) and remove appliance from its
position. Mark off dimension 'B' (see Fig 2) back from this line on the centre line of the bracket to locate
the front edge of the lower bracket. Fix lower bracket (with two fixing holes) to the floor then measure the
height from floor level to engagement edge on back of appliance, dimension 'C' of Fig. 3.
4. Assemble upper bracket to lower bracket so that underside of bracket is dimension 'C' +3mm above
floor level. (see Fig. 3).
Reposition appliance and check that top bracket engages into appliance back as shown in Fig. 3.
487mm (B)
100mm
(A)
250mm
Fig.2 Fig.3
(C)
39
4. CONNECTING TO GAS
This appliance is designed to be installed with an appliance
flexible connection only. Supply piping should not be less
that R³/8. Connection is made to the Rc ½ (½" B.S.P.)
female threaded entry pipe located just below the hotplate
level on the rear left hand side of the appliance. NOTE:
ONLY LIQUID SEALANTS TO BE USED WHEN INLET
GAS PIPE IS FITTED TO RESET VALVE I.E.: DO NOT
USE P.T.F.E. SEALANT TAPE.
Check for gas soundness after connecting the gas supply.
The gas bayonet connector must be fitted in the shaded area
indicated in Fig. 4. Take into account that it must be possible
to pull the appliance forward sufficiently. The hose must not
get caught on the stability bracket.
IMPORTANT: FLEXIBLE TUBING USED MUST COMPLY
WITH BS. 669 CURRENT EDITION.
L.P.G. FLEXIBLE CONNECTIONS MUST BE OF A TYPE
SUITABLE FOR L.P.G. AND CAPABLE OF OPERATION
UP TO 50 mbar AND TO CARRY A RED STRIPE, BAND
OR LABEL.
250
5. FITTING THE BATTERY
1. The battery is located on the left hand side of the front plinth.
2. To gain access to the battery, open the main oven door and
lift up the battery holder lid.
3. Fit the new battery ensuring (+) terminal is next to the (+)
sign on the battery. See Fig.5.
4. Close the lid of the battery
holder
Fig.4
650
400
200
All dimensions in mm
Fig.5
6. PRESSURE TESTING
1 The oven injector is used as a pressure test point.
Remove the oven furniture. Remove oven burner box retaining clips (one spring clip from each side)
and remove box front cover. Replace one clip back into the right hand side of the burner box.
Remove oven burner by removing the spring clip from the right hand side of the oven burner and slide
burner off injector whilst easing it forward and taking care not to strain the F.S.D. phial.
2. Connect the pressure gauge to the oven injector.
3. Check the supply pressure by turning the thermostat on and one hotplate tap full on and light the
appropriate burner. The pressure should be either:(i) For Natural Gas 20mbar
(ii) For LP.Gas The pressure must be set to 28 mbar for use on butane or 37 mbar for use on propane.
4. Turn off the taps, disconnect the pressure gauge and replace oven burner and cover, ensuring that the
F.S.D. phial is correctly located into the bracket on the burner.
5. Check operation of oven.
7. CHECKING THE GRILL
Place the grill pan containing the grid, with the handle attached, into the grill compartment. Light the grill
burner by turning the grill tap full on and pressing the ignition button on the fascia panel. As soon as the
burner is lit the button can be released.
40
8. CHECKING THE HOTPLATE
Lift the lid. Fit the burner crowns and caps ensuring that they are correctly seated. Fit the pan supports.
Check each of the hotplate burners in turn by turning the hotplate tap to it's full on position and pressing
the ignition button. As soon as the burners are lit the button can be released.
9. CHECKING LID CUT-OFF DEVICE
1. Lift the lid.
2. Turn on and ignite hotplate burner.
3. Close lid. There should be no gas supply to the hotplate and the burner will go out.
4. Turn off the hotplate tap
5. Lift the lid. The gas supply should now be restored to the hotplate when the tap is turned on.
10. CHECKING THE MAIN OVEN
1. Turn the oven thermostat knob to Mk 9 and press the ignition button. As soon as the burner is alight the
button can be released.
2. There should now be a low gas rate to the burner, which is the F.S.D. by pass rate.
3. When the F.S.D. phial has heated up it opens the F.S.D. valve which allows the main gas supply to the
oven burner.
4. After 1 minute check that the flame covers the full width of the burner and is stable.
5. Set the oven control to Mk 2, close the oven door and check that after about 10 minutes the flame size
has reduced.
6. Turn off the control and check that the oven flames go out.
11. CHECKING THE SECOND OVEN
1. Turn the second oven thermostat control knob anticlockwise to Mk8 and press the ignition button. As
soon as the burner is alight the button can be released.
2. When the oven burner lights up there should be a low gas rate at first to the oven burner which is the
F.S.D. by-pass rate.
3. When the F.S.D. phial has heated up it opens the F.S.D. valve and the main gas stream flows to the
burner.
4. After 1 minute check that the flame covers the full width of the burner and is stable.
5. Set the oven control to Mk. 2, close the oven door and check that after approx. 10 minutes the flame
size has reduced.
6. Turn off the control knob and check that the oven flames go out.
GENERAL NOTE
Instruct the user on how to use the appliance and its ignition system.
Refer the user to the wording in the inside cover which gives advice on the safe operation of the appliance.
41
N O T E S
SIG 331 311534108
42
Contents Check List
Note:
If you require replacements of the item listed below please contact your local Service
Force Centre quoting the relevant part number.
The loose contents of this pack include:-
No. OFF DESCRIPTION
2 Main Oven shelves
1 Guarantee card
1 Grill pan (311409401)
1 Grill pan grid (311419801)
1 Grill pan handle (311468100)
1 Grill / second oven shelf
4 Burner crowns
4 Burner caps
2 Pan supports
1 Battery
Note:
If you require an additional handle for your grill pan, this can be ordered from your local
Service Force Centre by quoting part number 311479800\6.
43
IMPORTANT NOTICE
In line with our continuing policy of research and development, we reserve the right to
alter models and specifications without prior notice.
This instruction booklet is accurate at the date of printing, but will be superseded if
specification or appearance are changed.
Description
Burner Cap - Rapid
Burner Cap - Normal
Burner Cap - Simmer
Burner Crown - Rapid - N.G.
Burner Crown - Rapid - L.P.G.
Burner Crown - Normal
Burner Crown - Simmer
Pan Support
No.
Off
1
2
1
1
1
2
1
2
Maker's Part
Number
354000610
354000609
354000608
359039100
337000302
337000402
337000502
359033202
NOTE : Failure to use manufacturers original spares could negate normal BSI approval of the product
PARKINSON COWAN
55 - 77 HIGH STREET,
SLOUGH,
BERKSHIRE,
SL1 1DZ.
TELEPHONE 0870 5 950950
Part Number:311534108
© Electrolux Household Appliances Limited 2002
Loading...
