Electrolux P 6046 SDV User Manual

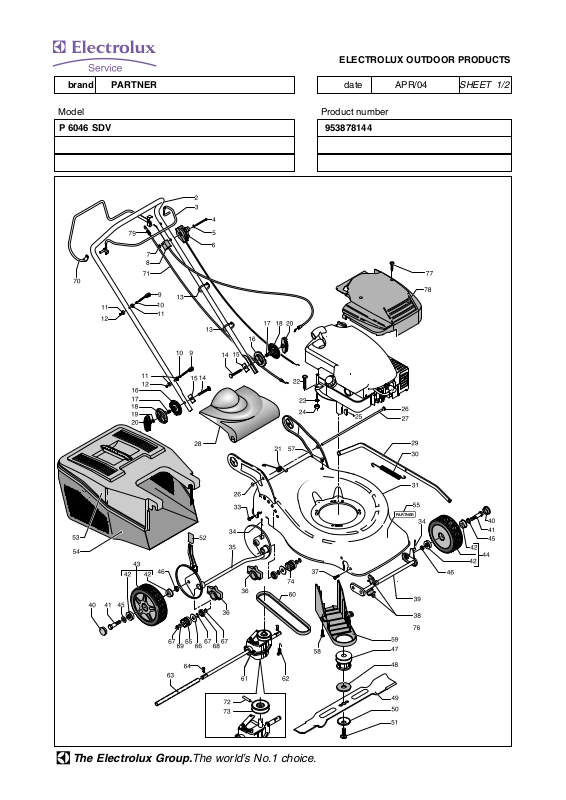

ELECTROLUX OUTDOOR PRODUCTS

brand PARTNER

date APR/04

Model Product number

P 6046 SDV 953878144

SHEET 1/2

The Electrolux Group.The world’s No.1 choice.

PARTNER

l

ELECTROLUX OUTDOOR PRODUCTS

brand | PARTNER date

APR-04 SHEET 02/02

Mode

P 6046 SDV

Pos. PN ELX MEP P\n° DESCRIPTION Q.ty Pos. PN ELX MEP P\n° DESCRIPTION Q.ty

2 531211438 10172933 HANDLE 1 41 531205042 10120090 SCREW 4
3 531211452 10135891 BRAKE HANDLE 1 42 531205214 10121900 BALL-BEARING 4
4 531206212 10155420 SCREW 1 43 531210613 9122041 WHEEL 2
5 531206666 10284700 WASHER 1 44 531210703 9175111 WHEEL 2
6 531206210 10155360 ACCELERATOR 1 45 531206644 10275100 WASHER 4
7 531205213 10121890 NUT 1 46 531207978 20101700 NUT 4
8 531205191 10121610 BRAKE CABLE 1 47 531205048 10120200 BLADE ADAPTER 1

9 531205169 10121470 CABLE HOOK 2 48 531207243 10531700 WASHER 1
10 531204961 10115900 WASHER 4 49 531211652 10173170 BLADE 1
11 531207165 10501200 NUT 2 50 531207237 10530900 WASHER 1
12 531208491 20281800 NUT 2 51 531208008 20120580 SCREW 1
13 531205581 10135600 CLAMP 2 52 531207986 20107203 SHEATING 1
14 531211480 10173060 SCREW 2 53 531208296 20146113
15 531211581 10173103 PLATE 2 54 531208313 20146593
16 531211473 10173003 DISK 2 55 531211559 9999A255 LABEL 1
17 531211476 10173033 SPRING 2 57 531205557 10135413 CABLE LOCK 1
18 531211474 10173013 DISK 2 58 531207856 10831800 SCREW 3
19 531204922 10114200 WASHER 2 59 531205047 10120183 BELT HOUSING 1
20 531205840 10141253 KNOP 2 60 531207280 10548500 BELT 1
21 531211840 10173270 SPRING 1 61 531212936 9173710 GEAR-BOX 1
22 531205196 10121700 SCREW 2 62 531206182 10155210 SPRING 1

531206681 10291000 SCREW 1 63 531207697 10766503 SPACER TUBE 1
23 531207981 20106200 WASHER 6 64 531205108 10121160 KEY 2
24 531207982 20106300 NUT 3 65 531205045 10120160 PINION 1
25 531204907 10100900 KEY 1 66 531207847 10831200 WASHER 2
26 531210824 10175400 WASHER 2 67 531208772 20655800 SEEGER 6
27 531211441 10172980 TIE ROD 1 68 531208778 20657600 BALL-BEARING 2
28 531212646 10173511 DEFLECTOR 1 69 531208859 20761300 WASHER 2
29 531205069 10120653 AXLE 1 70 531205616 10135883 CLUTCH HANDLE 1
30 531205056 10120460 SPRING 1 71 531211847 10173110 CABLE 1
31 531212404 1018503E DECK 1 74 531205046 10120170 PINION 1
33 531208216 20135720 SCREW 2 75 531211966 10155560 SPACER 2
34 531206653 10281400 COTTER PIN 2 76 531206031 10146690 SAFETY HOUSING 1
35 531212578 1012109ZC AXLE 1 77 531205823 10140983 SCREW 1
36 531205944 10146093 SUPPORT 2 78 531205818 10140970 MOTOR COVER 1
37 531208844 20734900 SCREW 4 79 531210573 10177570 SPRING 1
38 531205057 10120473 SUPPORT 4
39 531212587 1012029ZC AXLE 1
40 531210538 10114801 PLUG 4

GRASS CATC.UPPER 1
GRASS CATC.LOWER 1
