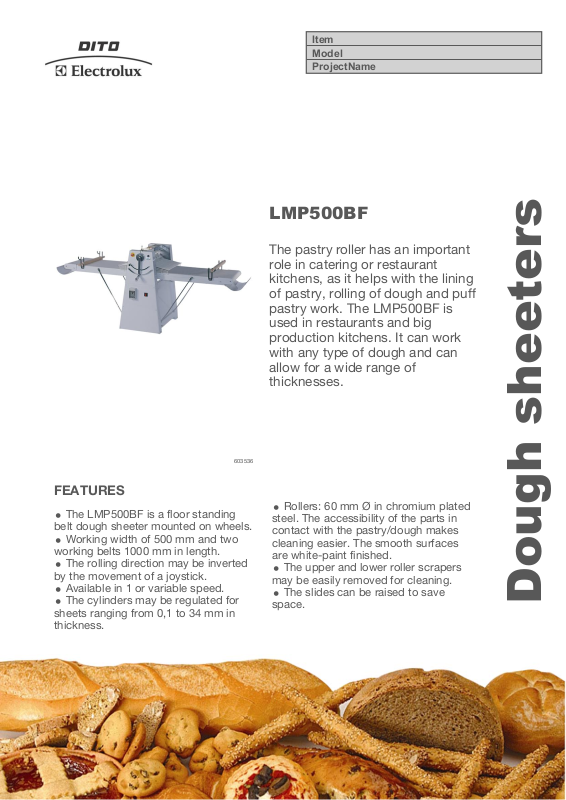

Electrolux LMP500BF User Manual
Item
Model
ProjectName
LMP500BF
The pastry roller has an important
role in catering or restaurant
kitchens, as it helps with the lining
of pastry, rolling of dough and puff
pastry work. The LMP500BF is
used in restaurants and big
production kitchens. It can work
with any type of dough and can
allow for a wide range of
thicknesses.
603536
FEATURES
V The LMP500BF is a floor standing
belt dough sheeter mounted on wheels.
V Working width of 500 mm and two
working belts 1000 mm in length.
V The rolling direction may be inverted
by the movement of a joystick.
V Available in 1 or variable speed.
V The cylinders may be regulated for
sheets ranging from 0,1 to 34 mm in
thickness.
V Rollers: 60 mm Ø in chromium plated
steel. The accessibility of the parts in
contact with the pastry/dough makes
cleaning easier. The smooth surfaces
are white-paint finished.
V The upper and lower roller scrapers
may be easily removed for cleaning.
V The slides can be raised to save
space.
Dough sheeters
V Each safety grating is hinged on the
structure and is equipped with a safety
micro-switch which helps to avoid injury.
When the gratings raise over a particular
level, the motor stops.
V Remote foot pedal to change rolling
direction (available as accessory).
V Flour container fixed on the top of the
machine.
V General electrical protection by fuses.
V Motor protected by a circuit breaker.
V The belts can be removed and are
washable.
V Ergonomic controls situated very close
together and are designed to suit natural
movements.
V Emergency stop button with lock and
manual re-start.
Specifications
LMP500BF1
MODEL
External dimensions - mm
width 2380 2380
depth 890 890
height 1265 1265
Power - kW
installed-electric 0.75 0.75
Net weight - kg. 160 160
Supply voltage 380...415 V, 3,
Belt speed one variable
603536
50/60
LMP500BFV
603537
230...240 V, 1N,
50/60
Optional accessories
CODE DESCRIPTION
653600 PEDAL TO CHANGE ROLLING
DIRECT.-SHEETERS
LMP500BF1
603536
✓ ✓
LMP500BFV
603537
