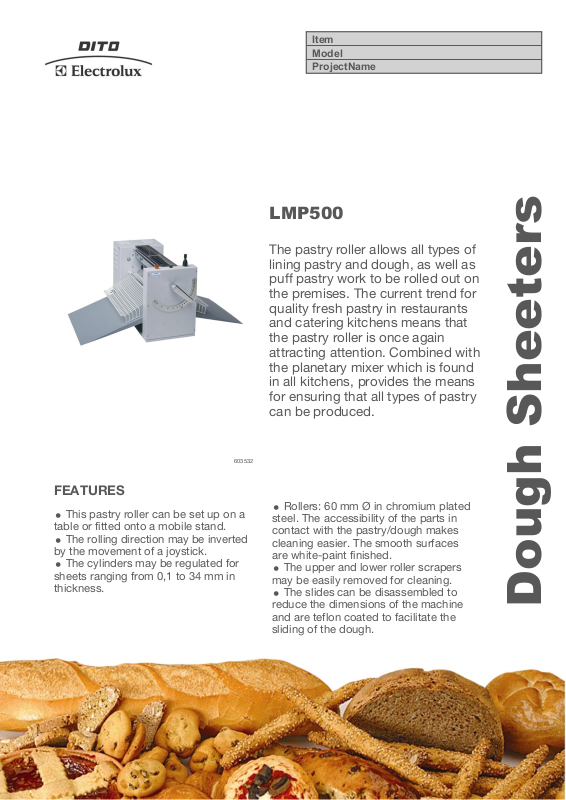

Electrolux LMP5003, 603532, LMP50036, LMP5001, 603534 User Manual

Item
Model
ProjectName

LMP500

The pastry roller allows all types of
lining pastry and dough, as well as
puff pastry work to be rolled out on
the premises. The current trend for
quality fresh pastry in restaurants
and catering kitchens means that
the pastry roller is once again
attracting attention. Combined with
the planetary mixer which is found
in all kitchens, provides the means
for ensuring that all types of pastry
can be produced.

603532

FEATURES

V This pastry roller can be set up on a

table or fitted onto a mobile stand.

V The rolling direction may be inverted

by the movement of a joystick.

V The cylinders may be regulated for

sheets ranging from 0,1 to 34 mm in
thickness.

V Rollers: 60 mm Ø in chromium plated

steel. The accessibility of the parts in
contact with the pastry/dough makes
cleaning easier. The smooth surfaces
are white-paint finished.

V The upper and lower roller scrapers

may be easily removed for cleaning.

V The slides can be disassembled to

reduce the dimensions of the machine
and are teflon coated to facilitate the
sliding of the dough.

Dough Sheeters

V Each safety grating is hinged on the

structure and is equipped with a safety
micro-switch which helps to avoid injury.
When the gratings raise over a particular
level, the motor stops.

V Remote foot pedal to change rolling

direction (available as accessory).

V Flour container fixed on the top of the

machine.

V General electrical protection by fuses.
V Motor protected by a circuit breaker.

Emergency stop button, with lock and
manual re-start, ensures that the rolling
cylinders stop immediately.

Specifications

LMP5003

MODEL

External dimensions - mm
width 1000 1000 1000
depth 835 835 835
height 470 470 470
Power - kW
installed-electric 0.37 0.37 0.37
Net weight - kg. 70 70 70
Supply voltage 380...415 V, 3,

603532

50/60

LMP5001

603533

230...240 V, 1N,50208...240 V, 3,

LMP50036

603534

60

Optional accessories

CODE DESCRIPTION

653600 PEDAL TO CHANGE ROLLING

DIRECT.-SHEETERS

653599 TROLLEY FOR DOUGH

SHEETERS-LMP500

LMP5003

603532

✓ ✓ ✓
✓ ✓ ✓

LMP5001

603533

LMP50036

603534
