PROFESSIONAL LAUNDRY

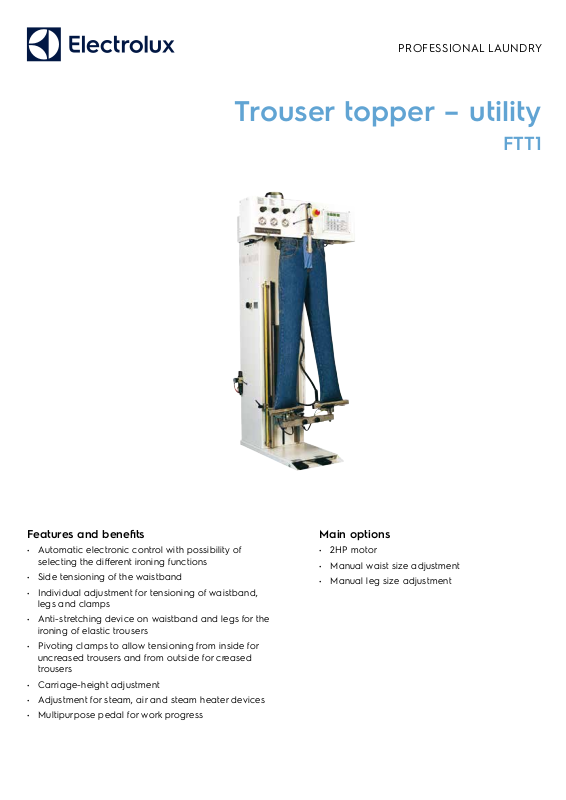

Trouser topper – utility

FTT1

Features and benefits

• Automatic electronic control with possibility of
selecting the different ironing functions

• Side tensioning of the waistband

• Individual adjustment for tensioning of waistband,
legs and clamps

• Anti-stretching device on waistband and legs for the
ironing of elastic trousers

• Pivoting clamps to allow tensioning from inside for
uncreased trousers and from outside for creased
trousers

• Carriage-height adjustment

• Adjustment for steam, air and steam heater devices

• Multipurpose pedal for work progress

Main options

• 2HP motor

• Manual waist size adjustment

• Manual leg size adjustment

B

Electrical connections

Voltage

400V 3N AC 50Hz kW(A)
208-240V 3AC 60Hz kW(A)

Steam, air and vacuum connection

Steam DN
Steam consumption kg/h
Rec. steam pressure kPa
Condensate DN
Compressed air DN
Air consumption l/min
Air pressure kPa

Shipping data

net, kg
crated, kg

Dimensions in mm

A Width
B Depth
C Height
D

1 Control panel
2 Electrical connections
3 Compressed air connection
4 Steam connection
5 Condensate
6 Pedal deck

FTT1

2(10)
2(10)

15

15-20

500-600

15

8

40

600-700

170
190

885
905

2025

770

A

D

3

2

1

4

C

5

6

W00172

Right sideFront

Rear side

www.electrolux.com/professional

Share more of our thinking at www.electrolux.com

Art. No. 438913501/2015.01.14

We reserve the right to alter specifications without notice.
