Electrolux NUCA1DDG, EUCA1DP, 698005, 400137 Technical Data Manual

Electrolux Dishwashing

Undercounter Dishwasher

The Electrolux Dishwashing range is produced for the customer with highest conceivable demands for good
efficiency, economy and ergonomics for dishwashing operation. The product range comprises of
glasswashers, undercounter dishwashers, hood type dishwashers, rack type dishwashers, flight type
dishwashers and pot and pan washers. The undercounter dishwashers detailed in this sheet have a capacity of
720 dishes per hour and are available in Wash Safe Control or WRC-compliant models.

400137

SANITIZATION AND
PERFORMANCE

• The atmospheric boiler guarantees

a constant high rinse temperature of
84°C and constant pressure
independent from the main water
network (with a minimum of 0.5 bar)
thus guaranteeing rinse quality of the
tableware in line with current
international standards.

• On model 400137, the green light of

the “Wash Safe Control” confirms
that items have been properly rinsed.

• 4 second (variable) pause after

washing and before rinsing ensures
that no drops of unclean water will fall
on the clean items at the end of the
rinsing cycle.

• Model 698005 has two dishwashing

programs: 1st cycle of 90 seconds for
lightly soiled items and 2nd cycle of
180 seconds for normally soiled

items, while model 400137 has three
dishwashing programs: 1st cycle of
90 seconds for lightly soiled items,
2nd cycle of 120 seconds for normally
soiled items and 3rd cycle of 240 for
heavily soiled items*.

• Fault auto-diagnosis system.

• An effective rinse system that uses

only 3 litres of clean hot water per
rack to ensure lower running costs (in
energy, water and chemical
consumption).

• Double skinned insulated door

ensures a reduction in heat loss from
the machine.

HYGIENE AND RELIABILITY

• All the machines have smooth

surfaces to facilitate cleaning.

• The fully automatic self-cleaning

cycle avoids the risk of bacteria
proliferation.

• The boiler drain facilitates the

evacuation of stagnant water after
long periods of inactivity to ensure a
higher level of hygiene.

• High efficiency air gap (class A) in

water inlet circuit to avoid water being
siphoned back into the network as a
result of a sudden drop in main
pressures.

• Front and side panels, door and

wash tank are made in heavy duty
anti-corrosive AISI 304 stainless steel
to guarantee appliance durability.

• 304 stainless steel boiler with higher

welding protection improves the
resistance against corrosion from
chlorinated water.

• PVC water supply hose with metal

connections resistant to high water
pressure.

• The IPX4 water protection prevents

external infiltrations.

Electrolux Dishwashing

Undercounter Dishwasher

Internet: http://www.electrolux.com/foodservice

IBA0302013-10-03Subject to change without notice

Convertible to 230V 3~; 400V 3N~

Supply voltage 230 V, 1N, 50 230 V, 1N, 50

Net weight - kg. 60 60

Noise level - dBA <70 <70

total power 5.35 3.65

Rinse pump 0.26 0.26

drain pump 0.034 0.034

Power - kW

Boiler elements - kW 4.5 2.8

Boiler capacity - lt. 5.8 5.8

water consumption - lt./cycle 3 3

temperature during rinse - °C 84 84

duration - sec. 12 12

Hot rinse cycle

electrical elements - kW 2 2

power pump - kW 0.736 0.736

tank capacity - lt. 33 33

temperature -°C 55-65 55-65

Washing cycle

height 330 330

depth 500 500

width 500 500

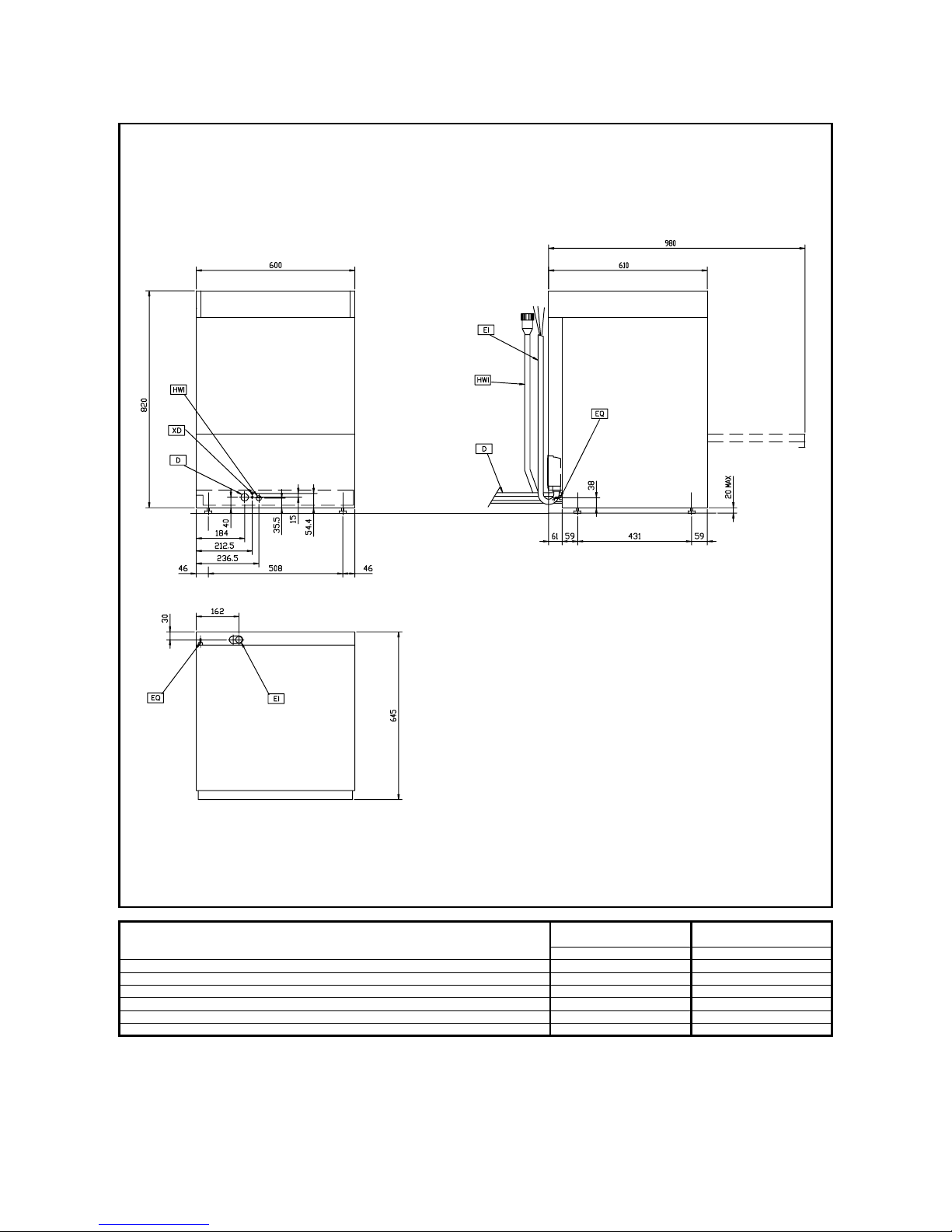

Cell dimensions - mm

height 820 820

depth 610 610

width 600 600

External dimensions - mm

Basket capacity/h 40 40

Dishes capacity/h 720 720

Duration cycles - sec. 90/180 90/120/240

N° of cycles 2 3

Rinse aid dispenser ● ●

Detergent dispenser ●

Rinse Booster Pump ● ●

Drain pump ● ●

Thermometer ● ●

pressure min- bar 0.5 0.5

pressure max - bar 7 7

hardness - °f 7-14 7-14

temperature - °C 50 50

Water supply

Boiler type Atmospheric Atmospheric

TECHNICAL DATA

NUCA1DDG

698005

EUCA1DP

400137

• The incorporated Soft Start feature

offers additional protection to delicate
items such as glassware and crockery
and increases wash pump reliability.

FLEXIBILITY AND ERGONOMICS

• Simple control panel with digital

display allows on-site personalization
of washing and rinsing cycle times
and temperatures as well as precise
rinse aid and detergent quantities
depending on the customers needs.

• Drain pump, detergent dispenser

and rinse aid dispenser pump
included in model 698005, while
model 400137 is equipped with drain
and rinse aid dispenser pump.

• Model 698005 with single phase

electrical connection, convertible to
three phase on-site.

• All machines are pre-arranged to

accept external dispensers.

• Pre-arrangement for HACCP

system implementation and Energy
Management device.

• Completely closed on the reverse

by a cover plate.

EASY ON THE ENVIRONMENT

• 98% recyclable by weight.

• CFC free packaging.

• In compliance with H requirements.

• Low noise level.

• Developed and produced in ISO

9001 and ISO 14001 certified factory.



* Declared actual cycle duration times
can extend when water supply

temperature is lower than indicated.
