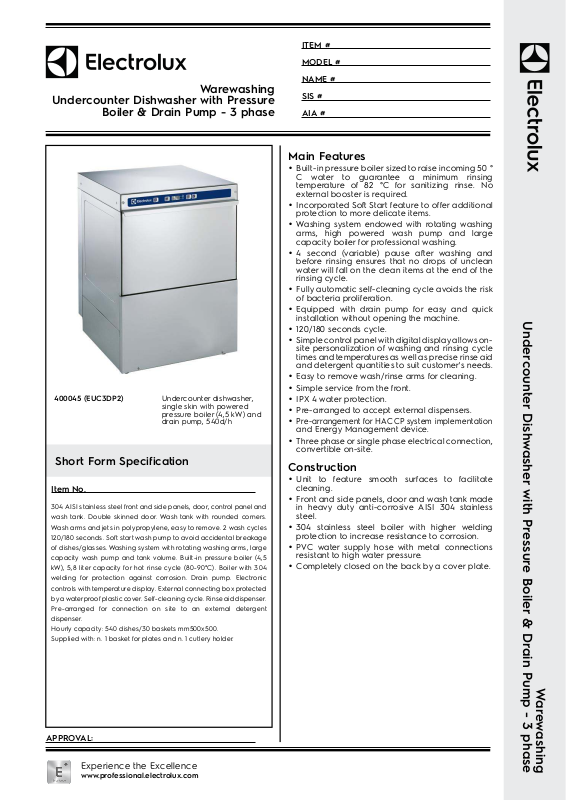

ITEM # |
|
|
|
|
|
|
|
MODEL # |
|
|
|
Warewashing |
|
NAME # |
|||
|
|
|
SIS # |
|
|||
|
Undercounter Dishwasher with Pressure |
|
|
||||
|
|
||||||
|
Boiler & Drain Pump - 3 phase |
|
AIA # |
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Main Features |
||
|
|
|
|
|
|||
|
|
|
|
|
∙ Built-in pressure boiler sized to raise incoming 50 ° |
||
|
|
|
|
|
C water to guarantee a minimum rinsing |
||
|
|
|
|
|
temperature of 82 °C for sanitizing rinse. No |
||
|
|
|
|
|
external booster is required. |
||
|
|
|
|
|
∙ Incorporated Soft Start feature to offer additional |
||
|
|
|
|
|
protection to more delicate items. |
||
|
|
|
|
|
∙ Washing system endowed with rotating washing |
||
|
|
|
|
|
arms, high powered wash pump and large |
||
|
|
|
|
|
capacity boiler for professional washing. |
||
|
|
|
|
|
∙ 4 second (variable) pause after washing and |
||
|
|
|
|
|
before rinsing ensures that no drops of unclean |
||
|
|
|
|
|
water will fall on the clean items at the end of the |
||
|
|
|
|
|
rinsing cycle. |
||
|
|
|
|
|
∙ Fully automatic self-cleaning cycle avoids the risk |
||
|
|
|
|
|
of bacteria proliferation. |
||
|
|
|
|
|
∙ Equipped with drain pump for easy and quick |
||
|
|
|
|
|
installation without opening the machine. |
||
|
|
|
|
|
∙ 120/180 seconds cycle. |
||
|
|
|
|
|
∙ Simple control panel with digital display allows on- |
||
|
|
|
|
|
site personalization of washing and rinsing cycle |
||
|
|
|
|
|
times and temperatures as well as precise rinse aid |
||
|
|
|
|
|
and detergent quantities to suit customer's needs. |
||
|
|
|
|
|
∙ Easy to remove wash/rinse arms for cleaning. |
||
|
|
|
|
|
∙ Simple service from the front. |
||
|
400045 (EUC3DP2) |
Undercounter dishwasher, |
|
∙ IPX 4 water protection. |
|||
|
|
single skin with powered |
|
∙ Pre-arranged to accept external dispensers. |
|||
|
|
pressure boiler (4,5 kW) and |
|
||||
|
|
|
∙ Pre-arrangement for HACCP system implementation |
||||
|
|
drain pump, 540d/h |
|
||||
|
|
|
|
|
and Energy Management device. |
||
|
|
|
|
|
∙ Three phase or single phase electrical connection, |
||
|
Short Form Specification |
|
convertible on-site. |
||||
|
|
Construction |
|||||
|
|
|
|
|
|||
|
|
|
|
|
∙ Unit to feature smooth surfaces to facilitate |
||
|
|
|
|
|
|||
|
Item No. |
|
|
|
cleaning. |
||
|
|
|
|
|
∙ Front and side panels, door and wash tank made |
||
|
304 AISI stainless steel front and side panels, door, control panel and |
|
in heavy duty anti-corrosive AISI 304 stainless |
||||
|
wash tank. Double skinned door. Wash tank with rounded corners. |
|
steel. |
||||
|
Wash arms and jets in polypropylene, easy to remove. 2 wash cycles |
|
∙ 304 stainless steel boiler with higher welding |
||||
|
120/180 seconds. Soft start wash pump to avoid accidental breakage |
|
protection to increase resistance to corrosion. |
||||
|
of dishes/glasses. Washing system with rotating washing arms, large |
|
∙ PVC water supply hose with metal connections |
||||
|
capacity wash pump and tank volume. Built-in pressure boiler (4,5 |
|
resistant to high water pressure. |
||||
|
kW), 5,8 liter capacity for hot rinse cycle (80-90°C). Boiler with 304 |
|
∙ Completely closed on the back by a cover plate. |
||||
|
welding for protection against corrosion. Drain pump. Electronic |
|
|
|
|
||
|
controls with temperature display. External connecting box protected |
|
|
|
|
||
|
bya waterproof plastic cover. Self-cleaning cycle. Rinse aid dispenser. |
|
|
|
|
||
|
Pre-arranged for connection on site to an external detergent |
|
|
|
|
||
|
dispenser. |
|
|
|
|
|
|
|
Hourly capacity: 540 dishes/30 baskets mm500x500. |
|
|
|
|
||
|
Supplied with: n. 1 basket for plates and n. 1 cutlery holder. |
|
|
|
|
||
|
|
|
|
|
|
|
|
APPROVAL:
Experience the Excellence
www.professional.electrolux.com
<![endif]>Warewashing
<![if ! IE]><![endif]>phase 3 - Pump Drain & Boiler Pressure with Dishwasher Undercounter
Warewashing
Undercounter Dishwasher with Pressure
Boiler & Drain Pump - 3 phase
Included Accessories
∙ |
1 of Yellow cutlery container |
PNC 864242 |
∙ |
1 of Basket for 18 dinner plates - yellow |
PNC 867002 |
Optional Accessories
∙ 12lt external manual water softener |
PNC 860412 |
|
|
∙ 8lt external automatic water softener |
PNC 860413 |
|
|
∙ Stand for undercounter dishwasher |
PNC 860418 |
|
|
∙ 20lt external manual water softener |
PNC 860430 |
|
|
∙ Integrated HACCP kit |
PNC 864001 |
|
|
∙ External detergent level probe kit |
PNC 864004 |
|
|
∙ External rinse aid level probe kit |
PNC 864005 |
|
|
∙ Kit 4 flanged feet (marine feet) for |
PNC 864009 |
undercounter dishwasher |
|
∙ Stainless steel inlet hose kit |
PNC 864016 |
|
|
∙ Filter for partial demineralization |
PNC 864017 |
|
|
∙ Kit to measure total and partial water |
PNC 864050 |
hardness |
|
∙ Detergent dosing kit |
PNC 864218 |
|
|
∙ Stainless steel tank filter for single skin |
PNC 864222 |
undercounter |
|
∙ Yellow cutlery container |
PNC 864242 |
|
|
∙ AISI 304 stainless steel back panel for |
PNC 864246 |
undercounters EUC |
|
∙ Filter for total demineralization |
PNC 864367 |
|
|
∙ Pressure reducer for single tank |
PNC 864461 |
dishwasher |
|
∙ Half size basket universal |
PNC 864527 |
|
|
∙ Half size basket for plates |
PNC 864528 |
|
|
∙ Half size basket for glasses |
PNC 864529 |
|
|
∙ Kit 4 plastic boxes for cutlery - yellow |
PNC 865574 |
|
|
∙ Basket for 18 dinner plates - yellow |
PNC 867002 |
|
|
∙ Basket for 48 small cups or 24 cups - |
PNC 867007 |
blue |
|
∙ Cover rack for small and light items |
PNC 867016 |
(500x500 baskets) |
|
∙ Basket for 16 vertical glasses (h 70 mm - PNC 867023 diam 100 mm) - blue
Warewashing
Undercounter Dishwasher with Pressure Boiler & Drain Pump - 3 phase
The company reserves the right to make modifications to the products without prior notice. All information correct at time of printing.
2019.05.28
