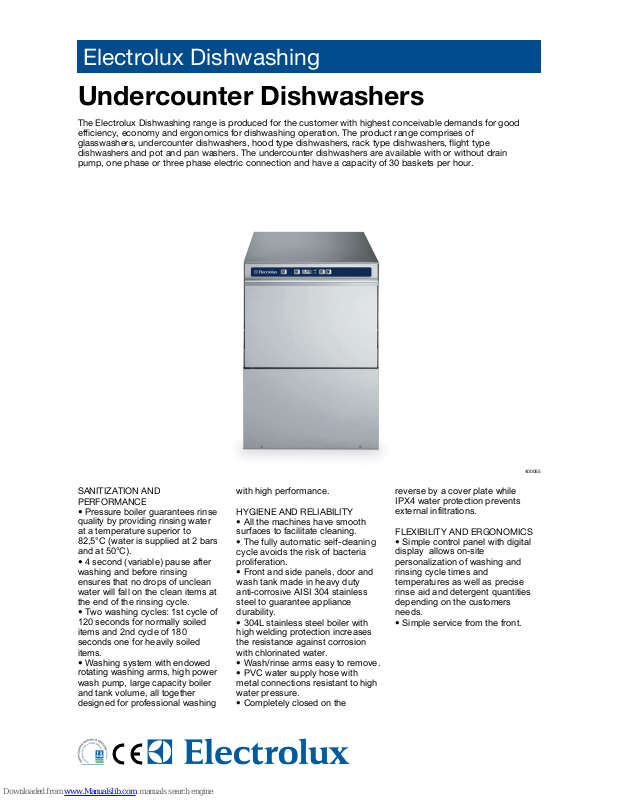

Electrolux EUC1 400055, EUC1DP 400056, EUC3 400059, EUC3DP 400061, EUC1DP60 400064 Technical Data Manual

Electrolux Dishwashing

Undercounter Dishwashers

The Electrolux Dishwashing range is produced for the customer with highest conceivable demands for good
efficiency, economy and ergonomics for dishwashing operation. The product range comprises of
glasswashers, undercounter dishwashers, hood type dishwashers, rack type dishwashers, flight type
dishwashers and pot and pan washers. The undercounter dishwashers are available with or without drain
pump, one phase or three phase electric connection and have a capacity of 30 baskets per hour.

400055

SANITIZATION AND
PERFORMANCE

• Pressure boiler guarantees rinse

quality by providing rinsing water
at a temperature superior to
82,5°C (water is supplied at 2 bars
and at 50°C).

• 4 second (variable) pause after
washing and before rinsing
ensures that no drops of unclean
water will fall on the clean items at
the end of the rinsing cycle.

• Two washing cycles: 1st cycle of
120 seconds for normally soiled
items and 2nd cycle of 180
seconds one for heavily soiled

items.

• Washing system with endowed
rotating washing arms, high power
wash pump, large capacity boiler
and tank volume, all together
designed for professional washing

with high performance.

HYGIENE AND RELIABILITY

• All the machines have smooth

surfaces to facilitate cleaning.

• The fully automatic self-cleaning
cycle avoids the risk of bacteria
proliferation.

• Front and side panels, door and

wash tank made in heavy duty
anti-corrosive AISI 304 stainless
steel to guarantee appliance
durability.

• 304L stainless steel boiler with
high welding protection increases
the resistance against corrosion

with chlorinated water.

• Wash/rinse arms easy to remove.

• PVC water supply hose with

metal connections resistant to high
water pressure.

• Completely closed on the

reverse by a cover plate while
IPX4 water protection prevents
external infiltrations.

FLEXIBILITY AND ERGONOMICS

• Simple control panel with digital

display allows on-site
personalization of washing and
rinsing cycle times and
temperatures as well as precise
rinse aid and detergent quantities
depending on the customers
needs.

• Simple service from the front.

Electrolux Dishwashing

Undercounter Dishwashers

Internet: http://www.electrolux.com/foodservice

IBA010_Copy2010-03-17

YELLOW CUTLERY CONTAINER 864242 864242 864242 864242 864242 864242 864242

STAND FOR UNDERCOUNTER DISHWASHER 860418 860418 860418 860418 860418 860418 860418

STAINLESS STEEL INLET HOSE KIT 864016 864016 864016 864016 864016 864016 864016

RINSE AID LEVEL PROBE KIT FOR UC+HT DW 864005 864005 864005 864005 864005 864005 864005

KIT TO MEASURE TOTAL/PART.WATER
HARDNESS

864050 864050 864050 864050 864050 864050 864050

KIT 4 PLASTIC BOXES FOR CUTLERY-YELLOW 865574 865574 865574 865574 865574 865574 865574

INTEGRATED HACCP KIT FOR UC, HT AND POTW 864001 864001 864001 864001 864001 864001 864001

HACCP PRINTER KIT FOR UC, HT AND POTW 864002 864002 864002 864002 864002 864002 864002

FILTER FOR PARTIAL DEMINERALIZATION 864017 864017 864017 864017 864017 864017 864017

EXT.REVERSE OSMOSIS FILT-ATMOSPH. BOILER 864026

DRAIN PUMP KIT FOR 50HZ DISHWASHERS 864012 864012

DETERGENT PUMP KIT 864218 864218 864218 864218 864218

DETERGENT LEVEL PROBE KIT FOR UC+HT DW 864004 864004 864004 864004 864004 864004 864004

COVER GRID FOR SMALL/LIGHT ITEMS IN RACK 867016 867016 867016 867016 867016 867016 867016

BASKET FOR 5 TRAYS 530X325MM-RED 867006 867006 867006 867006 867006 867006 867006

BASKET FOR 48 SMALL CUPS/24 CUPS-BLUE 867007 867007 867007 867007 867007 867007 867007

BASKET FOR 18 DINNER PLATES
240MM-YELLOW

867002 867002 867002 867002 867002 867002 867002

8 L EXTERNAL AUTOMATIC WATER SOFTENER 860413 860413 860413 860413 860413 860413 860413

304 AISI BACK PANEL FOR UC ENTRY LEVEL 864246 864246 864246 864246 864246 864246 864246

12 L EXTERNAL MANUAL WATER SOFTENER 860412 860412 860412 860412 860412 860412 860412

ACCESSORIES

YELLOW CUTLERY CONTAINER 1 1 1 1 1 1 1

BASKET FOR 48 SMALL CUPS/24 CUPS-BLUE 1

BASKET FOR 18 DINNER PLATES
240MM-YELLOW

1 1 1 1 1 1

INCLUDED ACCESSORIES

Convertible to 230V 3~; 230V

1N~

230V 3~; 230V

1N~

230V 1N~ 230V 3~; 230V

1N~

Supply voltage 230 V, 1N, 50 230 V, 1N, 50 400 V, 3N, 50 400 V, 3N, 50 230 V, 1N, 60 400 V, 3N, 50 230 V, 1N, 50

Net weight - kg. 60 60 60 60 60 60 60

Noise level - dBA <70 <70 <70 <70 <70 <70 <70

total power 3.65 3.65 5.35 5.35 3.65 5.35 2.85

drain pump 0.034 0.034 0.034 0.034 0.034

Power - kW

Boiler elements - kW 2.8 2.8 4.5 4.5 2.8 4.5 1.5

Boiler capacity - lt. 5.8 5.8 5.8 5.8 5.8 5.8 5.8

water consumption - lt./cycle 3.3 3.3 3.3 3.3 3.3 3.3 3.3

temperature during rinse - °C 80-90 80-90 80-90 80-90 80-90 80-90 80-90

duration - sec. 16 16 16 16 16 16 16

Hot rinse cycle

electrical elements - kW 2 2 2 2 2 2 2

power pump - kW 0.736 0.736 0.736 0.736 0.736 0.736 0.736

tank capacity - lt. 33 33 33 33 33 33 33

temperature -°C 55-65 55-65 55-65 55-65 55-65 55-65 55-65

Washing cycle

height 330 330 330 330 330 330 330

depth 500 500 500 500 500 500 500

width 500 500 500 500 500 500 500

Cell dimensions - mm

height 820 820 820 820 820 820 820

depth 600 610 610 610 610 610 610

width 610 600 600 600 600 600 600

External dimensions - mm

Basket capacity/h 30 30 30 30 30 30 30

Dishes capacity/h 540 540 540 540 540 540 540

Duration cycles - sec. 120/180 120/180 120/180 120/180 120/180 120/180 120/180

N° of cycles 2 2 2 2 2 2 2

Rinse aid dispenser ● ● ● ● ● ● ●

Detergent dispenser ● ●

Drain pump ● ● ● ● ●

Thermometer ● ● ● ● ● ● ●

Water supply pressure min- bar 2 2 2 2 2 2 2

hardness - °f 7-14 7-14 7-14 7-14 7-14 7-14 7-14

temperature - °C 50 50 50 50 50 50 50

Water supply

TECHNICAL DATA

EUC1

400055

EUC1DP

400056

EUC3

400059

EUC3DP

400061

EUC1DP60

400064

EUC3DD

400065

EUC1G
400063

• The incorporated Soft Start
feature offers additional protection
to delicate items such as
glassware and crockery and
increases wash pump reliability.

• Three phase or single phase
electrical connection.

• Pre-arrangement for HACCP
system implementation and

Energy Management device.



EASY ON THE ENVIRONMENT

• 98% recyclable by weight.

• CFC free packaging.

• In compliance with H
requirements.

• Low noise level.

• Developed and produced in ISO
9001 and ISO 14001 certified
factory.

* Duration cycles: declared actual cycle
duration times can extend when water
supply temperature is lower than
indicated.
