Electrolux ESF 656 User Instructions

Dishwasher

User Instructions

ANC 822 945 702 - 00 - 0801

ESF 656

EN

2

Dear customer,

Please read these user instructions carefully.
Above all please observe the safety instructions on
the first few pages ofthese user instructions! Please
keep these user instructions for later reference. P ass
them on to anysubsequentowner of the appliance.

1

The warning triangle and/or specific words
(Warning!, Caution!, Important!) are used
to highlight instructions that are important for
your safety or for the function of the appli­ance. It is imperative that these instructions
are observed.
This symbol or numbered instruction steps
lead you step for step through the operation
of the appliance.

3

Next to this symbol you receive additional
information and practical tips on using the
appliance.

2

Tips and instructions for the economical and
environmentally conscious use of the appli­ance are marked with a clover leaf.

In the event of a malfunction, these operating instruc­tions contain information on how to rectify faults your­self, see the "What to do, if..." section.
If these instr uctions are insufficient, please contact
your nearest customer service centre.
In this respect please read the "Service" note on the
rear of these user instructions.

3

Contents

Safety Instructions ......................................................................4

Securing the door of the dishwasher .........................................................5

Disposal ..............................................................................5

Economical and Ecological Dishwashing ...................................................6

Appliance Features and Control Panel .....................................................7

Control panel ...........................................................................8

Prior to using for the first time ............................................................9

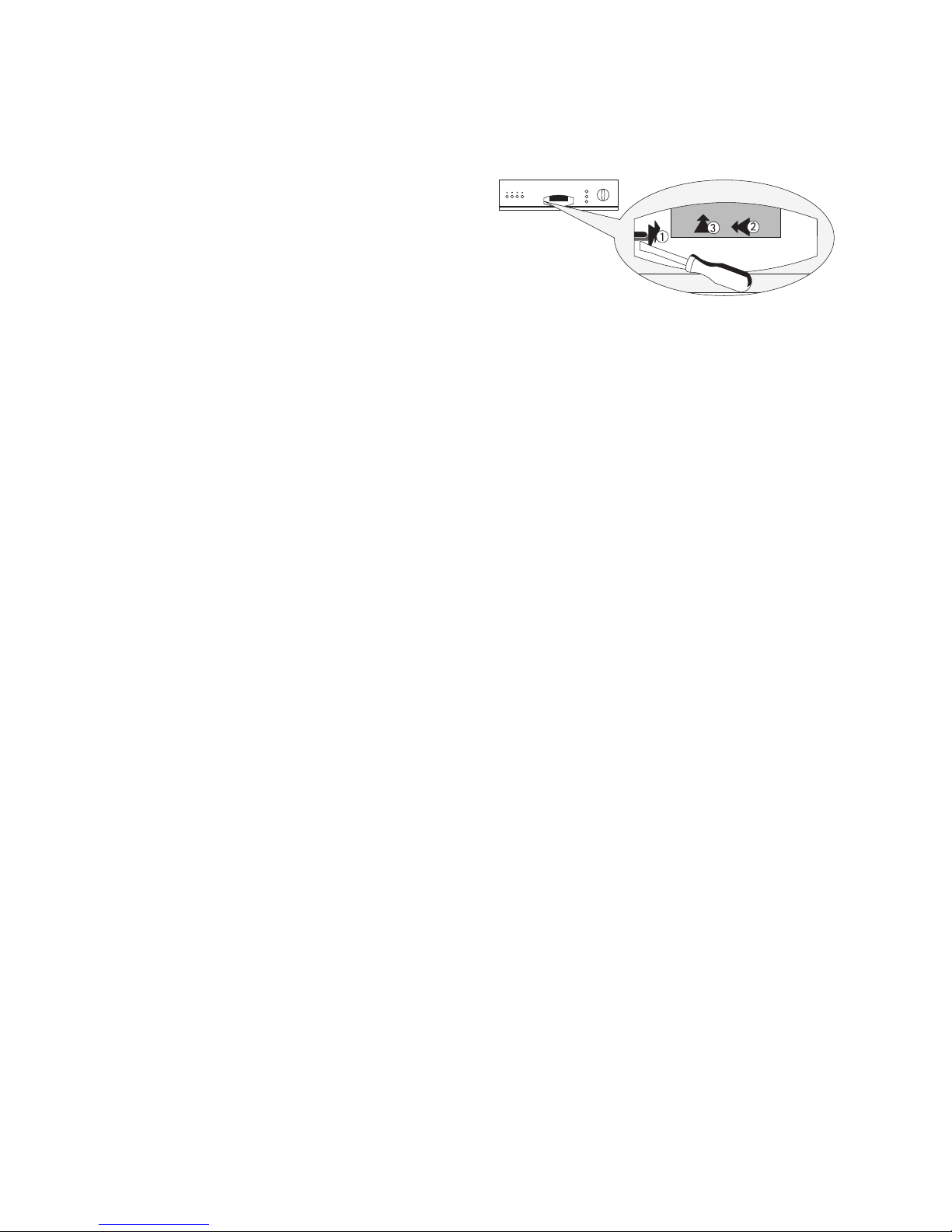

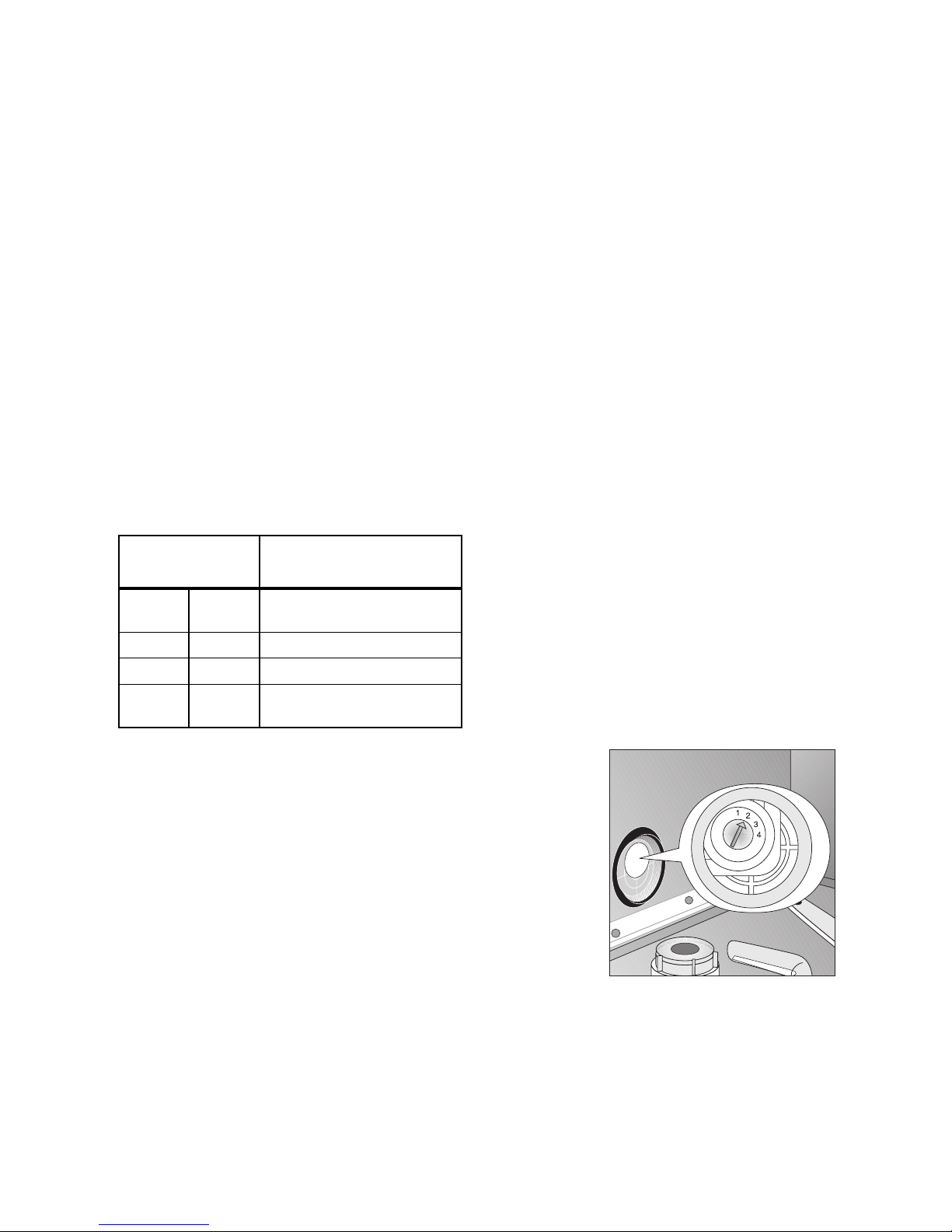

Adjusting the Water S oftener ...............................................................9

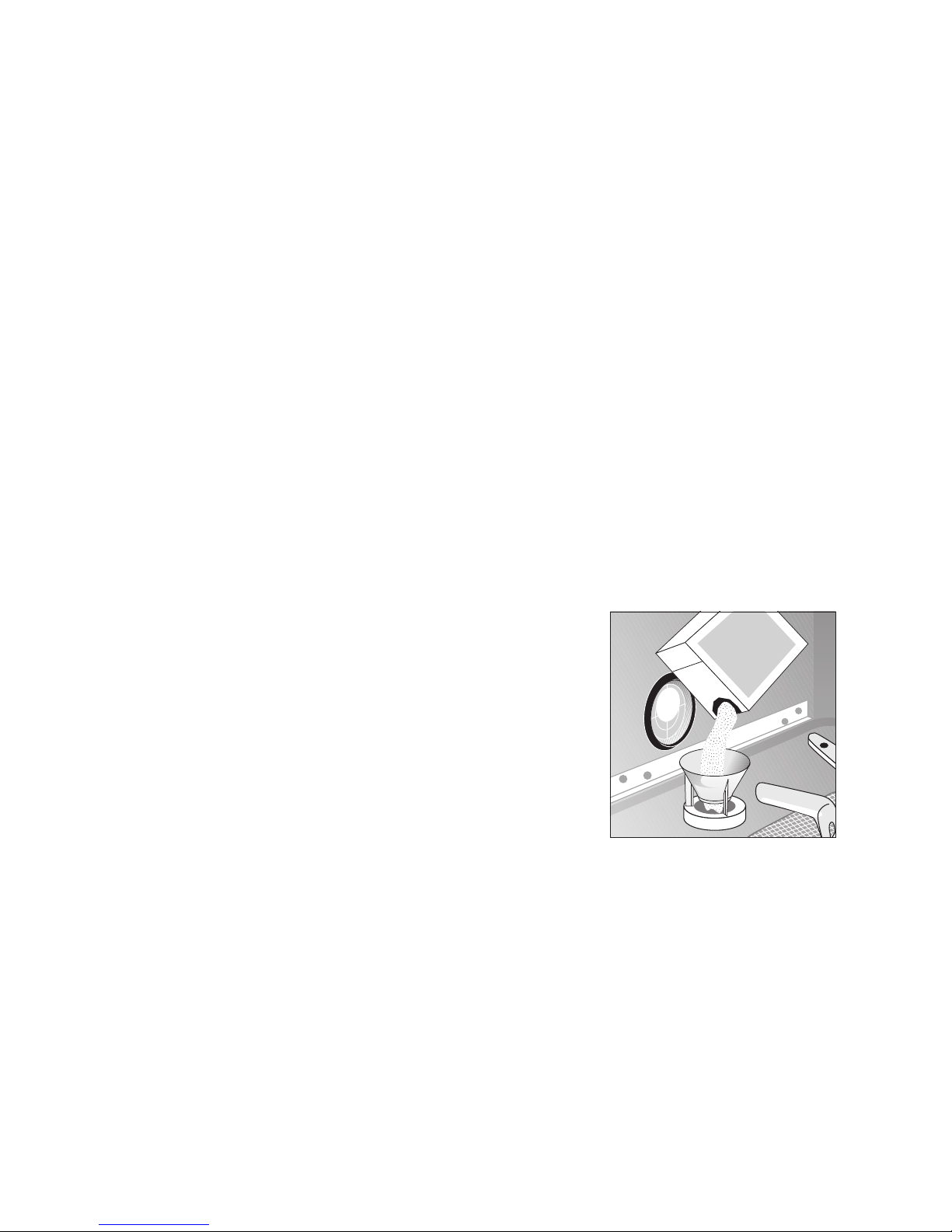

Filling with Special Salt for the Water Softener . ...............................................10

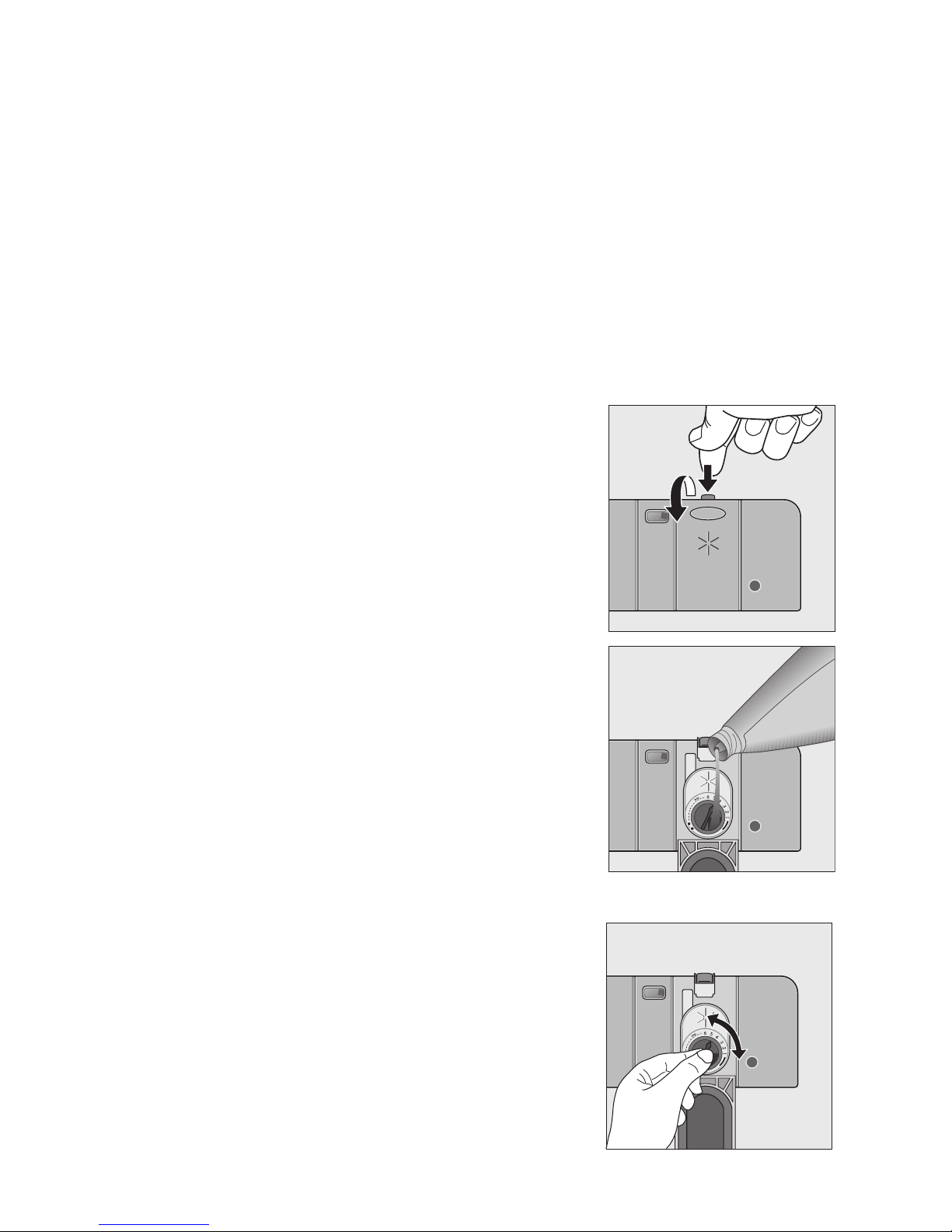

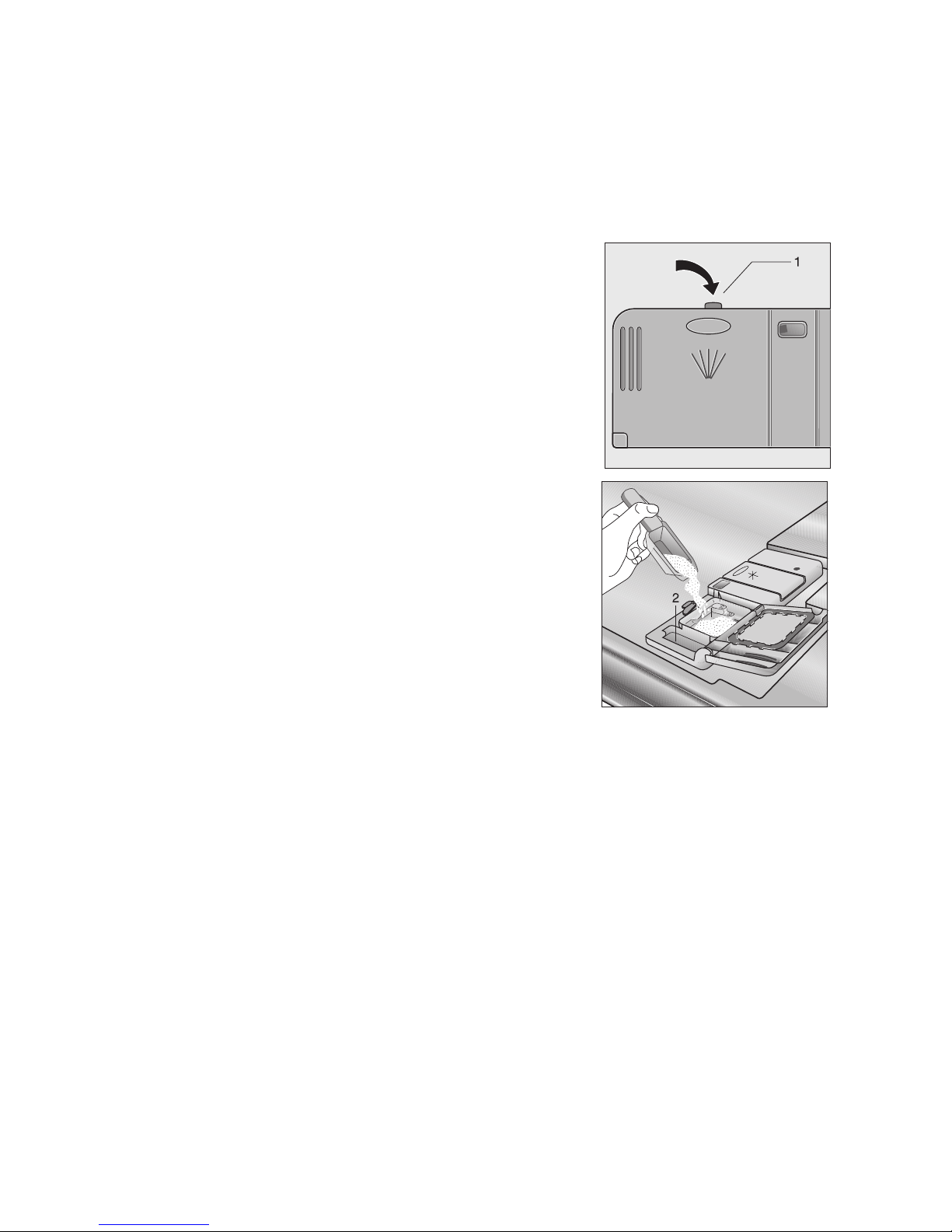

Filling with Rinse Aid ....................................................................11

AdjustingRinseAidDosing.............................................................11

In Daily Use ...........................................................................12

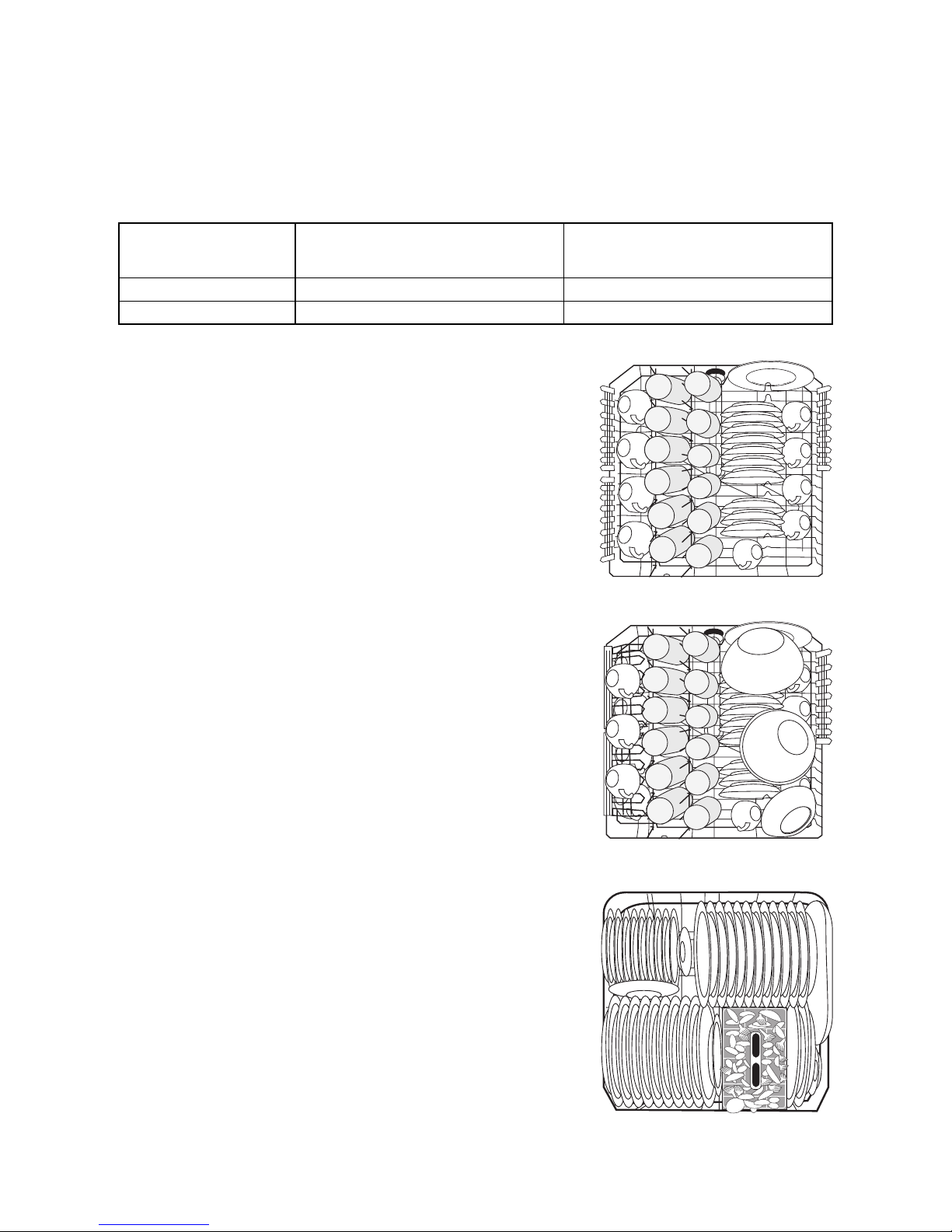

Loading cutlery and dishes ...............................................................12

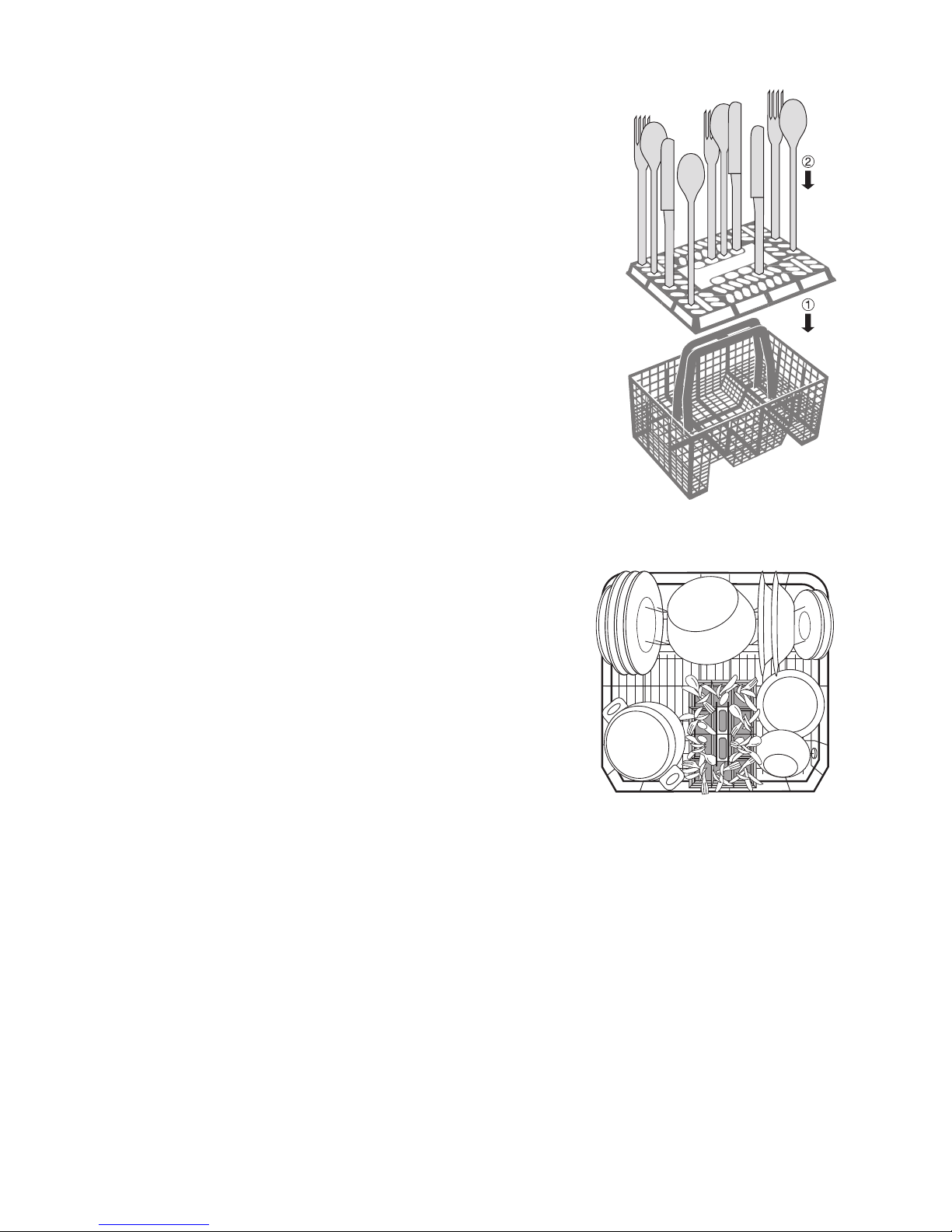

Loading Cutlery ......................................................................13

Loading Pans, Frying Pans and Large Plates ...............................................13

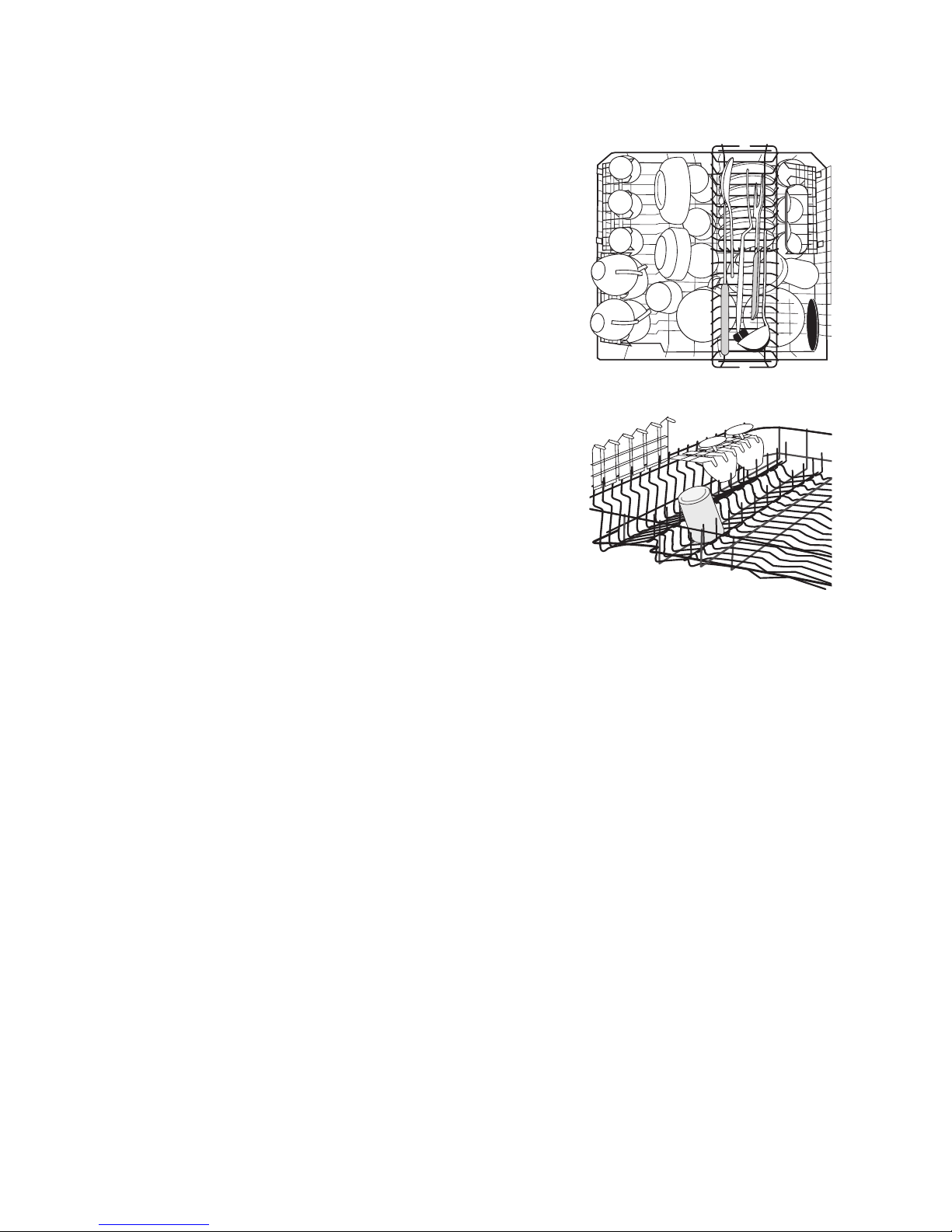

Loading Cups, Glasses and Coffee Services ...............................................14

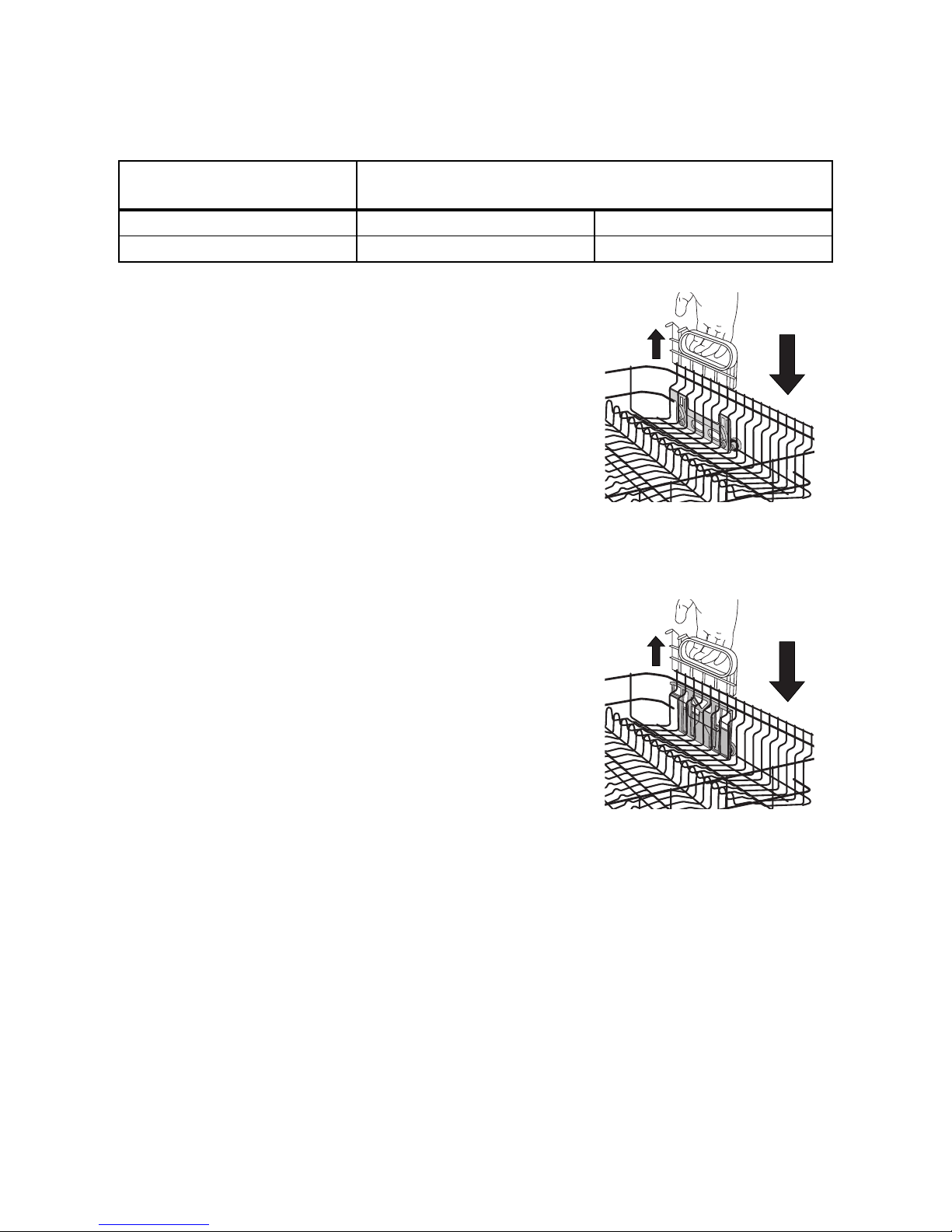

Adjusting the Height of the Upper Basket . . . ...............................................15

Filling with Detergent ....................................................................16

SelectingtheWashProgramme(ProgrammeTable) ...........................................17

Settingthedishwashingprogramme ........................................................18

Changing/Interrupting the Wash Programme ...............................................18

SwitchingOfftheDishwasher .............................................................18

Care and Cleaning .....................................................................19

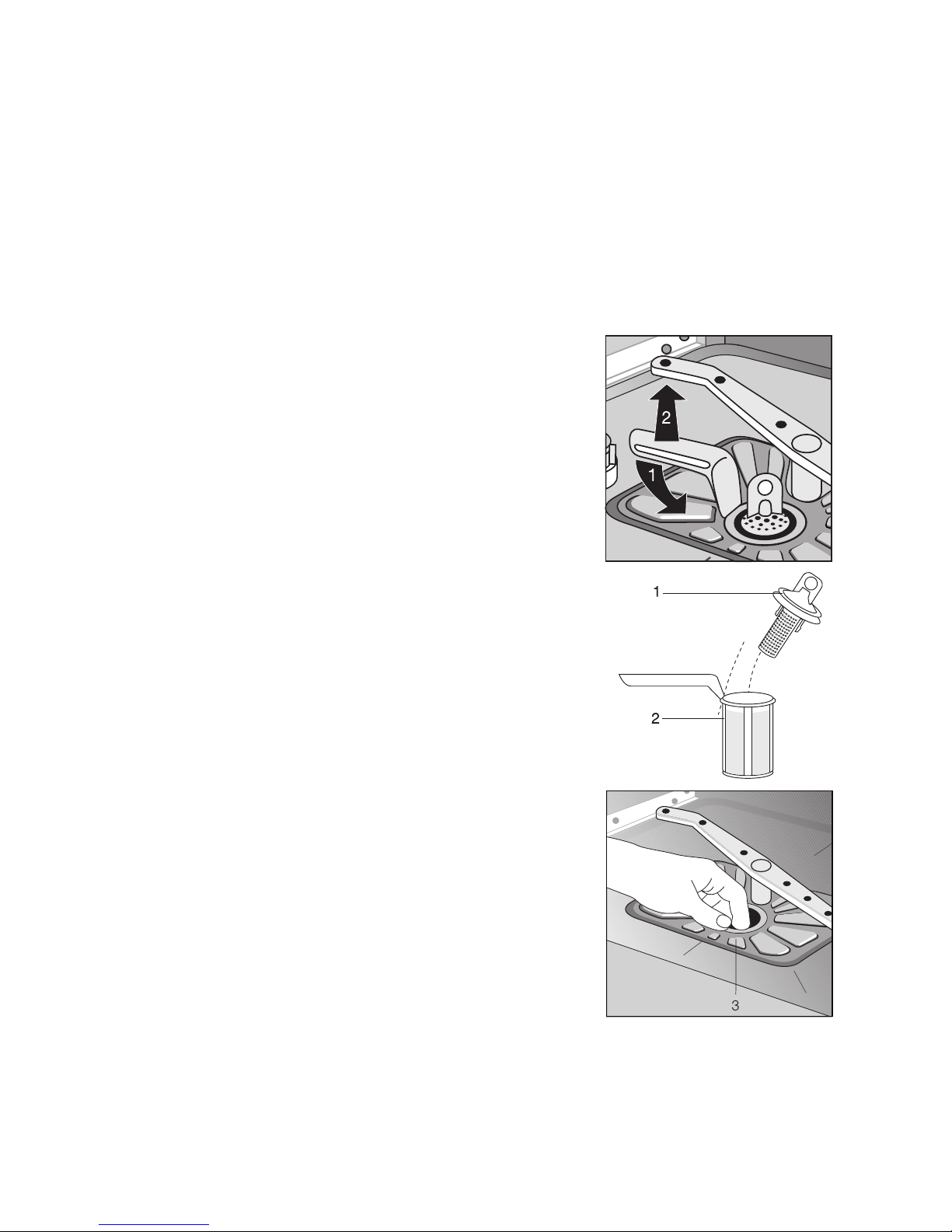

CleaningtheFilter ......................................................................19

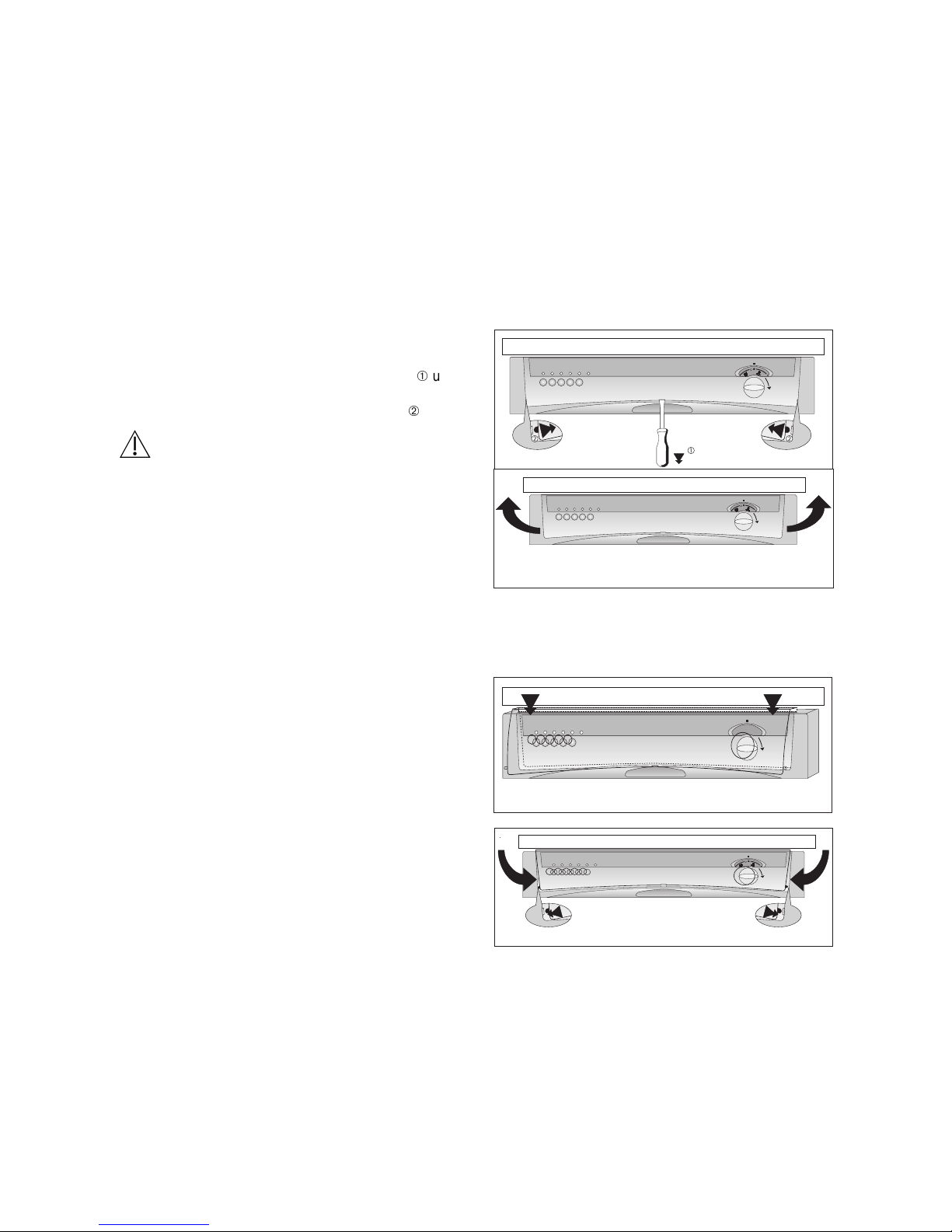

CleaningthePanel......................................................................20

What to do, when ... ....................................................................21

...there are problems w ith the operation of the dishwasher. ......................................21

...thewashresultisunsatisfactory. .........................................................21

Technical Data ........................................................................22

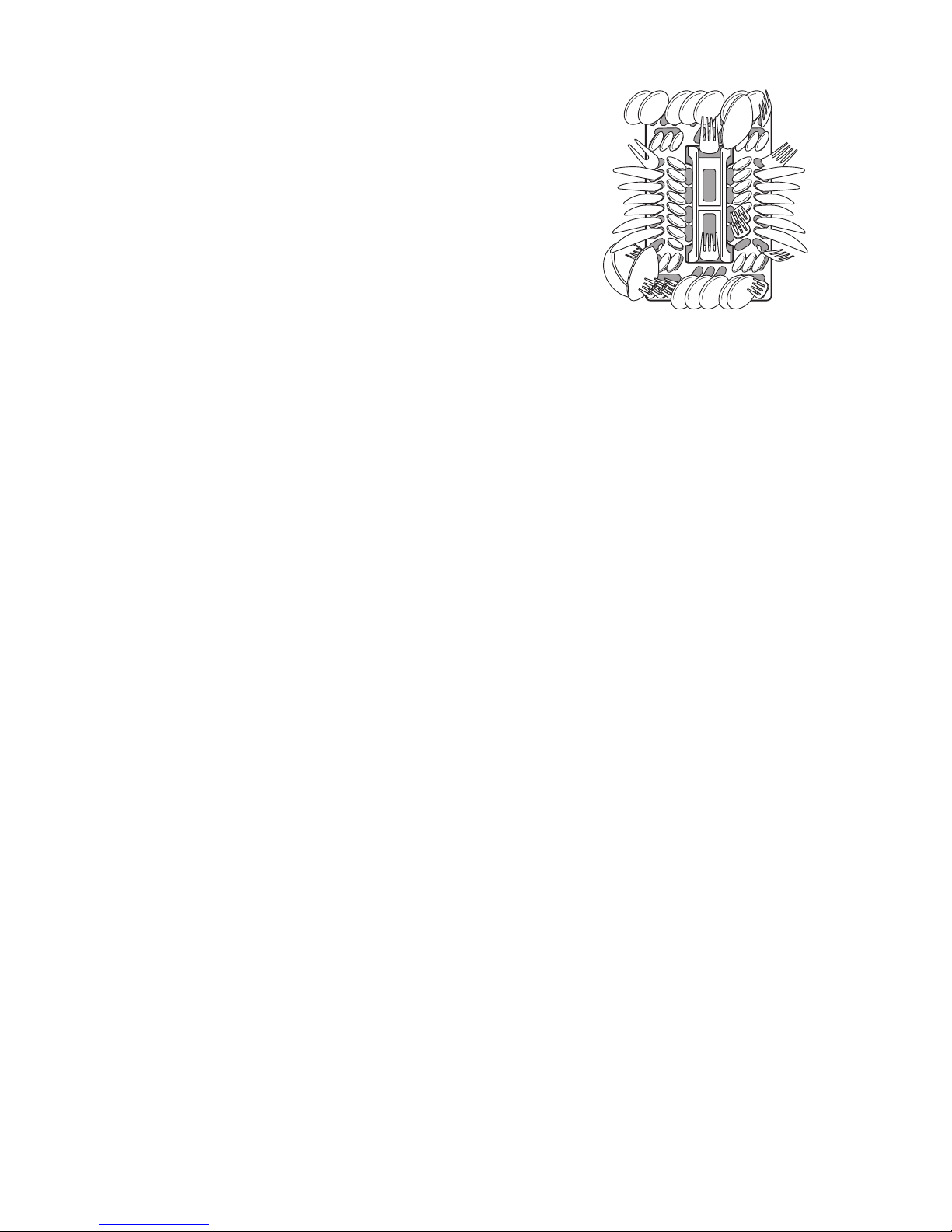

Notes for Test Institutes ................................................................23

Installation and Connection Instructions ...................................................25

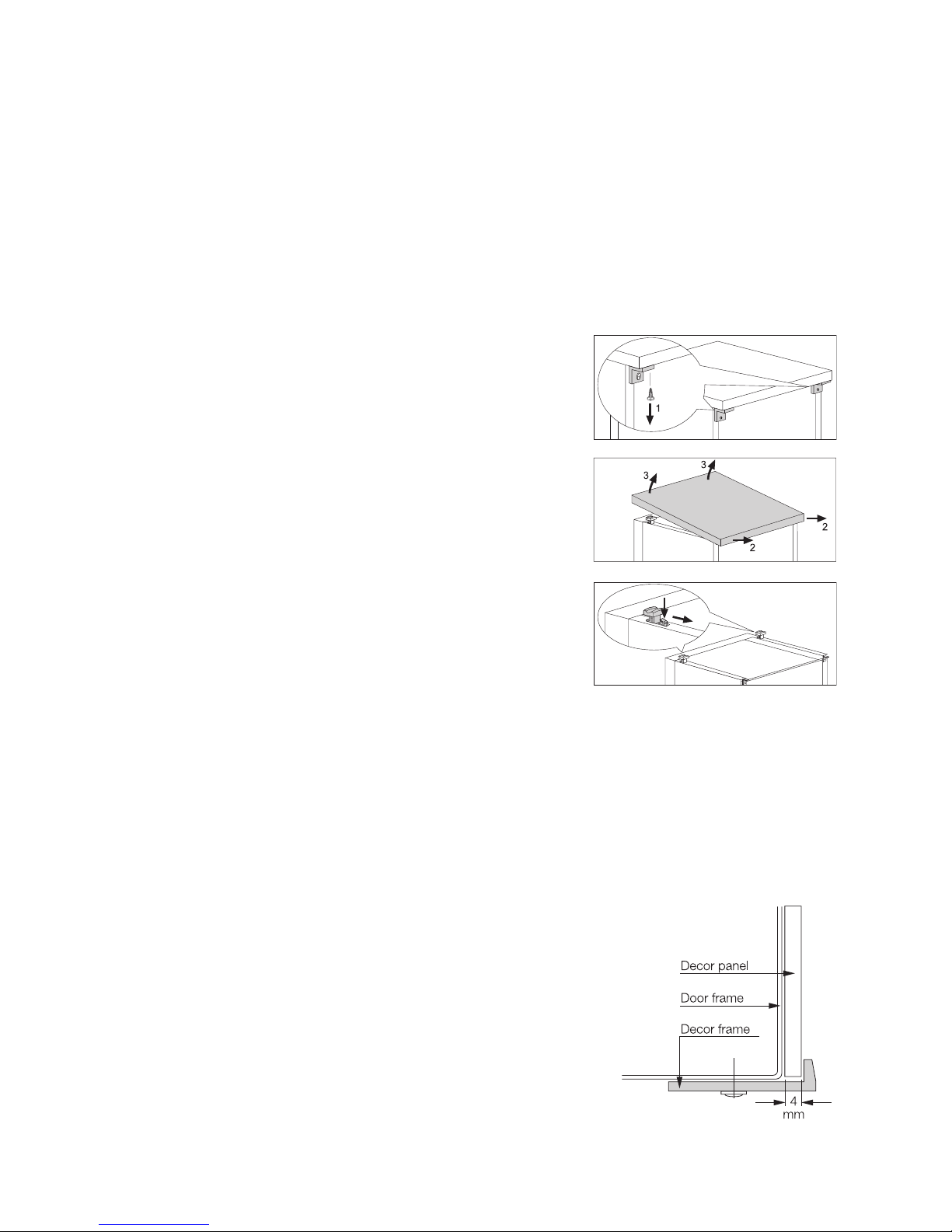

Installing the Dishwasher ...............................................................25

DishwashersThatCanBeIntegrated.....................................................25

Built-InDishwasher...................................................................26

Free-Standing Appliances ..............................................................26

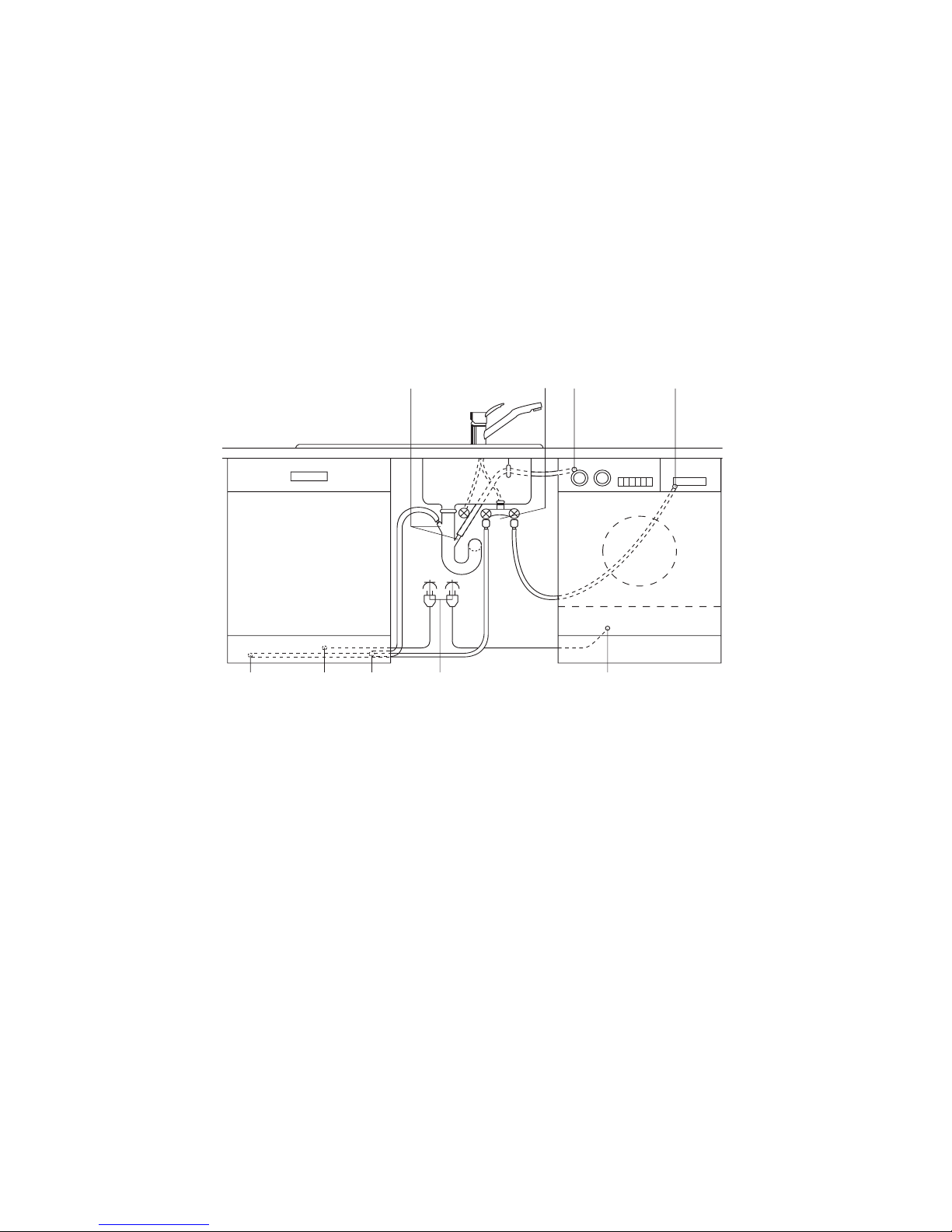

Connecting the Dishwasher .............................................................27

Water Connection ......................................................................27

Permittedwaterpressure ..............................................................27

Connect the inlet hose ................................................................27

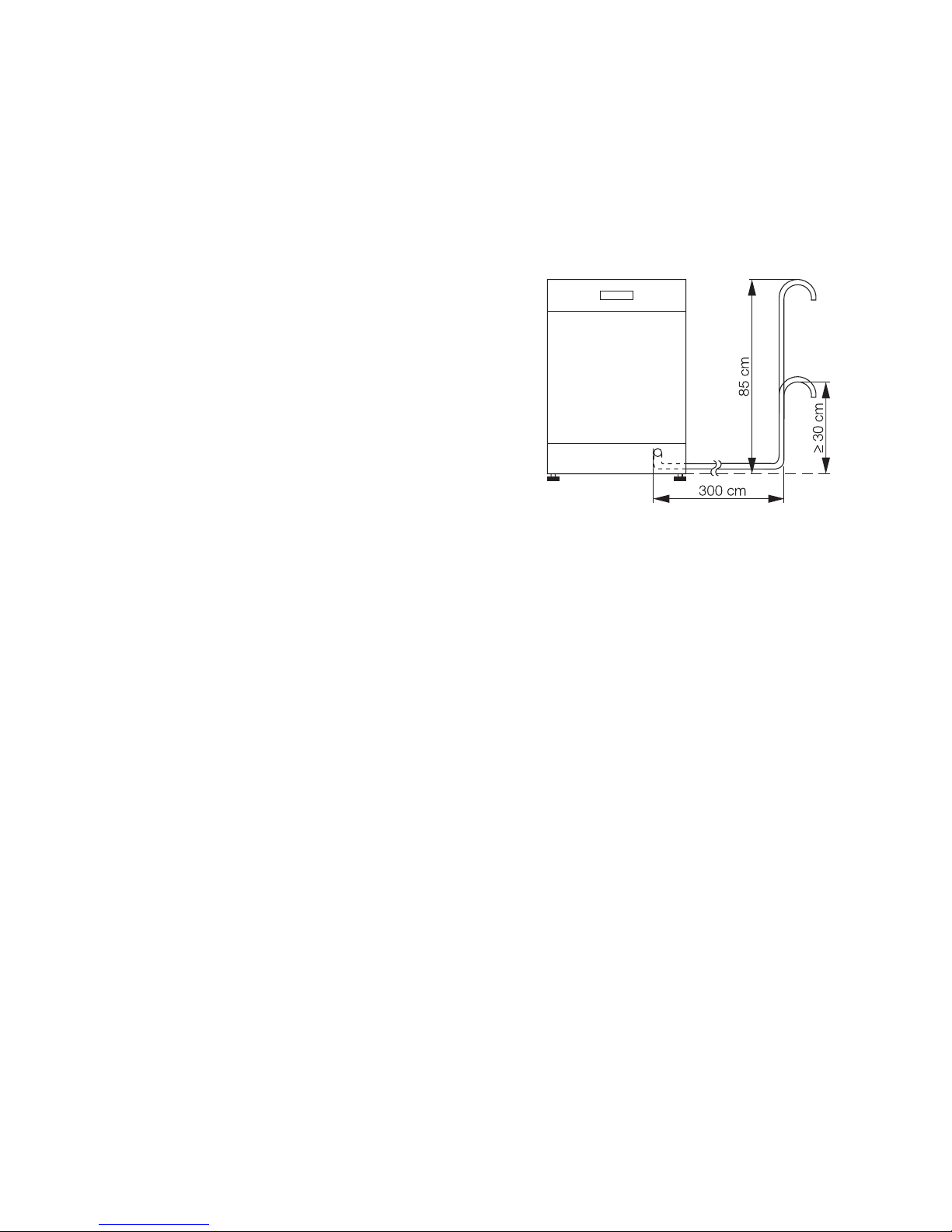

Waterdrain .........................................................................28

Leak Prevention System ...............................................................28

Electricalconnection ....................................................................29

Connections . ..........................................................................30

Service ...............................................................................31

4

1 Safety Instructions

The safety aspects of ELECTROLUX electrical appli­ances comply with accepted technical standards and
the German Appliance Safety Law. Nevertheless, as
a manufacturer we consider it our obligation to make
you aware of the following safety information:

Installation, Connection and Plac­ing into Operation

• The dishwasher may only be transported upright.

• Check the dishwasher for transport damage. Do

not in any circumstances connect an appliance

that is damaged. In the case of damage, please

contact your supplier.

• Prior to placing the appliance i n operation, ensure

that the nominal voltage and type of supply on the

rating plate match that of the supply where the

appliance is to be installed. The fuse rating is also

to be found on the rating plate.

• For information on how to correctly install and

connect up your dishwasher, please read the

“Installation“ section. Multiway plugs / connectors

and extension cables must not be used. This

could constitute a safety hazard.

Child Safety

• Children often do not recognise the hazards asso-

ciated with the use of electrical appliances. It is

therefore important that you ensure children are

adequately supervised and that you do not allow

children to play with the dishwasher – there is a

risk that children can shut themselves inside the

appliance (risk of suffocation!).

• Packaging materials (e.g. films, styrofoam) can be

dangerous for children. Risk of suffocation! Keep

packaging away from children.

• Detergents can cause burns to the eyes, mouth,

and throat, or even cause choking! Please

observe the manufacturer's safety instructions for

cleaners and detergents.

• The water in your dishwasher is not suitable for

drinking. If there are still remnants of detergent in

the appliance, there is a risk of burns!

• When disposing of t he dishwasher: unplug from

the mains, cut off and dispose of the mains cable.

Break the door lock so that the door no longer

shuts.

General Safety

• Repairs to the dishwasher are only to be carried

out by qualified service engineers. Improper

repairs can give rise to significant hazards for the

user. If your appliance needs repairing, please

contact customer service or your dealer.

• Never place the dishwasher in operation if the
mains c able, water inlet or drain hose is damaged;
or the control panel, work top or plinth area is
damaged such that the inside of the appliance is
freely accessible.

• If the mains lead is damaged, or is to be replaced
for a longer lead, the cable (obtainable from
ELECTROLUX customer service) must be
changed by a service engineer authorised by
ELECTROLUX.

• Never unplug the appliance by pulling on the
cable, always pull the plug.

• Additions or modifications to the dishwasher are
not permitted for safety reasons.

• Ensure that the door of the dishwasher is always
closed when it is not being loaded or unloaded. In
this way you will avoid anybody tripping over the
open door and hurting themselves.

• Sharp knives and items of cutlery with sharp
edges must be placed in the cutlery tray or in the
upper rack.

Correct Use

• Only wash household dishes using the dish­washer. If the appliance is used for other pur­poses, or is used incorrectly, the manufacturer
cannot accept any liability for any damage
caused.

• Prior to use, ensure that the manufacturers of the
special salt, detergent, and rinse aid employed
specifically permit the usage of their products in
household dishwashers.

• Do not put any solvents in the dishwasher. There
is a risk of an explosion!

• The anti-flood system provides dependable pro­tection against damage due to leaks. For this sys­tem to function correctly, the following
preconditions must be met:
– The appliance must remain connected to the

mains even when it is switched off.
– The dishwasher must be correctly installed.
– Always shut off the water supply at the tap

when the dishwasher is not to be used for

longer periods, e.g. when you are away on hol-

iday.

• Do not sit or stand on the open door, the appli­ance may tip over.

• In the event of a fault, first close the tap, then
switch off the appliance and unplug it from the
mains. If the appliance is permanently wired to the
mains: switch off the fuse(s) or unscrew them.

5

Securing the door of the dishwasher

This way you can ensure that children cannot open
the door of the dishwasher:

1. There is a lever(1) on the left side of the door han­dle. You can secure the door against being

opened unintentionally by pressing this lever to
the back using a small screwdriver or the handle
of a spoon.

2. Once the lever has been pushed back, you must
first push the door handle to the left (2) and then
push it upwards (3) in order to open the door.

3. Yo u can remove the safety lock from the door
again by pulling the lever forwards again using a
small screwdriver or the handle of a spoon.

2 Disposal

Disposing of the Packaging Material

Dispose of t he dishwasher packaging material cor­rectly. All the packaging materials used are harmless
to the environment and can be recycled.

• Plastic parts are marked with standard interna­tional abbreviations:
– >PE< for polyethylene, e.g. sheet wrapping

material

– >PS< for polystyrene, e.g. padding mate-

rial (always CFC-free)

– >POM< for polyoxymethylene, e.g. plastic

clips

• Cardboard packaging is manufactured from recy­cled paper and should be deposited in the waste
paper collection for recycling.

Disposal of old appliances

As and when you cease to use your dish washer,
please take it to a recycling centre or to your dealer
who will, for a small contribution to the costs, dispose
of it for you.

6

2 Economical and Ecological Dishwash-

ing

• Only connect the dishwasher to the hot water sup­ply if your hot water is not electrically heated.

• Ensure that the water softener is correctly
adjusted.

• Do not pre-rinse dishes under running water.

• Select the wash programme to suit the nature and

degree of the soiling on the dishes.

• Do not use more detergent, special salt or rinse
aid than is recommended in these operating
instructions and by the manufacturer of the
respective product.

7

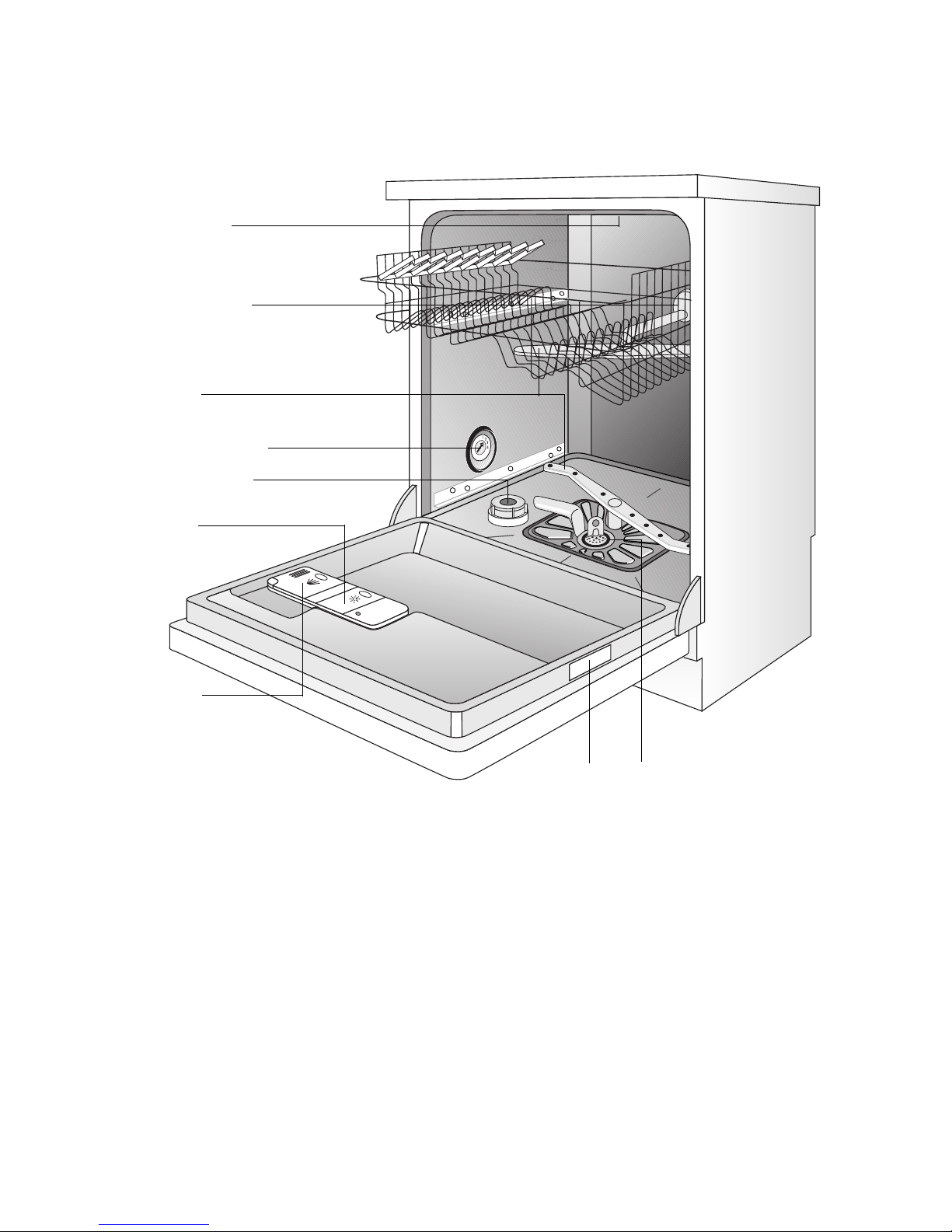

Appliance Features and Control Panel

Spray Arms

Container for Special
Salt

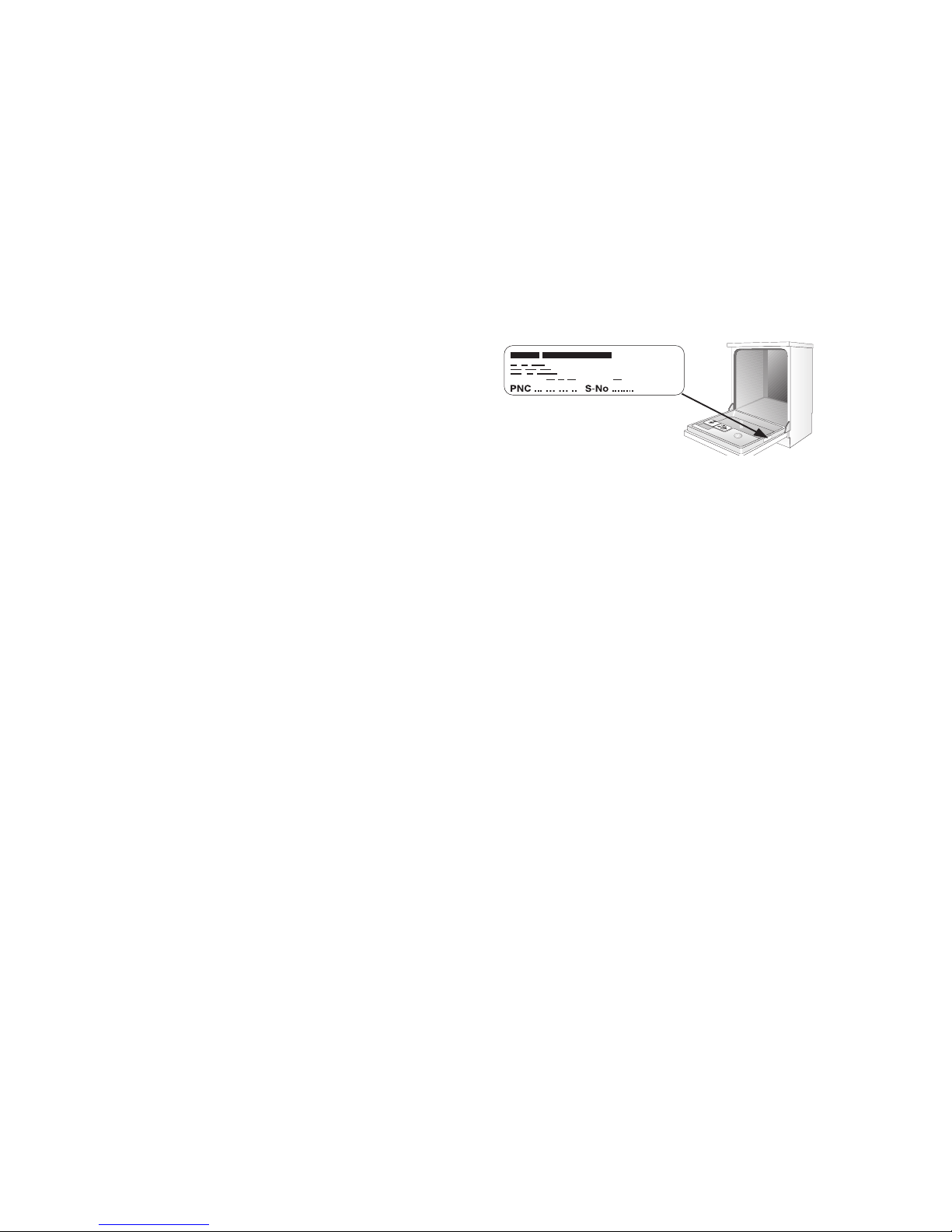

Rating Plate

Container
for Rinse Aid

Container for
Detergent

Filters

Rubber Seal for Con­necting the Water
Feed to the Upper
Spray Arm

Water Hardness Switch

Top Spray Nozzle

8

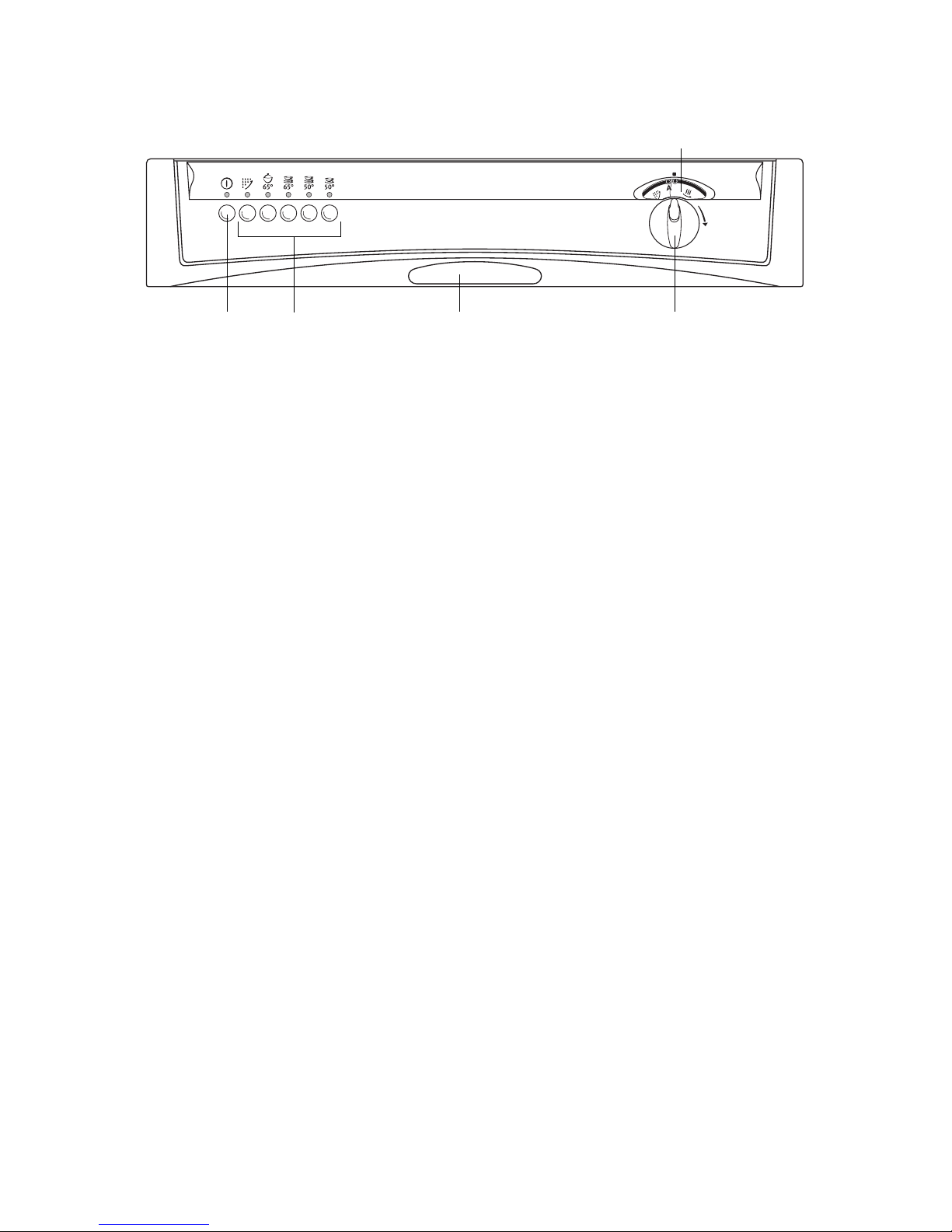

Control panel

ON/OFF button

Programme buttons

Door release handle

Programme cycle indicator

Programme switch

a

ON/OFF button

Programme buttons

b

Pre Wash

c
q

Intensive 65 °C

é

Normal 65 °C

è

Normal 50 °C

ã

Eco 50 °C

Programme switch

Set the point at which the wash programme is to
start using the programme switch.

Programme cycle indicator

While the programme is running, the indicator
disc rotates to show you the respective pro­gramme step.

b

Pre Wash

x

Main Wash

Ö

Intermediate Rinse

u

Final Rinse

z

Drying

9

Prior to using for the first time

Prior to using for the first time, remove all the clips
with which the dish racks are secured for transport.
Then perform the following steps:

1. Adjust the water softener

2. Filling with Special Sa lt for the Water Softener

3. Filling with Rinse Aid

Adjusting the Water Softener

To prevent the build up of scale on dishes and in the
dishwasher, the dishes must be washed with soft, i.e.
low lime content water. For this reason the dish­washer is fitted with a water softener in which tap
water from a hardness of 4 °d (German degrees) is
softened with the aid of special salt.

3

Your local water authority can advise you on
the hardness of the water in your area.
The water softener has 4 settings.

Adjust the water softener in accordance with the table
to suit your area:

1. Open the door on the dishwasher.

2. Remove the lower rack from the dishwasher.

3. Adjust the water hardness switch with, e.g. a coin.

4. Replace the lower rack and close the door of the

dishwasher.

Water Hardness

in °d

1)

in ppm

2)

1)(°d) German degree, measure of water hardness

2)(ppm) parts per million (CaCO

3

)

*Factory setting

Turn the arrow on the water
hardness switch to number

29-50
22-28

510 - 900
390 - 500

4
3

15-21 260 - 380 2*

4-14 70 - 250 1

under 4 under 70

1

no salt necessary

10

Filling with Special Salt for the Water Softener

1

Use only special salt for dishwashers. Never
fill the salt container with any another type of
salt (e.g. culinary salt) or dishwasher deter­gent. This would irreparably damage the
water softener.
Prior to filling with salt, please check each
time that you really do have a packet of spe­cial salt in your hand.

Fill with special salt:

• Prior to using the dishwasher for the first time

• If a green mar k can be seen under the lid of the

special salt container, then there is sufficient spe­cial salt. If the green mark cannot be seen, you
must refill the container with special salt.

3

If the water hardness in your area is less
than 4 °d, you do not need to use special
salt. The green mark will then not be visible.
The function of the appliance is not impaired.

1. Open the door, remove the lower rack.

2. Undo the lid on the salt container by turning it anti-

clockwise.

3. Only when using for the first time:

fill the salt container with water.

4. Place the funnel supplied on the container open­ing.
Fill the container with special salt through the fun­nel; the capacity of the container is approx. 1.0-

1.5 kg depending on the grain size. Do not overfill
the salt container with special salt.

3

The water expelled by filling the salt con­tainer with special salt runs out of the salt
container onto the base of the washing com­partment. This is not a cause for concern,
the water will be pumped out at the start of
the next wash programme.

5. Clean any salt remnants on the container open­ing.

6. Turn the lid clockwise to the stop, otherwise spe­cial salt will leak into the wash water, this could
lead to poor wash results. To avoid this run a rinse
program after filling the salt container with special
salt. This will wash away salt water and any salt
crystals that have been spilt.

3

Depending on the size of the salt grains, it
can take several hours for the salt to dissolve
in the water and the green mark to become
visible again.
The setting of the water softener and thus
the consumption of salt are dependent on
the hardness of the local water.

SALE

SALT

SALZ

SEL

11

Filling with Rinse Aid

Rinse aid ensures that your dishes gleam and are
free from spots, and that you glasses are clear.

1

Use only branded rinse aid for dishwashers.
Never fill the rinse aid container with any
another substance (e.g. concentrated vine­gar). This would damage the appliance.

Fill with rinse aid:

• Prior to using the dishwasher for the first time.

• When a dark point surrounded by a light ring is to

be seen in the indicator window on the container.
If there is sufficient rinse aid in the container, the
indicator window is uniformly dark.

The rinse aid compartment is on the inside of the
dishwasher door.

1. Open the door.

2. Press the rinse aid compartment release button

with your finger.

3. Fully open the rinse aid compartment lid.

4. Fill with rinse aid exactly up to the level marked

“max”; this corresponds to a quantity of approx.
140 ml.

5. Close the lid and press until it locks into place.

6. Wipe up any spilt rinse aid with a cloth. Otherwise

too much foam will be formed during the wash.

Adjusting Rinse Aid Dosing

3

As the dishes are washed rinse aid is
released from the dispenser into the wash
water. The dose is factory set at 4, and can
be adjusted from 1 to 6. Only change the set­ting if streaks, milky spots or dried on water
marks are visible on glasses or crockery.

1. Open the door of the dishwasher.

2. Press the rinse aid compartment release button

with your finger.

3. Fully open the rinse aid compartment lid.

4. Set the dose level.

5. Close the lid and press until it locks into place.

6. If rinse aid has run out, wipe up with a cloth.

12

In Daily Use

• Is it necessary to refill with special salt or rinse
aid?

• Load cutlery and dishes into the dishwasher

• Fill with dishwasher detergent

• Select a wash programme suitable for the cutlery

and dishes

• Start the wash programme

Loading cutlery and dishes

1

Sponges, household cloths and any object
that can absorb water may not be washed in
the dishwasher

.

• Before loading the dishes, you should:
– Remove large left-overs.
– Soften remnants of burnt food in pans.

• When loading the dishes and cutlery,please note:
– Dishes and cutlery must not impede the rota-

tion of the spray arms.

– Load hollow items such as cups, glasses,

pans, etc. with the opening downwards so that
water cannot collect in the container or a deep
base.

– Dishes and items of cutlery must not lie inside

one another, or cover each other

– To avoid damage to glasses, they must not

touch

– Do not lay small objects (e.g. lids) in the cutlery

rack

For washing in the dis hwasher the following cutlery/dishes

are not suitable: are of limited suitability:

– Cutlery with wooden, horn,

china or mother of pearl handles

– Plastic items that are not heat resistant
– Older cutlery with cement that is not tempera-

ture resistant

– Bonded cutlery items or dishes
– Pewter or copper items
– Lead crystal glass
– Steel items subject to rusting
– Wooden platters
– Items made from synthetic fibres

– Only wash stoneware in the dishwasher if it is spe-

cifically marked as being dishwasher-safe by the
manufacturer.

– Glazed patterns may fade if machine washed fre-

quently.

– Silver and aluminium parts have a tendency to dis-

colour during washing. Left-overs, e.g. egg white,
egg yolk and mustard often cause discolouring and
staining on silver. Therefore always clean left-overs
from silver immediately, if it is not to be washed
straight after use.

– Some types of glass can become dull after a large

number of washes.

13

Loading Cutlery

1

Long bladed knives stored in an upright posi­tion are a potential hazard.

1

Long and/or sharp items of cutlery such as
carving knives must be positioned horizon­tally in t he upper basket.

1

Take care when loading or unloading sharp
itemssuchasknives.

To ensure that all items of cutlery are completely
washed, you should

1. Place the grid insert on the cutlery rack

2. Place short knives, forks and spoons in the grid

insert with their handles pointing downwards.

Some models of dishwasher have cutlery baskets
without a cutlery grid.

Loading Pans, Frying Pans and
Large Plates

Load large and heavily soiled dishes in the lower
rack.

3

To make it easier to load large dishes, it is
possible

- to remove the plate inserts from the lower
rack.

- to move the cutlery basket sideways.

14

Loading Cups, Glasses and Coffee
Services

Arrange smaller, sensitive items in the lower rack and
place long, pointed items of cutlery in the knife
drawer.

• Arrange plates and dishes offset on and under the
folding cup racks so that washing water can reach
all items.

• The cup racks can be folded up out of the way for
tall items.

• Lay or hang wine, champagne, and brandy
glasses in the cut outs on the cup racks.

• Glasses, beakers, etc. can also be placed on the
two rows of prongs on the left of the upper rack.

15

Adjusting the Height of the Upper
Basket

3

The height of the basket can also be
adjusted when it is loaded.
Depending on the model, your appliance is
provided with one of the following types of
upper basket:

Lowering the Upper Basket:

1. Pull the upper basket out completely.

2. Lift and lower the upper basket using the handle at

the rear of the right hand cup basket.

Raising the Upper Basket:

1. Pull the upper basket out completely.

2. Lift the upper basket by the handle, pull gently for-

wards and allow to latch into the upper position.

Lowering the Upper Basket:

1. Pull the upper basket out completely.

2. Holding the upper basket by the handle, lift it as

far as it will go and then lower it vertically. The
upper basket will engage in the lower position.

Raising the Upper Basket:

1. Pull the upper basket out completely.

2. Holding the upper basket by the handle, lift it as

far as it will go and then lower it vertically. The
upper basket will engage in the higher position.

Maximum Height of the Dishes in the

Upper Rack Lower Rack

With upper basket raised 22 cm 31 cm
With upper basket lowered 24 cm 29 cm

Type 1

Type 2

16

Filling with Detergent

1

Only use dishwasher detergent.

Fill with detergent:

Prior to the start of a wash programme (not for the
pre wash programme). The detergent is released into
the wash water during the programme.

2

Please observe the manufacturer's dosing
and storage recommendations as stated on
the detergent packaging.

The detergent compartment is on the inside of the
dishwasher door.

1. If the lid is closed:
press release button (1).
The lid springs open.

2. Fill the detergent dispenser with detergent. The
markings indicate the dosing levels:

“20” corresponds to approx. 20 ml of detergent,
“30” corresponds to approx. 30 ml of detergent.

3. Close the lid and press until it locks into place.

3

If the dishes are very heavily soiled put addi­tional detergent into the adjacent chamber
(2). This detergent will take effect during the
pre wash.

17

Selecting the Wash Programme (Programme Table)

Choose the most suitable wash programme with the aid of this table:

1)

The consumption figures were recorded under standard conditions. They are dependent on the loading of the
dish racks. Variations are therefore possible in practice.

Type of
Dishes:

Dinner Service and Cooking Utensils

Coffee Service

and Dessert

Dishes

All

Dish Types

In Addition:

- - with non-temperature resistant dishes -

Type of
Soiling:

heavily
soiled
driedonleft­overs, particu­larly egg white
and thickeners

normally
soiled
dried left-overs

normally
soiled

normally to lightly
soiled

Useddishesthat
are collected in
the dishwasher
andaretobe
washed at a
later point in
time.

particularly suited

to the use of concentrated deter-

gents.

Suitable
Programme:

ттттт

INTENSIVE

65°C

NORMAL

65 °C

NORMAL

50 °C

ECO

50 °C

PRE WASH

Turn
Programme
Switch to:

AAABA

Press
Programme
Button:

c

q

éèãb

Programme
Sequence:

Pre Wash
Main Wash
2x Intermediate
Rinses
Final Rinse
Drying

Pre Wash
Main Wash
Intermediate
Rinse
Final Rinse
Drying

Pre Wash
Main Wash
Intermediate
Rinse
Final Rinse
Drying

­Main Wash
Intermediate
Rinse
Final Rinse
Drying

Pre Wash

-

-

-

-

Consumption
Figures:

1)

ттттт

Duration: 92 minutes 88 minutes 83 minutes 72 minutes 10minutes
Energy: 1,7 kWh 1,35 kWh 1,24 kWh 1,2 kWh < 0.1 kWh
Water: 22 litres 19 litres 19 litres 14 litres 6litres

18

Setting the dishwashing programme

1. Check that the dishes and cutlery are loaded into

the dishwasher in such a manner that the spray
arms are free to rotate.

2. Open the tap fully.

3. Close dishwasher door.

4. Turn the programme switch clockwise to A or B

(see „ Programme Table“).

1

For interference suppression reasons, only
operate the programme switch with the dish­washer switched off. It is also possible that
the automated addition of detergent will be
triggered.

5. Press the button for the programme required
(see „ Programme Table“).

6.

Press ON/OFF button a. Power indicator
light illuminates. The selected wash pro­gramme starts.
The programme switch rotates during the
wash programme and indicates the position
that has been reached in the programme.

1

If a wash programme has been started even
though the tap was closed, switch off the
dishwasher with the ON/OFF button

a,

open the tap and start the wash programme
again.

Changing/Interrupting the Wash
Programme

3

Only change or interrupt a wash programme
in progress if it is ab solutely necessary.
When the appliance is closed again, the air
that has entered is heated rapidly and
expands. This can cause water to escape
onto the floor and possibly trigger the anti­flood system.

Changing the wash programme

1. Press ON/OFF button a. Power indicator light

goes out, wash programme stops.

1

Hot steam can escape when the door is
opened. There is a risk of scolding! Open the
door carefully.

2. Open dishwasher door and check whether there is
still detergent in the container. Refill the container
if necessary.

3. Close dishwasher door.

4. Turn the programme switch clockwise to A or B

(see „ Programme Table“).

5. Press the button for the programme required
(see „ Programme Table“).

6. Press ON/OFF button

a.ON/OFFbuttona

indicator illuminates. The selected wash pro­gramme starts.

Interrupting the wash programme by
opening the door of the dishwasher

1

Hot steam can escape when the door is
opened. There is a risk of scolding! Open the
door carefully.

1. Open the door of the dishwasher. The wash pro­gramme stops.

2. Shut the door. The wash programme continues.

Switching Off the Dish­washer

When the wash programme is finished:

1. Press the ON/OFF button

a . Power indicator

light goes out.

1

Hot steam may escape if the door is opened
immediately after the end of the programme.
Therefore:

2. Open the door carefully.

Emptying the Dishwasher

3

• Hot dishes are sensitive to knocks. The dishes
should therefore be allowed to cool down before
removing them from the appliance.

• Leave the dishes in the dishwasher for approx. 15
minutes after the end of the programme so that
they dry better and can cool down.

• Empty the lower rack first, then the upper rack. In
this way you will avoid any water left on the upper
rack dripping onto the dishes in the lower rack and
causing water spots.

1

Please note, that if your dishwasher is
installed under a kitchen worktop, escaping
steam may damage the worktop. Its under­side must be protectad against rising steam
with aluminium foil as prescribed.

19

Care and Cleaning

1

Do not under any circumstances use furni­ture care products or aggressive cleaners.

• If necessary, clean the controls only with a soft
cloth and pure warm water.

• The spray arms do not need cleaning.

• Occasionally check the internal containers, door

seal, and water inlet for soiling, clean if necessary.

Cleaning the Filter

3

Thefiltersinthebaseofthewashingcom­partment are to a large extent self-cleaning.
Nevertheless the filters should be checked
and cleaned from time to time. Dirty filters
will degrade the washing result.

1. Open the door, remove the lower rack.

2. The dishwasher filter system comprises a coarse/

fine filter, microfilter and a flat filter. Unlock the fil­ter system using the handle on the microfilter, and
remove.

3. Turn the handle about ¼ a turn anticlockwise and
remove.

4. Take hold of the coarse/fine filter (1) by the handle
with the hole and remove from the microfilter (2).

5. Clean all filters thoroughly under running water.

6. Remove the flat filter (3) from the base of the

washing compartment and clean both faces thor­oughly.

7. Put the flat filter back in the base of the washing
compartment.

8. Place the coarse/fine filter in the microfilter and
press together.

9. Put the filter combination in place and lock by
turning the handle clockwise to the stop. During
this process ensure that the flat filter does not pro­trude .above the base of the washing compart­ment.

1

Under no circumstances may the dishwasher
be used without filters.

20

Cleaning the Panel

To be able to clean the control panel of the dish­washer, it is possible to remove the Plexiglas cover
from the control panel.

Remove the Plexiglas Cover

1

Pull the mains plug of the dishwasher out of
the socket.

1. Close dishwasher door.

2. In the case of dishwashers with program switches,

set these switches to the horizontal position (only
turn them clockwise!).

3. There is a small recess in the bottom centre of the
Plexiglas cover. Insert a screwdriver into this
recess and carefully lift the Plexiglas cover



until
the hooks on both sides of the Plexiglas cover
spring out of the eyes of the control panel



.

1

Caution: When doing this, do not scratch the
control panel with the screwdriver.

4. Swivel the Plexiglas cover up and remove it.

5. Clean the control panel and the Plexiglas cover

with a cloth and hand detergent. Never use strong
cleaning agents.

Insert the Plexiglas Cover

1

The Plexiglas cover and the control panel
must be dry. The program switch must be
horizontal in the case of units with a program
switch.

1. With the door closed, press the Plexiglas cover up
into the joint of the control panel.

2. Slightly bend the Plexiglas cover so that the two
hooks of the Plexiglas cover fit into the eyes of the
control panel. It is best to begin with the left hook.

3. After pressing again in the upper part, check that
the Plexiglas cover is correctly fitted.

4. Turn the program switch clockwise into the zero
position in the case of units with a program switch.

5. Plug the mains plug back into the socket.

I

I

I

21

What to do, when ...

Try to rectify minor faults on the dishwasher with the
aid of the instructions given here. If you call in cus­tomer service to resolve one of the malfunctions
listed here, or rectify an error made in the operation

of the appliance, the customer service engineer’s visit
is not free of charge, even during the period of guar­antee.

...there are problems with the operation of the dish­washer.

...the wash result is unsatisfactory.

The dishes are still dirty.

• The wrong wash programme was selected.

• The dishes were arranged in such a manner that

water has not reached all parts. The dish racks
must not be overloaded.

• The filter in the base of the washing compartment
is dirty or incorrectly positioned.

• Detergent was not used or too little was used.

• In the case of scale deposits on the dishes: the

special salt container is empty or the water sof­tener is incorrectly adjusted.

• The drain hose is incorrectly laid.

The dishes are wet and dull.

• Rinse aid was not used.

• The rinse aid container is empty.

There are streaks, milky spots or a bluish
coating on glasses and dishes.

• Decrease rinse aid dosing.

There are dried water drops on the
glasses and dishes.

• Increase rinse aid dosing.

• The detergent may be the cause. Contact the

detergent manufacturer's consumer advisor.

Malfunction Possible Cause Remedy

Thedrainpumpinthe
dishwasher runs contin­uously - even with the
appliance switched off.

The anti-flood system has been triggered.

Close the tap,
then unplug from the mains and
contact customer service.

The programme does
not start.

The door of the dishwasher is not closed
properly.

Shut the door.

Mains plug is not plugged in. Inser t mains plug.
House fuse in defective. Replace fuse.

In the case of dishwasher models with start
delay timer:
A start delay is selected.

Where dishes are to be washed immedi­ately, for appliances

- with multidisplay, set the delay start
to 0.

- without multidisplay, cancel the delay
start timer.

Rust spots are visible in
the washing compart­ment.

The washing compartment is made of cor­rosion-resistant stainless steel. Rust spots
in the washing compartment are from parti­cles from outside the appliance (rust parti­cles from the water pipe,from pans, cutlery,
etc.). Remove such spots with a commer­cially available stainless steel cleaner.

Only wash cutlery and dishes that are
suitable for dishwasher use.

Close the lid of the special salt container
securely.

There is a whistling
noise during washing.

The whistling is not a cause for concern. Use a different brand of detergent.

22

Technical Data

Capacity: 12 place settings including serving dishes
Permitted Water

Pressure:

1-10 bar (=10-100 N/cm2= 0.1-1.0 MPa)

Electrical Connection: Information on the electrical connection is given on the rating plate on the inner edge

of the dishwasher door on the right.

Dishwasher: Free-Standing Appliances

Dimensions: 850 x 600 x 600 (H x B x D in mm)
Max. Weight: 54 Kg

Dishwashers that Can Be Integrate d, Built-In Dishwashers

Dimensions: 820 – 880 x 596 x 570 (H x W x D in mm)
Max. Weight: 50 Kg

Dishwashers that Can Be Fully Integrated

Dimensions: 820 – 880 x 596 x 546 - 550 (H x W x D in mm)
Max. Weight: 50 Kg

;

This appliance conforms with the following
EU Directives:

• 73/23/EWG dated 19. 02. 1973 – Low
Voltage Directive

• 89/336/EWG dated 03. 05. 1989
(including Directive Amendment 92/31/
EWG) – EMC Directive

23

Notes for Test Institutes

Testing in accordance with EN 60704 must be carried out with the appliance fully loaded and using the test pro­gramme (see Programme Table).
Tests in accordance with EN 50242 must be carried out when the salt dispenser and rinse aid container have
been filled with salt and rinse aid respectively and using the test programme Normal 50 °C.

Sample loading arrangement: Upper basket

Sample loading arrangement: Upper basket

Sample loading arrangement: Lower basket

Full Load:

12 place settings incl. serving dishes

Half Load:

6 place settings incl. serving dishes,

leaving alternate positions free
Detergent Dosing: 5g + 25g (Type B) 20g (Type B)
Rinse Aid Setting: 4 (Type III) 4 (Type III)

24

Sample loading arrangement: Cutlery basket
Some dishwasher models have cutlery baskets with-

out a grid insert.

25

INSTALLATION AND CONNECTION
INSTRUCTIONS

Installing the Dishwasher

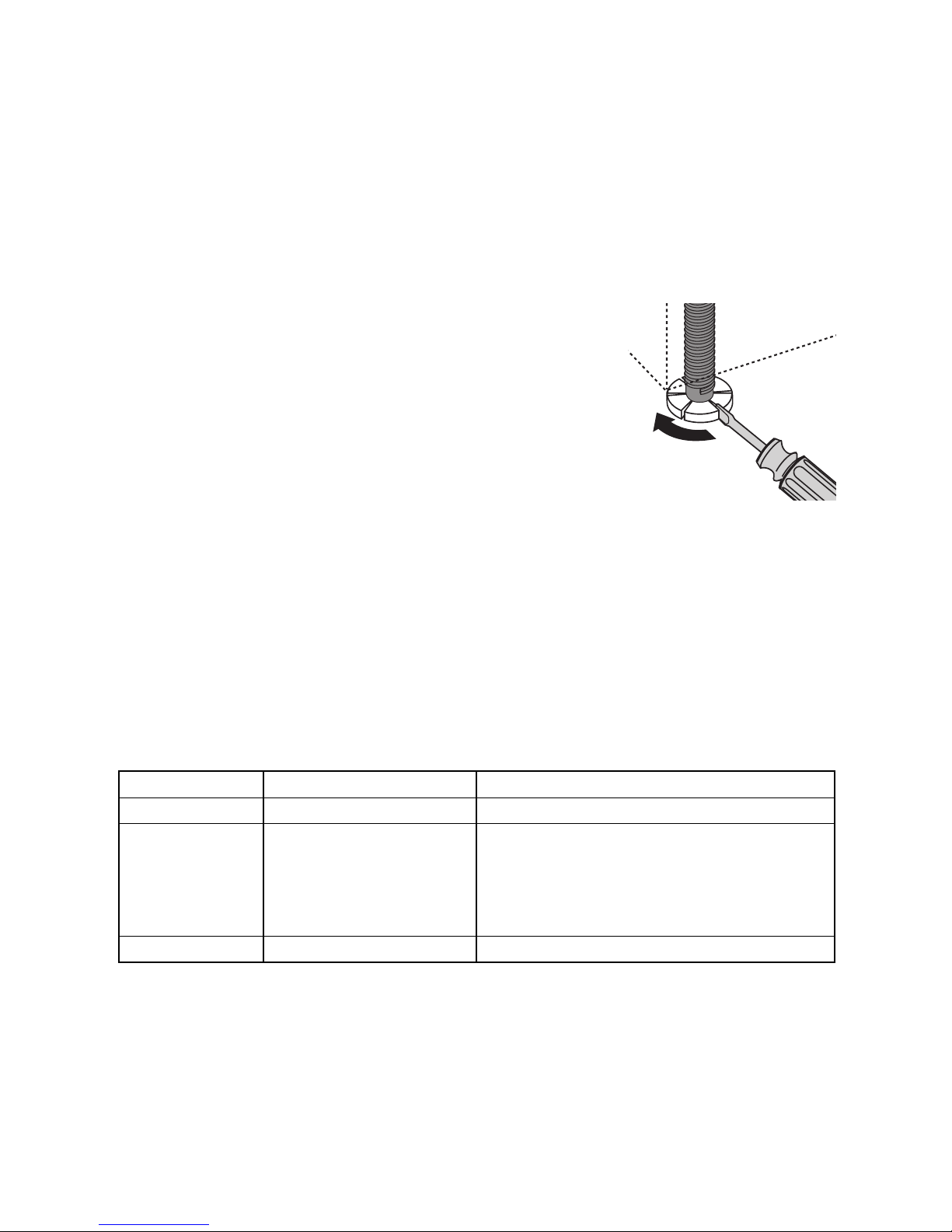

• The dishwasher must be installed on a firm floor
and adjusted to ensure that it is stable and level.

• To compensate for unevenness in the floor and to
match the height of the appliance to that of sur­rounding units extend the threaded feet by
unscrewing :

– use a screwdriver.

• For built-in, integrated and fully integrated dish-

washers, the rear feet should be adjusted from the
front of the appliance using a screwdriver.

• The drain hose, inlet hose and mains cable must
not be kinked or crushed when the dishwasher is
in position.

• The dishwasher must also be screwedon tightly to
the work surface or to the adjoining units. This is
essential to ensure the diswasher does not tip.

Depending on type, the dishwasher is to be installed as follows:

Dishwashers That Can Be Inte­grated

(see installation template supplied)

3

The door of the appliance can be fitted with a
wooden furniture door with the following
dimensions

1

If the facing panel is longer than 600 mm, the
door of the appliance cannot be opened
completely (the facing panel bumps against
the plinth).
If this is the case, the plinth must be cut out
(see installation template) or the brace
adapter for the extra long door BLT 60 must
be used. You can obtain this with the E No.
911 239 008.

Width: 591 – 594 mm
Thickness: 16 – 24 mm
Height:

(variable)

dependent on - Recess height

- Plinth height

- The adjustment so that th e unit matches the height
of the adjoining units
The exact height of the adjoining units must be
measured at the place of installation.

Weight: max. 8 kg

26

Built-In Dishwasher

(see enclosed installation instructions)

Free-Standing Appliances

1

can be set up as stand-alone without addi­tional installation.
If the dishwasher is set up next to a cooker, a
heat-insulating, non-flammable plate must be
mounted between the dishwasher and the
cooker, flush to the top edge of the work sur­face (depth 57.5 cm). The plate should have
aluminium foil on the side facing the cooker.

If the dishwasher is installed underneath a kitchen
work surface, the original work surface of the dish­washer is to be removed as follows:

1. Unscrew the screws (1) from the elbows on the
back side.

2. Slide the work surface approx. 1 cm to the rear(2),
lift at the front(3) and remove.

3. Press the work surface retaining brackets at the
position (4) shown in the diagram and remove the
bracket at an angle to the rear (5).

1

If the dishwasher is later used as a free­standing appliance, the original work surface
must be re-mounted.

3

The plinth on free-standing appliances is not
adjustable.

• Free-standing appliances can be fitted with a
décor panel to match the facings of other kitchen
equipment. The décor panels must be obtained
from the kitchen manufacturer. A décor frame is
necessary for installation, and can be obtained as
an accessory from the dealer if not included in the
scope of delivery.

• Decor panel dimensions:
– Height 597mm
– Width 587mm
– Clamp thickness: max. 4mm

• The corners of the décor panels must be cham-
fered at 5 mm x 45°.

• To ensure that thin decor panels do not flex or dis-

tort, attach them to the door of the appliance using
double sided adhesive tape.

4

5

27

Connecting the Dishwasher

Water Connection

The dishwasher is fitted with safety devices that pre­vent the wash water returning into the drinking water
system and comply with the applicable plumbing reg­ulations.

• The dishwasher can be connected to cold and hot
water supplies up to max. 60 °C.

• The dishwasher must not be connected to open
hot water appliances or instantaneous water heat­ers.

Permitted water pressure

Connect the inlet hose

1

The water inlet hose must not be kinked,
crushed or entangled when it is being con­nected up.

Connect the threaded hose fitting (DIN 259)
on the water inlet hose to a tap with an exter­nal thread (¾ inch). Tighten the threaded
hose fitting hand tight only.

3

In order that access to the tap in the kitchen
is not limited by the use of the dishwasher,
we recommend the installation of an addi­tional tap, or fitting a two way adapter to the
existing tap.

• If you need a longer water inlet hose than that
supplied, VDE approved complete hose sets are
to be used. These are available from your local
Service Force Centre.

Lowest permitted water pressure:
1 bar (=10 N/cm

2

=100 kPa)

Consult your installer if the water pressure is less than 1 bar.

Highest permitted water pressure:
10 bar (=100 N/cm

2

=1 MPa)

In the case of a water pressure greater than 10 bar, a pressure reduc­tion valve must be used (available from your dealer).

28

Water drain

Drain hose

1

The drain hose must not be kinked, crushed
or entangled.

• Connecting the drain hose:
– Maximum permitted height: 1 metre.
– Minimum required height 30 cm above the

lower edge of the machine.

Extension hoses

• Extension hoses are available from your dealer or
customer service. The internal diameter of the
extension hoses must be 19 mm to ensure that
the function of the appliance is not impeded.

• Extension hoses may be laid a maximum of 3
metres horizontally; the maximum per mitted
height for the connection for the drain hose is then
85 cm.

Siphon connection

• The outlet of the drain hose (ø 19 mm) fits all com­monly available siphon types. The outer diame ter
of the siphon connection must be at least 15 mm.

• The drain hose must be fixed to the siphon con­nection using the hose clamp supplied.

Water drain into wash basins (only possi­ble with free-standing appliances)

In the case that you wish to hang the drain hose in a
wash basin, use a detachable hose elbow. You can
obtain this from customer service under spare part
number ET 646 069 190.

1. Fit the elbow to the drain hose.

2. Secure the drain hose against sliding off the edge

of the wash basin.
Pass a piece of cord through the hose elbow and
fix it to the wall or the tap.

Leak Prevention System

For protection from damage due to water leaks, the
dishwasher is equipped with a leak prevention sys­tem.
In the event of a fault, the drain pump switches on. By
this means water can neither escape nor overflow.
The remaining water in the appliance is automatically
pumped out.

1

The leak prevention system also works when
the appliance is switched off – the appliance
must however not be disconnected from the
mains.

29

Electrical connection

1

In compliance with electric company techni­cal requirements for mains connections,
hard-wired connections to the mains may
only be made by approved electri-cians.

When connecting the appliance, observe the German
VDE regulations and, if applicable, any additional
conditions required by your local electricity supplier.
Following installation, live parts and live insulated wir­ing must not be accessible using a finger test in
accordance with EN 60335/DIN VDE 0700.

Information on the electrical connection can be found
on the rating plate on the right side of the inner edge
of the dishwasher door. I f the appliance has a
change-over switch, the additional instructions on the
change-over diagram in the mains connector box
must be observed.

Prior to connecting ensure that the mains voltage and
current rating at the site of installation match the
nominal voltage and current rating given on the rating
plate. The required fuse protection is also to be found
on the rating plate.

To isolate the dishwasher from the mains, remove the
mains plug.
Important: The plug must still be accessible after the
appliance has been installed.
If the appliance is hard-wired to the mains supply,
then it must be safely iso-lated from the mains within
the electrical installa-tion with an all-pole (N,L1) iso­lator (eg. protective cut-out) with a contact gap of > 3
mm.

30

Connections

The water inlet and drain hoses, as well as the mains
cable must be connected beside the dishwasher
because there is no space for them behind the appli­ance.
The example plumbing and electrical installation
given below can only be regarded as a recommenda­tion; the actual situation where the dishwasher is to
be installed will define the exact installation (available
connections, local electricity and water board regula­tions for connecting up appliances, etc.).

Two 45° or Straight Connec­tions,Outer ø 19 mm, Length 30 mm

Double
tap

Water
drain

Water
inlet

Water
drain

Waterinlet Mains cable

Mains cable

Mains
socket

31

SERVICE

In the section "What to do, if..." the most important
sources of faults that you can rectify yourself are
summarised.
If, nevertheless, you call in customer service to
resolve a problem listed in these instruction, or
because of an error made in operating the appliance,
the customer service engineer’s visit is not free of
charge, even during the warranty period.
If you can not find any information on a specific mal­function in these operating instructions, please con­tact customer service.
Please provide customer service the PNC number
and the S No. (serial number), you can find these on
the rating plate. The plate is on the inner edge of the
door on the right.

So that you always have these numbers at hand, we
recommend you to make a note of them here:

Model:

............................................................

PNC :

............................................................

S-No :

............................................................

Date of
purchase:

............................................................
